Broan Best KER222 Series User manual

- 1 -
BEST BY BROAN P.O. Box 140 Hartford, WI 53027
ENGLISH......................................3
FRANÇAIS.................................12
ESPAÑOL...................................21
Model KER222

- 3 -
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions,
contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service
panel to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accor-
dance with all applicable codes and standards, including fire-rated construction codes
and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equip-
ment manufacturer’s guidelines and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes
Suzette, Cherries Jubilee, Peppercorn Beef Flambe’).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or
filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface
element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will
result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already know how to operate
it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
!
INTENDED FOR DOMESTIC COOKING ONLY
!

- 4-
!
CAUTION
1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent
exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
2. Take care when using cleaning agents or detergents.
3. Avoid using food products that produce flames under the Range Hood.
4. For general ventilating use only. Do not use to exhaust hazardous or explosive mate-
rials and vapors.
5. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall
spray, construction dust, etc. off power unit.
6. Your hood motor has a thermal overload which will automatically shut off the motor if it
becomes overheated. The motor will restart when it cools down. If the motor continues
to shut off and restart, have the hood serviced.
7. For best capture of cooking impurities, the bottom of the hood should be a minimum of
24" and a maximum of 30" above the cooking surface.
8. Two installers are recommended because of the large size and weight of this hood.
9. This product is equipped with a thermostat which may start blower automatically. To
reduce the risk of injury and to prevent power from being switched on accidentally,
switch power off at service panel and lock or tag service panel.
10. Use with approved cord-connection kit only.
11. Please read specification label on product for further information and requirements.

- 5 -

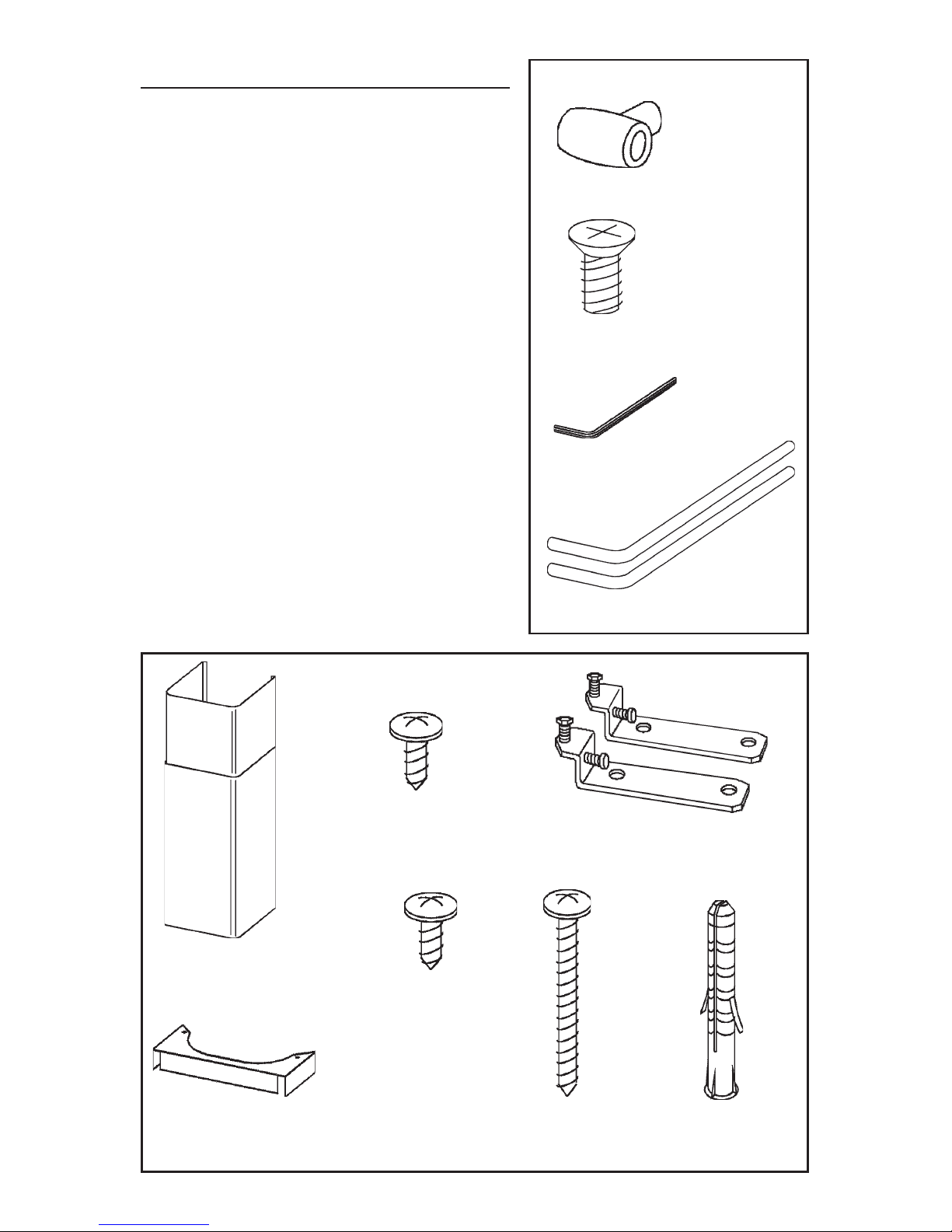

PREPARE THE HOOD
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Flue Mounting Bracket
1 - Parts Bag (B080810601) containing:
2 - Mounting Brackets
8 - Mounting Screws (4,8x38mm Pan
Head)
4 - Mounting Screws (3,9x9,5mm Pan
Head)
4 - Mounting Screws (3,9x9,5mm Pan
Head Black)
8 - Drywall Anchors
1 - Parts Bag (B080810321) containing:
2 - Side Ladle-Bars
2 - End Bits of the Ladle-Bars
2 - Mounting Screws (M8 x 14mm)
1 - Key
1 - Installation Instructions
1 - Warranty Card
MOUNTING
BRACKETS
FLUE MOUNTING
BRACKET
8 MOUNTING
SCREWS (4,8 x
38mm Pan Head)
8 DRYWALL
ANCHORS
4 MOUNTING
SCREWS (3,9 x 9,5mm
Pan Head)
DECORATIVE
FLUE 4 MOUNTING
SCREWS (3,9 x 9,5mm
Pan Head - Black)
SIDE LADLE-
BARS
END BITS OF
THE LADLE-
BARS
2 MOUNTING
SCREWS
(M8x14mm)
KEY

- 6 -
DECORATIVE
FLUE
WALL
CAP
ROOF CAP
8” ROUND DUCT
8” ROUND
ELBOW
HOOD
24” TO 30” ABOVE
COOKING SURFACE
BB
M
C
LADLE BAR
END BITS
LOWER PART OF
THE HOOD
A
A
INSTALL THE DUCTWORK
NOTE: To reduce the risk of fire, use only
metal ductwork.
1. Decide where the ductwork will run between
the hood and the outside.
2. A straight, short duct run will allow the hood
to perform most efficiently.
3. Long duct runs, elbows, and transitions will
reduce the performance of the hood. Use as
few of them as possible.
4. Install a roof or wall cap. Connect 8" round
metal ductwork to cap and work back to-
wards hood location. Use duct tape to seal
the joints between ductwork sections.
HOW TO ASSEMBLE THE
LADLE BAR
Thesideladlebarsmustbeassembledbefore
installingthe hoodagainst thewall.
To assemble the side ladle -bars follow the
instructions below:
1. Take off the two end bits of the ladle bar
slackening screws B. Insert the side ladle
bars where the end bits were and fix them
by means of screws B.
2. Insert the fixing element M into the side ladle
bar and fix it tightening screw C.
3. To fix definitively the M element onto the
hood, it is necessary to have access from
the inside of the hood:
- remove the grease filters: at the handle,
push the stop inwards and pull the filters
downwards.
- take off the lower part of the hood
unscrewingthetwoscrewsA.Thelowerpart
of the hood must not be completely taken
off, but it must be bent slightly until the
screwdriver can have access. Fix element
M to the hood from the inside.
4. Reassemble the lower part of the hood.

- 7 -
INSTALL MOUNTING
BRACKETS
1. Construct wood wall framing that is flush
with interior surface of wall studs.
Make sure:
a) the framing is centered over installation
location.
b) the height of the framing will allow the
mounting brackets to be secured to the
framing within the dimensions shown.
2. After wall surface is finished, secure
mounting brackets to framing using
dimensions shown.
32-11/16” to 38-5/8” above
cooktop
FRAMING BEHIND DRYWALL
VERSION 90cm
9-5/8”
9-5/8”
32-11/16”= bottom of hood 24" above cooktop
38-5/8"= bottom of hood 30" above cooktop
INSTALL THE HOOD
1. Before mount hood remove the electrical box.
2. Hang the hood from the brackets through
the rectangular cut-outs on the back of the
hood. Cut-outs are larger than the brackets
to allow for horizontal adjustment.
The bottom of the hood should be 24" to 30"
above the cooking surface.
3. Height adjustment screws provide vertical
adjustment.
34-7/16” to 40-7/16” above
cooktop
FRAMING BEHIND DRYWALL
VERSION 48”
34-7/16” = bottom of hood 24" above cooktop
40-7/16” = bottom of hood 30" above cooktop
33-15/16” to 39-15/16” above
cooktop
FRAMING BEHIND DRYWALL
VERSION 42”
9-15/16”
9-15/16”
8-7/8”
8-7/8”
33-15/16” = bottom of hood 24" above cooktop
39-15/16"= bottom of hood 30" above cooktop
Note: minimun hood distance above cook top must not be less than 24”. A maximum
of 30” above cook top is highly recommended for best capture of cooking impurities.
Distances over 30” are at the installer and users discretion; and if ceiling height and
flue length permit.
HOOD
WIDTH
90CM
42”
HOOD DISTANCE ABOVE 36” HIGH COOK TOP
24” 25” 26” 27” 28” 29” 30”
BRACKET LOCATION ABOVE 36” COOK TOP
29-13/16” 30-13/16” 31-13/16”
48”
CEILING
HEIGHT
8 FEET
DIM.
“A”
9-5/8”
9 FEET N / A 31-13/16”
32-13/16”
32-13/16”
33-13/16”
33-13/16”
N / A
34-13/16” 35-13/16”
8 FEET
9 FEET 9-15/16”
N / A
N / A
31-1/16” 32-1/16” 33-1/16”
33-1/16”
34-1/16”
34-1/16”
35-1/16”
35-1/16” 36-1/16” 37-1/16”
8-7/8”
8 FEET
9 FEET N / A
N / A
31-9/16” 32-9/16” 33-9/16”
33-9/16”
34-9/16”
34-9/16”
35-9/16”
35-9/16” 36-9/16” 37-9/16”
REMOVE THE ELECTRICAL BOX

- 8 -

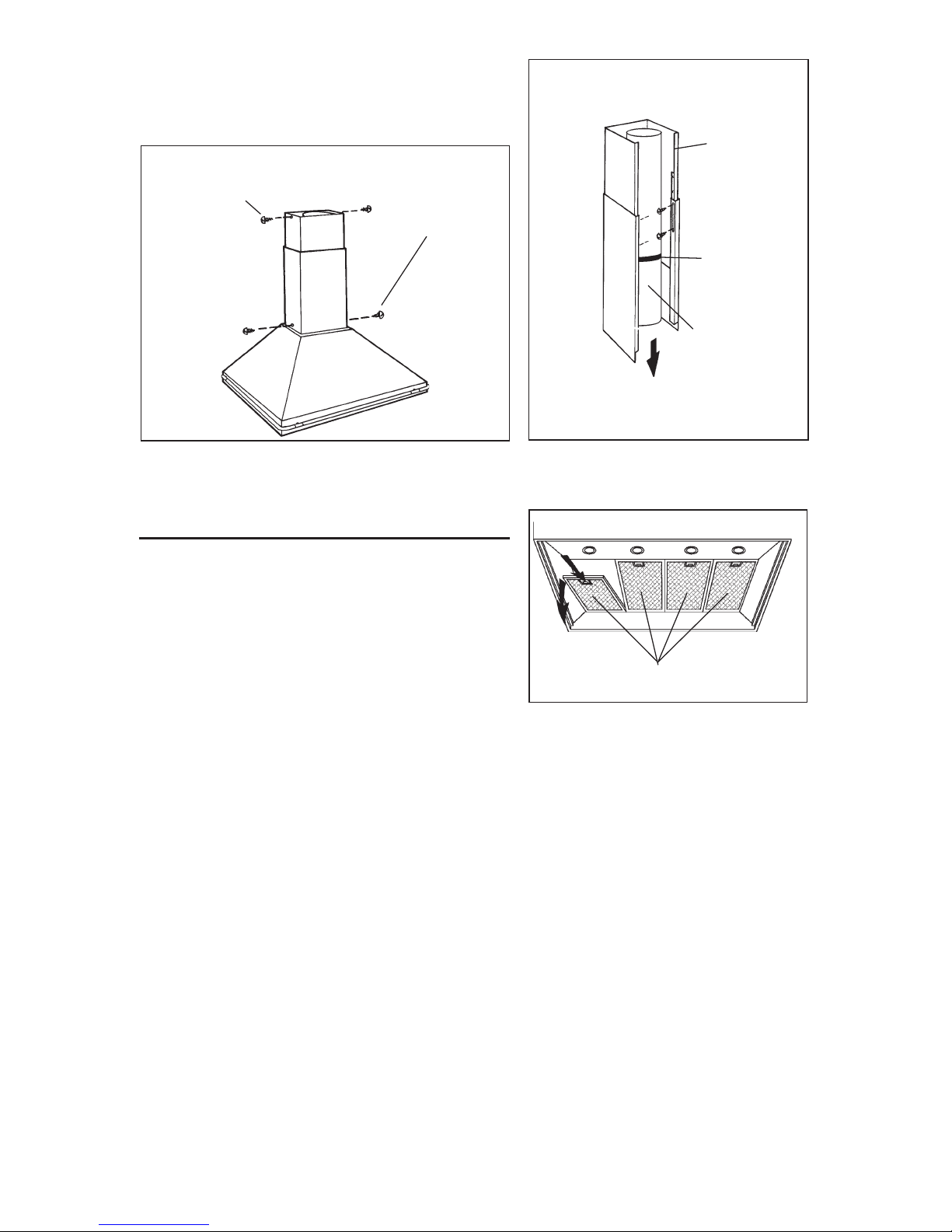

CONNECT DUCTWORK
1. Use mounting screws (4,8x38mm) and wall
anchors to secure flue mounting bracket
to the ceiling or wall as shown.
2. Use 8" round metal duct to connect the duct
collar on the hood to the ductwork above.
3. Use duct tape to make all joints secure and
air tight.
4. Adjust the decorative flue to the desired
lenght and tighten screw.
FLUE
MOUNTING
BRACKET
MOUNTING
SCREWS
(4,8x38mm)
WIRING
Note: This range hood must be properly
grounded. The unit should be installed by a
qualified electrician in accordance with all
applicable national and local electrical
codes.
1. Remove the wiring box cover. Remove a
knockout from the wiring box.
2. Secure the conduit to the wiring box through
a conduit connector.
3. Make electrical connections. Connect white
to white, black to black and green to green or bare wire.
4. Replace wiring box cover and screws. Make sure that wires are not pinched
between cover and box.
WIRING BOX COVER
DUCT
COLLAR
HEIGHT ADJUSTMENT SCREWS
DEPTH ADJUSTMENT
SCREWS
MOUNTING
SCREWS
(4,8x38mm)
WALL
FRAMING
MOUNTING
BRACKETS
RECTANGULAR
CUTOUTS
MOUNTING
SCREWS
(4,8x38mm)
4. Depth adjustment screws provide
horizontal adjustment.
5. Secure the hood with mounting screws
(4,8x38mm). Use drywall anchors,
provided, if wall studs or framing are not
available.
6. Replace electrical box.

- 9 -
MAINTENANCE
Proper maintenance of the Range Hood will
assure proper performance of the unit.
Grease Filters
The grease filters should be cleaned fre-
quently. Use a warm detergent solution. Grease
filters are dishwasher safe.
To take off the grease filters: at the handle, push
the stop inwards and pull the filters downwards.
Hood Cleaning
Stainless steel is one of the easiest materials to keep clean. Occasional care will
help preserve its fine appearance.
Cleaning tips:
●Hot water with soap or detergent is all that is usually needed.
●Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to
avoid water marks.
●For discolorations or deposits that persist, use a non-scratching household cleanser
or stainless steel polishing powder with a little water and a soft cloth.
●For stubborn cases, use a plastic scouring pad or soft bristle brush together with
cleaser and water. Rub lightly in direction of polishing lines or "grain" of the
stainless finish. Avoid using too much pressure which may mar the surface.
●DO NOT allow deposits to remain for long periods of time.
●DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere
to the surface causing rust.
●DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to
remain in contact with stainless steel for extended periods. Many of these com-
pounds contain chemicals which may be harmful. Rinse with water after expo-
sure and wipe dry with a clean cloth.
Painted surfaces should be cleaned with warm water and mild detergent only.
GREASE FILTERS
8" ROUND
METAL DUCT
DUCT TAPE
DECORATIVE
FLUE
FASTEN FLUE
TO HOOD
WITH MOUNTING
SCREWS
(3,9x9,5mm)
FASTEN FLUE TO
BRACKET WITH
MOUNTING SCREWS
(3,9x9,5mm)
5. Secure the decorative flue to the mounting
bracket, and to the hood by tightening
locking mounting screws (3,9x9,5mm) as
shown.

- 10 -
OPERATION
Controls
The hood is operated using the (5) push-
buttons located at eye-level, on the front edge
of the hood.
The light switch turns the halogen lights on
and off. Push the light switch once to turn the
lights ON - push a second time to turn the
lights ON to a brighter level - push a third time
to turn the lights OFF.
The blower on-off / speed 1 switch turns the
blower on to its lowest running speed. To turn OFF the blower, push in and hold
this blower switch for approximately 2 seconds.
The blower speed 2 switch turns the blower on to medium-low running speed.
Pressing this switch a second time sets a timer which keeps the blower operating
at this speed for 10 minutes. The LED will blink during this time and the blower will
shut off automatically.
The blower speed 3 and blower speed 4 switches operate the same as blower
speed 2 switch except: Blower speed 3 is medium-high and blower speed 4 is
high.
After every 30 hours of operation, the LED above the “blower speed 1 switch” will
be illuminated (RED) and blink for 30 seconds after turning off the blower. This is
a reminder to clean the grease filter. Once the grease filter is cleaned and installed,
press in and hold the “light switch” button for approximately 2 seconds during the
blink of the LED.
HEAT SENTRY™
Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a
device that will turn on or speed up the blower if it senses excessive heat above
the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original
setting.
WARNING
The HEAT SENTRY thermostat can start the blower even if the hood is turned
OFF. When this occurs, it is impossible to turn the blower OFF with its switch.
If you must stop the blower, do it from the main electrical panel.
BLOWER
ON-OFF /
SPEED 1
0-1 234
LED LED LED LED
BLOWER
SPEED 4
LIGHT
SWITCH BLOWER
SPEED 2
BLOWER
SPEED 3

- 11 -
FUSE REPLACEMENT
SWITCHOFF THEELECTRICITY SUPPLY.
Remove the grease filters.
Remove the electrical box support and open
the electrical box.
Replace with the same type of fuse (5x20mm,
4A, 125V).
ELECTRICAL
BOX
SUPPORT
FUSE
ELECTRICAL
BOX
WARRANTY
BROAN ONE YEAR LIMITED WARRANTY
Broanwarrants to theoriginalconsumerpurchaser of itsproductsthatsuch products willbefreefrom defects inmaterials
or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING, BUTNOTLIMITED TO, IMPLIED WARRANTIES OR MERCHANTABILITY OR
FITNESS FORAPARTICULAR PURPOSE.
Duringthis one-year period, Broanwill,atitsoption, repair orreplace, without charge, any product or partwhich is foundto
bedefective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND
INCANDESCENDTBULBS. Thiswarranty does not cover (a)normal maintenance and service or(b)any products or parts
which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan), faulty
installationor installation contrary to recommended installation instructions.
Thedurationof any implied warranty islimited to the one-year periodasspecified for the expresswarranty. Somestatesdo
not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN’SOBLIGATIONTO REPAIR OR REPLACE,ATBROAN’S OPTION, SHALLBETHEPURCHASER’S SOLEAND
EXCLUSIVEREMEDYUNDERTHIS WARRANTY. BROAN SHALLNOT BE LIABLE FORINCIDENTAL,CONSEQUEN-
TIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusionmay not apply to you.
Thiswarrantygivesyouspecific legal rights, and you may also have other rights, which varyfromstatetostate. Thiswarranty
supersedes all prior warranties.
Toqualify for warranty service, you must(a)notifyBroanat the address statedbelow or telephone: [phone], (b) give
themodelnumberandpart identificationand(c) describethenature ofanydefectintheproductorpart. Atthetimeofrequesting
warrantyservice, you mustpresent evidence of the original purchase date.
BEST BY BROAN, P.O. Box 140 Hartford, Wisconsin 53027
HALOGEN BULBS
This range hood requires two (2) or four (4)
halogen bulbs (Type JC, 12V, 20W Max, G4 Base).
ALWAYS SWITCH OFF THE ELECTRICITY
SUPPLY BEFORE CARRYING OUT ANY
OPERATIONSON THEAPPLIANCE.
To change bulbs:
1. Loosen the ring nut by turning it
counterclockwise.
2. Remove the bulb by pulling sideward (Do
notrotate).CAUTION:BULBMAYBEHOT!
3.Replace with Type JC, 12 V, 20W Max G-4 Base halogen bulb.
Do not touch replacement bulb with bare hands!
RING NUT

- 30 -
SERVICE PARTS
MODEL KER222 - Parts for stainless steel models shown. For service parts for
black,white,polishedbrass, orbrushed coppermodels, callBroan CustomerService.
KEY NO. PART NO. DESCRIPTION
9 B08087135 GreaseFilter (90cm/42”models)
9 B08087136 GreaseFilter (48”models)
14 B02300233 MotorCapacitor
16 BE3345767 ElectricalBox Support(90cm/42”models)
16 BE3345786 ElectricalBox Support(48”models)
19 B03295005 CapacitorProtection
26 B02300891 HalogenLampBulb
37 B02300787 HeatSentry
38 B03292357 ElectricalBox
38 BW0000027 ControlsCover
39 B03294033 ElectricalBox Cover
42 B03295001 DuctfreeFilterBracket
48 B02310201 Motor
49 B03295071 BlowerWheel
53 B03202007 RubberWasher
56 B03292465 DuctConnector
57 B02011004 DamperFlap
63 BE3403611 UpperBracket
64 BE3243021 BottomBracket
68 B02011064 RightBlowerHousing
69 B02011063 LeftBlowerHousing
113 B02011284 Nameplate
115 BE3495228 WiringBox
116 BE3334252 Wiring BoxCover
118 BE3341301 Decorative FlueBottom
119 BE3338411 Decorative FlueTop
120 BE3300517 Flue MountingBracket
133 B02009290 UtensilRail(48"models)
133 B02009293 UtensilRail(90cmmodels)
133 B02009292 UtensilRail(42”models)
136 B02009291 SideUtensilRail
136 B02009126 SideUtensilRail
141 B02009187 Endbits
144 B03292287 WireClamp
147 BR2300135 JunctionClamp
156 B02009186 CouplingSleeve
165 B03295008 WiringBox
166 B08086662 CircuitBoard
208 B02300783 Transformer(90cmmodels)
208 B02300792 Transformer(42”/48”models)
223 B03202296 SwitchButton
274 B03295035 FuseBox
474 B02300790 HalogenLampHousing
477 B03295006 Closing
998 B080810601 HardwarePackage
* B06002008 BlowerAssembly
(IncludesKey Nos.42,48, 49,53, 68,69)
* B06107579 SwitchBox Assembly(Includes Key
Nos.107, 223,230, 234,38, 67)
- B02300782 Fuse
- B02300674 FuseHolder
* Not shown assembled.

SERVICE PARTS - LISTE PIECES DE RECHANGE -
LISTA DE PIEZAS DE RECAMBIO
MODEL KER222
- 33 -

04306955/6N
