Brobo 200HD User manual

©
BROBO GROUP (AUST) PTY. LTD.
8 Fowler Rd, Dandenong South
Victoria 3175, AUSTRALIA.
☏ + 61 3 9794 8751 📧 [email protected]
🖷 + 61 3 9794 8792 www.brobo.com.au
PRODUCT AND MAINTENANCE MANUAL
BENCH/BUFF GRINDERS
200HD & 250HD
 Precision Drilling Machines  Tapping Machines  Multi-Head Drills  Tool Grinders 
 Tool Post Grinders  Machine Vices  Special Production Equipment 
 Accessories  Riveting Machines  Pedestal Grinders  Metal Cutting Saws  Linishers 

A.C.N. 098 264 316
A.B.N. 42 098 264 316

OPERATING MANUAL FOR BROBO GROUP
BENCH/BUFF GRINDERS 200HD & 250HD
TECHNICAL SPECIFICATION
CHAPTER 1: Installation of the Machine
1.1 Unpacking & Handling the Machine
1.2 Minimum Requirements
1.3 Anchoring the Grinder Unit
1.4 Connection to Power Source
CHAPTER 2: Safety & Accident Prevention
2.1 Operation of the Machine
2.1.1. Noise Level
2.1.2. Power Supply
2.2 General Requirements
2.3 Advice for the Operator
2.4 Machine Safety Devices
2.4.1. Reference Standards
CHAPTER 3: Main Functions & Operation of the Machine
3.1 Main Features
3.2 Preparation for Operation
3.3 Operation Recommendations
CHAPTER 4: Drawings, Layouts, Assembly & Spare Parts

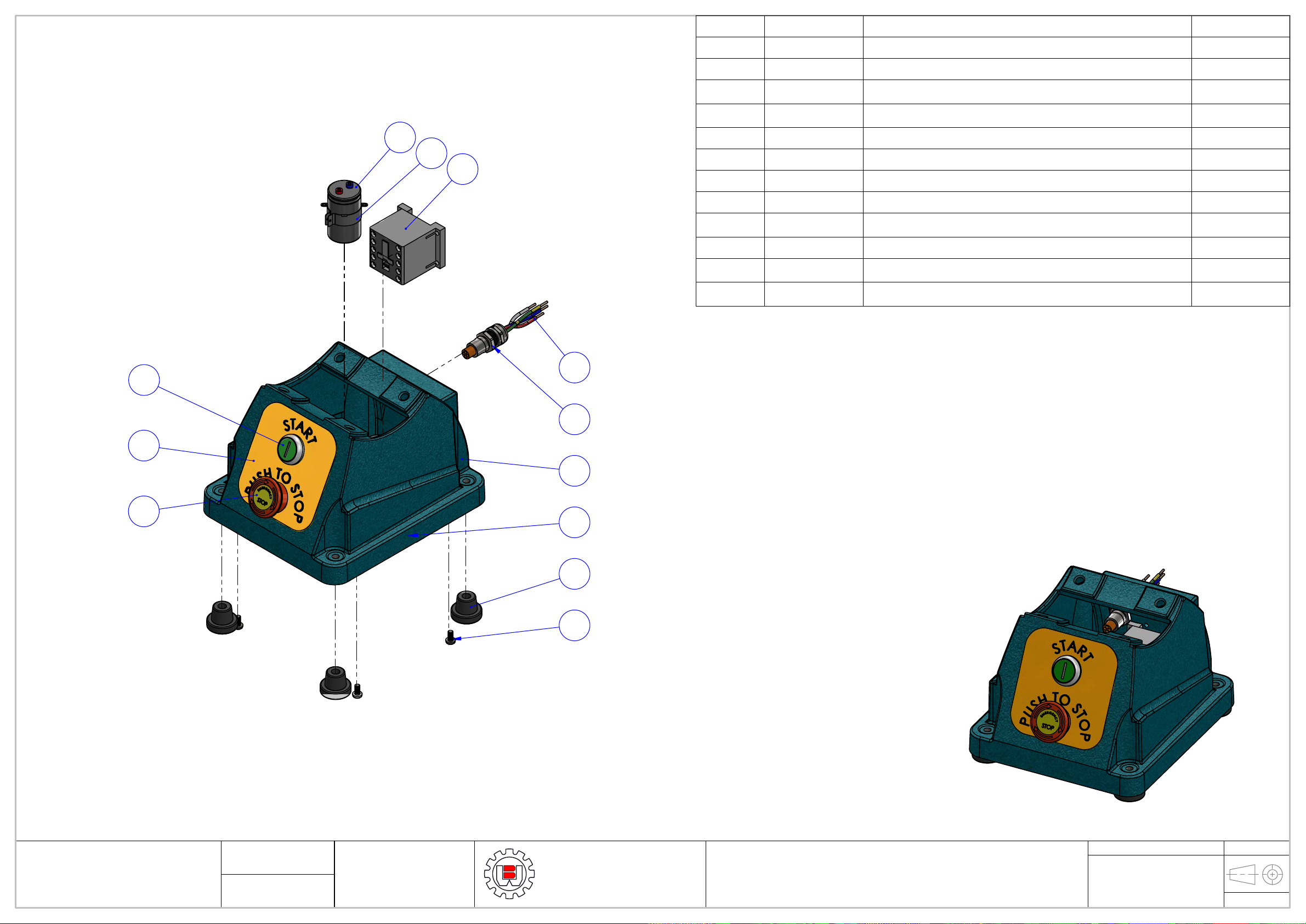

4.1 Spare Parts

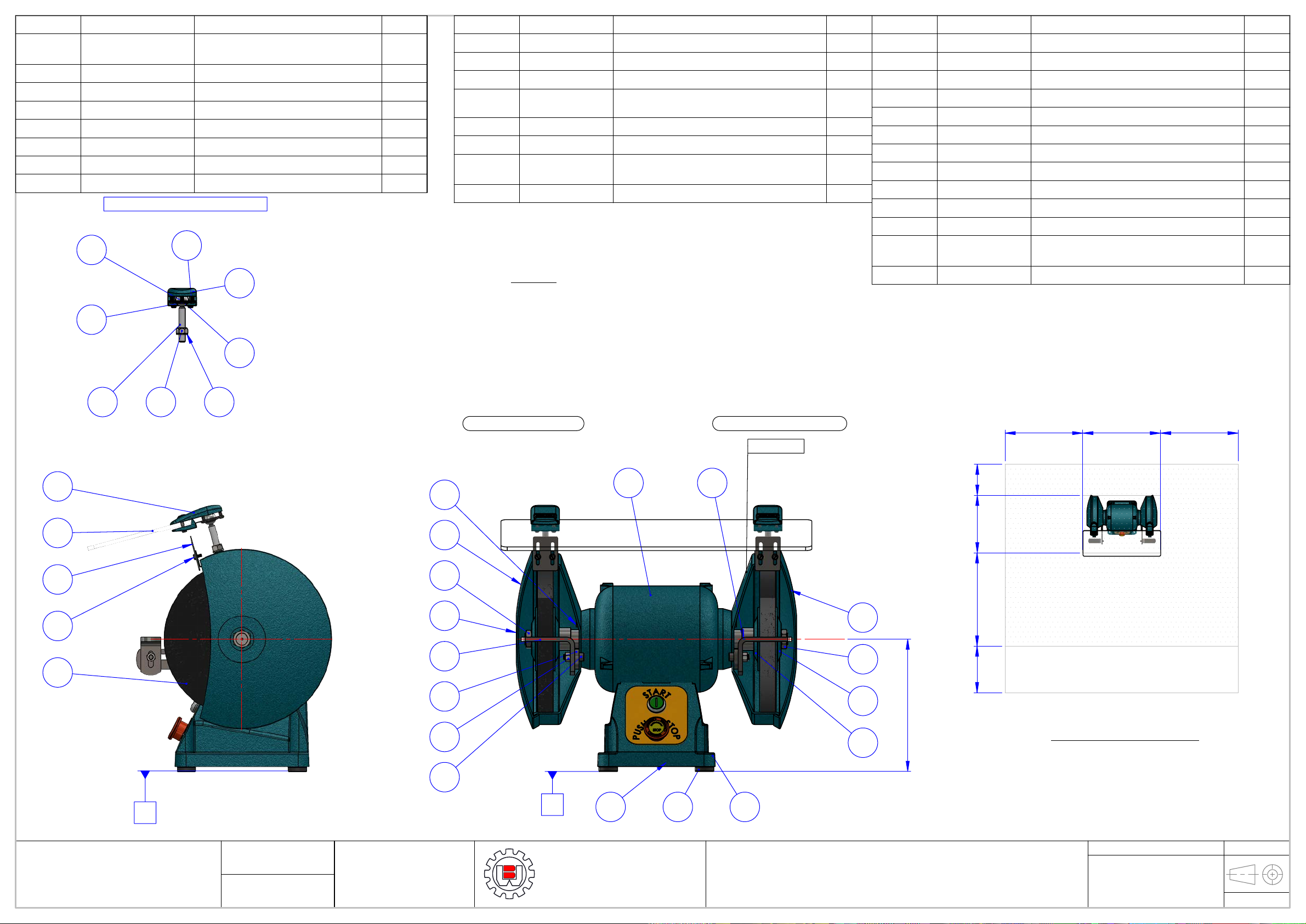

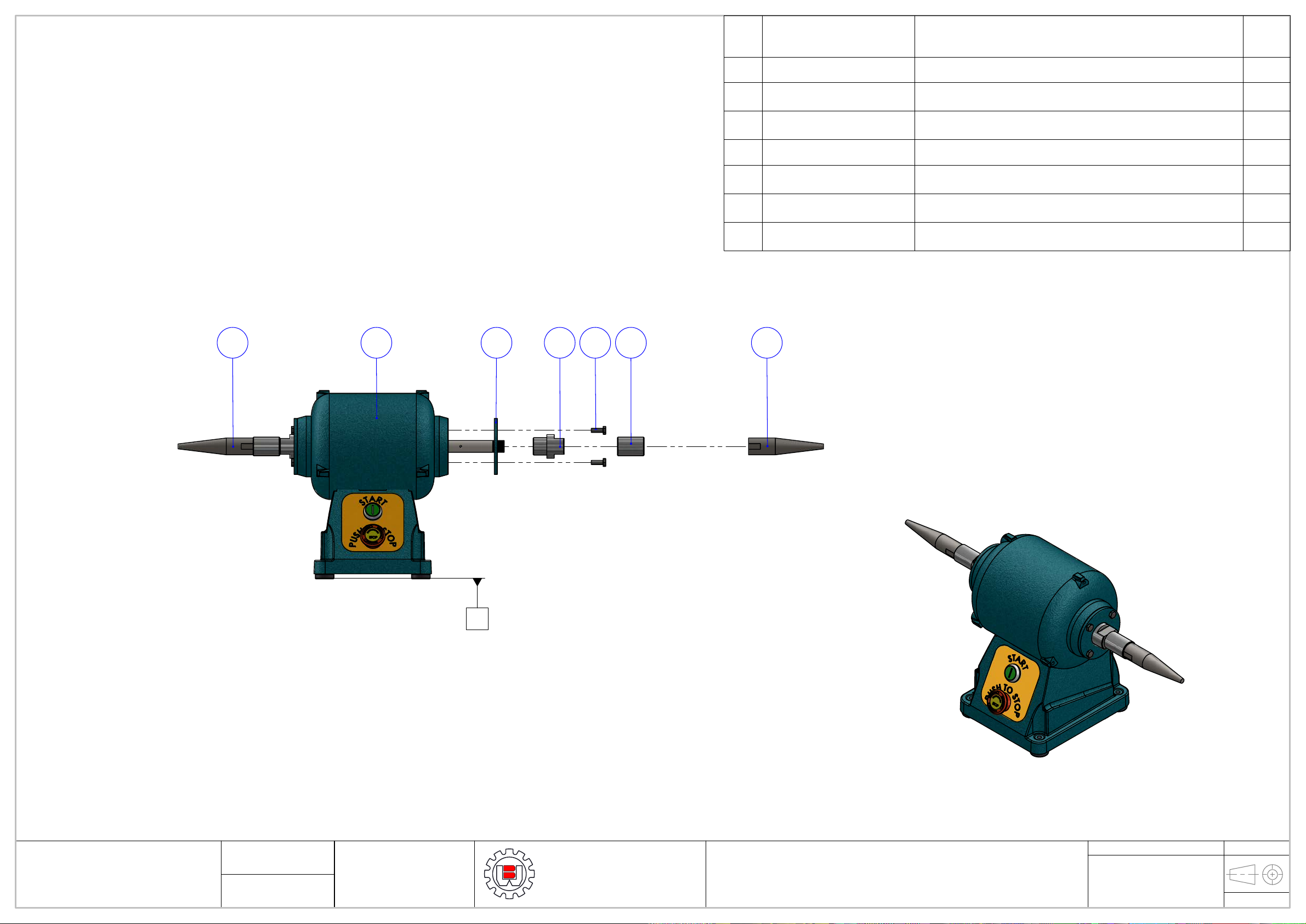

4.2 200 HD Grinder Assembly (Stand – Optional)
4.3 250 HD Grinder Assembly
CHAPTER 5: Maintenance & Selection of Consumables
5.1 Role of the Operator
5.2 Maintenance Requirements
5.3 General Maintenance of Functioning Components
5.4 Replacing grinding wheels.
CHAPTER 6: Troubleshoot
APPENDIX

Brobo Group
brobo.com.au
TECHNICAL SPECIFICATION
MACHINE
SPECIFICATION
MOTOR RATING
(kW / HP / V / PH) DESCRIPTION WHEEL SIZE & TAPED BUFF
ADAPTERS
200HD, 1 PH
(3850260) 1.1 / 1.4 / 240 / 1 Bench Grinder 200mm x 25mm wide x 19.05mm bore
200HD, 3 PH
(3850210)
1.1 / 1.4 / 415 / 3 Bench Grinder 200mm x 25mm wide x 19.05mm bore
200HD, 1PH
(3850280) 1.1 / 1.4 / 240 / 1 Buff Grinder 3/4” x 20 TPI
200HD, 3 PH
(3850230) 1.1 / 1.4 / 415 / 3 Buff Grinder 3/4” x 20 TPI
200HD, 1PH
(3850270) 1.1 / 1.4 / 240 / 1 Bench/Buff
Grinder
200mm x 25mm wide x 19.05mm bore,
3/4” x 20 TPI
200HD, 3 PH
(3850220) 1.1 / 1.4 / 415 / 3 Bench/Buff
Grinder
200mm x 25mm wide x 19.05mm bore,
3/4” x 20 TPI
250HD, 1 PH
(3500060) 1.1 / 1.4 / 240 / 1 Bench Grinder 250mm x 25mm wide x 19.05mm bore
250HD, 3 PH
(3500010)
1.1 / 1.4 / 415 / 3 Bench Grinder 250mm x 25mm wide x 19.05mm bore
Packaged Dimensions
57cm x 30cm x 41cm
Weight
HD200 34 kg
HD250 40 kg

Brobo Group
brobo.com.au
CHAPTER 1 - Installation of the Machine
1.1. Unpacking & Handling the Machine
Upon receiving the Brobo Group BENCH/BUFF GRINDERS 200HD & 250HD, the machine should be standing
upright & positioned centrally on top of a wooden pallet.
Carefully remove the packaging surrounding the grinder unit & elevating the machine away from the box, mindful
that the machine should be equally supported. Position the grinder to the desired location, ensuring that a power
outlet is available & within reach of the grinder power cord.
Prior to powering up the grinder, place the desired wheel/buff mop onto the machine spindles. Note that if the bore
sizes on the grinding wheels &/or buffering mops do not fit the spindle, taper adapters & buff adapters are readily
available for purchase from most hardware & tool outlets.
Once the wheels/buffs are securely fastened to the machine, connect the grinder to the mains electrical supply &
power up the machine.
FIGURE 1. Shipping of grinder unit

Brobo Group
brobo.com.au
1.2.Minimum Requirements
For the machine to function correctly, the room in which the grinder unit is to be installed must be in the vicinity of,
& satisfy the following conditions:
240/415V Power Supply
Working Pressure - Not less than 600kPa (6 Bar) & no greater than 900kPa (9 Bar)
Ambient Temperature - From -10
 C to +50  C.
Relative Humidity: Not more than 90%.
Lighting: More than 500 LUX.
1.3.Anchoring the grinder unit

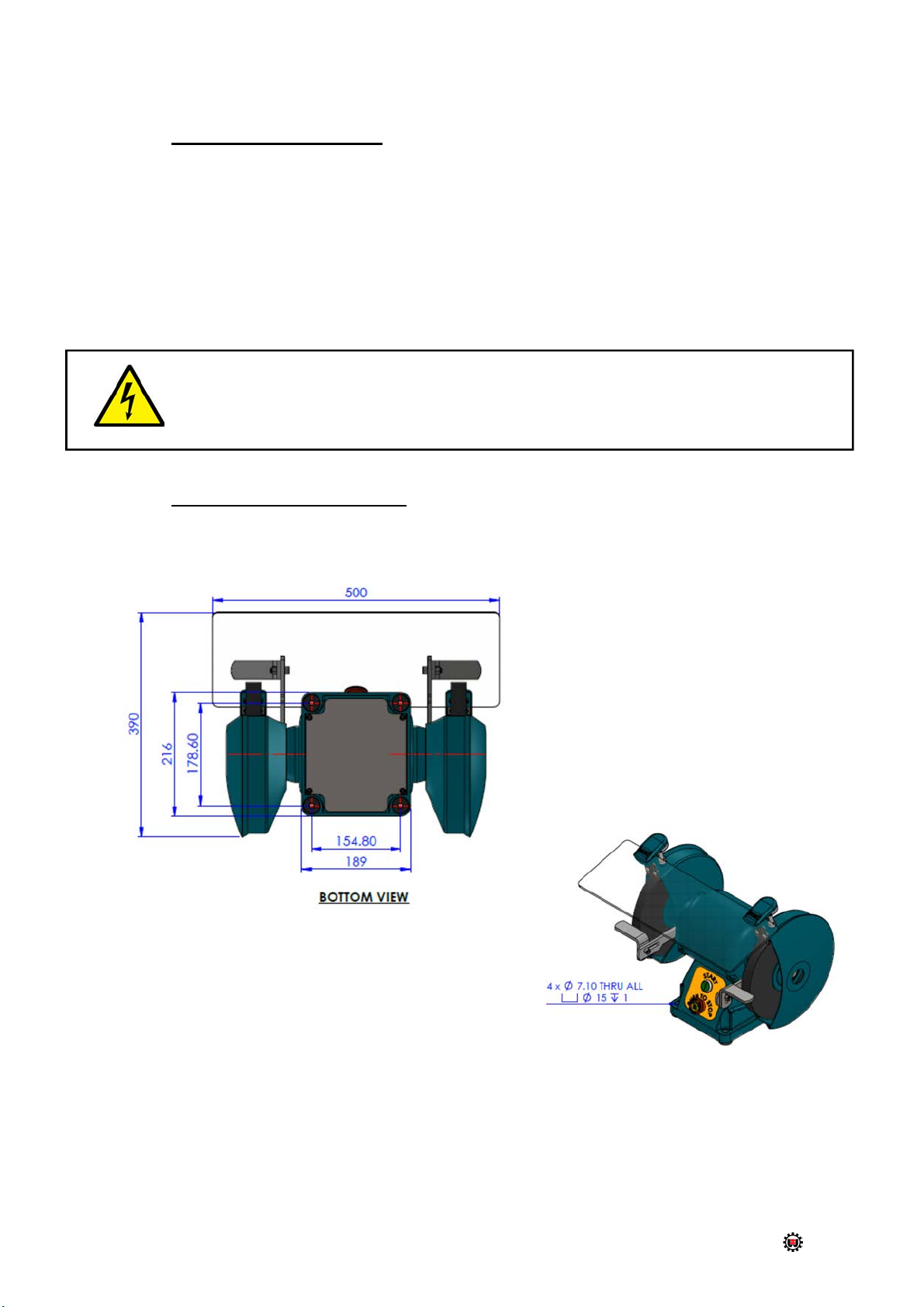

Figure 2. Anchoring the grinder unit
WARNING – OPERATING VOLTAGE VARIATION
Each grinder model has an inbuilt safety system to protect it against voltage variations.
However, for the machine to perform efficiently, ensure that the grinder unit operates within
 10% limits of the recommended voltage of the motor.

Brobo Group
brobo.com.au
1.4. Connection to Power Source
Before connecting the machine to the power supply, check that the socket is not connected in series with other
machines. This condition is critical for the ideal operation of the grinder unit.
Single & Three Phase
a) Single phase machines are provided with three pins, 15 amps rated plugs & leads for connection to 240V,
50Hz power supply in Australia.
Figure 3.1 Connection 3 pins – 1 Phase
b) Three phase machines should be fitted with a suitable, approved four pin plugs
(i.e. three phase & earthing - not provided)
Figure 3.2 Connection for “4-CORE” Wire System with Neutral – 3 Phase
c) Check the power supplied & motor specifications before plugging in the machine. Check the terminal
connection on dual voltage motor terminal box & connect it accordingly to the corresponding voltage supply.
d) If the dual motor is requested, the motor is always connected to the higher voltage, unless otherwise
specified prior to the order being placed.
Active = Brown, White. Dark Blue VOLTAGE MAIN VOLTAGE
Earth = Green/Yellow 415V/3PH 415V/3PH
Active = Brown VOLTAGE MAIN VOLTAGE
Neutral = Light Blue 240V/1 PH 240V
Earth = Green/Yellow

Brobo Group
brobo.com.au
CHAPTER 2 - Safety & Accident Prevention
The Brobo Group BENCH/BUFF GRINDERS 200HD & 250HD has been designed & manufactured in accordance
with Australian Standards. It is HIGHLY RECOMMENDED that the instructions & warnings contained in this
chapter be carefully followed for correct usage of the machine.
2.1. Operation of the Machine
This machine is specifically designed for grinding of various ferrous metal sections. Our company has no
responsibility for any damages & risks caused as the result of changing & addition on the machine or removing any
part of the machine.
This machine involves a high-speed revolution; therefore extreme caution is required when operating the
device.
The employer is responsible for instructing the personnel who, in turn, are obliged to inform the operator of any
accident risks, safety devices, noise emission & accident prevention regulations provided for by national &
international laws governing the use of the machine. The operator must be fully aware of the position &
functions of all the machine’s controls.
All those concerned must strictly adhere to ALL instructions, warnings, & accident prevention standards in
this manual.
The following definitions are those provided for by the EEC DIRECTIVE ON MACHINERY No. 98/37/CE:
 Danger Zone - any zone in and/or around a machine in which the presence of a person constitutes a
risk to the safety & health of that person.
 Person Exposed - any person finding him or herself, either completely or partly in a danger zone.
 Operator - the person or persons are given the responsibility of installing, operating, adjusting,
maintaining, cleaning, repairing, & transporting the machine.
2.1.1. Noise Level
The noise level of an idling grinder has been measured to be below 85 dBA. This complies with the Australian
Occupational Health & Safety (Noise) Regulations 1992.
Please note that peak impulse noise levels will be experienced due to variables including blade characteristics, type,
& condition. This will also vary accordingly depending on the size & type of sample being ground. Under these
circumstances, management should make available to the operator(s) the appropriate hearing protection equipment
as prescribed under the above-stated act.
WARNING – UNAUTHORISED MODIFICATIONS/REPLACEMENTS/USE
The manufacturer declines any responsibility whatsoever, either civil of criminal, in the case of
unauthorised interference or replacement of one or more parts or assemblies on the machine,
or if accessories, tools & consumable materials used are different from those recommended by
the manufacturer, or if the machine is inserted in a plant system & its proper function is altered.

Brobo Group
brobo.com.au
2.1.2. Power Supply
The 240/415V power supply requirements for this machine are of a high level & unauthorized interference & or
inadequate maintenance could result in a situation that could put the operator at risk. A qualified electrical engineer
should always be assigned to maintain & repair the system.
2.2. General Requirements
2.2.1. Lighting
Insufficient lighting during the operation of the unit would constitute a safety hazard for the people concerned. For
this reason, the user of the machine must provide adequate lighting in the working area to eliminate areas of shadow,
whilst also prevent dazzling illumination sources
(Reference standard ISO 8995 - 2002 ‘Lighting of Indoor Workplaces’).
2.2.2. Connection
Check that the power supply cables, compressed air supply (if applicable) & coolant system complies with, & are
operating within the acceptable range of the grinder capabilities.
Faulty, damaged or worn components must be replaced immediately.
2.2.3. Earthing Systems
The installation of the earthing system must comply with the requirements stated in the:
IEC Standards Part 195: Earthing & Protection Against Electric Shocks 1998.

Brobo Group
brobo.com.au
2.3. Advice for the Operator
MANUALS
The operation & maintenance manuals should be delivered to the responsible & in charge persons.
DELIVERY
Check the machines when they arrive at your premises. If you determine any damage occurred during the
transportation, apply & fulfill the related agreement conditions. Please contact Brobo Group for changing the
damaged parts & for ordering the new parts. Only use original spare parts for maintenance & repairing.
STORING
The machine should be used in a closed area & in a dry environment. It must not be used in the environments have
the risks of explosion.
INSTALLATION & STARTING
The installation & starting of the machine must be done by the experienced staff. The instructions must be observed
during all procedures.
PRECAUTIONS AGAINST ACCIDENTS
Comply with all instructions on the manuals for preventing accidents. The machines comply with international
standards ISO 9001
MAINTENANCE & CLEANING
The maintenance & cleaning should be done by the qualified person.
COPYRIGHT
The copy or simulation of our machines or some parts is not allowed without written permission from us.
WARRANTY
The warranty is applied according to the conditions of the agreement. The breakdowns caused using of foreign
spare parts supplied out of our company will be out of our warranty terms. Our company will have no responsibility
for the reason of the instructions do not comply or the wrong operation of non-capable staff.
Read the instruction manual before operating the Grinder
Keep the User Manual in a place just beside the machine where it is easily found.
Keep always the labels clean & in good condition

Brobo Group
brobo.com.au
Protective eyewear or goggles must be worn at all times while attending & operating the grinder.
Do not attempt to operate the machine unless all safety guards are in operation.
Ensure that hands & arms are kept clear of the grinding zone when the machine is operating.
Do not wear loose clothing with long sleeves & oversized gloves, bracelets, necklaces or any
other loose object that may become entangled in the machine’s wheel during grinding. Long hair
must be tied back or placed in a hair net.
Always disconnect the power supply to the machine before carrying out any maintenance
work or adjustments. This includes cases of abnormal operations of the machine.
The operator MUST NOT conduct any risky operations or those not required for the grinding in
course.
Never move the grinder while the machine is operating.
Always keep the workplace are as clean as possible.
Remove equipment, tools or any other objects from the grinding zone.
Support the workpiece to prevent it falling or jamming during the grinding cycle.
If the wheel jams during a grinding, activate the emergency stop function immediately
Always turn off the machine before carrying out any repair work. Consult the Brobo Group
Engineering Department in the country in which the machine was initially purchased.

Brobo Group
brobo.com.au
2.4. Machine Safety Devices
This product & maintenance manual is not purely intended as a guide for the usage, operation, & maintenance of
the grinder unit in a strict production environment; it is instead an instrument to providing information on how to use
the machine correctly & safely. The following standards listed in section 2.4.1, which are applicable to the Brobo
Group BENCH/BUFF GRINDERS 200HD & 250HD, are those specified by the EEC Committee that governs the
safety of machinery, health & safety at work, personal protection & safeguarding of the work environment. In
addition, the grinder also complies with the Australian Standards regarding the safeguarding & general requirements
for electrical equipment.
2.4.1. Reference Standards
MACHINE SAFETY
 EEC Directive No. 98/37/CE - Machines Directive
 EEC Directive No. 91/368 - 94/68 - Amends sections of EEC Directive No. 98/37/CE relating to machine
safety
 EEC Directive No. 73/23 - Low Voltage Directive
 AS4024.1 - 1996 - Safeguarding of Machinery
HEALTH & SAFETY AT WORK
 AS3100 - 2002 - General Requirements for Electrical Equipment
 OH. & S. 1995.81/1995 - Compliance References
 EEC Directive No. 80/1107; 83/477; 86/188; 88/188; 88/642 - Protection of workers against risks caused
by exposure to physical, chemical & biological agents in the workplace
 EEC Directive No. 73/23 & Special EEC Directives No. 89/654; 89/655 - Improvements in health & safety
at work

Brobo Group
brobo.com.au
CHAPTER 3 - Main Functions & Operation of the Machine
Figure 4. Grinder Main Components
3.1.1. Motor
Available in single phase 240 volts or 3 phases 415 volts, the 1.1KW CMG motor is the heart of the grinder unit that
produces 2800rpms toward the spindles & is operating at suitable speeds for grinding & buffing applications.
3.1.2. Safety Eye Shields
The reinforced glass safety eye shield serves to protect the user from any debris & particles that might be dislodged
from the grinding/buffing process. The bracket mountings also allow the user to adjust the position of the eye shield
to suit various workpiece.
3.1.3. Grinding Wheel
Rated at A24/46 Grit, the general purpose grinding wheels are provided on all Brobo bench grinding machines. It
is advisable for all operators that grinding/buffing wheels are available for purchase for various applications from
reputable hardware stores. Also note that tapered buff & wire adaptors are available for purchase from Brobo, sold
separately.
3.1.4. Toolrest
As implied, the Toolrest provides a stable platform in which the user can rest any tool piece for resharpening. The
height & position of the Toolrest can be moved accordingly via the adjustable bolts provided.
3.1.5. Emergency Stop Button
In compliance with Australian Standards & ISO 9001, all Brobo grinding/buffing machines are now provided with
emergency STOP button for ease of access during an emergency.
1. Motor
2. Safety Eye Shields
3. Grinding Wheel
4. Toolrest
5. Emergency Stop Button
1
3
2
4
5

Brobo Group
brobo.com.au
3.2. Preparation for Operation
The following procedure is recommended for the correct grinding using Brobo Group BENCH/BUFF GRINDERS
200HD & 250HD
PROCEDURE
1) Clean the workpiece to ensure it is free of any grit, swarf or flammable substances. It is highly recommended
that a solvent is used to remove any residue while ensuring the solvent is inflammable & non-toxic.
2) Prior to grinding/buffing, clear the work area around the workpiece of any sizeable items & tools to minimize
the likelihood of the user getting injured during the grinding operation.
3) Using the Toolrest as a guide, rest the workpiece on the Toolrest & maneuver it to the desired grinding
position.
4) Check that the safety eye shield is directly positioned to deflect swarf & any dislodged particles.
5) Turn the machine on. Proceed by slowly easing the workpiece into the grinding wheel. Apply a steady,
even pressure & feed downward towards the wheel. During grinding, use a traversing motion across the
face of the grinding wheel up to within the edge of the wheel. Take care not to round off the grinding wheel
edges. Do not grind in the one spot on the wheel as this will damage the wheel. Good grinding practice
preserves the shape of the grinding wheel face & reduces the inconvenience & frequency of dressing the
grinding wheel.
6) Once completed, turn the machine off by depressing the stop button.
3.3. Operation Recommendations
 To reduce the amount of frictional heat generated between the grinding wheel & workpiece, a light coating
of oil or lubricant can be applied to the workpiece periodically.
 Do not force the workpiece to the grinding/buffing as this not only significantly reduces the lifespan of the
wheel, the workpiece could recoil sharply backward & injure the operator.
 Adjusting Toolrest: 3mm clearance between Toolrest & wheel face, Align Toolrest above the spindle
Centreline

Brobo Group
brobo.com.au
CHAPTER 4 - Drawings, Layouts, Assembly & Spare Parts
4.1. Spare Parts
Most common replace spare parts:
ITEM PART NUMBER DESCRIPTION
Eye Shields 3721070 Eye Shield Mouting Bracket & Glass
3635140 Replacement Eye Shield Glass (150x100 mm)
3721060 Eye Shield Mouting Bracket Only
Tapered Buff Adaptor
3634070 L.H Tapered Buff Adaptor (3/4" x 20 TPI)
3634080 R.H Tapered Buff Adaptor (3/4" x 20 TPI)
Wire Brush Adaptor 3801230 L.H Wire Bush Adaptor & Flanges (3/4" x 20 TPI)
3801240 R.H Wire Bush Adaptor & Flanges (3/4" x 20 TPI)
Buff Mops 3805550 200 mm Calico Mops
Wire Wheels 3805630 Carbon Steel ⌀200x20x19.05 mm
Stands 3643100 Sheet Metal
3801430 Column
Switch Gear Zero Voltage Release & Overload Protection Kit
3501110 Single Phase
3501090 Three Phase
Zero Voltage Release & Overload Protection Kit
C/W Lockable Isolation Switch Kit
3501120 Single Phase
3501100 Three Phase
3211140 Isolation Switch (1 Ph & 3 Ph)
Emergency Button M22-DRP-R Emergency Button (Mushroom Actuator)

189
303
435
500
154.80
178.60
216
189
390
4 x 7.10 THRU ALL
15 1
205
216
139
15°
FRONT VIEW
BOTTOM VIEW
SIDE VIEW
ISO VIEW
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
MATERIAL:
DO NOT SCALE DRAWING REVISION
TITLE:
DWG NO.
SCALE:1:5
SHEET 1 OF 1
A3
WEIGHT:
BG01
BENCH GRINDER
MAIN DIMENSIONS
BROBO GROUP
Address : 8 Fowler Rd, Dandenong VIC 3175
https://brobo.com.au/
26.06.2020
0
DRAWN
DATE
ANH
ALL RIGHTS RESERVED. THIS DRAWING MAY NOT BE
REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY
MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN
PERMISSION OF BROBO GROUP PTY LT

15
16
17
20
18
4
2
3
1
5
7
6
8
9
10
11
14
12 13
25
24
23
21
19
3801430:
Column
3643100:
Sheetmetal
3801430
(OPTION)
22
340
1015
1200
OPTION
3845300 : GRINDING WHEEL 200 x 25 x 19.05 A46
3845310 : GRINDING WHEEL 200 x 25 x 19.05 A60
C
L
FRONT VIEW
A
300
500
440 200 600
500 500
SAFE WORKING ZONE
OPERATOR ZONE
MACHINE ZONE
MACHINE ZONE
WALL/SAFETY SCREEN
LEFT HAND SIDE RIGHT HAND SIDE
ITEM
NO.
PART NO. DESCRIPTION
QT
Y.
1 3832060 Bench Grinder Base - Cast Iron 1
2 3635120 Rubber Buffer 4
3 3833060 Cover Base Plate - Bench Grinder 1
4 8725620 Pan Head Slotted Screw M5x10 8
5 3805170 Motor 1.1 kW , 50Hz 6.3A 240V 1
6 8705910 Rollpin 3x10 2
7 3841150 Flange Boss Assembly 2
8 3845310 Grinding Wheel 200x25x19.05 A60 2
9 3803160 Wheel Flange F8-750 (OUTSIDE) 2
10 3634150 NUT RH 3/4" x 20 TPI 1
11 3634140 NUT LH 3/4" x 20 TPI 1
12 3635160 BG Safety Eye Shield 500x170x6 1
13 3721060 BG Eye Shield Assembly 2
14 3801250 LHS Guard & Spark Arrestor Bracket 200HD 1
15 3803140 Guard 200 End Plate 2
16 3833010 BG Toolrest Arm 2
17 3833020 Grinder Tool Rest 2
18 3723010 BG Spark Arrestor 2
19 8705130 Socket Head Cap Screw M8x25 2
20 8705720 Hex Nut M8 2
21 8715200 Hex Head Set Screw 1/4 BSW x 3/4 8
22 3801260 RHS Guard & Spark Arrestor Bracket 200HD 1
23 3804260 Base Plate 340x340x6 1
24 3804270 Column 100x100x3 RHS x 790 L 1
25 3804250 Top Plate 240x240x6 1
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
MATERIAL:
DO NOT SCALE DRAWING REVISION
TITLE:
DWG NO.
SCALE:1:8
SHEET 1 OF 1
A3
WEIGHT:
BG02
200HD GRINDER ASSEMBLY
BROBO GROUP
Address : 8 Fowler Rd, Dandenong VIC 3175
https://brobo.com.au/
01.09.2020
0
DRAWN
DATE
ANH
ALL RIGHTS RESERVED. THIS DRAWING MAY NOT BE
REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY
MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN
PERMISSION OF BROBO GROUP PTY LT

300
500
370
500 500
600 200
SAFE WORKING ZONE
OPERATOR ZONE
MACHINE ZONE
MACHINE ZONE
WALL/SAFETY SCREEN
213
3501140
4
21
7
8
9
12
12
5
13
14
16
15
17
123
20
A
6
11
10
19
18
A
28 33
26
31
27 32
29
30
OPTION
3505060 : GRINDING WHEEL 250x25x19.05 A46
3505070 : GRINDING WHEEL 250x25x19.05 A60
3801430 : COLUMN PEDESTAL
3643100: SHEETMETAL PEDESTAL
RIGHT HAND SIDE
C
L
LEFT HAND SIDE
EYE SHIELD ASSEMBLY
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 3832060 Bench Grinder Base - Cast Iron 1
2 3635120 Rubber Buffer 4
3 3833060 Cover Base Plate - Bench Grinder 1
4 3805170 Motor 1.1 kW , 50Hz 6.3A 240V 1
5 8705910 Rollpin 3x10 2
6 3505070 Grinding Wheel 250x25x19.05 A60 2
7 3803160 Wheel Flange F8-750 (OUTSIDE) 2
8 3634150 NUT RH 3/4" x 20 TPI 1
9 3634140 NUT LH 3/4" x 20 TPI 1
10 3721060 BG Eye Shield Assembly 2
11 3635160 BG Safety Eye Shield 500x170x6 1
12 3501130
LH Guard & Spark Arrestor
Bracket (250HD)
1
13 3833020 Grinder Tool Rest 2
ITEM NO. PART NUMBER DESCRIPTION QTY.
26 3632020
Mounting Bracket Top
Eyeshield
1
27 3734050 BG Ball Spindle 1
28 3633090 BG Ball Flange 1
29 3632030 Mounting Bracket - Bottom 1
30 8705800 Flat Washer M10 1
31 FASEM4X16PTBUT Post Torx Button Screw M4x16 5
32 8715220 Hex Locknut M10 1
33 3635150 BG Eyeshield Spring 3
ITEM NO. PART NUMBER DESCRIPTION QTY.
14 3833010 BG Toolrest Arm 2
15 8705720 Hex Nut M8 2
16 8705130 Socket Head Cap Screw M8x25 2
17 8715200
Hex Head Set Screw 1/4 BSW x
3/4
8
18 3723010 BG Spark Arrestor 2
19 8725620 Pan Head Slotted Screw M5x10 8
20 3501140
RH Guard & Spark Arrestor
Bracket (250HD)
1
21 3841150 Flange Boss Assembly 2
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
MATERIAL:
DO NOT SCALE DRAWING REVISION
TITLE:
DWG NO.
SCALE:1:5
SHEET 1 OF 1
A3
WEIGHT:
BG03
250HD GRINDER ASSEMBLY
BROBO GROUP
Address : 8 Fowler Rd, Dandenong VIC 3175
https://brobo.com.au/
01.09.2020
0
DRAWN
DATE
ANH
ALL RIGHTS RESERVED. THIS DRAWING MAY NOT BE
REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY
MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN
PERMISSION OF BROBO GROUP PTY LT

32 4 67 1 5
A
ITEM
NO.
PART NO. DESCRIPTION QTY.
1 3505170 Motor 1.1 kW , 50Hz 6.3A 240V 1
2 3803170 Bench Grinder Guard Flange Buff 2
3 3854050 Spindle Spacer 2
4 8715200 Hex Head Set Screw 1/4 BSW x 3/4 8
5 3804240 Spindle Spacer Extension 2
6 3634080 Taper Buff RH 1
7 3634070 Taper Buff LH 1
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
MATERIAL:
DO NOT SCALE DRAWING REVISION
TITLE:
DWG NO.
SCALE:1:5
SHEET 1 OF 1
A3
WEIGHT:
BG04
GRINDER BUFF ASSEMBLY
BROBO GROUP
Address : 8 Fowler Rd, Dandenong VIC 3175
https://brobo.com.au/
26.06.2020
0
DRAWN
DATE
ANH
ALL RIGHTS RESERVED. THIS DRAWING MAY NOT BE
REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY
MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN
PERMISSION OF BROBO GROUP PTY LT

8
1
2
3
4
5
6
7
10
9
ITEM NO. PART NUMBER DESCRIPTION
QTY.
1 3832060 Bench Grinder Base - Cast Iron
1
2 TN2BKR-1A Start Push Button
1
3 TN2BKR-1BW Stop/E-Stop Push Button
1
4 3635170 BG Start-Emergency Stop Label
1
5 3635120 Rubber Buffer
4
6 3833060 Cover Base Plate - Bench Grinder
1
7 8725620 Pan Head Slotted Screw M5x10
4
8 1045750 Cable Gland M16
1
9 C4C3PH 2.2 m Long 4 Core 1.5mm2 Flex Cable
1
10 9315230 Contactor 415 V
1
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
MATERIAL:
DO NOT SCALE DRAWING REVISION
TITLE:
DWG NO.
SCALE:1:3
SHEET 1 OF 2
A3
WEIGHT:
3832080
BENCH GRINDER BASE
ASSEMBLY 3PH 415V
BROBO GROUP
Address : 8 Fowler Rd, Dandenong VIC 3175
https://brobo.com.au/
01.05.2020
0
DRAWN
DATE
ANH
ALL RIGHTS RESERVED. THIS DRAWING MAY NOT BE
REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY
MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN
PERMISSION OF BROBO GROUP PTY LT

8
1
2
3
4
5
6
7
10
9
11
12
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 3832060 Bench Grinder Base - Cast Iron 1
2 TN2BKR-1A Start Push Button 1
3 TN2BKR-1BW Stop/E-Stop Push Button 1
4 3635170 BG Start-Emergency Stop Label 1
5 3635120 Rubber Buffer 4
6 3833060 Cover Base Plate - Bench Grinder 1
7 8725620 Pan Head Slotted Screw M5x10 4
8 1045750 Cable Gland M16 1
9 C4C3PH 2.2 m Long 4 Core 1.5mm2 Flex Cable 1
10 9315210 Contactor 240V 1
11 9505012 Capacitor 25 uF 1
12 3805420 Capacitor Clip 1
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
MATERIAL:
DO NOT SCALE DRAWING REVISION
TITLE:
DWG NO.
SCALE:1:3
SHEET 2 OF 2
A3
WEIGHT:
3832090
BENCH GRINDER BASE
ASSEMBLY 1PH 240V
BROBO GROUP
Address : 8 Fowler Rd, Dandenong VIC 3175
https://brobo.com.au/
01.05.2020
0
DRAWN
DATE
ANH
ALL RIGHTS RESERVED. THIS DRAWING MAY NOT BE
REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY
MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN
PERMISSION OF BROBO GROUP PTY LT
