Brobo PG350 User manual

©
BROBO GROUP (AUST) PTY. LTD.
8 Fowler Rd, Dandenong South
Victoria 3175, AUSTRALIA.
☏ [phone] 📧 [email protected]
🖷 [phone] www.brobo.com.au
PRODUCT AND MAINTENANCE MANUAL
PEDESTAL GRINDER
PG350





 Precision Drilling Machines  Tapping Machines  Multi-Head Drills  Tool Grinders 
 Tool Post Grinders  Machine Vices  Special Production Equipment 
 Accessories  Riveting Machines  Pedestal Grinders  Metal Cutting Saws  Linishers 
A.C.N. 098 264 316
A.B.N. 42 098 264 316

OPERATING MANUAL FOR BROBO GROUP
PEDESTAL GRINDERS PG350
TECHNICAL SPECIFICATION
CHAPTER 1: Installation of the Machine
1.1 Unpacking & Handling the Machine
1.2 Minimum Requirements
1.3 Anchoring the Grinder Unit
1.4 Connection to Power Source
CHAPTER 2: Safety & Accident Prevention
2.1 Operation of the Machine
2.1.1. Noise Level
2.1.2. Power Supply
2.2 General Requirements
2.3 Advice for the Operator
2.4 Machine Safety Devices
2.4.1. Reference Standards
CHAPTER 3: Main Functions & Operation of the Machine
3.1 Main Features
3.2 Preparation for Operation
3.3 Operation Recommendations
CHAPTER 4: Drawings, Layouts, Assembly & Spare Parts
4.1 Spare Parts

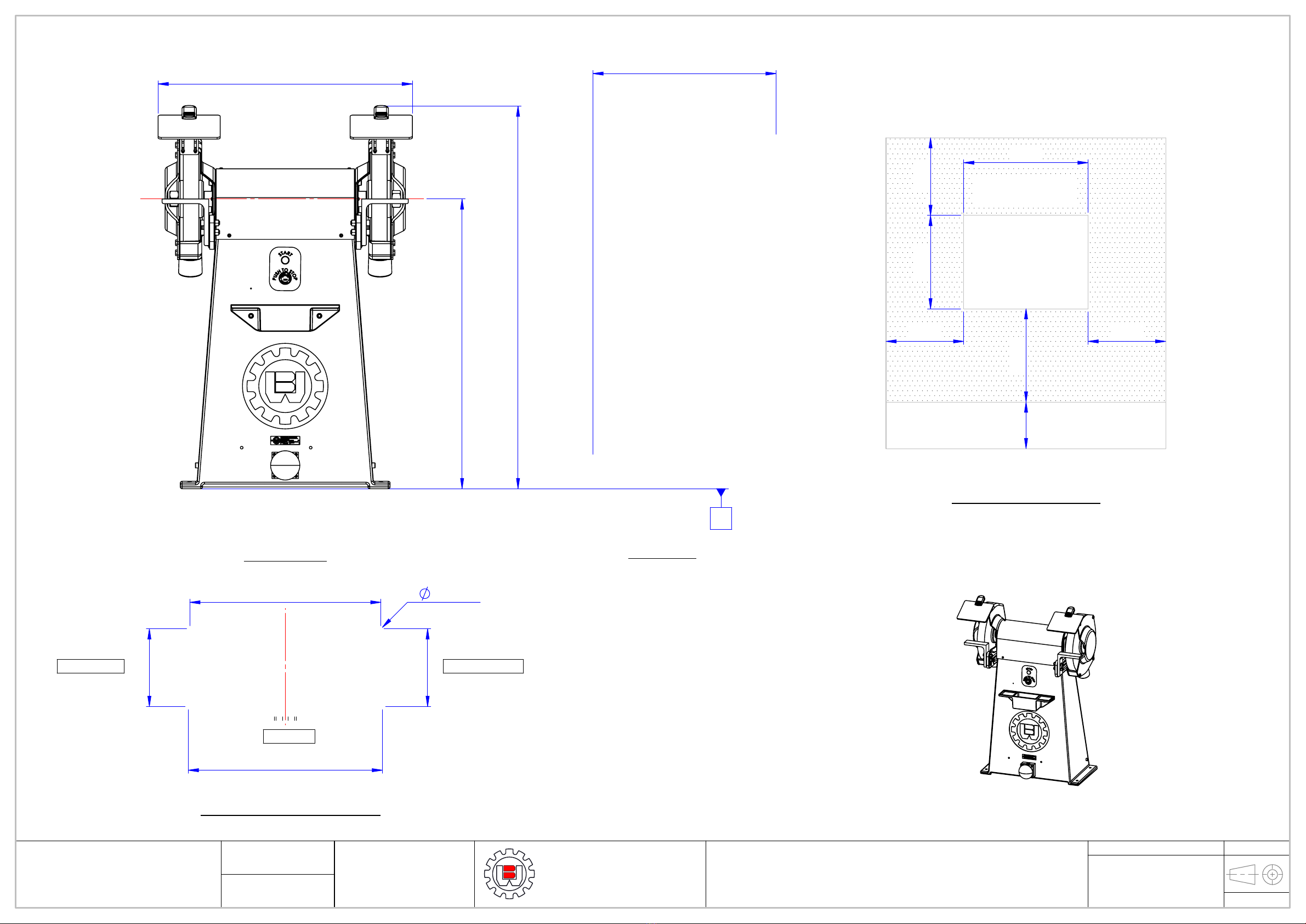

4.2 PG350 Pedestal Grinder Main Dimensions

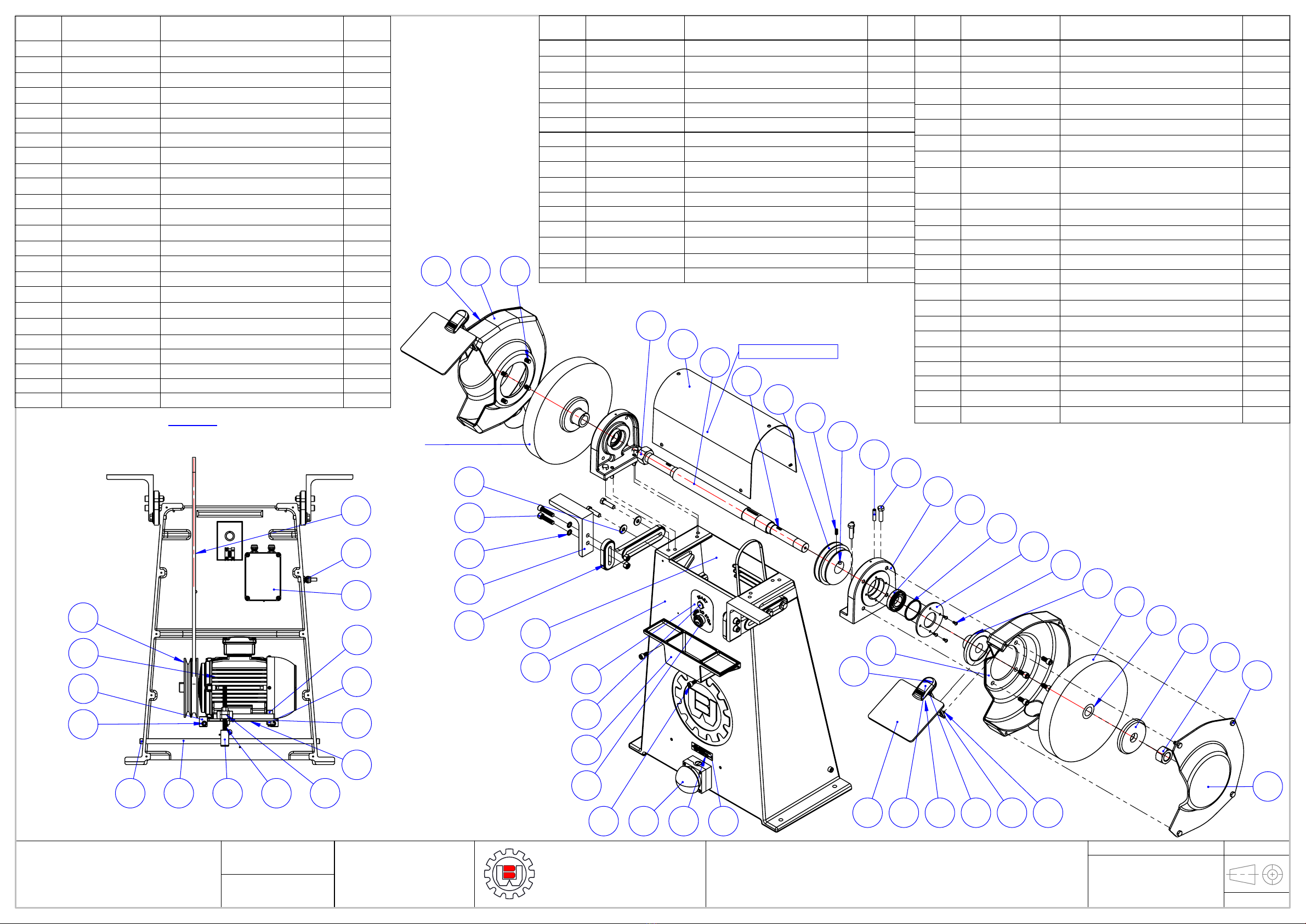

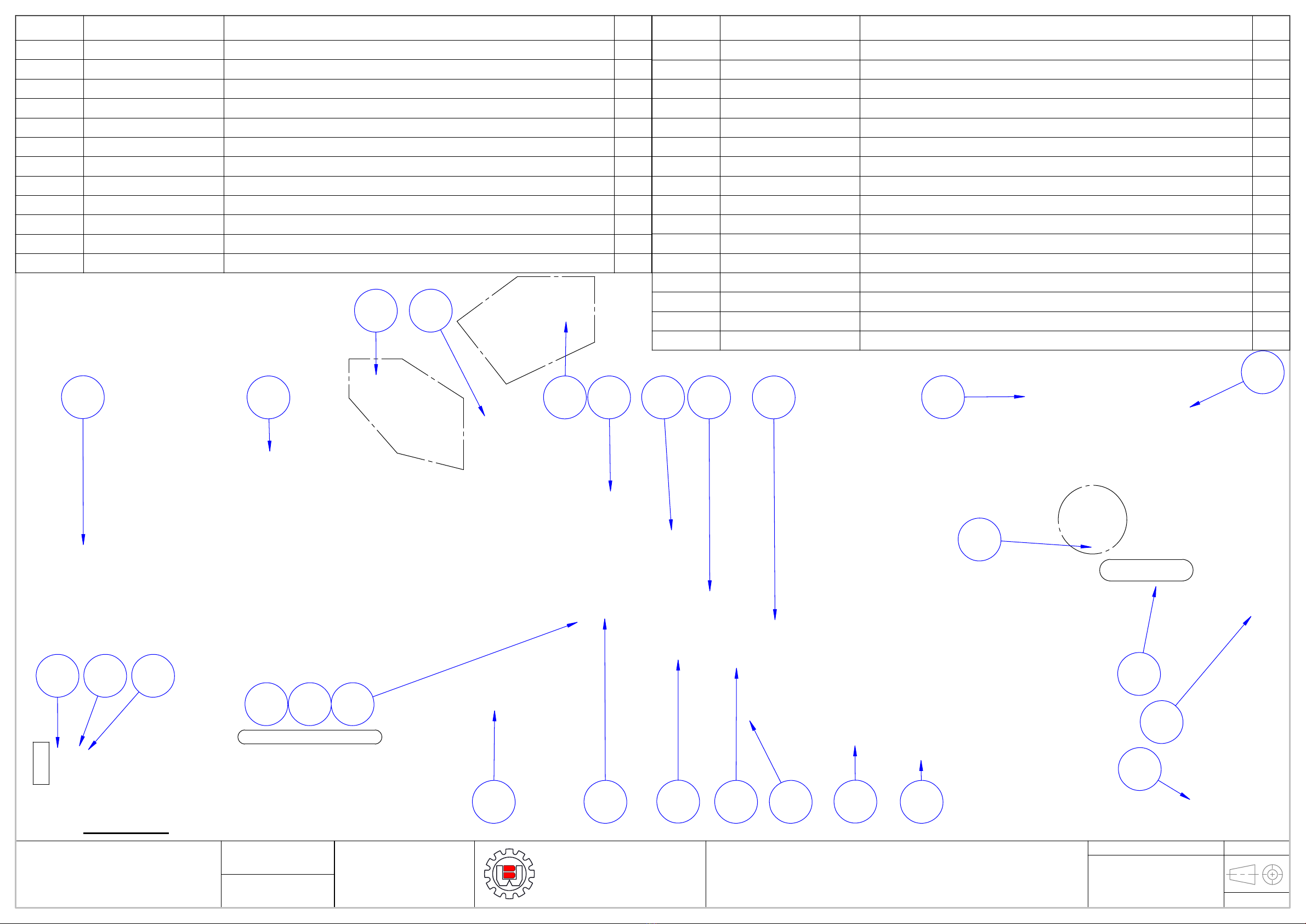

4.3 PG350 Pedestal Grinder Assembly
CHAPTER 5: Maintenance & Selection of Consumables
5.1 Role of the Operator
5.2 Maintenance Requirements
5.3 General Maintenance of Functioning Components
CHAPTER 6: Troubleshoot
APPENDIX

Brobo Group
brobo.com.au
TECHNICAL SPECIFICATION
Packaged Dimensions
114cm x 114cm x 130cm
Weight
PG350 255 kg
MACHINE
SPECIFICATION
MOTOR RATING
(kW / HP / V / PH) DESCRIPTION WHEEL SPEED
PG350
(3220020) 2.4kW / 2.9HP Pedestal Grinder 1770/2070 RPM

Brobo Group
brobo.com.au
CHAPTER 1 - Installation of the Machine
1.1. Unpacking & Handling the Machine
Upon receiving the Brobo Group PEDESTAL GRINDERS PG350, the machine should be standing upright &
positioned centrally on top of a wooden pallet.
Carefully remove the packaging surrounding the pedestal grinder. Position the grinder to the desired location,
ensuring that a power outlet is available and within reach of the grinder power cord. Loosen the base bolts restraining
the grinder and sling a harness around the body of the unit while being mindful that equal weight distribution is
required to prevent it from tipping. Raise the pedestal grinder, slide the pallet away from the machine and re-lower
the grinder to the final location.
Prior to powering up the grinder, place the desired wheel/buff mop onto the machine spindles. Note that if the bore
sizes on the grinding wheels and/or buffering mops do not fit the spindle, taper adapters and buff adapters are
readily available for purchase from most hardware and tool outlets.
Once the wheels/buffs are securely fastened to the machine, connect the grinder to the mains electrical supply and
power up the machine.
FIGURE 1. Shipping of grinder unit

Brobo Group
brobo.com.au
1.2. Minimum Requirements
For the machine to function correctly, the room in which the grinder unit is to be installed must be in the vicinity of,
& satisfy the following conditions:
 240/415V Power Supply
 Working Pressure - Not less than 600kPa (6 Bar) & no greater than 900kPa (9 Bar)
 Ambient Temperature - From -10  C to +50  C.
 Relative Humidity: Not more than 90%.
 Lighting: More than 500 LUX.
1.3. Anchoring the grinder unit
Figure 2. Anchoring the grinder unit (Top View)
WARNING – OPERATING VOLTAGE VARIATION
Each grinder model has an inbuilt safety system to protect it against voltage variations.
However, for the machine to perform efficiently, ensure that the grinder unit operates within
 10% limits of the recommended voltage of the motor.

Brobo Group
brobo.com.au
1.4. Connection to Power Source
Before connecting the machine to the power supply, check that the socket is not connected in series with other
machines. This condition is critical for the ideal operation of the grinder unit.
Single & Three Phase
a) Single phase machines are provided with three pins, 15 amps rated plugs & leads for connection to 240V,
50Hz power supply in Australia.
Figure 3.1 Connection 3 pins – 1 Phase
b) Three phase machines should be fitted with a suitable, approved four pin plugs
(i.e. three phase & earthing - not provided)
Figure 3.2 Connection for “4-CORE” Wire System with Neutral – 3 Phase
c) Check the power supplied & motor specifications before plugging in the machine. Check the terminal
connection on dual voltage motor terminal box & connect it accordingly to the corresponding voltage supply.
d) If the dual motor is requested, the motor is always connected to the higher voltage, unless otherwise
specified prior to the order being placed.
Active = Brown, White. Dark Blue VOLTAGE MAIN VOLTAGE
Earth = Green/Yellow 415V/3PH 415V/3PH
Active = Brown VOLTAGE MAIN VOLTAGE
Neutral = Light Blue 240V/1 PH 240V
Earth = Green/Yellow

Brobo Group
brobo.com.au
CHAPTER 2 - Safety & Accident Prevention
The Brobo Group PEDESTAL GRINDERS PG350 has been designed & manufactured in accordance with
Australian Standards. It is HIGHLY RECOMMENDED that the instructions & warnings contained in this chapter
be carefully followed for correct usage of the machine.
2.1. Operation of the Machine
This machine is specifically designed for grinding of various ferrous metal sections. Our company has no
responsibility for any damages & risks caused as the result of changing & addition on the machine or removing any
part of the machine.
This machine involves a high-speed revolution; therefore extreme caution is required when operating the
device.
The employer is responsible for instructing the personnel who, in turn, are obliged to inform the operator of any
accident risks, safety devices, noise emission & accident prevention regulations provided for by national &
international laws governing the use of the machine. The operator must be fully aware of the position &
functions of all the machine’s controls.
All those concerned must strictly adhere to ALL instructions, warnings, & accident prevention standards in
this manual.
The following definitions are those provided for by the EEC DIRECTIVE ON MACHINERY No. 98/37/CE:
 Danger Zone - any zone in and/or around a machine in which the presence of a person constitutes a
risk to the safety & health of that person.
 Person Exposed - any person finding him or herself, either completely or partly in a danger zone.
 Operator - the person or persons are given the responsibility of installing, operating, adjusting,
maintaining, cleaning, repairing, & transporting the machine.
2.1.1. Noise Level
The noise level of an idling grinder has been measured to be below 85 dBA. This complies with the Australian
Occupational Health & Safety (Noise) Regulations 1992.
Please note that peak impulse noise levels will be experienced due to variables including blade characteristics, type,
& condition. This will also vary accordingly depending on the size & type of sample being ground. Under these
circumstances, management should make available to the operator(s) the appropriate hearing protection equipment
as prescribed under the above-stated act.
WARNING – UNAUTHORISED MODIFICATIONS/REPLACEMENTS/USE
The manufacturer declines any responsibility whatsoever, either civil of criminal, in the case of
unauthorised interference or replacement of one or more parts or assemblies on the machine,
or if accessories, tools & consumable materials used are different from those recommended by
the manufacturer, or if the machine is inserted in a plant system & its proper function is altered.

Brobo Group
brobo.com.au
2.1.2. Power Supply
The 240/415V power supply requirements for this machine are of a high level & unauthorized interference & or
inadequate maintenance could result in a situation that could put the operator at risk. A qualified electrical engineer
should always be assigned to maintain & repair the system.
2.2. General Requirements
2.2.1. Lighting
Insufficient lighting during the operation of the unit would constitute a safety hazard for the people concerned. For
this reason, the user of the machine must provide adequate lighting in the working area to eliminate areas of shadow,
whilst also prevent dazzling illumination sources
(Reference standard ISO 8995 - 2002 ‘Lighting of Indoor Workplaces’).
2.2.2. Connection
Check that the power supply cables, compressed air supply (if applicable) & coolant system complies with, & are
operating within the acceptable range of the grinder capabilities.
Faulty, damaged or worn components must be replaced immediately.
2.2.3. Earthing Systems
The installation of the earthing system must comply with the requirements stated in the:
IEC Standards Part 195: Earthing & Protection Against Electric Shocks 1998.

Brobo Group
brobo.com.au
2.3. Advice for the Operator
MANUALS
The operation & maintenance manuals should be delivered to the responsible & in charge persons.
DELIVERY
Check the machines when they arrive at your premises. If you determine any damage occurred during the
transportation, apply & fulfill the related agreement conditions. Please contact Brobo Group for changing the
damaged parts & for ordering the new parts. Only use original spare parts for maintenance & repairing.
STORING
The machine should be used in a closed area & in a dry environment. It must not be used in the environments have
the risks of explosion.
INSTALLATION & STARTING
The installation & starting of the machine must be done by the experienced staff. The instructions must be observed
during all procedures.
PRECAUTIONS AGAINST ACCIDENTS
Comply with all instructions on the manuals for preventing accidents. The machines comply with international
standards ISO 9001
MAINTENANCE & CLEANING
The maintenance & cleaning should be done by the qualified person.
COPYRIGHT
The copy or simulation of our machines or some parts is not allowed without written permission from us.
WARRANTY
The warranty is applied according to the conditions of the agreement. The breakdowns caused using foreign spare
parts supplied out of our company will be out of our warranty terms. Our company will have no responsibility for the
reason of the instructions do not comply or the wrong operation of non-capable staff.
Read the instruction manual before operating the Grinder
Keep the User Manual in a place just beside the machine where it is easily found.
Keep always the labels clean & in good condition

Brobo Group
brobo.com.au
Protective eyewear or goggles must be worn at all times while attending & operating the grinder.
Do not attempt to operate the machine unless all safety guards are in operation.
Ensure that hands & arms are kept clear of the grinding zone when the machine is operating.
Do not wear loose clothing with long sleeves & oversized gloves, bracelets, necklaces or any
other loose object that may become entangled in the machine’s wheel during grinding. Long hair
must be tied back or placed in a hair net.
Always disconnect the power supply to the machine before carrying out any maintenance
work or adjustments. This includes cases of abnormal operations of the machine.
The operator MUST NOT conduct any risky operations or those not required for the grinding in
course.
Never move the grinder while the machine is operating.
Always keep the workplace are as clean as possible.
Remove equipment, tools or any other objects from the grinding zone.
Support the workpiece to prevent it falling or jamming during the grinding cycle.
If the wheel jams during a grinding, activate the emergency stop function immediately
Always turn off the machine before carrying out any repair work. Consult the Brobo Group
Engineering Department in the country in which the machine was initially purchased.

Brobo Group
brobo.com.au
2.4. Machine Safety Devices
This product & maintenance manual is not purely intended as a guide for the usage, operation, & maintenance of
the grinder unit in a strict production environment; it is instead an instrument to providing information on how to use
the machine correctly & safely. The following standards listed in section 2.4.1, which are applicable to the Brobo
Group PEDESTAL GRINDERS PG350, are those specified by the EEC Committee that governs the safety of
machinery, health & safety at work, personal protection & safeguarding of the work environment. In addition, the
grinder also complies with the Australian Standards regarding the safeguarding & general requirements for electrical
equipment.
2.4.1. Reference Standards
MACHINE SAFETY
 EEC Directive No. 98/37/CE - Machines Directive
 EEC Directive No. 91/368 - 94/68 - Amends sections of EEC Directive No. 98/37/CE relating to machine
safety
 EEC Directive No. 73/23 - Low Voltage Directive
 AS4024.1 - 1996 - Safeguarding of Machinery
HEALTH & SAFETY AT WORK
 AS3100 - 2002 - General Requirements for Electrical Equipment
 OH. & S. 1995.81/1995 - Compliance References
 EEC Directive No. 80/1107; 83/477; 86/188; 88/188; 88/642 - Protection of workers against risks caused
by exposure to physical, chemical & biological agents in the workplace
 EEC Directive No. 73/23 & Special EEC Directives No. 89/654; 89/655 - Improvements in health & safety
at work

Brobo Group
brobo.com.au
CHAPTER 3 - Main Functions & Operation of the Machine
Figure 4. Pedestal Grinder Main Components
3.1.1. Motor
Available in 3 phases 415 volts, the 2.4KW motor is the heart of the grinder unit that produces 2070 rpm toward the
spindles & is operating at suitable speeds for grinding & buffing applications.
3.1.2. Safety Eye Shields
The reinforced glass safety eye shield serves to protect the user from any debris & particles that might be dislodged
from the grinding/buffing process. The bracket mountings also allow the user to adjust the position of the eye shield
to suit various workpiece.
3.1.3. Grinding Wheel
Rated at A24/46 Grit, the general purpose grinding wheels are provided on all Brobo pedestal grinding machines.
It is advisable for all operators that grinding/buffing wheels are available for purchase for various applications from
reputable hardware stores. Also note that tapered buff & wire adaptors are available for purchase from Brobo, sold
separately.
3.1.4. Toolrest
As implied, the Toolrest provides a stable platform in which the user can rest any tool piece for resharpening. The
height & position of the Toolrest can be moved accordingly via the adjustable bolts provided.
3.1.5. Emergency Stop Button
In compliance with Australian Standards & ISO 9001, all Brobo grinding/buffing machines are now provided with
emergency STOP button for ease of access during an emergency.
1. Motor
2. Safety Eye Shields
3. Grinding Wheel
4. Toolrest
5. Emergency Stop Button
6. Water Pot
1
3
2
4
5
6

Brobo Group
brobo.com.au
3.1.6. Water Pot
Conveniently located to the machine, water, water-based or oil based lubricants can be placed in the water pot in
which the operator can intermittently dip the workpiece in to cool the grinding surface down. Careful note that tools
or heavy objects should not be rested in or on the water pot for safety concerns that it might be obstructing the user’s
access to the emergency stop button
3.2. Preparation for Operation
The following procedure is recommended for the correct grinding using Brobo Group PEDESTAL GRINDERS
PG350
PROCEDURE
1) Clean the workpiece to ensure it is free of any grit, swarf or flammable substances. It is highly recommended
that a solvent is used to remove any residue while ensuring the solvent is inflammable & non-toxic.
2) Prior to grinding/buffing, clear the work area around the workpiece of any sizeable items & tools to minimize
the likelihood of the user getting injured during the grinding operation.
3) Using the Toolrest as a guide, rest the workpiece on the Toolrest & maneuver it to the desired grinding
position.
4) Check that the safety eye shield is directly positioned to deflect swarf & any dislodged particles.
5) Turn the machine on. Proceed by slowly easing the workpiece into the grinding wheel. Apply a steady,
even pressure & feed downward towards the wheel. During grinding, use a traversing motion across the
face of the grinding wheel up to within the edge of the wheel. Take care not to round off the grinding wheel
edges. Do not grind in the one spot on the wheel as this will damage the wheel. Good grinding practice
preserves the shape of the grinding wheel face & reduces the inconvenience & frequency of dressing the
grinding wheel.
6) Once completed, turn the machine off by depressing the stop button.
3.3. Operation Recommendations
 To reduce the amount of frictional heat generated between the grinding wheel & workpiece, a light coating
of oil or lubricant can be applied to the workpiece periodically.
 Do not force the workpiece to the grinding/buffing as this not only significantly reduces the lifespan of the
wheel, the workpiece could recoil sharply backward & injure the operator.
 Adjusting Toolrest: 3mm clearance between Toolrest & wheel face, Align Toolrest above the spindle
Centreline

Brobo Group
brobo.com.au
CHAPTER 4 - Drawings, Layouts, Assembly & Spare Parts
4.1. Spare Parts
Most common replace spare parts:
ITEM PARTNUMBER DESCRIPTION
PG350 3212030 TOORESTARM
3212040 TOOLREST
3212050 INNERFLANGE
3214440 OUTERFLANGE
3225170 BELTDRIV E
3211100 INNERGUARDRH
3211110 INNERGUARDLH
3215040 GRINDINGWHEEL350x50x31.75A46
3215050 GRINDINGWHEEL350x50x31.75A26
3215160 REDUCERBUSH50.8mm‐31.75mm

932
1231
818
C
L
A
590
600
800
500
500 500
600 300
OPERATOR ZONE
MACHINE ZONE
WALL/SAFETY SCREEN
FOR MOTOR
MAINTENANCE
SAFE WORKING ZONE
FRONT VIEW
MACHINE ZONE
SIDE VIEW
625
615
250 250
13 TYP
FRONT
RIGHT SIDE LEFT SIDE
ANCHOR HOLE POSITIONS
255 KG
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
MATERIAL:
DO NOT SCALE DRAWING REVISION
TITLE:
DWG NO.
SCALE:1:10
SHEET 1 OF 1
A3
WEIGHT:
PG350.01
PG350 MAIN DIMENSIONS
BROBO GROUP
Address : 8 Fowler Rd, Dandenong VIC 3175
https://brobo.com.au/
13.08.2020
0
DRAWN
DATE
ANH
ALL RIGHTS RESERVED. THIS DRAWING MAY NOT BE
REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY
MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN
PERMISSION OF BROBO GROUP PTY LT

1
3
2
4
8
9
10
11
12
17
18
19
6
22
16
15
7
5
13
14
20 21 23
27 2524 26 3028
29
31
32
35
33
37
36
34
38
39
40
41
43
44
42
45 46 47
BROBO LOGO
OPTION
3215140 Grinding Wheel 350x50x31.75, A46
3215150 Grinding Wheel 350x50x31.75, A24
62
48
52
53
57 58 59 60 61
49
64
50
51
63
55
54
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 3224020 PG Spindle 1
2 5015150 Woodruff Key No.9 2
3 3225050 PG Spindle Pulley - 42mm Bore 1
4 9314420 Key - Main Spindle 1
5 8705380 Socket Set Screw M8x16 2
6 3215110 Spindle Hex Nut 1 1/4" x 7 TPI - RH 1
7 3215100 Spindle Hex Nut 1 1/4" x 7 TPI - LH 1
8 3222020 PG Bearing House 2
9 3225010
Deep Groove Ball Bearing 6207-N
(35x72x17)
2
10 3224030 PG Bearing Spacer 71.5x65x3 2
11 3213040 Bearing Cover 53x120 2
12 8735490 Button Head Socket Screw M6x12 14
13 8735050 Hex Bolt M12x45 8
14 8715030 Roll Pin 10x40 4
15 3223070 PG Belt Guard 1
16 3212050 PG Grinder Inner Flange 2
17 3215150 Grinding Wheel 350x50x31.75, A24 2
18 3215160 Reducer Bush 50.80-31.75 2
19 3214440 PG Outer Flange 2
20 3213100L PG End Plate LHS 1
21 3211110 PG Inner Guard 1
22 8705590 Hex Head M10x20 8
23 8705650 Socket Head Cap Screw M12x25 8
24 3214290 PG Safety Eye Shield 200x170x6 2
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
25 3213080 PG Spark Shield Bracket 2
26 3632030 Mounting Bracket - Bottom 2
27 3632020 Mounting Bracket Top Eyeshield 2
28 FASEM4X16PTBUT Post Torx Button Screw M4x16 4
29 FASEM4X8PTBUT Post Torx Button Screw M4x8 6
30 8726100 Button Head Socket Screw M6x16 4
31 3213100R End Plate RHS 1
32 3211100 PG Inner Guard RHS 1
33 8705870 Spring Washer M12 4
34 3212030 PG Toolrest Arm 2
35 3212040 PG Toolrest 2
36 8725710 Flat Washer Over Size 12x30x3 4
37 8725480 Socket Head Cap Screw M12x50 4
38 3222010 PG Pedestal (Casting) 1
39 3223080 PG Pedestal Cover Plate 1
40 3835250 Start Button 1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
41 9935470 Stop/E-Stop Push Button 1
42 3214300 PG Start-Emergency Stop Label 1
43 3212070 Water Pot - 2020 1
44 8705160 Socket Head Cap Screw M10 x 20 2
45 1041650 Mushroom Switch 1
46 1065100 PG350 Name Plate 1
47 8715730 Drive Pin 2
48 3222190 PG350 Motor Pulley 1
49 3215430 PG Motor 2.2 kW 1
50 8705250 Socket Head Cap Screw M12x40 4
51 8705740 Hex Nut M12 9
52 3214060 PG Motor Hinge Block 2
53 8725500 Socket Head Cap Screw M10x35 2
54 3224250
PG Motor Plate (C2): Rod ⌀10x240 1
55 3223050 Motor Base Plate for CFSM Casting 1
56 3214270 PG Motor Plate (C3) 2
57 8705170 Socket Head Cap Screw M10x25 2
58 3234150 PG Motor Support Rod 1
59 3224230 PG Rod Hinge 1
60 3234170 Stud M12 x 170 1
61 3214280 PG Motor Plate (C1) 1
62 PGS PG Switch 1
63 1045750 Cable Gland M16 1
64 3225170 PG350 Belt Drive 1
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
MATERIAL:
DO NOT SCALE DRAWING REVISION
TITLE:
DWG NO.
SCALE:1:10
SHEET 1 OF 1
A3
WEIGHT:
3220020
PG350 PEDESTAL GRINDER
ASSEMBLY
BROBO GROUP
Address : 8 Fowler Rd, Dandenong VIC 3175
https://brobo.com.au/
08.09.2020
0
DRAWN
DATE
ANH
ALL RIGHTS RESERVED. THIS DRAWING MAY NOT BE
REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY
MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN
PERMISSION OF BROBO GROUP PTY LT
~255 KG

1 2 3
45 6
7
8
910
11
19
17
18
15
16 13
14
21
20
12
CONNECTION
DETAIL A
DETAIL A
25 2726
222324
INSIDE ENCLOSURE
28
ITEM NO PART NO DESCRIPTION QTY
1 ENCLOSURE 1
2 415 VAC CONTACTOR - NVR 1
3 THERMAL OVERLOAD 4A-6A 1
4 20mm PLASTIC ELBOW 1
5 16mm CABLE GLAND 2
6 CONTACTOR MOUNTING PLATE 1
7 DOUBLE SCREW CONNECTOR 1
8 SINGLE STRIP CONNECTOR 1
9 16mm CORRUGATED NYLON CONDUIT 760 mm LENGTH 1
10 20mm CORRUGATED NYLON CONDUIT 300 mm LENGTH 1
11 2 CORE 1.0mm2 CABLE FOR F.SWTICH CIRCUIT 1.2m LENGTH 1
12 4 CORE 1.5mm2 MOTOR SUPPLY CABLE 600mm LENGTH 1
ITEM NO PART NO DESCRIPTION QTY
13 3222010 PG PEDESTAL - CASTING 1
14 MUSHROOM SWITCH 1
15 4 CORE 1.0mm2 CONTROL CABLE 500mm LENGTH 1
16 4 CORE 1.5mm2 MAIN SUPPLY CABLE 2.2m LENGTH - ORANGE 1
17 START PUSH BUTTON ASSEMBLY 1
18 STOP PUSH BUTTON ASSEMBLY 1
19 1.5mm2 BOOT LACE PINS 10
20
⌀4 NON-INSULATED EYELET 3
21
⌀5 NON-INSULATED EYELET 2
22 SINGLE CORE 1.0mm2 BLUE 70mm LENGTH 1
23 SINGLE CORE 1.0mm2 BLACK 50mm LENGTH 1
24 SINGLE CORE 1.0mm2 BROWN 300mm LENGTH 1
25 PLASTIC 16mm ELBOW ADAPTOR 1
26 M20/16 METAL REDUCER 1
27 M20 METAL NUT 1
28 PLASTIC 16mm STRAIGHT ADAPTOR
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
MATERIAL:
DO NOT SCALE DRAWING REVISION
TITLE:
DWG NO.
SCALE:1:2
SHEET 1 OF 2
A3
WEIGHT:
E1904.PG.C01
PG SWITCH COMPONENTS
BROBO GROUP
Address : 8 Fowler Rd, Dandenong VIC 3175
https://brobo.com.au/
17.04.2019
0
DRAWN
DATE
ANH
ALL RIGHTS RESERVED. THIS DRAWING MAY NOT BE
REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY
MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN
PERMISSION OF BROBO GROUP PTY LT

INNER FLANGE
SPINDLE PULLEY
MOTOR
BELT DRIVE
16
15
13
9
10
5
1
18
17
SPINDLE
BACK VIEW
BEARING HOUSE
OUTER FLANGE
MOTOR PLATE
MOTOR PULLEY
MOTOR SUPPORT
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
MATERIAL:
DO NOT SCALE DRAWING REVISION
TITLE:
DWG NO.
SCALE:1:2
SHEET 2 OF 2
A3
WEIGHT:
E1904.PG.C01
PG SWITCH COMPONENTS
BROBO GROUP
Address : 8 Fowler Rd, Dandenong VIC 3175
https://brobo.com.au/
21.02.2019
0
DRAWN
DATE
ANH
ALL RIGHTS RESERVED. THIS DRAWING MAY NOT BE
REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY
MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN
PERMISSION OF BROBO GROUP PTY LT

ISOLATOR: FRONT
ISOLATOR: ONE PHASE
1 POLE
SWITCH
3 POLE
SWITCH
BASE BASE
ISOLATOR ISOLATOR
CABLE ENTRY TO NVR CABLE ENTRY TO NVR
1
2
SUPPLY
10A/240V
3PIN PLUG
BROWN
BLUE
GREEN/YELLOW
1 3 5
4 6
THREE PHASEONE PHASE
SUPPLY LINE
GREEN/YELLOW BROWN WHITE BLUE
E N E N
COMPONENT / SCHEMATIC / WIRING DIAGRAMS FOR
CONNECTION FOR 1 PHASE OR 3 PHASE CIRCUIT ISOLATOR
OPTIONAL
2
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
MATERIAL:
DO NOT SCALE DRAWING REVISION
TITLE:
DWG NO.
SCALE:1:2
SHEET 1 OF 1
A3
WEIGHT:
E2017.0331
ISOLATOR SCHEMATIC
BROBO GROUP
Address : 8 Fowler Rd, Dandenong VIC 3175
https://brobo.com.au/
08.07.2020
0
DRAWN
DATE
ANH
ALL RIGHTS RESERVED. THIS DRAWING MAY NOT BE
REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY
MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN
PERMISSION OF BROBO GROUP PTY LT
