Brokering Solutions Walnut Ridge Cabinetry STANDARD WALL CABINET User manual

A
B
A
B
CA
A
C
C
A
A
C
D
CA
C
D
EA
C
E
F
D
STEP 1 STEP 3
STEP 4 STEP 5 STEP 6
STEP 2
You Will Need:
Screwdrivers, Protected Surface to Assemble Cabinet On
STEP 1: Attach side panel to back panel.
STEP 2: Attach top panel to back panel and side panel.
STEP 3: Attach remaining side panel and bottom panel.
STEP 4: Attach face frame.
STEP 5: Install shelves.
STEP 6: Adjust door spacing as needed. Add bumpers.
PARTS LIST
NO. Description
A Side Panel
B Back Panel
C Top & Bottom Panels
D Face Frame
E Adjustable Shelf
F Door(s)
HARDWARE
Hinge
3/4” Round
Head Screw Bumper
9/16” Round
Head Screw
1” Flat
Head Screw
Male/Female
Clips
Shelf Clip
STANDARD WALL CABINET
Assembly Instructions
Walnut Ridge
Cabinetry
®
50 Aberdeen Drive, Glasgow, KY 42141 | Phone: [phone] | Fax: [phone]
Email: [e-mail]
SUBJECT TO CHANGE CABAMBD 031623 | REV 3-16-23
Brokering Solutions
42” Tall
30” and 36” Tall
*Door and shelf configuration may vary based on cabinet size.

A
B
A
B
C
A
C
D
A
C
D
EA
C
E
F
D
A
A
C
C
B
STEP 1 STEP 3
STEP 4 STEP 5 STEP 6
STEP 2
You Will Need:
Screwdrivers, Protected Surface to Assemble Cabinet On
STEP 1: Attach side panel to back panel.
STEP 2: Attach top panel to back panel and side panel.
STEP 3: Attach remaining side panel and bottom panel.
STEP 4: Attach face frame.
STEP 5: Install shelves.
STEP 6: Adjust door spacing as needed. Add bumpers.
PARTS LIST
NO. Description
A Side Panel
B Back Panel
C Top & Bottom Panels
D Face Frame
E Adjustable Shelf
F Door
HARDWARE
Hinge
3/4” Round
Head Screw Bumper
9/16” Round
Head Screw
1” Flat
Head Screw
Male/Female
Clips
Shelf Clip
30” and 36” Tall 42” Tall
Walnut Ridge
Cabinetry
®
50 Aberdeen Drive, Glasgow, KY 42141 | Phone: [phone] | Fax: [phone]
Email: [e-mail]
SUBJECT TO CHANGE CABAMBD 031623 | REV 3-16-23
Brokering Solutions
WALL BLIND CORNER CABINET
Assembly Instructions

A
B
A
B
C
A
B
B
C
C
A
B
B
C
D
D
E
A
B
B
C
C
F
A
B
C
CG
F
30” and 36” Tall 42” Tall
STEP 1 STEP 3
STEP 4 STEP 5 STEP 6
STEP 2
You Will Need:
Screwdrivers, Protected Surface to Assemble Cabinet On
STEP 1: Attach front side panel to face frame.
STEP 2: Attach top panel to face frame and front side panel.
STEP 3: Attach remaining front side panel and bottom panel.
STEP 4: Put one back side panel in place (D), then slide in the back panel (E).
Secure the remaining back side panel (D).
STEP 5: Install shelves.
STEP 6: Adjust door spacing as needed. Add bumpers.
PARTS LIST
NO. Description
A Face Frame
B Front Side Panel
C Top & Bottom Panels
D Back Side Panel
E Back Panel
F Adjustable Shelf
G Door
HARDWARE
Hinge
3/4” Round
Head Screw Bumper
9/16” Round
Head Screw
1” Flat
Head Screw
Male/Female
Clips
Shelf Clip
Walnut Ridge
Cabinetry
®
50 Aberdeen Drive, Glasgow, KY 42141 | Phone: [phone] | Fax: [phone]
Email: [e-mail]
SUBJECT TO CHANGE CABAMBD 031623 | REV 3-16-23
Brokering Solutions

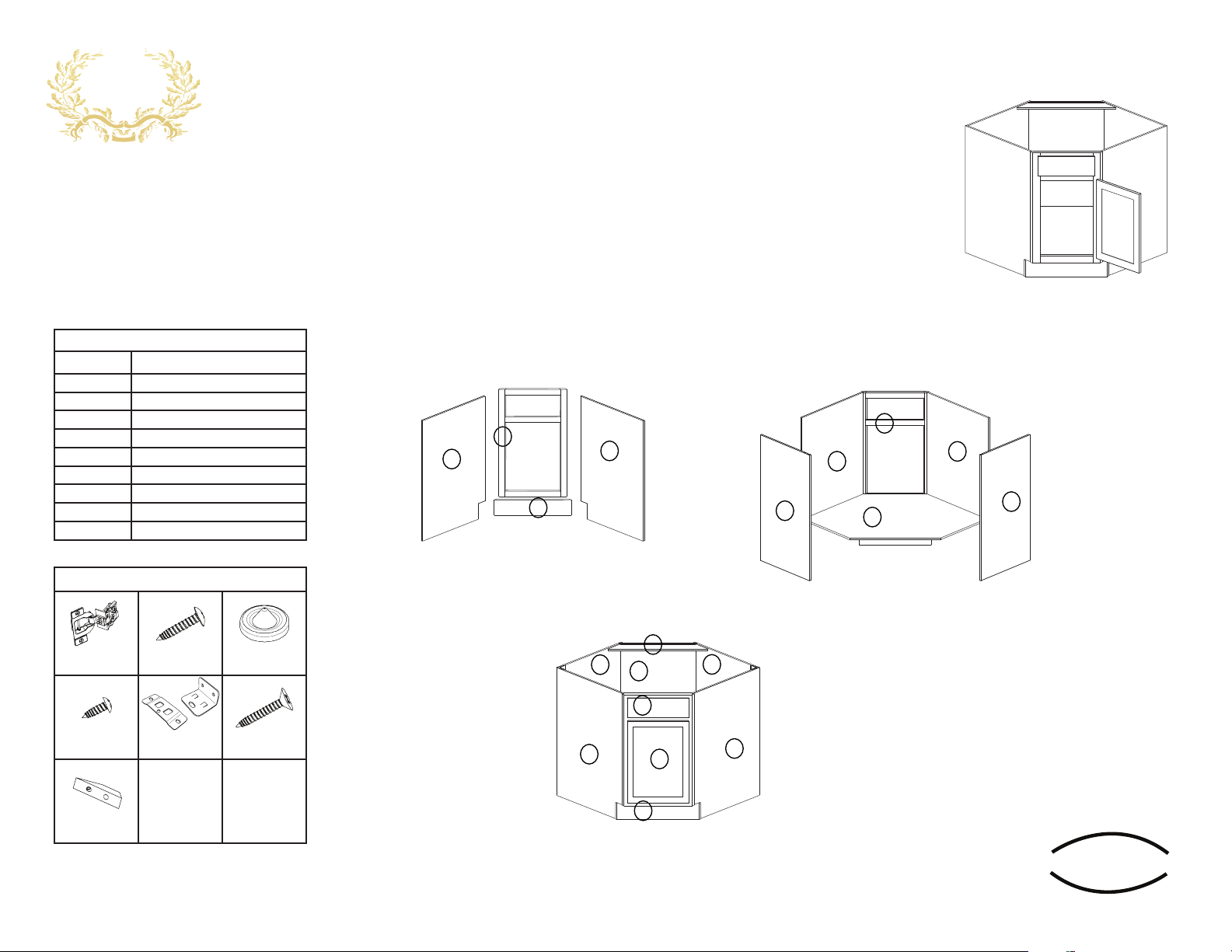

DIAGONAL CORNER WALL CABINET
Assembly Instructions

A
B
C
C
A
A
C
C
C
A
B
A
C
C
C
DE
F
F
A
C
C
D
STEP 1 STEP 3
STEP 4 STEP 5 STEP 6
STEP 2
30” and 36” Tall 42” Tall
You Will Need:
Screwdrivers, Protected Surface to Assemble Cabinet On
STEP 1: Attach side panel to back panel.
STEP 2: Attach top and middle panels to back panel and side panel.
STEP 3: Attach remaining side panel and bottom panel.
STEP 4: Attach face frame.
STEP 5: Install shelves.
STEP 6: Adjust door spacing as needed. Add bumpers.
PARTS LIST
NO. Description
A Side Panel
B Back Panel
CTop/Bottom/Middle Panels
D Face Frame
E Adjustable Shelf
F Door
HARDWARE
Hinge
3/4” Round
Head Screw Bumper
9/16” Round
Head Screw
1” Flat
Head Screw
Male/Female
Clips
Shelf Clip
C
C
C
A
A
D
Walnut Ridge
Cabinetry
®
50 Aberdeen Drive, Glasgow, KY 42141 | Phone: [phone] | Fax: [phone]
Email: [e-mail]
SUBJECT TO CHANGE CABAMBD 031623 | REV 3-16-23
Brokering Solutions
MICROWAVE WALL CABINET
Assembly Instructions

C
A
B
E
J
GH
D
A
B
K
H
J
E
D
Drawer Box
Locking Devices
Runner Profiles
Rear Mounting Brakcets (for Frame Applications)
You Will Need:
Screwdrivers, Protected Surface to Assemble Cabinet On
STEP 1: Attach back panel to side panel.
STEP 2: Attach bottom panel to side and back panel.
STEP 3: Attach remaining side panel.
STEP 4: Attach face frame and toe kick.
STEP 5: Assemble drawer boxes and install glides. Attach drawer fronts.
STEP 6: Attach blocks in top corners and install shelf.
STEP 7: Adjust door spacing as needed. Add bumpers.
STEP 1 STEP 3
STEP 4
STEP 5
STEP 6 STEP 7
STEP 2
HARDWARE
Hinge Bumper
3/4” Round
Head Screw
1” Round
Head Screw
DRAWER GLIDES
DRAWER BOX
PARTS LIST
NO. Description
A Back Panel
B Side Panel
C Bottom Panel
D Toe Kick
E Face Frame
F Drawer Box Front/Back
G Drawer Box Side
H Drawer Box Bottom
I Adjustable Shelf
J Drawer Front
K Door
H
G
G
F
F
J
A
B
A
CBC
A
B
B
A
B
E
D
C
B
H
G
J
I
E
D
B09
B12, B15, B18, B21
Shelf Clip
9/16” Round
Head Screw
Male/Female
Clips
Drawer
Glides
Corner
Block
1” Flat
Head Screw
Walnut Ridge
Cabinetry
®
50 Aberdeen Drive, Glasgow, KY 42141 | Phone: [phone] | Fax: [phone]
Email: [e-mail]
SUBJECT TO CHANGE CABAMBD 031623 | REV 3-16-23
Brokering Solutions
STANDARD BASE CABINET
Assembly Instructions
*Door and drawer configuration may vary based on cabinet size.

You Will Need:
Screwdrivers, Protected Surface to Assemble Cabinet On
STEP 1: Attach back panel to side panel.
STEP 2: Attach bottom panel to side and back panel.
STEP 3: Attach remaining side panel.
STEP 4: Attach face frame and toe kick.
STEP 5: Assemble drawer boxes and install glides. Attach drawer fronts.
STEP 6: Attach blocks in top corners and install shelf.
STEP 7: Adjust door spacing as needed. Add bumpers.
STEP 1 STEP 3
STEP 4
STEP 5 STEP 6 STEP 7
STEP 2
HARDWARE
Hinge Bumper
3/4” Round
Head Screw
1” Round
Head Screw
DRAWER GLIDES
DRAWER BOX
PARTS LIST
NO. Description
A Back Panel
B Side Panel
C Bottom Panel
D Toe Kick
E Face Frame
F Drawer Box Front/Back
G Drawer Box Side
H Drawer Box Bottom
I Adjustable Shelf
J Drawer Front
K Door
Shelf Clip
9/16” Round
Head Screw
Male/Female
Clips
Drawer
Glides
Corner
Block
1” Flat
Head Screw
A
B
A
CBC
A
B
B
CB
E
D
C
B
A
D
J
E
C
B
A
I
D
K
E
CB
A
D
E
K
J
I
H
G
G
F
F
JDrawer Box
Locking Devices
Runner Profiles
Rear Mounting Brakcets (for Frame Applications)
Walnut Ridge
Cabinetry
®
50 Aberdeen Drive, Glasgow, KY 42141 | Phone: [phone] | Fax: [phone]
Email: [e-mail]
SUBJECT TO CHANGE CABAMBD 031623 | REV 3-16-23
Brokering Solutions
BASE BLIND CORNER CABINET
Assembly Instructions

You Will Need:
Screwdrivers, Protected Surface to Assemble Cabinet On
STEP 1: Assemble face frame. Attach side panels and toe kick.
STEP 2: Attach bottom panel and back side panels.
STEP 3: Attach blocks in top corners, and attach connecting
strip to top of cabinet.
STEP 4: Install shelf.
STEP 5: Slide back panel into the grooves on the
back side panels.
STEP 6: Attach doors. Adjust door spacing as needed.
Add bumpers.
PARTS LIST
NO. Description
A Face Frame
B Side Panels
C Toe Kick
D Bottom Panel
E Back Side Panels
F Connecting Strip
G Shelf
H Back Panel
I Door
A
BB
C
EE
D
F
A
BB
C
EE
D
F
G
A
BB
C
E
E
D
F
G
H
A
B
B
C
E
E
D
F
G
H
I
STEP 3 STEP 4
STEP 5 STEP 6
Walnut Ridge
Cabinetry
®
50 Aberdeen Drive, Glasgow, KY 42141 | Phone: [phone] | Fax: [phone]
Email: [e-mail]
SUBJECT TO CHANGE CABAMBD 031623 | REV 3-16-23
Brokering Solutions

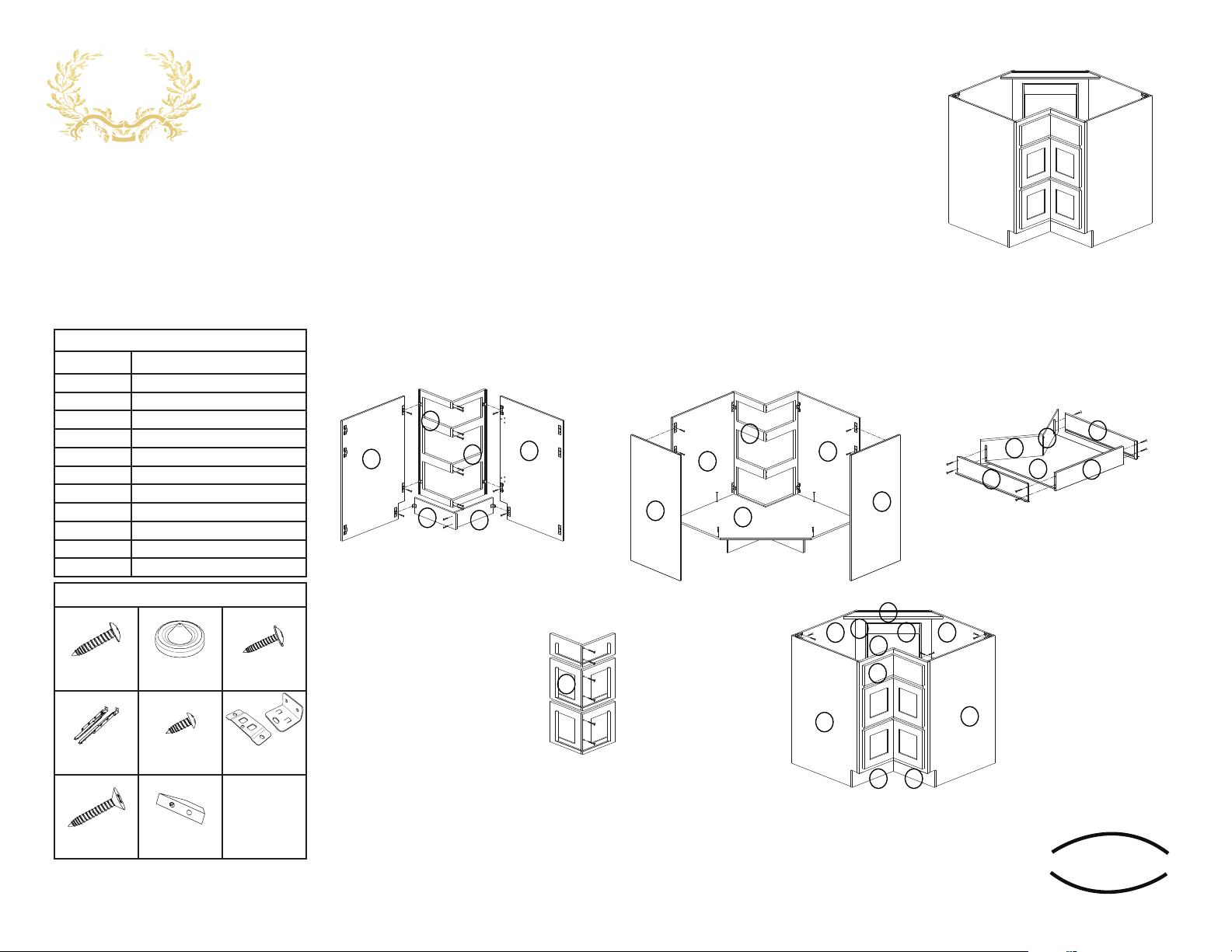

BASE LAZY SUSAN CABINET
Assembly Instructions
AAB
B
CC
A
B
B
D
E
E
STEP 1 STEP 2
HARDWARE
Hinges Bumper
3/4” Round
Head Screw
9/16” Round
Head Screw
Corner
Block
Male/Female
Clips
1” Flat
Head Screw

HARDWARE
A
AB
B
CC
A
B
B
D
E
E
F
G
GH
HH
I
B
B
C C
E
E
I
FH
J
K
You Will Need:
Screwdrivers, Protected Surface to Assemble Cabinet On
STEP 1: Assemble face frame. Attach side panels and toe kick.
STEP 2: Attach bottom panel and back side panels.
STEP 3: Assemble drawer boxes.
STEP 4: Assemble and attach drawer fronts.
STEP 5: Insert back panel. Attach back rail and blocks in top corners.
Install drawer glides and insert drawers. Add bumpers.
STEP 1 STEP 3
STEP 4
STEP 5
STEP 2
PARTS LIST
NO. Description
A Face Frame
B Side Panels
C Toe Kick
D Bottom Panel
E Back Side Panels
F Drawer Box Bottom
G Drawer Box Side
H Drawer Box Front/Back
I Drawer Front
J Back Panel
K Back Rail
Drawer Glides
1” Flat
Head Screw
Male/Female
Clips
3/4” Round
Head Screw Bumper
Corner Block
1” Round
Head Screw
9/16” Round
Head Screw
Walnut Ridge
Cabinetry
®
50 Aberdeen Drive, Glasgow, KY 42141 | Phone: [phone] | Fax: [phone]
Email: [e-mail]
SUBJECT TO CHANGE CABAMBD 031623 | REV 3-16-23
Brokering Solutions
CORNER DRAWER BASE CABINET
Assembly Instructions

H
G
G
F
F
JDrawer Box
Locking Devices
Runner Profiles
Rear Mounting Brakcets (for Frame Applications)
A
B
A
CBC
A
B
B
CB
E
D
A
B
D
E
A
I
H
GB
D
A
I
I
I
H
B
D
A
I
I
I
H
You Will Need:
Screwdrivers, Protected Surface to Assemble Cabinet On
STEP 1: Attach back panel to side panel.
STEP 2: Attach bottom panel to side and back panel.
STEP 3: Attach remaining side panel.
STEP 4: Attach face frame and toe kick.
STEP 5: Assemble drawer boxes and install glides. Attach drawer fronts.
STEP 6: Attach blocks in top corners.
STEP 7: Add bumpers.
STEP 1 STEP 3
STEP 4
STEP 5 STEP 6 STEP 7
STEP 2
DRAWER GLIDES
DRAWER BOX
PARTS LIST
NO. Description
A Back Panel
B Side Panel
C Bottom Panel
D Toe Kick
E Face Frame
F Drawer Box Front/Back
G Drawer Box Side
H Drawer Box Bottom
I Drawer Front
HARDWARE
Bumper 1” Round
Head Screw Drawer Glides
Male/Female
Clips
9/16” Round
Head Screw
Corner Block
1” Flat
Head Screw
Walnut Ridge
Cabinetry
®
50 Aberdeen Drive, Glasgow, KY 42141 | Phone: [phone] | Fax: [phone]
Email: [e-mail]
SUBJECT TO CHANGE CABAMBD 031623 | REV 3-16-23
Brokering Solutions
DRAWER BASE CABINET
Assembly Instructions

You Will Need:
Screwdrivers, Protected Surface to Assemble Cabinet On
STEP 1: Attach side panels to face frame. Attach toe kick.
STEP 2: Attach bottom panel and back side panels.
STEP 3: Insert back panel. Attach back rail and blocks in top corners.
Install drawer blank. Adjust door spacing as needed. Add bumpers.
STEP 1
STEP 3
STEP 2
PARTS LIST
NO. Description
A Face Frame
B Side Panels
C Toe Kick
D Bottom Panel
E Back Side Panels
F Back Panel
G Back Rail
H Door
I Drawer Blank
AB
B
C
A
B
B
D
E
E
B
B
C
E
E
H
I
F
G
HARDWARE
Hinge
Corner Block
3/4” Round
Head Screw Bumper
9/16” Round
Head Screw
Male/Female
Clips
1” Flat
Head Screw
Walnut Ridge
Cabinetry
®
50 Aberdeen Drive, Glasgow, KY 42141 | Phone: [phone] | Fax: [phone]
Email: [e-mail]
SUBJECT TO CHANGE CABAMBD 031623 | REV 3-16-23
Brokering Solutions
DIAGONAL CORNER SINK BASE CABINET
Assembly Instructions

A
B
C
G
G
F
D
A
B
A
CBC
A
B
B
STEP 1 STEP 3
STEP 4
STEP 5 STEP 6
STEP 2
You Will Need:
Screwdrivers, Protected Surface to Assemble Cabinet On
STEP 1: Attach back panel to side panel.
STEP 2: Attach bottom panel to side and back panel.
STEP 3: Attach remaining side panel.
STEP 4: Attach face frame and toe kick.
STEP 5: Attach blocks in top corners.
STEP 6: Attach drawer blanks. Adjust door spacing as needed. Add bumpers.
PARTS LIST
NO. Description
A Back Panel
B Side Panel
C Bottom Panel
D Toe Kick
E Face Frame
F Drawer Blank
G Door
HARDWARE
Hinge
Corner Block
3/4” Round
Head Screw Bumper
9/16” Round
Head Screw
B
D
E
C
B
A
A
B
B
C
E
D
Male/Female
Clips
1” Flat
Head Screw
*Configuration may vary based on cabinet size.
Walnut Ridge
Cabinetry
®
50 Aberdeen Drive, Glasgow, KY 42141 | Phone: [phone] | Fax: [phone]
Email: [e-mail]
SUBJECT TO CHANGE CABAMBD 031623 | REV 3-16-23
Brokering Solutions
SINK BASE CABINET
Assembly Instructions
SB60

A
B
A
CBC
A
B
B
B
D
E
C
A
B
C
E
D
A
B
C
F
F
D
E
STEP 1 STEP 3
STEP 4 STEP 5 STEP 6
STEP 2
You Will Need:
Screwdrivers, Protected Surface to Assemble Cabinet On
STEP 1: Attach back panel to side panel.
STEP 2: Attach bottom panel to side and back panel.
STEP 3: Attach remaining side panel.
STEP 4: Attach face frame and toe kick.
STEP 5: Attach blocks in top corners.
STEP 6: Adjust door spacing as needed. Add bumpers.
PARTS LIST
NO. Description
A Back Panel
B Side Panel
C Bottom Panel
D Toe Kick
E Face Frame
F Door
HARDWARE
Hinge
Corner Block
3/4” Round
Head Screw Bumper
9/16” Round
Head Screw
Male/Female
Clips
1” Flat
Head Screw
Walnut Ridge
Cabinetry
®
50 Aberdeen Drive, Glasgow, KY 42141 | Phone: [phone] | Fax: [phone]
Email: [e-mail]
SUBJECT TO CHANGE CABAMBD 031623 | REV 3-16-23
Brokering Solutions
APRON FRONT SINK BASE CABINET
Assembly Instructions

B
D
E
C
A
H
G
G
F
F
JDrawer Box
Locking Devices
Runner Profiles
Rear Mounting Brakcets (for Frame Applications)
A
B
A
CB
C
CC
A
B
B
You Will Need:
Screwdrivers, Protected Surface to Assemble Cabinet On
STEP 1: Attach back panel to side panel.
STEP 2: Attach middle and bottom panels to side and back panel.
STEP 3: Attach remaining side panel.
STEP 4: Attach face frame and toe kick.
STEP 5: Assemble drawer box and install glides. Attach drawer front.
STEP 6: Attach blocks in top corners and add bumpers.
STEP 1 STEP 3
STEP 4
STEP 5 STEP 6
STEP 2
DRAWER GLIDES
DRAWER BOX
PARTS LIST
NO. Description
A Back Panel
B Side Panel
C Middle/Bottom Panels
D Toe Kick
E Face Frame
F Drawer Box Front/Back
G Drawer Box Side
H Drawer Box Bottom
I Drawer Front
HARDWARE
Bumper 1” Round
Head Screw Drawer Glides
Male/Female
Clips
9/16” Round
Head Screw
Corner Block
1” Flat
Head Screw
B
D
E
A
IG
CB
E
A
C
D
I
Walnut Ridge
Cabinetry
®
50 Aberdeen Drive, Glasgow, KY 42141 | Phone: [phone] | Fax: [phone]
Email: [e-mail]
SUBJECT TO CHANGE CABAMBD 031623 | REV 3-16-23
Brokering Solutions
MICROWAVE BASE CABINET
Assembly Instructions

*Configuration may vary.
H
G
G
F
F
IDrawer Box
Locking Devices
Runner Profiles
Rear Mounting Brakcets (for Frame Applications)
A
B
C
A
BC
A
B
B
BC
A
A
B
B
B
A
A
B
B
B
KE
D
A
BD
A
B
B
K
E
I
D
A
B
K
E
J
J
I
You Will Need:
Screwdrivers, Protected Surface to Assemble Cabinet On
STEP 1: Attach top panel to side panel.
STEP 2: Attach back panel to side and top panel.
STEP 3: Attach middle and bottom panels.
STEP 4: Attach remaining side panel.
STEP 5: Attach oven support shelf.
STEP 6: Attach face frame and toe kick.
STEP 7: Assemble drawer boxes and install glides. Attach drawer fronts.
STEP 8: Adjust door spacing as needed. Add bumpers.
PARTS LIST
NO. Description
A Side Panel
BTop/Bottom/Middle Panels
C Back Panel
D Face Frame
E Toe Kick
F Drawer Box Front/Back
G Drawer Box Side
H Drawer Box Bottom
I Drawer Front
J Door
K Oven Support Shelf
STEP 1
STEP 3 STEP 4
STEP 5 STEP 6
STEP 7 STEP 8
STEP 2
DRAWER GLIDES
DRAWER BOX
HARDWARE
Hinge
3/4” Round
Head Screw Bumper
1” Round
Head Screw
9/16” Round
Head Screw
1” Flat
Head Screw
Drawer Glides
Male/Female
Clips
Shelf Clip
Walnut Ridge
Cabinetry
®
50 Aberdeen Drive, Glasgow, KY 42141 | Phone: [phone] | Fax: [phone]
Email: [e-mail]
SUBJECT TO CHANGE CABAMBD 031623 | REV 3-16-23
Brokering Solutions
OVEN CABINET
Assembly Instructions

24” Wide18” Wide
A
B
B
BC
A
A
B
B
BC
A
A
D
E
A
D
E
H
H
H
H
B
B
B
A
GG
D
FF
B
You Will Need:
Screwdrivers, Protected Surface to Assemble Cabinet On
STEP 1: Attach top panel to side panel.
STEP 2: Attach middle and bottom panels.
STEP 3: Attach back panel.
STEP 4: Attach remaining side panel.
STEP 5: Attach face frame and toe kick.
STEP 6: Install shelves.
STEP 7: Adjust door spacing as needed. Add bumpers.
PARTS LIST
NO. Description
A Side Panel
BTop/Bottom/Middle Panels
C Back Panel
D Toe Kick
E Face Frame
F Bottom Door
G Top Door
H Adjustable Shelf
STEP 3 STEP 4
STEP 5
STEP 6 STEP 7
A
B
STEP 1
STEP 2
A
B
B
B
HARDWARE
Hinge
3/4” Round
Head Screw Bumper
9/16” Round
Head Screw
1” Flat
Head Screw
Male/Female
Clips
Shelf Clip
Walnut Ridge
Cabinetry
®
50 Aberdeen Drive, Glasgow, KY 42141 | Phone: [phone] | Fax: [phone]
Email: [e-mail]
SUBJECT TO CHANGE CABAMBD 031623 | REV 3-16-23
Brokering Solutions
PANTRY CABINET
Assembly Instructions
