Bromic Heating GM0690L User manual

UPRIGHT CHILLER
GM0690L
03/06/2020 - V1

2
1300 276 642www.bromic.com/refrigeration
INFORMATION
Dear Customer,
In order to use your upright cooler, which was manufactured
and quality controlled in company plants with great care, more
efficiently, we kindly request you to read this manual carefully
and completely before start using your product, to keep it for
further reference and to use your product according to the
terms stated herein.
If you fail to use your product according to the rules and
instructions contained in this manual and/or in case of any
usage error, our Company shall not be anyway responsible from
the breaking down of your product.
2

3
1300 276 642 www.bromic.com/refrigeration
Dear Customer,
Points to consider within this manual are indicated under the headings WARNING, CAUTION, NOTE
and SUGGESTION
These headings are defined according to the degree of importance and we kindly request you to
read each of them carefully.
The information stated under headings WARNING, CAUTION, NOTE and SUGGESTION in this opera-
ting manual applies for all stages during the period of use of your product, including transportation
and installation.
NOTE
In case of any failure, please contact to our Call Centre, nearest Authorized
Service or Customer Care Centre for obtaining information. Our Customer Care
Center hotline is available at last page of the operating manual.
It is at the discretion of the consumer to take action related to the food inside your
cooler in case of any failure. Our company is not responsible from the deterioration
of your foodstu due to any failure or usage error.
Our products are manufactured for cooling foodstu and beverages. Our com-
pany is not responsible for any damage that may occur in the products, which are
used for another purpose.
WARNING!
Contains information for preventing serious damages, which may lead the pro-
duct out of use, to injury, loss of life and property while the product is in use
CAUTION!
Contains information for preventing the errors, which may decrease the eiciency
of your product or failures while the product is in use.
NOTE
Contains explanatory information while the product is in use.
SUGGESTION
Contains information that may be useful while the product is in use.
3

4
1300 276 642www.bromic.com/refrigeration
TABLE OF CONTENTS
A- Things that must be done before using your cooler and
security warnings.
B- General appearance of your cooler
C- Installation of your cooler.
Selecting the place of installation
Positioning
Hanging
Installation
Electric connection rules
D- Using your cooler
Start-up
Using digital thermostat
Loading foodstuff to your cooler
Defrost function
Shutting down your product
E- Cleaning, maintenance and transportation of your cooler
Cleaning
Internal cleaning
External cleaning
Transportation of your product
F- Things that must be done before calling Authorized Service
Troubleshooting
Digital thermostat failures
4

5
1300 276 642 www.bromic.com/refrigeration
A- THINGS THAT MUST BE DONE BEFORE USING YOUR COOLER
WARNING!

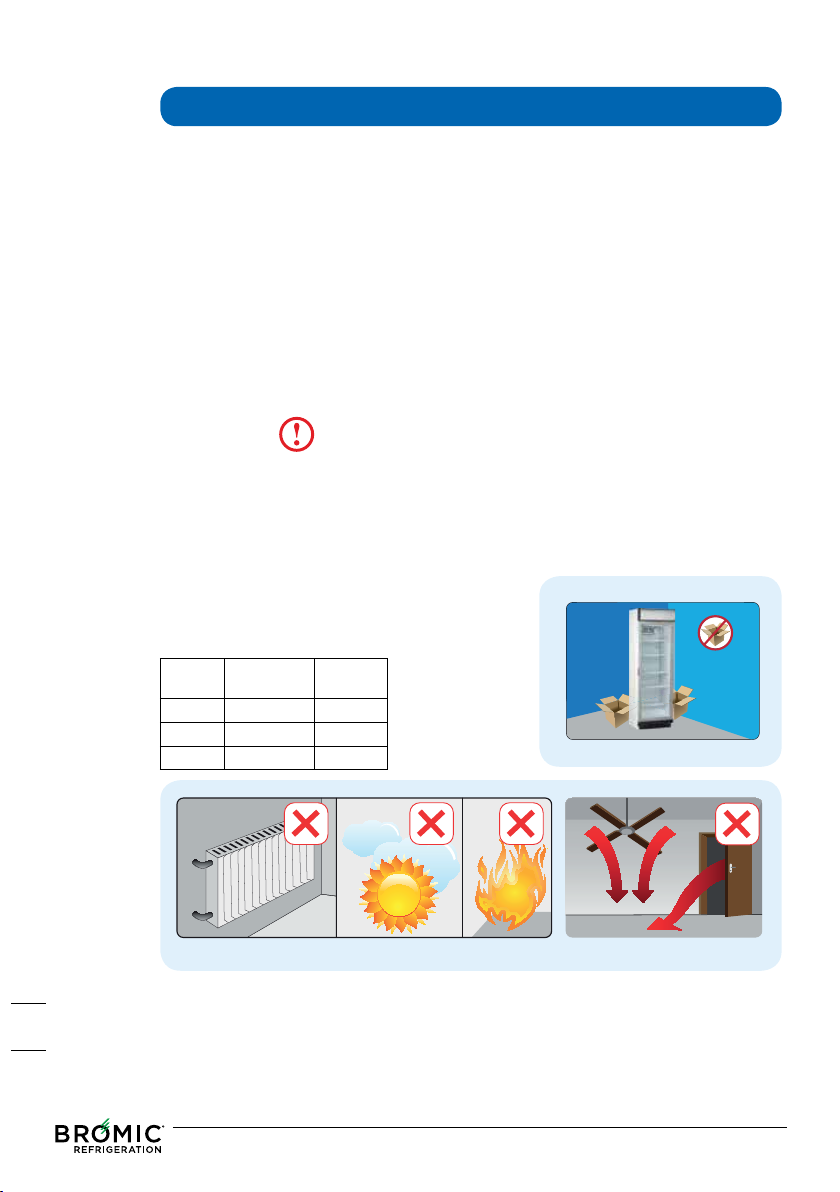

•Do not place your product to a place exposed to direct sunlight or influence area of the heat sources such
stove, radiator core, oven, cooker, radiant and infrared. Otherwise, this may cause performance decrease,
damage of your product or make it become dysfunctional. (Picture 1)
•Your product is set for operating at mains power of 220-240 Volt 50 Hz. Using your cooler with a different
voltage may cause it become dysfunctional and fire. (Picture 2)
•Electrical installation must conform to national regulations. (Picture 3)
•There must absolutely be a residual current relay and a fuse in your electrical installation for preventing the
risks of electrical shock and fire.
•Our company is not responsible for the failures and damage that may occur in case of using without gro-
unding.
•Place the product in a damp-free place with unobstructed air circulation.
•You must clean inside your product before the first use.
•After placing your product to its place, wait for one (1) hour without moving it before start using.
•If your cooler is installed under very cold weather conditions, then the waiting period must be at least two
(2) hours before start it to operate.
•If you do not use your product for a short time or leave it empty, do not unplug it for saving energy. Other-
wise, more energy will be consumed for re-cooling your product.
•Unplug your product in case of sudden blackouts. For starting again, plug in your product 20 minutes after
the electricity is supplied. High voltage occurring at the moment of electricity supply may cause damage
of your product and fire.
•Do not allow wild animals and pets to enter into your product or walk around. It may damage your product
or cause death and injury of the animals. Furthermore, wild animals and pets may cause fire by giving harm
to the electrical installation.
•Never place hot foodstuff into your cooler for cooling purposes.
•The product you’ve purchased is designed and manufactured for cooling and storing bottles and/or canned
beverages or packed food only. Please do not use for other purposes.
•Your product is designed for using at indoor places. Do not use your product at outdoor places.
•Do not place materials that must not be cooled down into your product. Do not use your product for def-
rosting frozen food.
•Product installation, placement, maintenance and cleaning must be done as stated in the manual. Do not
apply anything contrary to the manual. In case of any damage that may happen in your product as the result
of such use, warranty conditions will be invalid due to user error.
•Frost deposit will increase in the products, the doors of which are left open or opened-closed frequently
and your product will not be able to perform cooling operation. Therefore, open your product’s door only
when you need. Make sure that the product’s door is closed when you don’t need.
220- 240 Volta
50 Hz. %10
Picture 1 Picture 2 Picture 3
5

6
1300 276 642www.bromic.com/refrigeration
A- THINGS THAT MUST BE DONE BEFORE USING YOUR COOLER
WARNING!
• Since an impact to the glass parts of the products with glass doors by a sharp, pointed object or its contact
to a very hot substance may cause the glasses to be broken, this matter must be paid attention particularly.
• Place your product onto a at surface with no slope in order to prevent sliding or tilt over of your product.
• Operate your product only at usage position.
• Do not expose your product to direct sunlight.
• Carry and store your product at normal using position only in order to protect it against damages. Actions
in contrary may cause loss of the warranty rights.
• Make sure that the discharge valve is closed for preventing frost formation inside your product or high
sweating on the glasses.
NOTE
It is at the discretion of the consumer entirely to take action related to the food inside your cooler in case of
any failure. Our company is not responsible from the deterioration of your foodstu due to any failure or usage
error.
The product you’ve purchased is designed and manufactured for cooling and storing bottles and/or canned
beverages or packed food only. Our company is not responsible for any damage that may occur in the pro-
ducts, which are used for another purpose.
Check your product if there are any failures or not immediately after receiving the product you’ve purchased.
If there is any damage, contact to your seller within 24 hours.
CD letters are contained in the model names of the products which are custom made and not standard. Con-
tact to the authorized services for the technical specifications of these products. In order to use your product
eff iciently and safely, please read this manual entirely before start using your product and keep it as a
source of reference. You can find updated version of the operating manual from our or our authorized
services.
This product contains (WEEE) classification symbol, which indicates electric and electronic hardware. Accor-
dingly, the user must conform to 2002/96/EC European Directive for recycling in order to minimize the envi-
ronmental impact of the relevant product.
When you intend to throw your product to garbage or to allocate is as scrap, please contact to
Authorized Services for learning necessary information. Your device must be definitely delivered to local
WEEE dis-posal institutions in such cases.
The pictures shown in this manual are representative only and my vary depending on the model. Since the
specifications stated in this manual include all options, some of them may not be present at your product.
6

7
1300 276 642 www.bromic.com/refrigeration
A-SAFETY PRECAUTIONS
WARNING!
The products mentions in the manual are designed according to national and international security norms
and produced under control.
Following matters must be considered for a safe and secure use.
•Check that your outlet is suitable for the operation of your product. Always use your product with grounded
Check that your outlet is suitable for the operation of your product. Always use your product with grounded
socket. Make sure that electrical installation of your building is convenient. Do not use displaced and loose
outlets.
•Do not ever use your product with extension cord or power strip.
•Always follow the instructions in this manual while replacing the bulb The power of the bulb to be replaced
is indicated on the device declaration name label, the label just under the lamp and in this manual. Canopy
lamps must only be replaced by Authorized Service.
•Lamp replacement for the lightings must only be made by Authorized Service.
•If power cable is damaged, its replacement must only be made by Authorized Service.
•Please call Authorized Service if your have any doubt about the electrical connection while the pro-duct
is running.
•Always pull the plug by holding it from the plug-head. Never pull the power cord.
•Do not remove any external protective cover that are not stated in this manual. You may access electrical
parts posing threat to life if the external protective covers are removed.
•Never use pressurized water for cleaning. Pressurized water may cause damage in live parts.
•Do not intervene the device directly in case of any failure arising from the electricity system of the device
and/or the electrical installation it is connected. Call the nearest Authorized Service after breaking the
electricity current by unplugging the device or turning of the switch.
•Never plug and operate a damaged (such as transportation damage) product. Always call the nearest Aut-
horized Service.
•Always consider maximum loading capacity while loading your product with beverages. Do not exceed the
loading line indicated in your product.
•Replacement for the live parts must only be made by Authorized Service.
•Always store packaging materials of your product out of reach of children. Packaging materials (nylon,
Styrofoam etc.) may pose danger for children.
•The product you’ve purchased must not be used by physically (visual, audial) or mentally handicapped
people, children and people with inadequate knowledge without surveillance of a person responsible for
their safety. Children must be guarded while using the product and it must be ensured that they are not
playing with the product.
•Do not use any material and metal that are not recommended by the manufacturer while defrosting. You
may damage cooling parts.
•Do not damage cooling cycle components.
•Do not anyway use the products/materials, which are not recommended by the manufacturer company
inside and outside the cabin.
•Make sure that the intervention to be made to your product is certainly made by authorized service.
•Do not carry, move the product under any circumstance while it is plugged in.
•Never carry out servicing and repair operations on the product while it is plugged in.
•Substances such as aerosol cans with flammable propellant must not be stored in this product.
•Always abide positioning rules of your product. Not abiding cooling shutter and grill layouts may cause fire
danger.
7

8
1300 276 642www.bromic.com/refrigeration
A-SAFETY PRECAUTIONS
WARNING!
CAUTION!
Please check the refrigerant gas written on your product label.
Following 5 clauses cover the products containing R600a and R290 Hydrocarbon gas.
•Installation of this device must be only made by Authorized Service for reducing flammability dangers.
•Do not obstruct the ventilation holes on the device cover or body.
•Mechanical tools and other apparatus, other than the models recommended by the manufacturer, must
not be used for accelerating defrosting operation
•Cooling circuit must not be damaged.
•Electrical devices must not be used inside the food storage section of the device unless the models
recom-mended by the manufacturer.
•Installation of this device must be only made by Authorized Service for reducing flammability dangers.
Following 4 clauses cover the products containing R744 refrigerant gas.
•The system contains high pressure refrigerant gas.
•Never intervene the system.
•Servicing must be provided only by expert people. Contact to the nearest Authorized Service.
•Contact to an experienced Authorized Service before disposal (throw away).
• If your product is damaged or not working properly, please unplug it from the wall outlet. Transfer the
foods-tuff inside of it to a convenient place and call the nearest Authorized Service.
8

9
1300 276 642 www.bromic.com/refrigeration

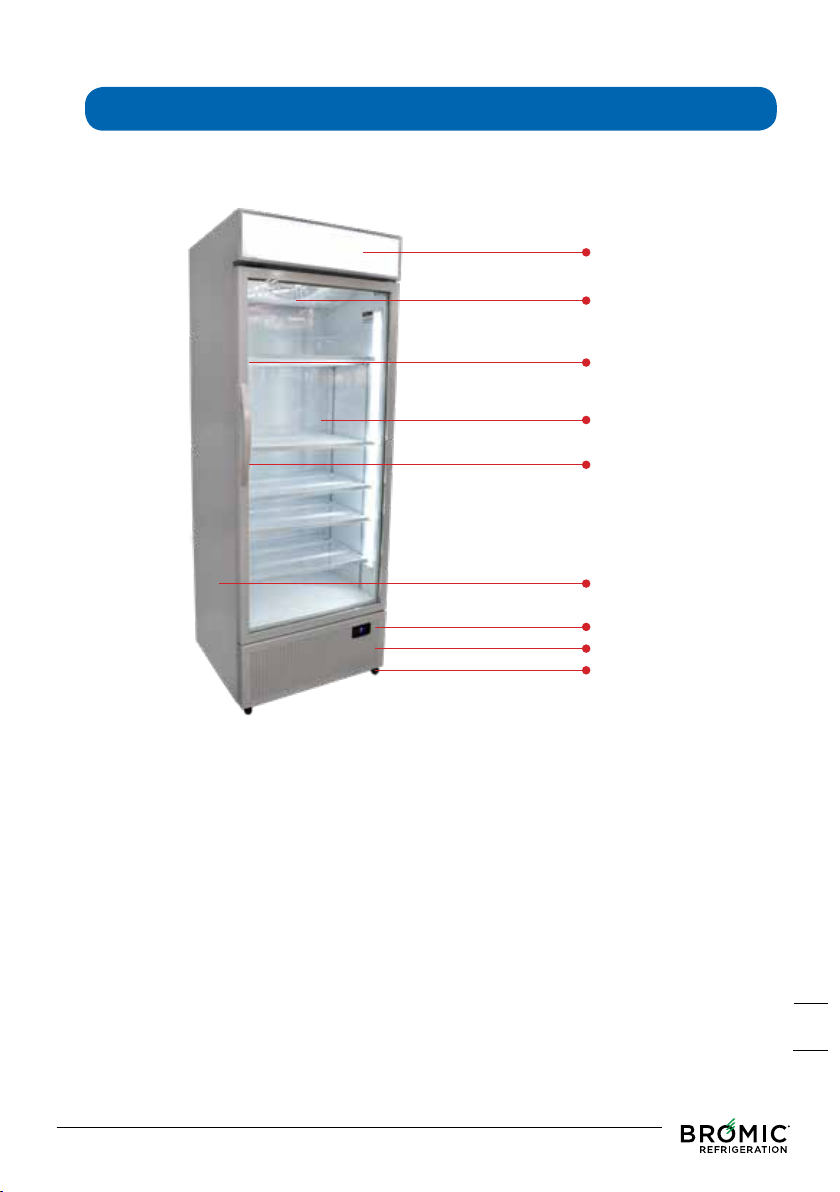

B GENERAL APPEARANCE OF YOUR COOLER
9
Canopy
Lock
Fan
Shelves
Glass Door
Door Pull Handle
External Body
Lower Shutter
Canopy
Fan
Glass Door
Shelves
Door Pull Handle
External Body
Foot
Thermostat
Foot
Canopy
Shelves
Glass Door
Door Pull Handle
External Body
Lower Shutter
Thermostat
Foot
Fan

10
1300 276 642www.bromic.com/refrigeration
C -INSTALLATION OF YOUR COOLER.
Selecting the place of installation
The operating environment of the product is very important for the smooth operation of your product. While selecting
the operating environment,
• Do not place your product exposed to outdoor environment (on the street, avenue etc.)
• Be careful for not obstructing lower shutter of the product with materials such as cardboard, box etc. for a proper
cooling. (Picture 4)
• Place the product at least one (1) meter away from heat resources (ex: stove, radiator, electric heater etc.) (Picture 5)
• Do not place it opposite of the air conditioner chutes, under fans and direct door and window openings. (Picture 6)
• Do not expose to direct sunlight. Operation ratio will increase if sunlight comes to the cooler’s glass. That means an
increase in the energy consumption.
• Air intake and outlet must absolutely be uent and free for proper operation of the compressor section of your pro-
duct.
• While approaching your product to the wall, be careful that there is a gap of 150 mm (15 cm) between the wall and
back of your cooler.
WARNING!
In very humid environments, ensure that o or and wall of the place where the cooler is located, is not aec ted by water;
against discharge water overflow danger.
In installations performed by Authorized Service, Authorized Service shall inform the consumer on the suitab-le place
for installation and make suggestion, but the consumer shall give the final decision on where the installation will be
made. This process shall also be stated on the relevant installation form by Authorized Service. In case of any loss arising
from the place of installation of the product according to the final decision given by the consumer, all responsibi-lity
related to such loss shall belong to the consumer.
Your product gives the best cooling performance according to the
climate condition under the conditions given below. Therefore, be
careful that the temperature of the environment where your cooler
will be operated, is at these levels.
Climate
Class
Tempera-
ture Range
Humidity
Class 3 16 °C to 25 °C %60 Rh
Class 4 16 °C to 30 °C %55 Rh
Class 5 16 °C to 40 °C %45 Rh
Climate Class of your
product is indicated
on the technical
specification label on
the product.
Picture 4
Picture 5 Picture 6
11

11
1300 276 642 www.bromic.com/refrigeration
14
C -INSTALLATION OF YOUR COOLER.

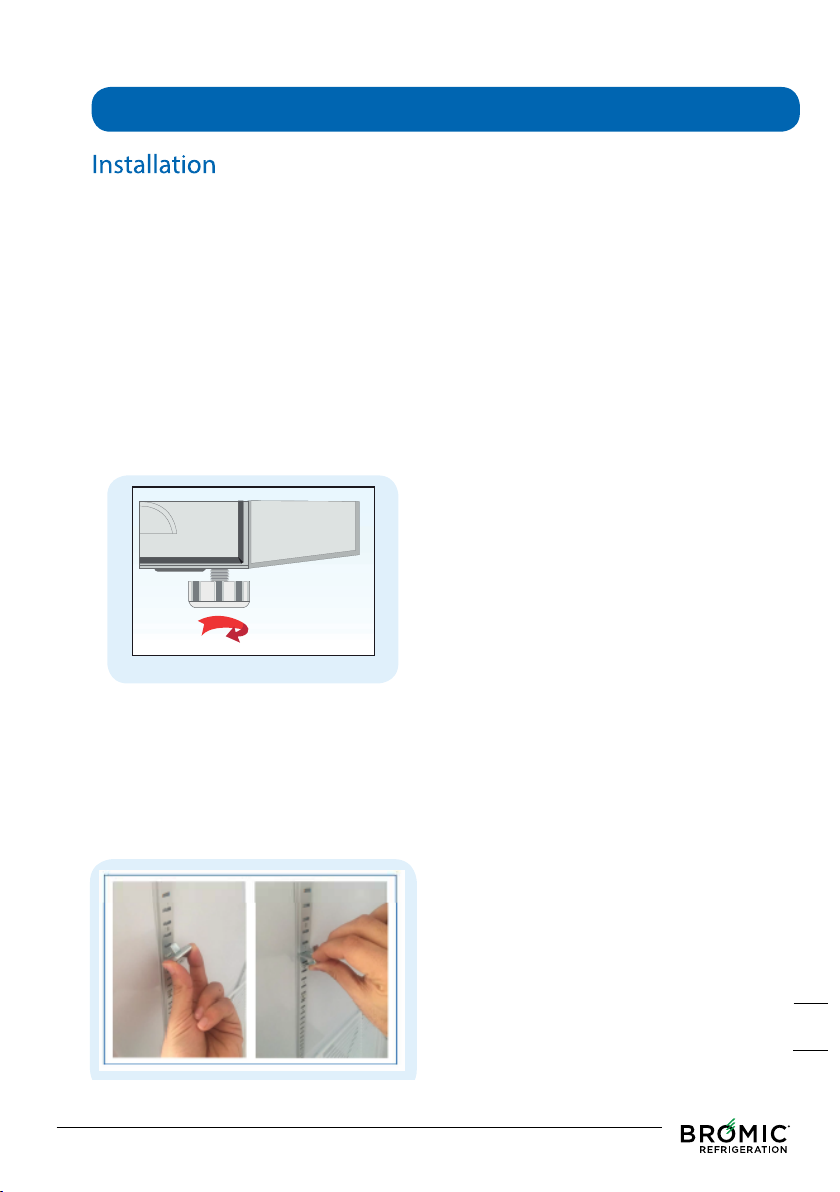

Shelf spaces of your product can be adjusted as desired.
There are numbers on the backup strips so as to even up the shelf spaces easily. Adjust the backup strips according to
the desired space and attach its clips. To attach the shelf clips, insert the lower part of the foot into the backup strip
and press the upper part with your hand inward and attach the shelf clips. To attach the shelves, open the cover of the
device 90° and install the shelves. You can remove the shelves and shelf clips by doing the opposite process.
Do not mount the shelves in an inclined way.
Installing the Shelves
Picture 9
Before positioning, remove and disassemble all packaging materials and bottom wooden pallet of the product. (It may
be necessary to lift the cooler for removing the bottom pallet).
Insert the replacement parts inside your product according to the installation instructions. Only use genuine spare
parts.
Inauthentic spare parts may constitute danger for you and damage your product.
Place the product anywhere you desire. Consider the placement rules written in the manual while positioning the
product.
Balance your product in width and in depth by means of a water gauge. Perform balancing operation by using
adjustable feet at the bottom front of your cooler. (Picture 9)
In models with wheels (optional), wheel brake (optional) must be locked or if there is no wheel brake, it must be
guaranteed that the device will not move after the positioning of the product.

12
1300 276 642www.bromic.com/refrigeration
C -INSTALLATION OF YOUR COOLER.
Electric Connection Rules

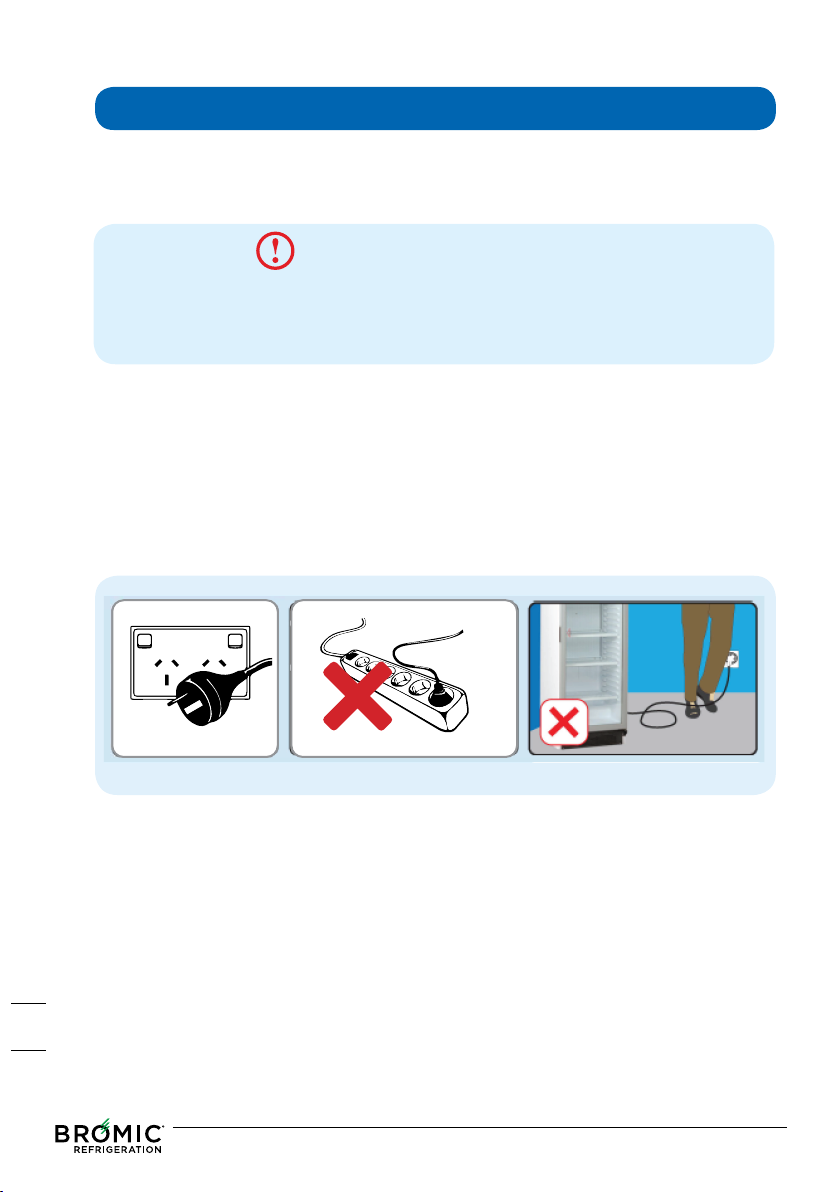

The product will start when you insert the plug into the outlet as shown in picture 10.
The outlet you will use must be grounded. Furthermore, the outlet to be used must have the resistance of at least
10-16 A and be protected with a suitable fuse. Definitely take assistance from our technical service or a competent
electrician with regards to the fuse that should be present on the mains where the outlet is connected.
Mains voltage and frequency must be same with the value written on the label inside your product. If your mains
voltage is extremely below or above the value indicated, definitely supply demanded voltage by using a voltage
regulator. You can get assistance from an expert electrician with this regard.
Do not place your product’s cord onto passageways. This may cause you to get injured and damage your cooler.
(Picture 12)
WARNING!
• It is forbidden to insert the plug into multiple socket and to use extension cord. (Picture 11)
• There is no separate on-o switch on your product.
• Do not contact the cables of your product, which are connected to the mains, to hot surfaces.
Picture 10 Picture 11 Picture 12
15

13
1300 276 642 www.bromic.com/refrigeration
WARNING!
D-USING YOUR COOLER
Start-up
•This operating manual applies for various device models. Hardware scopes of the models may vary. There
may be differences in the pictures.
•Clean inside and all accessories of your product before the first start up.
•If your product has been shaken so much during the transportation and positioning, wait for one (1) hour
without running your cooler. Thus, the compressor oil, which may enter into the system, will return back.
You may damage the compressor if you run it without considering this.
•Insert your product’s plug into an outlet with alternative current of 220-240V/50 Hz only, which has been
installed according to the regulations. (Picture 13)
•You will hear a slight sound from the compressor when your product is running.
•The fan inside your product will stop when you open the door of your refrigerator.
•If the lights of your product are not on, set the 0-1 switch under the canopy to position 1. (Picture 14-15)
Picture 13 Picture 14 Picture 15
16
For LCD Display Coolers;
Your product has units with transparent LCD display placed on the door of your product. You do not need to
take any action to activate these units. When you plug in your product, the unit will be activated and the
display will start playing.
These units placed on your product display images on the transparent display via media cards placed in our
factory. These images can only be changed by authorized technical services.
The door of your product is specially produced in our factory. Never interfere in any door, display or image
malfunctions and call the authorized service immediately.
WARNING!
D-USING YOUR COOLER
Start-up
•This operating manual applies for various device models. Hardware scopes of the models may vary. There
may be differences in the pictures.
•Clean inside and all accessories of your product before the first start up.
•If your product has been shaken so much during the transportation and positioning, wait for one (1) hour
without running your cooler. Thus, the compressor oil, which may enter into the system, will return back.
You may damage the compressor if you run it without considering this.
•Insert your product’s plug into an outlet with alternative current of 220-240V/50 Hz only, which has been
installed according to the regulations. (Picture 13)
•You will hear a slight sound from the compressor when your product is running.
•The fan inside your product will stop when you open the door of your refrigerator.
•If the lights of your product are not on, set the 0-1 switch under the canopy to position 1. (Picture 14-15)
Picture 13
Picture 14 Picture 15
16
For LCD Display Coolers;
Your product has units with transparent LCD display placed on the door of your product. You do not need to
take any action to activate these units. When you plug in your product, the unit will be activated and the
display will start playing.
These units placed on your product display images on the transparent display via media cards placed in our
factory. These images can only be changed by authorized technical services.
The door of your product is specially produced in our factory. Never interfere in any door, display or image
malfunctions and call the authorized service immediately.

14
1300 276 642www.bromic.com/refrigeration
D -USING YOUR COOLER
For Carel Thermostat;
Using digital thermostat
If the product you’ve purchased is equipped with a digital thermostat, please pay attention to the following matters.
Digital thermostats are factory set and do not require any setting. You can change the thermostat setting as shown
below.
Digital thermostats contain many programs (such as eco mode, night mode). If you believe that there is a problem in
your product related to the operation or cooling, please consult to authorized service.
Error codes given by the digital thermostats are under the troubleshooting title. When you encounter these error
codes, stop thermostat alarm and call Authorized Service.

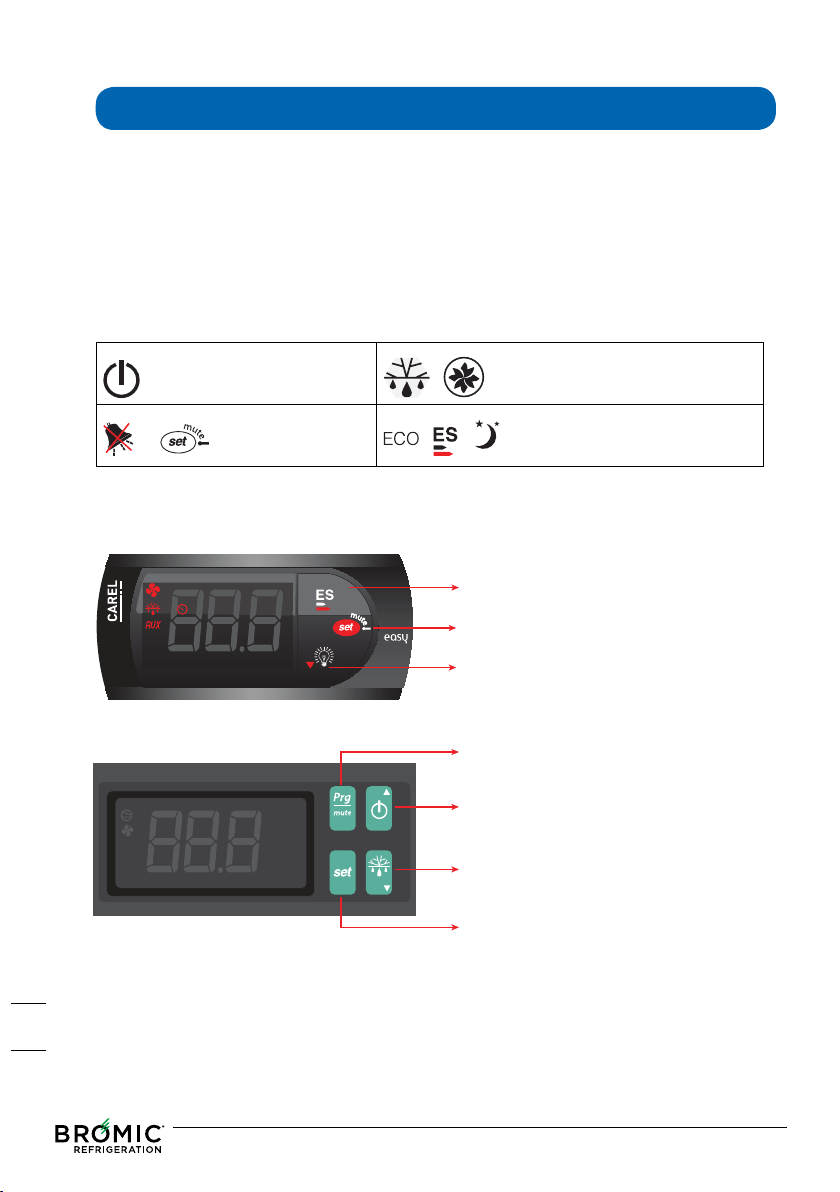

Temperature is increased by pressing this button after
pressing set button.
It allows setting the device temperature. It is activated
when set button is pressed for 2-3 seconds.
Temperature is decreased by pressing this button after
pressing set button.
Programming key. Only used by service personnel.
Product on/o function. Temperature is increased by
pressing this button after pressing set button simul-
taneously.
Ensures manuel defrost of the product. Temperature
is decreased by pressing this button after pressing set
button simultaneously.
It allows setting the cooler temperature. It is activated
when set button is pressed for 2-3 seconds.
Turns on/o your cooler. Manuel defrost.
Mutes alarm. Shifts to economic mode and night mode.
18

15
1300 276 642 www.bromic.com/refrigeration
D- USING YOUR COOLER
Loading foodstuff to your cooler

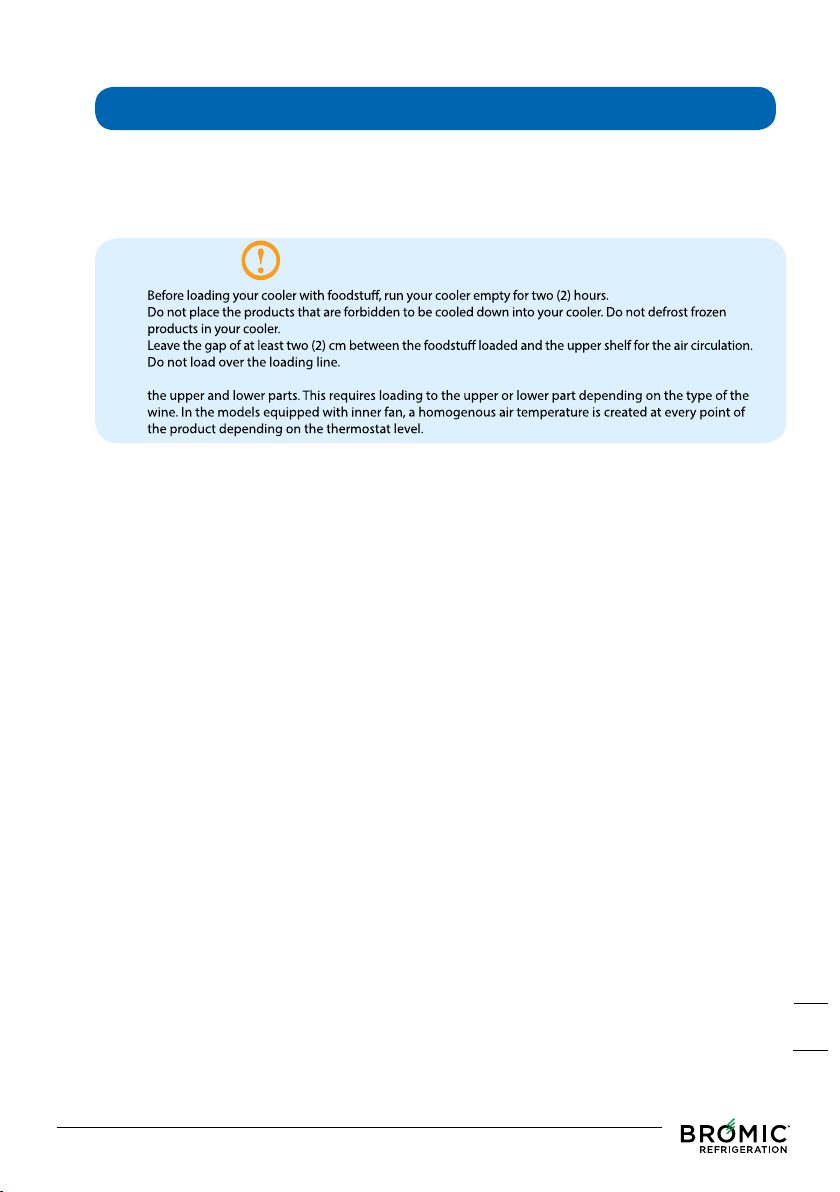

When your product reach to the desired coolness at empty state, you can load it with the types of foodstu with the
examples given in this manual. (If your product is a thermometer installed model, you can control internal temperatu-
re of your product from here.)
20
CAUTION!
•
•
•
•
•Some models of USS 374 DTK-L-B-BK SRP Wine coolers are without fan and temperatura differance occurs beteween

16
1300 276 642www.bromic.com/refrigeration
D- USING YOUR COOLER
Shutting down your product
Defrost function
- Transfer the foodstu inside your product to a convenient place.
- Unplug your product. (Picture 18)
If your product will not be used for a long time, apply following considerations;
- Clean your product. Otherwise the humidity on the wall may cause darkening of the internal surface.
Your product has automatic defrost function. Your show case will melt frost automatically when it is necessary to defrost
while running
Although your product automatically prevents frost deposit, frost deposit ratio may increase due to high temperature
and humidity as well as frequent use of the device. Running period increases as the frost deposit increases. That also
increases the energy consumption. In such cases, stop your product and ensure melting of the frost.
DO NOT FORGET!
An evaporator without frost will always run with high eiciency
Water from the evaporator drops onto the drop tray at compressor section. Even though hot gas evaporates water
here, it will be better to check and clean once a month
CAUTION!
If your product will be stored at an indoor place after shutdown;
• Do not cover it with plastic sheets. Plastic will cause smell and sweating of your product as it does not breat-
he. Corrosion may be seen as the result of sweating.
• Smell formation may occur in cases where you fail to store your product with the door open.
Picture 18
21
D- USING YOUR COOLER
Shutting down your product
Defrost function
- Transfer the foodstu inside your product to a convenient place.
- Unplug your product. (Picture 18)
If your product will not be used for a long time, apply following considerations;
- Clean your product. Otherwise the humidity on the wall may cause darkening of the internal surface.
Your product has automatic defrost function. Your show case will melt frost automatically when it is necessary to defrost
while running
Although your product automatically prevents frost deposit, frost deposit ratio may increase due to high temperature
and humidity as well as frequent use of the device. Running period increases as the frost deposit increases. That also
increases the energy consumption. In such cases, stop your product and ensure melting of the frost.
DO NOT FORGET!
An evaporator without frost will always run with high eiciency
Water from the evaporator drops onto the drop tray at compressor section. Even though hot gas evaporates water
here, it will be better to check and clean once a month
CAUTION!
If your product will be stored at an indoor place after shutdown;
• Do not cover it with plastic sheets. Plastic will cause smell and sweating of your product as it does not breat-
he. Corrosion may be seen as the result of sweating.
• Smell formation may occur in cases where you fail to store your product with the door open.
Picture 18
21

17
1300 276 642 www.bromic.com/refrigeration
E- CLEANING, MAINTENANCE AND TRANSPORTATION OF YOUR
COOLER
CLEANING
Cleaning of your device is composed of two stages, which are the internal cleaning and external cleaning.
Following warnings must certainly be abided before start cleaning.
Internal cleaning
Transfer the foodstuinsidey our product to a convenient place.
Before the internal cleaning, wait until the temperatures of the internal parts of your product reaches to the ambient
temperature.
Always wear protective gloves during cleaning and maintenance. This will protect you from injuries.
Remove the accessories from inside.
Perform cleaning with a soft cotton cloth and warm soapy water or by using the cleaning agents recommended
by.
Dry with a dry cotton cloth. Products, which are not dried, may darken in time.
Make sure that no wet or humid area is left in the internal section after cleaning.
You can reload your product two (2) hours after running your product as stated in this manual.
External cleaning
Clean with a cotton cloth and warm soapy water.
Prevent penetration of cleaning water into the front control panel and lighting section while cleaning.
Clean the door gasket by using clean soapy water only.
SUGGESTION
You can use branded cleaning agents, which you can get from Authorized Services for internal and
external cleaning of your device.
CAUTION!
• Unplug your cooler before every cleaning.
• Always wear protective gloves during cleaning and maintenance. This will protect you from injuries.
• Never use abrasive and scratching substances (ammable and sparkling, solvent like gasoline, thinner, acid )
as cleaning agents. Never use owing and pressurized water for cleaning.
22

18
1300 276 642www.bromic.com/refrigeration
E- CLEANING, MAINTENANCE AND TRANSPORTATION OF YOUR
COOLER
Transportation of your product
Unplug your product from the grounded outlet.
Carry out defrost operation.
Carry your product at normal using position. Do not carry horizontally, vertically, tilted or with the door open.
Protect your product from the impacts while carrying. Do not carry your product when it is plugged in or full.
In order not to cause any accident and for preventing the product to get damaged by falling or sliding, secure your
product to the vehicle during the transportation.
NOTE
Pay attention to the following considerations if you do not use your product for reasons such as vacation,
trip etc..
If you do not use it for a short time:
Leave your product in operating state.
If you do not use it for long time and want to shut it down:
Consume the foodstuff inside your product and empty it.
Unplug the power cord from the outlet.
Apply defrost and internal cleaning steps in this manual.
Dry inside of the product thoroughly. Darkening may occur in the product which is not dried.
Leave the product door open.
23

19
1300 276 642 www.bromic.com/refrigeration
F- THINGS THAT MUST BE DONE BEFORE CALLING AUTHORIZED
SERVICE
Troubleshooting
The failures and solutions stated in this section can be performed easily by yourselves and always consult to an
Authorized Service if these suggestions do not solve your problem.
CAUTION!
•Intervention to any failure that may occur in your product must be carried out by Authorized Service.
•Any intervention that may be done by you may harm you, your employee or customer, invalidate the
product guarantee and cause material damage (fire etc..).
•In case of any failure, consult to Customer Care or Authorized Service.
Power values of the bulbs and leds used in your products are stated in the section where they
are inserted and may vary in products. Only Authorized Service can intervene bulbs and leds used
in your products.
Troubleshooting Possible Solution Result
Cooler is not working. (No sound
or only fan sound comes from the
product.)
It may be due to the thermostat.
Not plugged in.
The fuse may be blown or broken
down.
Condenser lamella may be ob-
structed or get dirty.
It will run again when reached to
the suitable temperature.
Insert the plug properly.
Consult to an Authorized Service
or a competent electrician. Clean
the condenser lamellas.
Device internal temperature is high. External ambient temperature is
very high or wrong thermostat
setting.
Very close to the back wall, ventila-
tion shutters are obstructed or its
front is prevented.
It may have been exposed to exces-
sive external wind.
Condenser lamellas are very dirty.
Move the cooler to a place where
the external temperature is lower.
Adjust to the stated gap.
Clean in front of the ventilation
shutters.
Prevent the wind.
Clean the condenser lamellas.
Device internal temperature is very
low.
Wrong internal thermostat setting. Re-set the thermostat.
Lamps of the cooler do not light or
only one of them lights.
Lamps are turned o.
Bulb has blown or starter failure.
Turn-on the lamps.
Replace failed part.
High degree of sweating on the
glass inside the device.
Water discharge hole may be
obstructed when sweating is seen
inside the cabin.
In glass sweating on the other hand,
current external ambient humidity
is over 65%.
Clean water discharge hole. With re-
gards to the high humidity, you can
move your cooler to an environment
with less humidity.
Bad smell coming from the bottom
part of the cooler.
Lower water discharge tray is dirty.
(For some models only)
Clean the water discharge tray.
24

20
1300 276 642www.bromic.com/refrigeration
F- THINGS THAT MUST BE DONE BEFORE CALLING AUTHORIZED
SERVICE
Digital thermostat failures
Alarm signals for Dixel thermostat;
Alarm signals for Carel thermostat;
Setting the digital thermostat values other than the factory settings are completely under the
user's responsibility. Our company shall not be held responsible for the material and moral losses
that may arise in connection thereto.
MESSAGE REASON PROCEEDINGS TO BE FOLLOWED
P1 Room sensor failure Check the sensor connection
P2 sen Evaporator sensor failure Check the sensor connection before replacing the sensor.
HA pa- Maximum temperature alarm Check compressor operation and relevant parameter values.
LA pa- Maximum temperature alarm Check compressor operation and relevant parameter values.
EA External alarm Alarm stops automatically when digital entry is deactivated.
MESSAGE REASON PROCEEDINGS TO BE FOLLOWED
EO Control sensor 1 failure
(Control)
Check the sensor
E1 Control sensor 2 failure
(Defrost)
Check the sensor and d0=0/1/4,F0=1
E2 Control sensor 3 failure
(Condenser)
Check the sensor and whether it is (A4=10)
IA External alarm Check external alarm outlets or A4 and A7 parameters.
dOr Open door alarm Check that the door is closed or A4 and A7 parameters.
LO Low temperature alarm Alarm will be turned-o automatically when the temperature
returns to the set value range. Also check the set value.
HI High temperature alarm Alarm will be turned-o automatically when the temperature
returns to the set value range. Also check the set value. Check
whether the cooling system runs properly.
EE/Eer Unit parameter failure Check the parameters.
EF Operating parameter failure Check dT,dP and d4 parameters; defrost eect. Alarm will be closed
automatically when defrost operation nishes.
ED Defrost completed out of
its time
25
dT, dP and d4 parameters; Check defrost effect. When
defrosting is finished normally, the alarm will turn off.
