Bromic Heating FD4T0660C-NR User manual

28/05/2021 - V2
FOOD DISPLAY
FRIDGE
3736308, 3736309, 3736310, 3736311, 3736313-NR

1300 276 642www.bromic.com/refrigeration
2
CONTENTS
Note: Bromic Refrigeration reserves the right to make changes to specifications, parts, components and equipment without prior notification.
This Installation, operation and service manual may not be reproduced in any form with prior written consent from Bromic Refrigeration.
1. PREFIX
3
2. IMPORTANT NOTES & WARNINGS
4
3. PRODUCT OVERVIEW
5
4. INSTALLATION
6
5. OPERATION
8
6. PRODUCT LOADING AND STORAGE
9
7. MAINTENANCE
9
8. TROUBLESHOOTING
10
9. ENVIRONMENTAL & DISPOSAL NOTES
11
10. WARRANTY
11

1300 276 642 www.bromic.com/refrigeration
3
1. PREFIX
This manual contains important information about the installation, operation, and maintenance
of Bromic Food Display units. Please pay close attention to the important safety information
shown throughout this instruction manual. Any safety information will be accompanied by the
following safety alert symbols:
DANGER, WARNING, IMPORTANT
• READ THIS MANUAL CAREFULLY before installing or
servicing this product.
• Improper installation, operation, or maintenance can result
in death, severe injury, or property damage.
• Improper installation, operation, or maintenance may also
result in warranty being voided.
• This appliance is intended for 230-240 Volt power supply.
• Installation MUST be carried out by a licensed and

1300 276 642www.bromic.com/refrigeration
4
• Read all instructions before installing or using this appliance
• Retain this manual for future reference
• Use this appliance only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock or injury.
• Improper installation, adjustment or alteration and failure to follow the warnings and instructions in
this manual could result in severe personal injury, death or property damage
• The manufacturer is not responsible for any damage that could happen from improper use. The
manufacturer emphasises that this appliance should be used in a responsible manner and that all
procedures, warnings, and safety instructions contained in this booklet be followed strictly.
• Check the appliance for damage. Do not operate a damaged unit.
• Check for damage to the appliance regularly. If damage to the appliance is suspected, discontinue
use immediately and contact the supplier or qualified person to repair.
• This appliance is not intended for use by people (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible of their safety.
• Keep packaging material out reach of children
• Children should be carefully supervised to ensure that they do not play with the appliance
• Do not attempt to alter the appliance in any manner.
• Please pay attention to the maximum load limit when filling the shelves.
• All work on electrical equipment must be carried out by a qualified and licenced technician only.
• Do not perform maintenance until the appliance has been turned o and power disconnected.
• Never detach any cover except where specifically instructed in this manual. Doing so might expose
live electrical parts.
• Do not operate the appliance with panels, covers or guards removed.
• Keep the air intake and outlets free of obstructions.
• Do not use the appliance outdoors.
• If the supply cord becomes damaged, it must be replaced by an authorised service agent or similarly
qualified person in order to avoid a hazard.
• If the appliance has not been used, or will not be used for a long period of time, disconnect
power supply.
• The appliance must be installed in accordance to AS1677.2:1998 to ensure there are no sources of
ignitionin any area where refrigerant could gather in the event of a leak.
• Electrical equipment should not be placed under the unit or where refrigerant could gather in the
event of a leak.
• Installation/servicing of the appliance must be performed by a licenced technician with Gas Work
Authorization if the appliance gas system is being opened or charged.
• The refrigerant used in this appliance (model FD4T0660C-NR only) is flammable.
2. IMPORTANT NOTES AND WARNINGS

1300 276 642 www.bromic.com/refrigeration
5
3. PRODUCT OVERVIEW
FD4T0660C
-NR
FD4T0900C FD4T1200C FD4T1500C FD4T1800C
Part Number 3736313-NR 3736308 3736309 3736310 3736311
External Dimension
Height, mm 1360 1360 1360 1360 1360
Width, mm 660 900 1200 1500 1800
Depth, mm 740 740 740 740 740
Capacity Litres 300 350 470 580 700
Weight kg 195 230 282 319 344
Air Circulation Type Forced Forced Forced Forced Forced
Climate Class 4 44444
Temperature
Range 1°C to 5°C 1°C to 5°C 1°C to 5°C 1°C to 5°C 1°C to 5°C
Type Digital Digital Digital Digital Digital
Exterior Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Interior Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Electrical
Voltage, V 240 240 240 240 240
Frequency, Hz 50 50 50 50 50
Current, A 3.0 4.4 4.5 5.4 6.5
Power, W 540 700 1000 1220 1360
Door
Solid/Glass Glass Glass Glass Glass Glass
Type Hinged Sliding Sliding Sliding Sliding
Self-Closing No No No No No
Door Lock No No No No No
Shelves Qty 3+base 3+base 3+base 3+base 3+base
Weight Limit, kg 20 20 21 23 28
Adjustable Height&angle Height&angle Height&angle Height&angle Height&angle
Refrigeration
Refrigerant R290 R404A R404A R404A R404A
Charge, g 120 450 650 700 950g
Plug Rating 10A 10A 10A 10A 10A
Wheels
Type Castors Castors Castors Castors Castors
Quantity 4 4 4 4 4

1300 276 642www.bromic.com/refrigeration
6
4. INSTALLATION
Locating the Cabinet
Ensure the following instructions are observed as this is vital for proper and trouble-free operation.
• Do not install the cabinet outdoors.
• Locate the appliance in a dry and well ventilated place.
• The unit must be positioned on a level surface.

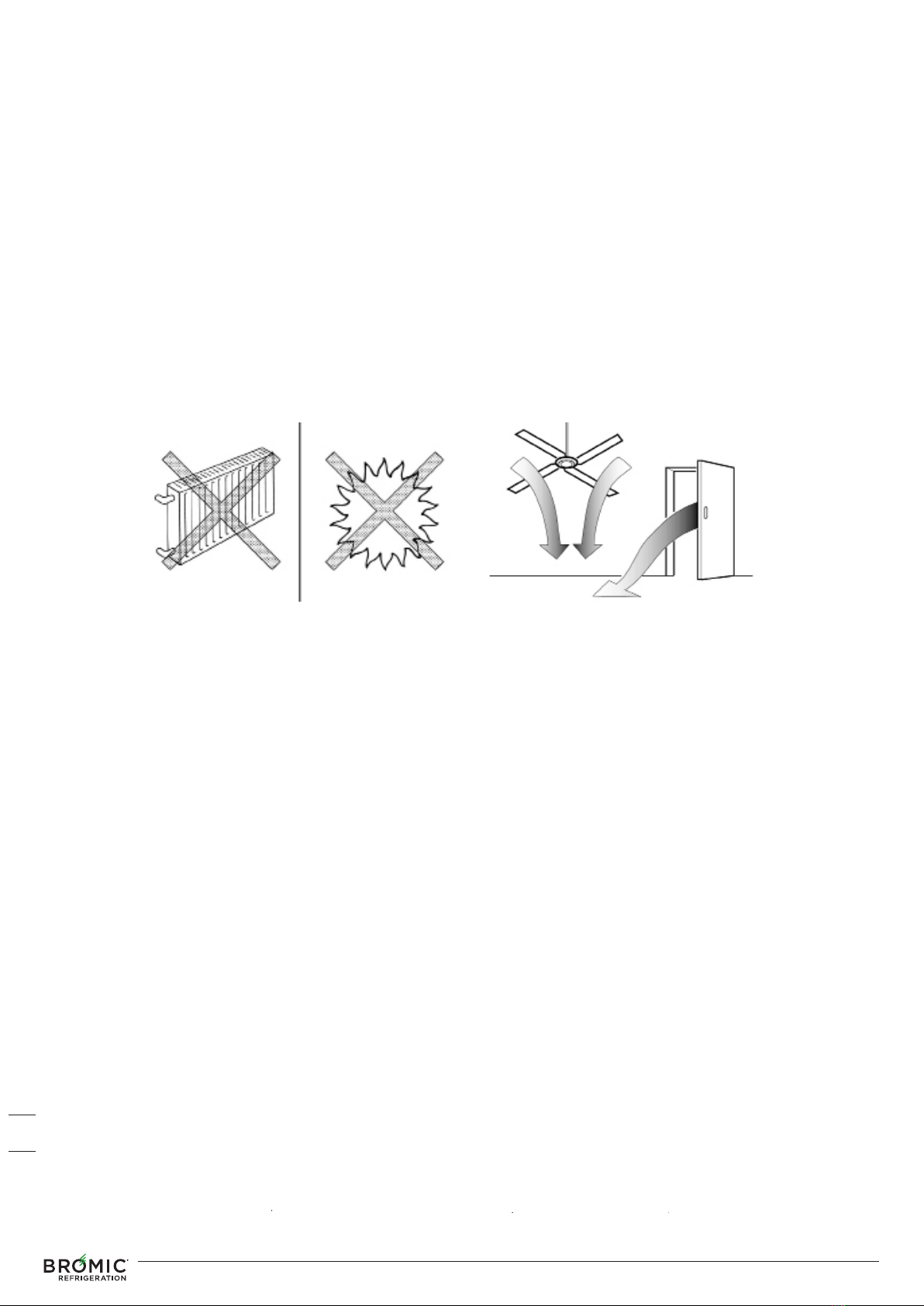

• Do not install in the vicinity of heating radiators or other heat sources.
• Do not install the appliance where it is exposed to direct sunlight.
• Do not install the appliance where it is exposed to warm draughts or open doors.
• Keep the air intake and outlets free of obstructions.
• Adequate allowance should be made for door openings.
Ventilation
• Allow 150mm clearance between walls and the appliance.
• Ensure that the condenser fan is free to take in ambient air from the room.
• Adherence to minimum clearances is necessary

1300 276 642 www.bromic.com/refrigeration
7
Power Supply
• The appliance must not be plugged into a multiple outlet power board.
• The appliance is supplied with a flexible power cord fitted with a 3-pin plug.
• The socket used must be properly earthed and fuse/RCD protected.
• See the rating label inside the cabinet for supply voltage, frequency and current draw.
• Power cable is rated 70°C. It is recommended that the cable should not come into contact
with parts over 50°C.
• Do not turn o power before consulting the person responsible.
• Mark the power source clearly, so the refrigerator is not unplugged or turned o
accidentally.
Before Operating
• If the appliance has been sharply tilted or transported in the horizontal position, it must
be left to stand in the upright position and not plugged in for at least 4 hours.
• Remove all the packaging material before using the appliance.
• Start the appliance only if it has been installed as described.

1300 276 642www.bromic.com/refrigeration
8
5. OPERATION
Start-up
• Connect the appliance to the mains power supply and turn on the main switch (blue) by
flipping it upward.
• Switch on the Refrigeration, Antifog and Lighting switches, and check that the
compressor, electronic controller, lighting and all fans are functioning correctly.
• The compressor and condenser fan should operate should operate within 3 minutes after
the Refrigeration switch is turned on.
• The electronic controller will display the current cabinet temperature after the
Refrigeration switch is turned on.
• The LED indicates that refrigeration circuit is operating.
• During the start-up delay (3 minutes), the LED is flashing
• The LED indicates that the refrigeration circuit is defrosting
Setting the temperature
i. Press the button for more than 3 seconds.
ii. The value of the set point will be displayed and the ‘°C’ or ‘°F’ LED starts blinking.
iii. Press or arrow key within 10 seconds to adjust the set point.
iv. Press the key again or wait 10 seconds.

1300 276 642 www.bromic.com/refrigeration
9
6. PRODUCT LOADING AND STORAGE
Start-up
• Clean the interior surface with a soft cloth and warm water before loading.
• Ensure there is free circulation of air between the products.
• Do not block the evaporator fan.
• Do not overstock the refrigerator.
• Keep refrigerator door openings to a minimum.
• Some products are sensitive to ultraviolet (UV) light, please see storage guidelines from
the manufacturer before removing from packaging.
• Maximum recommended shelf load (for each shelf) is specified in section 3 (page 5) of
this manual. Do not overstock.
NOTE: Bromic cannot be responsible for loss of stock or damage to stock.
IMPORTANT: Run the refrigerator for at least 2 hours before loading.
7. MAINTENANCE
Cleaning the Cabinet
• Remove the products and transfer to a suitable location prior to cleaning the inside
of the cabinet.
• Do not use any aggressive or abrasive cleaning agents.
• Never use a water hose or a high-pressure jet to clean.
• Do not use sharp or pointed objects for cleaning.
• Clean the inside and outside of the appliance with a clean damp cloth or with a
neutral cleanser.
• Dry all surfaces with a dry cloth.
WARNING: Disconnect the appliance from the power supply before performing any
maintenance. Never unplug the appliance by pulling on the cord. Always grasp the
plug firmly and pull straight out of the outlet.
WARNING: Exposure to significant water ingress will void warranty and cause
potential safety issues. If the unit should be exposed to water, please contact the
manufacturer immediately.
IMPORTANT: Warranty may be void if there is no evidence of preventative
maintenance is performed on the appliance.
WARNING: WARNING: Do not store explosive substances such as aerosol cans with
a flammable propellant inside the appliance.
Condenser Coil/Filter
IMPORTANT: The filter and the condenser coil must be cleaned once a month. The
filter can be removed for cleaning with water, make sure it is dried before reattaching.
The condenser coil must be cleaned with vacuum/brush monthly to maintain the
performance and minimise power consumption. A poorly maintained condenser coil
can lead to failure of the unit and higher cabinet temperatures.

1300 276 642www.bromic.com/refrigeration
10
8. TROUBLESHOOTING
IMPORTANT: Repairs on the unit must be carried out by an authorised and licenced
person only. Contact the manufacturer or an approved service agent for any repairs
needed.
Symptom Possible Cause(s)
Unit does not work A. No power supply A. Check power supply
Cabinet
Temperature
Too High
A. Ambient temperature too high
B. Inadequate ventilation
C. Wall clearances below
minimum distance
D. Dirty condenser coil and filter
E. Ice build-up on evaporator coil
A. Relocate unit
B. Keep ventilation slots free
C. Adjust to minimum clearance
D. Clean
E. Check gaskets and set
temperature
Cabinet
Temperature
Too Low
A. Set temperature too low A. Adjust set temperature
Drip tray
overflowing
A. Extreme operating condition A. Relocate unit
Odour inside
cabinet
A. Cabinet dirty A. Clean

1300 276 642 www.bromic.com/refrigeration
11
9. ENVIRONMENTAL AND DISPOSAL NOTES
These refrigerated cabinets are designed to high standards of environmental protection and
recycling convenience. Cyclopentane, an environmentally friendly foaming agent, has been
used. Cyclopentane is distinguished by zero ozone depletion potential (ODP) and zero global
warming potential (GWP). The refrigerant used and contained within a hermetically tight
circuit is environmentally friendly and does not contain chlorine and zero ODP.
The device must be disposed of in accordance with applicable regulations. The WEEE
regulations must be observed.
In the interest of preventing environmental nuisance and promoting re-use of the high quality
materials employed, used commercial refrigeration equipment must be collected for expert
disposal and recycling. Therefore, observe the following disposal regulations:
• The cabinet must not be discarded with regular waste.
• The refrigeration circuit must not be damaged.
• Before disposal, make it unserviceable by disconnecting the power plug and cutting o
the power cable.
• Consult your local authorities or authorised dealers for details of collection and disposal
facilities.
• Children are often unable to recognise the dangers associated with commercial
refrigeration equipment. Proper supervision must be maintained and children must be
prevented from playing with discarded refrigerated cabinets.
• The refrigerant used in this appliance (model FD4T0660C-NR only) is flammable.
10. WARRANTY
Please visit our webpage for warranty details –
(http://www.bromic.com/warranty-information/)
Read all relevant documentations before operating the refrigerator and storage of any stock.
Failure to follow instructions may result in loss of or damage to stock.
BROMIC CANNOT BE RESPONSIBLE FOR THE LOSS OF OR DAMAGE TO STOCK

10 Phiney Place, Ingleburn
NSW 2565 Australia
T: AU 1300 276 642
F: ([phone]
E: refriger[email protected]om.au
SYDNEY HEAD OFFICE & SHOWROOM
BROMIC.COM
NSW VIC QLD TAS WA SA NT ACT
