CONTENTS
This manual contains important safety information. Before operating the
bidet, please read this manual thoroughly, and retain it for future reference.
PRODUCT INSTALLATION
GENERAL INFO
PRODUCT OPERATION
02 SAFETY INFORMATION
06
06
08
09
PRODUCT INFORMATION
Product Features
Product Dimensions
Product Parts
10
10
11
11
14
15
PRODUCT INSTALLATION
Installation Parts
Before Installation
Swash Installation
Remote Control Installation
External Bidet Filter Installation
16
16
18
20
21
25
26
OPERATING THE SWASH
S1200 Remote Control Guide
S1400 Remote Control Guide
Bidet Seat Controls Guide
Using the Swash 1200/1400
Using the Swash 1400’s
Additional Features
Swash Special Mode Operations
TECHNICAL INFO
TRANSLATIONS
28 PRODUCT SPECIFICATIONS
29
29
29
30
30
31
MAINTENANCE
Seat Cleaning & Removal
Nozzle Cleaning
Replacing the Deodorizer Cartridge
Cleaning the Mesh Filter
Product Storage & Use
31 TROUBLESHOOTING
34 WARRANTY
36 SPANISH
72 FRENCH

2
Failure to observe the following warnings may result in electric shock, fire, personal injury, property
damage or product damage:
• The remote control for this product contains a button style coin battery. If swallowed, it can cause
severe injury or death in just 2 hours. Keep the remote away from children and seek medical atten-
tion immediately if suspected ingestion of the battery occurs.
• Do not use a damaged power plug or plug into a loose electric outlet.
• Do not move the product by pulling the power cord.
• Do not handle the product or power plug with wet hands.
• Do not forcefully bend the power cord or place heavy objects on it to prevent it from being damaged
or deformed.
• Do not connect and pull out the power plug or cord repeatedly.
• Unplug the product before cleaning, repairing, inspecting, or replacing parts.
• Remove any dust or water from the power plug prior to plugging in.
• Do not plug the product into an electrical outlet or power strip that is being used by too many other
products. Use an electrical outlet adequate for the wattage of the product rated for a minimum of 15
amps.
• If the power cord is damaged, do not attempt to repair, modify, or replace the cord yourself. Contact
the Brondell Service Center toll free at 888-542-3355 or email us through our website.
• If the product produces a strange noise, a burning smell, or emits smoke, unplug it immediately
from the electrical outlet and contact Brondell. Failure to do so may result in electric shock or fire.
• Do not insert any wires or sharp objects into any product gaps. This may result in electric shock, fire,
or product damage.
Be careful to keep this safety information. Please read this information
to prevent property loss and ensure safety.
SAFETY INFORMATION
IMPORTANT SAFEGUARDS
DANGER:
If not observed, serious injury or even death may occur as a result.
DANGER
WARNING:
If not observed, serious physical injury or property damage may occur as a result.
CAUTION:
If not observed, minor physical injury or property damage may occur as a result.
READ ALL INSTRUCTIONS BEFORE USING
SAVE THESE INSTRUCTIONS

3
• Do not place an electronic or gas heater near the product or dispose of any burning materials such
as a lit cigarette in the toilet. This may result in fire or product deformation. Do not place any con-
tainers filled with water or other liquids, food, metallic objects, or any flammable material on top of
the product. If foreign material enters the product, this may result in electric shock or fire.
• Do not use the product in locations exposed to excessive moisture and do not splash water onto the
product.
• While cleaning the bathroom, pull the power plug out of the electrical outlet and exercise caution to
ensure that water or cleaning supplies do not splash onto the bidet. Failure to do so may result in
electric shock or fire.
• If foreign material enters the product, pull the power plug out of the electrical outlet, turn o the
main water valve, and call the Brondell Service Center.
• Do not disassemble, repair, or modify the product yourself.
• Do not use the product while wet from bathing or showering.
• Do not place or store the product where it can fall or be pulled into a tub or sink.
• Do not place in or drop the product into water or any other liquid.
• Do not reach for the product if it has fallen into water. Unplug the product immediately and call the
Brondell Service Center.
• Do not use the product if it is not working properly. Please unplug the product immediately, close
the main water supply valve, and call the Brondell Service Center at 888-542-3355. Failure to do so
may result in electric shock, fire, or flooding.
SAFETY INFORMATION (cont.)
IMPORTANT SAFEGUARDS
DANGER
SAVE THESE INSTRUCTIONS
Failure to observe the following warnings may result in electric shock, fire, personal injury, property
damage or product damage.
• Do not plug in, operate, or store the unit in locations where flammable or combustible materials are
used or kept.
• Do not use industrial water, or gray water for the supply, as this may cause skin damage or disease.
• Turn o the main water supply valve when cleaning.
• For children and seniors who may have diculties with adjusting temperatures or those with sen-
sitive skin or impaired heat sensitivity, set the temperature of the wash spray and seat to “low” or
“o” to prevent burning.
• Close supervision is necessary when this product is used by children, seniors, or persons requiring
general assistance.
• Do not press the buttons using excessive force.
• Do not stand on top of or place any heavy objects onto the seat cover.
• Use this product for its intended use only, as described in this manual. Do not use any attachments
that are not recommended by Brondell.
WARNING

4
SAFETY INFORMATION (cont.)
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS
Failure to observe the following warnings may result in electric shock, fire, personal injury, property
damage, or product damage.
• For California Residents: CR2032 batteries contain Perchlorate Material - special handling may
apply. Visit http://www.dtsc.ca.gov/hazardouswaste/perchlorate for more information.
• Do not connect the main water supply to the hot water pipe or supply (only connect to the cold
water supply).
• After the installation, make sure to check all water supply connections for leaks. Rubber washers
should be in place for the water connection hoses & T-Valve.
• Do not open/close the seat or seat cover with excessive force.
• Exercise caution that urine does not come into contact with the product - failure to do so may result
in bad odors or malfunction.
• If the product will not be used for a long period of time, unplug the power cord, close the main
water supply valve, and drain any water in the water tank.
• Do not pull out the bidet hose using excessive force.
• Do not use thinner, benzene, acidic chemicals, chloride, or hydrochloric acid detergent on or near
the product. This may result in corrosion to the metal parts or discoloration or scratches to the bidet
body.
• This appliance is not intended for use by persons (including children and seniors) with reduced
physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning the use of the appliance by a person responsible
for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
CAUTION
WARNING
• Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Contact the Brondell Service Center for examina-
tion and repair.
• Keep the cord away from heated surfaces and heating vents.
• Never block the air openings of the product or place it on a soft surface, such as a bed or couch,
where the air openings may be blocked. Keep the air openings free of lint, hair, etc.
• Never drop or insert any object into any opening or hose.
• Do not use the product outdoors or operate where aerosol (spray) products are being used or a
room where it could be exposed to oxygen.
• Connect this product to a properly grounded outlet only. Refer to the Grounding Instructions in the
next pages of the manual.

5
This product should only be used with a grounded GFCI
(Ground Fault Circuit Interrupter) outlet and a grounded
three-prong electrical cord as shown to the right. In the
event of an electrical short circuit, using a grounded GFCI
outlet reduces the risk of electric shock.
This product is equipped with a grounded cord and is for
use on a nominal 120V circuit only (minimum 15 amps) and
must be plugged into an outlet that is properly grounded
with a GFCI breaker as shown. Replace or repair a damaged
cord immediately.
Extension Cord Use
If it is necessary to use an extension cord, only use those rated for a minimum of 15 amps with a
three-wire extension cord with a three-blade grounding plug. Only plug into a three-slot grounded
GFCI receptacle that will accept the plug of the product. Replace or repair any damaged cords
immediately.

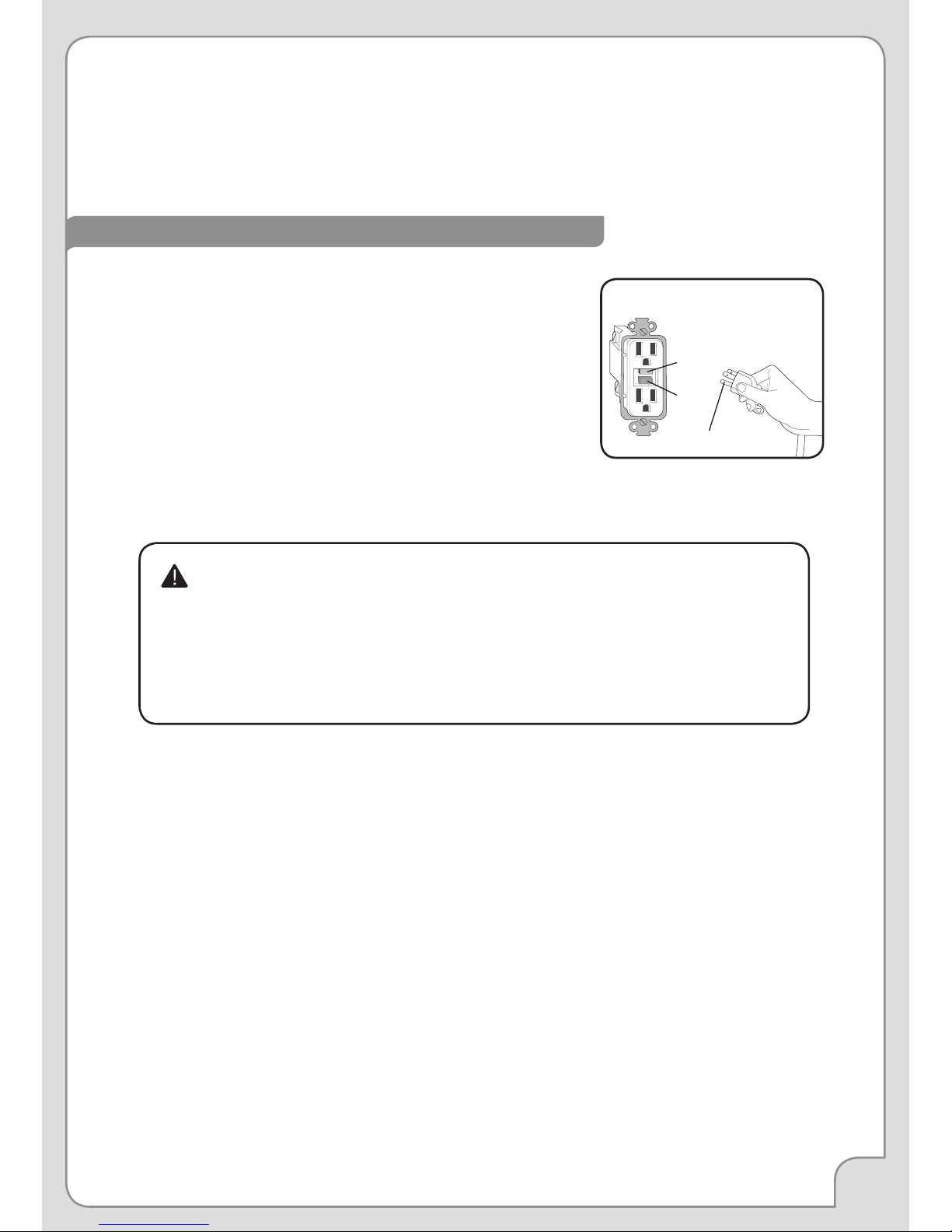

GROUNDING AND GFI OUTLET INSTRUCTIONS
Test
Reset
Ground GFCI Outlet
Grounding Pin
Improper use of the grounding plug can result in a risk of electric shock.
• If repair or replacement of the cord or plug is necessary, do not connect the
grounding wire to either flat blade terminal. The wire with green insulation
(either with or without a yellow stripe) is the grounding wire.
• Check with a qualified electrician if the grounding instructions are not completely
understood, or if there is doubt if the product is properly grounded.
SAFETY INFORMATION (cont.)
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS

6
PRODUCT INFORMATION
Dual Stainless Steel Nozzles – separate stainless steel nozzles resist soiling and bacterial
contamination for enhanced hygiene. The dual nozzle configuration ensures accurate coverage for
all types of users.
Aerated Wash Spray – micro-bubbles introduced into the wash spray create a gentler, softer
wash action designed for sensitive skin. In addition, the aerated spray reduces overall water
consumption and is more eective in washing the skin.
Positionable Nozzles – each nozzle has seven dierent positions to ensure the most comfortable
and complete wash.
Ergonomic Heated Seat – with four temperature settings (High/Med/Low/O).
Night Light – an illuminating night light means no more blinding lights during midnight trips to the
bathroom.
Sturdy, “Sittable” Lid – the strong bidet seat lid will support up to 270 pounds.
Gentle Closing Seat and Lid – “slam free” gentle closing seat and lid are user friendly.
Instant and Endless Warm Water – the cutting-edge instant ceramic heating system ensures an
endless warm water stream for posterior and feminine washes.
Adjustable Water Temperature and Pressure – each wash mode (Front and Rear) has four
available water temperature settings, and three water pressure settings.
Wide Spray Option – three width settings widens the wash spray from a strong concentrated
stream to a soft spray for a more personal and thorough wash.
Wireless Remote Control – the intuitive remote control comes with a convenient magnetic dock
and mounting bracket, and includes its own Eco Mode to conserve battery life.
Two User Memory Settings – personalize your settings like water temperature, water pressure,
and even the spray width to your own preferences and retain them with two programmable profile
settings.
“Auto” Function – activates a preset for either a Front or Rear wash cycle. The Dry cycle will then
activate with the Swash 1400. See page 22 for more details.
Automatic Eco Mode – this function automatically lowers the seat temperature ten minutes after
the Swash was last used.
Quick-Release Seat – quick-release button for easy removal and cleaning of seat and toilet.
S1200/1400 PRODUCT FEATURES

7
Warm Air Dryer – includes adjustable temperature with three levels for a hands-free experience
and toilet paper reduction – even elimination.
Nozzle Oscillation – the move function provides a massaging, oscillating cleanse during the wash
cycle ensuring a thorough and comfortable wash.
Nozzle Sterilization – utilizing silver as a natural antibacterial agent we are able to create a
sterilizing wash for the nozzles that is 100% chemical and maintenance free keeping them clean,
hygienic, and corrosion free.
Deodorizer – the activated charcoal deodorizing filter eliminates odors at the source. It does not
cover or mask odors, but eliminates them by removing air from the toilet bowl, passing it through
the replaceable filter and expelling the clean air through the vent in the back of the Swash.
S1400-ONLY PRODUCT FEATURES

8
PRODUCT INFORMATION (cont.)
PRODUCT DIMENSIONS
5.25 –8.3 in
Distance Between
Mounting Holes
5.3 in
5.3 in
15.125 in
14.25 in
15.2 in
15.2 in
14.25 in
14.25 in
8 in
8 in
Elongated Top View
Round Top View
5.25 –8.3 in
Rear Fixing Distance: 6.9 in
Bottom View
2.9 in

9

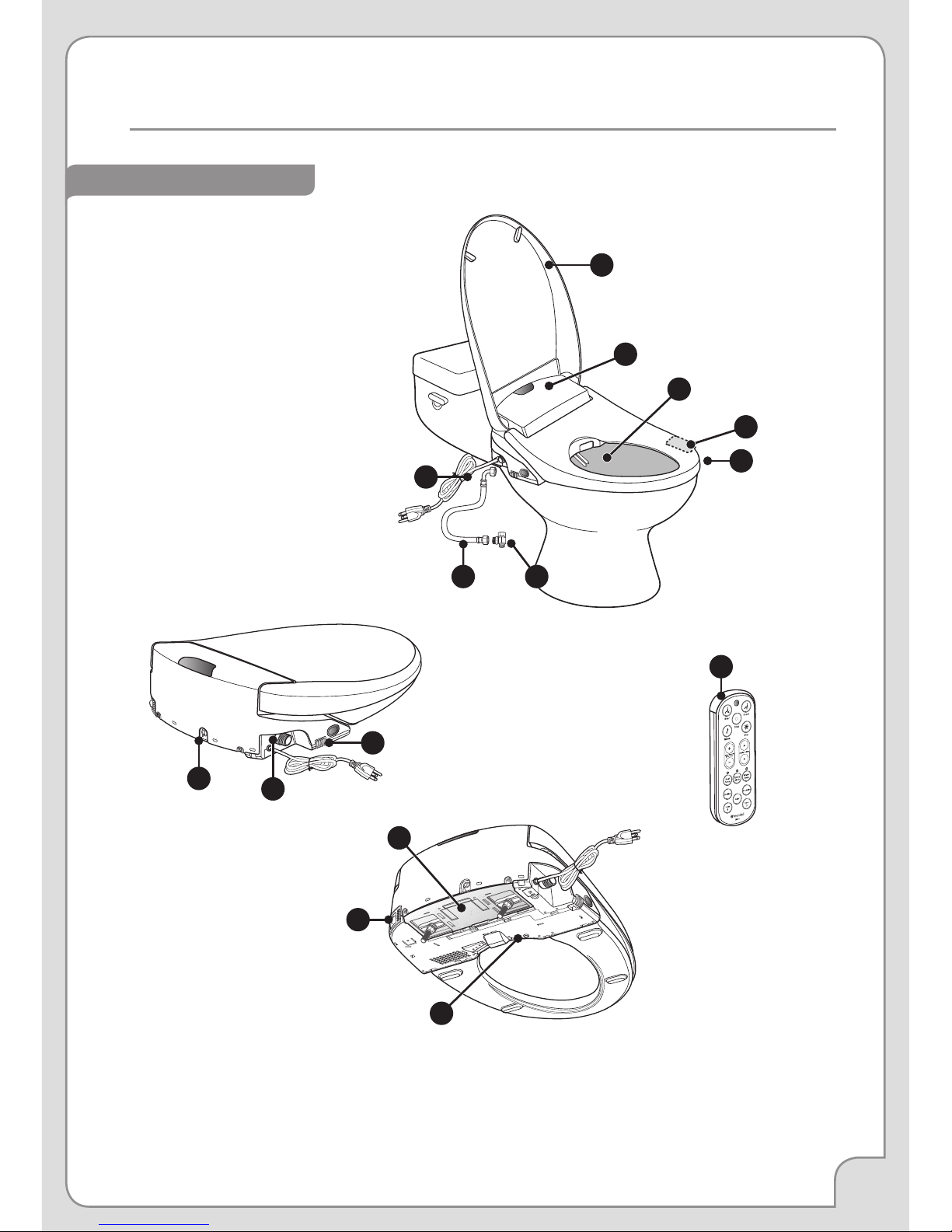

PRODUCT PARTS
1. Lid
2. IR Sensor
3. Stainless Steel Nozzles
4. Body (seat) Sensor
5. Seat
6. Power Cord
7. Bidet Hose
8. T-Valve
9. Drain Plug
10. Water Inlet
11. Quick Release Button
12. Mounting Plate
13. Deodorizer
14. Night Light
15. Remote Control
11
9
10
1
2
3
4
5
8 7
6
15
13
12
14

10
PRODUCT INSTALLATION
INSTALLATION PARTS
1. Mounting Bolt (2)
2. Rubber Cone Washer (2)
3. Flat Washer (2)
4. Barrel Nut (2)
5. Mounting Plate
6. Adjustable Bracket (2)
7. T-Valve Connector with Rubber Washer
15
2
36
4
8. Bidet Hose
9. Cable Clips (2)
10. Remote Control Wall Mount
11. Remote Screw (2)
12. Remote Anchor (2)
13. CR2032 Batteries (4)
789
10
11 12
13

11
WATCH OUR INSTALLATION VIDEO
Installation for all Swash products can be found online at brondell.com
CHECK FOR TOP MOUNT INSTALLATION
If your fixture only has top-side access to the mounting bolts that hold the seat to the toilet, you
will likely need to purchase the Swash Bidet Seat Top Mount Hardware Kit, found on brondell.com.
CHECK FOR A CONCEALED TOILET FILL VALVE
Many modern toilets have sleek designs intended to cover and camouflage plumbing
connections, which makes a standard Swash installation dicult or impossible. For this, we
recommend using our Alternate Swash Bidet Seat T-Valve, found on brondell.com.
CHECK WATER SUPPLY LINE
Check the line that connects the toilet tank to the water shut o valve. If it is a rigid pipe, you may
need to purchase a flexible hose to replace it before installing the Swash. The length of the hose
and the size of the connectors will vary.
RESIDUAL MOISTURE IS NORMAL
Every product is tested with pure water during production to ensure the highest quality and
performance. It is normal to find a small amount of residual moisture on the product and in the
reservoir and filter.
TOOLS
A Phillips head or standard screwdriver may be needed to remove the existing toilet seat and a
standard wrench may be needed for tight water supply connections. Teflon tape can be helpful in
creating a water-tight seat between plumbing connections.
BEFORE INSTALLATION
SWASH INSTALLATION
1. Existing Toilet Seat Removal
a. Lift hinge covers and use a screwdriver to remove the mounting bolts.
b. Remove the toilet seat.
Please read these instructions carefully before installing the Swash. Failure to do so could result
in flooding, leaking or damage to the product.
NOTE: Steps may vary by type of seat and toilet

12
PRODUCT INSTALLATION cont.
SWASH INSTALLATION (cont.)
3. Connect T-Valve to the Toilet Tank Fill Valve
a. Place the flat edge of the rubber washer into the
T-Valve against the metal with the raised lip facing the
toilet tank connection.
b. Install the T-Valve with the rubber washer to the incoming
water connection on the bottom of your toilet tank.
4. Connect the water supply line coming from the wall to the
bottom of the T-Valve.
5. Install Mounting Plate
a. Place adjustable mounting plate over mounting holes
on toilet, rubber side faces down, curved edge faces
toward the toilet tank.
b. Place adjustable brackets flat side down in the center
of the square opening in the mounting plate and
insert mounting bolts through adjustable brackets and
mounting holes. Be sure that the square mounting bolt
head is even with sides of adjustable bracket.
c. Slide rubber cone washer, flat washer, and then barrel
nut onto mounting bolts under the toilet bowl and
tighten to keep mounting plate in place.
NOTES:
• The T-Valve connects to the fill valve directly under
your toilet tank - it does not connect at the wall.
• Only connect to the cold toilet water supply line.
• If your water supply line is rigid you may need to
replace it before continuing.
Steps 5b & 5c
Steps 3-4
Step 3a
raised lip
(faces up)
toilet tank
t-valve
cold water
supply line
NOTES:
• You may wish to place a container under the tank to
catch any excess water.
• Do not continue without completing the above steps
• Failure to do so could result in flooding, leaking or
damage to the Swash.
2. Turn O Water Supply Valve and Flush Toilet
a. Turn water valve o to stop the flow of water.
b. Flush toilet and hold down handle to completely empty
tank.
c. Disconnect water supply hose from toilet tank. Do not
disconnect from the water supply valve.
Step 2c

13
SWASH INSTALLATION (cont.)
NOTES:
• Make sure to only use a grounded GFCI (ground
fault circuit interrupter) electrical outlet. In the case
of a short circuit, a grounded GFCI outlet may help
prevent electric shock or injury.
• If it is necessary to use an extension cord, only use
those rated for a minimum of 15 amps with a three-
wire extension cord with a three-blade grounding
plug.
8. Connect the open end of the Bidet Hose to the T-Valve.
7. Attach the Swash to the Mounting Plate
a. Set the Swash flat on the toilet bowl in front of the
mounting plate, and slide seat onto plate until it is
secure and “clicks” into place.
b. If the seat appears too short or too long for the toilet,
adjust the mounting plate accordingly. To adjust the
mounting plate, loosen barrel nuts underneath the toilet
and slide seat forward or backwards as needed. Once
the seat is lined up properly, tighten barrel nuts to hold
in place.
6. Connect the Bidet Hose to the Seat
a. Connect the bidet hose to the water inlet. Hand-tighten
to secure. Take care not to twist the bidet hose, exces-
sively bend it, or strip the plastic screw threads when
screwing the hose onto the bidet seat.
10. Connect Power
a. Plug the power cord into the electrical outlet.
b. If desired, use the included Cable Clips to connect the
power cord and bidet hose side-by-side for a tidier
appearance.
9. Turn On Water Supply
a. Open the main water supply valve slowly and check for
leaks.
b. Wait 5 minutes, check again and if there are no leaks
continue.
Step 7b
Step 6a
Step 8
Step 10b

14
PRODUCT INSTALLATION cont.
REMOTE CONTROL INSTALLATION

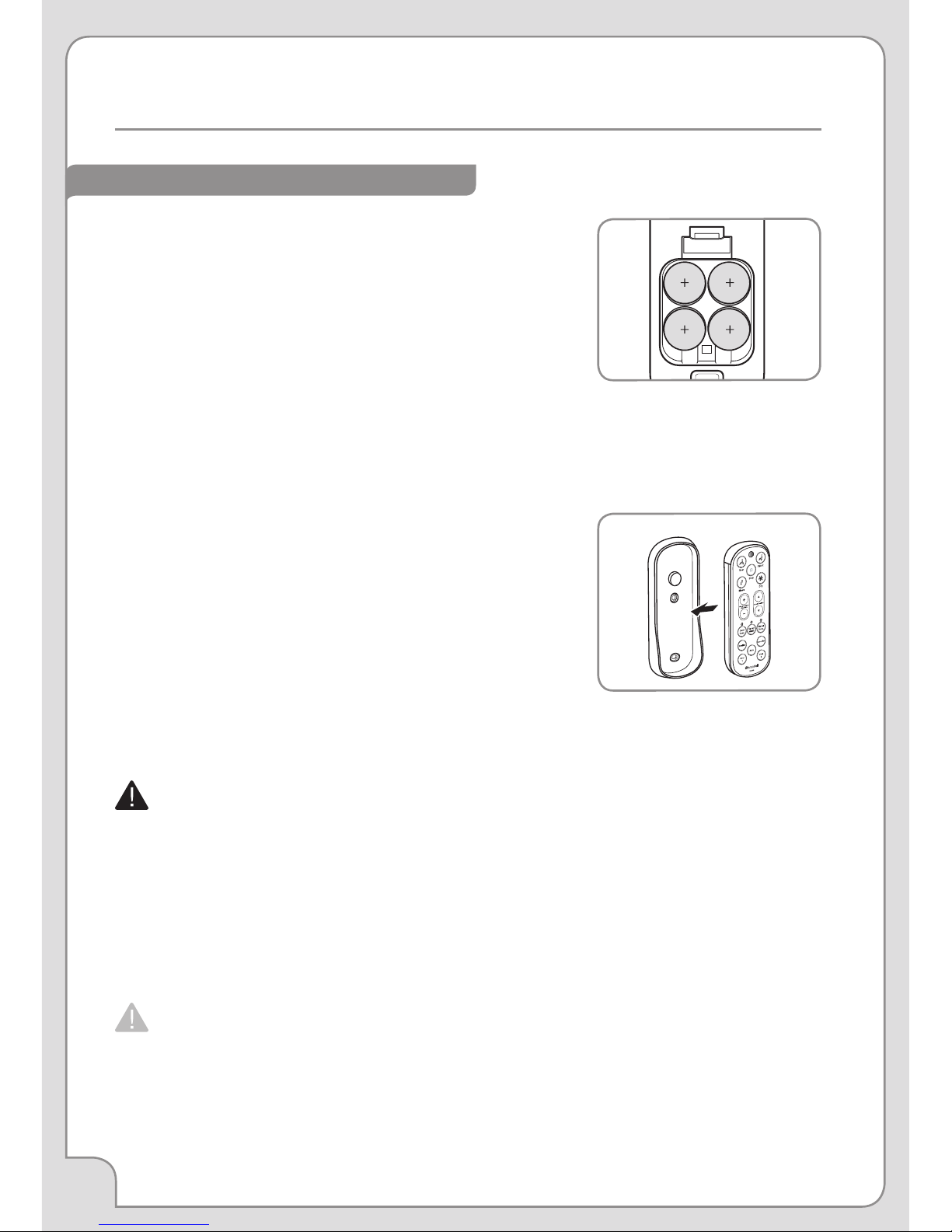

1. Battery Installation
a. Separate the remote control from the magnetic dock.
b. Turn remote over and open the child-proof battery
compartment by popping o the battery cover with
a flat-head screwdriver or small coin. Insert the four
included CR2032 batteries “plus” side up and replace
battery cover.
c. To confirm the batteries are installed correctly, press the
Stop button and you should see the “Wide Spray” LED
light turn on for a few seconds (NOTE: the 2 other LED
lights may or may not turn on at this time depending on
the current settings).
2. Mount Remote (optional)
a. Identify a location in the bathroom for the remote
control that is visible and reachable from the toilet.
b. Depending on the wall type, you can install using
the supplied screws and anchor mounts or use the
provided double stick tape on the back of the remote
wall mount.
Make sure the remote mount is fully secure with either
method so that it does not fall and damage the remote
control.
c. Place the remote control into the mount as shown.
Step 2c
DANGER – Important Battery Information:
1. Remote contains “coin-style” batteries – keep away from children. If swallowed, seek
medical attention immediately.
2. Ingestion of batteries may cause severe injury or death in just 2 hours.
3. Use only CR2032 batteries. Do not mix new and old batteries together.
4. Double-check the + and – direction.
5. Take care when opening the battery compartment to replace the batteries - the
batteries are spring-loaded.
6. Dispose of old batteries carefully.
Step 1b
For California Residents: CR2032 batteries contain Perchlorate Material - special handling
may apply. Visit http://www.dtsc.ca.gov/hazardouswaste/perchlorate for more information.

15
EXTERNAL BIDET FILTER INSTALLATION
1. Turn O Water Supply Valve and Flush Toilet.
a. Turn water valve o to stop the flow of water.
b. Flush toilet and hold down handle to completely empty
tank.
2. Disconnect the Bidet Hose from the T-Valve
3. Connect the female end of the Swash Filter to the Open
T-Valve Connection.
4. Connect the Bidet Hose to the male end of the Swash
Filter.
5. Turn the toilet water supply valve back on.
FLOW
FLOW
Step 2
Step 3
Step 4
NOTE:
• Customers with hard water, well water, and softened water can extend the life of their bidet
seat by purchasing and installing an external inline water filter to be used with the Swash.
The bidet filter should be changed every six months.

16
OPERATING THE SWASH

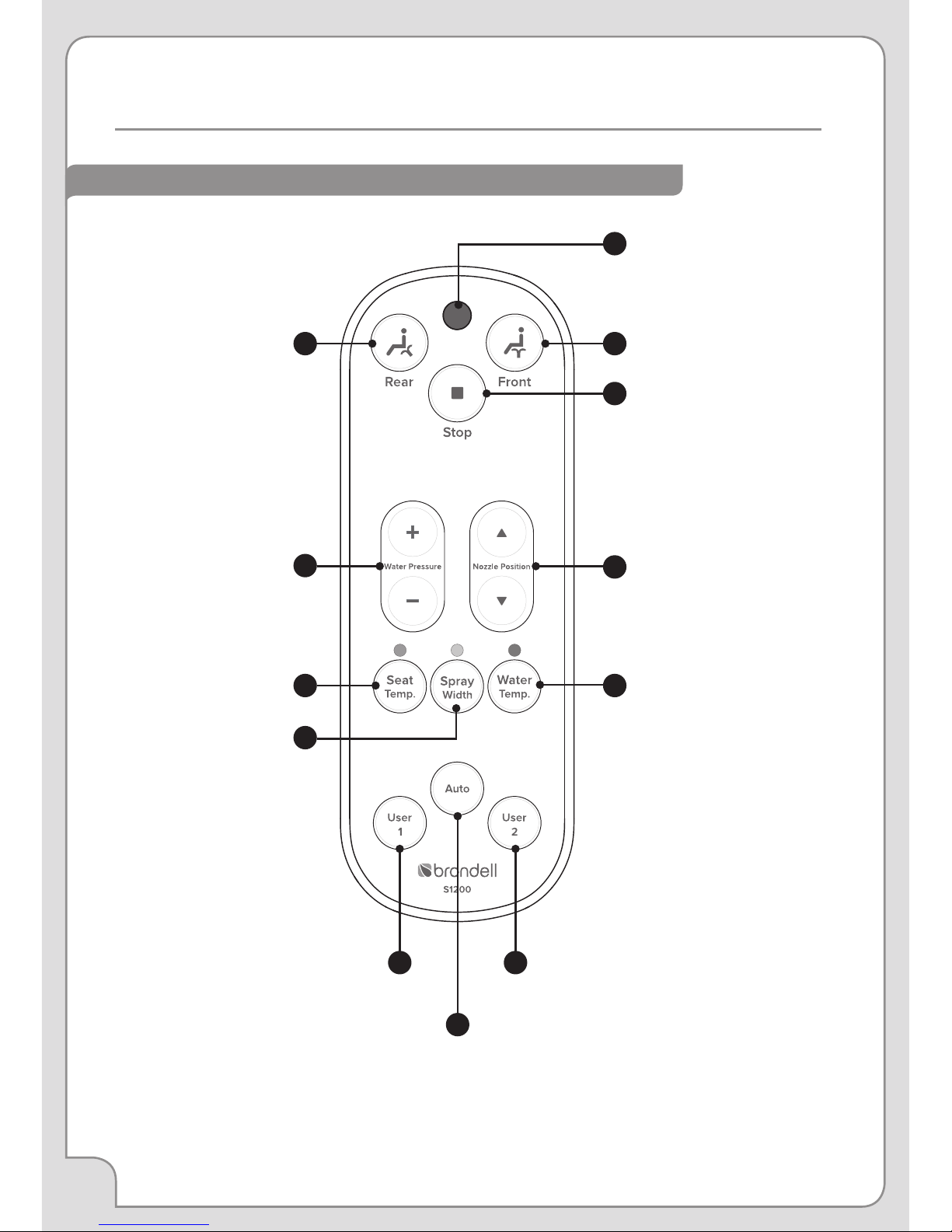

QUICK REFERENCE GUIDE – S1200 REMOTE CONTROL
1
3
4
6
9
2
5
7
8
Remote Control IR
Signal Transmitter
Front (Feminine) Wash
Stop
Water Pressure
Spray Width & Indicator
Seat Temp. & Indicator
Rear Wash
Nozzle Position
Water Temp. & Indicator
10
User 1
Memory
12
User 2
Memory
11
Auto
Mode

17
QUICK REFERENCE GUIDE – S1200 REMOTE CONTROL (cont.)
SEE DIAGRAM ON PAGE 16
1. Remote IR Signal Transmitter
Transmits the signal from remote control to the seat when a button is pressed.
2. Rear Wash Button
This button activates the aerated Rear Wash function.
3. Front (Feminine) Wash Button
This button activates the aerated Front, or “Feminine”, Wash function.
4. Stop Button
Stops all functions currently operating.
5. Water Pressure Buttons
These buttons increase or decrease the water pressure, to one of three settings, during either
of the aerated wash cycles.
6. Nozzle Position Buttons
These buttons move the wash nozzle, to one of seven positions, during either of the aerated
wash cycles.
7. Seat Temp. & Indicator
Indicates the Seat Temperature setting. Press the button to cycle through each setting.
O, Low - 89° F (blue), Medium - 93° F (pink), High - 97° F (red)
8. Spray Width & Indicator
Indicates the wash Spray Width setting. Press the button to cycle through each setting.
Concentrated (blue), Medium (pink), and Wide (red)
9. Water Temp. & Indicator
Indicates the Water Temperature setting. Press the button to cycle through each setting.
O - incoming water temp., Low - 90° F (blue), Medium - 95° F (pink), High - 100° F (red)
10. User Memory 1
This button contains the programming for all of the customizations set in User 1’s wash cycles.
See page 23 for more details.
11. Auto Mode
This button automatically runs a pre-programmed wash (front or rear) cycle. See page 22 for
more details.
12. User Memory 2
This button contains the programming for all of the customizations set in User 2’s wash cycles.
See page 23 for more details.

18
OPERATING THE SWASH cont.
5
Nozzle Oscillation
QUICK REFERENCE GUIDE – S1400 REMOTE CONTROL
1
3
6
4
8
11
14
2
7
9
10
Remote Control IR
Signal Transmitter
Front (Feminine) Wash
Warm Air Dryer
Stop
Dry Temperature /
Water Pressure
(increase & decrease)
Spray Width & Indicator
Seat Temp. & Indicator
Rear Wash
Nozzle Position
(forwards & backwards)
Water Temp. & Indicator
User 1
Memory
16
User 2
Memory
15
Auto
Mode
13 Deodorizer
12
Nozzle Sterilization
