Brother DCP-130C User manual

STEP 1
STEP 2
Setup is Complete!
Quick Setup Guide
Setting Up the Machine
Installing the Driver & Software
DCP-130C
Before you can use the machine, you must set up the hardware and install the software.
Please read this Quick Setup Guide for the correct setup procedure and installation instructions.
Keep this Quick Setup Guide, the User’s Guide and the supplied CD-ROM in a convenient place for
quick and easy reference at all times.

Symbols used in this guide
Warning
Caution Improper Setup
Warnings tell you what to do to prevent
possible personal injury.
Cautions specify procedures you must
follow or avoid to prevent possible
damage to the machine or other objects.
Improper Setup icons alert you to
devices and operations that are not
compatible with the machine.
Note
User’s Guide or Software User’s Guide
Notes tell you how you should respond
to a situation that may arise or give tips
about how the current operation works
with other features.
Indicates reference to the User’s Guide
or Software User’s Guide we have
supplied.

Table of Contents
1
Getting Started
Carton components...................................................................................................................................... 2
Control panel................................................................................................................................................ 3
STEP1 – Setting Up the Machine
Removing the protective parts ..................................................................................................................... 4
Loading paper .............................................................................................................................................. 4
Connecting the power cord .......................................................................................................................... 5
Installing the ink cartridges........................................................................................................................... 6
Print quality check ........................................................................................................................................ 8
Choosing your language (Canada only)....................................................................................................... 8
Setting the LCD contrast .............................................................................................................................. 9
Setting the date and time ............................................................................................................................. 9
STEP2 – Installing the Driver & Software
Windows®
For USB Interface Users
(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition) ................................... 12
Macintosh®
For USB Interface Users
(For Mac OS®X 10.2.4 or greater) ........................................................................................................... 15
Consumables
Replacement consumables........................................................................................................................ 18
Ink cartridge .......................................................................................................................................... 18

Getting Started
2
1
Carton components
Carton components may vary from one country to another.
Save all packing materials and the carton in case for any reason you must ship your machine.
A USB interface cable is not a standard accessory.
Please make sure you use a USB 2.0 cable that is no longer than 6 feet long (2 meters).
Your DCP has a USB interface that is compatible with the USB 2.0 specification. This interface is also
compatible with Hi-Speed USB 2.0; however, the maximum data transfer rate will be 12 Mbits/s. The DCP can
also be connected to a computer that has a USB 1.1 interface.
DO NOT connect the interface cable at this time.
Connecting the interface cable is done during the software installation process.
When you use a USB cable, make sure you connect it to the USB port of your computer and not to a USB port
on a keyboard or a non-powered USB hub.
Quick Setup Guide CD-ROM User’s Guide Accessory Order Form
Black (LC51BK)
Yellow (LC51Y) Cyan (LC51C) Magenta (LC51M)
Ink Cartridges

Getting Started
3
Control panel
1 Copy keys
2OKkey
3 Navigation keys
4 Stop/Exit key
5 Start keys
6On/Offkey
7Inkkey
8 Scan key
9 PhotoCapture key
10 Menu key
11 LCD (Liquid Crystal Display)
12 Warning LED
For the details of the control panel, see Control panel overview in Chapter 1 of the User’s Guide.
Note
When the machine is idle (not being used) it will return to the default display shown above. The default display
can give you useful information about the current settings.
3
1245
6789
101112
Current Enlarge/
Reduce setting
Current Copy
Quality setting
Current Number of
Copies setting

Setting Up the Machine
4
STEP1
1
1 Removing the protective
parts
1Remove the protective tape and film covering
the scanner glass.
Improper Setup
DO NOT connect the USB cable. Connecting
the USB cable is done during the software
installation process.
2 Loading paper
You can load up to 100 sheets of 20 lb
(80g/m2) paper.
For details, see About paper in Chapter 2 of
the User’s Guide.
1Pull the paper tray completely out of the
machine and lift the output paper tray cover (1).
2Press and slide the paper side guides (1) and
paper length guide (2) to fit the paper size.
3Fan the stack of paper well to avoid paper jams
and misfeeds.
4Gently put the paper into the paper tray print
side down and top edge first.
Check that the paper is flat in the tray.
1
1
2

Setting Up the Machine
5
Note
When you use Legal size paper, press and hold
the universal guide release button as you slide out
the front of the paper tray.
5Gently adjust the paper side guides with both
hands and the paper length guide to the paper.
Make sure the paper side guides and paper
length guide touch the sides of the paper.
Note
Be careful that you do not push the paper in too
far; it may lift at the back of the tray and cause
paper feed problems.
6Close the output paper tray cover.
7Push the paper tray firmly back into the
machine.
8While holding the paper tray in place, pull out
the paper support ( ) until it clicks, and then
unfold the paper support flap ( ).
Note
Do not use the paper support flap for Legal paper.
3 Connecting the power cord
1Connect the power cord.
Improper Setup
DO NOT connect the USB cable. Connecting
the USB cable is done during the software
installation process.
Note
The control panel warning LED will stay on until
you have installed the ink cartridges.

Setting Up the Machine
6
STEP1
4 Installing the ink cartridges
Warning
If ink gets in your eyes, wash them out with water
at once, and if irritation occurs consult a doctor.
1Make sure that the power is turned on.
The LCD shows:
No Cartridge
2Open the ink cartridge cover (1).
3Push all the lock release levers down and
remove the yellow protective part (1).
Note
Do not throw away the yellow protective part. You
will need it if you transport the machine.
4Take out the ink cartridge.
5Carefully remove the protective yellow cap (1).
Improper Setup
DO NOT touch the area shown in the
illustration below.
Note
If the protective yellow cap comes off when you
open the bag, the cartridge will not be damaged.
1
1
1

Setting Up the Machine
7
6Install each ink cartridge in the direction of the
arrow on the label.
Take care to match the color of the lock release
lever (1) with the cartridge color (2), as shown
in the diagram below.
7Lift each lock release lever and push it until it
clicks, and then close the ink cartridge cover.
Note
If the LCD shows install Black, install
Yellow, install Cyan or install Magenta
after you install the ink cartridges, check that the
ink cartridges are installed properly.
The machine will clean the ink tube system for
use for the first time. This process will occur
only once, the first time ink cartridges are
installed. The cleaning process will last
approximately four minutes.
The LCD shows:
Preparing System
q
Approx 4 Minutes
Cleaning
q
Please Wait
Caution
• DO NOT take out ink cartridges if you do not
need to replace them. If you do so, it may
reduce the ink quantity and the machine will
not know the quantity of ink left in the
cartridge.
• DO NOT shake the ink cartridges. If ink stains
your skin or clothing, wash with soap or
detergent at once.
• DO NOT repeatedly insert and remove the
cartridges. If you do so, ink may seep out of the
cartridge.
• If you mix the colors by installing an ink
cartridge in the wrong position, clean the print
head several times after correcting the
cartridge installation. (See Cleaning the print
head in Appendix B of the User’s Guide.)
• Once you open an ink cartridge, install it in the
machine and use it up within six months of
installation. Use unopened ink cartridges by
the expiration date written on the cartridge
package.
• DO NOT dismantle or tamper with the ink
cartridge, this can cause the ink to leak out of
the cartridge.
• Brother strongly recommends that you do not
refill the ink cartridges provided with your
machine. We also strongly recommend that
you continue to use only Genuine Brother
Brand replacement ink cartridges. Using or
attempting to use potentially incompatible
inks and/or cartridges in your machine may
cause damage to the machine itself and/or it
may result in unsatisfactory print quality. Our
warranty coverage does not apply to any
problem that was caused by the use of
unauthorized third party ink and/or cartridges.
To protect your investment and guarantee
your print quality please continue to replace
consumed ink cartridges with only Genuine
Brother Branded Supplies.
1
2
Mbrother
XXXX

Setting Up the Machine
8
STEP1

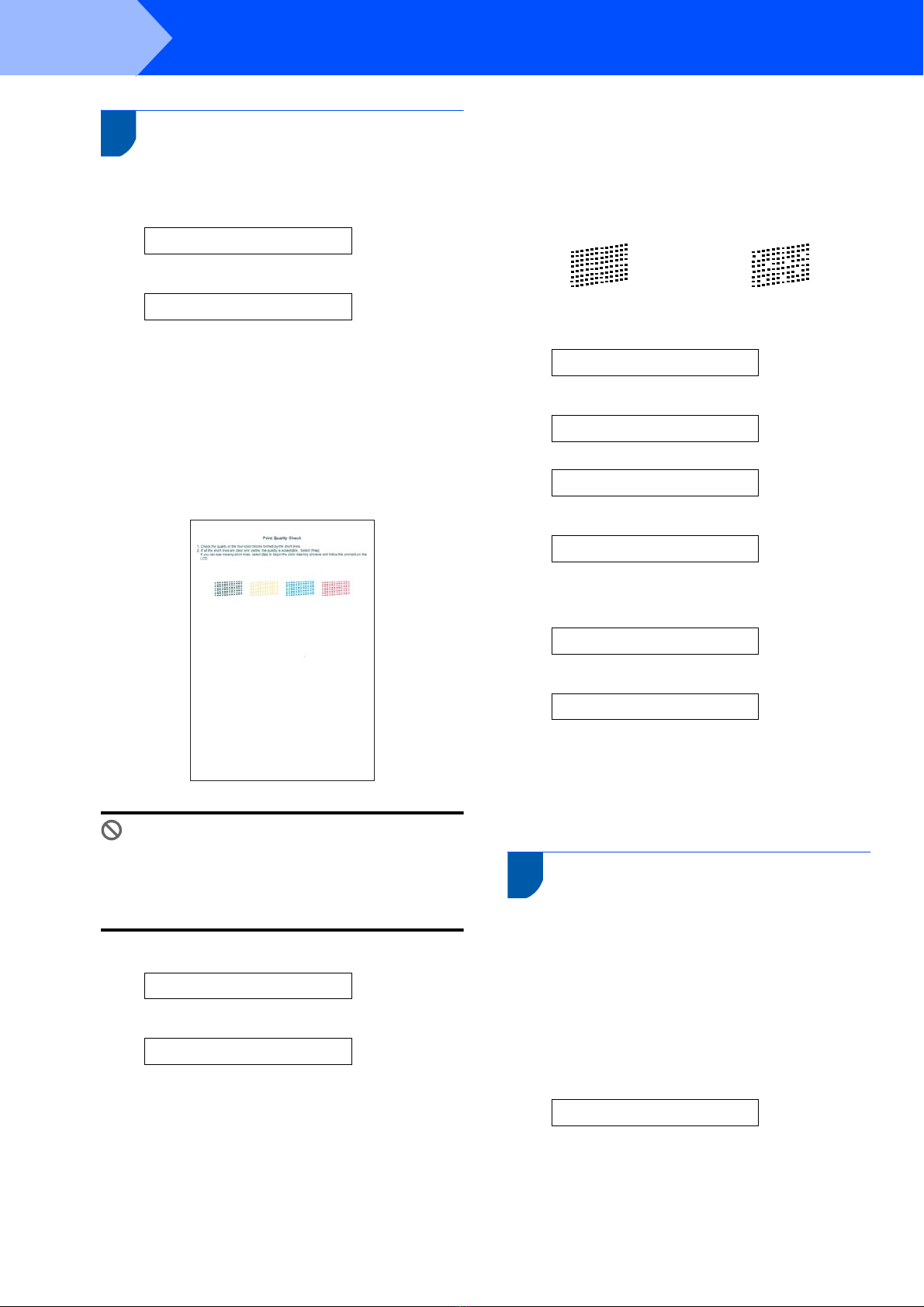

5 Print quality check
1After the cleaning cycle is finished, the LCD
shows:
Set Paper and
q
Press Start
2Make sure paper is loaded in the paper tray.
Press Color Start.
The machine starts printing the Print Quality
Check Sheet (only during initial ink cartridge
installation).
3Check the quality of the four color blocks on the
sheet.
(black/ yellow/ cyan/ magenta)
Improper Setup
Avoid touching the printed surface of the
paper immediately after printing, the surface
may not be completely dry and may stain your
fingers.
4The LCD shows:
Is Quality OK?
q
aYes bNo
5Do one of the following:
If all lines are clear and visible, press a
(Yes) to finish the quality check.
If you can see missing short lines, press b
(No) and go to step 6.
6The LCD asks you if the print quality is OK for
black and color. Press a(Yes) or b(No) .
Black OK?
q
aYes bNo
Color OK?
q
aYes bNo
After pressing a(Yes) or b(No) for both black
and color, the LCD shows:
Start Cleaning?
q
aYes bNo
7Press a(Yes), the machine will then start
cleaning the colors.
8After cleaning is finished, press Color Start.
The machine starts printing the Print Quality
Check Sheet again and goes back to step 3.
6 Choosing your language
(Canada only)
1Press Menu.
2Press aor bto choose 0.Initial Setup
Press OK.
3Press aor bto choose 0.Local Language
Press OK.
4Press aor bto choose your language.
Language:English
5Press OK.
6Press Stop/Exit.
OK Poor

Setting Up the Machine
9
7 Setting the LCD contrast
You can adjust the LCD contrast for a sharper and
move vivid display. If you are having difficulty seeing
the LCD from your position, we recommend the
following contrast setting for improved viewing.
1Press Menu.
2Press aor bto choose 0.Initial Setup,
and then press OK.
3Press aor bto choose 2.LCD Contrast,
and then press OK.
4Press aor bto choose Dark or Light.
5Press OK.
6Press Stop/Exit.
Contrast:Light
Contrast:Dark
8 Setting the date and time
Setting the date and time allows the machine to clean
the print head regularly and maintain optimum print
quality. It also allows the machine to name files
created when using the Scan to Card feature.
1Press Menu.
2Press aor bto choose 0.Initial Setup,
and then press OK.
3Press aor bto choose 1.Date/Time, and
then press OK.
4Press arepeatedly to enter the last two digits
of the year, and then press OK.
Year:2006
(e.g. Enter 06for 2006.)
5Press arepeatedly to enter the two digits for
the month, and then press OK.
Month:03
(e.g. Enter 03for March.)
6Press arepeatedly to enter the two digits for
the day, and then press OK.
Day:01
(e.g. Enter 01for the first of the month.)
7Press arepeatedly to enter the two digits for
the hour in 24-hour format, and then press OK.
Time:15:XX
(e.g. Enter 15for 3:00 P.M.)
8Press arepeatedly to enter the two digits for
the minute, and then press OK.
Time:15:25
(e.g. Enter 15, 25for 3:25 P.M.)
Note
You can increase or decrease the number rapidly
by holding down aor b.
9Press Stop/Exit.
Note
If you want to start again, press Stop/Exit to go
back to Step 1.
To confirm the current date and time, print
out the Users Settings Report. (See "Printing
reports" in Chapter 1 of the User's Guide.)
Now go to
Go to Supplied CD-ROM ‘MFL-Pro Suite’ on
the next page to install the drivers.

Supplied CD-ROM ‘MFL-Pro Suite’
10
1
Supplied CD-ROM ‘MFL-Pro Suite’
Windows®
Install MFL-Pro Suite
You can install the MFL-Pro Suite software and
multifunction drivers.
Install Other Drivers or Utilities
You can install additional MFL-Pro Suite software
utilities.
User’s Guide
View the Software User’s Guide in HTML format.
On-Line Registration
You will be pointed to the Brother Product
Registration Web page for quick registration of your
machine.
Brother Support
View contact information for Brother Customer Service
and how to find a Brother Authorized Service Center.
Repair MFL-Pro Suite
If an error occurred during the installation of the
MFL-Pro Suite, use this selection to automatically
repair and re-install the MFL-Pro Suite.
Note
MFL-Pro Suite includes the Printer Driver,
Scanner Driver, Brother ControlCenter3,
ScanSoft®PaperPort®SE with OCR and True
Type®fonts.
PaperPort®SE with OCR is a document
management application for viewing scanned
documents.
Macintosh®
Start Here OSX
You can install the MFL-Pro Suite that includes the
printer driver, scanner driver and the Brother
ControlCenter2 for Mac OS®10.2.4 or greater.
Presto! PageManager
You can also install Presto!®PageManager®to add
OCR capability to the Brother ControlCenter2 and
easily scan, share and organize photos and
documents.
Documentation
View the Software User’s Guide in HTML format.
Brother Solutions Center
You can access the Brother Solutions Center which is
a Web site offering information about your Brother
product including FAQs, User’s Guides, driver
updates and tips for using your machine.
On-Line Registration
You will be pointed to the Brother Product
Registration Web Page for quick registration of your
machine.

Windows®
Macintosh®
Installing the Driver & Software
11
STEP2
Follow the instructions on this page for your operating system and interface.
For the latest drivers and documentations and to find the best solution for your problem or question, access the Brother Solutions Center
directly from the driver or visit http://solutions.brother.com
For USB Interface Users
(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition).... 12
For USB Interface Users
(For Mac OS®X 10.2.4 or greater) ................................................................................. 15
For Mac OS(R) X 10.2.4 or greater.................................................................................. 15
For Mac OS®X 10.2.4 or greater .................................................................................................................... 16
For USB Interface Users
(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition)
.......................................................................................................................................... 12
For USB Interface Users
.......................................................................................................................................... 15
For Mac OS®X 10.2.4 or greater
............................................................................................................................................................... 15
The screens for Windows®in this Quick Setup Guide are based on Windows®XP.
The screens for Mac OS®in this Quick Setup Guide are based on Mac OS®X 10.4.

Installing the Driver & Software
12
STEP2
Windows
®
USB
Windows®
1
For USB Interface Users
(For Windows
®
98/98SE/Me/2000 Professional/XP/XP Professional
x64 Edition)
Important
Make sure that you have finished the
instructions from Step 1 Setting Up the
Machine on pages 4-9.
Note
• Please close any applications running before
installing MFL-Pro Suite.
• Make sure there are no media cards put into the
media drive of the machine.
1Unplug the machine from the AC outlet and
from your computer, if you already connected
an interface cable.
2Turn on your PC.
(For Windows®2000 Professional/XP/XP
Professional x64 Edition, you must be logged
on with Administrator rights.)
3Put the supplied CD-ROM into your CD-ROM
drive. If the model name screen appears,
choose your machine. If the language screen
appears, choose your language.
4The CD-ROM main menu will appear. Click
Install MFL-Pro Suite.
Note
• If this window does not appear, use Windows®
Explorer to run the setup.exe program from the
root folder of the Brother CD-ROM.
•If you are using Windows®2000 Professional
and have not installed service pack 3 (SP3) or
greater:
To access the PhotoCapture Center™ features
from your computer you may have to install a
Windows®2000 update first.
The Windows®2000 update is included with the
MFL-Pro Suite installer.
To install the update, follow the steps below:
1ClickOK to start installation of the Windows®
updates.
2 When instructed, click OK to restart your
computer.
3 After the computer restarts, the installation of
MFL-Pro Suite will automatically continue.
If the installation does not continue automatically,
open the main menu again by ejecting and then
reinserting the CD-ROM disc or double-click the
setup.exe program from the root folder, and
continue from Step 4to install the MFL-Pro Suite.

Installing the Driver & Software
13
Windows
®
USB
Windows®
5After reading and accepting the ScanSoft®
PaperPort®SE License Agreement, click Yes.
6The installation of PaperPort®SE will
automatically start and is followed by the
installation of MFL-Pro Suite.
7When the Brother MFL-Pro Suite Software
License Agreement window appears, click Yes
if you agree to the Software License
Agreement.
8Choose Standard, and then click Next. The
installation continues.
9When this screen appears, go to the next step.
10 Using both hands, use the plastic tabs on both
sides of the machine to lift the scanner cover
until it locks securely into the open position.
11 Insert the USB cable into the USB socket
marked with a symbol. You will find the
USB socket inside the machine on the right as
shown below.
12 Carefully route the USB cable through the
trench and out the back of the machine as
shown below.
Improper Setup
• DO NOT connect the machine to a USB port on
a keyboard or a non-powered USB hub.
Brother recommends that you connect the
machine directly to your computer.
• Make sure that the cable does not restrict the
cover from closing, or an error may occur.

Installing the Driver & Software
14
STEP2
Windows
®
USB
Windows®
13 Lift the scanner cover to release the lock ( ).
Gently push the scanner cover support down
( ) and close the scanner cover ( ).
14 Turn on the machine by connecting the power
cord.
It will take a few seconds for the installation
screens to appear.
The installation of the Brother drivers will
automatically start. The installation screens
appear one after another. Please wait, it will
take a few seconds for all screens to
appear.
Improper Setup
DO NOT try to cancel any of the screens during
this installation.
15 When the On-Line Registration screen is
displayed, make your selection and follow the
on-screen instructions.
16 Click Finish to restart your computer.
(After restarting the computer, for Windows®
2000 Professional/XP/XP Professional x64
Edition, you must be logged on with
Administrator rights.)
Note
After restarting the computer, the Installation
Diagnostics will run automatically. If the installation
is unsuccessful, the installation results window will
be shown. If the Diagnostics shows a failure,
please follow the on-screen instruction or read
on-line help and FAQ’s in
Start/All Programs
(Programs)/Brother/DCP-XXXX
.
The MFL-Pro Suite has been installed and
the installation is now complete.
Note
MFL-Pro Suite includes the Printer Driver,
Scanner Driver, Brother ControlCenter3,
ScanSoft®PaperPort®SE with OCR and True
Type®fonts.
PaperPort®SE with OCR is a document
management application for viewing scanned
documents.

Installing the Driver & Software
15
Macintosh
®
USB
Macintosh®
For USB Interface Users
(
For Mac OS®X 10.2.4 or greater)
Important
Make sure that you have finished the
instructions from Step 1 Setting Up the
Machine on pages 4-9.
Note
For Mac OS®X 10.2.0 to 10.2.3 users, upgrade to
Mac OS®X 10.2.4 or greater. (For the latest
information for Mac OS®X, visit
http://solutions.brother.com)
1Using both hands, use the plastic tabs on both
sides of the machine to lift the scanner cover
until it locks securely into the open position.
2Insert the USB cable into the USB socket
marked with a symbol. You will find the
USB socket inside the machine on the right as
shown below.
3Carefully route the USB cable through the
trench and out the back of the machine as
shown below.
Improper Setup
• DO NOT connect the machine to a USB port on
a keyboard or a non-powered USB hub.
Brother recommends that you connect the
machine directly to your computer.
• Make sure that the cable does not restrict the
cover from closing, or an error may occur.
4Lift the scanner cover to release the lock ( ).
Gently push the scanner cover support down
( ) and close the scanner cover ( ).
5Turn on the machine by connecting the power
cord.

Installing the Driver & Software
16
STEP2
Macintosh
®
USB
Macintosh®
6Turn on your Macintosh®.
7Put the supplied CD-ROM into your CD-ROM
drive.
8Double-click the Start Here OSX icon to install.
Follow the on-screen instructions
Note
Please wait, it will take a few seconds for the
software to install. After the installation, the
computer will restart automatically.
9The Brother software will search for the Brother
device. During this time the following screen
will appear.
10 When this screen appears, click OK.
For Mac OS®X 10.3.x or greater users:
The MFL-Pro Suite, Brother printer driver,
scanner driver and Brother
ControlCenter2 have been installed and
the installation is now complete.
Go to step 15.
11 For Mac OS®X 10.2.4 to 10.2.8 users:
Click Add.
12 Choose USB.
13 Choose DCP-XXXX (where XXXX is your
model name), and then click Add.
14 Click Print Center, then Quit Print Center.
The MFL-Pro Suite, Brother printer driver,
scanner driver and Brother
ControlCenter2 have been installed and
the installation is now complete.

Installing the Driver & Software
17
Macintosh
®
USB
Macintosh®
15 To install Presto!®PageManager®, click the
Presto! PageManager icon and follow the
on-screen instructions.
Note
When Presto!®PageManager®is installed OCR
capability is added to the Brother ControlCenter2.
You can easily scan, share and organize photos
and documents using Presto!®PageManager®.
Presto!®PageManager®has been
installed and the installation is now
complete.

Consumables
18
1
Replacement consumables
When the time comes to replace ink cartridges, an error message will be indicated on the LCD. For more
information aboutthe inkcartridges for your machine,visithttp://solutions.brother.comor contactyour local
Brother re-seller.
Ink cartridge
Black Yellow Cyan Magenta
LC51BK LC51Y LC51C LC51M
