Brother DCP 8060 User manual

Before you can use the machine, you must set up the hardware and install the software.
Please read this “Quick Setup Guide” for the correct setup procedure and installation
instructions.
Keep this “Quick Setup Guide”, User’s Guide and supplied CD-ROM in a convenient place for
quick and easy reference at all times.
Step 1
Setting Up the machine
Step 2
Installing the Drivers & Software
Setup is Complete!
Installing the Drivers & Software
Setting Up
the machine
Windows®
USB
Windows®
Parallel
Windows
NT®4.0
Parallel
Macintosh®
USB
DCP-8060
Quick Setup Guide

Warning Caution Improper Setup Note User’s Guide
Warnings tell you
what to do to prevent
possible personal
injury.
Cautions specify
procedures you
must follow or avoid
to prevent possible
damage to the
machine or other
objects.
Improper Setup
icons alert you to
devices and
operations that are
not compatible with
the machine.
Notes tell you how
you should respond
to a situation that
may arise or give
tips about how the
current operation
works with other
features.
Indicates reference
to the User’s Guide.

1
Carton components may differ from one country to another.
Save all packing materials and the carton.
Carton Components
Quick Setup Guide
CD-ROM
Drum Unit Assembly
(including Toner Cartridge)
AC Power Cord
User’s Guide
The interface cable is not a standard accessory. Please purchase the appropriate interface cable for the
interface you intend to use (Parallel, USB).
Do NOT connect the interface cable at this time. Connecting the interface cable is done during the
software installation process.
■USB interface cable
Please make sure you use a USB 2.0 interface cable that is no longer than 6 feet (2.0 meters).
When you use a USB cable, make sure you connect it to the USB port of your computer and not to a
USB port on a keyboard or non-powered USB hub.
■Parallel interface cable
Please make sure you use a Parallel interface cable that is no longer than 6 feet (2.0 meters).
Use a shielded interface cable that is IEEE 1284-compliant.
1. Automatic Document Feeder (ADF)
2. Control Panel
3. Face-down Output Tray
Support Flap (Support Flap)
4. Front Cover
5. Paper Tray
6. Power Switch
7. Document Cover
8. ADF Document Output Support Flap
1
6
2
3
4
5
8
7
■Getting Started

2
DCP-8060
Control Panel
1Status LED 2LCD (Liquid Crystal Display) 3Menu keys
4Dial Pad 5Stop/Exit key 6Start key
7Copy keys 8Scan key 9Print keys
For the details of the control panel, see "Control panel overview" in Chapter 1 of the User’s Guide.
879
1234
5
6

3
Table of Contents
Setting Up the machine
1. Install the Drum Unit and Toner Cartridge Assembly ................................... 4
2. Load Paper in the Paper Tray .......................................................................... 5
3. Release the Scanner Lock ............................................................................... 6
4. Connect the Power Cord .................................................................................. 6
5. Setting the LCD Contrast ................................................................................. 7
Installing the Drivers & Software
Supplied CD-ROM “MFL-Pro Suite” ................................................................................ 8
For USB Interface Cable Users
(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition) .... 10
For Parallel Interface Cable Users
(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition) .... 12
For Windows NT®Workstation Version 4.0 Users ...................................................... 15
For USB Interface Cable Users
■For Mac OS®X 10.2.4 or greater ...................................................................... 17
■Options and Consumables
Options ............................................................................................................................ 20
Replacement Consumables ........................................................................................... 20
Step 1
Step 2

4
Setting Up the machine
Do not connect the interface cable.
Connecting the interface cable is
done during the software
installation process.
1Open the front cover by pressing the front
cover release button (1).
2Unpack the drum unit and toner cartridge
assembly.
3Gently rock it from side to side several times
to distribute the toner evenly inside the
cartridge.
4Put the drum unit and toner cartridge into
the machine so that it clicks into place.
5Close the front cover of the machine.
1Install the Drum Unit and Toner Cartridge Assembly
(1)
Step 1

5
Setting Up
the machine
Windows®
USB
Windows®
Parallel
Windows
NT®4.0
Parallel
Macintosh®
USB
1Pull the paper tray completely out of the
machine.
2While pressing the blue paper guide release
lever (1), slide the adjusters to fit the paper
size. Check that the guides are firmly in the
slots.
3Fan the stack of paper well to avoid paper
jams and misfeeds.
4Put paper in the paper tray.
Check that the paper is flat in the tray and
below the maximum paper mark (1).
5Put the paper tray firmly back into the
machine and unfold the support flap (1)
before you use the machine.
2Load Paper in the Paper Tray
(1)
For details on supported paper
specifications, see “Acceptable paper and
other media” in Chapter 2 of the User’s
Guide.
(1)
(1)

6
1Push the lever (1) in the direction shown to
unlock the scanner.
(The gray scanner lock lever is located at
the back left side, under the document cover
(2).)
Do not connect the Parallel or USB
cable yet.
1Make sure that the power switch is off.
Connect the AC power cord to the machine.
2Plug the AC power cord into an AC outlet.
Turn the power switch on.
3Release the Scanner
Lock
(2)
(1)
4Connect the Power Cord
If Scanner Locked appears on the LCD,
immediately release the scanner lock and
press Stop/Exit. (See “Release the Scanner
Lock” on page 6.)
Step 1 Setting Up the machine

7
Setting Up
the machine
Windows®
USB
Windows®
Parallel
Windows
NT®4.0
Parallel
Macintosh®
USB
You can change the contrast to help the LCD look
lighter or darker.
1Press Menu.
2Press 1.
3Press 6.
4Press to increase the contrast.
—OR—
Press to decrease the contrast.
Press OK.
5Setting the LCD Contrast
Go to the next page to
install the drivers & software

8
Installing the Drivers & Software

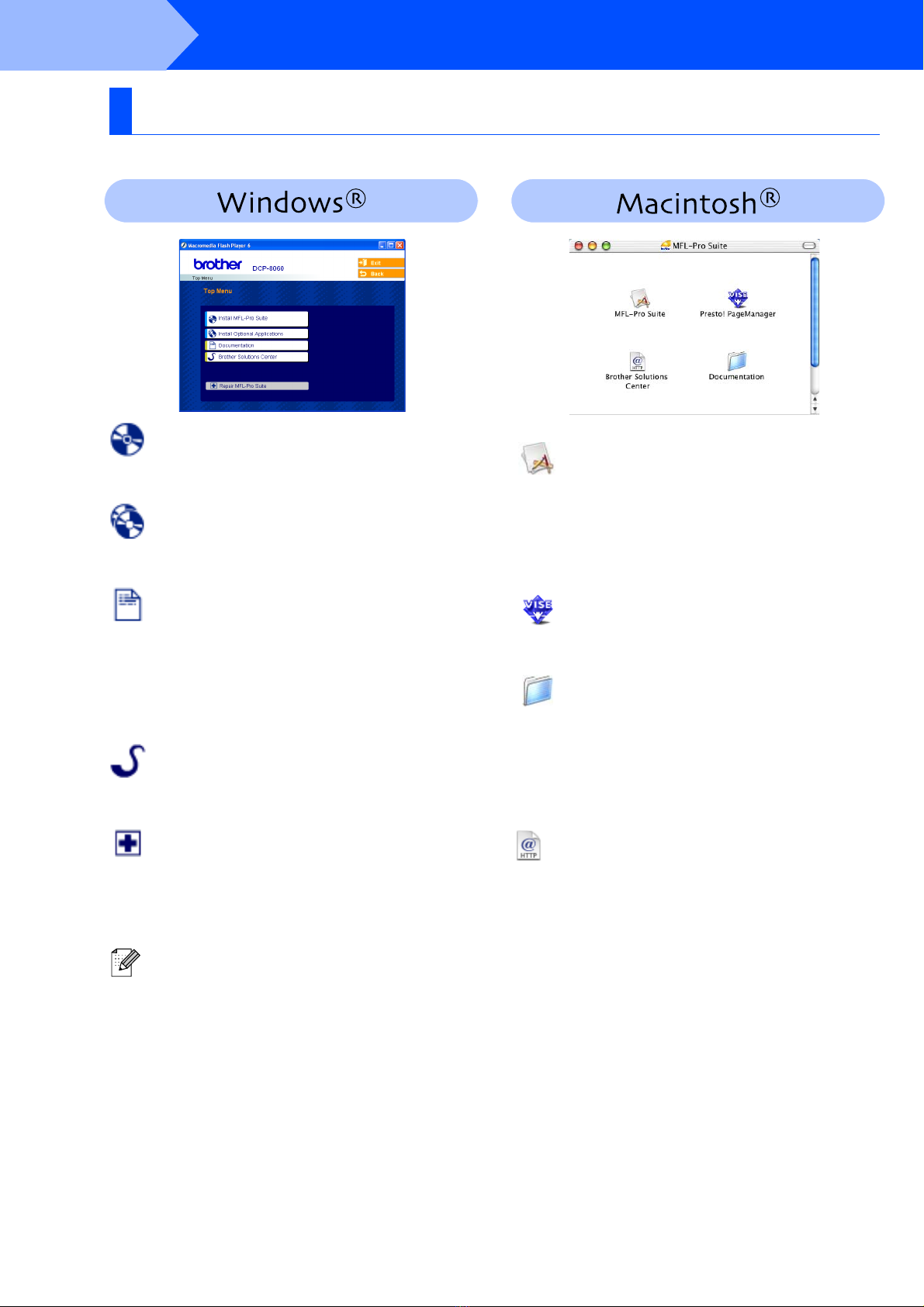

The CD-ROM includes the following items:
Install MFL-Pro Suite
You can install the MFL-Pro Suite and multifunction
drivers.
Install Optional Applications
You can install additional MFL-Pro Suite software
utilities.
Documentation
View the User’s Guide and other document in PDF
format (Viewer included). The User’s Guide on the
CD-ROM includes the Software and Network User’s
Guide for features available when connected to a
computer (e.g. Printing, Scanning and networking
details).
.
Brother Solutions Center
Brother contact information and web site links offering
the latest news and support information.
Repair MFL-Pro Suite
(For USB and Parallel cable users only)
If you experience errors while installing the MFL-Pro
Suite, you can use this function to automatically repair
and re-install the software.
MFL-Pro Suite
You can install the MFL-Pro Suite that includes the
printer driver, scanner driver and the Brother
ControlCenter2 for Mac OS®10.2.4 or greater. You
can also install Presto!®PageManager®to add OCR
capability to the Brother ControlCenter2 and easily
scan, share and organize photos and documents.
Presto!®PageManager®
You can install Presto!® PageManager® to add OCR
capability to the Brother Control Center2.
Documentation
View the User’s Guide and other document in PDF
format (Viewer included). The User’s Guide on the
CD-ROM includes the Software and Network User’s
Guide for features available when connected to a
computer (e.g. Printing, Scanning and networking
details).
Brother Solutions Center
You can access the Brother Solutions Center, a Web
site offering information about your Brother product
including FAQs, User’s Guides, Driver updates and
Tips for using your machine.
Supplied CD-ROM “MFL-Pro Suite”
MFL-Pro Suite includes Printer Driver, Scanner
Driver, Brother ControlCenter2, and True
Type
®
fonts.
Step 2

9
Setting Up
the machine
Windows®
USB
Windows®
Parallel
Windows
NT®4.0
Parallel
Macintosh®
USB
Follow the instructions on this page for your operating system and interface cable.
For the latest drivers and to find the best solution for your problem or question, access the Brother Solutions
Center directly from the driver or go to http://solutions.brother.com
Step 2
USB Interface Cable Users .......................................... Go to page 10
(For Windows
®
98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition)
Parallel Interface Cable Users ..................................... Go to page 12
(For Windows
®
98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition)
Windows NT®Workstation Version 4.0 Users........... Go to page 15
(For Parallel Interface Cable Users)
USB Interface Cable Users
■For Mac OS®X 10.2.4 or greater ............................. Go to page 17
Installing the Drivers & Software

10

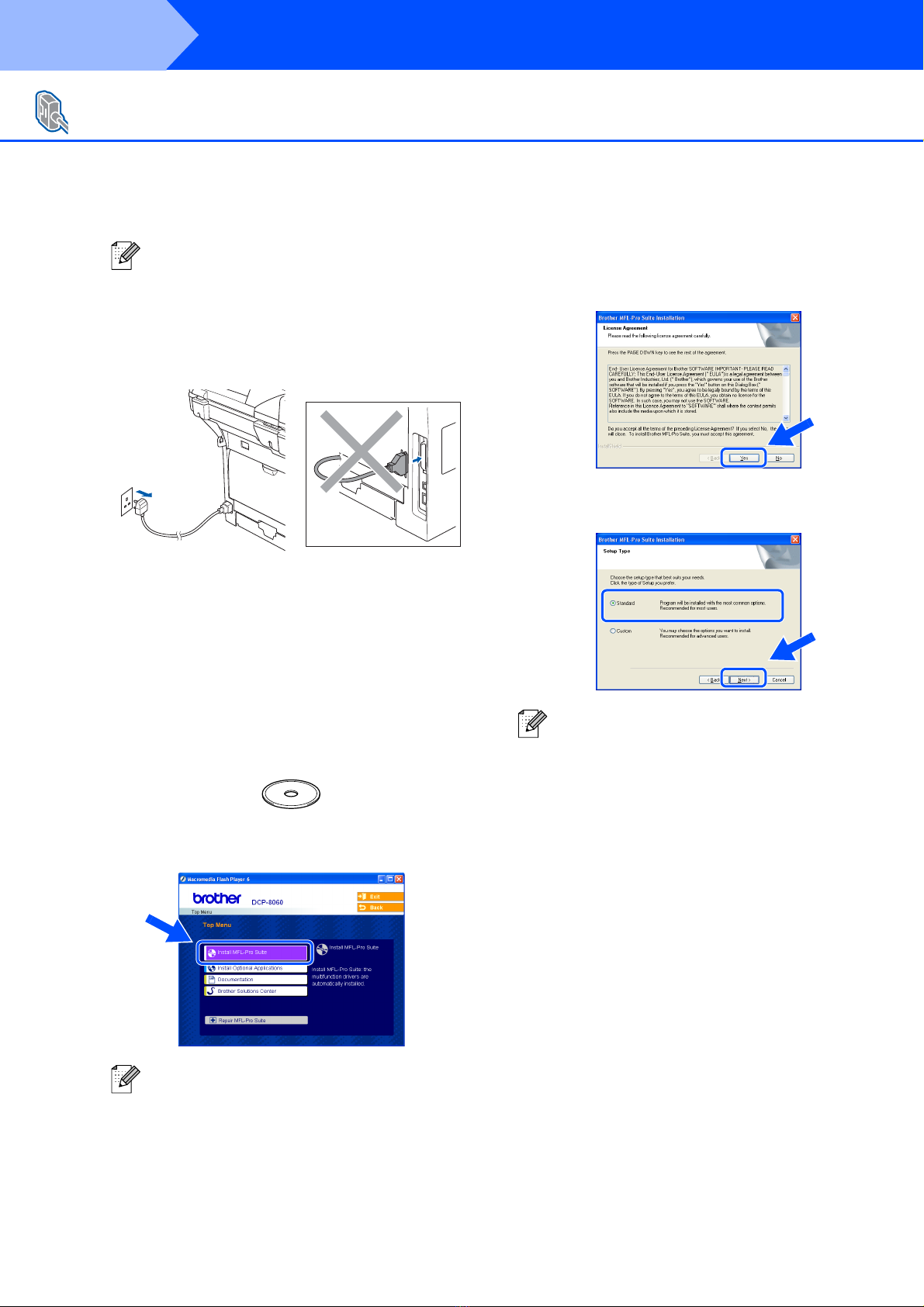

Make sure that you have finished the instructions from Step 1 “Setting Up
the machine” on pages 4 - 7.
1Switch off the machine and disconnect the
machine from the power socket (and from
your computer, if you have already
connected an interface cable).
2Turn on your computer.
(For Windows®2000 Professional/XP/
XP Professional x64 Edition, you must be
logged on with Administrator rights.)
3Put the supplied CD-ROM into your CD-
ROM drive. If the model name screen
appears, choose your machine. If the
language screen appears, choose your
language.
4The CD-ROM main menu will appear.
Click Install MFL-Pro Suite.
5When the Brother MFL-Pro Suite Software
License Agreement window appears, click
Yes if you agree to the Software License
Agreement.
6Choose Standard, and then click Next. The
installation will continue.
For USB Interface Cable Users
(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition)
Please close any applications running before
installing the MFL-Pro Suite.
If this window does not appear, use Windows®
Explorer to run the setup.exe program from
the root folder of the Brother CD-ROM.
If you want to install the PS driver (BR-Script 3
printer driver), choose Custom Install and
then follow the on-screen instructions. When
the Select Components screen appears,
check PS Printer Driver, and then continue
following the on-screen instructions.
Step 2 Installing the Drivers & Software

11
7When this screen appears, connect the
USB interface cable to your PC, and then
connect it to the machine.
(For Windows® XP)
(For Windows®98/98SE/Me/2000)
DO NOT connect the machine to a
USB port on a keyboard or a non-
powered USB hub. Brother
recommends that you connect the
machine directly to your computer.
8Plug in the power cord and turn on the
machine.
It will take a few seconds for the installation
screens to appear.
The installation of the Brother drivers will
automatically start. The installation screens
appear one after another. Please wait, it will
take a few seconds for all the screens to
appear.
DO NOT try to cancel any of the
screens during this installation.
9Click Finish to restart your computer.
(After restarting the computer, for
Windows®2000 Professional/XP/
XP Professional x64 Edition, you must be
logged on with Administrator rights.)
The MFL-Pro Suite (including printer
driver and scanner driver) has been
installed and the installation is now
complete.
After restarting the computer, the Installation
Diagnostics will run automatically. If the
installation is unsuccessful, the installation
results window will be shown. If the
Installation Diagnostics shows a failure,
please follow the on-screen instruction or read
on-line help and FAQs in
Start/All Programs (Programs)/Brother/
MFL-Pro Suite MFC-XXXX (where XXXX is
your model name).
Installing the Drivers & Software
Setting Up
the machine
Windows®
USB

12
Make sure that you have finished the instructions from Step 1 “Setting Up
the machine” on pages 4 - 7.
1Switch off the machine and disconnect the
machine from the power socket (and from
your computer, if you have already
connected an interface cable).
2Turn on your computer.
(For Windows®2000 Professional/XP/
XP Professional x64 Edition, you must be
logged on with Administrator rights.)
3Put the supplied CD-ROM into your CD-
ROM drive. If the model name screen
appears, choose your machine. If the
language screen appears, choose your
language.
4The CD-ROM main menu will appear.
Click Install MFL-Pro Suite.
5When the Brother MFL-Pro Suite Software
License Agreement window appears, click
Yes if you agree to the Software License
Agreement.
6Choose Standard, and then click Next. The
installation will continue.
For Parallel Interface Cable Users
(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition)
Please close any applications running before
installing the MFL-Pro Suite.
If this window does not appear, use Windows®
Explorer to run the setup.exe program from
the root folder of the Brother CD-ROM.
If you want to install the PS driver (BR-Script 3
printer driver), choose Custom Install and
then follow the on-screen instructions. When
the Select Components screen appears,
check PS Printer Driver, and then continue
following the on-screen instructions.
Step 2 Installing the Drivers & Software

13
7When this screen appears, connect the
parallel interface cable to your PC, and then
connect it to the machine.
(For Windows® XP)
(For Windows®98/98SE/Me/2000)
DO NOT plug in the power cord
before connecting the parallel
interface cable. It may cause
damage to your machine. Brother
recommends that you connect the
machine directly to your computer.
8Plug in the power cord and turn on the
machine.
9For Windows®98/98SE/Me/
2000 Professional users, click Next.
Windows® XP users should wait for a while;
installation of the Brother drivers will start
automatically. The installation screens
appear one after another.
DO NOT try to cancel any of the
screens during this installation.
0When the following screen appears, click
Finish and wait as the PC restarts
Windows®and continues the installation.
Continued...
Installing the Drivers & Software
Setting Up
the machine
Windows®
Parallel

14
AAfter the computer restarts, the installation
of the Brother drivers will automatically start.
Follow the instructions on the screen.
(For Windows®2000 Professional/XP/
XP Professional x64 Edition, you must be
logged on with Administrator rights.)
The MFL-Pro Suite (including printer
driver and scanner driver) has been
installed and the installation is now
complete.
For Parallel Interface Cable Users
(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition)
After restarting the computer, the Installation
Diagnostics will run automatically. If the
installation is unsuccessful, the installation
results window will be shown. If the
Installation Diagnostics shows a failure,
please follow the on-screen instruction or read
on-line help and FAQs in
Start/All Programs (Programs)/Brother/
MFL-Pro Suite MFC-XXXX (where XXXX is
your model name).
Step 2 Installing the Drivers & Software

15
Make sure that you have finished the instructions from Step 1 “Setting Up
the machine” on pages 4 - 7.
1Switch off the machine and disconnect the
machine from the power socket.
2Turn on your computer.
You must be logged on with Administrator
rights.
DO NOT plug in the power cord
before connecting the parallel
interface cable. It may cause
damage to your machine.
3Connect the parallel interface cable to your
computer, and then connect it to the
machine.
4Plug in the power cord and turn on the
machine.
5Put the supplied CD-ROM into your CD-
ROM drive. If the model name screen
appears, choose your machine. If the
language screen appears, select your
language.
6The CD-ROM main menu will appear.
Click Install MFL-Pro Suite.
For Windows NT®Workstation Version 4.0 Users
Please close any applications running before
installing the MFL-Pro Suite.
Brother recommends that you connect the
machine directly to your computer.
If this window does not appear, use Windows®
Explorer to run the setup.exe program from
the root folder of the Brother CD-ROM.
Continued...
Installing the Drivers & Software
Setting Up
the machine
Windows
NT®4.0
Parallel
Windows®
Parallel

16
7When the Brother MFL-Pro Suite Software
License Agreement window appears, click
Yes if you agree to the Software License
Agreement.
8Choose Standard, and then click Next. The
installation will continue.
9Click Finish and wait as the PC restarts
Windows®and continues the installation.
(You must be logged on with Administrator
rights.)
The MFL-Pro Suite (including, Printer
driver and Scanner driver) has been
installed and the installation is now
complete.
For Windows NT®Workstation Version 4.0 Users
If you want to install the PS driver (BR-Script 3
printer driver), choose Custom Install and
then follow the on-screen instructions. When
the Select Components screen appears,
check PS Printer Driver, and then continue
following the on-screen instructions.
After restarting the computer, the Installation
Diagnostics will run automatically. If the
installation is unsuccessful, the installation
results window will be shown. If the
Installation Diagnostics shows a failure,
please follow the on-screen instruction or read
on-line help and FAQs in Start/Programs/
Brother/MFL-Pro Suite MFC-XXXX (where
XXXX is your model name).
Step 2 Installing the Drivers & Software

17
Make sure that you have finished the instructions from Step 1 “Setting Up
the machine” on pages 4 - 7.
1Switch off the machine and disconnect the
machine from the power socket (and from
the Macintosh®, if you have already
connected an interface cable).
2Turn on your Macintosh®.
3Insert the supplied CD-ROM® into your CD-
ROM drive.
4Double-click the Start Here OSX icon to
install the drivers and MFL-Pro Suite. If the
language screen appears, choose your
language.
5Click MFL-Pro Suite to install.
6Follow the on-screen instructions, and
restart your Macintosh®.
7After the Brother DeviceSelector window
appears, connect the USB interface cable to
your Macintosh® and then to the machine.
F
For USB Interface Cable Users
For Mac OS®X 10.2.4 or greater
For Mac OS®X 10.2.0 to 10.2.3 users,
upgrade to Mac OS®X 10.2.4 or greater.
(For the latest information for Mac OS®X,
visit http://solutions.brother.com)
The Brother DeviceSelector window will not
appear if you have also connected a USB
interface cable to the machine before
restarting your Macintosh® or if you are
overwriting a previously installed version of
the Brother software. If you encounter this
problem continue with the installation but skip
step 9. You should choose your Brother
machine from the Model pull-down list in the
main screen of ControlCenter2. (For details,
see the Software User’s Guide on CD-ROM).
Continued...
Installing the Drivers & Software
Setting Up
the machine
Macintosh®
USB

18
Installing the Drivers & Software
DO NOT connect the machine to a
USB port on a keyboard or a non-
powered USB hub
8Plug in the power cord and turn on the
machine.
9Choose USB and then click OK.
0Click Go, then choose Applications.
ADouble-Click the Utilities folder.
BDouble-Click the Printer Setup Utility icon.
CClick Add.
For Mac OS®X 10.2.4 to 10.3.x users
➝Go to D
For Mac OS®X 10.4 users ➝Go to E
For USB Interface Cable Users
For Mac OS®10.2.x users, double-click the
Print Center icon.
Step 2
