FACSIMILE EQUIPMENT
PARTS REFERENCE LIST
MODEL: MFC590
(For Germany / United Kingdom / France /
Belgium / Netherlands /
Switzerland / Ireland / Denmark /
Austria / Spain / Italy / Euro Generic /
Pan Nordic)

© Copyright Brother 2001
All rights reserved
No part of this publication may be reproduced in any form
or by any means without permission in writing from the
publisher.
Specifications are subject to change without prior notice.

NOTES FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q' ty
(3) Description
Note: No orders without Parts Code or Tool No. can be accepted.
[Example] (1) (2) (3)
REF.NO. CODE Q' TY DESCRIPTION
RECOMMEND
REMARKS
2. Parts change will be informed by the technical information.
COUNTRIES
GERMANY ---- GER
UNITED KINGDOM ---- UK
FRANCE ---- FRA
BELGIUM ---- BEL
NETHERLANDS ---- NLD
SWITZERLAND ---- CHE
IRELAND ---- IRE
DENMARK ---- DEN
AUSTRIA ---- AUS
SPAIN ---- SPA
ITALY ---- ITA
EURO GENERIC ---- GNR
PAN NORDIC ---- NOR

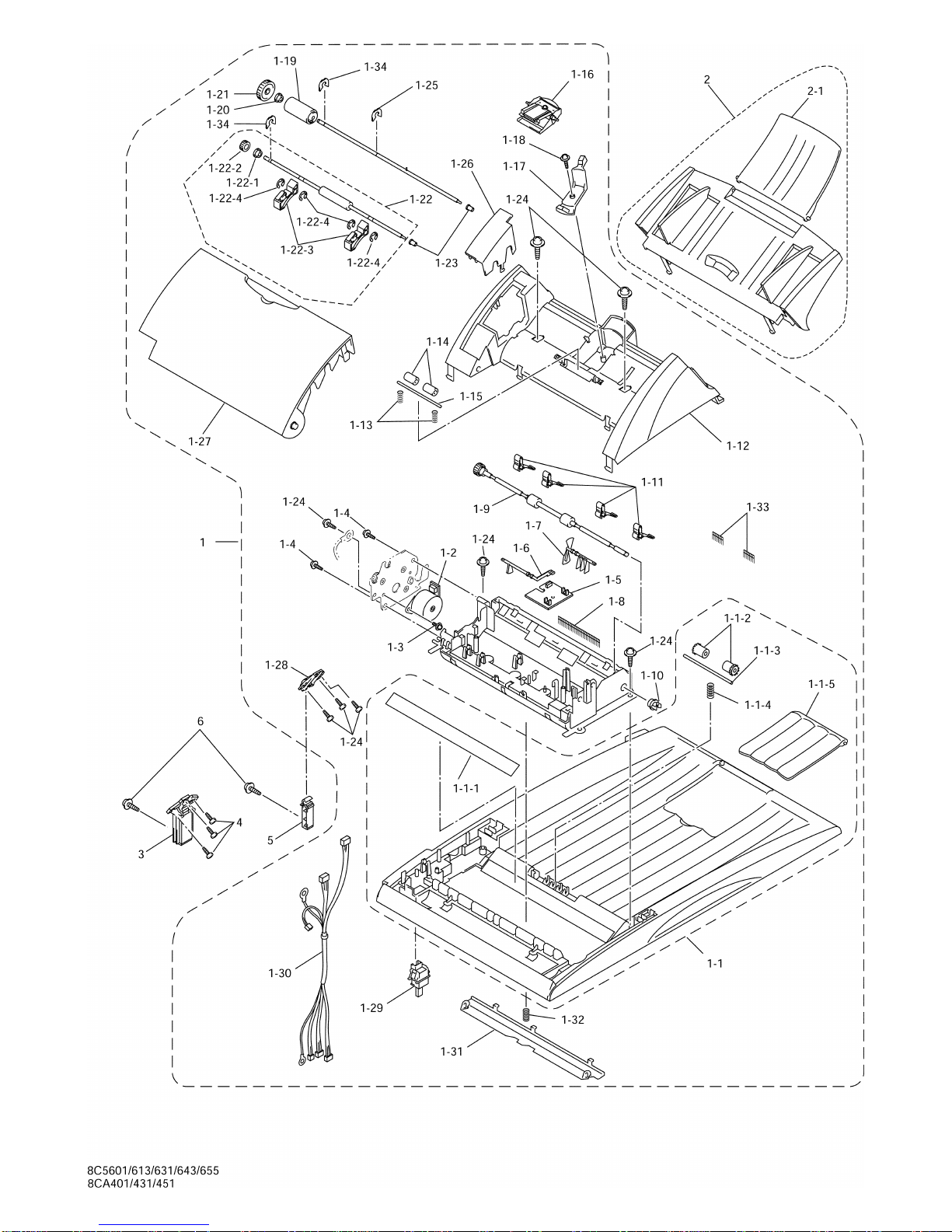

LIST1(ADF)
REF.No. CODE Q'TY DESCRIPTION RECOMMEND REMARKS
1 LE6867001 1 ADF/DOCUMENT TRAY ASSY 1
1-1 LE9437001 1 DOCUMENT TRA
Y
1-1-1 LE6205001 1 CHUTE FILM ASSY
1-1-2 UL624400
2
2 PINCH ROLLE
R
1-1-3 LE2471001 1 PINCH ROLLER SHAFT
1-1-4 LE6206001 1 PINCH ROLLER SPRING
1-1-
5
LE6207001 1 DOCUMENT STOPPE
R
1-2 LE6214001 1
A
DF MOTO
R
1-3 0A430060
5
1 SCREW, PAN WASHER M3X6
1-4 08731081
5
2 TAPTITE, CUP B M3X8
1-5 LG3216001 1 DOCUMENT SENSOR PCB ASSY
1-6 LE6219001 1 DOCUMENT REAR SENSOR ACTUATO
R
1-7 LE6220001 1 DOCUMENT FRONT SENSOR ACTUATO
R
1-8 LE6221001 1
A
NTI-STATIC BRUSH
1-9 LE6222001 1 DOCUMENT EJECTION ROLLER ASSY
1-10 UF0026001 1 PAWLED BUSHING
1-11 LE6334001 4 DOCUMENT GUIDE CLI
P
1-12 LE6226001 1 UPPER ADF CHUTE
1-13 LE2472001 2 PRESSURE ROLLER SPRING
1-14 UF9009001 2 PRESSURE ROLLER
1-15 LE2471001 1 PRESSURE ROLLER SHAFT
1-16 LE6345001 1 SEPARATION RUBBER UNIT
1-17 LE6330001 1
A
DF THICKNESS ADJUSTER
1-18 UF5034001 1 TAPTITE, B M3X6
1-19 LE2037001 1 SEPARATION ROLLER
1-20 LE6494001 1 BUSHING
1-21 LE6230001 1 SEPARATION ROLLER GEAR
1-22 LE6233001 1 DOCUMENT FEED ROLLER ASS
Y
1-22-1 LE6494001 1 BUSHING
1-22-2 LE6495001 1 DOCUMENT FEED ROLLER GEA
R
1-22-
3
LE6492001 2 DOCUMENT FEED PAPER CHUTE
1-22-
4
04805034
6
4 RETAINING RING
1-23 UF9949001 2 BUSHING S
(
SEPARATION ROLLER, FEED ROLLER
)
1-24 08731101
6
8 TAPTITE, CUP B M3X10
1-25 04805034
6
1 RETAINING RING E5
1-26 LE6236001 1 GEAR COVER, GRAY
(
1495
)
1-27 LE6237001 1
A
DF COVER, GRAY
(
1495
)
1-28 LE6245001 1 HINGE ARM
1-29 LG3218001 1 DOCUMENT TRAY OPEN SENSOR
1-30 LG3219001 1
A
DF MOTOR SENSOR HARNESS ASSY
1-31 LE9010001 1 DOCUMENT PRESSURE BA
R
1-32 LE6218001 1 SPRING
1-33 LE6609001 2
A
NTI-STATIC BRUSH S
1-34 LE2537001 2 PLASTIC RETAINING RING
2LE6246001 1 DOCUMENT GUIDE BASE
2-1 LE6250001 1 DOCUMENT SUPPORT, CLEAR PURPLE
(
6342
)
3 LE6238001 1 HINGE L
4 08731101
6
3 TAPTITE, CUP B 3X10
5 LE6244001 1 HINGE BASE R
6 08541121
6
2 TAPTITE, BIND B M4X12
MFC590

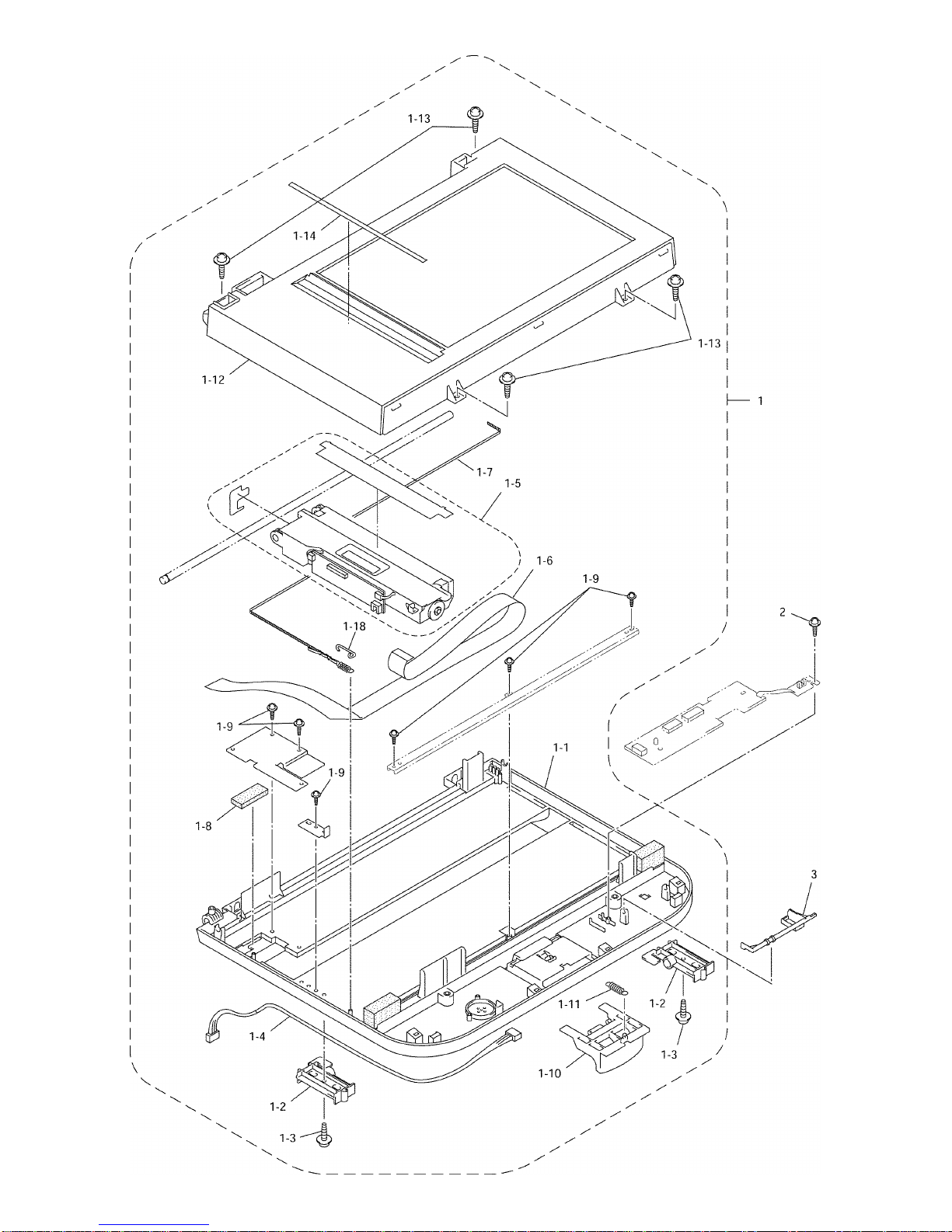

LIST2(SCANNER)
REF.No. CODE Q'TY DESCRIPTION RECOMMEND REMARKS
1 LE9351001 1 SCANNER UNIT
(
SP
)
1
1-1 LE9314001 1 SCANNER BASE, GRAY
(
1495
)
1-2 LE6253001 2 FRONT COVER CONNECTOR
1-3 08741121
6
2 TAPTITE, CUP B M4X12
1-4 LG3233001 1 PANEL HARNESS
1-5 LE9722001 1 CCD UNIT CHG
1-6 LE6351001 1 CCD FLAT CABLE
1-7 LE6353001 1 CCD DRIVE BELT ASS
Y
1-8 LE6260001 1 SPONGE
1-9 08731081
6
6 TAPTITE, CUP B M3X8
1-10 LE9255001 1 SCANNER OPEN LEVER
1-11 LE6264001 1 LEVER SPRING
1-12 LE6267001 1 SCANNER TOP COVER ASSY
1-13 08741121
6
4 TAPTITE, CUP B M4X12
1-14 LE8107001 1 CCD PROTECTOR R del
1-15 LE8108001 1 CCD PROTECTOR F del
1-161
4
LE6355001 1 DOCUMENT SET LABEL
1-171
5
LE7947001 1 BELT STOPPER del
1-18 LE9433001 1 BELT HOLDING SPRING add
2 08731081
5
1 TAPTITE, CUP B M3X8
3 LE2095001 1 SCANNER OPEN SENSOR ACTUATOR
MFC590

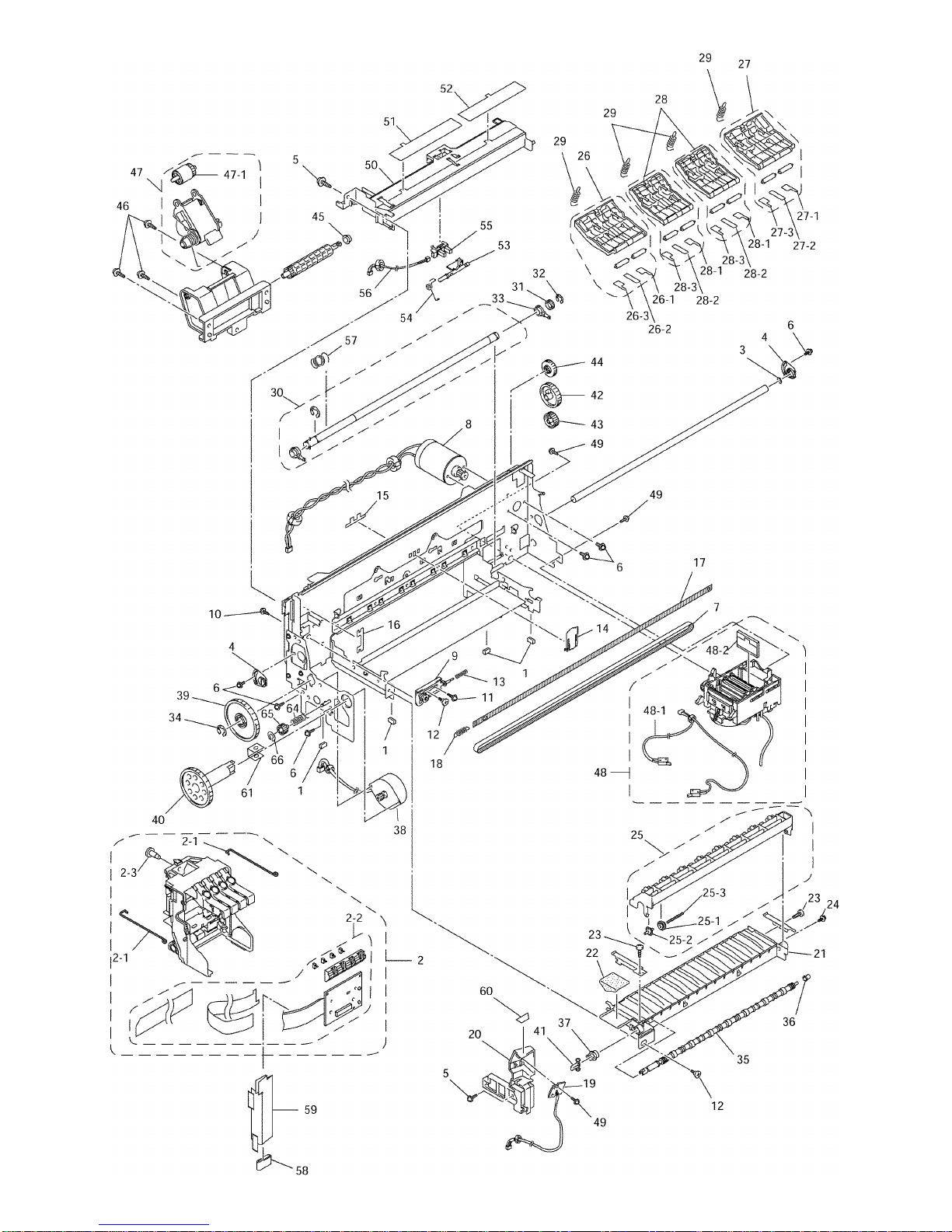

LIST3(ENGINE)
* You have to use the same color spare part with the original part for the replacement.
REF No. CODE Q'TY DESCRIPTION RECOMMEN
D
REMARKS
1 LE6053001 4 VIBRATION ABSORBER
2 LE6198001 1 CARRIAGE ASSY
2-1 LE6062001 2 HEAD CLAMP SPRING
2-2 LE6715001 1 CARRIAGE PCB ASSY 1
2-3 LE6911001 1 STOPPER PIN adde
d
3 LE6421001 1 WAVY WASHER
4 LE6722001 2 ECCENTRIC BUSHING
5 08732061
6
2 TAPTITE, CUP S M3X6
6 0A530060
5
4 SCREW, PAN
(
S/P WASHER
)
M3X6
7 LE6074001 1 TIMING BELT
8 LE6434001 1 CARRIAGE MOTO
R
9 LE6424001 1 IDLE PULLEY HOLDER ASSY
10 08732061
6
1 TAPTITE, CUP S M3X6
11 0A530080
5
1 SCREW, PAN
(
S/P WASHER
)
M3X8
12 UF9823001 2 SHOULDER SCREW
13 LE3171001 1 PULLEY SPRING
14 LE6078001 1 FLAT CABLE CLAMP
15 LE6571001 1 CABLE CLAMP STOPPER
16 LE6152001 1 FFC CLAMP FILM
17 LE6425001 1 ENCODER STRIP
18 UD6012001 1 ENCODER STRIP SPRING
19 LG3124001 1 INK EMPTY SENSOR PCB
20 LE6081001 1 SENSOR SUPPORT
21 LE6082001 1 PLATEN
22 LE6385001 1 FLUSHING SPONGE
23 08527101
5
2 TAPTITE, BIND B M2.6X10
24 08531101
5
1 SCREW, BIND B TITE 3X10
25 LE6430001 1 STAR WHEEL SUPPORT ASSY
25-1 LE6504001 7 STAR WHEEL W
25-2 LE6805001 8 STAR WHEEL B
25-3 LE6107001 7 STAR WHEEL SPRING
26 LE6874001 1 PAPER PRESSURE HOLDER L ASSY
26-1 LE6875001 1 PAPER PRESSURE HOLDER FILM A
26-2 LE6876001 1 PAPER PRESSURE HOLDER FILM B
26-3 LE6392001 1 PAPER PRESSURE HOLDER FILM C
27 LE6877001 1 PAPER PRESSURE HOLDER R ASSY
27-1 LE6875001 1 PAPER PRESSURE HOLDER FILM A
27-2 LE6876001 1 PAPER PRESSURE HOLDER FILM B
27-3 LE6392001 1 PAPER PRESSURE HOLDER FILM C
28 LE6878001 2 PAPER PRESSURE HOLDER M ASSY
28-1 LE6875001 1 PAPER PRESSURE HOLDER FILM A
28-2 LE6876001 1 PAPER PRESSURE HOLDER FILM B
28-3 LE6392001 1 PAPER PRESSURE HOLDER FILM C
29 LE6090001 4 SPRING
*30 LE6091003 1 PAPER FEED ROLLER ASSY, RED
(INCLUDING PF BUSHING L)
*30 LE6091004 1 PAPER FEED ROLLER ASSY, BLUE
(INCLUDING PF BUSHING L)
31 LE6093001 1 PF ROLLER GEAR R
32 LE6121001 1 RETAINING RING, EXTERNAL C5
33 LE6095001 1 PF BUSHING R
34 LE6122001 1 RETAINING RING, EXTERNAL C8
35 LE6096001 1 PAPER EJECTION ROLLER ASSY
36 UU1290001 1 BUSHING
37 UF9949001 1 PAWLED BUSHING
38 LE6489001 1 PAPER FEED MOTOR ASSY
39 LE6101001 1 PF ROLLER GEAR
40 LE6103001 1 PAPER EJECTION ROLLER GEAR
41 LE6104001 1 PAPER EJECTION JOINT
42 UF8034001 1 GEAR, 39
43 LE9268001 1 GEAR, 25M
44 LE6109001 1 GEAR, 31 MF
45 UF8105001 1 BUSHING
46 08732061
6
3 TAPTITE, CUP S M3X6
47 LE6576001 1
A
SF ROLLER ASSY
47-1 LE3432001 1
A
SF ROLLER
48 LE6002001 1 PURGE UNIT ASSY 1
48-1 LG3083001 1 PURGE SWITCH HARNESS
48-2 LE6472001 1 PURGE FOAM
49 08731081
5
3 TAPTITE, CUP B M3X8
50 LE6134001 1 PAPER CHUTE
51 LE6393001 1 CHUTE FILM L
MFC590

LIST3(ENGINE)
REF No.
CODE
Q'TY
DESCRIPTION
RECOMMEND
REMARKS
53
LE3194001
1
REGISTRATION SENSOR ACTUATOR
54
LE6153001
1
ACTUATOR SPRING
55
LG2239001
1
REGISTRATION SENSOR
56
LG3156001
1
REGISTRATION SENSOR HARNESS
57
LE6356001
1
PF SPRING
58
UG5569000
1
FLAT CORE
59
LE6438001
1
FLAT CABLE GUIDE
60
----
NOT USED
61
LE6626001
1
SUPPORT SPRING
62
0A5300805
2
SCREW, PAN (S/P WASHER) M3X6
63
LE6863001
1
CHUTE FILM
<addition>
64
LE6376001
1
IDLE GEAR SPRING
<addition>
65
LE6857001
1
IDOL GEAR
<addition>
66
LE6858001
1
POLYSLIDER WASHER
<addition>
MFC590

LIST4(HEAD UNIT)
REF.NO
CODE
Q'TY
DESCRIPTION
RECOMMEND
REMARKS
1
LK0517001
1
PRINT HEAD UNIT(SP)
1
1-1
LK0516001
1
HEAD NOZZLE SEAL 2(SP)
1
1-2
LK0536001
1
HEAD FILTER SEAL(SP)
1
MFC590

LIST5(COVER)
REF.N
o
CODE Q'TY DESCRIPTION RECOMMEN
D
REMARKS
1 LE6441001 1 LOWER COVER, GRAY
(
1495
)
2 LE6272001 1 INK ABSORBER BOX ASSY
3 LE6475001 1 SHIELD FILM
4 LE6156001 1 ENCLOSURE COVE
R
5 LE6278001 1 PAPER WIDTH SENSOR ACTUATOR
6 LE6277001 1 BOTTOM PLATE
7 UD4019001 4 RUBBER FOOT
8 LE6550001 1 FLUSHING GUTTER ASSY
9 LE6581001 1 HARNESS FILM
10 LE6573001 1 INK FORM FB
11 LE6280001 1 MAIN COVER
12 LE6331001 1 EDGE COVER
13 LE6282001 2 SCANNER LINK SPRING
14 LE6283001 2 SCANNER LINK GUIDE
15 LE6284001 1 SCANNER LINK L
16 LE6285001 1 SCANNER LINK R
17 LG3223001 1 RELAY PCB ASSY 1
18 LG3227001 1 RELAY HARNESS 1
(
12PIN
)
19 LG3228001 1 RELAY HARNESS 2
(
11PIN
)
20 LG3229001 1 RELAY HARNESS 3
(
9PIN
)
21 LE6286001 1
A
UTO SHEET FEEDER ASSY
21-1 LE3254001 1 SEPARATION PAD
21-2 LE3255001 1 PAD HOLDE
R
21-3 LE3434001 1 CAP
21-4 LE6442001 1
A
UTO SHEET FEEDER FILM
21-5 LE6618001 1 RUBBER <added
>
21-6
LE6908001 1GUIDE CAP
<added
>
22 LE6457001 1 RELAY PCB COVER
23 LE6289001 1 REAR COVER, GRAY
(
1495
)
24 LE3282001 1 JAM CLEAR COVER, GRAY
(
1495
)
25 LE6290001 1 MEDIA COVER, GRAY
(
1495
)
26 08732061
5
2 SCREW, CUP S TITE 3X6
27 00230061
6
3 SCREW, PAN M3X6
28 08731121
6
25 TAPTITE, CUP B M3X12
29 UF6559001 1 SCREW, PAN
(
WASHER
)
M4X8DB
30 08541161
6
4 TAPTITE, BIND B M4X16
31 LE6357001 1 SPONGE FFC
32 LE6491001 1 INNER COVER
33 LE6160001 1 INK REPLACE INSTRUCTION LABEL
34 LE6525001 1 JAM MARK LABEL
35 LE6649001 1 CONSUMABLES LABEL
36 LE6861001 1 INK SET INSTRUCTION LABEL
(37
)
UU0456001 1 PROTECTION PAPER
(38
)
UF574500
0
1 MJ COVER FOR GER/UK/FRA/BEL/DEN/AUS/ITA
39 LE6910001 1 RELAY PCB STOPPER
MFC590

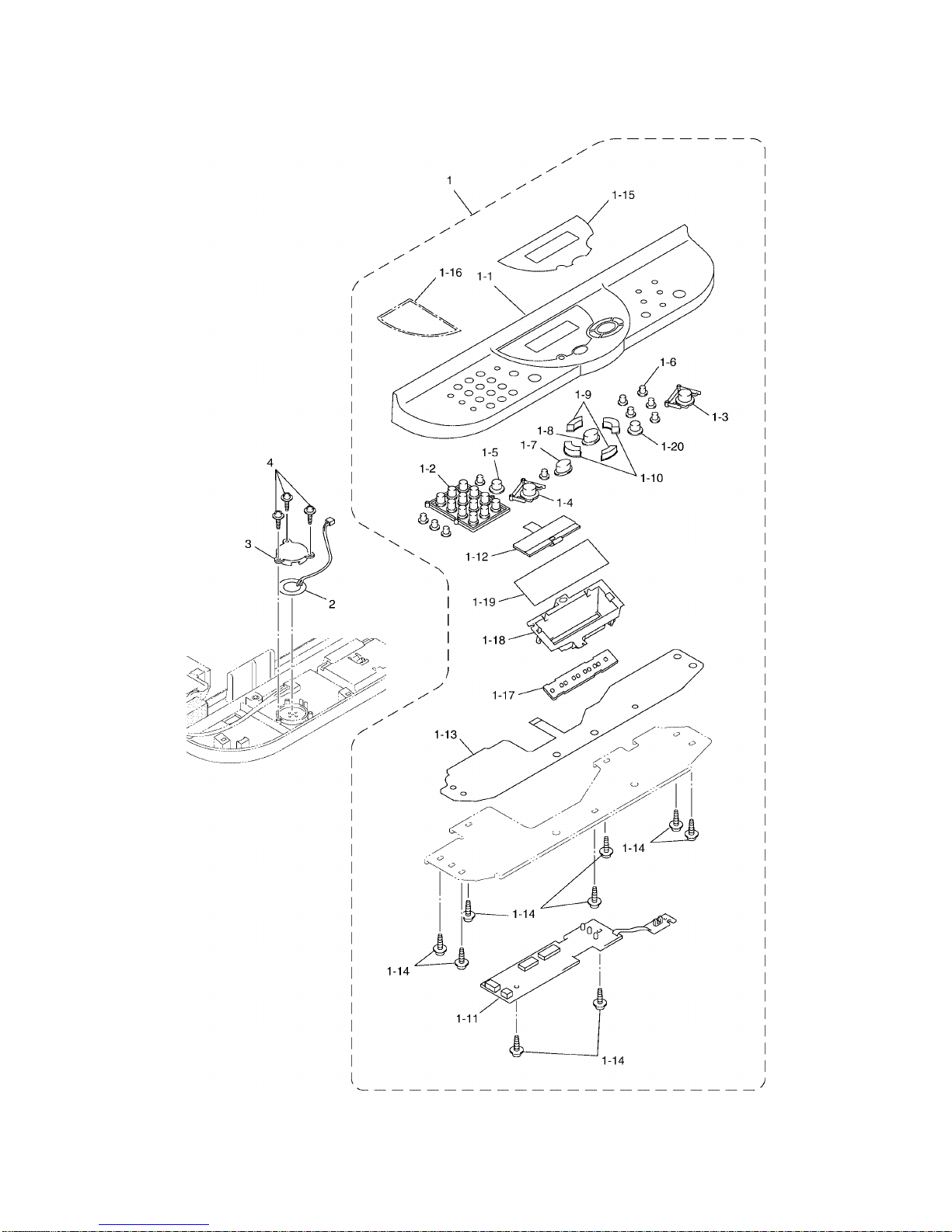

LIST6(PANEL)
REF.NO CODE Q'T
Y
DESCRIPTION RECOMMEND REMARKS
1 LE6377001 1 CONTROL PANEL ASSY, MFC590 FOR GE
R
1
1 LE6380001 1 CONTROL PANEL ASSY, MFC590 FOR
UK/BEL/CHE/IRE/GNR 1
1 LE6382001 1 CONTROL PANEL ASSY, MFC590 FOR FR
A
1
1 LE6731001 1 CONTROL PANEL ASSY, MFC590 FOR NLD 1
1 LE6739001 1 CONTROL PANEL ASSY, MFC590 FOR DEN/NO
R
1
1 LE6745001 1 CONTROL PANEL ASSY, MFC590 FOR SP
A
1
1 LE6750001 1 CONTROL PANEL ASSY, MFC590 FOR IT
A
1
1-1 LE6378001 1 CONTROL PANEL, MFC590 FOR GE
R
1-1 LE6381001 1 CONTROL PANEL, MFC590 FOR UK/BEL/CHE/IRE/GN
R
1-1 LE6383001 1 CONTROL PANEL, MFC590 FOR FR
A
1-1 LE6732001 1 CONTROL PANEL, MFC590 FOR NLD
1-1 LE6740001 1 CONTROL PANEL, MFC590 FOR DEN/NO
R
1-1 LE6746001 1 CONTROL PANEL, MFC590 FOR SP
A
1-1 LE6751001 1 CONTROL PANEL, MFC590 FOR IT
A
1-2 LE3431001 1 KEY, TEN, GRAY
(
1495
)
1-3 LE9228001 1 KEY, COLOR COPY, GREEN
(
5159
)
1-4 LE9228003 1 KEY, BLACK FAX START, GRAY
(
1496
)
1-5 LE6171005 1 KEY, COLOR FAX START, GRAY
(
1496
)
1-6 LE3295001 10 KEY, CYLINDER 6, GRAY
(
1495
)
1-7 LE6170002 1 KEY, STOP, PINK
(
2205
)
1-8 LE6350001 1 KEY, MENU FOR GER
1-8 LE6079001 1 KEY, MENU FOR
UK/FRA/BEL/NLD/CHE/IRE/DEN/AUS/SPA/ITA/GNR/NO
R
1-9 LE6168001 2 KEY, CURSOR L, PURPLE
(
6255
)
1-10 LE6169001 2 KEY, CURSOR S, PURPLE
(
6255
)
1-11 LG3665001 1 CONTROL PANEL PCB ASSY, MFC590
1-12 LG3393001 1 LCD
1-13 LG3230001 1 FPC KEY
1-14 087310615 9 TAPTITE, CUP B M3X6
1-15 LE6379001 1 LCD SHEE
T
1
1-16 ---- NOT USED
1-17 LG3682001 1 BACK LIGHT PCB ASSY
1-18 LE6628001 1 BACK LIGHT HOLDE
R
1-19 LE6629001 1 BACK LIGHT FILM
1-20 LE6171003 1 KEY, BLACK COPY, PURPLE
(
6255
)
2 LG3221001 1 PIEZO RINGER ASSY
3 LE6172001 1 PIEZO RINGER CAP
4 087310815 3 TAPTITE, CUP B M3X8
MFC590

LIST7(PCB)
REF.NO CODE Q'T
Y
DESCRIPTION RECOMMEND REMARKS
1 LG4253021 1 MAIN PCB ASSY 1
2 LG4207004 1 NCU PCB ASS
Y
1
3 LG3666001 1 POWER SUPPLY PCB ASSY 1
4 LG3154001 1 POWER SUPPLY HARNESS
MFC590

LIST8(ACCESSORIES)
REF.No CODE Q'T
Y
DESCRIPTION RECOMMEND REMARKS
1 UG3625001 1 TELEPHONE LINE CORD FOR GE
R
1 UG3626001 1 TELEPHONE LINE CORD FOR U
K
1 UG3627001 1 TELEPHONE LINE CORD FOR FR
A
1 UG1575001 1 TELEPHONE LINE CORD FOR BEL
1 LG3077001 1 TELEPHONE LINE CORD FOR NLD/IRE/SPA/GN
R
1 UG3469000 1 TELEPHONE LINE CORD FOR CHE
1 UG3633001 1 TELEPHONE LINE CORD FOR DEN
1 UG4205001 1 TELEPHONE LINE CORD FOR AUS
1UG3634001 1 TELEPHONE LINE CORD FOR IT
A
1UG3629001 1 TELEPHONE LINE CORD FOR NOR
(
NORWAY
)
1UG3635001 1 TELEPHONE LINE CORD FOR NOR
(
SWEDEN
)
1UG3632001 1 TELEPHONE LINE CORD FOR NOR
(
FINLAND
)
2 LE0019001 1 FERRITE CORE BAG ASSY FOR
FRA/BEL/NLD/CHE/DEN/SPA/ITA/NOR
3 LE6398001 1 PAPER EJECT TRAY ASSY, GRAY
(
1495
)
4 LE6632001 1 CD-ROM ASSY<GERMAN/ENGLISH/FRENCH>,
MFC590 FOR GER/UK/FRA/BEL/CHE/IRE/AUS
4 LE6708001 1 CD-ROM ASSY<DUTCH/FRENCH/ITALIAN/SPANISH>,
MFC590 FOR BEL/NLD/SPA/ITA
4 LE6711001 1 CD-ROM ASSY
<ENGLISH/NORWEGIAN/DANISH/SWEDISH>,
MFC590 FOR DEN/GNR/NO
R
5 LE6822001 1 TRAY EXTENSION
6 LE6807001 1 SP ATTACHMENT BAG ASS
Y
(
7
)
ZA0310001 1 HEAD CLEANER STICK ASSY
(
SP
)
1
(8) LK0504001 1 GLYCEROL CLEANING FLUID(SP)
(INCLUDING 120CC FLUID IN A BOTTLE AND SYRINGE) 1
(9) LE6455001 1 FORM EMPTY CARTRIDGE(SP)
(FOR INK EMPTY SENSOR COMPENSATION)
(
10
)
UF9258001 1 COLOR TEST CHART CTC-001
(
11
)
LK0505001 1 INITIAL LIQUID CARTRIDGE ASSY
(
SP
)
1
(
12
)
UF4600001 1 CONTRAST CHART TC-02
3
(
13
)
---- NOT USED
(14) LG2085001 1 AC CORD ASSY FOR
GER/FRA/BEL/NLD/AUS/SPA/ITA/GNR/NOR
(
VDE
)
1
(
14
)
LG2086001 1
A
C CORD ASSY FOR UK/IRE
(
BS
)
1
(
14
)
LG2087001 1
A
C CORD ASSY FOR CHE
(
SEV
)
1
(
14
)
LG2181001 1
A
C CORD ASSY FOR DEN
(
DEMCO
)
1
(
15
)
UG4558001 1 I/F CABLE FOR GER/UK/IRE/AUS/GNR
(
16
)
----- N/
A
(17) UF8263001 1 TEST CHART TC-02
7
(
18
)
LE6915001 1 CD-ROM ASSY XP, FOR GER/UK/FRA/CHE/IRE/AUS added
(
18
)
LE6916001 1 CD-ROM ASSY XP, FOR BEL/NLD/SPA/ITA added
(
18
)
LE6017001 1 CD-ROM ASSY XP, FOR DEN/GNR/NO
R
added
MFC590
