FACSIMILE EQUIPMENT
PARTS REFERENCE LIST
MODEL: MFC890
(For Germany / United Kingdom / France /
Belgium / Netherlands / switzerland /
Ireland / Denmark / Austria / Spain / Italy /
Sweden / Norway / Finland / General)
MFC5200C
(For Australia / New Zealand / Asia)

© Copyright Brother 2002
All rights reserved
No part of this publication may be reproduced in any form
or by any means without permission in writing from the
publisher.
Specifications are subject to change without prior notice.

NOTES FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q' ty
(3) Description
Note: No orders without Parts Code or Tool No. can be accepted.
[Example] (1) (2) (3)
REF.NO. CODE Q' TY DESCRIPTION RECOMMEND REMARKS
2. Parts change will be informed by the technical information.
COUNTRIES
GERMAN ---- GER
UNITED KINGDOM ---- UK
FRANCE ---- FRA
BELGIUM ---- BEL
NETHERLAND ---- NLD
SWITZERLAND ---- CHE
IRELAND ---- IRE
DENMARK ---- DEN
AUSTRIA ---- AUS
SPAIN ---- SPA
ITALY ---- ITA
SWEDEN ---- SWE
NORWAY ---- NOR
FINLAND ---- FIN
GENERAL ---- GEN
AUSTRALIA ---- ARL
NEW ZEALAND ---- NZ
ASIA ---- ASA

LIST1(ADF)
REF.No. CODE Q'TY DESCRIPTION RECOMMEND REMARKS
1 LE9436001 1DOCUMENT COVER ASSY 1
1-1 LE9437001 1 DOCUMENT COVER SUB ASSY, GRAY
(
1495
)
1-1-1 LE6205001 1 CHUTE FILM
1-1-2 UL624400
2
2 PINCH ROLLE
R
1-1-3 LE2471001 1 PINCH ROLLER SHAFT
1-1-4 LE6206001 1 PINCH ROLLER SPRING
1-1-5 LE6207001 1 ADF DOCUMENT OUTPUT SUPPORT EXTENSION,
GRAY(1495)
1-2 LE6214001 1
A
DF MOTO
R
1-3 0A430060
5
1 SCREW, PAN
(
S/P WASHER
)
M3X6
1-4 08731081
5
2 TAPTITE, CUP B M3X8
1-5 LG3216001 1 DOCUMENT SENSOR PCB ASSY
1-6 LE6219001 1 DOCUMENT REAR SENSOR ACTUATO
R
1-7 LE6220001 1 DOCUMENT FRONT SENSOR ACTUATO
R
1-8 LE6221001 1
A
NTI-STATIC BRUSH
1-9 LE6222001 1 DOCUMENT EJECTION ROLLER ASSY
1-10 UF0026001 1 PAWLED BUSHING
1-11 LE6334001 4 DOCUMENT GUIDE CLI
P
1-12 LE6226001 1 UPPER ADF CHUTE, GRAY
(
1495
)
1-13 LE2472001 2 PRESSURE ROLLER SPRING
1-14 UF9009001 2 PRESSER ROLLER
1-15 LE2471001 1 PRESSURE ROLLER SHAFT
1-16 LE6345001 1 SEPARATOR RUBBER UNIT
1-17 LE6330001 1
A
DF THICKNESS ADJUSTER
1-18 UF5034001 1 TAPTITE, B 3X6
1-19 LE2037001 1 SEPARATION ROLLER
1-20 LE6494001 1 BUSHING
1-21 04805034
6
1 RETAINING RING, E5
1-22 LE6233001 1 DOCUMENT FEED ROLLER ASS
Y
1-22-1 LE6494001 1 BUSHING
1-22-2 LE6495001 1 DOCUMENT FEED ROLLER GEA
R
1-22-
3
LE6492001 2 DOCUMENT FEED ROLLER PAPER CHUTE
1-22-
4
04805034
6
4 RETAINING RING, E5
1-23 UF9949001 2 BUSHING S
1-24 LE2537001 2 PLASTIC RETAINING RING
1-25 LE6236001 1 GEAR COVER, GRAY
(
1495
)
1-26 LE6237001 1
A
DF COVER, GRAY
(
1495
)
1-27 LE6245001 1 HINGE BASE R
1-28 08731101
6
8 TAPTITE, CUP B M3X10
1-29 LG3218001 1 DOCUMENT COVER OPEN SENSO
R
1-30 LG3827001 1
A
DF HARNESS
1-31 LE9010001 1 DOCUMENT PRESSURE BA
R
1-32 LE6218001 1 SPRING
1-33 LE6609001 2
A
NTI-STATIC BRUSH S
1-34 LE6230001 1 SEPARATE ROLLER GEAR
2LE6246001 1 DOCUMENT GUIDE ASSY, GRAY
(
1495
)
2-1 LE6250001 1 DOCUMENT SUPPORT, CLEAR PURPLE
(
6342
)
3 LE6238001 1 HINGE ASSY L
4 08731101
6
3 TAPTITE, CUP B M3X10
5 LE6244001 1 HINGE ARM
R
6 08541121
6
2 SCREW, BIND B TITE 4X12
8CA533 MFC890, MFC5200C

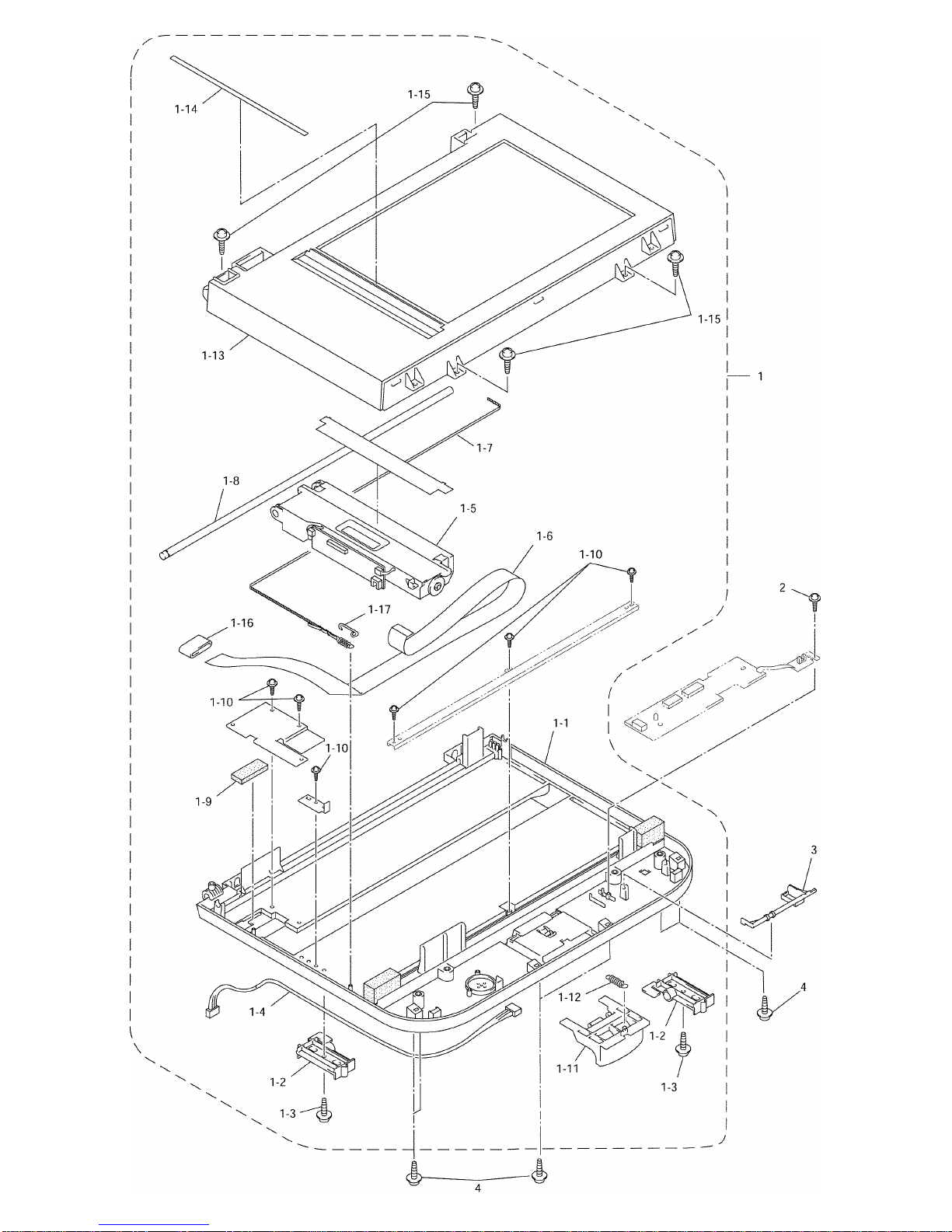

LIST2(SCANNER)
REF.No. CODE Q'TY DESCRIPTION RECOMMEND REMARKS
1 LE9351001 1 SCANNER UNIT
(
SP
)
1
1-1 LE9314001 1 SCANNER BASE, GRAY
(
1495
)
1-2 LE6253001 2 SCANNER LINK SUPPORT
1-3 08741121
6
2 TAPTITE, CUP B M4X12
1-4 LG3233001 1 PANEL HARNESS
1-5 LE9722001 1 CCD UNI
T
CHG
1-6 LE6351001 1 CCD FLAT CABLE
1-7 LE6353001 1 CCD DRIVE BELT ASSY
1-8 LE6259001 1 CCD RAIL
1-9 LE6260001 1 SPONGE R
1-10 08731081
6
6 TAPTITE, CUP B M3X8
1-11 LE9255001 1 SCANNER COVER RELEASE LEVER, PURPLE
(
6255
)
1-12 LE6264001 1 LEVER SPRING
1-13 LE6267001 1 SCANNER TOP COVER ASSY, GRAY
(
1495
)
1-14 LE6355001 1 DOCUMENT SET LABEL
1-15 08741121
6
4 TAPTITE, CUP B M4X12
1-16 LG2020001 1 FLAT CORE 40X20X6.5
1-17 LE9433001 1 BELT HOLDING SPRING
2 08731081
5
1 TAPTITE, CUP B M3X8
3 LE2095001 1 SCANNER OPEN SENSOR ACTUATOR
4 08731121
6
6 TAPTITE, CUP B M3X12
8CA533 MFC890, MFC5200C

LIST3(ENGINE)
REF No. CODE Q'TY DESCRIPTION RECOMMEN
D
REMARKS
1 LE9061001 1 CARRIAGE TIMING BELT
2 LE9268001 1 GEAR, 25M
3 LE6031001 1 PURGE BEVEL GEAR A
4 LE9039001 1 CARRIAGE UNIT ASSY 1
4-1 LE9434001 1 FELT
4-2 LE9435001 2 FELT M2
5 0A530060
5
8 SCREW, PAN
(
S/P WASHER
)
M3X6
6 UF9823001 2 SHOULDER SCREW
7 LE9068001 1 HEAD FLAT CABLE W ASSY
8 LE9070001 1 HEAD FLAT CABLE M ASSY
9 LE9071001 1 FFC STOPPER 1
10 LE9072001 1 FFC STOPPER 2
11 LE9073001 1 HEAD FLAT CABLE N ASSY
12 LE9075001 1 FLAT CABLE CLAMP
13 LE9180001 1 HARNESS SUPPORT FILM L
14 LE9077001 1 CARRIAGE MOTO
R
15 LE9081001 1 IDLE PULLEY HOLDER ASSY
15-1 LE3170001 1 IDLE PULLEY
15-2 02603013
5
1 WASHER, PLAIN S 3
15-3 04802034
5
2 RETAINING RING, E2
16 08732061
5
5 SCREW, CUP S TITE 3X6
17 LE3171001 1 PULLEY SPRING
18 LE9084001 1 ENCODER STRIP
19 UD6012001 1 ENCODER STRIP SPRING
20 LG3837001 1 INK EMPTY SENSOR PCB ASSY
21 08731081
5
3 TAPTITE, CUP B M3X8
22 LE9329001 1 PLATEN
23 LE9090001 1 FLUSHING FOAM CASE ASSY
24 08732061
6
1 TAPTITE, CUP S M3X6
25 LE9094001 1 STAR WHEEL SUPPORT ASSY
25-1 LE6504001 8 STAR WHEEL W
25-2 LE6805001 8 STAR WHEEL B
25-3 LE6105001 5 STAR WHEEL A
25-4 LE9236001 8 STAR WHEEL SPRING
25-5 LE9274001 5 STAR WHEEL SPRING A
26 LE9229001 2 TAPTITE, PAN B 3X10
27 LE9096001 1 PAPER PRESSURE HOLDER L ASSY
27-1 LE9291001 1 PRESSURE HOLDER FILM
28 LE9098001 1 PAPER PRESSURE HOLDER R ASSY
28-1 LE9291001 1 PRESSURE HOLDER FILM
29 LE9100001 2 PAPER PRESSURE HOLDER M ASSY
29-1 LE9291001 2 PRESSURE HOLDER FILM
29-2 LE9430001 4 PRESSURE HOLDER FILM M2
30 LE6090001 4 PRESSURE ROLLER SPRING
31 LE9102001 1 PAPER FEED ROLLER ASSY
32 LE9107001 1 CRESCENT RING, C14
33 LE9266001 1 PF ROLLER GEAR R
34 LE6121001 1 CRESCENT RING, C5
35 LE9109001 1 WASHER, 15.1X21
36 LE9286001 1 PAPER EJECTION ROLLER ASSY
37 UF8097001 1 BUSHING
38 04806034
5
1 RETAINING RING, E6
39 LE9114001 1 PAPER FEED MOTOR
40 LE9653001 1 PF ROLLER PULLEY FLANGE ASSY CHG
41 LE9117001 1 EJECTION ROLLER PULLEY
42 LE9118001 1 PF TIMING BELT L
43 LE9119001 1 PF TIMING BELT S
44 LE9121001 1 TENSION PLATE R
45 LE9125001 2 TENSION SPRING
46 LE9126001 1 TENSION PLATE F
47 LE9128001 2 SENSOR ACTUATOR
48 LE9129001 2
A
CTUATOR SPRING
49 LE9242001 1 PAPER CHUTE ASSY
50 LE9131001 1 PURGE UNIT 1
50-1 LG3839001 1 PURGE SWITCH HARNESS
50-2 LE9134001 1 PURGE FOAM
51 LE9235001 1 MAINTENANCE FOAM
52 LE9135001 1 MAINTENANCE STOPPER
53 LE9166001 4 RUBBER BUSHING
54 LG3840001 1 DRIVER PCB ASSY 1
55 LE9179001 1 HARNESS HOLDER FILM
56 08541121
6
4 TAPTITE, BIND B M4X12
57 LE9167001 4 PLAIN WASHER
58 LG4043001 1 FLAT CORE:24.5-20
8CA533 MFC890, MFC5200C

LIST4(HEAD UNIT)
REF.No. CODE Q'TY DESCRIPTION RECOMMEN
D
REMARKS
1 LK0799001 1 PRINT HEAD UNIT
(
SP
)
1-1 LK0800001 1 HEAD NOZZLE SEAL ASSY
(
SP
)
1-2 LK0536001 1 HEAD FILTER SEAL
(
SP
)
1
8CA533 MFC890, MFC5200C

LIST5(ASF)
REF.N
o
CODE Q'TY DESCRIPTION RECOMMEN
D
REMARKS
1LE9136001 1
A
SF BASE ASSY
1-1 LE6332001 1 SIDE GUIDE L, GRAY
(
1495
)
1-2 LE6333001 1 SIDE GUIDE R, GRAY
(
1495
)
1-3 LE6137001 1 BASE PAD
1-4 LE9267001 1 SEPARATION PAD ASSY
1-5 LE9232001 4 FLAP SPRING
1-6 LE9233001 2 FLAP HOLDER, GRAY
(
1495
)
1-7 UF8097001 1 BUSHING
1-8 UF0026001 1 PAWLED BUSHING
1-9 LE9160001 1
A
SF ROLLER ASSY, PURPLE
(
6255
)
1-9-1 LE3432001 1
A
SF ROLLER
1-9-1-1 LE3267001 1
A
SF ROLLER CORE
1-10 LE9312001 1 JAM MARK LABEL
1-11 LE9253001 1
A
SF SHAFT
1-12 LG4167001 1 MANUAL FEED SLOT COVER SENSOR HARNESS
1-13 08531101
5
2 SCREW, BND B TITE 3X10
1-14 LE9161001 1 PCB COVER, GRAY
(
1495
)
1-15 08731081
5
1 TAPTITE, CUP B M3X8
1-16 LE9304001 2 FLAP FILM
1-17 LE9189001 1 MANUAL FEED SLOT COVER ASSY, PURPLE
(
6255
)
208732061
6
5 TAPTITE, CUP S M3X6
8CA533 MFC890, MFC5200C

LIST6(COVER)
REF.N
o
CODE Q'TY DESCRIPTION RECOMMEN
D
REMARKS
1 LE9219001 1 LOWER COVER ASSY , PURPLE
(
6255
)
1-1 UD4019001 2 RUBBER FOOT
1-2 LE6568001 1
A
NTI-STATIC BRUSH
2 LE9247001 1 INK ABSORBER BOX ASSY
3 LE9164001 1 EXTENSION TUBE
4 LE9165001 1 DRAIN TUBE JOINT
5 LG3845001 1 SPEAKER
6 UF9847001 1 SPEAKER SPRING
7 LG4416001 1 MEDIA PCB ASSY 1
8 LE9174001 1 MEDIA COVER, PURPLE
(
6255
)
9 LE3439001 1 LENS
10 08732061
6
3 TAPTITE, CUP S M3X6
11 08731101
6
2 TAPTITE, CUP B M3X10
12 LE9178001 1 CCD FLAT CABLE GUIDE FILM
13 LE9182001 1 MAIN COVER, GRAY
(
1495
)
14 LE9184001 2 SUPPORT CHIP
15 LE9187001 1 EDGE COVER, GRAY
(
1495
)
16 LE6282001 2 SCANNER LINK SPRING
17 LE6283001 2 SCANNER LINK GUIDE
18 LE6284001 1 SCANNER LINK L
19 LE6285001 1 SCANNER LINK R
20 LE9271001 1 REAR COVER ASSY, GRAY
(
1495
)
21 LE9305001 1 MEDIA FLAT CABLE ASSY
(
22P
)
22 LE9306001 1 MEDIA FLAT CABLE ASSY
(
21P
)
23 08732061
6
23 TAPTITE, CUP S M3X6
24 00230061
6
3 SCREW, PAN M3X6
25 08731101
6
12 TAPTITE, CUP B M3X10
26 UF6559001 1 SCREW, PAN
(
WASHER
)
M4X8DB
27 08541121
6
7 TAPTITE, BIND B M4X12
28 LE9193001 1 INK REPLACE INSTRUCTION LABEL
29 LE6649001 1 CONSUMPTION LABEL EXCEPT FOR ARL/NZ/ASA
29 LE6530001 1 CONSUMPTION LABEL FOR ARL/NZ/ASA
30 LE9289001 1 MANUAL SLOT LABEL
31 UG557700
0
1 FLAT CORE :33.5-20
32 LE9310001 1 PS PROTECT FILM
(
33
)
UU0456001 1 PROTECTION PAPER
34 UF574500
0
1 MJ COVER, EXT FOR GER/UK/FRA/BEL/DEN/AUS/ITA
35 LE9365001 1 MANUAL GUIDE STOPPER
8CA533 MFC890, MFC5200C

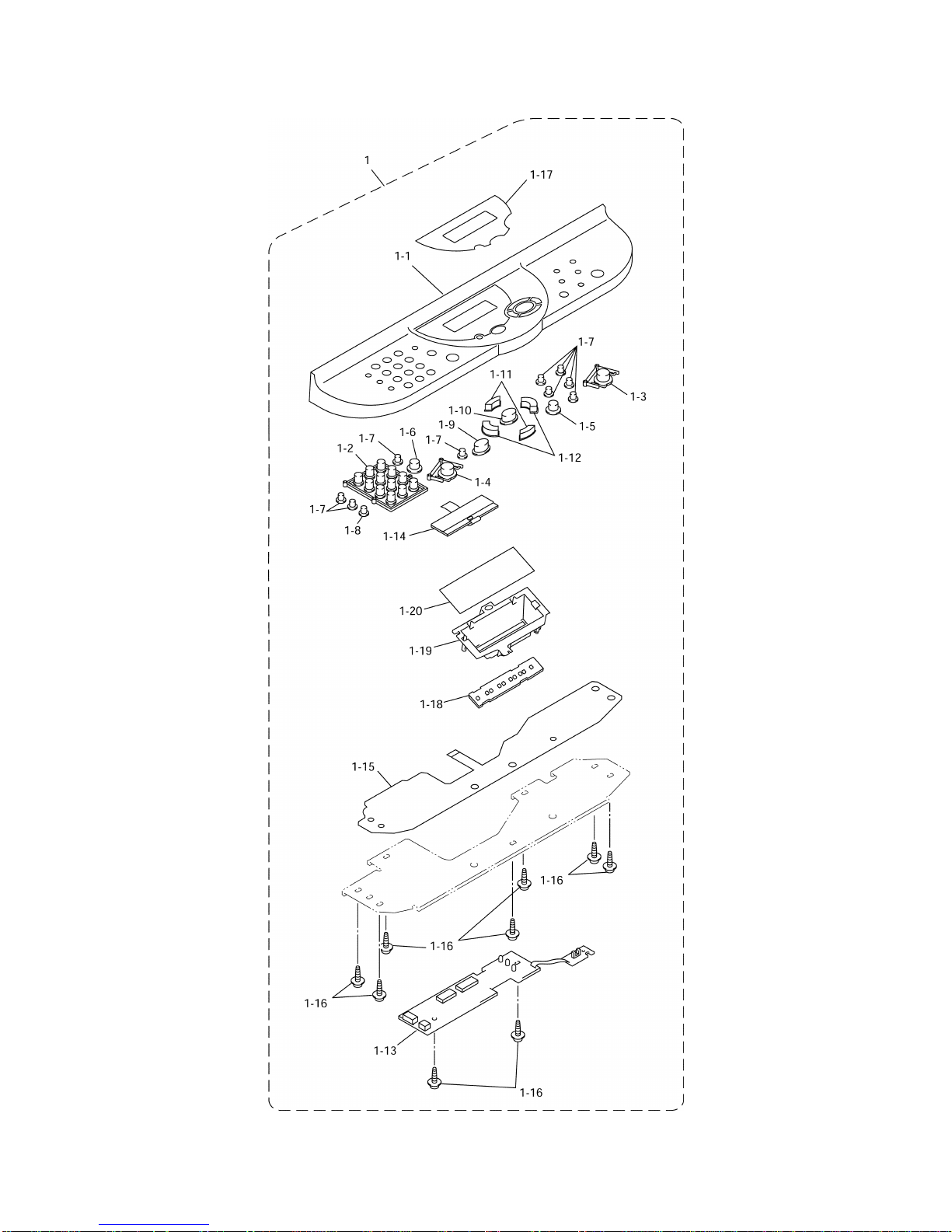

LIST7(PANEL)
REF.N
o
CODE Q'TY DESCRIPTION RECOMMEN
D
REMARKS
1 LE9319001 1 PANEL COVER ASSY
(
SP
)
, MFC890 FOR GER/AUS 1
1 LE9223001 1 PANEL COVER ASSY (SP) , MFC890
FOR UK/BEL/CHE/IRE/GNR 1
1 LE9344001 1 PANEL COVER ASSY
(
SP
)
, MFC890 FOR FRA 1
1 LE9386001 1 PANEL COVER ASSY
(
SP
)
, MFC890 FOR NLD 1
1 LE9398001 1 PANEL COVER ASSY (SP) , MFC890
FOR DEN/NOR/FIN/SWE 1
1 LE9405001 1 PANEL COVER ASSY
(
SP
)
, MFC890 FOR SPA 1
1 LE9410001 1 PANEL COVER ASSY
(
SP
)
, MFC890 FOR ITA 1
1 LE9526001 1 PANEL COVER ASSY, MFC5200C FOR ARL/NZ/ASA 1
1-1 LE9320001 1 CONTROL PANEL ASSY , MFC890 FOR GER/AUS
1-1 LE9224001 1 CONTROL PANEL ASSY , MFC890
FOR UK/BEL/CHE/IRE/GNR
1-1 LE9345001 1 CONTROL PANEL ASSY , MFC890 FOR FRA
1-1 LE9387001 1 CONTROL PANEL ASSY , MFC890 FOR NLD
1-1 LE9399001 1 CONTROL PANEL ASSY , MFC890
FOR DEN/NOR/FIN/SWE
1-1 LE9406001 1 CONTROL PANEL ASSY , MFC890 FOR SPA
1-1 LE9411001 1 CONTROL PANEL ASSY , MFC890 FOR ITA
1-1 LE9527001 1 CONTROL PANEL ASSY , MFC5200C FOR ARL/NZ/ASA
1-2 LE3431001 1 KEY, TEN, GRAY
(
1495
)
1-3 LE9228001 1 KEY, CYLINDER 13, GREEN
(
5159
)
1-4 LE922800
4
1 KEY, CYLINDER 13, PURPLE
(
6255
)
1-5 LE617100
5
1 KEY, CYLINDER9.5, GRAY
(
1496
)
1-6 LE6171001 1 KEY, CYLINDER9.5, GRAY
(
1495
)
1-7 LE3295001 9 KEY, CYLINDER 6, GRAY
(
1495
)
1-8 LE329500
3
1 KEY, CYLINDER 6, GRAY
(
1496
)
1-9 LE6350001 1 KEY, OVAL, GRAY
(
1495
)
GER/AUS
1-9 LE6170002 1 KEY, OVAL, PINK
(
2205
)
EXCEPT FOR GER/AUS
1-10 LE6350001 1 KEY, PRINTED OVAL, GRAY
(
1495
)
FOR GER/AUS
1-10 LE6079001 1 KEY, PRINTED OVAL, GRAY
(
1495
)
EXCEPT FOR
1-11 LE6168001 2 KEY, CURSOR L, PURPLE
(
6255
)
1-12 LE6169001 2 KEY, CURSOR S, PURPLE
(
6255
)
1-13 LG4191001 1 CONTROL PANEL PCB ASSY, MFC890
1-13 LG4193001 1 CONTROL PANEL PCB ASSY, MFC5200C
1-14 LJ8529001 1 LCD, MFC89
0
1-14 UG455200
0
1 LCD, MFC5200
C
1-15 LG3230001 1 FPC KEY
1-16 08731061
5
9 TAPTITE, CUP B M3X6
1-17 LE9225001 1 LCD SHEET, MFC890 1
1-17 LE9522001 1 LCD SHEET, MFC5200
C
1
1-18 LG3446001 1 BACK LIGHT PCB ASSY, MFC890 1
1-19 LE7353001 1 BACK LIGHT HOLDER, MFC890 1
1-20 LE7354001 1 BACK LIGHT FILM, MFC890 1
8CA533 MFC890, MFC5200C

LIST8(PCB)
REF.N
o
CODE Q'TY DESCRIPTION RECOMMEN
D
REMARKS
1 LG3966021 1 MAIN PCB ASSY, MFC890, MFC5200C FOR ARL/N
Z
1
1 LG396602
3
1 MAIN PCB ASSY, MFC5200C FOR ASA 1
2 LG420706
3
1 NCU PCB ASSY, MFC890 1
2 LG368906
6
1 NCU PCB ASSY, MFC5200C 1
3 LG3884001 1 NCU MAIN HARNESS, MFC89
0
3 LG388400
3
1 NCU MAIN HARNESS, MFC5200C FOR ARL/N
Z
3 LG388400
2
1 NCU MAIN HARNESS, MFC5200C FOR AS
A
4 LG3882001 1 POWER SUPPLY UNIT, MFC890, MFC5200C FOR ARL/NZ 1
4 LG4330001 1 POWER SUPPLY UNIT, MFC5200C FOR ASA 1
5LG3875001 1 POWER SUPPLY HARNESS
8CA533 MFC890, MFC5200C
