FACSIMILE EQUIPMENT
SERVICE MANUAL
MODEL: FAX2600/FAX-8060P
MFC4300/MFC4600/
MFC-9060

© Copyright Brother 2000
All rights reserved.
No part of this publication may be reproduced in any
form or by any means without permission in writing
from the publisher.
Specifications are subject to change without notice.

PREFACE
This publication is a Service Manual covering the specifications, construction, theory of operation,
and maintenance of the Brother facsimile equipment. It includes information required for field
troubleshooting and repair--disassembly, reassembly, and lubrication--so that service personnel will
be able to understand equipment function, to rapidly repair the equipment and order any necessary
spare parts.
To perform appropriate maintenance so that the facsimile equipment is always in best condition for
the customer, the service personnel must adequately understand and apply this manual.
This manual is made up of six chapters and appendices.
CHAPTER I. GENERAL DESCRIPTION
CHAPTER II. INSTALLATION
CHAPTER III. THEORY OF OPERATION
CHAPTER IV. DISASSEMBLY/REASSEMBLY AND LUBRICATION
CHAPTER V. MAINTENANCE MODE
CHAPTER VI. ERROR INDICATION AND TROUBLESHOOTING
Appendix 1. EEPROM Customizing Codes
Appendix 2. Circuit Diagrams
This manual describes the models and their versions to be destined for major countries. The specifications
and functions are subject to change depending upon each destination.

SAFETY INFORMATION
Laser Safety (110-120V Model only)
This printer is certified as a Class 1 laser product under the US Department of Health and Human
Services (DHHS) Radiation Performance Standard according to the Radiation Control for Health
and Safety Act of 1968. This means that the printer does not produce hazardous laser radiation.
Since radiation emitted inside the printer is completely confined within the protective housings and
external covers, the laser beam cannot escape from the machine during any phase of user
operation.
CDRH Regulations (110-120V Model only)
The Center for Device and Radiological Health (CDRH) of the US Food and Drug Administration
implemented regulations for laser products on August 2, 1976. These regulations apply to laser
products manufactured from August 1, 1976. Compliance is mandatory for products marketed in
the United States. The label shown below indicates compliance with the CDRH regulations and
must be attached to laser products marketed in the United States.
The label for Chinese products
MANUFACTURED: DEC 1999 U
KYOWA PLASTIC IND. (SHENZHEN) CO., LTD.
Fada Road, Wuhe Street Bantian Industry Zone, Buji Shenzhen,
P. R. China
This product complies with FDA radiation
performance standards, 21 CFR Subchapter J.

CHAPTER I.
GENERAL DESCRIPTION

CHAPTER I. GENERAL DESCRIPTION
CONTENTS
1. EQUIPMENT OUTLINE ............................................................................................ I-1
1.1 External Appearance and Weight..................................................................... I-1
1.2 Components ..................................................................................................... I-1
2. SPECIFICATIONS..................................................................................................... I-2

I- 1
1.EQUIPMENT OUTLINE
1.1 External Appearance and Weight

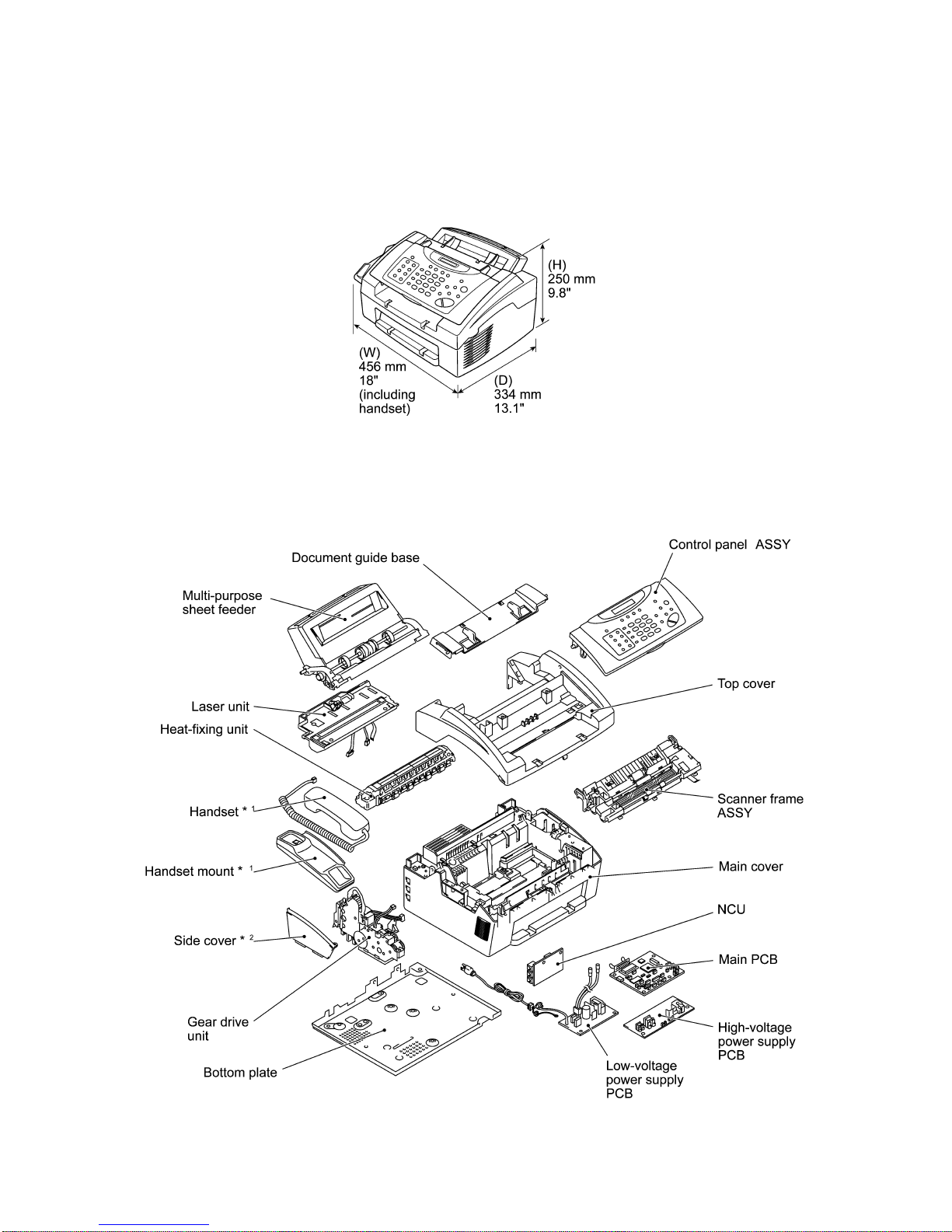

The figure below shows the equipment appearance and approximate dimensions.
Weight: Machine proper Approx. 7.2 kg
Machine (incl. drum unit & toner cartridge) Approx. 8.5 kg
In package Approx. 12 kg
1.2 Components
The equipment consists of the following major components:
*1Not provided on the FAX8060P/MFC9060.
*2Provided on the FAX8060P/MFC9060.

I- 2
2. SPECIFICATIONS (1/3)
Model FAX2600 MFC4300 MFC4600
Color Gray 1495 Gray 1495 Gray 1495
FAX Yes Yes Yes
Modem Speed (bps) 14.4K (FAX Only) 14.4K (FAX Only) 14.4K (FAX Only)
CCITT Group G3 G3 G3
Coding Method MH/MR/MMR MH/MR/MMR MH/MR/MMR
Error Correction Mode (ECM) Yes Yes Yes
Transmission Speed (sec) 6 6 6
Gray Scale 64 64 64
Super Fine Yes Yes Yes
Smoothing Yes Yes Yes
Multi Resolution TX Yes Yes Yes
Input/Output Width 8.5" x 8.5" 8.5" x 8.5" 8.5" x 8.5"
ADF (pages) 20 20 20
LCD Size 16 x 1 16 x 1 16 x 1
Handset Yes Yes Yes
One-touch Dial 16 (8 x 2) 8 8
Speed Dial 30 30 30
Tel-Index Yes (Search) Yes (Search) Yes (Search)
Chain Dialing Yes Yes Yes
Contrast SL/Auto/SD SL/Auto/SD SL/Auto/SD
FAX/TEL Switch Yes Yes Yes
Distinctive Ringing Yes Yes Yes
Caller ID Yes (Call Waiting) Yes (Call Waiting) Yes (Call Waiting)
TAD Interface Yes Yes Yes
Next FAX Reservation Yes - Dual Access Yes - Dual Access Yes - Dual Access
DUAL ACCESS Yes Yes Yes
Help Yes Yes Yes
(Combined with Copy key)
Coverpage Yes - Super Yes - Super Yes - Super
Polling Type Std/Seq Std/Seq Std/Seq
Delayed Timer Yes - up to 50 Yes - up to 50 Yes - up to 50
Broadcasting *1Yes (up to 96) Yes (up to 88) Yes (up to 88)
Call Reservation Yes Yes Yes
Page Memory (TX) *2Max 1.3 MB (130 pages) Max 1.3 MB (130 pages) Max 1.3 MB (130 pages)
Out-of-paper Reception *2Max 1.3 MB (130 pages) Max 1.3 MB (130 pages) Max 1.3 MB (130 pages)
Call Back Message Yes Yes Yes
Paging Yes Yes Yes
FAX Forwarding Yes Yes Yes
FAX Retrieval Yes Yes Yes
Super Quickscan Yes Yes Yes
*1The number of dials for broadcasting is the total of "One-touch dials (16/8)" + "Speed dials (30)" + "Manual dials (50)".
*2According to the Brother chart in standard mode, MMR.

I- 3
(1/3)
Model FAX8060P MFC9060
Color Gray 1495 Gray 1495
FAX Yes Yes
Modem Speed (bps) 14.4K (FAX Only) 14.4K (FAX Only)
CCITT Group G3 G3
Coding Method MH/MR/MMR MH/MR/MMR
Error Correction Mode Yes Yes
Transmission Speed (sec) 6 6
Gray Scale 64 64
Super Fine Yes Yes
Smoothing Yes Yes
Multi Resolution TX Yes Yes
Input/Output Width 8.5" x 8.5" 8.5" x 8.5"
ADF (pages) 20 20
LCD Size 16 x 1 16 x 1
Handset No No
Duplex Speaker Phone No No
One-touch Dial 16 (8x2) 16 (8x2)
Speed Dial 30 30
Tel-Index Yes Yes
Chain Dialing Yes Yes
Contrast SL/Auto/SD SL/Auto/SD
FAX/TEL Switch Yes Yes
FAX/TEL OGM No No
Distinctive Ringing Yes (UK, DEN only) Yes (UK, DEN only)
Caller ID *1No No
TAD Interface Yes Yes
Next FAX Reservation Yes - Dual access Yes - Dual access
DUAL ACCESS Yes Yes
Help Yes Yes
Coverpage Yes - Super Yes - Super
Polling Type Std/Seq/Del (Sec) Std/Seq/Del (Sec)
Password Check No No
Delayed Timer Yes (up to 50) Yes (up to 50)
Broadcasting Yes (up to 96) Yes (up to 96)
Call Reservation Yes Yes
Page Memory (TX) *2Max. 1.3 MB
(up to 130 pages: MMR) Max. 1.3 MB (up to 130 pages: MMR)
Out-of-paper Reception *2Max 1.3 MB
(up to 130 pages: MMR) Max 1.3MB (up to 130 pages: MMR)
Call Back Message Yes Yes
*1Call Waiting Caller ID is not available.
*2According to the Brother chart in standard mode, MMR.

I- 4
(2/3)
Model FAX2600 MFC4300 MFC4600
COPY Yes Yes Yes
dpi 203 x 391 203 x 391 203 x 391
Collating 99 99 99
Reduction/Enlarge 50, 75, 87, 93, 100, 120,
125, 150, 200% 50, 75, 87, 93, 100, 120, 125, 150, 200% 50, 75, 87, 93, 100, 120, 125, 150, 200%
Sort Yes (w/o Key) Yes (w/o Key) Yes (w/o Key)
PRINTER N/A Yes Yes
Engine/Type - YL2 YL2
PPM - 6 ppm 6 ppm
DPI (output resolution) - 600 x 600 600 x 600
Paper Capacity - 200 200
Emulation (Standard) - PCL4 PCL4
Standards - Windows GDI (600 x 600) Windows GDI (600 x 600)
Memory (Typical) - 1 MB 1 MB
Memory (MIN.) - 600 KB 600 KB
Fonts Resident - - -
Fonts Disk Based - Yes - 35TT Yes - 35TT
Paper Handling - LTR, LGL, A4, B5, A5, OHP LTR, LGL, A4, B5, A5, OHP
Multi-Purpose Tray - Custom size
(2.75 x 5, 8.5 x 14) Custom size (2.75 x 5, 8.5 x 14)
Envelop
(DL/C5/CM10/Mona) Envelop (DL/C5/CM10/Mona)
Toner Life (Starter) 1,000 pages with 5% black 1,000 pages with 5% black 1,000 pages with 5% black
Toner Life (Supply) 2,200 pages with 5% black 2,200 pages with 5% black 2,200 pages with 5% black
Drum Life Up To 20,000 pages
(20 pages/job) Up To 20,000 pages (20 pages/job) Up To 20,000 pages (20 pages/job)
Up To 8,000 pages
(1 page/job) Up To 8,000 pages (1 page/job) Up To 8,000 pages (1 page/job)
Utility Software - RPC RPC
Period to go in Sleep Mode - 0-99 0-99
Output size - LTR, LGL, A4, B5, A5 LTR, LGL, A4, B5, A5
Interface/Interface cable No/No Yes (Bi Centro)/No Yes (Bi Centro)/Yes
SCANNER N/A N/A Yes
Color/Mono - - Mono
dpi - - Opt. 200 x 400
(Int. 600 X 600)
Gray Scale - - 256
Twain - - Yes
Formats (Import) - - TIFF/BMP/PCX/DCX/BTF/
BTX/MAX/PDF
Formats (Export) - - TIFF/BMP/MAX/PDF
ADF (pages) - - 20
OCR - - Yes (ScanSoft: TextBridge)

I- 5
(2/3)
Model FAX8060P MFC9060
Super Quickscan No No
Mail box No No
Multi-Transmission No No
PRINTER N/A Yes
Engine/Type - YL (VA)
PPM - 6 ppm
DPI (output resolution) - 600 x 600
Paper Capacity - 200
Emulation - -
(Standard) - Windows GDI (600x600)
Memory (Typical) - 1 MB
Memory (MIN.) - 600 KB
Fonts Resident - -
Fonts Disk Based - -
Paper Handling - LTR, LGL, A4, B5, A5, OHP
Multi-Purpose Tray - Custom size
(2.75x5, 8.5x14)
Envelop
(DL/C5/CM10/Mona)
Support Windows OS
(Printer Driver) - Windows95/98 and NT4.0/2000 Driver with
Auto Installer Program
Toner Life (Standard) 1,000 pages with 5% black 1,000 pages with 5% black
Toner Life (Supply) 2,200 pages with 5% black 2,200 pages with 5% black
Drum Life 20,000 pages (20 pages/job) 20,000 pages (20 pages/job)
8,000 pages (1 page/job) 8,000 pages (1 page/job)
Utility Software for DOS - -
Period to go in Sleep Mode 0-99 0-99
Output size (LTR, LGL, A4, B5, A5) LTR, LGL, A4, B5, A5
Optional LAN Board No No
Optional Mac Board No No
Interface connector No Yes (Bi Centro)
Interface cable No Yes *3
SCANNER N/A Yes (TWAIN only)
Color/Mono - -
dpi - -
Gray Scale - -
Twain - Yes
Formats (Import) - -
Formats (Export) - -
ADF (pages) - -
OCR - -
*3Only for GER, UK, FRA, AUS, IRE, and S.AF

I- 6
(3/3)
Model FAX2600 MFC4300 MFC4600
General
Energy Star Compliance Yes Yes Yes
Memory (Standard) 2MB 2MB 2MB
Memory (Opt Upgrade) N/A N/A N/A
Simultaneous Operation N/A Yes
(PRINTER/FAX,
PRINTER/COPY)
Yes
(PRINTER/FAX,
PRINTER/SCAN,
PRINTER/COPY)
Bundled Software
Applications N/A Yes Yes
Printer Driver - Windows3.1x/95/98/ME,
NT 4.0/2000 Windows3.1x/95/98/ME, NT 4.0/2000
Driver with Auto Installer
Program Driver with Auto Installer Program
Scanner (TWAIN)
Application - No Yes (Brother)
Viewer Application - No Yes
(ScanSoft: PaperPort 6.1)
PC-FAX (Send/Receive) - No Yes (SMSI)
Internet Fax - No No
Automatic E-mail Printing - Yes (Brother) Yes (Brother)
Remote Setup - Yes (Brother) Yes (Brother)

I- 7
(3/3)
Model FAX8060P MFC9060
COPY Yes Yes
dpi 203 x 391 203 x 391
Collating 99 99
Reduction/Enlarge 50, 75, 87, 93, 100, 120,
125, 150, 200% 50, 75, 87, 93, 100, 120, 125, 150, 200%
Sort Yes Yes
Message Center No No
OGM No No
ICM Recording Time No No
Paging No No
Fax & Voice Mail Box No No
Fax & Voice on Demand No No
FAX Forwarding Yes Yes
FAX Retrieval Yes Yes
General
Memory (Standard: Physical) 2MB 2MB
Memory (Opt. Upgrade) No No
Simultaneous Operation N/A Yes
(PRINTER/FAX,
PRINTER/SCANNER,
PRINTER/COPY)
Data Modem No No
Remote Diagnostics Yes Yes
Memory Backup No No
Memory Security No No
Pin TX LOCK Yes Yes
Bundled Software
Applications N/A Yes
Printer Driver - Yes (Brother)
PC-FAX (Send/Receive) - -
Scanner Application - TWAIN (Brother)
Viewer Application - Yes (PaperPort: ScanSoft)
Network Application No No
Class1 No No

CHAPTER II.
INSTALLATION

CHAPTER II. INSTALLATION
CONTENTS
1. INSTALLING THE UPDATE DATA TO THE FACSIMILE EQUIPMENT................. II-1

II - 1
1. INSTALLING THE UPDATE DATA TO THE
FACSIMILE EQUIPMENT

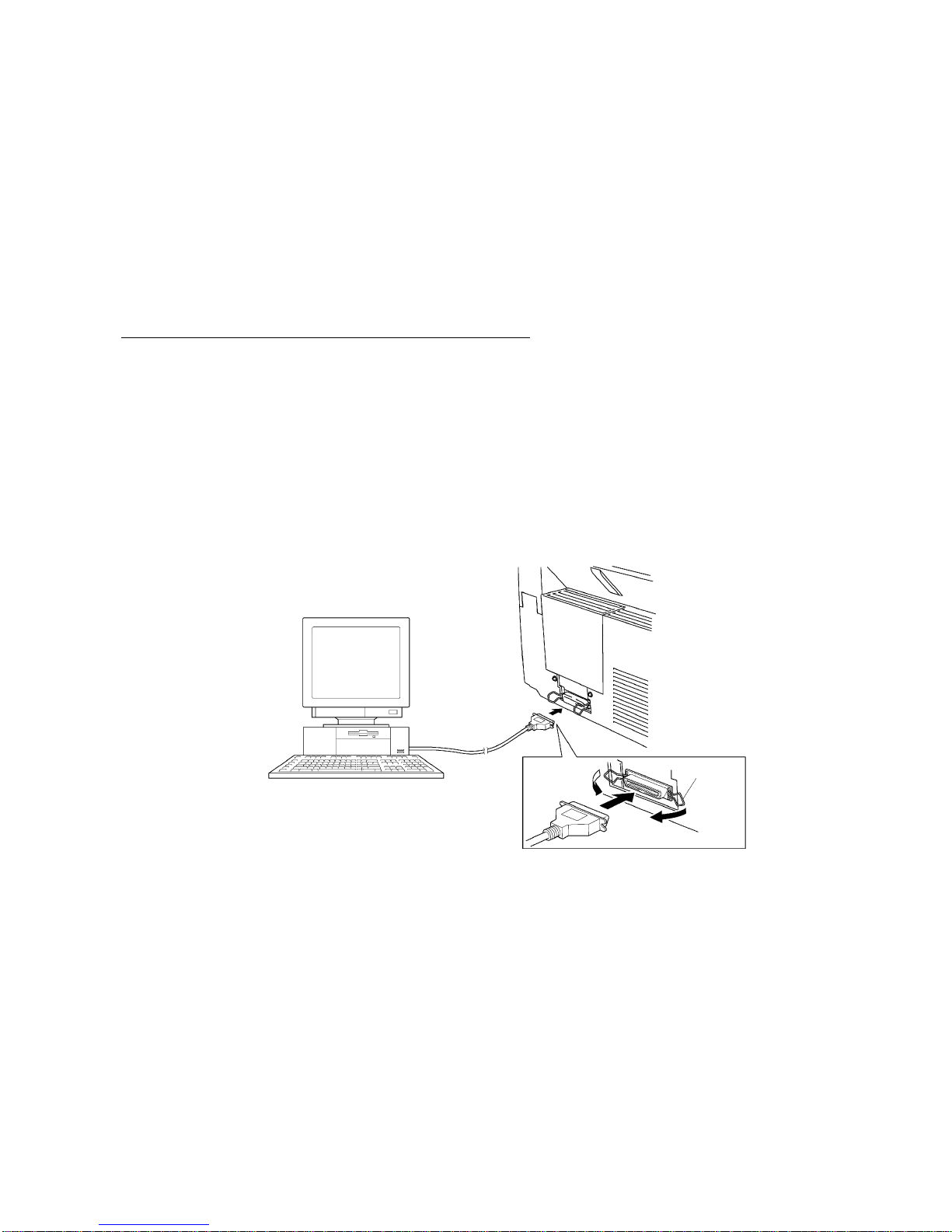

If the program version is updated or the main PCB is replaced, install the update program onto the
flash ROM of the main PCB.
The program installation requires a PC/AT-compatible computer (which is capable of running MS-
DOS or its compatible OS).
Connecting the facsimile equipment to your computer
(1) Make sure that the equipment's power cord is unplugged from a wall socket.
(2) Make sure that your computer is powered off.
(3) Connect the interface cable to the parallel interface port on the back of the equipment and
secure it with the lock wires.
(4) Connect the other end of the interface cable to the printer port of your computer and secure it
with the two screws.
(5) Power on your computer.
(6) Plug the equipment's power cord into a wall socket.
Host computer
Interface cable
Lock
wires

II - 2
Installing the update data onto the flash ROM of the facsimile equipment
NOTE: The following is an installation procedure example on a PC that is running Windows 95/98.
(1) Copy the update data and transfer utility onto the desired directory of the hard disk.
e.g., C:\UPDATE
(2) Click the Start button, point to Programs, and then click MS-DOS Prompt to open an MS-
DOS window.
(3) Type the drive letter where the update data and transfer utility are located. In the above
example, type C:\ from the command line and press the ENTER key.
Then type CD UPDATE and press the ENTER key.
(4) Check that your computer is connected with the facsimile equipment correctly.
(5) To start the transfer utility transmitting the update data to the flash ROM of the facsimile
equipment, type the following:
ICEN filename /b
Then press the ENTER key.
During downloading, the equipment beeps intermittently.
Upon completion of the downloading, the equipment beeps continuously.
NOTE: If the facsimile equipment cannot return to the standby state after completion of
downloading, turn the power off and on.

CHAPTER III.
THEORY OF OPERATION

CHAPTER III. THEORY OF OPERATION
CONTENTS
1. OVERVIEW ............................................................................................................... III-1
2. MECHANISMS.......................................................................................................... III-2
2.1 Scanner Mechanism......................................................................................... III-3
2.1.1 Document feeding and ejecting mechanism............................................. III-3
2.1.2 Scanner..................................................................................................... III-3
2.2 Laser Printing Mechanism ................................................................................ III-4
2.2.1 Paper pulling-in, registration, feeding, and ejecting mechanism............... III-4
2.2.2 Print process mechanism.......................................................................... III-6
2.2.3 Heat-fixing mechanism .............................................................................. III-7
2.3 Sensors and Actuators...................................................................................... III-8
3. CONTROL ELECTRONICS...................................................................................... III-10
3.1 Configuration..................................................................................................... III-10

III - 1

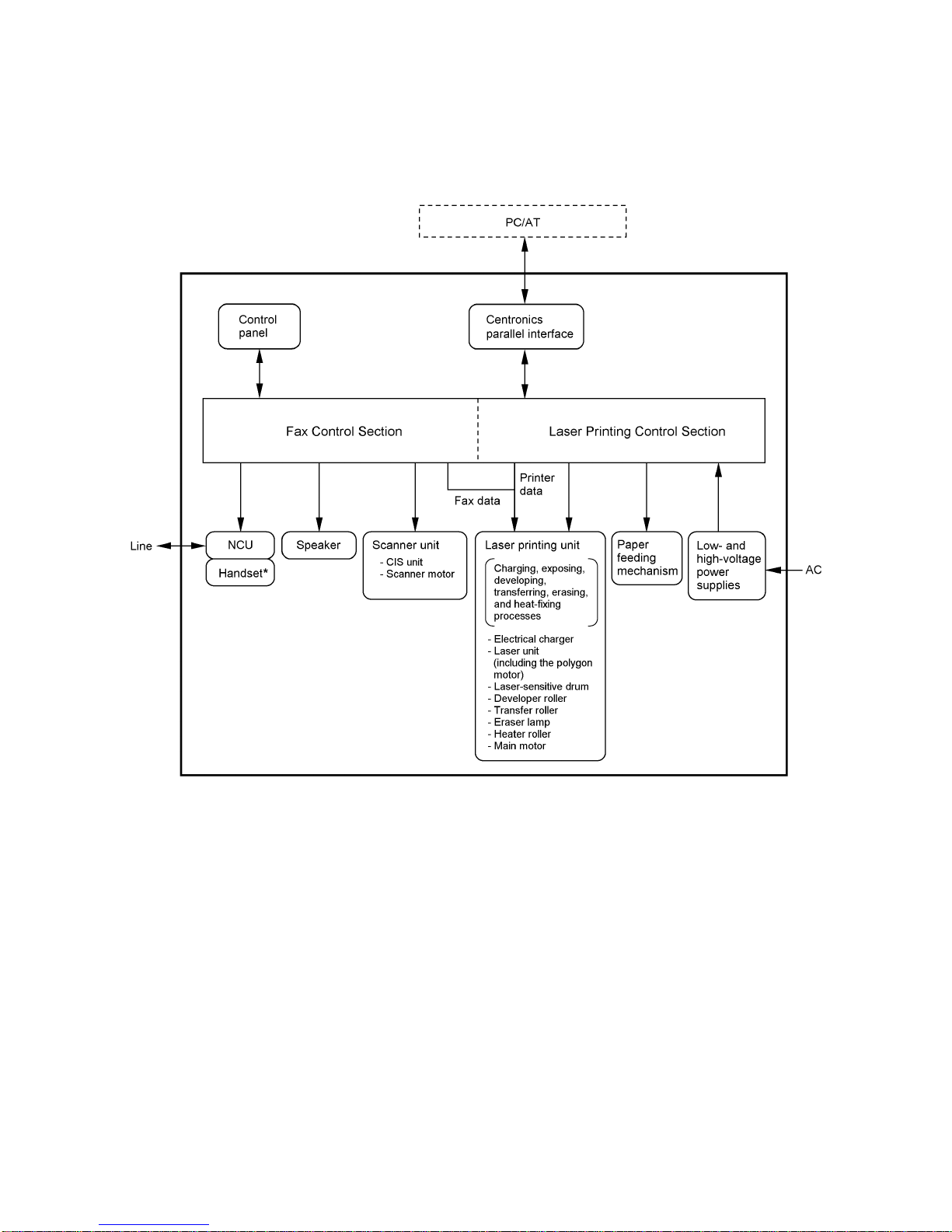

1. OVERVIEW
*Not provided on the FAX8060P/MFC9060.
