PARTS REFERENCE LIST
COOL LAMINATOR
MODEL: LX1200/LX300
Oct., 2001

NOTES FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q'ty
(3) Description
(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)
Note : No orders without Parts Code or Tool No. can be accepted.
[ Example ]
(4) (1) (2) (3)
REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS
Revision No. : marked on the printed circuit board.
B48J300 - 1 01 A
Design change indication
Specification No.
Pattern alteration No.
Circuit board No.
2. Design-changed parts:
When the parts are changed, any one of the following symbols is indicated in the REMARKS column.
CHNG#A : compatible between old and new
CHNG#B : replaceable from old to new
CHNG#D : incompatible
ADD : newly established
3. The original of this list was made based on the information available in Jul, 2000.
4. Parts are subject to change in design without prior notice.

CONTENTS
1 . CHASSIS .............................................................................. 1
2 . DRIVING ROLLER ............................................................... 1
3 . X CUTTER............................................................................ 3
4 . PAPER FEED ....................................................................... 3
5 . PAPER EJECT ..................................................................... 5
6 . DIAL SWITCH....................................................................... 5
7 . GEARS ................................................................................. 7
8 . Y CUTTER............................................................................ 7
9 . Y-CA CHASSIS..................................................................... 9
10 . ROLLER HOLDER .............................................................. 9
11 . TRIMMER MECHA ........................................................... 11
12 . MOTORS ........................................................................... 11
13 . COVERS..................................................................................... 13
14 . LABELS...................................................................................... 15
15 . SENSORS .................................................................................. 15
16 . AC ADAPTORS ................................................................. 17
17 . MAIN PCB.......................................................................... 18
18 . SWITCH PCB .................................................................... 20
19 . JACK PCB......................................................................... 20
20 . OPTIONS........................................................................... 22
21 . PRINTED MATTER............................................................ 22
22 . PACKING MATERIALS..................................................... 24
23 . ADJUSTMENT TOOL........................................................ 26

1
MODEL LX-1200/LX-300 86S-201-034
1 . CHASSIS
MODEL LX-1200/LX-300 86S-201-033
2 . DRIVING ROLLER

2
1 . CHASSIS CL2001006
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1LC0275001 1CHASSIS R SUB ASSY
2LC0742001 1CHASSIS R SUPPORT
3UA9514001 1EDGING SADDLE EDS-1
4LC0283001 1CHASSIS L SUB ASSY
5LC0291001 1MAIN CHASSIS F
6LC0292001 1MAIN CHASSIS B
7UA9905001 11SCREW, CUP M3X5 (10 SIDE CHASSIS SCREWS AND 1 FOR CHASSIS R SUPPORT)
8LC0293001 1SHEET GUIDE FILM
9LC0887001 1LEAF SWITCH C3 ASSY CHNG#B
10 LC0888001 1LEAF SWITCH C4 ASSY CHNG#B
11 LC0297001 2CASSETTE ACTUATOR
12 062261005 2SCREW, PAN M2.6X10 (LEAF SWITCH C3,4 SCREW)
13 LC0789001 1DISCHARGING CLOTH C
MODEL LX-1200/LX-300 86S-201-033
2 . DRIVING ROLLER
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1LC0298001 1DRIVING ROLLER ASSY
2LC0301001 1BEARING L
3LC0300001 1BEARING R
4LC0302001 1ROLLER GEAR BD
5LC0303001 1ROLLER GEAR CD
6048090346 2RETAINING RING, E9 (DRIVING ROLLER)
MODEL LX-1200/LX-300 86S-201-034

3
MODEL LX-1200/LX-300 86S-201-034
3.XCUTTER CL2000006
MODEL LX-1200/LX-300 86S-201-034
4 . PAPER FEED

4
3.XCUTTER CL2000006, CL2000015
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1-3 LC0342001 1X CUTTER UNIT A3
1 LC0345001 1LEAF SWITCH F ASSY
2 083210615 1TAPTITE, PAN B M2X6 (LEAF SWITCH F SCREW)
3 LC0780001 3Y CUTTER FOAM
4 LC0347001 1X CUTTER HARNESS ASSY A3
5 UG3005000 1FERRITE CORE:16X8X10
6000300605 2SCREW BIND M3X6 (X CUTTER SCREW)
7 LC0727001 1X CUTTER FILM ADD
MODEL LX-1200/LX-300-86S 201-034
4 . PAPER FEED
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 LC0313001 1PAPER FEED HOLDER L SUB ASSY
2 LC0316001 1PAPER FEED HOLDER PLATE R
3 LC0317001 1PAPER FEED ROLLER ASSY
4 LC0319001 1PAPER FEED SUB ROLLER
5 LC0320001 1ROLLER GEAR AD
6 LC0321001 2BEARING
7 LC0322001 2SUB BEARING
8LC0323001 2PAPER FEED ROLLER SPRING
9LC0827001 1ACTUATOR TOP K CHNG#D
10 048040346 2RETAINING RING, E4
MODEL LX-1200/LX-300 86S-201-034

5
MODEL LX-1200/LX-300 86S 201-034
MODEL LX-1200/LX-300 86S-201-034
6 . DIAL SWITCH
CL2001008

6
5 . PAPER EJECT CL2001008
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1LC0330001 1PAPER EJECT ROLLER ASSY
2LC0332001 2PAPER EJECT ROLLER BEARING
3LC0333001 2PAPER EJECT SHAFT HOLDER
4LC0334001 1PAPER EJECT SUB ROLLER ASSY
5LC0335001 2PAPER EJECT SUB ROLLER SPRING
6LC0336001 1YC LIFT SHAFT
7LC0341001 1LF CHANGE SHAFT
8-9 LC0348001 1Y DIVERSION LEVER ASSY
9LC0350031 1Y CUTTER GUIDE R ADD
10 LC0320001 2ROLLER GEAR AD
11 LC0355001 2Y EXTENSION SPRING
12 048040346 1RETAINING RING,E4 (YC LIFT SHAFT RING)
MODEL LX-1200/LX-300 86S-201-034
6 . DIAL SWITCH CL2001001
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1-3LC0836001 1DIAL SWITCH HOLDER UNIT B2CHNG#D
1LC0474001 1PUSH SW ASSY 1 ( WHITE )
2LC0414001 1PUSH SW ASSY 2 ( RED )
3UT0855001 2SCREW, PAN M1.7X6 (PUSH SW1,2 SCREW)
4 085310815 8TAPTITE, BIND B M3X8 (DIAL SWITCH HOLDER SCREW)
MODEL LX-1200/LX-300 86S-201-061

7
MODEL LX-1200/LX-300 86S-201-034

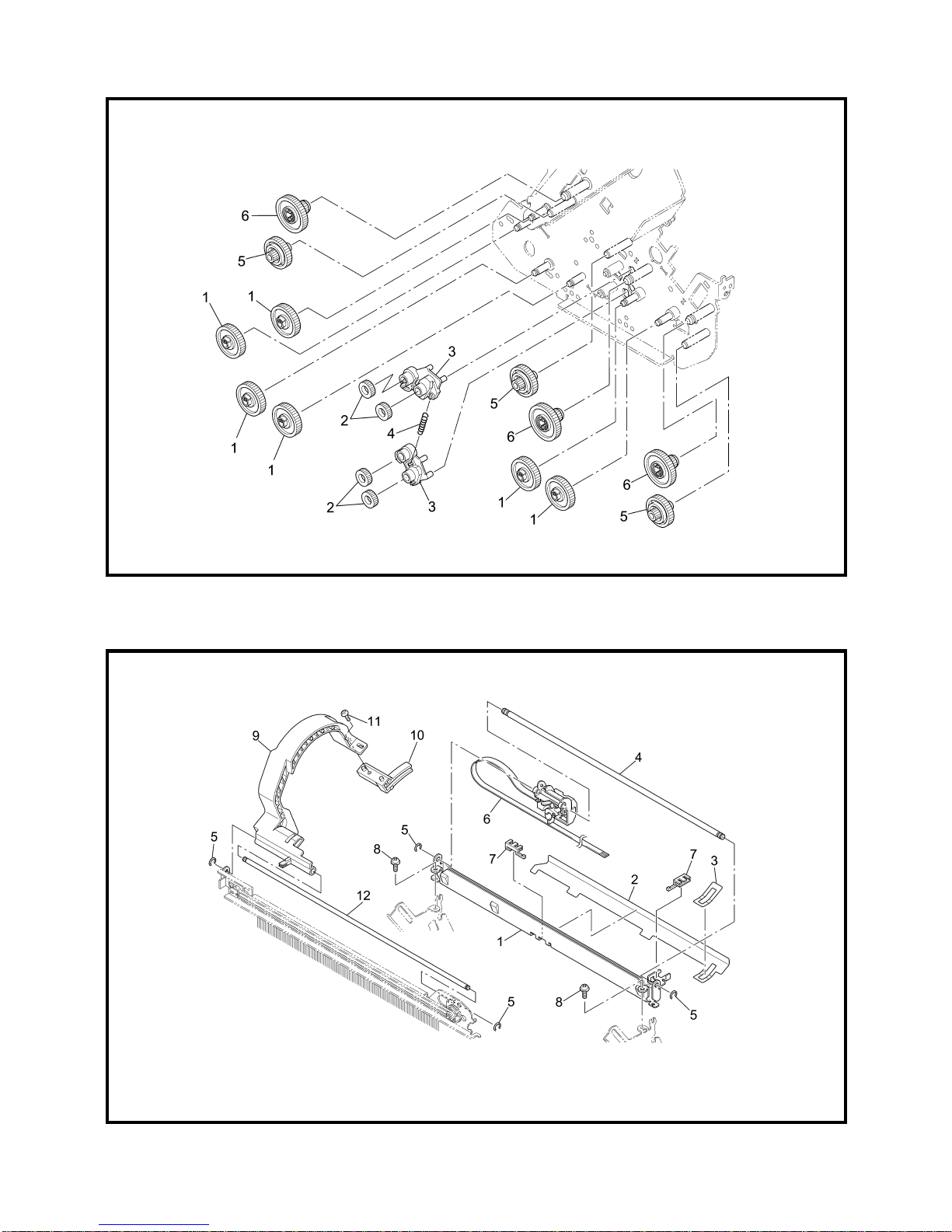

7 . GEARS
MODEL LX-1200/LX-300 86S-201-034
8 . Y CUTTER

8
7 . GEARS CL2000015
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 LC0304001 6IDLE GEAR A
2 LC0305001 4IDLE GEAR B
3 LC0306001 2GEAR HOLDER
4 LC0307001 1SPRING FOR GEAR HOLDER
5 LC0308001 3DOUBLE GEAR A
6 LC0309001 3DOUBLE GEAR B
MODEL LX-1200/LX-300 86S-201-034
8 . Y CUTTER
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 LC0325001 1Y SENSOR RAIL
2 LC0828001 1PAPER FEED FILM K CHNG#D
3 LC0829001 1REINFORCEMENT FILM K CHNG#D
4 LC0327001 1Y SENSOR SHAFT
5 048040346 4RETAINING RING, E4
6 LC0674001 1Y-CA SENSOR (SP)
7 UA9426000 2FPC HOLDER A
8 UA9905001 2SCREW, CUP M3X5 (Y SENSOR RAIL SCREW)
9 LC0356043 1Y CUTTER ARM
10 LC0357021 1Y SENSOR CARRIAGE ARM
11 085311015 1SCREW, BIND B TITE 3X10 (Y-CA ARM SCREW)
12 LC0358001 1Y CUTTER ARM SHAFT
MODEL LX-1200/LX-300 86S-201-034

9
MODEL LX-1200/LX-300 86S-201-034
9 . Y-CA CHASSIS
MODEL LX-1200/LX-300 86S-201-034
10 . ROLLER HOLDER

10
9 . Y-CA CHASSIS
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1-2 LC0359001 1Y-CA CHASSIS ASSY
1 Z26819001 1BP242516M14-YCA (Y-CA MOTOR)
2 U00478002 1SCREW, FLANGED M2.6X5 (Y-CA MOTOR SCREW)
3 UA9905001 2SCREW, CUP M3X5 (Y-CA CHASSIS SCREW)
4 LC0355001 1Y EXTENSION SPRING
MODEL LX-1200/LX-300 86S-201-034
10 . ROLLER HOLDER
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1-1 LC0364001 1ROLLER HOLDER ASSY
1 LC0303001 1ROLLER GEAR CD
2 LC0388001 1ROLLER HOLDER SPRING
3 048040346 2RETAINING RING, E4 (ROLLER HOLDER RING)
4 LC0748001 2SPACER
MODEL LX-1200/LX-300 86S-201-034

11
MODEL LX-1200/LX-300 86S-201-054
11 . TRIMMER-MECHA
MODEL LX-1200/LX-300 86S-201-035
12 . MOTORS

12
11 . TRIMMER-MECHA CL2001006
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1LC0389001 1LEAF SWITCH TRI ASSY
2 083210615 1TAPTITE, PAN B M2X6 (LEAF SWITCH TRI SCREW)
3LC0390001 1T LEVER A
4LC0391001 1SPRING FOR T LEVER
5LC0392001 1T LEVER B
6UA9448000 1T CAM ROLLER
7LC0393001 1T LEVER SHAFT
8LC0337001 1DOUBLE GEAR S
9LC0338001 1CONTROL CAM GEAR
10 LC0304001 2IDLE GEAR A
11 LC0889001 1LEAF SWITCH SG ASSY CHNG#B
12 062261005 1SCREW, PAN M2.6X10 (LEAF SWITCH SG SCREW)
13 LC0340001 1YC LIFT ARM
14 LC0401001 1T CUTTER ASSY (SP)
15 000300605 1SCREW, BIND M3X6 (T CUTTER SCREW)
MODEL LX-1200/LX-300 86S-201-035
12 . MOTORS
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1Z26813001 1BP484223LM46-SG (SG MOTOR)
2LC0537001 1SG MOTOR HARNESS
3UA9905001 4SCREW, CUP M3X5 (SG MOTOR SCREW,LF MOTOR SCREW)
4LC0398001 1LF MOTOR M49SP-1 (LF MOTOR)
5LC0399001 1LF MOTOR HARNESS
6LC0310001 1LF MOTOR HOLDER
7LC0311001 3SPACER
8LC0312001 3SCREW,CUP M3X20 (LF MOTOR HOLDER SCREW)
MODEL LX-1200/LX-300 86S-201-054

13
MODEL LX-1200/LX-300 86S-201-061
13 . COVERS CL2000007

14
13 . COVERS CL2001006
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1LC0400038 1BODY COVER B
2LC0418001 4LED LENS
3LC0419043 1START KEY
4LC0420044 1STOP KEY
5LC0421038 1TWO CONNECTION SWITCH
6LC0422038 1CONTINUOUS KEY
7LC0423038 1EXTRA BORDER KEY
8087411215 4TAPTITE, CUP B M4X12 (BOTTOM COVER SCREW A)
9LC0890001 1COVER SW ASSY CHNG#B
10 083271215 1TAPTITE, PAN B M2.6X12 (COVER SWITCH SCREW)
11 LC0425038 1BOTTOM COVER B
12 U41192001 2FELT FOOT
13 LC0427038 1TOP COVER ASSY B US
13 LC0517038 1TOP COVER ASSY B EUR
14 LC0433039 1FRONT COVER
15 LC0434039 1PAPER TRAY A
16 LC0435039 1PAPER GUIDE
17 LC0436039 1PAPER TRAY B
18 LC0437038 1BACK COVER
19 LC0438001 1BACK COVER FILM
20 LC0439001 1SPRING FOR BACK COVER
21 LC0440039 1SUB TRAY
22 LC0442001 1SPRING (TOP COVER STOPPER)
23 000300605 2SCREW,BIND M3X6 (BOTTOM COVER SCREW B)
24 026050135 2WASHER, PLAIN S 5 (BOTTOM COVER SCREW B WASHER)
25 LC0394038 1TRIMMER UPPER COVER
26 LC0395042 1T CUTTER PLATE
27 LC0396038 1TRIMMER BOTTOM COVER
28 UA9905001 2SCREW,CUP M3X5 (TRIMMER UPPER COVER SCREW)
29 085310815 3TAPTITE,BIND B M3X8 (BOTTOM COVER SCREW B)
30 085270815 2TAPTITE,BIND B M2.6X8
31 LC0794001 1TRAY B STOPPER ADD
32 027040225 4WASHER, EX TOOTH 4 ADD
MODEL LX-1200/LX-300 86S-201-061

15
MODEL LX-1200/LX-300 86S-201-100

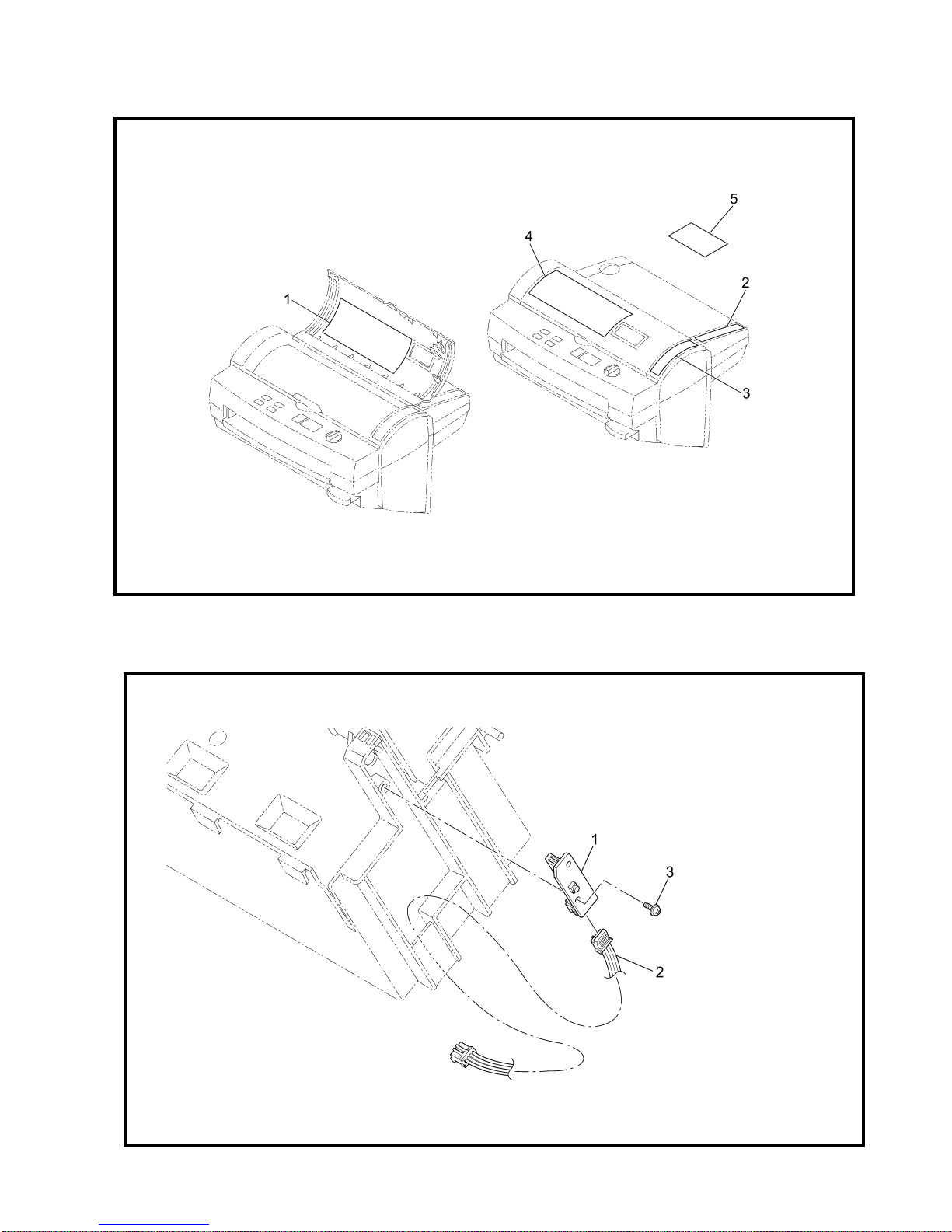

14 . LABELS
MODEL LX-1200/LX-300 86S-201-063
15 . SENSORS

16
14 . LABELS
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 LC0443001 1ATTENTION LABEL A BRO
2 LC0444001 1DOCUMENT SET CAUTION LABEL BRO
3 LC0445001 1CAUTION LABEL
4 LC0592001 1MYLAR STICKER UK
4 LC0593001 1MYLAR STICKER CA
4 LC0594001 1MYLAR STICKER GERMAN
4 LC0597001 1MYLAR STICKER SPANISH
4 LC0274001 1MYLAR STICKER A USA
4 LC0595001 1MYLAR STICKER FRENCH
4 LC0596001 1MYLAR STICKER DUTCH
5 LC0732001 1RATING LABEL, BRO AUS
5 LC0733001 1RATING LABEL, BRO OTHER
5 LC0446001 1RATING LABEL, BRO USA CAN NOM
5 LC0731001 1RATING LABEL, BRO EUROPE
MODEL LX-1200/LX-300 86S-201-063
15 . SENSORS
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 LC0675002 1ENC PCB ASSY 1,(SP)
2 LC0449001 1ENC HARNESS ASSY
3 085310815 1TAPTITE, BIND B M3X8 (ENC PCB SCREW)
MODEL LX-1200/LX-300 86S-201-100

17

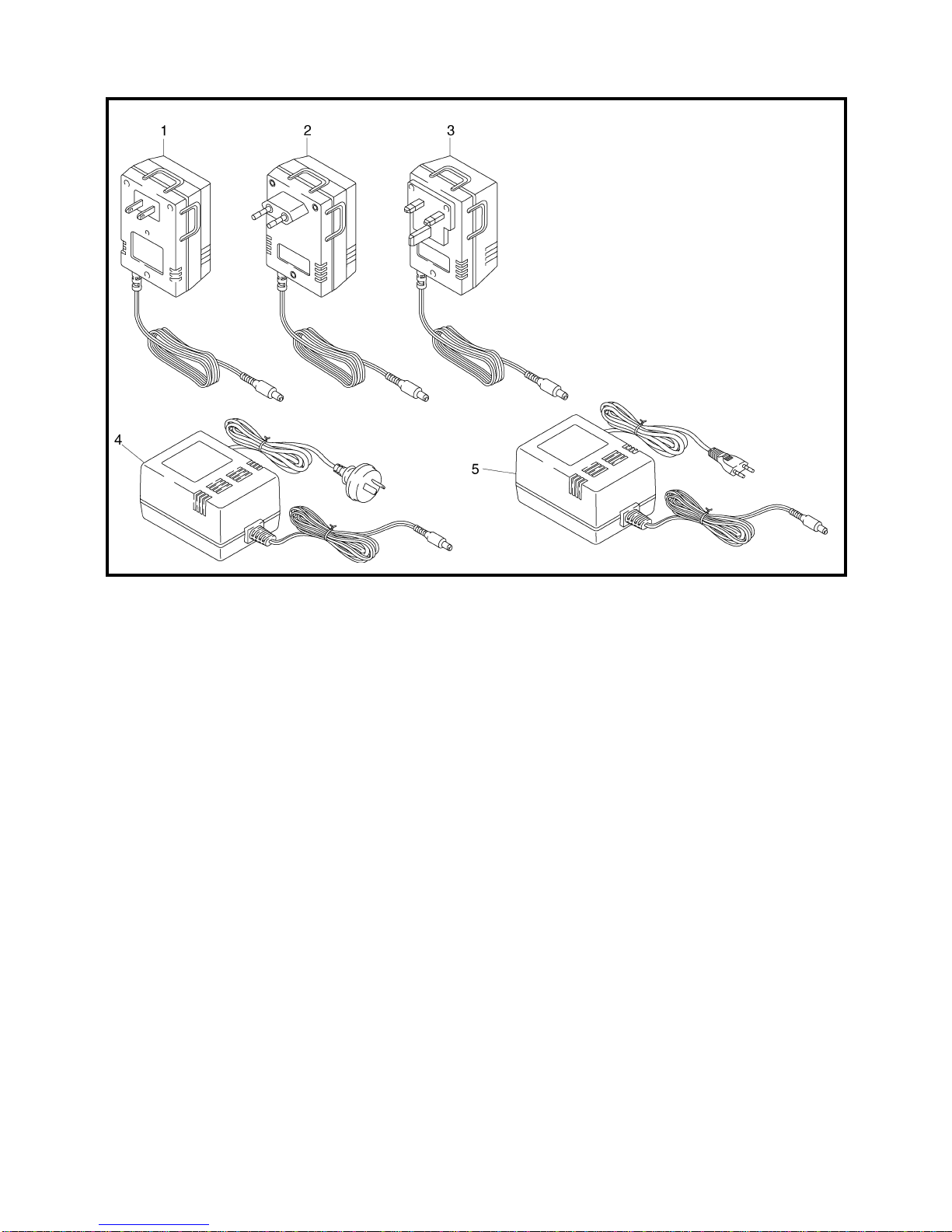

16 . AC ADAPTORS
