PARTS REFERENCE LIST
MODEL: LX-180/LX-200/
LX-900/LX-910D
Aug., 2001

NOTES FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q'ty
(3) Description
(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)
Note : No orders without Parts Code or Tool No. can be accepted.
[ Example ]
(4) (1) (2) (3)
REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS
Revision No. : marked on the printed circuit board.
B48J300 - 1 01 A
Design change indication
Specification No.
Pattern alteration No.
Circuit board No.
2. Design-changed parts:
When the parts are changed, any one of the following symbols is indicated in the REMARKS column.
CHNG#A : compatible between old and new
CHNG#B : replaceable from old to new
CHNG#D : incompatible
ADD : newly established
3. The original of this list was made based on the information available in Sep, 2000.
4. Parts are subject to change in design without prior notice.

CONTENTS
1 . B-CHASSIS........................................................................... 1
2 . CHASSIS MECHA-1 ............................................................. 1
3 . CHASSIS MECHA -2 ............................................................ 3
4 . CHASSIS MECHA -3 ............................................................ 3
5 . CHASSIS MECHA -4 ............................................................ 5
6 . CHASSIS MECHA -5 ............................................................ 5
7 . CHASSIS MECHA -6 ............................................................ 7
8 . CHASSIS MECHA -7 ............................................................ 7
9 . CHASSIS MECHA -8 ............................................................ 9
10 . CHASSIS MECHA -9 ........................................................... 9
11 . T-CHASSIS ....................................................................... 11
12 . MOTORS ........................................................................... 11
13 . COVERS............................................................................ 13
14 . LABELS.............................................................................. 16
15 . SENSORS.......................................................................... 16
16 . AC ADAPTERS.................................................................. 18
17 . MAIN PCB.......................................................................... 19
18 . SWITCH PCB ....................................................................21
19 . JACK PCB.......................................................................... 21
20 . OPTIONS........................................................................... 23
21 . PRINTED MATTER............................................................ 23
22 . PACKING MATERIALS...................................................... 25
23 . ADJUSTMENT TOOL........................................................ 27

1
MODEL LX-180,200,900,910D 86S-101-034
1 . B-CHASSIS
MODEL LX-180,200,900,910D 86S-101-033
2 . CHASSIS MECHA-1

2
1 . B-CHASSIS CL2001006
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1UA9514001 1EDGING SADDLE EDS-1
2UA9325036 1ROLLER GUIDE R
3UA9327000 1Y-SENSOR LEVER
4UA9326036 1ROLLER GUIDE L
5UA9905001 6TAPTITE, CUP M3X5 (SIDE CHASSIS SCREW)
6LC0895001 1LEAF SWITCH C ASSY CHNG#B
7 062260805 1PAN-HEAD (LEAF SW C SCREW)
MODEL LX-180,200,900,910D 86S-101-033
2 . CHASSIS-MECHA-1
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1UA9321001 1DRIVING ROLLER SHAFT
2UA9323000 2BEARING L (DRIVING ROLLER BEARING))
3 048060346 1RETAINING RING, E6 (DRIVING ROLLER E RING)
4 048080142 1RETAINING RING, C8 (DRIVING ROLLER C RING)
5UA9324000 1GEAR 16M1 HOOK
MODEL LX-180,200,900,910D 86S-101-034

3
MODEL LX-180,200,900,910D 86S-101-034
3 . CHASSIS MECHA-2
MODEL LX-180,200,900,910D 86S-101-034
4 . CHASSIS MECHA-3

4
3 . CHASSIS MECHA-2
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1-2 UA9542001 1X-CUTTER UNIT
1 UA9513001 1LEAF SWITCH F ASSY
2 083210615 1TAPTITE, PAN B M2X6 (LEAF SW SCREW)
3 UA9505001 1X-CUTTER HARNESS ASSY
4 UA9905001 2TAPTITE, CUP M3X5 (X-CUTTER SCREW)
5UG3005000 1FERRITE CORE:16X8X10
MODEL LX-180,200,900,910D 86S-101-034
4 . CHASSIS MECHA-3
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 UA9357001 1PAPER FEED ROLLER ASSY
2 UA9365001 1PAPER FEED SUB ROLLER ASSY
3 UA9359000 2ROD HOLDER
4 UA9360000 2BEARING (PAPER FEED ROLLER BEARING)
5 048040346 1RETAINING RING, E4 (PAPER FEED ROLLER RING)
6 UA9361000 2GEAR 16 HOOK
7 UA9362001 1PAPER FEED SHAFT SPRING
8UA9906001 1PAPER FEED SHAFT SPRING R
9UA9363001 1PAPER SENSOR CRANK
MODEL LX-180,200,900,910D 86S-101-034

5
MODEL LX-180,200,900,910D 86S-101-034

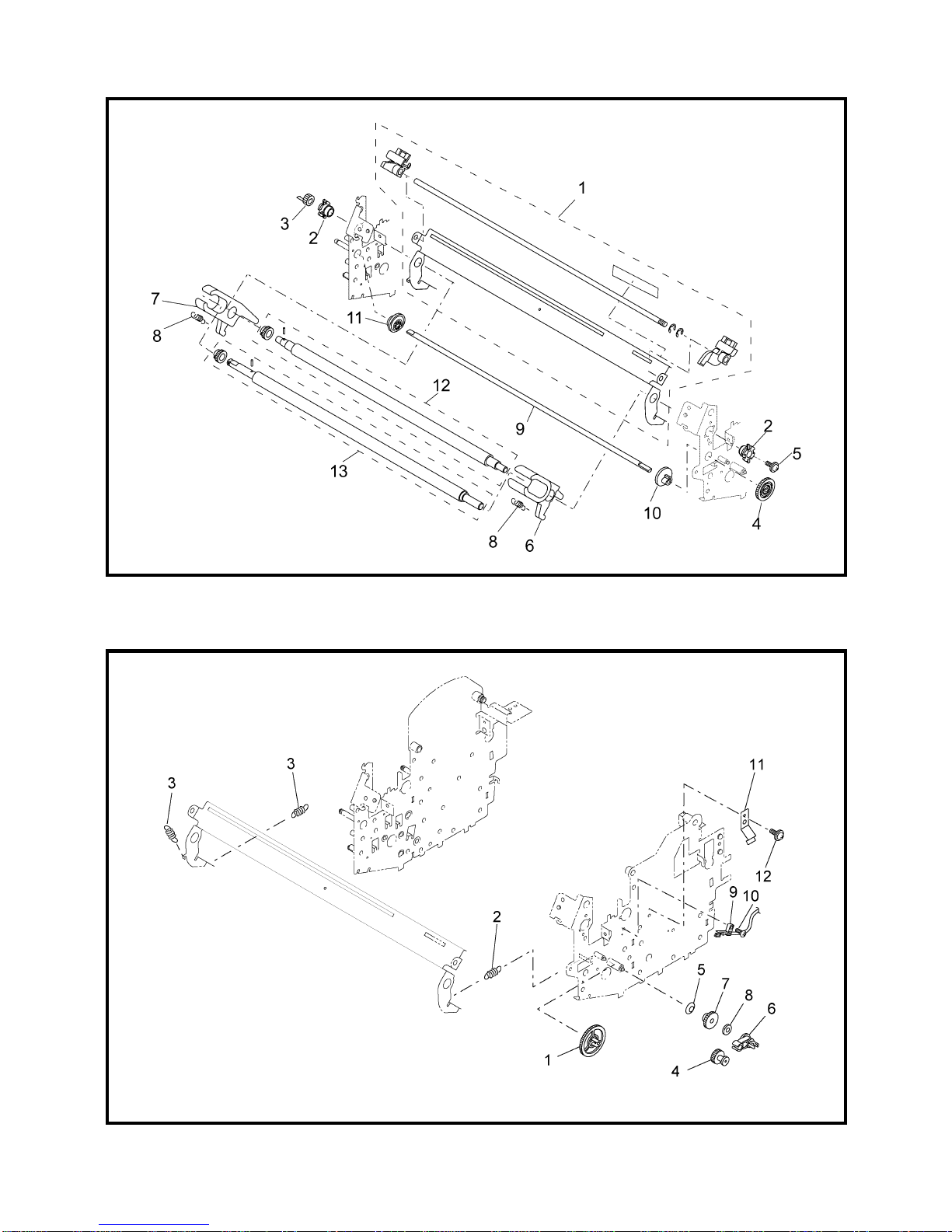

5 . CHASSIS MECHA-4
MODEL LX-180,200,900,910D 86S-101-034
6 . CHASSIS MECHA-5

6
5 . CHASSIS MECHA-4
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1UA9543001 1Y-DIVERSION LEVER ASSY
2UA9375000 2PAPER EJECT ROLLER BEARING
3UA9361000 1GEAR 16 HOOK
4UA9402000 1Y-DRIVING GEAR
5UA9905001 1TAPTITE, CUP M3X5 (PAPER EJECT ROLLER SCREW)
6UA9369000 1PAPER EJECT SHAFT HOLDER R
7UA9370000 1PAPER EJECT SHAFT HOLDER L
8UA9373001 2PAPER EJECT SUB ROLLER SPRING
9UA9399001 1Y-D SHAHT
10 UA9400000 1Y-CUTTER CAM R
11 UA9401000 1Y-CUTTER CAM L
12 UA9546001 1PAPER EJECT ROLLER UNIT
13 UA9547001 1PAPER EJECT SUB ROLLER UNIT
MODEL LX-180,200,900,910D 86S-101-034
6 . CHASSIS MECHA-5 CL2001006
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1UA9403000 1Y-GEAR 40-20
2UA9511001 1Y-EXTENSION SPRING R
3UA9404001 2Y-EXTENSION SPRING L
4UA9381000 1TY-PLANET GEAR
5UA9382001 1TY-SPRING WASHER
6UA9383000 1TY-PLANET GEAR HOLDER
7UA9384000 1TY-IDLE GEAR
8UA9548001 1FELT
9LC0891001 1LEAF SWITCH Y ASSY CHNG#B
10 062260805 1PAN HEAD (LEAF SWITCH Y SCREW)
11 UA9437000 1PLATE SPRING
12 UA9905001 1TAPTITE, CUP M3X5 (PLATE SPRING SCREW)
MODEL LX-180,200,900,910D 86S-101-034

7
MODEL LX-180,200,900,910D 86S-101-034
7 . CHASSIS MECHA-6
MODEL LX-180,200,900,910D 86S-101-034
8 . CHASSIS MECHA-7

8
7 . CHASSIS MECHA-6
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 UA9376000 1GEAR 50
2 UA9377000 4GEAR 20
3 UA9378000 1GEAR 48/24
4 UA9379000 1GEAR 60/16
5 UA9385000 1GEAR 37 HOOK
6 UA9386000 1GEAR 16M1
7 UA9387000 1GEAR 60/16M1
8 UA9388000 1GEAR 60/20 HOOK
9 UA9389000 1GEAR 25 HOOK
10 UA9393000 3GEAR 21
11 UA9394000 1GEAR 40/16 HOOK
12 UA9395000 2GEAR 36/12 HOOK
13 048030346 1RETAINING RING, E3 (GEAR 20 RING)
14 UA9381000 1TY-PLANET GEAR
15 UA9382001 1TY-SPRING WASHER
16 UA9383000 1TY-PLANET GEAR HOLDER
17 UA9384000 1TY-IDLE GEAR
18 UA9548001 1FELT
19 UA9381000 2TY-PLANET GEAR
20 UA9382001 2TY-SPRING WASHER
21 UA9391000 2PLANET GEAR HOLDER
22 UA9392000 2PLANET GEAR 20 HOOK
23 UA9548001 2FELT
MODEL LX-180,200,900,910D 86S-101-034
8 . CHASSIS MECHA-7
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 UA9405021 1Y-CUTTER ARM L
2 UA9406001 1Y-CUTTER ARM SHAFT
3 048040346 2RETAINING RING, E4 (ARM SHAFT RING)
4 UA9424021 1P S PCB HOLDER
5 UA9425001 1P L DETECT LEVER
6 085270617 1TAPTITE, BIND B M2.6X6 (SENSOR HOLDER SCREW)
7 UA9422000 1SENSOR FRAME
8 UA9426000 1FPC HOLDER A
9 UA9427000 1FPC HOLDER B
10 UA9364001 1SENSOR CRANK PROTECT FILM
11 UA9905001 2 TAPTITE, CUP M3X5 (SENSOR FRAME SCREW)
MODEL LX-180,200,900,910D 86S-101-034

9
MODEL LX-180,200,900,910D 86S-101-034
9 . CHASSIS MECHA—8 CL2000017
MODEL LX-180,200,900,910D 86S-101-034
10 . CHASSIS MECHA-9

10
9 . CHASSIS MECHA-8 CL2000017
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 UA9544001 1Y-CA CHASSIS ASSY
2 UA9905001 2TAPTITE, CUP M3X5 (Y-CA CHASSIS SCREW)
3 Z26601001 1Y-CA MOTOR ADD
MODEL LX-180,200,900,910D 86S-101-034
10 . CHASSIS MECHA-9
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 UA9545001 1ROLLER HOLDER ASSY
2 UA9356001 1ROLLER HOLDER SPRING
3 048040346 2RETAINING RING, E4 (ROLLER HOLDER RING)
MODEL LX-180,200,900,910D 86S-101-034

11
MODEL LX-180,200,900,910D 86S-101-054
11 . T-CHASSIS
MODEL LX-180,200,900,910D 86S-101-035
12 . MOTORS

12
11 . T-CHASSIS CL2001006
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1-4 UA9535001 1T-CHASSIS UNIT
1LC0892001 1LEAF SWITCH TRG ASSY CHNG#B
2 062260805 1SCREW, PAN M2.6X8 (LEAF SW TRG SCREW)
3UA9444001 1LEAF SWITCH TRI ASSY
4083210615 1TAPTITE, PAN B M2X6 (LEAF SW TRI SCREW)
5UA9905001 2TAPTITE, CUP M3X5 (T-CHASSIS SCREW)
MODEL LX-180,200,900,910D 86S-101-035
12 . MOTORS
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1Z26776001 1BP484223LM45-TC ( TC MOTOR)
2UA9506001 1PM MOTOR R HARNESS ASSY ( TC MOTOR HARNESS )
3Z26584001 1BP484223LM42-LF ( LF MOTOR)
4UA9507001 1PM MOTOR L HARNESS ASSY ( LF MOTOR HARNESS )
5 000300605 3SCREW, BIND M3X6 (TC / LF MOTOR SCREW)
6U74327001 1SCREW, CUP M3X16 (LF MOTOR SCREW)
MODEL LX-180,200,900,910D 86S-101-054

13
MODEL LX-180,200,900,910D 86S-101-061
13 . COVERS

14
MODEL LX-180,200,900,910D 86S-101-061
13 . COVERS

15
13 . COVERS CL99016, CL2000013, CL2001006
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1UA9503031 1BODY COVER B
2-4 UA9537031 1DIAL SWITCH HOLDER ASSY B
2LC0893001 1LEAF SWITCH R ASSY CHNG#B
3LC0896001 1LEAF SWITCH L ASSY CHNG#B
4 062260805 2SCREW,PAN M2.6X8 (LEAF SW R.L SCREW)
5 085310815 2TAPTITE, BIND B M3X8 (DIAL HOLDER SCREW)
6LC0161001 1START SWITCH B ASSY (SP)
7UA9486001 1START KEY ACTUATER
8UA9487021 1TWO CONNECTION SWITCH
9UA9524037 1POWER SUPPLY SWITCH
10 LC0894001 1COVER SWITCH ASSY CHNG#B
11 083271215 1PHILLIPS (COVER SW SCREW)
12 UA9489031 1BOTTOM COVER
13 U41192001 2FELT FOOT
14 UA9549001 1SPRING (DIAL ROCK ARM SPRING)
15 UA9490031 1TRIMMER UPPER COVER
16 UA9446034 1T-CUTTER PLATE
17 UA9491031 1TRIMMER BOTTOM COVER
18 UA9541031 1TOP COVER ASSY B (LX200)
18 LC0101031 1TOP COVER LX900 ASSY CHNG#D
18 LC0156031 1TOP COVER LX910D ASSY CHNG#D
18 LC0801031 1TOP COVER ASSY LX180 ADD
19 UA9496034 1FRONT COVER (LX200/LX900)
19 UA9496021 1FRONT COVER (LX910D)
20 UA9497034 1PAPER TRAY (LX200/LX900)
20 UA9497021 1PAPER TRAY (LX910D)
21 LC0002001 1PAPER TRAY FILM
22 UA9498034 1PAPER GUIDE
23 UA9499034 1SUB TRAY (LX200/LX900)
23 UA9499021 1SUB TRAY (LX910D)
24 085311215 2TAPTITE, BIND B M3X12 (BOTTOM COVER SCREW A)
25 087411215 4TAPTITE, CUP B M4X12 (CASSETTE HOLDER SCREW)
26 U74231001 2TAPTITE, CUP M3X8 (BOTTOM COVER SCREW B)
27 026050135 2WASHER, PLAIN S 5 (BOTTOM COVER WASHER)
28 085270617 2TAPTITE, BIND B M2.6X6 (FRONT COVER SCREW)
29 000300605 2SCREW BIND M3X6 (TRIMMER COVER SCREW)
MODEL LX-180,200,900,910D 86S-101-061

16
MODEL LX-180,200,900,910D 86S-101-100
14. LABELS CL2000002
MODEL LX-180,200,900,910D 86S-101-063
15 . SENSORS

17
14 . LABELS CL2000002, CL2000013
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 UA9618001 1ATTENTION LABEL A BRO
2 UA9619001 1ATTENTION LABEL B BRO
3 UA9620001 1CAUTION LABEL LX900/910D, USA
4 UA9572001 1MYLAR LABEL A UK (AUS/GBR/NZL/SGP) CHNG#A
4 UA9570001 1MYLAR LABEL A USA (USA), LX900
4 LC0093001 1MYLAR LABEL A CANADA (CAN)
4 LC0252001 1MYLAR LABEL A CHINA (CHN) ADD
5 UA9573001 1MYLAR LABEL B UK (AUS/GBR/NZL/SGP) CHNG#A
5 UA9571001 1MYLAR LABEL B USA (USA),LX900
5 LC0094001 1MYLAR LABEL B CANADA (CAN)
5 LC0253001 1MYLAR LABEL B CHINA (CHN) ADD
6 LC0003001 1DOCUMENT SET CAUTION LABEL BRO
7LC0134001 1 RATING LABEL, BRO (CAN,USA)
7 UA9911001 1RATING LABEL, BRO EUROPE
(AUT/BEL/CHE/DEU/DNK/ESP/FIN/FRA/GBR/GRC/IRL/ITA/NLD/NOR/PRT/SWE)
7 UA9866001 1RATING LABEL, BRO OTHER (NZL/SGP)
7UA9862001 1RATING LABEL, BRO AUS (AUS)
7 LC0158001 1 RATING LABEL, BRO LX910D
7 LC0803001 1RATING LABEL, BRO LX180 CE ADD
8 LC0628001 1XYRON LABEL (DEU, FRA, ZAF, CHE, SWE, AUT, ITA, FIN, NOR, ESP, CHN, GBR,
IRL, NLD, DNK, GRC, AUS, BEL, PRT, NZL, SGP ) ADD
MODEL LX-180,200,900,910D 86S-101-063
15 . SENSORS
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 UA9942001 1Y-CA SENSOR PCB ASSY, (SP)
2 UA9943001 1ENC SENSOR PCB ASSY, (SP)
3 UA9742001 1ENC HARNESS ASSY
4 085270617 2TAPTITE, BIND B M2.6X6
5 LC0047001 1PE SENSOR UNIT
MODEL LX-180,200,900,910D 86S-101-100
