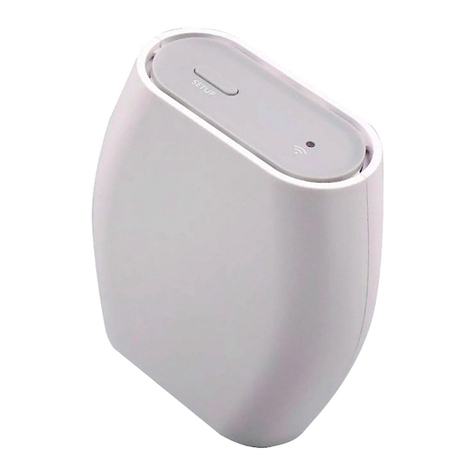

MiniHub Pro
Quick Installation Guide
-with Basic Station & AWS IoT Core for LoRaWAN
Version 1.11
Copyright 2020 Browan Co., Ltd.
Browan Highly Confidential – Controlled Access
2020 Ⓒ Browan Communications Inc., All Rights Reserved. This document is for planning purposes only, and is not intended to modify or supplement any
specifications or warranties relating to products of Browan Communications. Browan may make changes to specifications and descriptions at any time, without
notice.

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
Index
Index 1
Release History 2
About this Document 3
Required Equipment 3
Onboard LoRaWAN Gateways 4
Configure the Gateway(Web Provision) 7
Connect to Web GUI 7
AWS & LoRa Setting 9
WiFi Setting 11
LED Behavior 12
Onboard LoRaWAN Devices 13
Reset to Default 18
OTA 19
Get Firmware 19
Configure MiniHub Pro 20
Create an Amazon S3 bucket to store your update 20
Create an OTA Update service role 25
To create an OTA service role 25
5To add OTA update permissions to your OTA service role 30
To add the required IAM permissions to your OTA service role 33
To add the required Amazon S3 permissions to your OTA service role 37
Create an OTA user policy 42
To create an OTA user policy 42
To attach the OTA user policy to your IAM user 51
Create a FreeRTOS OTA update job 57
Copyright 2022 Browan Co., Ltd.
1

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
Release History
Date
Version
Author
Comment
2020/01/21
1.1
Jason
Andrew Lin
Andrew Shiu
Crux
● First release.
2020/04/16
1.2
Jason
Andrew Lin
Andrew Shiu
Crux
● Add Web GUI for AWS IoT provision.
● Add Web GUI for Basic Station provision.
● Add writing station EUI command.
● Add LED behavior.
2020/04/16
1.3
Jason
Andrew Lin
Andrew Shiu
Crux
● Fix some typos.
2020/05/27
1.4
Jason
Andrew Lin
Andrew Shiu
Crux
● Add Q&A.
2020/06/22
1.5
Jason
Joey
● Add OTA flow.
2020/06/30
1.6
Jason
● Correct some wording
● Browan Official Release, add Document Number
2020/07/15
1.7
Jason
Andrew Shiu
● Modify OTA Flow. User no needs to power off and
power on to trigger the OTA.
2020/08/24
1.8
Crux
● Add chapter ISM Band and LoRa MAC
Troubleshooting.
● Remove chapter Station EUI Writing.
2020/08/26
1.9
Jason
● Add more detailed steps of the OTA jobs.
2020/10/29
1.10
Jason
● Add AWS IoT Core for LoRaWAN(Sailboat)
2022/8/25
1.11
Jason
● Remove Breakout board
Copyright 2022 Browan Co., Ltd.
2

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
About this Document
This document explains the configuration after powering up. The Web GUI usage for AWS IoT
provision and Basic Station provision.
Required Equipment
● MiniHub Pro
Copyright 2022 Browan Co., Ltd.
3

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
Onboard LoRaWAN Gateways
● Step1.
Click “Add gateway”
Copyright 2022 Browan Co., Ltd.
4

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
● Step2.
Select “Gateway provided by AWS IoT Core Qualified Partners”. Input
GatewayEUI, Radio Frequency, Gateway name(Optional), Gateway description(Optional)
and click “Continue”
Copyright 2022 Browan Co., Ltd.
5

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
● Step3.
Configure Gateway. Please refer to the next chapter. Click “Continue”
Copyright 2022 Browan Co., Ltd.
6

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
Configure the Gateway(Web Provision)
Connect to Web GUI
The device can run as WiFi AP mode or WiFi Station mode. When the device is in the initial
state, such as first boot-up time or after reset-to-default. It will run with the WiFi AP mode. That
means it accepts any WiFi client to connect to it.
You can find the SSID MiniHubPro-XXXXXX in the WiFi site-survey list. The suffix 6 characters
are the last 6 hex string of WiFi MAC address. The password is in the back label.
Copyright 2022 Browan Co., Ltd.
7

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
After connecting to MiniHubPro-XXXXXX AP, it will open the setup page. If web page doesn't
open automatically, please use Firefox or Chrome to open 192.168.4.1 manually.
Copyright 2022 Browan Co., Ltd.
8

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
AWS & LoRa Setting
Click "Configure AWS & LoRa Setting" to open the setting page.
Copyright 2022 Browan Co., Ltd.
9

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
There are two parts, one is for AWS, and another one is for LoRa. Please configure your setting
and click the "Save" button at the bottom. If you don't want to change any setting, please click
the "Cancel" button at the bottom.
Copyright 2022 Browan Co., Ltd.
10

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
WiFi Setting
Choose one of the WiFi AP which you prefer to connect to the internet. You also can add SSID
manually by yourself on this page. After that, the MiniHub Pro will store the connection
information and switch to the WiFi Station mode.
Copyright 2022 Browan Co., Ltd.
11

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
LED Behavior
Colors
Blink Pattern
Mode
Status
Green
Blinking 1 sec
WIFI_STA
WiFi station not connected
Green
Blinking 1/4 sec
WIFI_STA
WiFi station connected, establishing the connection
to LNS, configuring radio
Green
Solid
WIFI_STA
WiFi station connected, Sta is connected to LNS,
radio listening
Green/
Orange
Blinking 1/4 sec
WIFI_STA
WiFi station connected, CUPS transaction in
progress
❊Note: Do not unplug device in this state
Orange
Blinking 1/4 sec
CONFIG
Scanning WiFi networks, setting up configuration
AP
Orange
Blinking 1 sec
CONFIG
Configuration AP active
❊Note:
WIFI_STA is WiFi Station Mode
CONFIG is Configuration Mode
Copyright 2022 Browan Co., Ltd.
12

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
Onboard LoRaWAN Devices
● Step 1.
Click “Add device”
Copyright 2022 Browan Co., Ltd.
13

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
Step 2.
Register device - Select device specification. Click“Continue”
Copyright 2022 Browan Co., Ltd.
14

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
Step 3.
Register device - Input DevEUI, AppEUI, Appkwy, Device name(Optional) and Device
description(Optional). Click“Continue”.
Copyright 2022 Browan Co., Ltd.
15

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
Step 4.
Configure devices - Select device profile. Click“Continue”
Copyright 2022 Browan Co., Ltd.
16

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
Step 5.
Set up destination- Select IAM role and input rule name. Click“Finish”
Copyright 2022 Browan Co., Ltd.
17

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
Reset to Default
Press the reset button over 5 seconds to reset the system to default status. After reset to
default, the orange LED will blink every 1 second.
Copyright 2022 Browan Co., Ltd.
18

Browan Communications Inc.
No.15-1, Zhonghua Rd., Hsinchu Industrial Park,
Hukou, Hsinchu, Taiwan, R.O.C. 30352
Tel: [phone]
Fax: [phone]
OTA
Get Firmware
1. Please visit Browan's website and click release note for MiniHub Pro.
https://www.browan.com/news/9V
2. Download the latest MiniHub Pro's firmware.
Copyright 2022 Browan Co., Ltd.
19
