SAFETY WARNING
Disregarding any of the safety precautions and instructions
contained in this Operator’s Guide Supplement, SAFETY VIDEO
or on-product warnings may result in injury, including the
possibility of death.
This Operator’s Guide Supplement and SAFETY VIDEO should
remain with the unit at time of resale.
In USA, products are distributed by BRP US Inc.
In Canada, products are distributed by BombardierRecreational Prod-
ucts Inc.
The following are trademarks of Bombardier Recreational Products
Inc. or its subsidiaries.
SKI-DOO®MX Z®REVTM
DESSTM Pilot™ TRA™
SC-4™
Printed in Canada. (mmo2007-005 DR)
®™ and the BRP logo are trademarks of Bombardier Recreational Products Inc. or its affiliates.
©2006 Bombardier Recreational Products Inc. and BRP US Inc. All rights reserved.

Dear 2007 MX Z XTM 440 owner, informations in the 2007 REVTM
SERIES OPERATOR'S GUIDE (P/N 520 000 610) also apply to
your MX Z X 440 except for the subjects covered in this Sup-
plement.
__________________________ 1

TABLE OF CONTENTS
VEHICLE INFORMATION
RACING APPLICATION........................................... 4
CONTROLS/INSTRUMENTS/EQUIPMENT .................... 5
1) Speedometer/Tachometer .................................. 5
12) Tether Cut-Out Switch..................................... 5
13) Engine Cut-Out Switch .................................... 6
14) High Beam/Low Beam Switch ............................ 6
18) Fuel Level .................................................. 7
30) Fuses (not shown) ......................................... 7
39) Spare Drive Belt Holder (not shown)...................... 7
43) Pre-Heat Switch............................................ 7
44) Primer Button .............................................. 8
RECOMMENDED FUEL AND OIL................................ 9
OPERATING INSTRUCTIONS.................................... 13
Engine Starting Procedure..................................... 13
Suspensions Adjustments..................................... 13
SPECIFICATIONS ................................................. 15
MAINTENANCE INFORMATION
ENGINE SYSTEM................................................. 20
Water Pump Shaft Oil Reservoir............................... 20
DRIVE SYSTEM................................................... 21
Drive Belt Removal/Installation................................ 21
Drive Belt Height Adjustment ................................. 22
ELECTRICAL SYSTEM............................................ 25
Taillight Bulb Replacement..................................... 25
WARRANTY
LIMITED WARRANTY VALIDATION............................. 28
2__________________________

VEHICLE
INFORMATION
__________________________ 3

RACING APPLICATION
For racing application, the main jets have to be replaced according to
thechartfoundonbeltguard.
CAUTION
*Always refer to MAIN JET chart to select proper jetting.
Jetting is based on compression ratio and temperat re.
**The engine is factory b ilt with a high compression rate; do not se
f el of an octane rating lower than 98 (RON + MON)/2.
***For trail se, please see yo r dealer to modify the engine in
accordance with the warranty.
*To jo rs se référer a tablea po r sélectionner les gicle rs. Le choix des
gicle rs est basé s r le rapport de compression et la températ re.
**De série, le mote r a n ta x de compression élévé; ne pas tiliser
d'essence dont l'indice d'octane est moins de 98 (RON + MON)/2.
***Po r n tilisation en sentier, voir votre concessionnaire po r les
modifications a mote r en conformité avec la garantie.
516 003 296
F el octane-Indice d'octane 98
+** F el octane-Indice d'octane 98 +**
CROSS-COUNTRY SNO-CROSS
-20
-10
0
10
-4
14
32
50
pto-mag pto-mag
MAINJET - FUEL CHART* GICLEUR PRINCIPAL- CARBURANT*
ATTENTION
330-330
320-320
310-310
300-300
320-320
310-310
300-300
290-290
mmo2007-005-001
4__________________________

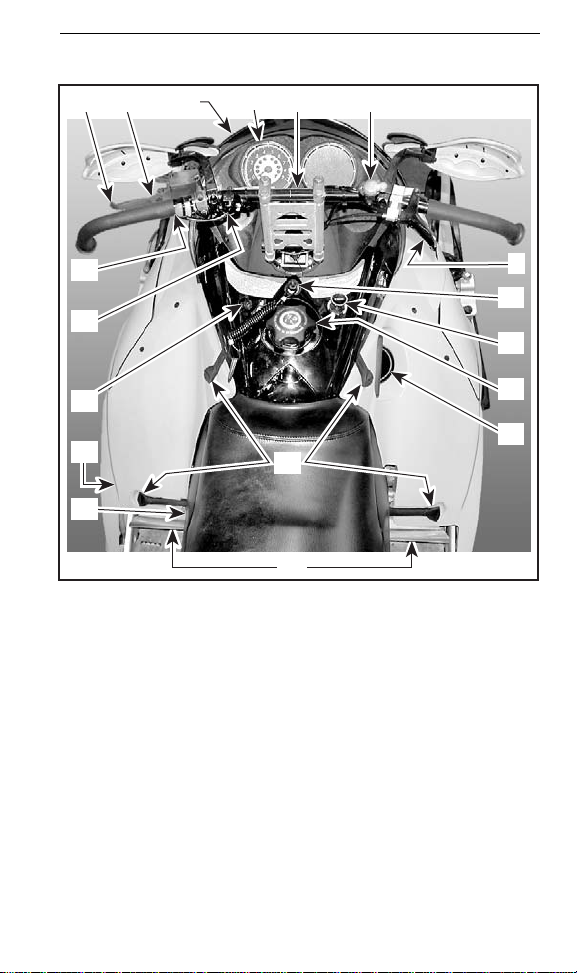

CONTROLS/INSTRUMENTS/EQUIPMENT
25
A33A1RD
29
18
34
19
14
43
6 7 9 13
5
12
17
15
27
44
1
NOTE: See description of numbered items in 2007 REV SERIES OP-
ERATOR’S GUIDE (P/N 520 000 610) except for the following.
1) Speedometer/Tachometer
The MX Z X 440 uses the same combined speedometer/tachometer
functions as a Summit liquid cooled model.
12) Tether Cut-Out Switch
There is no DESS™ (Digitally Encoded Security System) on this ve-
hicle.
__________________________ 5

13) Engine Cut-Out Switch
Locatedonrightsideofhandlebarthisswitchisusedtostopthe
engine.
OFF
A33E0HB
ON
OFF
14) High Beam/Low Beam Switch
Allows selection of headlamp high beam or low beam.
1
2
mmo2006-007-002_a
1. Low beam
2. High beam
6__________________________

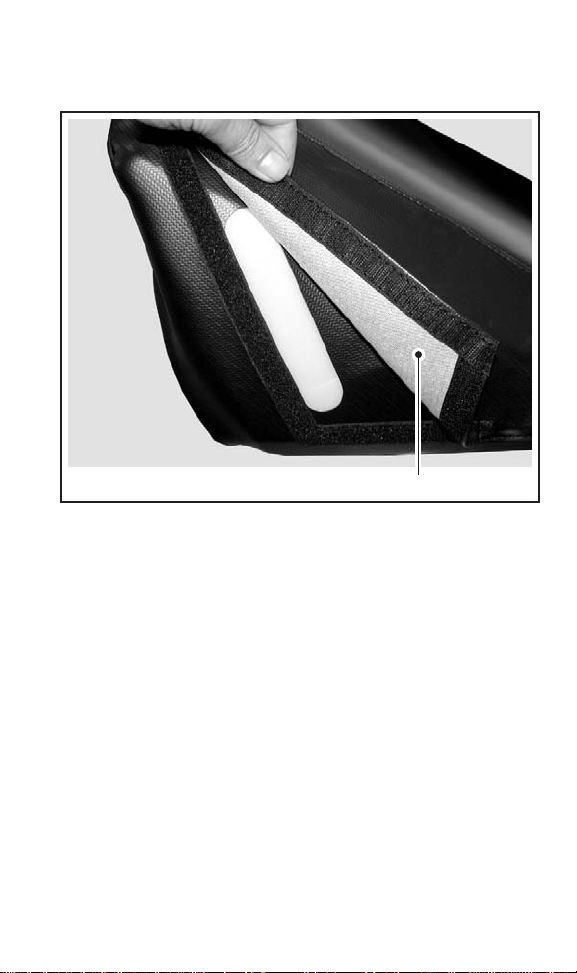

18) Fuel Level
Open fabric door to see the fuel level through the translucent fuel
tank.
A33H1OA 1
1. Fabric door
30) Fuses (not shown)
Thereisnofuseonthisvehicle.
39) Spare Drive Belt Holder (not shown)
There is no spare drive belt holder on this vehicle.
43) Pre-Heat Switch
Racing Application Only
NOTE: This switch is disabled (not operative) on vehicles modified
forwarrantyvalidation. Torunenginewith91octanenumberfuel
(R + M)/2 inside North America (95 RON outside North America),
this switch must be disabled.
__________________________ 7

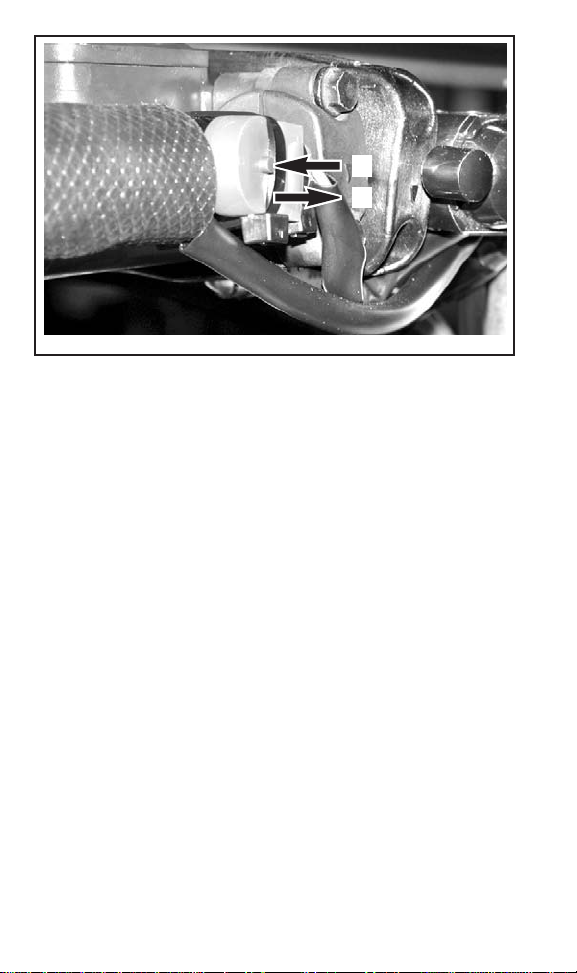

1
A33E0SA
2
1. Button depressed: Pre-heat timing curve
2. Button released: 108 (R + M)/2+ octane timing curve for North America
version (98 RON + Octane timing curve for outside North America)
After starting the engine, push and hold the pre-heat switch button
in order to pre-heat the tuned pipe. Release pre-heat switch button
once the tuned is pre-heated.
44) Primer Button
Pull and push button. It is not necessary when engine is warm.
To prime, activate button until a pumping resistance is felt. From
this point, pump 2 or 3 times to inject fuel in intake manifold. After
priming, ensure that primer button is pushed back.
NOTE: In very cold temperature, it is recommended to rotate primer
button 3 - 4 turns prior to pull it. This will eliminate the possibility of
sticking.
8__________________________

RECOMMENDED FUEL AND OIL
Fuel
Vehicles with Valid Warranty (pre-heat switch disabled)
Use premium unleaded gasoline, available from most service
stations or oxygenated fuel containing a maximum total of 10%
of ethanol or methanol or both. The gasoline used must have the
following recommended minimum octane number.
LOCATION OCTANE NUMBER
Inside North America (91 (RON + MON)/2)
Outside North America 95 RON
Vehicles without Warranty (pre-heat switch enabled)
Use racing fuel with the following octane number.
MINIMUM
LOCATION OCTANE NUMBER
Inside North America (108 (RON + MON)/2)
Outside North America 113 RON
RECOMMENDED
LOCATION OCTANE NUMBER
Inside North America (114 (RON + MON)/2)
Outside North America 119 RON
NOTE: The fuel tank cap specifies an octane number of 91 as a min-
imum. A higher octane number is required in racing application.
All Vehicles
CAUTION: Never experiment with other fuels. The use of unrec-
ommended fuel can result in snowmobile performance deterio-
ration and damage to critical parts in the fuel system and engine
components.
__________________________ 9

WARNING
Always stop engine before refueling. Open cap slowly. If a dif-
ferential pressure condition is noticed (whistling sound heard
when loosening fuel tank cap) have vehicle inspected and/or
repaired before further operation. Fuel is flammable and ex-
plosive under certain conditions. Never use an open flame to
check fuel level. Never smoke or allow flame or spark in vicin-
ity. Always work in a well-ventilated area. Never top up the
fuel tank before placing the vehicle in a warm area. As tem-
perature increases, fuel expands and may overflow. Always
wipe off any fuel spillage from the vehicle.
Fuel System Antifreeze
When using oxygenated fuel, additional gas line antifreeze or water
absorbing additives are not required and should be not used.
When using non-oxygenated fuel, we highly recommend the use of
isopropyl base gas line antifreeze in a proportion of 150 mL (5 U.S. oz)
of gas line antifreeze added to 40 liters (10-1/2 U.S. gal) of gas.
This precaution is in order to reduce the risk of frozen carburetors
which may lead, in certain cases, to high fuel consumption or severe
damage to engine.
IMPORTANT: Use only methyl hydrate free gas line antifreeze.
Oil
NOTE: Premix fuel/oil ratio is 33:1
CAUTION: Never experiment with other fuel/oil ratios. Use only
oil that can flow at - 40°C (- 40°F).
Oil must be mixed with fuel at the ratio of 33:1 in a jerrycan then,
be poured in the fuel tank. Refer to chart below as a guideline to
properly premix oil with fuel.
Use only two-stroke engine injection oil, sold by authorized SKI-DOO
dealers.
10 _________________________

MODEL OIL TYPE
MX Z X 440 XP-S synthetic 2-stroke oil (1)
(P/N 293 600 045) (12 x 1 L)
CAUTION: (1) The XP-S synthetic 2-stroke oil is specially formu-
lated and tested for the severe requirements of the 453 engine.
Use of any other brand two-stroke oil may void the limited war-
ranty. Use only XP-S synthetic 2-stroke oil. There is no known
equivalent on the market for the moment. If a high quality equiv-
alent were available, it could be used.
The XP-S synthetic 2-stroke oil provides superior lubrication,
reduced engine component wear and oil deposit, thus maintaining
maximum-level performance and antifriction properties. This syn-
thetic injection oil meets the latest ASTM and JASO standards by
ensuring high biodegradability and low exhaust smoke.
CAUTION: Never use four-stroke petroleum or synthetic motor
oil and never mix these with outboard motor oil. Do not use
NMMA TC-W, TC-W2 or TC-W3 outboard two-stroke engine oils
or ashless two-stroke engine oils. Avoid mixing different brands
of API TC oil as resulting chemical reactions may cause severe
engine damage.
WARNING
Wipe off any oil spills. Oil is highly flammable.
__________________________ 11

PREMIX FUEL/OIL RATIO
33:1
METRIC (SI): 1 L of oil + 33 L of fuel = 33/1
IMPERIAL: 35 imp. oz of oil + 7.2 imp. gal of fuel = 33/1
1 L of oil + 7.2 imp. gal of fuel = 33/1
UNITED STATES: 34 U.S. oz of oil + 8.8 U.S. gal of fuel = 33/1
1 L of oil + 8.8 U.S. of fuel = 33/1
12 _________________________

OPERATING INSTRUCTIONS
Engine Starting Procedure
• Re-check throttle control lever operation.
• Ensure that the emergency cut-out switch is in the ON position.
• Ensure the tether cut-out cap is in position and that the cord is
attached to your clothing.
• To prime, activate button until a pumping resistance is felt. From
this point, pump 2 or 3 times to inject fuel in intake manifold.
After priming, ensure that primer button is pushed back.
NOTE: In very cold temperature, it is recommended to rotate primer
button 3 - 4 turns prior to pull it. This will eliminate the possibility of
sticking.
NOTE: Priming is not necessary when engine is warm.
• Grab manual starter handle, pull handle slowly until a resistance
is felt, then hold handle firmly and pull vigorously to start engine.
Suspensions Adjustments
In addition to all suspension adjustments described in REV SERIES
OPERATOR’S GUIDE, take note of the 2 following points.
Shocks
All 4 shocks feature 2 adjustments.
Low Speed Compression Adjuster
The low speed adjuster modifies the damping force for small suspen-
sion velocities — less than 0.75 m/s (2.5 ft/s). It tunes the vehicle
for braking, cornering, hole shot and all the bumps that create low
speed movement in the suspension. This adjuster has 4 turns of
adjustment. Use a flat screwdriver to adjust it. Turning it clockwise
increases shock damping action (stiffer) for these low compression
speeds.
__________________________ 13

High Speed Compression Adjuster
The High speed adjuster modifies the damping force for high sus-
pension velocities — more than 0.5 m/s (1.6 ft/s). It tunes the ve-
hicle for hoops or bumps that create high speed movement in the
suspension. This adjuster has 3 turns of adjustment. Use a 17 mm
wrench to adjust it. Turning it clockwise increases shock damping
action (stiffer) for these high compression speeds.
A33F0DA 12
TYPICAL
1. Low speed compression adjuster (flat screwdriver)
2. High speed compression adjuster (17 mm wrench)
Center and Front Springs
CAUTION: Make sure that center spring and both front springs
are still preloaded when front of vehicle is off the ground. Max-
imum spring preload is 25 mm (1 in). Otherwise, spring will be
coil bound when fully compressed.
14 _________________________

SPECIFICATIONS
NOTE: Because of its ongoing commitment to product quality and
innovation, BRP reserves the right, at any time, to make changes in
design and specifications and/or to make additions to, or improve-
ments in its products without imposing any obligation upon itself to
install them on its products previously manufactured.
MODEL MXZX440
ENGINE SYSTEM
Engine type 453
Cylinders 2
Displacement cc (in3) 436.7 (26.6)
Bore mm (in) 65.0 (2.56)
Stroke mm (in) 65.8 (2.59)
Maximum power engine
speed ± 100 RPM 8400
Carburetion 2 x TMX-34
Exhaust system Single tuned pipe,
baffle muffler
DRIVE SYSTEM
Drive pulley type TRA™ III light
Driven pulley type Team rapid reaction
Engagement 5700 RPM
Small sprocket number of teeth 21
Large sprocket number of teeth 45
Drive sprocket number of teeth 8
Brake system Hydraulic caliper,
self adjusting
Track nominal width 381 mm (15 in)
Track nominal length 3074 mm (121 in)
Track profile height 44.5 mm (1.75 in)
__________________________ 15

MODEL MXZX440
DRIVE SYSTEM (cont’d)
Deflection 30 - 35 mm
(1-3/16-1-3/8in)
Track tension
Force (1) 7.3 kg (16 lb)
Track alignment Equal distance between
edges of track guides and
slider shoes
Drive belt part number 417 300 288 (3)
SUSPENSION
Front suspension Double A-Arm with sway bar
Front shock C-36 racing clicker
Front suspension max.
travel 254 mm (10 in)
Rear suspension SC-4
Front arm shock C-36 racing clicker
Rear arm shock C-36 racing clicker
Rear suspension max.
travel 406.4 mm (16 in)
ELECTRICAL
Lightning system output 360 Watts @ 6000 RPM
Headlamp bulb HI/LOW
beam 2 x 60/55 Watts (H-4)
Taillight bulb 8/27
Type NGK BR9ECS (2)
Spark plug Gap 0.45 ± 0.05 mm
( .018 ± .002 in)
DIMENSIONS
Vehicle overall length mm (in) 2885 (114)
Vehicle overall width mm (in) 1217 (47.9)
Vehicle overall height mm (in) 1022 (40)
Official dry weight kg (lb) 197 (435)
Ski stance mm (in) 1080 (42.5)
16 _________________________

MODEL MXZX440
LIQUIDS
Type
Fuel Minimum octane See RECOMMENDED FUEL
Type XP-S synthetic 2-stroke oil
(P/N293600045)(12x1L)
Mixing oil
Premix ratio 33:1
Brake system fluid SRF (DOT 4) or
GTLMA (DOT 4)
Chaincase oil type XP-S synthetic chaincase oil
(P/N 413 803 300)
(12 x 355 mL)
Mixture
Ethyl glycol/water mix (50%
coolant, 50% distilled water)
Use coolant specifically
designed for aluminum
engines
Coolant
Premix (P/N 413 711 802)
(16 x 1 L)
Water pump shaft oil XP-S mineral injection
oil (P/N 413 802 900)
(12 x 1 L)
CAPACITIES
Fuel tank L(U.S.gal) 21 (5.5)
Chaincase mL (U.S. oz) 250 (8.5)
Cooling system L(U.S.oz) 3.5(118)
(1) Measure gap between slider shoe and bottom inside of track when exerting a
downward pull to the track.
(2) CAUTION: Do not attempt to adjust gap on spark plug BR9ECS.
(3) Drive belt height must be adjusted every time a new drive belt is installed.
Confirm drive belt part number application with an authorized SKI-DOO dealer.
__________________________ 17

18 _________________________
