Dear 2005 SkandicTM Expedition owner, in addition to the infor-
mations in the 2005 TundraTM SkandicTM Series Operator’s Guide
(P/N 520 000 477), the following also applies to your model.
__________________________ 1

TABLE OF CONTENTS
VEHICLE INFORMATION
HOW TO IDENTIFY YOUR SNOWMOBILE ..................... 6
Engine Serial Number Location................................ 6
ON-VEHICLE IMPORTANT INSTRUCTIONS.................... 7
CONTROLS/INSTRUMENTS/EQUIPMENT .................... 14
28) Fuses....................................................... 15
29) Front Grab Handle/Front Bumper.......................... 15
37) Low Battery Voltage Pilot Lamp........................... 15
38) Oil Pilot Lamp .............................................. 16
39) Engine Management System (EMS) Pilot Lamp.......... 16
40) Mode Button............................................... 16
41) Odometer .................................................. 16
42) Trip Meter .................................................. 16
43) Resetable Hour Meter..................................... 17
44) Heating Grip Switch........................................ 17
45) Heating Throttle Lever Switch............................. 17
46) Start Button ................................................ 17
FUEL AND OIL .................................................... 19
Recommended Fuel ........................................... 19
Recommended Oil ............................................. 20
BREAK-IN PERIOD................................................ 22
Engine .......................................................... 22
OPERATING INSTRUCTIONS.................................... 23
Starting the Engine............................................. 23
Emergency Starting ............................................ 23
MAINTENANCE INFORMATION
PERIODIC MAINTENANCE CHART.............................. 28
FLUID LEVELS .................................................... 31
Chaincase/Gearbox Oil Level .................................. 31
Oil Injection System............................................ 32
Engine Oil Level................................................ 33
Cooling System ................................................ 34
Battery Electrolyte ............................................. 36
MAINTENANCE FOR EPA CERTIFIED ENGINES............... 37
Engine Emissions Information................................. 37
2__________________________

MAINTENANCE................................................... 39
Belt Guard Removal and Installation .......................... 39
Air Filter Cleaning .............................................. 40
Drive Pulley Adjustment ....................................... 41
TROUBLESHOOTING............................................. 43
Monitoring Beeper Coded Signals............................. 43
SPECIFICATIONS ................................................. 45
WARRANTY
BRP LIMITED WARRANTY NORTH AMERICA: 2005 SKI-DOO®
SNOWMOBILES .................................................. 50
BRP INTERNATIONAL LIMITED WARRANTY: 2005 SKI-DOO®
SNOWMOBILES .................................................. 56
PRIVACY OBLIGATIONS/DISCLAIMER......................... 60
CHANGE OF ADDRESS OR OWNERSHIP ...................... 61
__________________________ 3

VEHICLE
INFORMATION
__________________________ 5

HOW TO IDENTIFY YOUR SNOWMOBILE

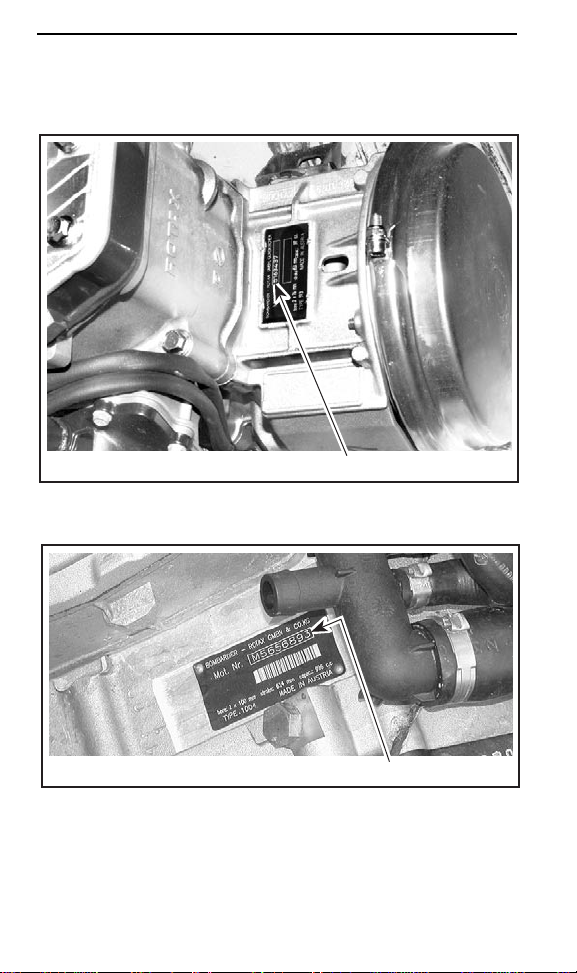

Engine Serial Number Location
600 H.O. SDI
1
A32C01B
1. Engine serial number
V-1000
A32A1XA 1
1. Engine serial number
6__________________________

ON-VEHICLE IMPORTANT INSTRUCTIONS
The following instructions are on your snowmobile. If missing or
damaged, the decals can be replaced free of charge. See an autho-
rized SKI-DOO dealer.
Please read the following instructions carefully before operating this
snowmobile.
2
A29H1AB
6
1
8
3
5
4
9
7
59
1,2,3,4
11
6
8
7
12
10

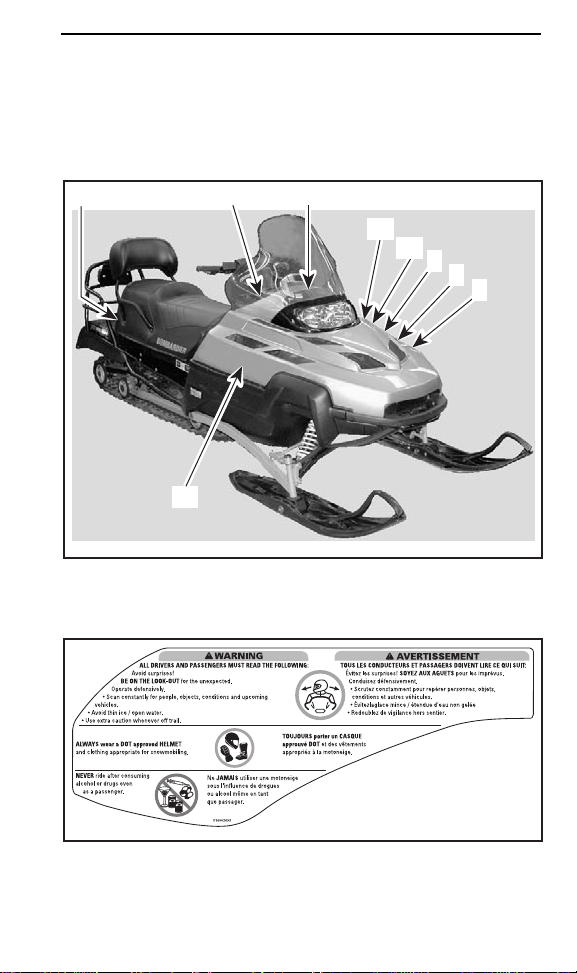

TYPICAL — LOCATION OF IMPORTANT INSTRUCTIONS
Instruction 1
A00A8SA
__________________________ 7

Instruction 2
A00A8TA
Instruction 3
A00A8UA
8__________________________

Instruction 4
A00A8VA
Instruction 5
A05H1CA
__________________________ 9

Instruction 6
A01A2EA
Instruction 7
A01A2FA
10 _________________________

Instruction 8
N
e
p
a
s
d
é
m
o
nt
e
r
n
i
m
o
d
if
i
e
r
c
e
t
t
e
p
o
u
l
i
e.
D
o
n
o
t
d
is
a
s
s
e
m
b
l
e
or
m
o
d
i
f
y
t
h
is
p
u
ll
e
y
A
V
E
R
T
I
S
S
E
M
E
N
T
A01A2GA
TYPICAL
Instruction 9
A29A0IA
__________________________ 11

Instruction 10
A32A1GA
Instruction 11
A32A1HA
TYPICAL
12 _________________________

Instruction 12
A00A8RA
XXXXXXXXXXX
XXXX cc
XXX
XXXX RPM ± XXX
XXXXXXXXXXX
XXXX in/XXXX mm
THIS ENGINE IS CERTIFIED TO OPERATE ON
UNLEADED GASOLINE AND CONFORMS TO XXXX
U.S. EPA REGULATIONS FOR SNOWMOBILE SI ENGINES.
EMISSION CONTROL INFORMATION
ENGINE FAMILY: ....................................................
FEL: ..........................................................
ENGINE DISPLACEMENT: .........................................
EXHAUST EMISSION CONTROL SYSTEM: ...................
TUNE-UP SPECIFICATIONS
IDLE SPEED: .
..........................................................
SPAR PLUG TYPE: .................................................
SPAR PLUG GAP: . ..................................... ...............
XXg/kW-hr HC +NO
x
XXXg/kW-hr CO
TYPICAL
__________________________ 13

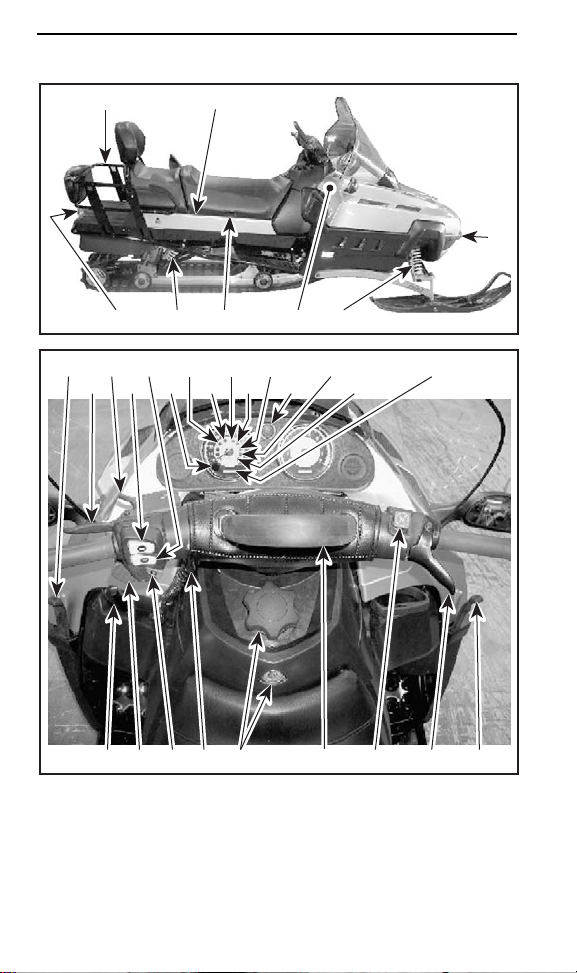

CONTROLS/INSTRUMENTS/EQUIPMENT
36
A29A0JA 30 28 36
29
32
31
35
22
41-42-43
A29A0KA 7 12 2611046135
2740 4
11
37
14
23
38
393
244
4526
NOTE: See description of numbered items in Tundra Skandic Series
Operator’s Guide (P/N 520 000 477) except for the following.
14 _________________________

28) Fuses
To open fuse box push on cover tab and tilt cover. A fuse description
decal is inside the cover.
A29E10A
1
1. Cover tab
29) Front Grab Handle/Front Bumper
To be used whenever front of snowmobile requires manual lifting.
WARNING
Do not attempt to lift the vehicle by hand alone. Use appro-
priate lifting device or have assistance to share lifting stress in
order to avoid risk of strain injuries.
CAUTION: Do not use skis to pull or lift snowmobile.
37) Low Battery Voltage Pilot Lamp
This lamp will light up to indicate a low battery voltage condition.
See an authorized SKI-DOO dealer as soon as possible.
__________________________ 15

38) Oil Pilot Lamp
600 H.O. SDI
This pilot lamp will glow up when injection oil level is low. Stop ve-
hicle in a safe place then, replenish injection oil reservoir.
V-1000
This pilot lamp will glow up when engine oil pressure is too low. Stop
vehicle in a safe place then, check oil level and replenish as described
in FLUID LEVEL.
Restart engine, oil pilot lamp must turn off after few seconds. If oil
pilot lamp still glows up, stop engine and have lubrication system
inspected by an authorized SKI-DOO dealer.
39) Engine Management System (EMS) Pilot Lamp
This lamp will light up to indicate a trouble. Refer to TROU-
BLESHOOTING for trouble code meaning and remedy.
40) Mode Button
Depress mode button to change display. Each time engine is started,
display shows odometer. From that point depressing mode button
will change display for the trip meter.
Depressing mode button again will change display for the resetable
hourmeter. Push mode button again to return to odometer.
Push and hold mode button for 2 seconds to reset the tripmeter or
the resetable hourmeter depending on the one displayed.
41) Odometer
Odometer records the total distance travelled and displays it either
in miles or kilometers. Refer to SPEEDOMETER for changing units.
NOTE: At vehicle speed of 90 km/h (55 MPH) and more the mode
LCD screen will show speed only instead of the selected mode.
42) Trip Meter
Records distance travelled since it has been reset. Distance trav-
elled is displayed either in miles or kilometers. Refer to SPEEDOME-
TER for changing units.
NOTE: At vehicle speed of 90 km/h (55 MPH) and more the mode
LCD screen will show speed only instead of the selected mode.
16 _________________________

43) Resetable Hour Meter
Records engine running time in hours and minutes since it has been
reset.
NOTE: At vehicle speed of 90 km/h (55 MPH) and more the mode
LCD screen will show speed only instead of the selected mode.

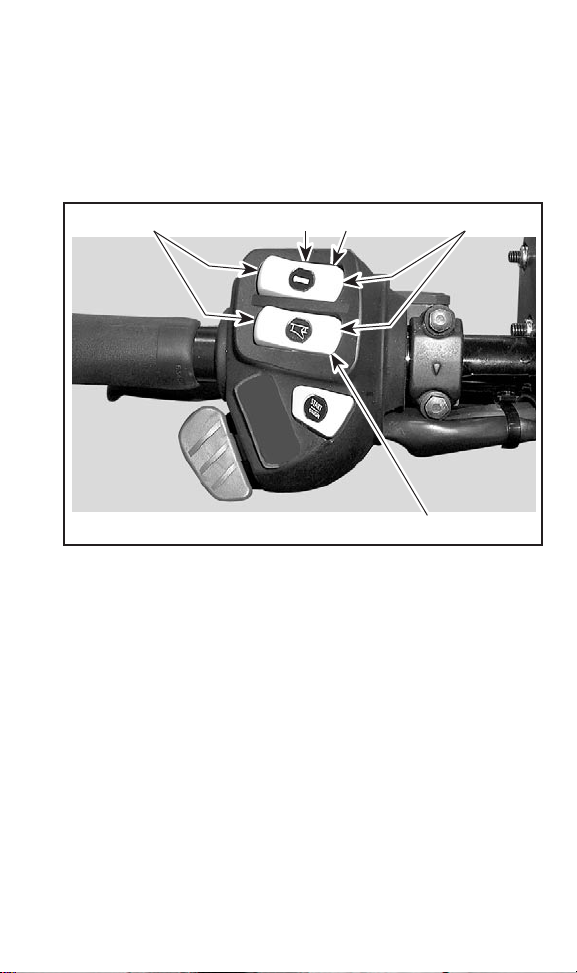

44)HeatingGripSwitch
A33E04B
1
2
3
45
TYPICAL
1.Heatinggripswitch
2. Heating throttle lever switch
3. Hot
4. Warm
5. Off
45) Heating Throttle Lever Switch
Three-position switch. Select the desired position to keep your right
thumb at a comfortable temperature. See illustrations above.
46) Start Button
To start engine, push START button and hold until engine has started.
CAUTION: Do not hold START button more than 10 seconds. A
rest period should be observed between the cranking cycles to
let starter cool down. Holding START button when engine has
started could damage starter mechanism.
__________________________ 17

Release START button immediately when engine has started.
If engine does not start on first try, wait a few seconds then repeat
procedure. To stop engine, turn off engine cut-out switch or pull off
tether cord cap.
18 _________________________

FUEL AND OIL
Recommended Fuel
Use regular unleaded gasoline, available from most service stations
or oxygenated fuel containing less than 10% of ethanol or 5% of
methanol. The gasoline used must have the following recommend-
ed minimum octane number.
LOCATION OCTANE NUMBER
Inside North America 87 (RON + MON)/2
Outside North America 91 RON
CAUTION: Never experiment with other fuels or fuel ratios. The
use of unrecommended fuel can result in snowmobile perfor-
mance deterioration and damage to critical parts in the fuel sys-
tem and engine components.
WARNING
Always stop the engine before refueling. Fuel is inflammable
and explosive under certain conditions. Always work in a well
ventilated area. Do not smoke or allow open flames or sparks
in the vicinity. Open cap slowly. If a differential pressure con-
dition is noticed (whistling sound heard when loosening fuel
tank cap) have vehicle inspected and/or repaired before fur-
ther operation. Do not overfill or top off the fuel tank before
placing the vehicle in a warm area. As temperature increases,
fuel expands and might overflow. Always wipe off any fuel
spillage from the vehicle. Periodically verify fuel system.
Fuel System Antifreeze
When using oxygenated fuel, additional gas line antifreeze or water
absorbing additives are not required and should be not used.
When using non-oxygenated fuel, we highly recommend the use of
isopropyl base gas line antifreeze in a proportion of 150 mL (5 U.S.
oz) of gas line antifreeze added to 40 liters (10-1/2 U.S. gal) of gas.
This precaution is in order to reduce the risk of frost buildup in fuel
system which may lead, in certain cases, to high fuel consumption
or severe damage to engine.
NOTE: Use only methyl hydrate free gas line antifreeze.
__________________________ 19
