MODEL 21
NON-CATALYTIC UNIT
FEATURES
PREPARATIONS INSTALLATION
OPERATION MAINTENANCE SAFETY
FIREPLACE INSERT & FREESTANDING
MODEL 21
NON-CAT
Buck
Stove
Buck Stove
SAFETY NOTICE
IF THIS HEATER IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY
RESULT. FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.
CONTACT THE AUTHORITY HAVING JURISDICTION (SUCH AS MUNICIPAL
BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE PREVENTION
BUREAU, etc.) CONSULT BEFORE INSTALLATION TO DETERMINE THE NEED
TO OBTAIN A PERMIT. KEEP THESE INSTRUCTIONS FOR FUTURE USE.
TESTED AND LISTED BY: ITS/WARNOCK HERSEY, MIDDLETON, WI
MANUFACTURED BY NEW BUCK CORPORATION
200 ETHAN ALLEN DRIVE
P.O. BOX 69
SPRUCE PINE, N.C. 28777
www.buckstove.com Revised July 2010

TABLE OF CONTENTS
Important Instructions............................................................................................................................2
SECTION I: Introduction ......................................................................................................................3
SECTION II: Masonry Insert Installation .............................................................................................4
Floor Protection .....................................................................................................................................5
Masonry Insert Installation options .......................................................................................................6
Mounting the Trim Panels .....................................................................................................................8
SECTION III: Pre-Fab Insert Installation............................................................................................11
SECTION IV: Residential Freestanding Installation..........................................................................12
Out Side Air Installation ......................................................................................................................12
Floor Protection ...................................................................................................................................14
A. Vertical Exit Using Single Wall Pipe /Listed 2100° UL 103 HT chimney w/out
Close Clearance/Pipe Shield..........................................................................................................15
B. Vertical Wall Exit Using Single Wall Pipe and Elbow /Listed 2100° UL 103 HT Chimney
and T-BOX assembily w/out Close Clearance/Pipe Shields .........................................................17
Residential and Mobile Home Freestanding Installation (See Page 12) For Out Side Air Installation.
C. Vertical Exit Using DVL Close Clearance Pipe /Listed 2100° UL 103 HT chimney w/out
Close Clearance/Pipe Shields ........................................................................................................19
D. Vertical Wall Exit Using DVL Close Clearance Pipe ,and Elbow /Listed 2100° UL 103 HT
Chimney and T-BOX assembly w/out Close Clearance/Pipe Shields...........................................21
E. Vertical Exit Using DVL Close Clearance Pipe /Listed 2100° UL 103 HT chimney with
Close Clearance/Pipe Shields ........................................................................................................23
F. Vertical Wall Exit Using DVL Close Clearance Pipe ,and Elbow /Listed 2100° UL 103 HT
Chimney and T-BOX assembly with Close Clearance/Pipe Shields.............................................25
SECTION V: Alcove Installation ........................................................................................................29
Floor Protection ...................................................................................................................................30
Alcove Installation Clearances ............................................................................................................31
Installation of Close Clearance Shields ...............................................................................................33
SECTION VI: Wood Heater Safety.....................................................................................................35
SECTION VII: Operation....................................................................................................................36
SECTION VIII: Troubleshooting ........................................................................................................37
LIMITED WARRANTY.....................................................................................................................39

INSTALLATION, OPERATION, AND
MAINTENANCE INSTRUCTIONS
MODEL 21
READ THIS FIRST
IMPORTANT INSTRUCTIONS
 The New Buck Corp. non-catalytic systems have been tested by ITS, Warnock Hersey to
ANSI/UL Standards: UL 1482-2000: UL 1482 (2010).
 Install and operate your units according to instructions provided in this manual. Local
building codes may apply; therefore, contact your local building inspector or fire marshal
for necessary installation requirements and permits which may go beyond these
instructions. The authority having jurisdiction should be consulted before installation to
determine the need to obtain a permit.
 If appliance is installed in mobile homes:
“DO NOT INSTALL IN SLEEPING ROOMS.”
 NOTE: When burning any unit or appliance that combust fuel for heat, such as
coal, oil, wood or natural and (L.P.) liquid petroleum gas. We highly recommend the
use of smoke and carbon monoxide detectors in your home.
 The Model 21 is approved for use in specified Pre-Fabricated fireplaces (ZCF’s). Use the
list on Page 11 or contact your dealer for additional units.
 Examine the masonry fireplace and chimney prior to installation of the fireplace accessory
to determine that the construction meets the minimum fireplace construction requirements
illustrated in the instructions, that it is free from cracks, loose mortar, creosote deposits
and other blockage, or other signs of deterioration.
WARNING
THIS UNIT GENERATES A LOT OF HEAT, SO TREAT THE UNIT WITH CARE.
HOT WHILE IN OPERATION! KEEP CHILDREN, CLOTHING AND FURNITURE
AWAY. CONTACT MAY CAUSE SKIN BURNS.”DO NOT USE CHEMICALS OR
FLUIDS TO START THE FIRE.” “DO NOT BURN GARBAGE OR FLAMMABLE
FLUIDS.” DO NOT CONNECT TO ANY DISTRIBUTION DUCT OR SYSTEM. READ
ALL INSTRUCTIONS BEFORE INSTALLING AND USING THE APPLIANCE.
FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE,
BODILY INJURY OR EVEN DEATH. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCES.
CAUTION
DO NOT USE MORE THAN ONE STOVE TO A CHIMNEY. DO NOT USE A FLUE
INTENDED FOR A GAS APPLIANCE.
Page 2

INTRODUCTION
Your new MODEL 21 is a non-catalytic unit designed to meet the most stringent emissions
standards without the use of a catalytic combustor. This effect is achieved through the use of
secondary air which is mixed with primary air in the unit’s firebox.
For peak performance, we suggest the use of hard seasoned natural wood, loading wood
length way from front to rear.
NOTE: Soft woods such as pine, create more creosote, clogging of chimney and produce a
less efficient burn performance.
You should not burn trash or garbage, artificial or paper logs, gift wrapping, treated or
painted wood or any type of coal.
“DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE.”
“DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS.”
The primary air, which is controlled by the user, burns the wood. Secondary air is admitted into
the firebox through the secondary air tubes at the top of the firebox. This secondary air burns
the impurities in the smoke released from the initial wood burning. The temperature necessary
for this combustion is maintained through the firebrick refractory. If any more technical
information is necessary, contact your local dealer.
A factory-built prefabricated chimney may be used for your unit when installed in compliance
with the manufacturer's specification and uniform building code.
These units may also be used with optional room air blower. To order the optional motor
assemblies you must specify the stove model number and give one of the following part
number:
*Model 21 Motor Assembly—MA 210715
For operation and use of these electrical assemblies, see instructions provided with the motor
assembly kits.
SECTION I
CAUTION
YOUR CHIMNEY OR FLUE MUST BE CORRECTLY SIZED. A CHIMNEY OR FLUE
THAT IS TOO SMALL OR LARGE IN DIAMETER OR TOO SHORT, CAN CAUSE
YOUR STOVE TO SPILL SMOKE WHEN THE DOOR IS OPENED.
Page 3

MASONRY INSERT INSTALLATION
The Model 21 may be installed using an all masonry fireplace built in accordance with the
Uniform Building Code and National Fire Protection Association (NFPA). The first step in
this type of installation is to determine the acceptability of the fireplace and chimney for use
with a woodstove. Both the construction and condition of the fireplace are important consid-
erations when installing a woodstove. The chimney should extend at least 3' above the roof
and at least 2' above any point of the roof within 10'.
MINIMUM CLEARANCES TO FLOOR AND COMBUSTIBLES
MINIMUM CLEARANCE MASONRY INSERT
A. Side Wall Combustible
B. Front Floor Protector
C. Side Floor Protector
D. Side Wood Trim
E. Top Wood Trim
F. Mantel or Brackets
25"
16"
8"
17"
17"
25"
MODEL 21
1. The hearth must be of masonry construction and must extend a minimum of 16" in front of
the firebox opening and a minimum of 8" to either side of the firebox opening.
(See Figure 1).
2. If there is not minimum hearth protection from the front of the firebox opening and the
front of the masonry hearth, a floor protector must be used in front of the hearth to
protect combustible materials. The floor protector must be 3/8" minimum thickness non-
combustible material or equivalent.(See Page 5).
F
B
A
E
C
D
C
Figure 1
CAUTION
REMEMBER TO HAVE YOUR CHIMNEY INSPECTED FOR LEAKS AND BLOCKAGE
BEFORE YOU INSTALL YOUR STOVE. “DO NOT CONNECT THIS UNIT TO A
CHIMNEY FLUE SERVING ANOTHER APPLIANCE.”
SECTION II
Page 4

Floor Protection:
When installing freestanding heater, a floor protector must be use. Floor protection must be
3/8” minimum thickness non-combustible material or equivalent.
How to use alternate materials and how to calculate equivalent thickness
An easy means of determining if a proposed alternate floor protector meets requirements listed
in the appliance manual is to follow this procedure:
1. Convert specification to R-value:
R-value is given—no conversion is needed.
K-factor is given with a required thickness (T) in inches:
C-factor is given: R=1/C
2. Determine the R-value of the proposed alternate floor protector.
Use the formula in step (1) to convert values not expressed as “R”
For multiple layers, add R-values of each layer to determine the overall R-value.
3. If the overall R-value of the system is grater than the R-value of the specified floor protec-
tor, the alternate is acceptable.
Example:
The specified floor protector should be 3/4” thick material with a K-factor of 0.84.
The proposed alternate is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a
K-factor of 0.29.
Step (a): Use formula above to convert specification to R-value. R= 1/K x T = 1/0.84 x .75 =
0.893
Step (b): Calculate R of proposed system. 4” brick of C=1.25, therefore Rbrick = 1/C = 1/1.25
=0.80 1/8” mineral board of K = 0.29, therefore Rmin.bd. =1/029 x0.125 = 0.431
Step (c): Compare proposed system R of 1.231 to specified R of 0.893. Since proposed
system R is greater than required , the system is acceptable.
Definitions:
Thermal conductance = C = Btu = W
(hr)(ft²)(°F) (m²)(°K)
Thermal conductance = K = (Btu)(inch) = W= (Btu)
(hr)(ft²)(°F) (m)(°K) (hr)(ft)(°F)
Thermal conductance = R = (ft²)(hr)(°F) = (m²)(°K)
Btu W
Page 5

POSSIBLE TOOLS NEEDED FOR INSTALLATION
If you decide to install your own stove, there are several hand tools you may need to do the job.
If you do not already have them, they are readily available at most hardware stores.
Caulking gun
Large adjustable wrench (may not be needed)
Drop cloths or newspapers
Vacuum cleaner or whisk broom
Flashlight
1 tube of RTV silicone (Code 103 or 106, or high temperature rubber cement rated between
450oF- 600o F)
7/32" drill bit and drill
Socket/Ratchet Set
INSTALLATION PREPARATION
1. Locate furniture and other materials away from the front of the fireplace to allow free access
to the fireplace.
2. Cover the hearth and adjacent floor areas with a drop cloths to protect from soiling or
marring the surface.
3. Remove the existing fireplace damper plate.
4. Thoroughly clean the fireplace of ashes and soot.
5. Check the chimney and smoke chamber for excessive buildup of creosote or soot. Also,
check for obstructions, such as bird’s nests. If the chimney is excessively dirty, clean it, or
have someone clean it professionally BEFORE installing or using the room heater.
6. If the fireplace has an ash dump or outside air provision, these must be sealed off with metal
or tightly packed non-combustible insulation to prevent cold air from entering the fireplace
chamber.
MASONRY INSERT INSTALLATION OPTIONS
This unit (appliance) may be installed into an all masonry fireplace, built in accordance with the
Uniform Building Code and the National Fire Protection Association (NFPA 211).
NOTE: Check with local building officials for any permits required for installation of this unit
and notify your insurance company before proceeding with installation
In some cases such as improperly drawing fireplaces , oversize flue liners, or to meet codes in
certain areas it is recommended that one of the flowing procedures be followed:
A. A Chimney Connector be installed from the appliance flue exit through the damper and an
air-tight face seal. See option (A) (page 7).
B. A listed Direct Connect be installed from the appliance flue exit through the damper into
the first section of the flue liner with air-tight seal. See option (B) (page 7).
C. A Positive Connect be installed from the appliance flue exit continuing up through the
entire chimney and exiting at the top of the chimney. See option (C) (page 7).
Page 6

OPTION (B)
REMOVE
DAMPER
OR WIRE IT
OPEN
AIRTIGHT
INSULATED
CLEAN-
BLOCK-OFF PLATE
OR DAMPER
ADAPTER
SEAL TRIM PANELS
WITH INSULATION
OR HIGH
TEMPERATURE
CAULK
STAINLESS
STEEL
CHIMNEY
CONNEC-
TOR MUST
EXTEND 1’
PAST THE
BLOCK-OFF
PLATE OR
TO THE
FLUE LINER
NOTE: Follow installation instruction
with Direct Connection Kit.
(Kit sold separately)
STARTER PIPE
SEAL TRIM PANELS AND UNDER
FRONT OF STOVE UNIT WITH
INSULATION OR HIGH
TEMPERATURE CAULK
OPTION (A)
REMOVE
DAMPER
OR WIRE
IT OPEN
AIRTIGHT INSU-
LATED CLEAN-
OUT
NOTE: New Buck Corporation grants no
warranty, implied or stated, for the installation
or maintenance of your appliance, and assumes
no responsibility of any consequential damage
OPTION (C)
NOTE: Follow installation
instruction with Positive
Connection Kit.
(Kit sold separately)
TRIM PANELS
CAP PREVENTS
WATER FROM
ENTERING)
FLUE
LINER
THE LINER MUST
BE STAINLESS
STEEL CONNEC-
TOR OR FLEXIBLE
VENT. FOLLOW
THE LINER MANU-
FACTURER’S IN-
STRUCTIONS FOR
INSTALLATION
AND SUPPORT.
AIRTIGHT
INSULATED
CLEAN-OUT
REMOVE
DAMPER
OR WIRE
IT OPEN
INSTALL A NON-COMBUSTIBLE
COVER PLATE TO PREVENT
WATER FROM ENTERING THE
CHIMNEY
SAFETY NOTICE:
If this appliance is not properly installed, a house fire may result. For your safety, follow the installation directions.
Contact local building or fire officials about restrictions and installation inspection requirements in your area.
Page 7

INSTALLATION PROCEDURE (Use a Listed Direct or Positive Connect)
FIGURE 2 POSITIONING
3. Slide the unit out of the fireplace far enough to work behind the trim panel reference lines.
4. Mount the side trim panels. (See Figure 3).
a. Position the trim panel on the reference line.
b. Drill mounting holes in center of trim panels mounting brackets to allow for adjustment in and out if
necessary.
c. Mount the trim panel using the self-tapping screws provided.
5. Place top panel back on reference mark. Take top trim panel mounting bracket supplied with unit. Position
bracket so it overlaps rear lip of top trim panel. Drill mounting holes in top of stove using holes in bracket as
guide. Tighten down screws.
6. Now, follow the installation procedures in the listed direct connect or positive connect kit you are using and
install the heater and connect kit in the fireplace.
7. Slide the unit back into the fireplace. Check to be sure that the trim panels are properly positioned and lie flat
against the front of the fireplace. If one or more of the panels is out of position, slide the unit out and reset by
loosening the mounting screws and repositioning in the slot.
8. Reinstall the top trim panel by sliding the rear lip of the top trim panel underneath the front lip of the mounting
bracket already secured to top of unit.
NOTE: Mount the top trim panel so that it sits in front of the top of the side trim panels.
9. Obtain the brass trim kit provided with unit and slip over the top and sides of trim panels. (Top ends of brass
may need to be trimmed to fit).
POSITIONING THE HEATER
NOTE: If the three suggested installations have been
chosen, certain steps must be followed when installing
the heater into a masonry fireplace.
When positioning the heater, the following conditions
MUST be met! (See Figure 2).
1. The front of the damper opening must be positioned
BEHIND the rear edge of the lintel to ensure proper
draft. (See Figure 2).
2. Center the heater in the fireplace opening.
MOUNTING THE TRIM PANELS
After the unit is positioned as shown in (Figure 2), mark
the mounting position of the trim panels as follows:
1. Place the top long trim panel in place on top of the
unit. The panel should be flat against the outside
face of the fireplace, and standing vertically. Mark
along the lower edge of the trim panel with a pencil
to make a reference line for mounting.
2. Place the side trim panels in place behind and
against the intake covers, again, flat against the face
of the fireplace. Mark down the edge of the trim
panel to make a vertical reference line.
FIGURE 3 MOUNTING TRIM PANELS
Page 8

10. If direct connect or positive connect kit is not used, follow instructions in (mounting trim panels, steps 1-4c)
on (Page 8).
11. Mount top trim panel by drilling mounting holes in center of trim panel mounting brackets, with top end side
of top panel overlapping side panel.
12. Using insulation provided, peel and stick to back of panels overlapping fireplace dimensions by 1” on each
side and top. (See Page 8, Figure 3).
13. Next using high heat silicone or furnace cement run heavy bead of caulking around where panels meet the
stove. (See Figure 4).
14. Slide the unit back into the fireplace. Check to be sure that the trim panels (and brass) are properly positioned
and lie flat against the front of the fireplace. If panels are out of position, slide the unit out and reset by
loosening the mounting screws and repositioning in the slot. With bar, lift stove in front. Place insulation
across front and the surface of hearth or bottom of fireplace, to make complete seal.
15. To check seal of panels, use candle flame and go around the entire area sealed by silicone and insulation. If
flame leans toward inside of fireplace, add additional insulation. This ensures an airtight seal.
FINAL CHECK
1. Recheck the specified clearances.
2. Remove all foreign material from the firebox area.
3. Open the primary air draft.
4. Plug the power cord into a 115V AC outlet if optional motor is being used. Do not run
power cord under unit or in high traffic areas.
5. Place crumpled pieces of newspaper in the stove. Light it and close the doors. Ensure that
the stove draws properly through the primary draft.
6. Check for smoke leaks around the doors.
7. Open the door and check for smoke escaping from the front of the stove. Smoking usually
indicates a defective or poorly positioned chimney. Some chimneys with a marginal draft
can be preheated by lighting newspaper and holding it near the open damper with a
poker or fire tong. Once the chimney heats up, a proper draft can usually be obtained.
If a thorough review of the Troubleshooting Guide in the rear of the manual does not reveal
the problem, contact your dealer for assistance.
SILICONE
SCREW
FIGURE 4
Page 9

The connector and/or chimney should be inspected at least once a month during the heating
season to determine if a creosote buildup has occurred.
CAUTION
THE UNIT IS PAINTED WITH A SPECIALLY FORMULATED HIGH
TEMPERATURE PAINT THAT CURES DURING THE FIRST TWO OR THREE
FIRINGS. YOU MAY NOTICE A SLIGHT SMOKING EFFECT AND AN ODOR OF
BURNING PAINT WHEN YOU BUILD THE FIRST FIRES. THIS IS NORMAL AND
IS NOT A CAUSE FOR ALARM. IN SOME CASES, THESE FUMES WILL
ACTIVATE A SMOKE ALARM. OPENING A WINDOW NEAR THE UNIT WILL
ALLOW THESE FUMES TO ESCAPE. DO NOT BUILD A LARGE, ROARING FIRE
UNTIL THIS CURING IS COMPLETE OR THE HEATER FINISH MAY BE
DAMAGED.
CAUTION
NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE,
CHARCOAL LIGHTER FLUID OR SIMILAR LIQUIDS TO START OR "FRESHEN
UP" A FIRE IN THE HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM
THE STOVE WHEN IT IS IN USE. ALL FLUIDS OF THIS TYPE GIVE OFF
VOLATILE FUMES AND CAN AND WILL EXPLODE!! DON'T TAKE A CHANCE
WITH THE SAFETY OF YOUR HOME AND FAMILY.
Page 10

PRE-FAB INSERT INSTALLATION
The Model 21 has been tested with the following:
Heatilator Security
Tempco Preway
Marco FMI
Woodside Majestic
NOTE: The Model 21 may be installed in any of the pre-fabricated fireplaces listed above if
they are big enough to accept the heater.
NOTE: A FULL CHIMNEY LINER IS REQUIRED IN A ZERO CLEARANCE OR
PRE -FABRICATED FIREPLACE.
NOTE: The ash lip, smoke baffle and smoke shelf may be removed if necessary to provide
room for these models. Any other alteration to the unit will void ALL NEW
BUCK CORPORATION, responsibility and liability. The warning label below
must be attached to the pre- fabricated fireplace before unit is installed.
Except for the “NOTES” above, please follow the instructions for Masonry Insert
Installation including Minimum Clearances for stove and floor protector in Section II.
NOTE: When installing trim panels “DO NOT COVER ANY EXITING LOUVERS OR
AIR OPENING IN PRE-FABRICATED FIREPLACE .”
SECTION III
WARNING: This fireplace must be
restored to its original condition for safe use,
if the fireplace insert is removed.
Page 11

TOOLS FOR INSTALLATION
Drop cloth, 3/32" Metal drill bit, 5/16" magnetic socket chuck adapter, 5/16" wrench (box or socket) or adjustable
wrench, Jigsaw with masonry, metal and wood blades
WARNING: DO NOT INSTALL IN A SLEEPING ROOM
PREPARING THE STOVE FOR INSTALLATION
1. Remove the protective plastic wrapping from the unit, inspect the unit for any obvious physical damage.
2. Plug the power cord into a 115V AC outlet to test the motor and fan when optional motor is being used. “Do not
run power cord under unit or in high traffic areas”.
3. Check the primary air draft control to ensure that it slides freely.(See Figure 5).
4. Remove any items from within the firebox. Spread a dropcloth on the floor behind the heater. Next, tilt the
heater so that the back is on the drop cloth.

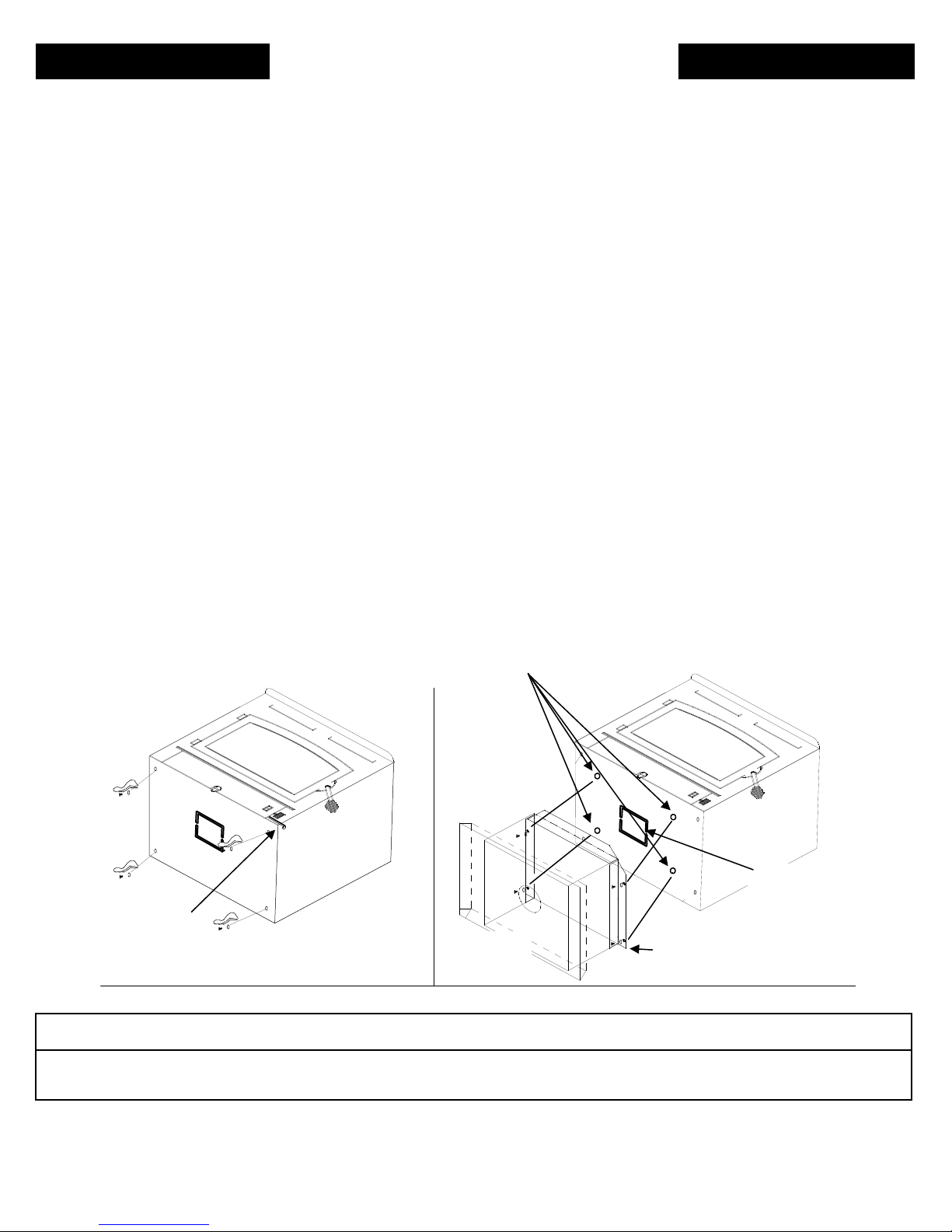

5. (Leg Kit):If legs are to be used, obtain four legs, attach the legs to holes in bottom of unit with bolts and
washers supplied with the leg kit. (See Figure 5).
6. (Pedestal Kit): If pedestal kit is being used (and out side air is required see below, Out Side Air
Installation). Open freestanding kit and obtain the stand. Place the stand against bottom of the heater (angle side
to heater). Center stand front to rear and also center stand left and Right. Mark screw locations on bottom of
stove through outer holes of stand mounting angles. Set stand aside and drill four 7/32" holes in heater bottom.
Before attaching heater to the stand, take a large flat screwdriver or pliers and remove the 2" x 2" knockout on
bottom of unit.
(See Figure 5A). Then mount stand to bottom of heater with screws provided. (See Figure 5A).
7. Obtain four (4) 3/16" self-tapping screws and secure the stand to the heater.
8. Reposition the heater to the upright position.
Page 12
Out Side Air Installation
1. Select an installation location that gives the best airflow from the front of the heater to the remainder of the home.
2. Place the protective floor pad in position. For minim floor protection (SeePage 14).
Figure 5A
2" x 2"
KNOCKOUT
Figure 5
PRIMARY AIR
DRAFT CONTROL
HOLES FOR MOUNTING PEDESTAL
PEDESTAL
CAUTION
THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR MUST BE MAINTAINED. (MOVE
OPENING AND/OR REPOSITION HEATER LOCATION IFNECESSARY).
SECTION IV
RESIDENTIAL FREESTANDING INSTALLATION

3. Place the unit on the pad making sure the minimumum clearance specifications are met.
4. Lightly mark with a pencil the location of the pedestal on the protective pad.
5. Next, remove the four (4) screws holding the heater to the stand. Position heater out of the
way of the installation area.
6. Check that the pedestal stand is still aligned with the marks on the protective pad, now mark
the outside air opening in bottom of pedestal stand on to the pad.
7. Mark the center line of the outside air opening. Set stand aside for now.
8. Cut a 4 1/4" diameter hole in the pad and continue through the floor.
CAUTION!! The structural integrity of the mobile home floor must be maintained
(Move opening and/or reposition heater location if necessary).
9. Now, reposition the pedestal stand and set on the pad being sure to line the stand up with
the reference marks.
10. Using an electric drill and 3/8" masonry bit, drill four (4) holes in the protective pad using
the holes in the bottom of the pedestal stand as a guide. Be careful to drill only through
the pad and not into the floor. Change the bit to a 1/4" metal bit and drill through the floor.
11. Using the four (4) 3/8" x 1-1/2" lag bolts provided, secure the pedestal stand and pad to
the floor of the mobile home.
12. Obtain the outside air duct from the box in the pedestal kit marked FA P21B.
13. Slip the duct down through the 4-1/4" hole until the face of the outside air duct with screen
wire, contacts the bottom of pedestal.
14. Secure the outside air duct to the inside bottom of pedestal using the four (4) #10x1 screws
provided. (See Figure 6).
15. Set the heater back onto the stand and resecure using the screws.
16. NOTE: If home is underpinned, you must duct through underpin as shown. (See Figure 6A).
UNDER SIDE OF MOBILE HOME FLOOR
OUTSIDE AIR DUCT
FLOOR PROTECTOR PAD
PEDESTAL
OUTSIDE AIR DUCT THROUGH
UNDERPINNED.
OUTSIDE AIR DUCT THROUGH FLOOR WHEN
MOBILE HOME IS NOT UNDERPINNED.
(4) 3/8" x 1-1/2"
(4) #10x1
CAUTION
IF A THICK FLOOR PROTECTOR IS USED, YOU MAY HAVE TO
USE LONGER LAG BOLTS.
Figure 6 Figure 6A
Page 13

Page 14
Chimney
This model is designed for connection to any listed 2100º UL103 HT chimneys and parts.
Follow chimney manufacturer's instructions carefully.
This room heater must be converted to (1) a chimney complying with the requirements for
Type HT chimneys in the Standard for chimneys, Factory-Built, Residential, Type and
Building Heating Appliance, UL 103 or (2) a code approved masonry chimney with a flue
liner.
Floor Protection:
Floor protection must be 3/8” minimum thickness non-combustible material or equivalent.
How to use alternate materials and how to calculate equivalent thickness
An easy means of determining if a proposed alternate floor protector meets requirements listed
in the appliance manual is to follow this procedure:
1. Convert specification to R-value:
R-value is given—no conversion is needed.
K-factor is given with a required thickness (T) in inches:
C-factor is given: R=1/C
2. Determine the R-value of the proposed alternate floor protector.
Use the formula in step (1) to convert values not expressed as “R”
For multiple layers, add R-values of each layer to determine the overall R-value.
3. If the overall R-value of the system is grater than the R-value of the specified floor protec-
tor, the alternate is acceptable.
Example:
The specified floor protector should be 3/4” thick material with a K-factor of 0.84.
The proposed alternate is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a
K-factor of 0.29.
Step (a): Use formula above to convert specification to R-value. R= 1/K x T = 1/0.84 x .75 =
0.893
Step (b): Calculate R of proposed system. 4” brick of C=1.25, therefore Rbrick = 1/C = 1/1.25
=0.80 1/8” mineral board of K = 0.29, therefore Rmin.bd. =1/029 x0.125 = 0.431
Step (c): Compare proposed system R of 1.231 to specified R of 0.893. Since proposed
system R is greater than required , the system is acceptable.
Definitions:
Install in accordance with 24 CFR, Part 3280 (HUD).
Thermal conductance = C = Btu = W
(hr)(ft²)(°F) (m²)(°K)
Thermal conductance = K = (Btu)(inch) = W= (Btu)
(hr)(ft²)(°F) (m)(°K) (hr)(ft)(°F)
Thermal conductance = R = (ft²)(hr)(°F) = (m²)(°K)
Btu W

PREPARING THE ROOM HEATER LOCATION
1. Select an installation location that will give the best airflow from the front of the heater to
the remainder of the home.
2. Place the protective floor pad in position.
3. Place the unit on the pad making sure the minimum clearance specifications are met.
4. If connecting to an existing masonry flue, first ensure that the flue conforms to the NFPA-
211 Code and/or consult your local code for proper procedures.
NOTE: This model is designed for connection to: any Listed 2100° UL 103 HT. TYP chimney
also any Listed UL DVL Close Clearance Pipe or Single wall minimum 24 ga. Blued or Black
Pipe. Follow pipe manufacturer’s instructions carefully.
CHIMNEY
This room heater must be converted to (1) a chimney complying with the requirements for Type
HT chimneys in the Standard for Chimneys, Factory-Built, Residential, Type and Building
Heating Appliance, UL 103, or (2) a code approved masonry chimney with flue liner.
HOW TO LOCATE CHIMNEY EXIT AND INSTALL
Residential Installation
A. Vertical Exit using (6" Single Wall minimum 24 ga. blued or black pipe and any
Listed 2100° UL 103 HT. chimney).
Without optional close clearance shield, and pipe shield.
NOTE: For minimum clearances (See Page 16, Figure 7).
1. Suspend a plumb bob from the ceiling above the unit so that the weight is hanging in the
center of the flue exit. (A small weight on a string will serve as a plumb bob). Mark the
ceiling where the string is suspended to locate the center of the chimney.
2. After locating the center of the hole, install the ceiling support box, chimney or chimney
connector, flashing, and rain cap per the chimney manufacturer’s instructions, and local
building codes for installation through combustible walls or ceilings.
3. Now connect the stove and ceiling support box using 6" Single Wall minimum 24 ga.
blued or black pipe (DO NOT USE GALVANIZED PIPE). Connect each section so
the crimped end faces downward, and secure each section to each other using at least
three (3) sheet metal screws or rivets. Single wall pipe is to be connected with (3) sheet
metal screws or rivets to connector collar on heater. (See Page 16, Figure 8).
CAUTION: Certain installation types require the use of certain chimney types.
Please follow these instructions exactly.
Page 15

A. Vertical exit using (6" Single Wall minimum 24 ga. blued or black
pipe
and any listed 2100° UL 103 HT. TYPE Chimney).
Without optional close clearance shield and pipe shield.
Model 21 minimum clearance to combustibles.
NOTE: All clearances are to combustibles without close clearance shields, and pipe shield, using 6"
Single Wall minimum 24 ga. blued or black pipe , and minimum floor protector . The clearances
above may be reduced. Follow NFPA-211 codes if available or follow instructions on (Pages 19, 20
or Pages 23, 24).
CC
C
C
Figure 8
SINGLE WALL
CONNECTOR PIPE
CEILING SUPPORT
CEILING
INSTALLATION
FLASHING
CONTEMPORARY CAP
STORM COLLAR
DO NOT OBSTRUCT
CAULK
NEW BUCK
SIDE
WALL
BUCK STOVE
LISTED 2100° UL 103 HT
TYP. CHIMNEY
RADIATION SHIELD
LISTED 2100° UL 103 HT TYP.
Figure 7
BACK
WALL
A
E
B
F
D
G
A
E
B D
F
BACK WALL
SIDE WALL
PROTECTOR PAD
G
A B C D E F G
MODEL 21 25” 13" 13" 15.5" 8" 6" 16"
Page 16

HOW TO LOCATE CHIMNEY EXIT AND INSTALL
Residential Installation
B. Vertical Wall Exit using (6" Single Wall minimum 24 ga. blued or black pipe with elbow
and any Listed 2100° UL HT chimney and Listed 2100° UL HT. T-Box assembly).
Without optional close clearance shields and pipe shield
NOTE: For minimum clearances (See Page 18, Figure 9).
1. Mark the plumb line on the wall directly behind the center of the heater.
(See Page 18, Figure 10).
NOTE: When using 6" Single Wall minimum 24ga. blued or black pipe,
“ maintain 18" minimum clearances" between pipe and ceiling ”.
2. Place the vertical portion of the heater pipe and the elbow in position and project a
point onto the plumb line level with the center of the elbow.
3. Measure up so there will be at least 1/4" rise per foot of horizontal connector pipe,
maintaining clearances to the ceiling as noted in (Page 18,Figure 10). This will give
you the center of the hole for the chimney penetration.
4. After locating the center of the penetration, install the tee-box and chimney as per the
chimney manufacturer's specifications.
5. Connect the chimney collar to the tee-box using 6" Single Wall minimum 24 ga. blued
or black pipe. (DO NOT USE GALVANIZED PIPE). Connect each section so the
crimped end faces downward, and secure each section to each other using three (3)
sheet metal screws or rivets. Single wall pipe is to be connected with three (3) sheet
metal screws rivets to connector collar on heater. (See Page 18, Figure 10).
Page 17

B. Vertical wall exit using (6" Single Wall minimum 24 ga. blued or
black pipe with elbow
and any listed 2100° UL 103 HT.
TYPE Chimney and
Listed 2100° UL HT. T-Box assembly ).
Without optional close clearance shield and pipe shield.
Model 21 minimum clearance to combustibles.
CC
C
C
NOTE: All clearances are to combustibles without close clearance shields and pipe shield, 6"
Single Wall minimum 24 ga. blued or black pipe with elbow, and minimum floor protector.
Clearances above may be reduced. Follow NFPA-211 codes if available or follow instructions
on (Pages 21,22 or Pages 25, 26).
Figure 9
A B C D E F G
MODEL 21 25” 13" 13" 15.5" 8" 6” 16"
SINGLE WALL
CONNECTOR
ELBOW PIPE
IN
SIDE
WALL
CEILING Maintain 12"Minimum Clearance
WALL
PASS-THROUGH
CONNECTOR
CENTER LINE
OF ELBOW
MARK PLUMB
LINE ON WALL
LISTED 2100° UL 103 HT TYP.
CHIMNEY REEFER TO
MANUFACTURES
INSTALLATION INSTRUCTION
LISTED 2100° UL 103 HT
TYP. CHIMNEY T-BOX
ASSEMBLY REEFER TO
MANUFACTURER’S
INSTALLATION
INSTRUCTION
Figure 10
NOTE:
BACK
WALL
A
E
B
F
D
G
A
E
B D
F
BACK WALL
SIDE WALL
PROTECTOR PAD
G
H
Page 18
