BuckMaster 85 User manual

FIREPLACE INSERT & FREESTANDING
MODEL 85
NON-CATALYTIC UNIT
FEATURES
PREPARATIONS INSTALLATION
OPERATION MAINTENANCE SAFETY
Buck Stove
SAFETY NOTICE
IF THIS HEATER IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY
RESULT. FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.
CONTACT THE AUTHORITY HAVING JURISDICTION (SUCH AS MUNICIPAL
BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE PREVENTION
BUREAU, etc.) CONSULT BEFORE INSTALLATION TO DETERMINE THE NEED
TO OBTAIN A PERMIT. KEEP THESE INSTRUCTIONS FOR FUTURE USE.
TESTED AND LISTED BY: ITS/WARNOCK HERSEY, MIDDLETON, WI
MANUFACTURED BY NEW BUCK CORPORATION
200 ETHAN ALLEN DRIVE
P.O. BOX 69
SPRUCE PINE, N.C. 28777
www.buckstove.com Revised August 2010

TABLE OF CONTENTS
Important Instructions................................................................................................................... 3
SECTION I: Introduction ............................................................................................................. 4
SECTION II: Masonry Insert Installation..................................................................................... 5
Installation Preparation-Fireplace................................................................................................. 7
Mounting Trim Panels .................................................................................................................. 8
SECTION III: Pre-Fab Insert Installation................................................................................... 12
SECTION IV: Residential Freestanding Installation.................................................................. 13
Freestanding Installation Clearances .......................................................................................... 21
Installation of Close Clearances Shields..................................................................................... 23
SECTION V: Freestanding Mobile Home Installation............................................................... 24
SECTION VI: Wood Heater Safety............................................................................................ 29
SECTION VII: Operation ........................................................................................................... 30
SECTION VIII: Room air blower operation ............................................................................. 32
SECTION IX: Troubleshooting.................................................................................................. 33
Parts List ..................................................................................................................................... 34
Warranty ..................................................................................................................................... 35

Page 2
EPA COMPLIANCE STATUS
The Model 85 heater meets the U.S. Environmental Protection Agency’s Emission limits for
wood heaters sold after July 1, 1992. Under specific conditions this heater has been shown to
deliver heat at rates ranging from approximately 10,000 to 45,000 BTU/hr for the Model 85.

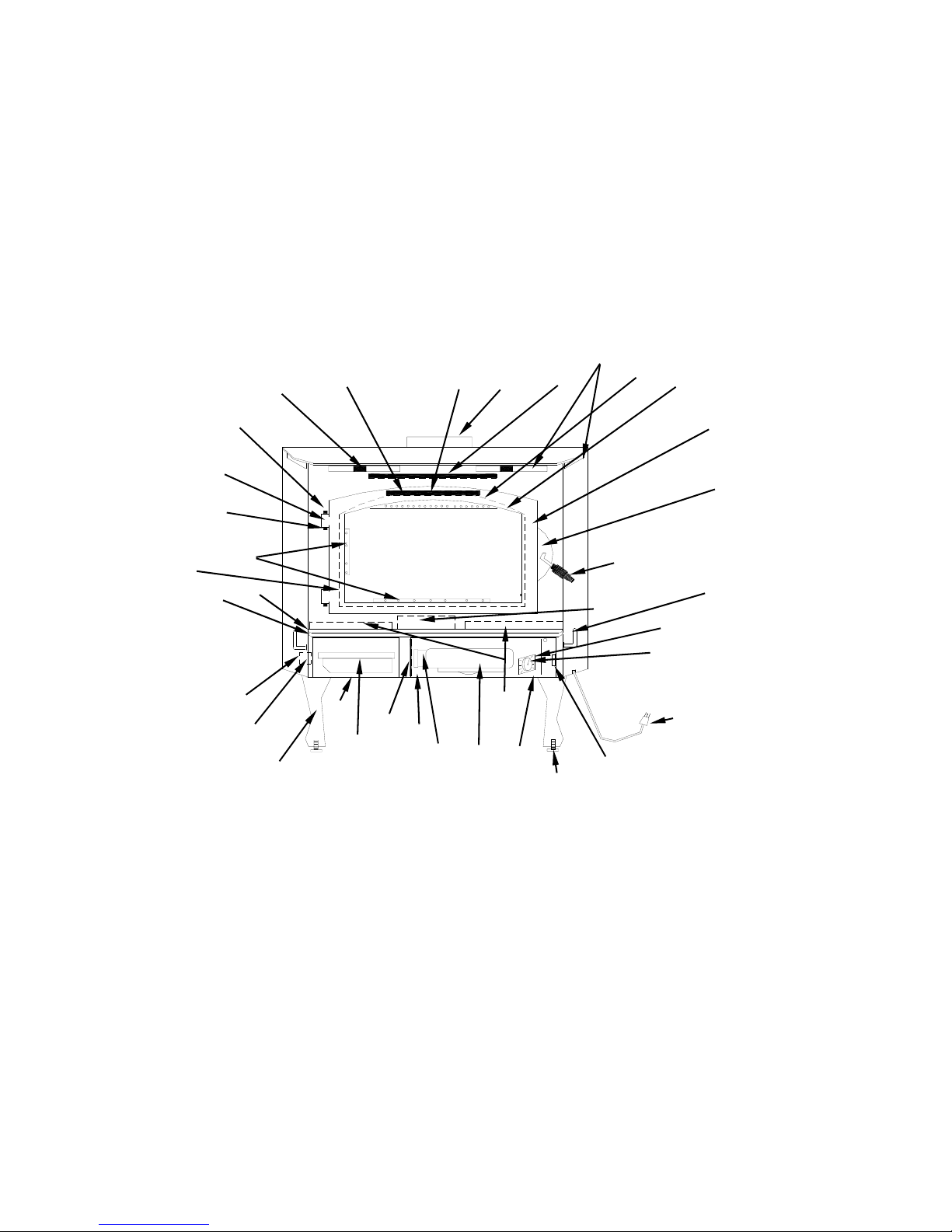

MODEL 85
WOOD STOVE
1. Secondary air tubes
2. Blower control (rheostat)
3. Primary air control
4. Warm air outlets
5. Baffles (interior of stove)
6. Air inlet
7. Door
8. Hearth extension
9. Power cord
10. Legs
11. Stainless steel plate
12. Automatic/off/man. switch
13. Brass cap
14. Hinge Block
15. NO PART
16. NO PART
17. Door glass & logo
18. Glass clips
19. Hearth Brass
20. Door Gasket
21. Side glass
22. Leveling screws
23. Firebrick
24. Motor
25. Motor mount bracket
26. Cover Door
27. Cover door screws
28. Shot gun air box
29. Ash pan
30. Disc thermostat
31. Door handle & brass spring handle
32. Air wash screen
33. Glass gasket
34. Cover door hinge
35. Magnet holder
36. Cover door Magnet
37. Door latch
38. Door latch screw
39. Blanket
40. Hinge pins
41. 6" Flue exit
(1) 1 (11)
(41)
(4)
(20) (32)
(7)
(37) & (38)
(31)
(27)
(3)
(12)
(2)
(9)
(30)
(22)
(26)
(24)
(23)
(25)
(34)
(28)
(29)
(6)
(10)
(36)
(35)
(19) (8)
(33) (18)
(40)
(14)
(13)
(5) (39)
(17)

Page 3
INSTALLATION, OPERATION AND
MAINTENANCE INSTRUCTIONS
MODEL 85
READ THIS FIRST
IMPORTANT INSTRUCTIONS
WARNING
THESE UNITS GENERATE A LOT OF HEAT, SO TREAT THEM WITH CARE. HOT
WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS. READ ALL INSTRUCTIONS BEFORE
INSTALLING AND USING APPLIANCE. FAILURE TO FOLLOW INSTRUCTIONS
MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH. SAVE
THESE INSTRUCTIONS FOR FUTURE REFERENCES.
 The New Buck Corporation non-catalytic system has been tested by Intertek Testing
Services, Warnock Hersey to ANSI/UL Standards 1482.
 Install and operate your units according to instructions provided in this manual. Local
building codes may apply; therefore, contact your local building inspector or fire marshal
for necessary installation requirements and permits which may go beyond these instruc-
tions.
 If appliance is installed in mobile homes: “DO NOT INSTALL IN SLEEPING
ROOMS.”
 NOTE: When burning any unit or appliance that combusts fuel for heat, such as
coal, oil, wood or natural and (L.P.) liquid petroleum gas. We highly recommend
the use of smoke and carbon monoxide detectors in your home.
 Examine masonry fireplace and chimney prior to installation of fireplace accessory to
determine that construction meets minimum fireplace construction requirements
illustrated in instructions, that it is free from cracks, loose mortar, creosote deposits and
other blockage or other signs of deterioration.
CAUTION
DO NOT USE MORE THAN ONE STOVE TO A CHIMNEY. DO NOT USE A FLUE
INTENDED FOR A GAS APPLIANCE. DO NOT CONNECT THIS UNIT TO A CHIMNEY
FLUE SERVING ANOTHER APPLIANCE. DO NOT CONNECT TO ANY AIR
DISTRIBUTION DUCT OR SYSTEM.
 A factory-built pre-fabricated chimney may be used for your units when installed in
compliance with manufacturer's specification and uniform building code.

Page 4
CAUTION
YOUR CHIMNEY MUST BE CORRECTLY SIZED. A CHIMNEY THAT IS TOO SMALL
OR LARGE IN DIAMETER, OR TOO SHORT, CAN CAUSE YOUR STOVE TO SPILL
SMOKE WHEN THE DOOR IS OPENED.
SECTION I
INTRODUCTION
Your Buck Stove MODEL 85 meets EPA Phase II 1990 for a non-catalytic unit. It’s designed to
meet most stringent emissions standards without use of a catalytic combustor. This effect is
achieved through use of a secondary air which is mixed with primary air in unit's firebox.
For peak performance, we suggest the use of natural seasoned hard wood, loading wood
length way from front to rear.
NOTE: Soft woods such as pine, create more creosote, clogging of chimney and produce a less effi-
cient burn performance.
You should not burn trash or garbage, artificial or paper logs, gift wrapping, treated or
painted wood or any type of coal or flammable fluids.
The primary air, which is controlled by user, burns the wood. Secondary air is admitted into
firebox through secondary air tubes at top of firebox.This secondary air burns impurities in
smoke released from initial wood burning. The temperature necessary for this combustion is
maintained through firebrick refractory. If any more technical information is necessary,
contact your local dealer.
Under specific test conditions this heater has been shown to deliver heat at rates ranging from
approximately 11,800 to 45,00 BTU/HR.
This heater is equipped with a standard room air blower.
For operation and use of these electrical assemblies, see instructions provided in this manual on
page 32.

Page 5
SECTION II
MASONRY INSERT INSTALLATION
The Model 85 may be installed using an all masonry fireplace built in accordance with
Uniform Building Code and National Fire Protection Association (NFPA). The first step in
this type of installation is to determine acceptability of fireplace and chimney for use with a
woodstove. Both construction and condition of fireplace are important considerations when
installing a woodstove. The chimney should extend at least 3' above roof and at least 2' above
any point of roof within 10'.
CAUTION
REMEMBER TO HAVE YOUR CHIMNEY INSPECTED FOR LEAKS AND BLOCKAGE
BEFORE YOU INSTALL YOUR STOVE. “DO NOT CONNECT THIS UNIT TO A
CHIMNEY FLUE SERVING ANOTHER APPLIANCE.”

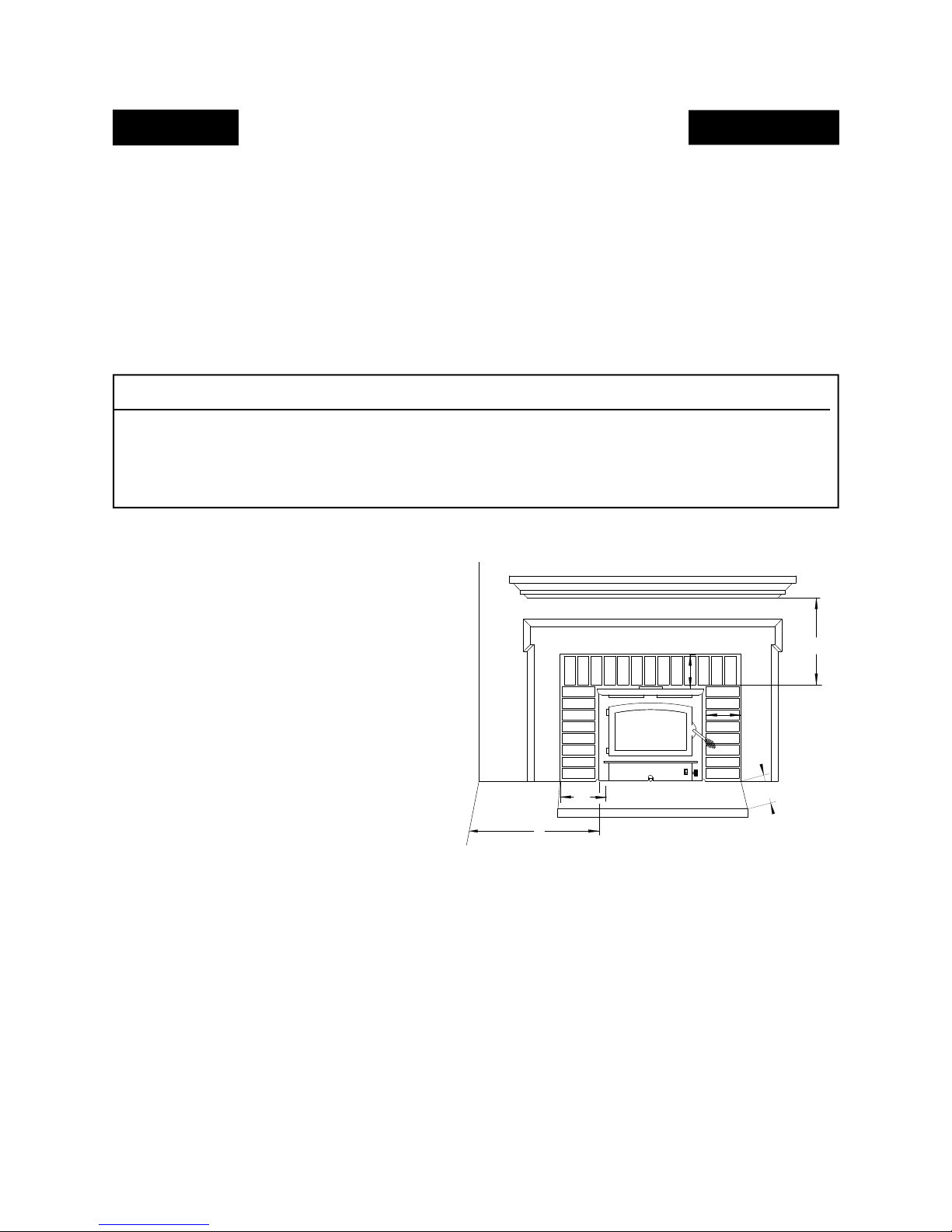

MINIMUM CLEARANCE MASONRY INSERT
A. Side Wall Combustible
B. Front Floor Protector
C. Side Floor Protector
D. Side Wood Trim
E. Top Wood Trim
F. Mantel or Brackets
12"
16"
8"
7"
10"
21"
MODEL 85
1. The hearth must be of masonry construction and must extend a minimum of 16" in front of
firebox opening and a minimum of 8" to either side of firebox opening.
2. If there is not minimum hearth protection from front of firebox opening and front of ma-
sonry hearth, a floor protector must be used in front of hearth to protect combustible
materials. The floor protector must be 3/8" minimum thickness non-combustible material
or equivalent.(See Page 6.)
F
B
A
E
C
D

Page 6
FLOOR PROTECTION
Floor protector must be 3/8" minimum thickness non-combustible material or equivalent.
How to use alternate materials and how to calculate equivalent thickness
An easy means of determining if a proposed alternate floor protector meets requirements listed
in the appliance manual is to follow this procedure:
1. Convert specification to R-value:
R-value is given—no conversion is needed.
K– factor is given with a required thickness (T) in inches:
C-factor is given: R=1/C
2. Determine R-value of the proposed alternate floor protector.
Use the formula in step (1) to convert values not expressed as “R”
For multiple layers, add R-values of each layer to determine the overall R-value.
3. If overall R-value of the system is greater than the R-value of the specified floor protector,
the alternate is acceptable.
Example:
The specified floor protector should be 3/4” thick material with a K-factor of 0.84.
The proposed alternate is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a
K-factor of 0.29.
Step (a): Use formula above to convert specification to R-value. R= 1/K x T = 1/0.84 x .75 =
0.893
Step (b): Calculate R of proposed system. 4” brick of C=1.25, therefore Rbrick = 1/C = 1/1.25
= 0.80 1/8” mineral board of K = 0.29, therefore Rmin.bd. =1/029 x0.125 = 0.431
Step (c): Compare proposed system R of 1.231 to specified R of 0.893. Since proposed
system R is greater than required , the system is acceptable.
Definitions:
Thermal conductance = C = Btu = W
(hr)(ft²)(°F) (m²)(°K)
Thermal conductance = K = (Btu)(inch) = W = (Btu)
(hr)(ft²)(°f) (m)(°K) (hr)(ft)(°F)
Thermal conductance = R = (ft²)(hr)(°F) = (m²)(°K)
Btu W
Install in accordance with 24 CFR, Part 3280 (HUD).
MINIMUM CLEARANCES

Page 7
POSSIBLE TOOLS NEEDED FOR INSTALLATION
If you decide to install your own stove, there are several hand tools you may need to do job. If
you do not already have them, they are readily available at most hardware stores.
Caulking gun
Large adjustable wrench (may not be needed)
Drop cloths or newspapers
Vacuum cleaner or whisk broom
Flashlight
1 tube of RTV silicone, Code 103 or 106, or high temperature rubber cement rated between
450oF- 600o F
7/32" drill bit and drill
Socket/Ratchet Set
INSTALLATION PREPARATION
Fireplace:
1. Locate furniture and other materials away from front of fireplace to allow free access to
fireplace.
2. Cover hearth and adjacent floor areas with a drop cloths to protect from soiling or marring
surface.
3. Remove existing fireplace damper plate.
4. Thoroughly clean fireplace of ashes and soot.
5. Check chimney and smoke chamber for excessive buildup of creosote or soot. Also, check
for obstructions, such as bird’s nests. If chimney is excessively dirty, clean it, or have
someone clean it professionally BEFORE installing or using room heater.
6. If fireplace has an ash dump or outside air provision, these must be sealed off with metal or
tightly packed non-combustible insulation to prevent cold air from entering fireplace
chamber.
MASONRY INSERT INSTALLATION

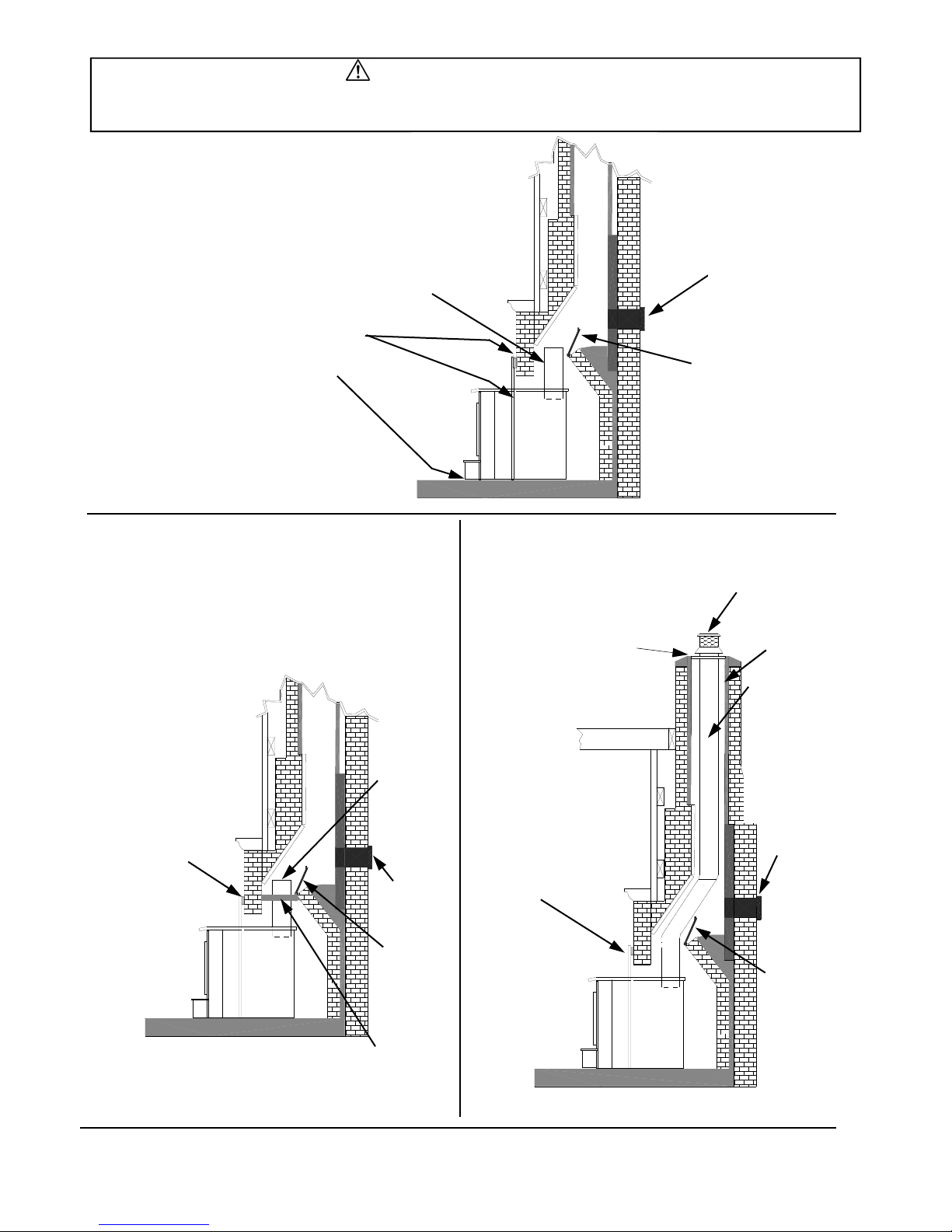

INSTALLATION OPTIONS
This unit (appliance) may be installed into an all masonry fireplace, built in accordance with
Uniform Building Code and National Fire Protection Association (NFPA 211).
NOTE: Check with local building officials for any permits required for installation of this unit
and notify your insurance company before proceeding with installation
In some cases such as improperly drawing fireplaces , oversize flue liners or to meet codes in
certain areas it is recommended that one of the flowing procedures be followed:
A. A Chimney Connector be installed from appliance flue exit through damper and
an air-tight face seal. See option (A) page 8.
B. A listed Direct Connect be installed from appliance flue exit through damper
into first section of flue liner with air-tight seal. See option (B) page 8.
C. A Positive Connect be installed from appliance flue exit continuing up through
entire chimney and exiting at top of chimney. See option (C) page 8.

Page 8
OPTION (B)
REMOVE
DAMPER
OR WIRE IT
OPEN
AIRTIGHT
INSULATED
CLEAN-
BLOCK-OFF PLATE
OR DAMPER
ADAPTER
SEAL TRIM PANELS
WITH INSULATION
OR HIGH
TEMPERATURE
CAULK
STAINLESS
STEEL
CHIMNEY
CONNEC-
TOR MUST
EXTEND 1’
PAST THE
BLOCK-OFF
PLATE OR
TO THE
FLUE LINER
NOTE: Follow installation instruction
with Direct Connection Kit.
(Kit sold separately)
SAFETY NOTICE
If this appliance is not properly installed, a house fire may result. For your safety, follow the installation directions.
Contact local building or fire officials about restrictions and installation inspection requirements in your area.
STARTER PIPE
SEAL TRIM PANELS AND UNDER
FRONT OF STOVE UNIT WITH
INSULATION OR HIGH
TEMPERATURE CAULK
OPTION (A)
REMOVE
DAMPER
OR WIRE
IT OPEN
AIRTIGHT INSU-
LATED CLEAN-
OUT
NOTE: New Buck Corporation grants no
warranty, implied or stated, for the installation
or maintenance of your appliance, and assumes
no responsibility of any consequential damage
OPTION (C)
NOTE: Follow installation
instruction with Positive
Connection Kit.
(Kit sold separately)
TRIM PANELS
CAP(PREVENTS
WATER FROM
ENTERING)
FLUE
LINER
THE LINER MUST
BE STAINLESS
STEEL CONNEC-
TOR OR FLEXIBLE
VENT. FOLLOW
THE LINER MANU-
FACTURE’S IN-
STRUCTIONS FOR
INSTALLATION
AND SUPPORT.
AIRTIGHT
INSULATED
CLEAN-OUT
REMOVE
DAMPER
OR WIRE
IT OPEN
INSTALL A NON-COMBUSTIBLE
COVER PLATE TO PREVENT
WATER FROM ENTERING THE
CHIMNEY

Page 9
INSTALLATION PROCEDURE
(Use a chimney connector or a Listed Direct or Positive Connect) (See Page 8).
POSITIONING HEATER
When positioning heater, following conditions MUST
be met! (See Figure 2).
1. The front of damper opening must be positioned
BEHIND rear edge of lintel to ensure proper draft.
(See Figure 2).
2. Center heater in fireplace opening.
MOUNTING TRIM PANELS
After unit is positioned, mark mounting position of
trim panels as follows:
1. Place side trim panels in place, flat against
face of fireplace. Mark down front edge of trim
panel with a pencil to make a vertical reference line.
(See Figure 3).
2. Place top (long) trim panel in place on top of unit.
The panel should be flat against outside face
of fireplace and standing vertically. Mark along
lower edge of trim panel with a pencil to make a
reference line for mounting.
3. Slide unit out of fireplace far enough to work
behind trim panel reference lines.
FIGURE 3 MOUNTING TRIM PANELS
FIGURE 2 POSITIONING
4. Mount side trim panels. (See Figure 3).
a. Position trim panel on reference line.
b. Drill mounting holes in center of trim panel mounting brackets to allow for adjustment in and out if
necessary.
c. Mount trim panel using self-tapping screws provided.
5. Place top panel back on reference mark. Take top trim panel mounting bracket supplied with unit. Position
bracket so it overlaps rear lip of top trim panel. Drill mounting holes in top of stove using holes in bracket as
guide. Tighten down screws.
6. Now, follow installation procedures in listed direct connect or positive connect kit you are using and install
heater and connect kit in fireplace. If not using one of installation methods shown on
(Page 8). continue.
7. Slide unit back into fireplace. Check to be sure that trim panels are properly positioned and lie flat against
front of fireplace. If one or more of panels is out of position, slide unit out and reset by
loosening mounting screws and repositioning in slot.
8. Reinstall top trim panel by sliding rear lip of top trim panel underneath front lip of mounting bracket already
secured to top of unit.

Page 10
NOTE: Mount top trim panel so that it sits in front of top of side trim panels.
9. Obtain brass trim kit provided with insert kit and slip over top and sides of trim panels. Top ends of brass may
need to be trimmed to fit (See Figure 4).
10. Using insulation provided, peel and stick to back of panels overlapping fireplace dimensions by 1" on each
side and top. (See Figure 4A).
11. Next using high heat silicone or furnace cement run heavy bead of caulking around where panels meet
stove. (See Figure 4A).
12. Slide unit back into fireplace. Check to be sure that trim panels (and brass) are properly positioned and lie flat
against front of fireplace. If panels are out of position, slide unit out and reset by loosening mounting screws
and repositioning in slot. With bar lift stove up in front. Place insulation across front and surface of hearth
or bottom of fireplace to make complete seal.
13. To check seal of panels, use candle flame and go around entire area sealed by silicone and insulation. If flame
leans toward inside of fireplace, add additional insulation. This ensures an airtight seal.
FINAL CHECK
1. Recheck specified clearances.
2. Remove all foreign material from firebox area.
3. Open primary air control
Primary Air Control: The primary air intake draft controls are located at right and left bottom side of
hearth. It is operated by moving handle out to open (to allow air into firebox) or in (to control or close off) air
into firebox. (See Figure 4).
4. Plug power cord into a 115V AC outlet if optional motor is being used. “Do not run power cord under unit
or in high traffic areas.”
5. Place crumpled pieces of newspaper in stove. Light it and close door. Ensure that stove draws properly
through primary draft.
NOTE: “Do not use grate or elevate fire. Build wood fire directly on inner bottom of fire box.”
6. Check for smoke leaks around door.
7. Open door and check for smoke escaping from front of stove. Smoking usually indicates a defective or poorly
positioned chimney. Some chimneys with a marginal draft can be preheated by lighting newspaper and
holding it near open damper with a poker or fire tong. Once chimney heats up, a proper draft can usually be
obtained.
If a thorough review of Troubleshooting Guide in rear of manual does not reveal problem, contact your dealer for
assistance.
HIGH
TEMP
INSULATION
Buck Stove
Primary Air
Controls
Top Trim Panel
Side Trim Panel
Outer Trim
FIGURE 4A
FIGURE 4

Page 11
CAUTION
THE UNIT IS PAINTED WITH A SPECIALLY FORMULATED HIGH
TEMPERATURE PAINT THAT CURES DURING FIRST TWO OR THREE FIRINGS.
YOU MAY NOTICE A SLIGHT SMOKING EFFECT AND AN ODOR OF BURNING
PAINT WHEN YOU BUILD FIRST FIRES. THIS IS NORMAL AND IS NOT A
CAUSE FOR ALARM. IN SOME CASES, THESE FUMES WILL ACTIVATE A
SMOKE ALARM. OPENING A WINDOW NEAR UNIT WILL ALLOW THESE
FUMES TO ESCAPE. DO NOT BUILD A LARGE, ROARING FIRE UNTIL THIS
CURING IS COMPLETE OR THE HEATER FINISH MAY BE DAMAGED.
The connector and/or chimney should be inspected at least once a month during heating season
to determine if a creosote buildup has occurred.
CAUTION
NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE,
CHARCOAL LIGHTER FLUID OR SIMILAR LIQUIDS TO START OR "FRESHEN
UP" A FIRE IN THE HEATER. KEEP ALL SUCH LIQUIDS
WELL AWAY FROM STOVE WHEN IT IS IN USE. ALL FLUIDS OF THIS
TYPE GIVE OFF VOLATILE FUMES AND CAN AND WILL EXPLODE!! DON'T
TAKE A CHANCE WITH THE SAFETY OF YOUR HOME AND FAMILY.

Page 12
SECTION III
PRE-FAB INSERT INSTALLATION
The Model 85 may be installed into any UL listed pre-fabricated fireplace that is large enough
to accept it
NOTE: The ash lip, smoke baffle and smoke shelf may be removed if necessary to provide
room for these models. Any other alteration to unit will void ALL New Buck Corporation
responsibility and liability. The warning label below supplied with stove must be attached to
back of the fire -place.
.
NOTE: Plug power cord into a 115V AC outlet. Set switch to “Manual” and rheostat to
“High” position to ensure motor operates properly. Route cord to prevent damage to cord
insulation from heat and sharp objects. Keep the cord out of way of traffic to prevent damage
caused by tripping, etc.
NOTE: DO NOT BLOCK ANY EXISTING LOUVERS OR VENTS ON EXISTING PRE-
FAB WITH ANY TRIM PANELS FOR MODEL 85.
Except for “NOTES” above, please follow instruction of masonry installation, Section II.
Instruction
Minimum clearances for stove
Minimum clearances for floor protector
WARNING: This fireplace must be
restored to its original condition for safe use
if fireplace insert is removed.
NOTE: When installing the Model 85 into a Pre - Fab Zero - Clearance fireplace, a
UL-1777 LINER must be installed Full Length of chimney and attached to flue exit of
insert.

Page 13
SECTION IV
RESIDENTIAL FREESTANDING INSTALLATION
MINIMUM CLEARANCE TO COMBUSTIBLE MATERIAL
Select an installation location that will give best airflow from front of
heater to remainder of home.
PREPARING STOVE FOR INSTALLATION
1. Inspect unit for any obvious physical damage.
2. Plug power cord into a 115V AC outlet to test fan and motor. Set switch to “Manual” and
rheostat to “High” position to ensure motor operates properly. Route cord to prevent damage to
cord insulation from heat and sharp objects. Keep cord out of way of traffic to prevent damage
caused by tripping, etc.
3. Check primary air draft control to ensure that it slides freely.(See Figure 4).
4. Remove any items from within firebox. Spread a dropcloth on floor behind the heater. Next, tilt
heater so that back is on drop cloth.
5. (Leg Kit): If legs are to be used, obtain four legs, attach legs to holes in bottom of unit with bolts
and washers supplied with leg kit. (See Figure 4).
6. (Pedestal Kit): If pedestal kit is being used and (out side air is required for residential free
standing installation (see page 25 Out Side Air Installation). Open freestanding kit and obtain
stand. Place stand against bottom of heater (angle side to heater).Center stand front to rear
and also center stand left and right. Mark screw locations on bottom of stove through outer holes of
stand mounting angles. Set stand aside and drill four 7/32" holes in heater bottom. Then mount stand to
bottom of heater with screws provided. (See Figure 4A).
7. Obtain four (4) 3/16" self-tapping screws and secure stand to heater.
8. Reposition heater to upright position.
Figure 4
PRIMARY AIR
DRAFT CONTROL
PEDESTAL
HOLES FOR MOUNTING PEDESTAL
Figure 4A

Page 14
ALTERNATE FLOOR PROTECTORS MATERIAL
Floor protector must be 3/8" minimum thickness non-combustible material or equivalent.
With the floor protector or hearth extension material specified as one layer of 2" thick brick
with a K* factor of 5.0, you may use alternate materials as long as the K* factor (s) is calculated
as follows:
FORMULA:
Required thickness = (K of alternate material/K of millboard) X (thickness of millboard)
EXAMPLE:
An alternate inorganic non-combustible millboard with a K* of .9375 would require a
thickness as follows:
Required thickness = (.9375/5.0) x 2 in.
= 3/8 inch
K* FACTORS OF ALTERNATE MATERIALS
Material K RequiredThickness
Ceroform 126 .21 1/8"
Limestone 8.0 3.2"
Concrete 8.0 3.2"
Sandstone 13.0 5.2"
Marble 18.0 7.2"
Hearth extension or floor protector thickness above four (4) inches are generally not acceptable
due to cost, floor load capacity and look. The alternate we recommend is using Ceroform No.
126 millboard 1/8" minimum and putting any type decorative brick or stone (any thickness) on
top of it.
* The K* factor represents thermal conductivity of a material and is time rate of heat flow
through a homogeneous material under steady-state conditions, through unit area, per unit
temperature gradient in the direction perpendicular to a surface.

Page 15
Chimney
These models are designed for connection to:
(1) Simpson Duravent - Dura Black
(2) Metal Fab
(3) Ameritec - BSR
NOTE: This Room Heater must be converted to (1) a chimney complying
with requirements for Type HT chimneys in Standard for chimneys, Factory-Built,
Residential, Type and Building Heating Appliance, UL 103 or (2) a code approved masonry
chimney with a flue liner. The chimney size should not be less than nor more than 3 times
greater than cross-sectional area of flue collar.
CAUTION
SPECIAL METHODS ARE REQUIRED WHEN PASSING THROUGH A
WALL OR CEILING. SEE INSTRUCTIONS AND BUILDING CODES.
“DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING
ANOTHER APPLIANCE.”

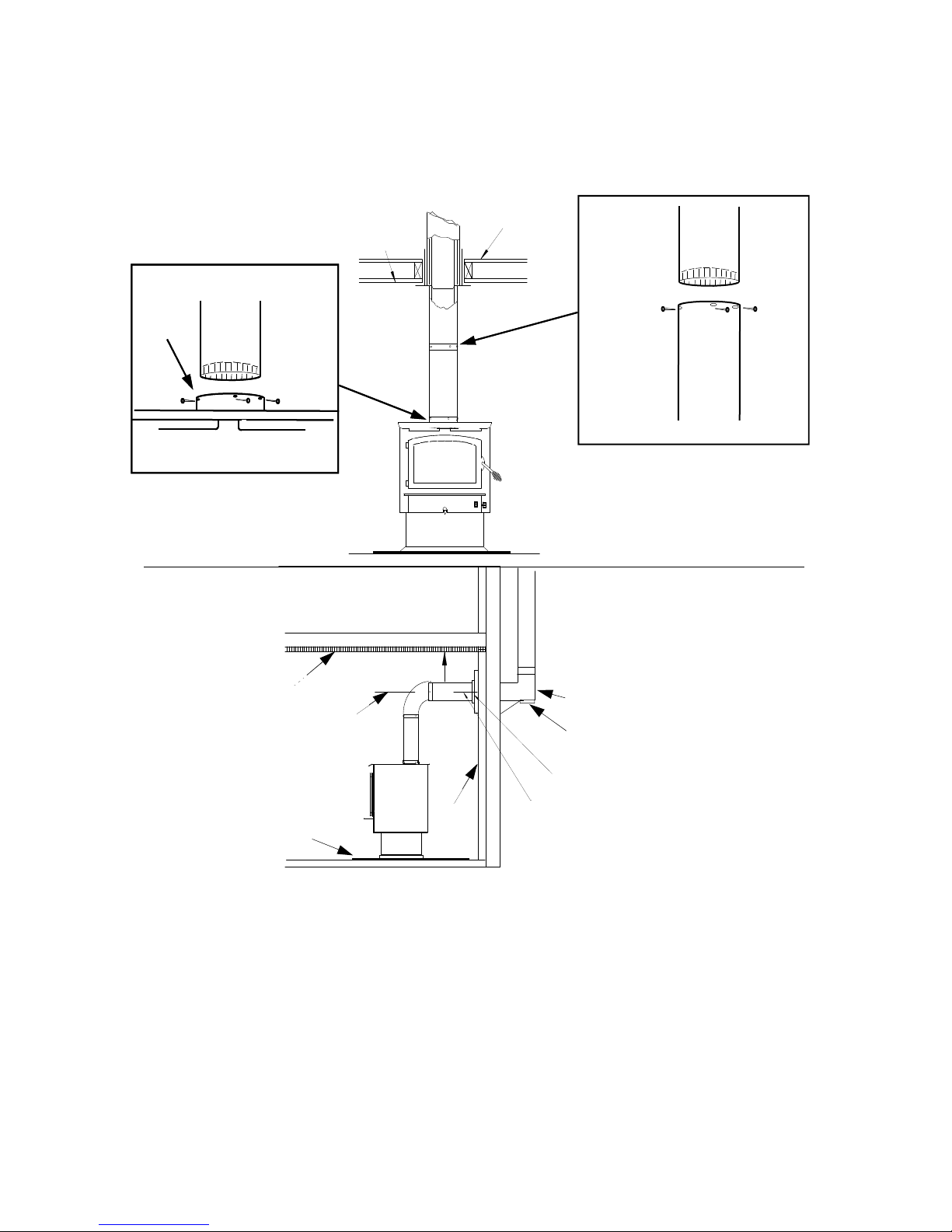

DETERMINING CHIMNEY LOCATION
A. Ceiling Exits: (Using 6" Single Wall Pipe and UL 103 HT type chimney system
listed with manufacturer in this section of manual).
1. Suspend a plumb bob from ceiling above unit so that weight is hanging in center of
flue exit. (A small weight on a string will serve as a plumb bob). Mark ceiling where
string is suspended to locate the center of chimney.
2. After locating center of hole, install ceiling support box, chimney, flashing and rain cap per
chimney manufacturer's instructions.
3. Now connect stove and ceiling support box using #24 ga. minimum blue or black
steel connector pipe (DO NOT USE GALVANIZED PIPE). Connect each section so
crimped end faces downward and secure each section to each other using at least
three (3) sheet metal screws or rivets. Also use three (3) sheet metal screws to fasten pipe
to collar on heater. (See Figure 5. Page 16).

Page 16
B. Wall Exit Into Metal Tee-Box
1. Mark plumb line on the wall directly behind center of heater. (See Figure 6).
NOTE: When using 24# ga. minimum blue or black steel pipe, maintain 18" between pipe
and ceiling.
2. Place vertical portion of heater pipe and elbow in position and project a point onto plumb
line level with center of elbow.
3. Measure up so there will be at least 1/4" rise per foot of horizontal connector pipe,
4. Install Single Wall Connector and chimney system per manufacturer’s written operating in-
structions. See manufacturer’s list of tested pipes in this manual.
ATTIC
CEILING
"TEE" BOX ASSEM.
CENTER LINE
OF ELBOW
MARK PLUMB LINE
WALL
WALL PASS-THROUGH CONNECTOR
18" MIN.
TEE BOX ASSEM.
CLEAN OUT ACCESS
FLOOR PROTECTOR
3 SHEET METAL SCREWS OR RIVETS
CEILING
ROOF
Figure 6
COLLAR
3 SHEET METAL SCREWS
Figure 5
COLLAR
3 SHEET METAL SCREWS

Page 17
maintaining clearances to ceiling as noted in Figure 6. This will give you center of
hole for chimney penetration.
4. After locating center of penetration, install tee box and chimney as per chimney
manufacturer's specifications.
5. Connect chimney collar to tee-box using #24 ga. minimum blued or black steel connector
pipe. (DO NOT USE GALVANIZED PIPE). Connect each section so crimped end faces
downward and secure each section to each other using three (3) sheet metal screws or rivets.
C. Wall Exit Into Masonry (Using Single Wall Pipe)
1. Before connecting these units to a masonry chimney, determine that masonry fireplace
wall pass-through connector thimble meets NFPA-211 Code and local building codes
and is a minimum of 18" from ceiling. If connector thimble does not meet these codes, t
pass-through connector must be modified. (See Figure 7.)
Figure 7
Connectors may pass through walls or partitions constructed of combustible material if
connector is:
(a) Either listed for wall pass-through or is routed through a device listed for wall pass-
through and is installed in accordance with conditions of listing.
(b) Selected or fabricated in accordance with conditions and clearances as stated in
NFPA-211 Code. Any unexposed metal that is used as part of a wall pass-through
system and is exposed to flue gases shall be constructed of stainless steel or other
equivalent material that will resist corrosion, softening, or cracking from flue gases at
temperatures up to 1800oF.

Page 18
NOTE: In addition, a connector to a masonry chimney shall extend through wall to inner
face or liner but not beyond, and shall be firmly cemented to masonry.
EXCEPTION: A thimble may be used to facilitate removal of the chimney connector for
cleaning, in which case the thimble shall be permanently cemented in place with high-
temperature cement.
2. Once through-the-wall thimble codes are met, simply connect chimney collar to wall pass-
through connector using #24 ga. minimum, blued or black steel connector pipe as follows:
(a) Maintain 1/4" rise per foot (horizontal length) from appliance to chimney.
(b) Connect each section so crimped end faces downward or back toward unit.
(c) Secure each section to each other using at least three (3) sheet metal screws or rivets.
(d) Use three (3) sheet metal screws to fasten pipe to connector collar on heater.
D. Ceiling Exit-Close Clearance
1. Suspend a plumb bob from ceiling above unit so that weight is hanging in center of
flue exit. (A small weight on a string will serve as a plumb bob). Mark ceiling where
string is suspended to locate center of chimney hole.
2. After locating center of hole, install ceiling support box, chimney flashing and rain cap.
3. Now connect stove and ceiling support box using #24 ga. minimum blued or black steel
connector pipe. (DO NOT USE GALVANIZED PIPE.) Connect each section so crimped
end faces downward, and secure each section to each other using at least three (3) sheet
metal screws or rivets. Next, install an optional New Buck Corporation chimney
connector to flue exit of the heater or you may use “Ell” brackets to fasten the pipe to
stove. (See Figure 8. Page 19).
4. Install Single Wall Connector and chimney system per manufacturer’s written operating
instructions. See manufacturer's list of tested pipes in this manual.
