BuckMaster 32 User manual

MODEL 32
MAY BE INSTALLED IN A SOLID FUEL BURNING FIREPLACE, AS A
FREESTANDING FIREPLACE OR WITH AN
OPTIONALWOODEN SURROUND
ON
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
 Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
 Do not try to light any appliance.
 Do not touch any electrical switch; do not use any phone in your building.
 Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
 If you cannot reach your gas supplier, call the fire department.
 Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is in-
stalled. Provisions for adequate combustion and ventilation air must be provided. Refer to
section “ Producing Adequate Air For Combustion And Ventilation” page 12.
This appliance may be installed in an aftermarket, permanently located, manufactured
(mobile) home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appli-
ance is not convertible for use with other gases.
Manufacturer: NEW BUCK CORPORATION
P.O. Box 69
200 Ethan Allen Drive.
Spruce Pine, NC 28777
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING: This appliance is equipped for (natural or propane) gas. Field conversion is not
permitted.
VENT-FREE
MANUFACTURED BY
NEW BUCK CORPORATION
200 ETHAN ALLEN DRIVE, PO BOX 69
SPRUCE PINE, N.C. 28777
www.buckstove.com
This appliance is intended for supplemental heating.
Revised January 2011

TABLE OF CONTENTS
Safety Information and Warnings................................................................................................. 3
Solid Fuel Burning Fireplace Installation (FP)............................................................................. 6
Freestanding Installation Without or With Optional Pedestal (FS)............................................. 8
Wooden Surround Installation (WS) .......................................................................................... 10
Mobile Home Installation .......................................................................................................... 11
Producing Adequate Ventilation................................................................................................. 12
Air For Combustion And Ventilation Inside building................................................................ 14
Air For Combustion And Ventilation Outdoors ......................................................................... 15

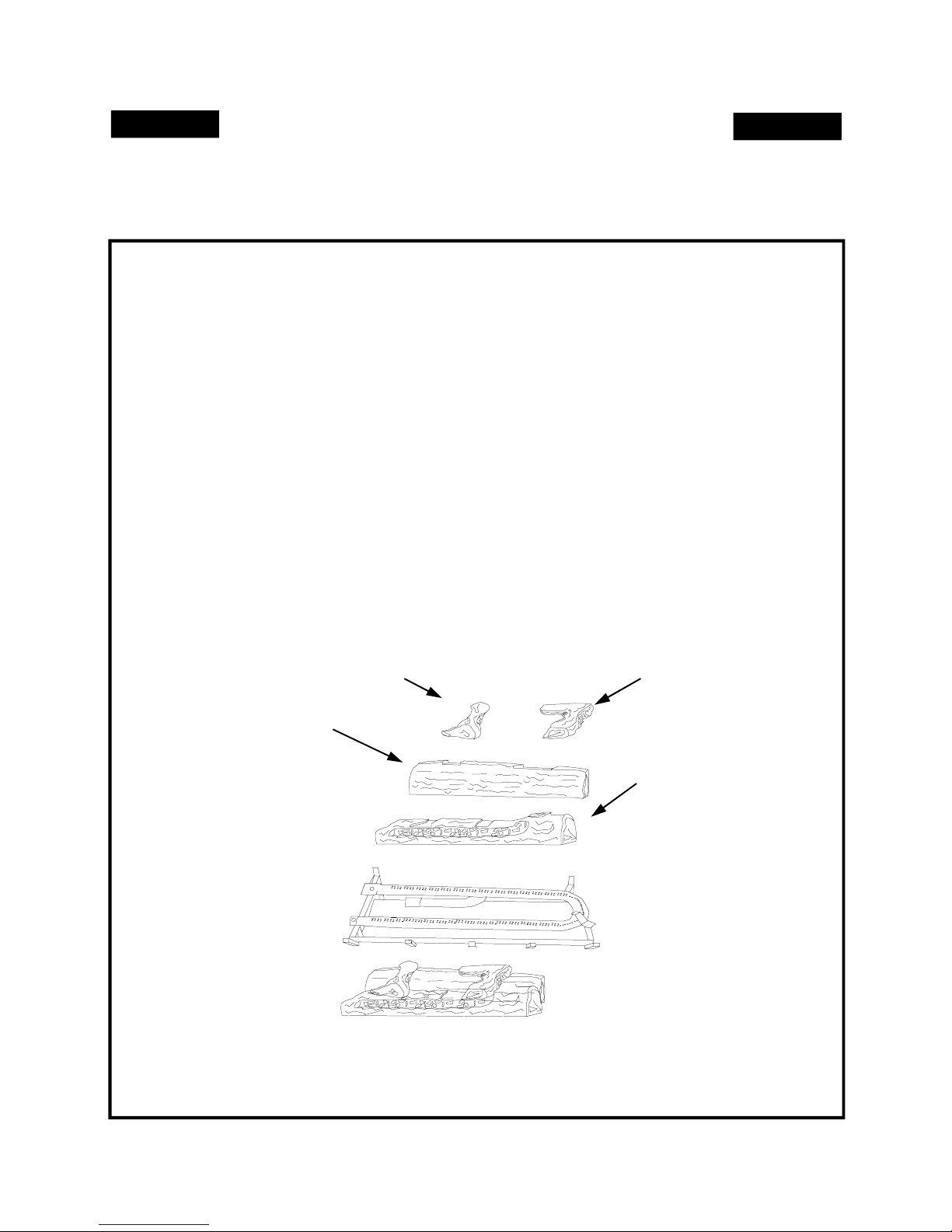

Placement of Logs....................................................................................................................... 16
Gas Connection........................................................................................................................... 17
Gas Pressure Check..................................................................................................................... 18
Lighting Instructions - (ITT) Millivolt Valve............................................................................. 19
Lighting Instructions - (SIT) Modulating or – (SIT) Manual................................................... 23
Flame Check ............................................................................................................................... 27
Wiring Diagram .......................................................................................................................... 28
Important Safeguards.................................................................................................................. 29
Trouble Shooting ........................................................................................................................ 30
Service/Replacement Parts.......................................................................................................... 34
Warranty/Owner Registration...................................................................................... Back Cover

Page 2

Page 3
SECTION I
SAFETY INFORMATION WARNINGS
IMPORTANT: READ THIS OWNER’S MANUAL CAREFULLY AND COMPLETELY
BEFORE TRYING TO ASSEMBLE, OPERATE, OR SERVICE APPLIANCE. IMPROPER
USE OF THESE LOGS CAN CAUSE SERIOUS INJURY OR DEATH FROM BURNS, FIRE,
EXPLOSION AND CARBON MONOXIDE POISONING.
Early signs of carbon monoxide poisoning resemble flu, with headaches, dizziness and/or
nausea. If you have these signs, heater may not be working properly. Get fresh air at once!
Have heater serviced.
Some people-pregnant women, persons with heart or lung disease, anemia, those under
influence of alcohol and those at high altitudes-are more affected by carbon monoxide than
others.
CAUTION: Strong drafts, such as a ceiling fan placed directly in front of heater
(pulling from either direction) may create sooting. Sooting will discolor
walls.
1. The installation must conform with local codes or in absence of local codes, with
National Fuel Gas Code, ANSI Z223.1/NFPA54.
2. This appliance may be installed in an After-Market*Manufactured (Mobile) Home,
where not prohibited by state or local codes.
*(After-Market: Completion of sale, not for purpose of resale from manufacturer.)
This appliance is only for use with type of gas indicated on rating plate.
This appliance is not convertible for use with other gases.
NOTE: “Producing Adequate Air For Combustion And Ventilation” page 12.
IMPORTANT: VENT-FREE HEATERS ADD MOISTURE TO AIR. ALTHOUGH THIS IS
BENEFICIAL, INSTALLING HEATER IN ROOMS WITHOUT ADEQUATE VENTILATION
MAY CAUSE MILDEW TO FORM FROM TOO MUCH MOISTURE.
3. Never install this heater:
 in a recreational vehicle, bathroom, bedroom or any other sleeping quarters
 where curtains, furniture, clothin or other flammable objects are less than 42" from
front of heater
 in high traffic areas or in windy areas
4. Two models are available. One specific model for propane (LP), and one for natural gas.
Use correct type gas for your home. Do not convert from one gas type to another.
NOTE: This appliance complies with ANSI Z21.11.2b-2010 Unvented Room Heater.
“WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE
DANGEROUS.”

Page 4
5. If this heater is used with propane gas, do not place propane supply tank (s) inside any structure.
6. What To Do IF You Smell Gas:
Shut off gas supply.
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor’s phone.
Follow gas supplier’s instructions.
- If you cannot reach your gas supplier, call fire department.
7. When operated for first time, logs may emit a “paper burning” smell. This smell will gradually
diminish and will be totally eliminated after first few hours of operation Do not use blower at this
time.
8. “This heater shall not be installed in unusually tight construction unless provisions are
provided for adequate combustion and ventilation air.” See “Producing Adequate Air For
Combustion And Ventilation”, page 12.
9. Surface of gas logs becomes very hot when operating. Keep children and adults away from hot
surface. Gas logs will remain hot for sometime after shutdown. Allow surface to cool before
touching.
10. Do not place clothing or other flammable material on or near appliance.
11. If equipped, fresh air damper must be closed.
12. Keep appliance area clean and free from combustible materials, gasoline and other flammable
flammable vapors and liquids. .
13. If burner shuts off, do not relight until you provide fresh outside air. If burner continues to shut off,
have unit serviced.
14. Do not use this heater if any part has been under water. Immediately call qualified service
technician to inspect room heater and to replace any part of control system and any gas
control which has been under water.
15. Turn off heater and let cool before servicing.
16. These logs are made of bonded fiber. When removing logs and base, do not damage bonded
material. If material is damaged extensively, loose fiber dust could be emitted into the air.
17. Any safety screen or guard removed for servicing an appliance must be replaced prior to
operating heater.
18. This appliance is intended for supplemental heating only.
19. “WARNING: Any change to this heater or its controls can be dangerous.”
20. Installation and repairs should be performed by a qualified service person. The appliance
should be inspected before use and at least annually by a professional service person. More
frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
It is imperative that control compartments, burners and circulating air passageways of
appliance be kept clean.

Page 5
21. All heater screens must be kept clean when operating gas logs.
22. .”WARNING: Failure to keep primary air opening (s) of burner (s) clean may result
in soot and property damage.”
23. Do not use this heater for burning trash or cooking. Never place matches, paper, garbage or any
other material on top of logs or into flames.
24. Do not install or operate this heater in areas where impurities in air exist (such as tobacco
smoke or heavy cooking grease). Particles from impurities may discolor walls.
25. Due to high temperatures, appliance should be located out of traffic and away from furniture
and draperies.
26. Children and adults should be alerted to hazards of high surface temperature and should stay
away to avoid burns or clothing ignition.
27. Young children should be carefully supervised when they are in the same room with
appliance.
28. An unvented room heater having an input rating of more than 10,000 Btu per hour shall not
be installed in a bedroom or bathroom.
29. The appliance and its appliance main gas valve must be disconnected from gas supply piping
system during any pressure testing of that system at test pressure in excess of 1/2
psi (3.5 kPa).
30. The appliance must be isolated from the gas supply piping system by closing its equipment
shut-off valve during any pressure testing of gas supply piping system at test pressures equal
to or less than 1/2 psi (3.5 kPa).
31. “WARNING: Do not allow fans to blow directly into fireplace. Avoid any drafts that alter
burner flame patterns.”
32. “WARNING: Do not use a blower insert, heat exchanger insert or other accessory not
approved for use with this heater.”
33. Adequate clearances around air openings. Nothing may be placed over any of air openings on
this appliance or can any of air openings be modified in anyway.
34. “Trim panels or surrounds shall not seal ventilation openings in fireplace.”
35. “A fireplace screen must be in place when appliance is operating and unless other provisions
for combustion air are provided, screen shall have opening for introduction of combustion air.

Page 6
MASONRY INSERT INSTALLATION/ SOLID
FUEL BURNING FIREPLACE MODEL 32 (FP)
1. The Model 32 (FP) may be installed in a masonry fireplace.
Minimum fireplace dimensions: 25 1/2" high, 21-1/2" wide, 13" deep.
7"
20"
24"
12"
21-1/2" 25-1/2"
13"
24” TO COMBUSTIBLES
Your new Buck Vent-Free gas heater may be installed in a Residential or *After-Market Mobile
Home, where not prohibited by state or local codes.
*After-Market: Completion of sale. Not for purpose of resale from manufacturer.
This appliance is for use with type of gas indicated on rating plate. Not convertible for use
with other gases.
2. Minimum dimensions sidewall and mantel:
Sidewall-not less than 5" See Figure 1.
Mantel-not less than 16" See Figure 1.
3. Center Model 32 in masonry fireplace. Position front of heater even with front of fireplace
chamber if possible.
4. Place side trim panels flat against fireplace. Draw a vertical reference line along inside
edge of trim panel.
5. Place top trim panel on top of unit. Draw reference line for mounting on lower edge of pane
NOTE: The installer of this appliance must mechanically (peel and stick) attach the marking
supplied with this unvented appliance before installing to inside of firebox of solid-fuel burn-
ing fireplace or listed vent less firebox enclosure into which unvented fireplace insert is in-
stalled. See example of marking on page 18 of this manual.
CAUTION: Cutting any sheet-metal parts of solid-fuel burning fireplace or listed vent less en-
closure in which unvented fireplace is to be installed is prohibited.
NOTE: “If factory-built fireplace has no gas access hole provided an access hole of 1.5 inch
(37.5) diameter or less may be drilled through lower sides or bottom of firebox in a proper
workmanlike manner. This access hole must be plugged with non-combustible insulation after
gas supply line has been installed.”
“Refractory, glass doors, screen rails, screen mesh and solid-fuel log grates (if applicable) can
be removed from the fireplace before installing the unvented fireplace insert.”
“Smoke shelves shields and baffles may be removed if attached by mechanical fasteners.”
42”
LEFT SIDE RIGHT SIDE
FRONT
“WARNING: Before installing in a
solid-fuel burning fireplace, chimney
flue and firebox must be cleaned of
soot, creosote, ashes and loose paint by
a qualified chimney cleaner.”
NOTE: Any outside air ducts and / or
ash dumps in the fireplace shall be per-
manently closed at time of appliance
installation.
“WARNING: Any glass doors shall be
fully opened when appliance is in opera-
tion.”
16”
5”
WALL
CEILING
Figure 1

Page 7
6. Slide unit out and install trim panels with a drill or screw gun. (Self tapping screws
provided).
NOTE: Make sure gas supply line is hooked up at this time and check for leaks at connection
using soap and water.
CAUTION: Do Not use an open flame to check for leaks.
7. Place logs on the burner base as shown on page 16.
8. For gas hookup and pressure tap test, see instructions on pages 17 & 18.
NOTE: When operated for the first time, the logs and paint may emit a “paper burning smell”.
This smell will gradually diminish after a few hours of operation. Run the heater with the flue
damper, windows or doors, open during this time. DO NOT use blower at this time.

Page 8
FREESTANDING INSTALLATION
MODEL 32 (FS)
1. Determine exact location of your gas heater.
NOTE: Due to high temperatures, this heater should be located out of traffic areas and away
from furniture and draperies.
NOTE: For safe installation the minimum clearances must be met. See Figure 2. For floor
protector, see last paragraph, page 8.
CAUTION: THE INSTALLATION MUST CONFORM TO LOCAL CODES. IN ABSENCE
OF LOCAL CODES, INSTALLATION MUST CONFORM WITH NATIONAL FUEL GAS
CODE,ANSI Z223.1/NFPA54.
NOTE: See page 17 for “Gas Connection” and page 18 for “Pressure Check”.
2. Check gas type. Use only type of gas indicated on valve rating plate. If type of gas listed on plate is
not your type of gas supply, DO NOT INSTALL. Contact your dealer for proper model. Position
logs as shown on page 16. Position screen before leaving heater unattended.
WARNING: YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY
ARE IN SAME ROOM AS THE HEATER. DO NOT PLACE CLOTHING OR OTHER
FLAMMABLE MATERIAL ON OR NEAR THE HEATER.
NOTE: When appliance is installed directly on carpeting, tile or other combustible material, other than
wood flooring, appliance shall be installed on a metal or wood panel extending full width and depth of
appliance.
Optional Pedestal (Part#FAP11) Instructions: Lay heater on its back (use a drop-cloth to protect
back of heater and surface of your flooring). Place pedestal against bottom of heater. Center pedestal
from left to right and from front to rear. Mark holes on angle of the top of pedestal onto bottom of heater.
Lay pedestal aside. Drill the marks made onto heater with a
1/8” bite (not provided). Replace pedestal and secure with
screws provided. Next stand heater to upright position. Place
heater in desired location following clearances above in
figure 2. Note: At this point you may need to secure pedestal
to floor with screws or an “ell” bracket (not provided) for
safety concerns. Next hook up gas supply line following in-
structions in this manual completely.
NOTE:
DIMENSIONS SHOWN ARE
MINIMUM CLEARANCE TO
COMBUSTIBLE WALL.
4"
5" 4"
4"
WALL WALL
STOVE
STOVE

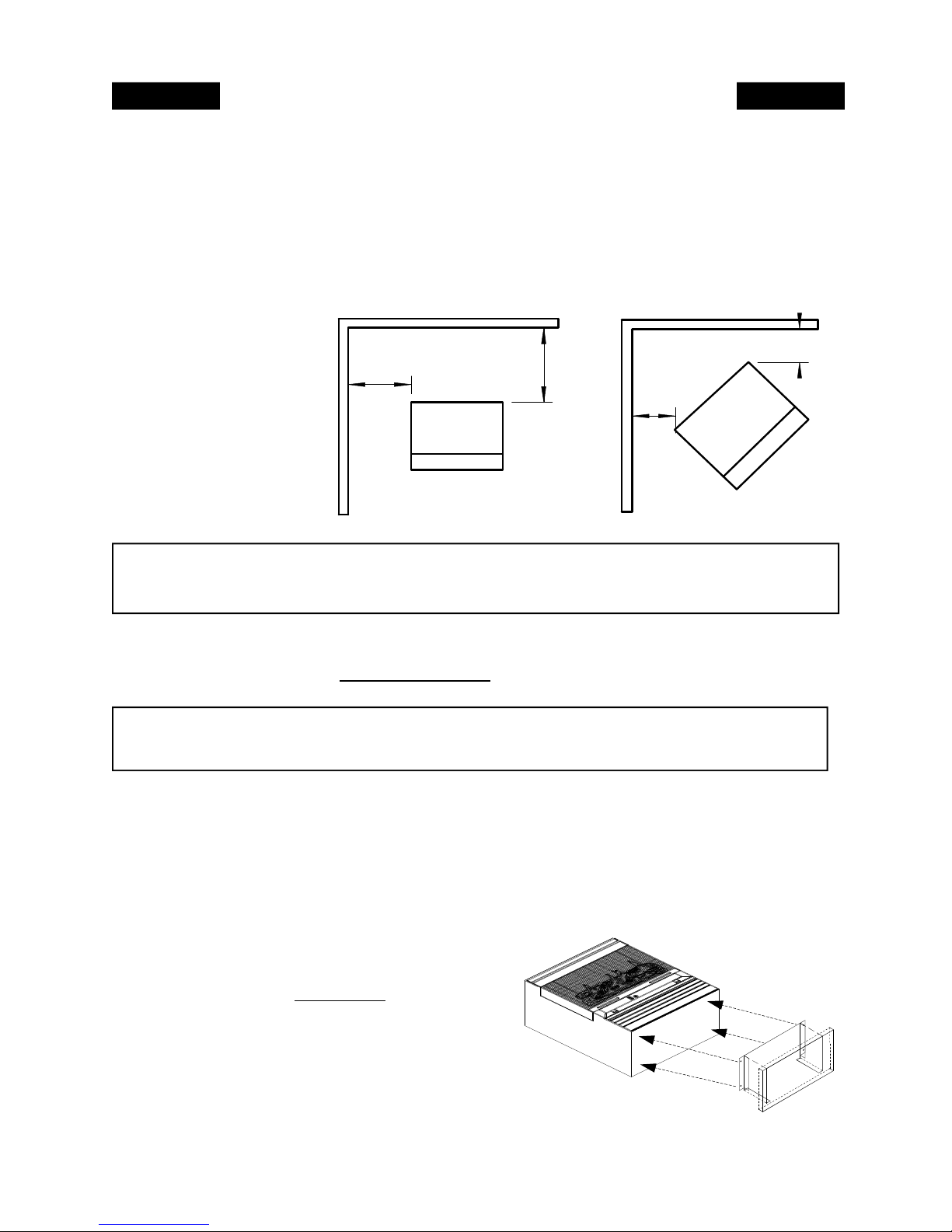

Figure 2
NOTE: Clearance form
top of appliance to ceil-
ing is 42”. (Not shown
in figure 2)

Page 9
ALCOVE INSTALLATION
CAUTION: READ ENTIRE MANUAL BEFORE INSTALLING HEATER.
1. For clearances, see Figure 3. The minimum clearances must be met.
2. For “Installation and Gas Connection”, see page 17.
FOR YOUR SAFETY:
WHAT TO DO IF YOU SMELL GAS
-Do not try to light appliance.
-Do not touch any electrical switch.
-Do not use telephone in building.
-Call your gas supplier immediately, from a neighbor’s phone. Follow gas supplier
instructions.
-If you cannot reach your gas supplier, call Fire Department.
-Do not store or use gasoline or any other flammable vapors or liquids in the vicinity of
this appliance or any other appliance.
WARNING: DO NOT USE THIS ROOM HEATER IF ANY PART HAS BEEN UNDER
WATER. IMMEDIATELY CALL A QUALIFIED SERVICE TECHNICIAN TO INSPECT T
ROOM HEATER AND TO REPLACE ANY PART OF CONTROL SYSTEM AND ANY
GAS CONTROL WHICH HAS BEEN UNDER WATER.
WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE
OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR
LOSS OF LIFE. INSTALLATION AND SERVICE MUST BE PERFORMED BY A
QULIFIED INSTALLER, SERVICE AGENCY OR GAS SUPPLIER.
“WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE
DANGEROUS.”
NOTE: The depth of alcove must allow a 4" minimum clearance at rear. The width of alcove
must allow a 5” clearance on right side and left side. The height of alcove must allow for a
10” clearance form top of heater to ceiling of alcove. The front edge of heater must meet the
front of alcove, and have a minimum of 24” to any combustible material.
NOTE:
DIMENSIONS SHOWN ARE
MINIMUM CLEARANCE TO
COMBUSTIBLE WALL.
FLOOR
PROTECTOR
4"
5"
WALL
STOVE
10"

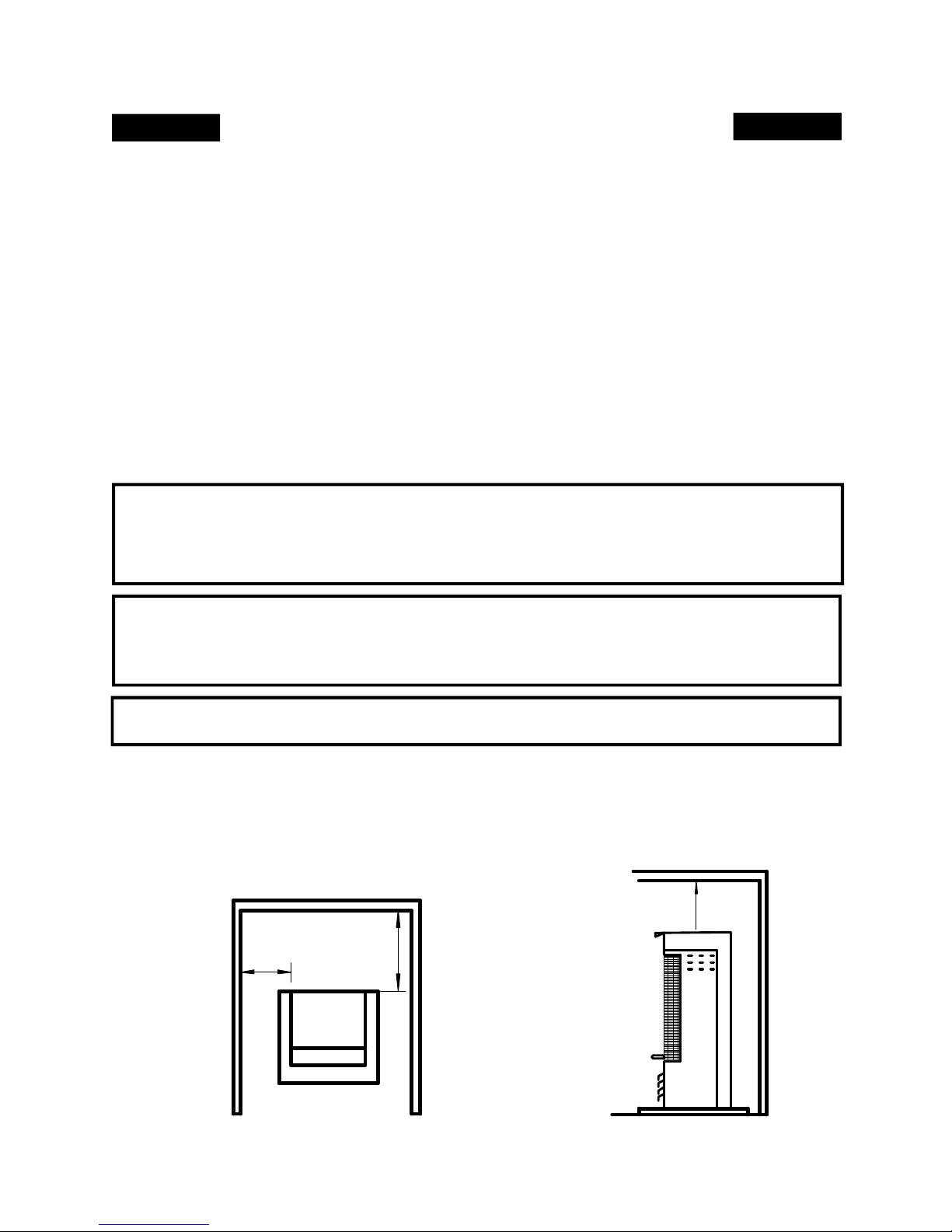

Figure 3

Page 10
5-1/2"
METAL STRIP
ON

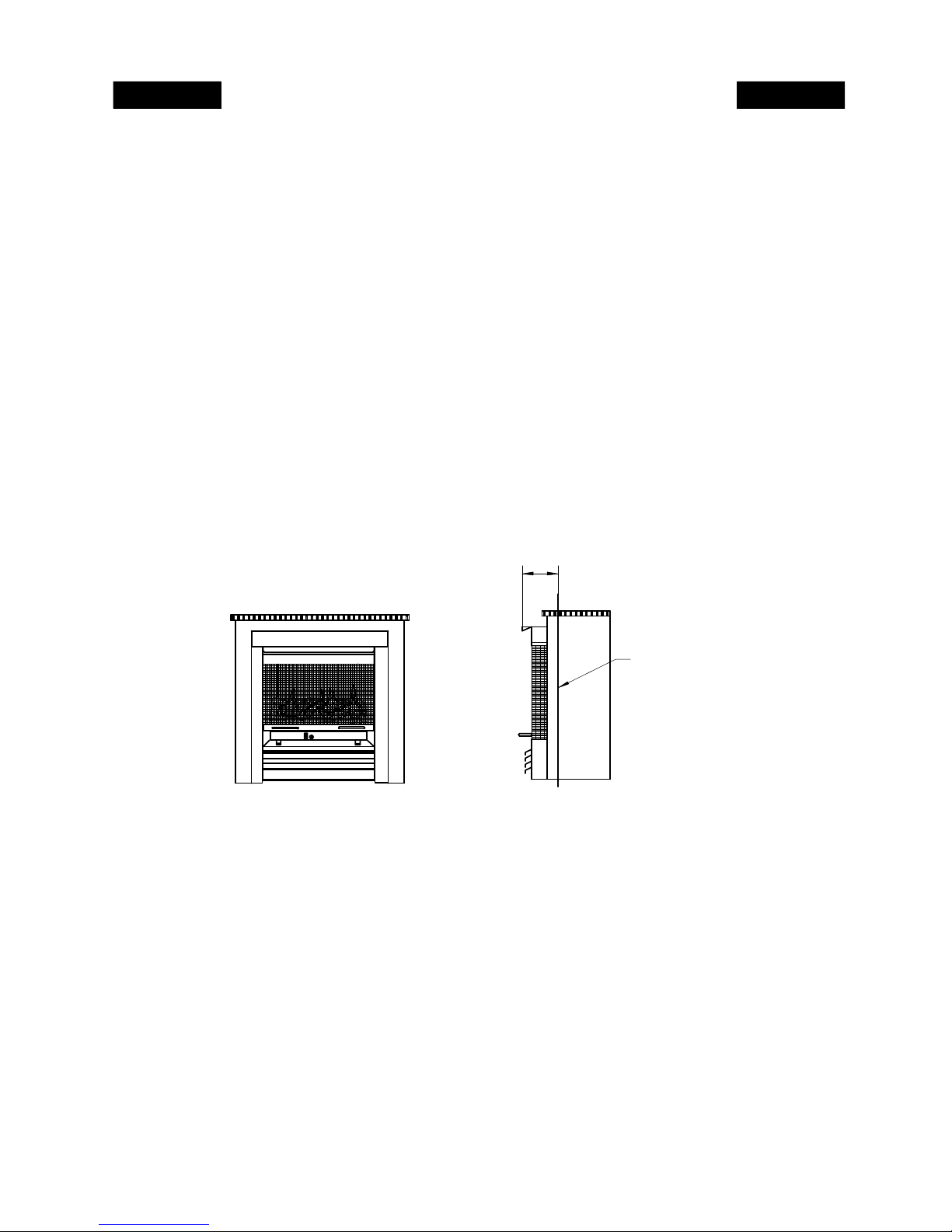

Figure 4
INSTALLATION OF MODEL 32 (WS)
WITH OPTIONALWOODEN SURROUND (KIT#PA-KDM32)
A. Determine desired location for your heater and wooden surround. See “Freestanding Installation”
for minimum clearances.
B To install metal filler strips to surround (after completing step 2 of surround assembly), position
wooden mantel over unit, centering it up in cabinet. Place metal filler strips to side of cabinet,
allowing 1/4" air space between strips and side of cabinet. Make a light pencil mark on strip.
Remove wooden mantel from around cabinet. Align pencil mark with inner edge of cabinet from
back side. Using screws provided with heater, fasten strips to back of mantel.(At this point
complete steps 3 and 4 of surround assembly)
C Make sure wooden mantel is in correct position. Place heater into surround. Connect gas line to
heater, following all instruction in this manual completely
D Make sure you leave 1/4" space between metal filler strip and top and sides of heater. You will
also want to position heater so you have 5 1/2" from outer lip of hot air vent to pieces of metal strips,
not wooden face of mantel. See Figure 4.
NOTE: You will need to heave 1/2" space between back of wooden mantel and an adjacent
combustible wall.
NOTE: If a masonry hearth is built up under front bottom of heater, and you do not use hearth provided
with wooden surround, you must have 12" of non-combustible material from front bottom edge of
heater.
(WS) ASSEMBLY INSTRUCTIONS
Tools Needed: Medium Phillips Screwdriver
Step 1: Lay out all components. (See diagram 1)
Step 2: Assemble end panels (A & B) to top front rail ( C ).(See section “B” above on this page)
Step 3: Stand end panels and top front rail onto hearth and fasten down with screws provided (See dia-
gram 1).
NOTE: Position back of end panels with back of hearth centering assembly from each end. Install front
screws first, then pull back towards inside to square surround (mantel) up. Install screws through back
holes.
Step 4: Place top onto surround, flush with back and equal on each end. Secure both ends and middle
with screws provided.
CONTINUED ON PAGE 11

Page 11
INSTALLATION IN RESIDENTIAL
OR AFTER-MARKET MOBILE HOMES
NOTICE:
A QUALIFIED SERVICE TECHNICIAN MUST INSTALL THIS HEATER. CHECK FOR
STATE AND LOCAL CODES CONCERNING INSTALLATION REQUIREMENTS.
CHECK GAS TYPE:
THIS APPLIANCE IS ONLY FOR USE WITH TYPE OF GAS INDICATED ON RATING
PLATE. THIS APPLIANCE IS NOT CONVERTIBLE FOR USE WITH OTHER GASES.
INSTALLATION SUPPLIES:
Before installing heater, gather following materials:
- external regulator - ground joint union
(supplied by installer for propane) - sediment trap
- piping (check local codes) - tee joint
- manual shutoff valve* - pipe wrench
- test gauge connection* - sealant (resistant to LP gas)
* An C.S.A. design-certified manual shutoff valve with 1/8" NPT tap is an acceptable alternative to test
gauge connection. Purchase optional C.S.A. design-certified manual shutoff valve from your dealer.
WARNING
MAINTAIN THE MINIMUM CLEARANCES SHOWN THROUGHOUT THIS MANUAL. IF
POSSIBLE, PROVIDE GREATER CLEARANCES FROM FLOOR, CEILING AND
ADJOINING WALL.
NOTE:See “Producing Adequate Air For Combustion And Ventilation” page 12.
.THIS APPLIANCE MAY BE INSTALLED IN AN AFTERMARKET*, PERMANENTLY
LOCATED, MANUFACTURED (MOBILE) HOME, WHERE NOT PROHIBITED BY LOCAL
CODES.
*After Market: Completion of sale, not for the purpose of resale from the manufacturer.
EXPLODED VIEW OF MODEL 32 (WS)
WOODEN SURROUND BASE (HEARTH) (SHOWN AS VIEWED FROM REAR OF SURROUND)

Page 12
PRODUCING ADEQUATE AIR FOR
COMBUSTION AND VENTILATION
This section is for residential or manufactured (mobile) installation
“This heater shall not be installed in unusually tight construction or unconfined space unless
provisions are adequate for combustion and ventilation air.”
The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines unusually tight construction or
unconfined space as a space whose volume is less than 50 cubic feet per 1,000 BTU per hour
(4.8m3per kw) of aggregate input rating of all appliances installed in that space and an
unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 BTU per
hour (4.8m3per kw) of the aggregate input rating of all appliances installed in that space.
Rooms communicating directly with space in which appliance are installed, through openings
not furnished with doors, are considered a part of the unconfined space.
“WARNING: IF AREA IN WHICH HEATER MAY BE OPERATED DOES NOT
MEET REQUIRED VOLUME FOR INDOOR COMBUSTION AIR, COMBUSTION
AND VENTILATION AIR SHALL BE PROVIDED BY ONE OF METHODS DE-
SCRIBED IN NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54,INTERNATIONAL
FUEL GAS CODEOR APPLICABLE CODES.”
“WARNING: IF AREA IN WHICH HEATER MAY BE OPERATED IS SMALLER
THAN THAT DEFINED AS AN UNCONFINED SPACE OR IF BUILDING IS OF
UNUSUALLY TIGHT CONSTRUCTION, PROVIDE ADEQUATE COMBUSTION
AND VENTILATION AIR BY ONE OF METHODS DESCRIBED IN NATIONAL
FUEL GAS CODE,ANSI Z223.1/NFPA 54 AIR FOR COMBUSTION AND VENTILA-
TION, OR APPLICABLE LOCAL CODES.”
Unusually tight construction is defined as construction where:
a) Walls and ceilings exposed to outside atmosphere have a continuous water vapor retarder
with a rating of 1 perm (6 x 10-11 kg per pa-sec-m2) or less with openings gasketed or sealed;
b) Weather stripping has been added on openable windows and doors, and
c) Caulking or sealants are applied to areas such as joints around window and door frames,
between sole plates and floors, between wall-ceiling joints, between wall panels, at
penetrations for plumbing, electrical, and gas lines and at other openings.
NOTE: SOME AREAS IN UNITED STATES HAVE HIGHER REQUIREMENTS
FOR CUBIC FEET PER 1000 BTU/ HOUR INPUT. (EX. CINCINNATI, OHIO CODES
REQUIRE 70 CUBIC FEET). CHECK YOUR LOCAL CODE BEFORE
INSTALLATION.
DETERMINING FRESH-AIR FLOW FOR
HEATER LOCATION
DETERMINE IF YOU HAVE UNUSUALLY TIGHT CONSTRUCTION OR UNCONFINED SPACE
Use this worksheet to determine if you have unusually tight construction or unconfined space.
SPACE: Includes the room in which you will install heater plus adjoining rooms with
doorless passageways or ventilation grills between rooms.

Page 13
1. Determine volume of space (length x width x height).
Length x Width x Height =_________cu.ft.(volume of space)
EXAMPLE: 20 ft.(Length) x 16 ft.(Width) x 8 ft.(ceiling Height)=
2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add volume
of these rooms to total volume of space.
2. Divide the space volume by 50 cubic feet to determine maximum BTU/Hr space
can support.
_________(volume of space)/50 cu. ft. =maximum BTU/Hr the space can support)
EXAMPLE: 2560 cu. ft. (volume of space /50 cu. Ft .= 51.2 or
51200 (maximum BTU/Hr the space can support)
3. Add BTU/Hr of all fuel burning appliances in space.
Vent-free heater _______________BTU/Hr
Gas water heater* _______________BTU/Hr
Gas furnace _______________BTU/Hr
Vented gas heater _______________BTU/Hr
Gas fireplace logs _______________BTU/Hr
Other gas appliances* + _______________BTU/Hr
Total = _______________BTU/Hr
Example: Gas water heater 40000 BTU/Hr
Vent-free heater + 18000 BTU/Hr
Total = 58000 BTU/Hr
*Does not include direct-vent gas appliances. Direct-vent draws combustion air
from outdoors and vents to outdoors.
4. Compare maximum BTU/Hr the space can support with actual amount of BTU/Hr
used.
____________BTU/Hr (maximum the space can support)
____________BTU/Hr (actual amount of BTU/Hr used)
Example: 51200 BTU/Hr (maximum the space can support)
58000 BTU/Hr (actual amount of BTU/Hr used)
The space in above example is a unusually tight construction because actual BTU/Hr used
is more than maximum BTU/Hr space can support. You must provide additional fresh
air. Your options are as follows:
A. Rework worksheet, adding space of an adjoining room. If the extra space provides an
unconfined space, remove door to adjoining room or add ventilation grills between
rooms. See “Ventilation Air From Inside Building”, page 21.
B. Vent room directly to outdoors. See “Ventilation Air From Outdoors”, page 22.
C. Install a lower BTU/Hr heater, if lower BTU/Hr size makes room unconfined.
If actual BTU/Hr used is less than maximum BTU/Hr space can support, space is an
unconfined space. You will need no additional fresh air ventilation.
WARNING:
YOU MUST PROVIDE ADDITIONAL VENTILATION AIR IN UNUSUALLY TIGHT
CONSTRUCTION

Page 14
AIR FOR COMBUSTION AND
VENTILATION INSIDE BUILDING
This fresh air would come from an adjoining unconfined space. When venting to an adjoining
space, you must provide two permanent openings: one within 12" of the ceiling and one within
12" of floor on wall connecting two spaces. (See Options 1 and 2, Figure 5). You can also
remove door into adjoining room. (See Option 3, Figure 5).
WARNING
REWORK WORKSHEET, ADDING SPACE OF ADJOINING UNCONFINED SPACE.
THE COMBINED SPACES MUST HAVE ADEQUATE AMOUNT OF AIR TO SUPPLY
ALL APPLIANCES IN BOTH SPACES.
NOTE: Each opening shall have a minimum free area of 1 square inch per 1000 BTU’s per
hour of total input ratings of all gas utilization equipment in confined space, but not less than
100 square inches.
Figure 5: Ventilation Air From Inside Building
NOTE: Drill holes on bottom of pedestal base on each corner. Unit must be fastened to floor
with screws.

Page 15
AIR FOR COMBUSTION AND
VENTILATION OUTDOORS
Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent
openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items
directly to the outdoors. These spaces include attics and crawl spaces. Follow National Fuel
Gas Code NFPA 54/ANSI Z223.1, Section 4.3, “Air For Combustion and Ventilation” for
required size of ventilation grills or ducts. See Figure 6.
IMPORTANT: Do not provide openings for inlet air into attic if attic has a thermostat-
controlled power vent. Heated air entering the attic will activate the power unit.
Figure 6: Ventilation Air From Outdoors
WARNING
THIS HEATER MUST HAVE ADEQUATE AMOUNT OF AIR FOR PROPER
OPERATION. IF NOT, POOR FUEL COMBUSTION COULD RESULT. READ THE
FOLLOWING INSTRUCTIONS TO ENSURE PROPER AMOUNT OF AIR FOR THIS
AND OTHER FUEL-BURNING APPLIANCES IN YOUR HOME.

Page 16
PREPARING LOG KIT
Open cartons containing Burner Base and M-3019 logs. The logs are numbered
as follows: (1) Front, (2) Rear, (3) Right side top, (4) Left side top.
WARNING: POSITIONING OF LOGS IS VERY CRITICAL (SEE FIGURE 7).
(1) POSITION REAR LOG (#2) , IN REAR LOG HOLDERS, CENTERING LEFT TO
RIGHT.
(2) PLACE FRONT LOG (#1) OVER FRONT PART OF BURNER TUBE. LOCATE LOG
IN CENTER OF BURNER BASE. MAKE SURE MIDDLE SUPPORT LEG OF
FRONT LOG IS IN HOLDERS LOCATED IN CENTER OF BURNER BASE, JUST
BEHIND FRONT PART OF BURNER TUBE.
(3) TAKE RIGHT TOP LOG (#3) AND PLACE IT IN SLOTS LOCATED AT RIGHT
SIDE OF FRONT AND REAR LOGS, FACING BURNER BASE.
(4) PLACE LEFT TOP LOG (#4) IN SLOTS OF LEFT FRONT AND REAR LOGS.
(5) WHEN IGNITING BURNER, CHECK AND MAKE SURE FLAME IS NOT TOUCHING
EITHER SIDE OF LOG (#3), OR LOG (#4). IF FLAME IS TOUCHING LOGS ON
EITHER SIDE, MOVE SLIGHTLY TO LEFT OR RIGHT TO ELIMINATE FLAME
FROM TOUCHING EITHER LOG.
Figure 7
WARNING: Failure to position parts in accordance with these diagrams or failure to use only
parts specifically approved with this heater may result in property damage or personal injury.
TOP LEFT TOP RIGHT
REAR LOG
FRONT LOG

Page 17
GAS CONNECTION
Check gas type. Use only type of gas indicated on valve rating plate. If gas type listed on
plate is not your type of gas supply, DO NOT INSTALL. Contact your dealer for proper
model.
Always use an external regulator for all LP heaters to reduce the supply tank pressure to a
maximum of 14" W.C. This is in addition to regulator furnished with heater.
WARNING: CONNECTION DIRECTLY TO AN UNREGULATED LP TANK CAN
CAUSE AN EXPLOSION.
The normal gas connection is 3/8" N.P.T. made at left side (facing front of appliance) of
appliance. If a right side connection is desired, connecting pipe may be led under the rear of
burner base to terminate at right hand side for connection at inlet of valve.
NOTE: The connecting pipe must be internally tinned copper tubing for use with natural gas. Test for
leaks using a solution of soap and water after completing connection. DO NOT USE OPEN FLAME.
WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE
DANGEROUS.
NOTE: “If factory-built fireplace has no gas access hole provided, an access hole of 1.5 inch
(37.5mm) diameter or less may be drilled through lower sides or bottom of fire box in a proper
workmanlike manner. This access hole must be plugged with non-combustible insulation after gas
supply line has been installed.”
WARNING: Installation and repairs should be performed by a qualified service person. The
appliance should be inspected before use and at least annually by a professional service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of
appliance be kept clean.

Page 18
GAS PRESSURE CHECK
Check inlet pressure to burner to ensure that it is shown in table below.
NOTE: The pressure check point is located on right side of valve facing burner, for SIT
Millivolt and left side for SIT Modulating.
The appliance and its appliance main gas valve must be disconnected from gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2
psi (3.5kPa).
The appliance must be isolated from gas supply piping system by closing its equipment shut-off
valve during any pressure testing of gas supply piping system at test pressures equal to or less
than 1/2 psi (3.5 kPa).
VALVE (MILLIVOLT) (SIT MANUAL-MODULATING)
MODEL: FP32 FP32 FP32 FP32
GAS Natural Propane Natural Propane
Maximum Heat Input 33,000 33,000 33,000 33,000
Minimum Heat Input 23,000 23,000 12,000 13,000
Gas Inlet Pressure
Maximum 10.5ins.W.C. 13ins.W.C. 10.5ins.W.C. 9.0ins.W.C.
Minimum * 5.0ins.W.C. *11ins.W.C. *5.0ins.W.C. *11ins.W.C.
Manifold Pressure
Maximum 3.5ins.W.C. 9.0ins.W.C. 3.5ins.W.C. 9.0ins.W.C.
Minimum 3.0ins.W.C. 8.2ins.W.C. 2.8ins.W.C. 7.2ins.W.C.
NOTE: On initial installation it may be necessary to bleed out air in gas lines. Do this by
holding control knob and turning knob to “PILOT” position for about 30 seconds.
To check regulator pressure, remove pressure tag plug at left side of regulator facing heater.
The pressure should be checked with heater burning and control set on high. After measuring
pressure, replace pressure tap plug, ensuring that there are no leaks.
* For purpose of minimum input adjustment.
WARNING
This appliance is equipped for (natural or propane) gas.
Field conversion is not permitted.
Solid fuels shall not be burned in same fireplace where an unvented room heater has been
installed.
NOTE: The following label has been provided with this appliance and must be read and
then attached to floor of fireplace or firebox area beneath appliance. The label is
a peel and stick label. Make sure the area is cleaned before attaching the label to it.
“WARNING: This solid-fuel burning fireplace or listed ventless enclosure has been
converted for use with an unvented fireplace insert only. A solid-fuel burning
fireplace cannot be used for burning wood or solid fuels unless all original parts
have been replaced, and fireplace re-approved by authority having jurisdiction. A
vent less firebox enclosure cannot be used with an unvented gas log unless all
original parts have been replaced and vent less firebox enclosure re-approved by
authority having jurisdiction.”
