BuckMaster ZCBB VENTLESS User manual

BUCK STOVE MODEL ZCBB VENTLESS
FIREBOX ENCLOSURE FOR GAS-FIRED
DECORATIVE TYPE UNVENTED ROOM HEATERS
FOR USE WITH OPTIONALWOODEN FLUSH MOUNT
MANTEL (FF) AND OPTIONAL WOODEN SURROUND (WS)
INSTALLER: Leave this manual with appliance.
CONSUMER: Retain this manual for future reference.
(UNIVERSAL BOX)
Carefully review instructions supplied with decorative type unvented room
heater for minimum fireplace size requirement.
DO NOT INSTALL AN APPLIANCE IN THIS FIREBOX
UNLESS THIS FIREBOX MEETS MINIMUM
DIMENSIONS REQUIRED FOR INSTALLATION
WARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
FOR USE ONLY WITH A LISTED GAS-FIRED UNVENTED DECORATIVE ROOM
HEATER NOT TO EXCEED 40,000 BTU/H. DO NOT BUILD A WOOD FIRE
Revised January 2013
MANUFACTURED BY NEW BUCK
CORPORATION
200 ETHAN ALLEN DRIVE, PO BOX 69
SPRUCE PINE, N.C. 28777
www.buckstove.com

Page 1
TABLE OF CONTENTS
Safety Information and Warnings..........................................................................................................3
Installation..............................................................................................................................................5
Firebox and Framing Dimensions (ZC) (FF).........................................................................................6
Firebox Clearances (ZC) (FF)................................................................................................................7
Finishing Your Firebox.......................................................................................................................... 8
Mantel Profiles For Zero Clearance.......................................................................................................9

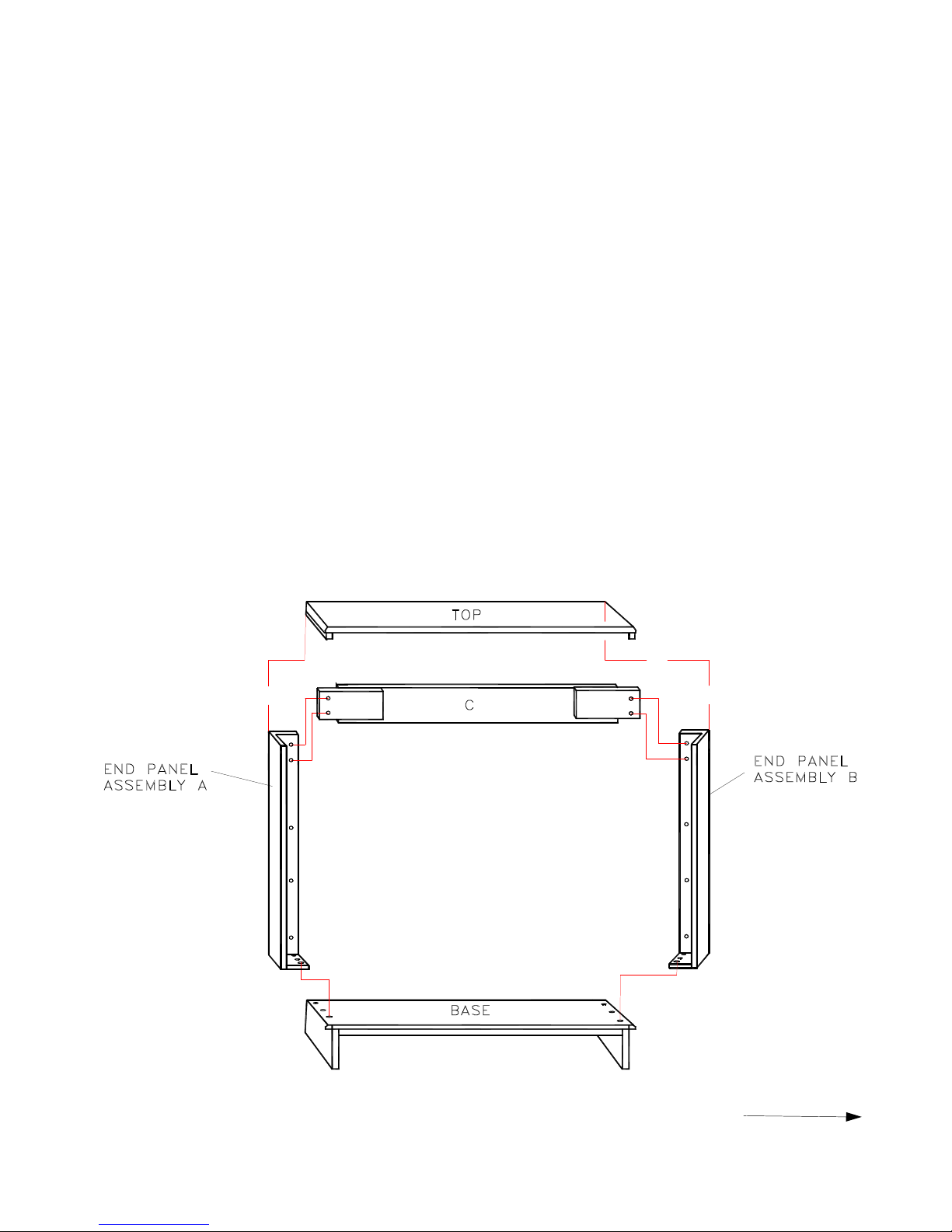

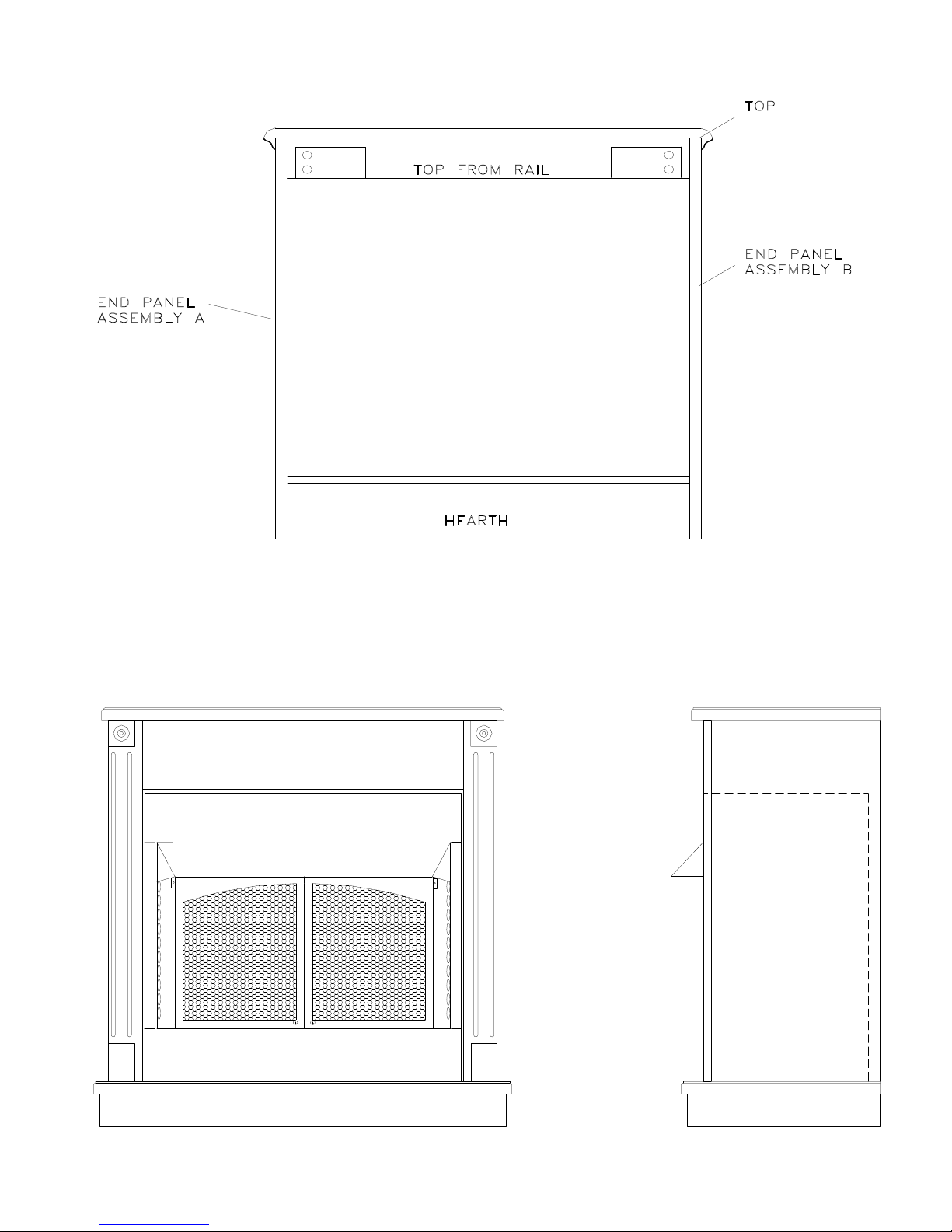

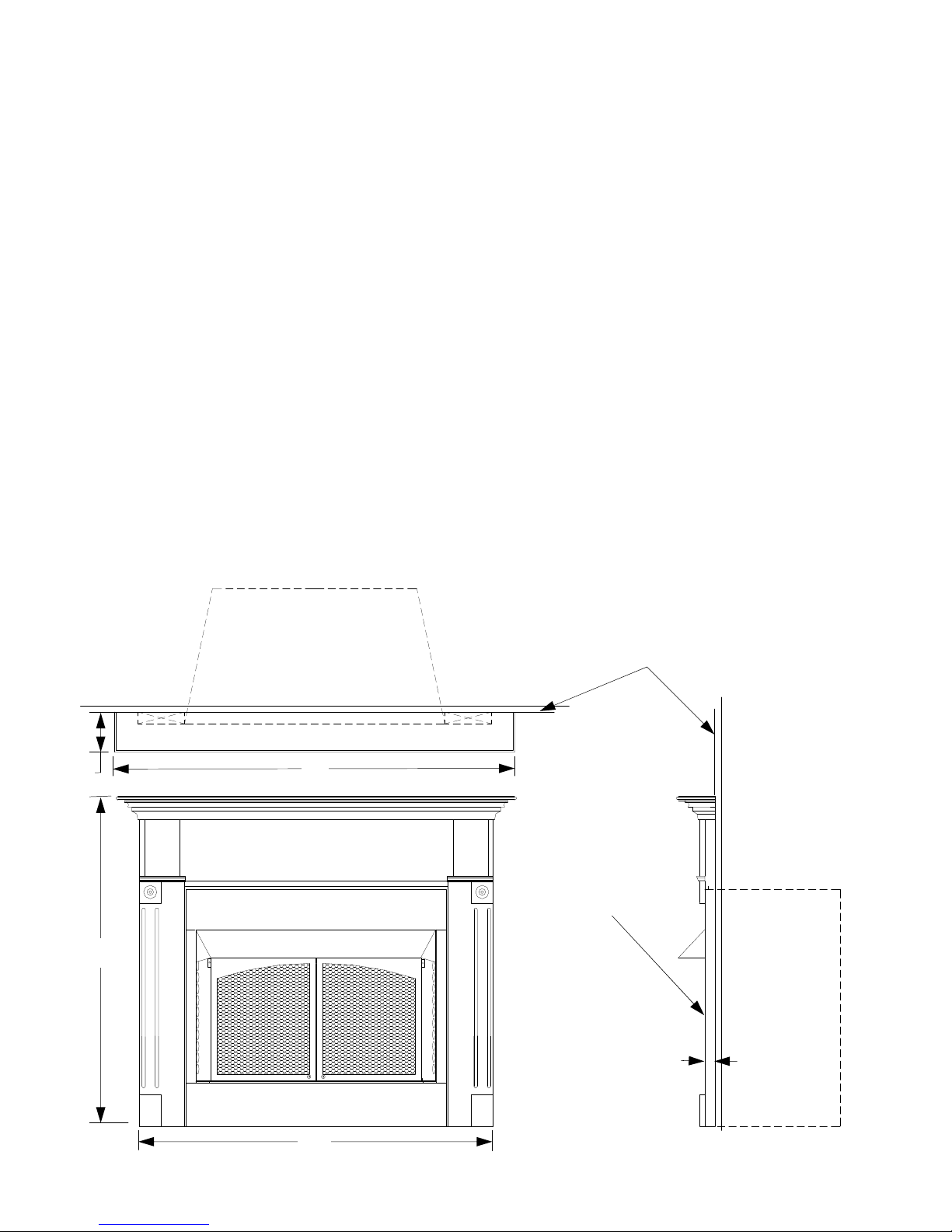

Optional Wooden Flush Mount Mantel Front (FF) .............................................................................10
Optional Wooden Surround (WS) .......................................................................................................11
Producing Adequate Ventilation.......................................................................................................... 13
Air For Combustion and Ventilation from Inside Building................................................................15

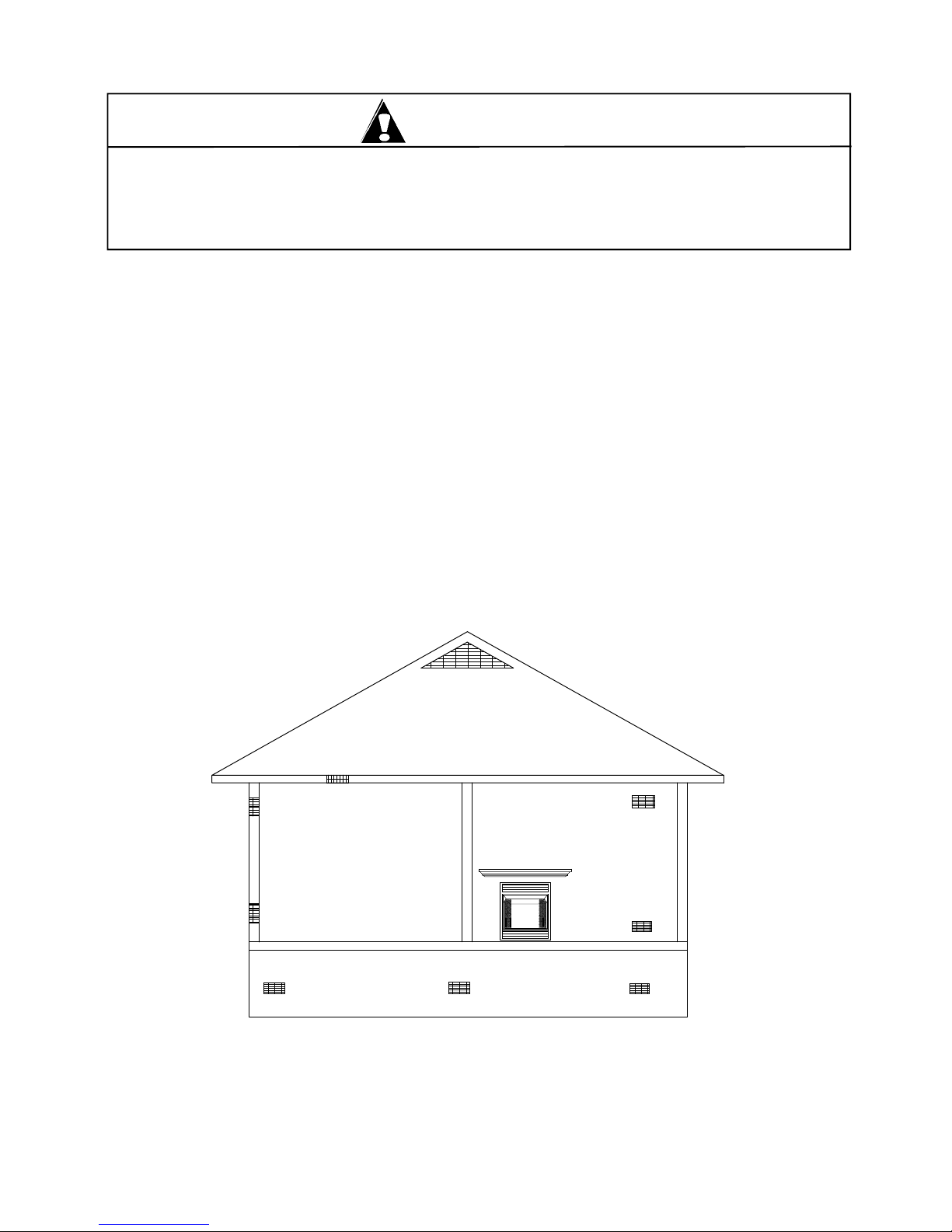

Air For Combustion and Ventilation from Outdoors...........................................................................16

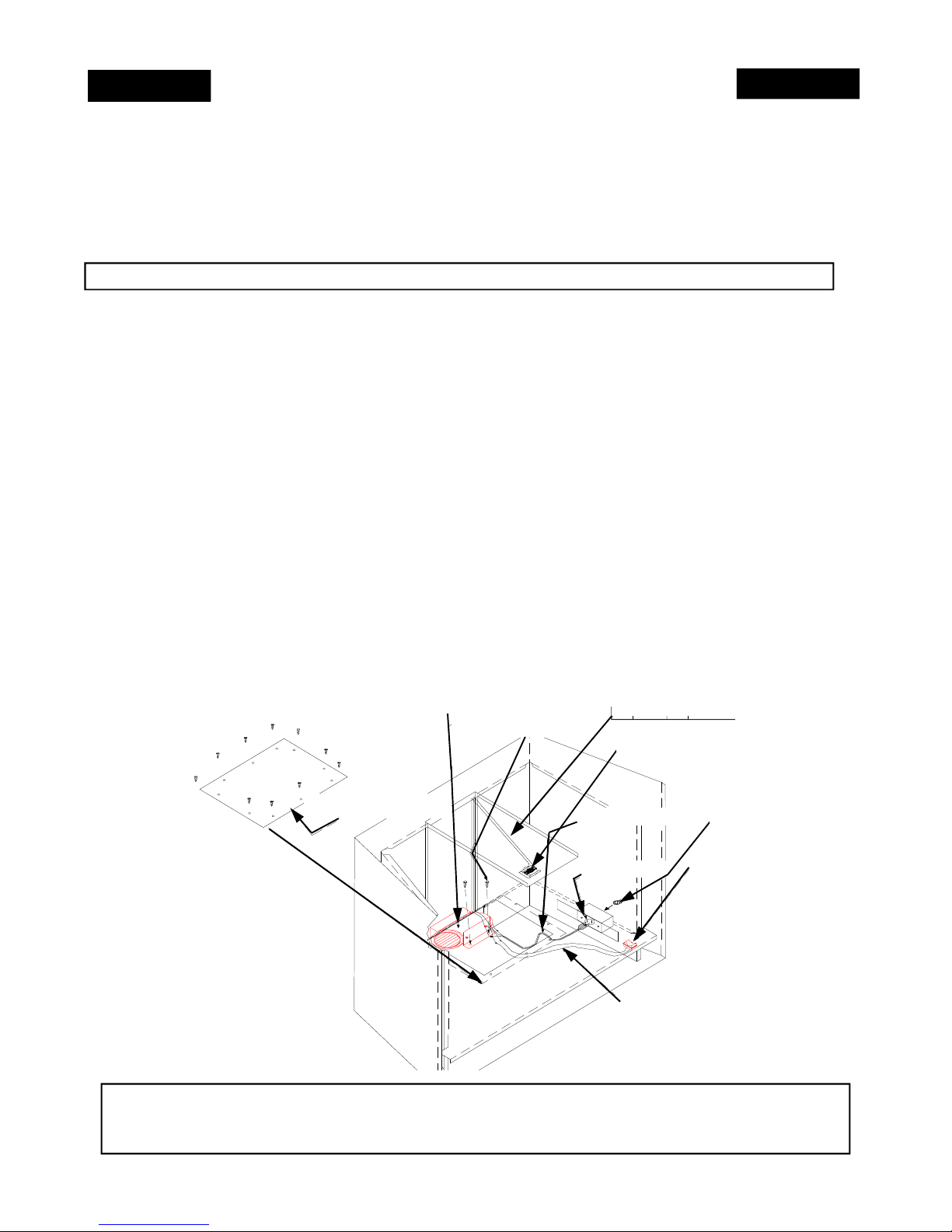

Optional Blower Installation................................................................................................................17

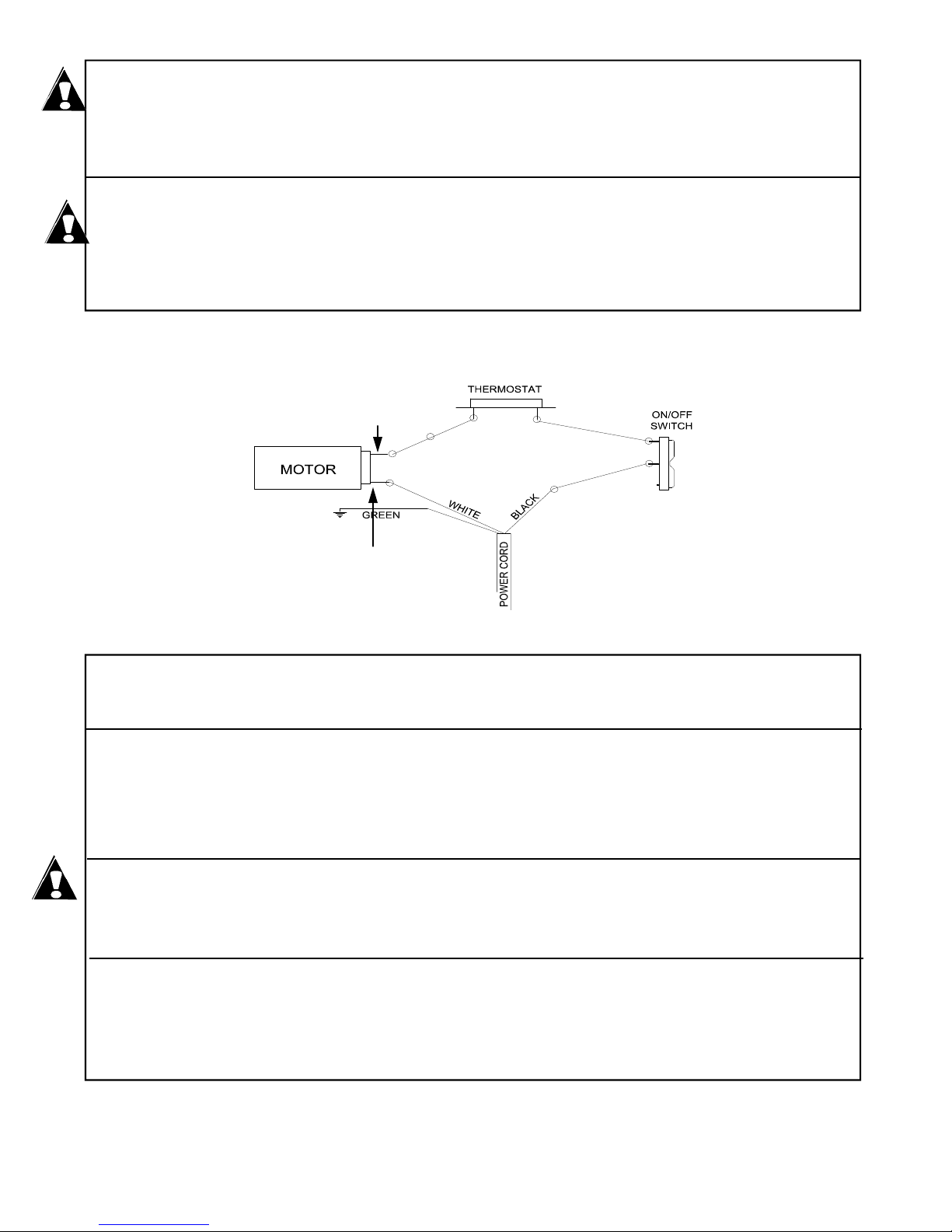

Wiring Diagram ...................................................................................................................................18
Replacement Parts................................................................................................................................19
Warranty .............................................................................................................................................. 20
Owner Registration..............................................................................................................................21

Page 3
SAFETY INFORMATION
WARNINGS
IMPORTANT: READ THIS OWNER’S MANUAL CAREFULLY AND COMPLETELY
BEFORE TRYING TO ASSEMBLE, INSTALL, OPERATE OR SERVICE THIS APPLIANCE
(FIREBOX ENCLOSURE).
Early signs of carbon monoxide poisoning resemble flu, with headaches, dizziness and/or nausea. If
you have these signs, heater may not be working properly. Get fresh air at once! Have heater
serviced.
Some people-pregnant women, persons with heart or lung disease, anemia, those under influence of
alcohol and those at high altitudes are more affected by carbon monoxide than others.
CAUTION: Strong drafts, such as a ceiling fan placed directly in front of heater (pulling
from either direction) may create sooting. Sooting will discolor walls.
1. The installation must conform with local codes or in absence of local codes, with
National Fuel Gas Code, ANSI Z223.1/NFPA54.
2. This appliance may be installed in an After-Market*Manufactured (Mobile) Home,
where not prohibited by state or local codes.
*(After-Market: Completion of sale, not for purpose of resale from manufacturer.)
3. “This heater shall not be installed in a confined space or unusually tight construction unless
provisions are provided for adequate combustion and ventilation air..” See Page 10, for
“Producing Adequate Ventilation”.
4. Any safety screen or guard removed for servicing an appliance must be replaced prior to
operating heater. This appliance (vent less firebox enclosure) is manufactured with fireplace
screens and you must close any fireplace screens before operation of decorative type unvented
room heater.
5. Do not use this heater for burning trash or cooking. Never place matches, paper, garbage or any
other material on top of logs or into flames.
6. “WARNING: Do not use a blower insert, heat exchanger insert or other accessory not
approved for use with this heater.”
7. “Fireplace canopy must not be modified or replaced with a canopy that may be provided
with unvented decorative room heater.”
8. This universal box has been tested, listed and certified to ANSI Z21. 91-2007 Vent less Firebox
Enclosures for Gas-Fired Unvented Decorative Room Heaters.

Page 4
NOTE: THIS IS A VENTLESS FIREBOX ENCLOSURE (UNIVERSAL)
FOR GAS FIRED DECORATIVE TYPE UNVENTED ROOM HEATERS.
IT WILL ACCEPT ANY GAS LOGS UP TO 40,000 BTU’S AS LONG AS
LOGS WILL FIT. YOU MUST MEET MINIMUM CLEARANCES
SPECIFIED IN INSTRUCTION MANUAL. FAILURE TO FOLLOW
INSTALLATION INSTRUCTIONS WILL VOID WARRANTY.
WARNING
THIS HEATER SHALL NOT BE INSTALLED IN UNUSUALLY
TIGHT CONSTRUCTION SPACE UNLESS PROVISIONS ARE
MADE FOR ADEQUATE COMBUSTION AND VENTILATION AIR.
”See Page 10, for “Producing Adequate Ventilation”.
WARNING
DO NOT USE A BLOWER INSERT, HEAT EXCHANGER INSERT
OR OTHER ACCESSORY NOT APPROVED FOR USE WITH THIS
HEATER.
LEFT
SIDE RIGHT
SIDE
CANOPY
ZCBB (FRONT) TOP FRONT PANEL
DOORS
BOTTOM PANEL
FRONT SIDE PANELS

Page 5
INSTALLATION
Your New Buck Ventless Firebox Enclosure may be installed in Residential or *After-Market
Manufactured Mobile Homes. This appliance may be installed in an *After Market Manufactured
Mobile Home, where not prohibited by state or local codes.
* (After Market: Completion of sale, not for purpose of resale from manufacturer).
NOTE: See page 13, for “Producing Adequate Ventilation”.
CHOOSING LOCATION FOR YOUR FIREBOX
Figure 1 shows some of many ways your firebox may be installed. Consider traffic pattern in your
room and location of doors and windows. Moving air from ceiling fans, open doors and hot air grills
may cause flames to impinge logs resulting in sooting. If a disturbance is found that affects flames, it
must be eliminated by turning off ceiling fan, closing door or closing hot air register. A corner
location may be best where space is limited.
Your Ventless Firebox Enclosure weighs no more than some of your fine furniture. If firebox is
located near a load bearing wall, additional supports to foundation will not be necessary. HEAVY
FACINGS, SUCH AS BRICK, STONE, ETC., MAY REQUIRE ADDITIONAL FOUNDATION
SUPPORT.
NOTE: WHEN FIREBOX IS INSTALLED DIRECTLY ON CARPETING, TILE OR OTHER
COMBUSTIBLE MATERIALS, OTHER THAN WOOD FLOORING, FIREBOX SHALL BE
INSTALLED ON A METAL OR WOOD PANEL EXTENDING FULL WIDTH AND DEPTH
OF ENCLOSURE.
GAS LINE
The gas supply line and electrical supply must be
installed before framing in fireplace by a licensed
installer. This appliance when installed, be electrically
grounded in accordance with local codes or in absence
of local codes, with National Electrical Code, ANSI \
NFPA 70.
DRAFTS
Do not locate fireplace in high traffic areas or areas
exposed to high drafts and winds. Locate fireplace
away from furniture and draperies.
ROOM DIVIDER
PARTIAL ROOM PROJECTION
FULL ROOM PROJECTION
FLUSH
CORNER
Figure 1

Page 6

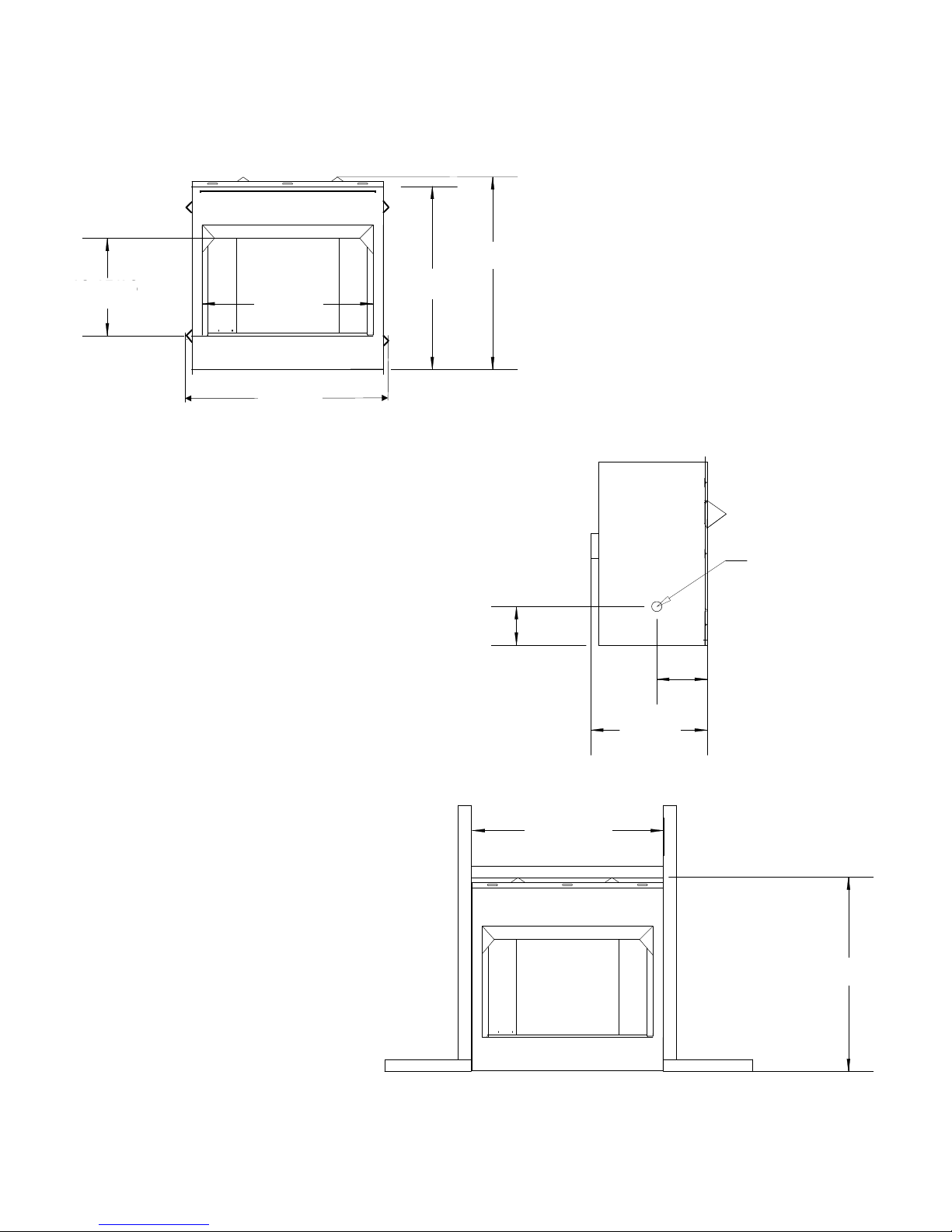

FIREBOX AND FRAMING DIMENSIONS (ZC) & (FF)
NOTE: SEE PAGE 10 IF AN OPTIONAL WOODEN FLUSH MOUNT MANTEL FRONT
(FF) IS TO BE USED.
36-5/8"
37-5/16"
Figure 2
39 3/8"
38 1/8"
33-1/8"
18-15/16" 35-5/8" 36-5/8"
39 3/8"
35 1/2"
20 1/2" 36 3/16"
38 1/8"
40 7/8”
WARNING: NOTCHING OF FRAM-
ING AROUND THE STANDOFFS
(SPACERS) OR ALTERATION OF
THE STANDOFFS CAN CAUSE A
FIRE OR MAY RESULT IN PROP-
ERTY DAMAGE, PERSONAL IN-
JURY OR LOSS OF LIFE.
WARNING: INSULATION OR OTHER
MATERIALS MUST NOT BE PLACED
AROUND OR THE FIREBOX, FILLING
THE SPACES AROUND THE FIREBOX
CAN CAUSE A FIRE OR MAY RESULT
IN PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE .
GAS LINE
19 3/8"
8 1/16"
10 1/4"
Figure 2
20 1/4"
11 1/4"
NOTE: YOUR NEW BUCK RPORATION
VENTLESS FIREBOX ENCLOSURE IS
EQUIPPED WITH A FACTORY
INSTALLED CANOPY. IT MAY NOT BE
REPLACED WITH ANY OTHER
MANUFACTURER’S CANOPY.

Page 7
Figure 3
FIREBOXCLEARANCES
Fireboxmaybeplaceddirectlyonacombustiblefloor,
againstacombustiblewall atmarkedclearancesorona
raisedwoodenplatform.
If firebox is to be installed on a raised wooden platform,
platform must be a continuous level surface. The firebox
mustbesecuredinplacesoitcannotshiftpositions.
Only header(seeFigure3)mayrestonstandoffsontopof
firebox. When firebox is installed over carpeting, vinyl tile
or any combustible material other than wood flooring, it
must be installed on a metal or wood panel extending its
full width and depth. Alternatively, carpeting, vinyl tile,
etc.mayberemovedbeneath
INSTALLING FIREBOX
This list of specific instructions will help you make certain that
every installation operation is performed correctly. Complete
installationstepsinsequenceshown.
LOCAL BUILDING CODES SHOULD BE CONSULTED IN
ALL CASES AS TO PARTICULAR REQUIREMENTS
CONCERNING INSTALLATION OF FACTORY BUILT
FIREBOXES. Select location for firebox by taking into
consideration factors previously outlined in the “Choosing
Location.” Seepage5. Framing Firebox
The width of framed opening must be 40 7/8". The height of
framed opening must be 38 1/8". The entire firebox can be
elevated above floor to achieve a raised hearth effect. This can be
donebyaddingasmallplatformtoachievedesiredheight.
NOTE: The wiring for optional blower must be installed
during framingstage.
When framing is inside home, outside wall will be insulated. If
framing or chase is outside, a thin insulation should be used in
framing on back, sides and top. The bottom should be insulated
with a hard insulating board. This will prevent cold from going
intochasethroughfireboxtolivingspace.
Install Firebox
Installfireboxintoframed openingbyplacingitdirectlyinfrontof
openingandslidingitintoproperposition.
Level Firebox
Check the level of firebox on top edge of firebox face. Shim if
necessary. Secure Firebox
Secure firebox to framing. The nailing flange on firebox will
make securing firebox to frame quick and easy. Use appropriate
sizenailsorscrewstosecurefirebox.
20 1/4"
40 7/8"
20 1/4"
27"
7"
1/2"
38 1/8"
38 1/8"
40 7/8"
LEFT FRONT RIGHT
TOP
VIEW
SIDE
VIEW
FRONT VIEW
FRAMING
HEADER
fireboxbeforeinstalling.
COMBUSTIBLE MATERIALS MUST NOT BE
INSTALLED OVER OR TOUCH ANY BLACK PAINTED
SURFACE. DO NOT BLOCK HEAT CIRCULATING AIR
OUTLETS. DOING SO MAY RESULT IN POTENTIAL
FIREHAZARDS.
1. SidewallClearances: Clearancesfrom side
offireboxopeningtoanyadjacent combustible
wallshouldnotbelessthan7".
2. Ceiling Clearances: The ceiling height
should not be less than 42" from top of
firebox opening

Page 8
FINISHING YOUR FIREBOX
There is a wide variety of finishing material
available for your firebox from formal wall
treatments with marble and mantels, to rustic
wood paneling, stone or brick.
IT IS IMPORTANT THAT THE BLACK FACE
OF FIREBOX NOT BE COVERED WITH ANY
TYPE OF COMBUSTIBLE MATERIAL.
Non-combustible facing materials such as
marble, brick or ceramic tile may over lap
black face of firebox up to opening on either
side of firebox. Seal all joints between black
firebox face and wall covering with a heat-
resistant material such as rock wool insulation
or mortar. Be sure to use high temperature
adhesive or mortar when anchoring brick,
stone or tile to face of firebox. Check to see
whether man-made brick and stone are made
of non-combustible
CLEARANCES
To ensure a safe installation, the following
must be carefully observed.
1. Sidewall Clearances: Clearances from
side of firebox opening to any adjacent
combustible wall should not be less than
7". See Figure 4
2. Ceiling Clearances: The ceiling height
should not be less than 42" from top of
firebox opening.
42" MIN.
CLEARANCE
TO CEILING
7" MIN.
FIGURE 4
SIDE WALL
CLEARANCE
FROM FIREPLACE
OPENING TO SIDE WALL
FRONT 24” CLEARANCE FROM THE FIREBOX OPENING
LEFT RIGHT
materials before using them on face of firebox.
Some of these products contain combustible
materials. Combustible wall coverings such as
paneling or wallboard may not overlap black
face of firebox. The space between wall
covering and firebox should be sealed with a
heat resistant material such as rock wool
insulation or mortar.
NOTE: An “L” shaped steel lintel must be
installed across top of firebox opening
where facing materials such as brick or
stone is used on face of firebox. It acts as a
support/firestop. It should be attached to
face of firebox with screws and sealed to
firebox with a heat-resistant sealer.
3. Mantel Clearances: See Figure 5. Non-
combustible materials used in this
installation such as slate, tile, marble, etc.
must be at least 1/2" thick.
4. Floor Clearances: No clearance is required
if appliance is installed per these
instructions.

Page 9
MANTEL PROFILES FOR VENTLESS FIREBOX ENCLOSURE
(UNIVERSAL BOX) ZERO CLEARANCE CABINET MUST BE
FOLLOWED
A
3”
3/4”
3 1/2”
4”
B
CANOPY
STANDOFF
COMBUSTIBLE
MATERIALS
ZCBB
MANTEL CLEARANCES
MANTEL WIDTH MANTEL HEIGHT
(“A” inches) (“B” inches above firebox opening)
6.0 14.0
8.0 14.0
10.0 14.0
12.0 16.0
FIGURE 5

Page 10
DISCRIPTION
DATEREV. BY
INSTALLATION INSTRUCTIONS FOR MODEL ZCBB OPTIONAL
WOODEN FLUSH MOUNT MANTEL FRONT (FF) (KIT#PAKDMZCBBFF)
“NOTE: Follow framing instructions on pages 6 & 7. With the exception of placement of
ZCBB in framed opening . The ZCBB must be placed with the front surface of appliance 1-
9/16” out from finished wall. This well allow FF to set flush with front of ZCBB”.
CLEARANCES:
1. Sidewall Clearances: Clearances from side of firebox opening to any adjacent combustible
wall should not be less than 7". (See page 8, figure 4)
2. Ceiling Clearances: Ceiling height should not be less than 42" from top of firebox opening.
INSTALLATION INSTRUCTIONS:
1. After removing the FF kit from its packaging follow any pre-installation instructions provided
with kit.
2. Place FF over front of ZCBB, centering opening in FF left to right with ZCBB front.
3. Next you must secure FF to finished wall surface. You may use “L” brackets, screws or finishing
nails (not provided with FF).
NOTE: If an unfinished FF kit is used, do not operate appliance while finishing wood or before fin-
ish has dried properly.
ZCBB
TOP VIEW
FINISHED WALL FACE
6” 60”
49-1/2”
53”
ZCBB
ZCBB & FF FRONTS
ARE FLUSH.
1-9/16”
FRONT VIEW SIDE VIEW

Page 11
INSTALLATION INSTRUCTIONS FOR MODEL ZCBB OPTIONAL
WOODEN SURROUND (WS) (KIT# PAKDMZCBB)
CLEARANCES:
1. Sidewall Clearances: Clearances from side of firebox opening to any adjacent combustible wall
should not be less than 7". See Figure 4
2. Ceiling Clearances: Ceiling height should not be less than 42" from top of firebox opening.
ASSEMBLY INSTRUCTIONS:
Tools Needed: Medium Phillips Screwdriver
Step 1: Lay out all components. (See diagram 1)
Step 2: Assemble end panels (A & B) to top front rail ( C ).
Step 3: Stand end panels and top front rail onto base (hearth) and fasten down with screws provided
(See diagram 1).
NOTE: Position back of end panels with back of base (hearth) centering assembly from each end. In-
stall front screws first, then pull back towards inside to square surround up. Install screws through
back holes.
Step 4: Place top onto surround, flush with back and equal on each end. Secure both ends and middle
with screws provided.
CONTINUED

Page 12
REAR VIEW
After assembling the WS you must insert the ZCBB. It is best to insert ZCBB from rear of WS, this
gives you more area to hold ZCBB and reduces risk of scratching surface of front area of the base
(hearth) area. Flush and center ZCBB’s front in the WS.
You can attach ZCBB to WS with “L” brackets at rear sides of ZCBB (brackets not provided).
ZCBB

Page 13
This section is used for residential installation or mobile home installation.
UNCONFINED SPACE:
An unconfined space has a minimum air volume of 50 cubic feet for each 1,000 BTU/Hr (4.8m3per
Kw) input rating of all appliances in space (Cubic feet equals Length x Width x Height of space).
Include adjoining rooms only if there are doorless passageways or ventilation grills between rooms.
CONFINED SPACE:
“The National Fuel Gas Code defines unusually tight construction space as a space whose volume is
less than 50 cubic feet per 1,000 BTU per hour (4.8m3per KW) of the aggregate input rating of all
appliances installed in that space.
“WARNING: If the area in which heater may be operated is smaller than that defined as an
unconfined space, provide adequate combustion and ventilation air by one of methods
described in National Fuel Gas Code, ANSI Z223.1, 1992, Section 5.3”
NOTICE: Information on provisions for adequate combustion and ventilation air are located in
unvented room heater ‘s installation instructions. The unvented room heater’s instructions
must be followed exactly.
PRODUCING ADEQUATE VENTILATION
DETERMINING FRESH-AIR FLOW FOR
HEATER LOCATION
DETERMINE IF YOU HAVE UNUSUALLY TIGHT CONSTRUCTION OR UNCONFINED SPACE
Use this worksheet to determine if you have a confined or unconfined space.
SPACE: Include room in which you will install heater plus adjoining rooms with doorless
passageways or ventilation grills between rooms.
1. Determine the volume of space (length x width x height).
Length x Width x Height= ________ cu.ft. (volume of space)
EXAMPLE: 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) =
2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add volume of these
rooms to total volume of space.
2. Divide the space volume by 50 cubic feet to determine maximum BTU/Hr space
can support.
________ (volume of space) / 50 cu. ft = (maximum BTU/Hr space can support)
EXAMPLE: 2560 cu. ft. (volume of space) / 50 cu. ft. = 51.2 or
51200 (maximum BTU/Hr space can support.)

Page 14
3. Add the BTU/Hr of all fuel burning appliances in space.
Vent-Free Heater _________________________BTU/Hr.
Gas Water Heater* _________________________BTU/Hr.
Gas Furnace _________________________BTU/Hr.
Vented Gas Heater _________________________BTU/Hr.
Gas Fireplace Logs _________________________BTU/Hr.
Other Gas Appliance* +_________________________BTU/Hr.
Total = _________________________BTU/Hr.
Example: Gas water heater 40000 BTU/Hr.
Vent-free heater + 18000 BTU/Hr.
Total = 58000 BTU/Hr.
* Does not include direct-vent gas appliances. Direct-vent draws combustion
air from outdoors and vents to outdoors.
4. Compare the maximum BTU/Hr space can support with actual amount
of BTU/Hr used._____________BTU/Hr (maximum space can support)
_____________BTU/Hr (actual amount of BTU/Hr used)
Example: 51200 BTU/Hr (maximum space can support)
58000 BTU/Hr (actual amount of BTU/Hr used)
Space in above example is a confined space because actual BTU/Hr used is more than maximum
BTU/Hr the space can support. Additional fresh air must be provided. The following options are
available.
A. Rework worksheet, adding space of an adjoining room. If extra space provides an unconfined
space, remove door to adjoining room or add ventilation grills between rooms. See “Ventilation
Air From Inside Building”, page 15.
B. Vent room directly to outdoors. See “Ventilation Air From Outdoors” page 16.
C. Install a lower BTU/Hr heater, if lower BTU/Hr size makes room unconfined.
If actual BTU/Hr used is less than maximum BTU/Hr space can support, space is unconfined. You
will need no additional fresh air ventilation.
WARNING
YOU MUST PROVIDE ADDITIONAL VENTILATION AIR IN UNUSUALLY TIGHT
CONSTRUCTION.

Page 15
AIR FOR COMBUSTION AND VENTILATION
FROM INSIDE BUILDING
This fresh air would come from an adjoining unconfined space. When venting to an adjoining space,
you must provide two permanent openings: one within 12" of ceiling and one within 12" of floor on
wall connecting two spaces (see Options 1 and 2, Figure 6). You can also remove door into adjoining
room (see Option 3, Figure 6).
WARNING
REWORK WORKSHEET, ADDING SPACE OF ADJOINING UNCONFINED SPACE.
COMBINED SPACES MUST HAVE ADEQUATE AMOUNT AIR TO SUPPLY ALL
APPLIANCES IN BOTH SPACES.
NOTE: Each opening shall have a minimum free area of 1 square inch per 1000 BTU’s per
hour of total input ratings of all gas utilization equipment in confined space, but not less than
100 square inches.
Figure 6
Ventilation Air From Inside Building

Page 16
Figure 7 Ventilation Air From Outdoors
AIR FOR COMBUSTION AND VENTILATION
FROM OUTDOORS
Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent
openings: one within 12" of ceiling and one within 12" of floor. Connect these items directly to
outdoors. These spaces include attics and crawl spaces. Follow National Fuel Gas Code NFPA 54/
ANSI Z223.1, Section 4.3, “Air For Combustion and Ventilation” for required size of ventilation
grills or ducts.
IMPORTANT: Do not provide openings for inlet air into attic if attic has a thermostat-controlled
power vent. Heated air entering attic will activate power unit.
Ventilated Attic
Outlet Air
Inlet Air
Ventilated
Crawl Space
To
Crawl
Space
To Attic
Outlet Air
Inlet Air
WARNING
THIS HEATER MUST HAVE ADEQUATE AMOUNT OF AIR FOR PROPER
OPERATION. IF NOT, POOR FUEL COMBUSTION COULD RESULT. READ THE
FOLLOWING INSTRUCTIONS TO ENSURE PROPER AMOUNT OF AIR FOR THIS AND
OTHER FUEL-BURNING APPLIANCES IN YOUR HOME.

Page 17
OPTIONAL BLOWER INSTALLATION
Model ZCBB has an optional MA ZCBB714 blower kit that can be purchased from your dealer. You
will need to follow these steps and diagram below and wiring diagram on page 18.
NOTE: The receptacle which is provided in Model ZCBB must be wired into your home (residence)
in order to have electricity to operate blower motor. If receptacle hasn’t been wired in during instal-
lation of ZCBB you may need to contact a licensed electrician. The Model ZCBB also has a thermo-
stat and wires and an ON/OFF switch standard on all units.
“WARNING: Any changes to this heater or its controls can be dangerous.”
A. First remove burner base and logs. Be sure to turn “OFF” gas supply before disconnecting sup-
ply line.
B. Remove (10) ten hex-head self-piercing screws that hold down the motor cover plate on inner
bottom of unit.
C. Locate (2) two wires that come down back of rear air channel from thermostat . Connect (1)
one of thermostat wires to top terminal on “ON/OFF” switch.
D. Connect black power cord wire to the 24" jumper wire provided, then attach jumper wire to mid-
dle terminal on “ON/OFF” switch. Next connect remaining thermostat wire to (1) of wires com-
ing from motor. Connect white power cord wire to white motor wire. The green power cord
wire should be screwed to motor bracket as ground wire. Place blower motor in cover plate
opening. Position blower motor into air channel on rear of unit centering blower motor. It is
best to leave about a 1/8" space between blower and back of air channel. This will reduce the
chance of vibrating or noise.
E. After placing blower motor you must secure it to bottom of unit with (2) two #10x1/2 Hex
Washer Head self-piercing screws provided with blower kit.
F. Plug power cord into receptacle and reattach motor cover plate to inner bottom using screws
you removed earlier.
BLOWER MOTOR
MOTOR COVER PLATE
SCREWS
POWER CORD
RECEPTACLE ON / OFF SWITCH
WIRES TO
SWITCH
SCREWS
ROMAX CONNECTOR
WARNING: IF INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE
OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR
LOSS OF LIFE.
THERMOSTAT
THERMOSTAT WIRES

Page 18
WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TO HAZARDS
OF HIGH SURFACE TEMPERATURES AND SHOULD STAY AWAY TO AVOID BURNS
OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY
SUPERVISED WHEN IN SAME ROOM AS GAS LOGS.
WARNING: CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT
BE PLACED ON OR NEAR THESE GAS LOGS.
WIRING DIAGRAM (MA ZCBB714)
NOTE: “If any of original wire must be replaced, it must be replaced with a wire of at least a
105° C temperature rating or its equivalent.”
NOTE:Installation and repair should be done by a qualified service person. This heater should be
inspected before use and at least annually by a qualified service technician. More frequent
cleaning may be required due to excessive lint from carpeting, bedding material, pet hair, etc.
It is imperative that control compartments and circulating air passageways of heater be kept
clean.
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can
cause improper and dangerous operation.Verify proper operations after servicing.
NOTE: N.B.C. OPTIONAL FAN KIT MUST BE ELECTRICALLY GROUNDED IN
ACCORDANCE WITH LOCAL CODES. IN ABSENCE OF LOCAL CODES,
NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 MUST BE USED.
Figure 8
BLACK
WHITE
