Buderus Logano GE615 User manual

For installer
Please read thoroughly
prior to installation and
maintenance.
Installation and
maintenance instructions
Calorific value forced
draft sectional boiler
Buderus
Logano GE 615
Buderus
Logano GE 615
Logano GE615
6 720 617 717 - 07/2008 GB

Logano GE615 - We reserve the right to make any changes due to technical modifications.
2
Contents
1 General safety information and explanation
of symbols 3
1.1 For your safety 3
1.2 Explanation of symbols 3
2ProductInformation 4
2.1 Product overview 4
2.2 Correct use 4
2.3 EU Declaration of Conformity 4
2.4 Specifications 5
2.5 Accessories 7
3 Regulations 8
3.1 Boiler room 8
3.2 Quality of heating water 8
3.3 Disposal and recycling 8
4Installation 9
4.1 Checking delivery for completeness 9
4.1.1 Delivery as a pre-assembled block 9
4.1.2 Delivery in loose sections 9
4.2 Tools and auxiliary materials 10
4.3 Recommended wall clearances 10

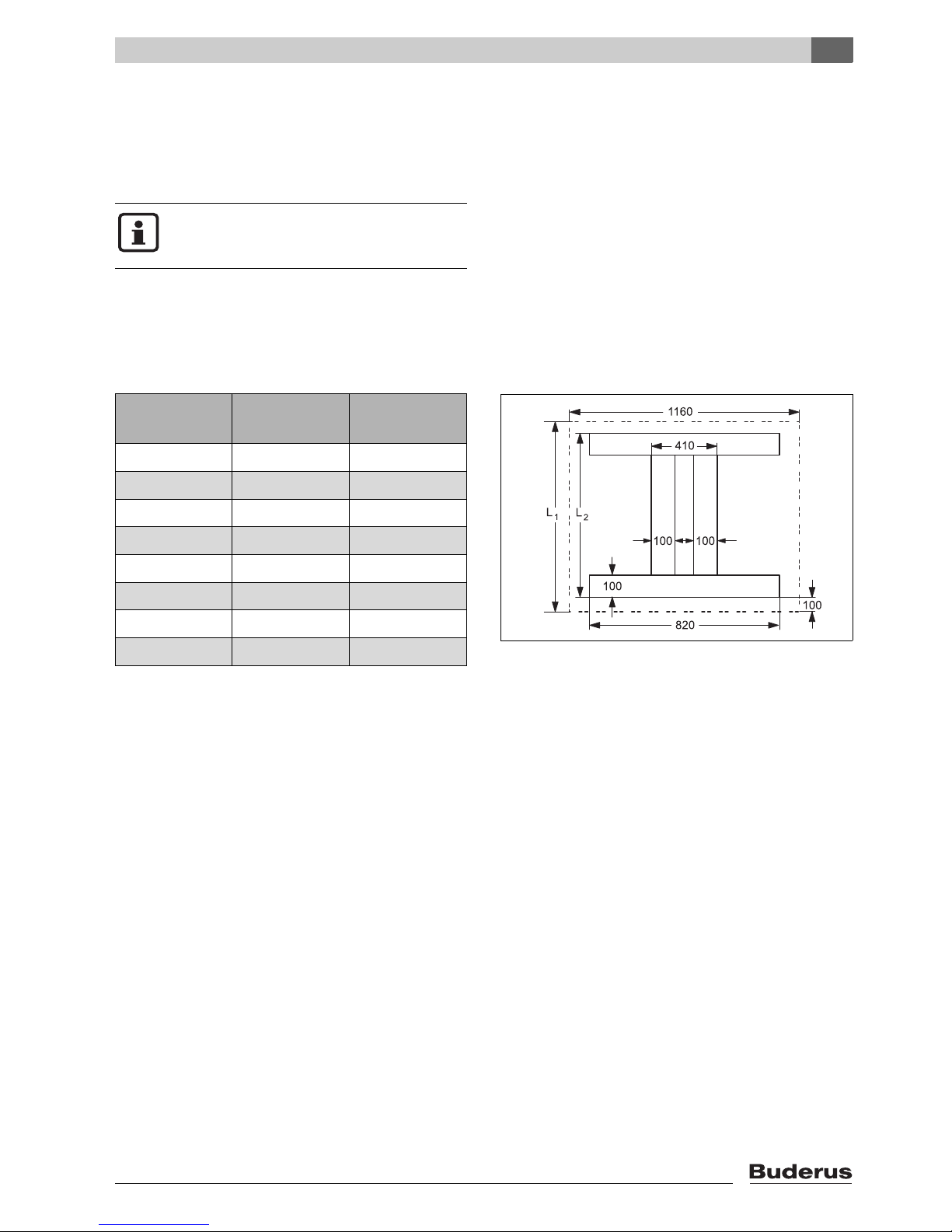

4.3.1 Base and boiler plinth 11
4.4 Assembling the boiler block 12
4.4.1 Arrangement of boiler sections 12
4.4.2 Joining the boiler block assembly 13
4.5 Setting up the boiler block –
(when supplied as a pre-assembled block) 19
4.6 Inserting the feed pipe (parts case) 20
4.7 Sealing the sensor well (fittings case) 20
4.8 Inserting the outer steam tube (fittings case) 21
4.9 Boiler block pressure test (only when supplied
in loose sections) 22
4.9.1 Preparing for pressure test 22
4.9.2 Carry out a pressure test 22
4.9.3 Leaking hub joints 22
4.10 Boiler water connections 23
4.11 Installing fittings and burner door (delivery in loose
sections) 24
4.11.1 Positioning the flue gas header 24
4.11.2 Screwing clean-out cover onto rear section 24
4.11.3 Fitting the burner door 25
4.11.4 Inserting the hot gas baffles 25
4.12 Filling the heating system and checking for leaks 27
4.13 Installing the burner 29
4.14 Boiler flue connections 30
4.14.1 Fitting the flue pipe sealing collar (accessory) 30
4.14.2 Fitting the flue gas temperature sensor
(accessory) 30
4.15 Fitting the boiler casing 31
4.15.1 Fitting the insulation 31
4.15.2 Fitting the cross bars 32
4.15.3 Fitting side panels and hoods 35
4.16 Making an electrical connection 38
4.16.1 Fitting the control panel 38
4.16.2 Installing the temperature sensor set 40
5 Start up the heating system 41
5.1 Making the heating system operational 41
5.1.1 Creating operating pressure
(sealed heating systems) 42
5.1.2 Setting the capacity (open vented
heating systems) 42
5.2 Start up the control panel 42
5.3 Commission the burner 42
5.4 Commissioning report 43
5.5 Operating conditions for Buderus G and GE
cast iron boilers 44
5.6 Operating conditions GE 615 44
6 Shutting down the heating system 45
6.1 Standard shutdown 45
6.2 Emergency measures 45
7 Heating system inspection and
maintenance 46
7.1 Why is regular maintenance important? 46
7.2 Preparing the boiler for cleaning 46
7.3 Cleaning the boiler 47
7.3.1 Cleaning the boiler with cleaning brushes 47
7.3.2 Wet cleaning (chemical cleaning) 49
7.4 Checking the operating pressure 49
7.4.1 Checking the operating pressure
(sealed systems) 50
7.4.2 Checking the fill level (open systems) 50
7.6 Inspection and maintenance reports 53
8Faults 56

1
General safety information and explanation of symbols
Logano GE615 - We reserve the right to make any changes due to technical modifications. 3
1 General safety information and explanation of symbols
1.1 For your safety
Installation and operation
zInstallation and commissioning must only be carried
out by qualified installation engineers.
zObserve all instructions to ensure perfect functioning.
zOnly use the boiler for its intended purpose.
zWhen installing and operating, observe all country-
specific regulations and standards. These include local
requirements in respect of positioning, the air inlet and
outlet equipment and chimney, as well as fuel and
electrical connections.
zDo not modify any parts that carry flue gas.
Maintenance and conversion
Customers are advised
zTo sign an inspection/maintenance contract with an
authorised contractor, and have the heating system
serviced annually.
zThe operator is responsible for the safety and
environmental compliance of the heating system
(federal legislation on emissions).
zOnly use original spare parts.
Instructing the customer
zExplain to the customer how the heating system works,
and how to operate it.
zInform the customer that he must not carry out
any alterations or repairs.
Read and observe the safety information and
codes of conduct:
You endanger your life by not paying attention to
your own safety, e.g. in the case of a fire.
zNever risk your own life. Your own safety is paramount.
If you can smell gas, there is a risk of an explosion
VClose the gas shut-off valve (Æpage 45).
zOpen window(s).
zDo not operate electrical switches.
zExtinguish all naked flames.
zFrom outside the building: call gas supplier and
authorised contractor.
If you can smell flue gases, there is a risk of
poisoning
VSwitch off the heating system (Æpage 45).
zOpen windows and doors.
zInform an authorised contractor.
Risk to life from electric shock.
zElectrical connections must only be made by a
qualified electrician. Observe the wiring diagram!
zBefore installation: Shut off power supply (230 V AC)
to all poles on the boiler and all other components.
Secure against unintentional reconnection.
Risk of fire from explosive and inflammable
materials
zInflammable materials or liquids (paper, thinners,
paints, etc.) must not be used or stored near the boiler.
Caution: system damage
zKeep the combustion air/ambient air free from
aggressive substances (halogenated hydrocarbons,
for example, contained in spray cans, solvents or
cleaning agents, paints and adhesives). This prevents
corrosion.
zPrevent heavy contamination of the combustion air/
ambient air by dust, airborne seed, etc.
1.2 Explanation of symbols
Signal terms indicate the seriousness of the ensuing risk
if measures for minimising damage are not taken.
–Caution means that slight material damage may occur.
–Warning means that minor injury or severe material
damage may occur.
–Danger means that severe injury may occur. Very
serious cases may result in death
Notes are included with important information for
situations in which there is no danger for persons or
equipment.
Safety information throughout the
document is signalled by a warning triangle
and a grey background.
Notes are identified in the text by this
symbol. They are bounded by horizontal
lines above and below the text.

2Product Information
Logano GE615 - We reserve the right to make any changes due to technical modifications.
4
2 Product Information
2.1 Product overview
This boiler is a low temperature boiler that complies with
DIN EN 303 for oil or gas combustion with modulating
boiler water temperature control and no minimum return
temperature.
The main components of the Logano GE615 fan-assisted
boiler are:
– The boiler block transfers the heat generated by the
burner to the heating water.
–The boiler shell and insulation prevent energy loss.
–The control panel monitors and controls all electrical
boiler components.
Fig 1 Logano GE615 forced draft boiler
1Boiler casing
2Insulation
3Boiler block
4Control device
2.2 Correct use
The Logano GE615 forced draft boiler is intended for
generating heating water. You may use any type-tested oil
or gas fired burners to EN 267 or EN 676 provided their
operating range meets the boiler specification.
Using the boiler for any other purpose will be considered
improper use. Buderus accepts no liability for any damage
resulting as a consequence of such use.
2.3 EU Declaration of Conformity
The design and operation of this product
conforms to European Directives and the
supplementary national requirements. Its
conformity is confirmed by the CE marking.
You can view the Declaration of Conformity
on the internet at www.buderus.de/konfo or
request a copy from your local Buderus
office.

2
Product Information
Logano GE615 - We reserve the right to make any changes due to technical modifications. 5
2.4 Specifications

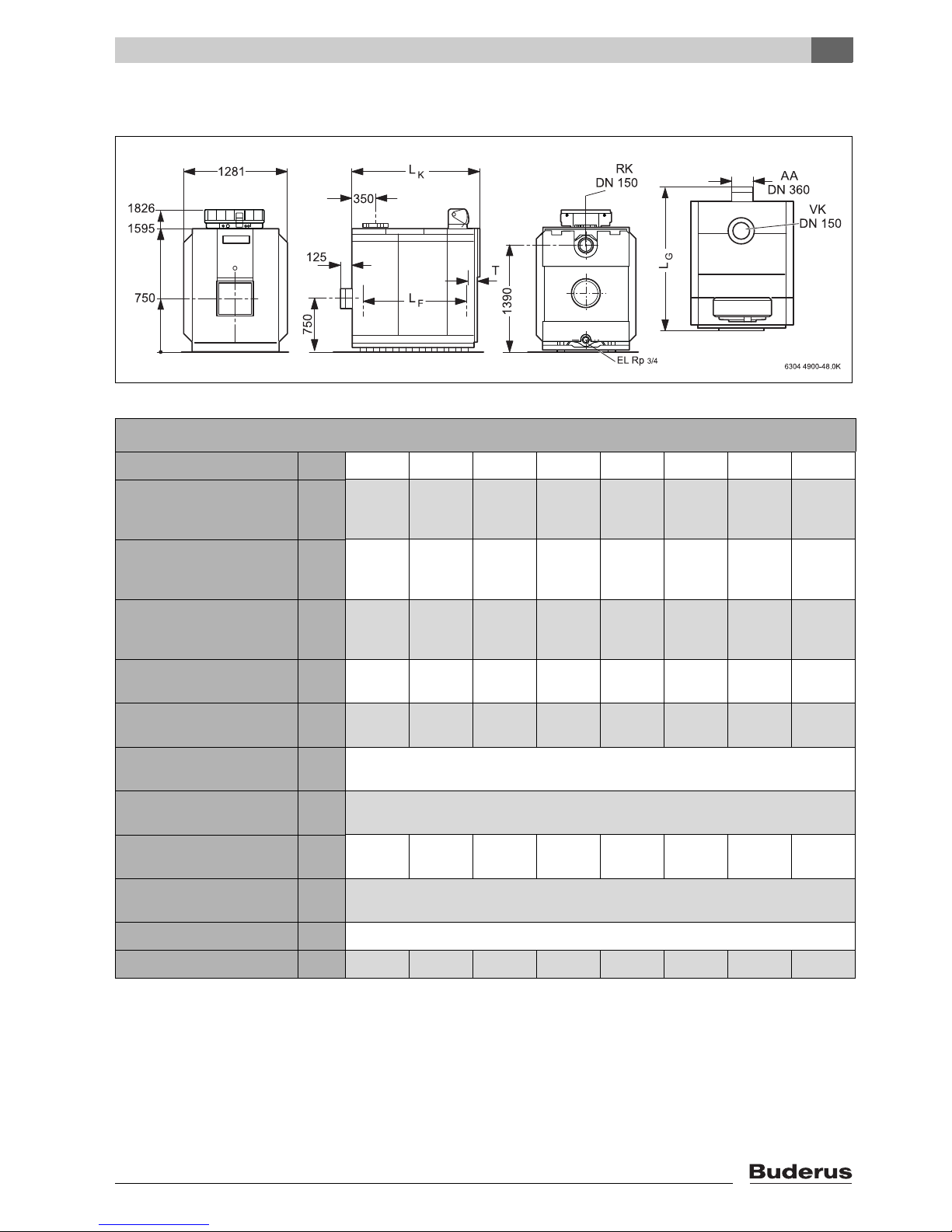

Fig 2 Connections and dimensions
Specifications and dimensions
Boiler rating kW 570 660 740 820 920 1020 1110 1200
Boiler sections Nu
mb
er
910 11 12 13 14 15 16
Rated output1) kW 511 –
570
571 –
660
661 –
740
741 –
820
821 –
920
921 –
1020
1021
–
1110
1111
–
1200
Combustion output kW 546,6
–
616,2
610,7
–
713,5
707,0
–
800,0
792,5
–
886,5
878,1
–
994,6
985,0
–
1102,0
1092,0
–
1200,0
1188,0
–
1297,0
Overall boiler length
(LG)
mm 1926 2096 2266 2436 2606 2776 2946 3116
Length of boiler block
(LK)
mm 1804 1974 2144 2314 2484 2654 2824 2994
Loose boiler section
transport unit
mm Width 1096/height 1640/depth 170
Boiler block transport
unit
mm Width 1096/height 1640/length LK
Combustion chamber
length (LF)
mm 1525 1695 1865 2035 2205 2375 2545 2715
Diameter of
combustion chamber
mm 680
Depth of burner door mm 145
Net weight2) kg 2505 2747 2990 3232 3475 3710 3953 4147
Tab. 1 Specifications and dimensions
1) Note that in Switzerland, the values given - are not reached in practice in order to adhere to the LRV
regulations.
2)Weight excluding packaging 4 - 5 % lower.

2Product Information
Logano GE615 - We reserve the right to make any changes due to technical modifications.
6
Specifications and dimensions
Water capacity l561 621 681 741 801 861 921 981
Gas content l922 1027 1132 1237 1342 1447 1552 1657
Flue gas
temperature1)
partial load 60 %
°C 140
Flue gas
temperature1) full
load
°C 170 – 180
Flue gas mass flow
rate, oil, partial load
60 %
°C 0,1537 0,1778 0,1995 0,2207 0,2479 0,2750 0,2992 0,3234
Flue gas mass flow
rate, oil, full load2)
kg/s 0,2320
–
0,2615
0,2592
–
0,3028
0,3001
–
0,3396
0,3364
–
0,3763
0,3727
–
0,4222
0,4181
–
0,4678
0,4635
–
0,5093
0,5043
–
0,5505
Flue gas mass flow
rate, gas, partial
load 60%
kg/s 0,1542 0,1785 0,2002 0,2215 0,2488 0,2760 0,3003 0,3246
Flue gas mass flow
rate, gas, full load2)
kg/s 0,2328
–
0,2625
0,2602
–
0,3039
0,3012
–
0,3408
0,3376
–
0,3776
0,3741
–
0,4237
0,4196
–
0,4694
0,4652
–
0,5112
0,5061
–
0,5525
CO2 content, oil %13
CO2 content, gas %10
Required draught Pa 0
Hot gas resistance mbar 2,4 3,4 4,2 4,2 4,1 4,5 5,4 5,8
Permissible flow
temperature3)
°C 1104)
100 – 1205)
Permissible
operating pressure
bar 6
Maximum time
constant T on
thermostat
s40
Maximum time
constant T on
monitor/limiter
s40
Tab. 2 Specifications and dimensions
1) To DIN EN 303. The minimum flue gas temperature for the chimney calculation acc. to DIN 4704 is approx.
12 K lower.
2) Full load details relate to the upper and lower rated output range.
3) Safety limit (high limit safety cut-out). Max. possible flow temperature = safety limit (STB) – 18 K.
Example: Safety limit (STB) = 100 °C, max. possible flow temperature = 100 – 18 = 82 °C.
4) Permitted flow temperature for Switzerland.
5) According to country-specific standards and regulations (for all countries)

2
Product Information
Logano GE615 - We reserve the right to make any changes due to technical modifications. 7
2.5 Accessories
Please see the current sales information for details of
accessories.
Use only original parts.
Country Germany
Fuels EL heating oil
DIN 51 603
LPG Natural gas Biogas (special
conditions of use)
Comments The boiler can only be operated with the specified fuels.
Country Austria
Fuels EL heating oil
L heating oil
("Schwechat 2000"
light oil)
LPG Natural gas Biogas (special
conditions of use)
Comments The boiler can only be operated with the specified fuels.
The requirements acc. to Art. 15 a B-VG regarding emissions and efficiency are being met.
If L heating oil ("Schwechat 2000" light oil) is being used, cleaning and maintenance must be carried
out twice a year.
Country Switzerland
Fuels EL heating oil LPG Natural gas Biogas (special
conditions of use)
Comments The boiler can only be operated with the specified fuels.
The output figures shown in the table "Specifications and dimensions" are nominal output figures.
In practice, some of these values will sometimes not be reached within the specified output range in
order to adhere to LRV regulations.
Country Poland
Fuels EL heating oil LPG Natural gas Biogas (special
conditions of use)
Comments The boiler can only be operated with the specified fuels.
According to PN-91/21B-2414 (p.2.5), boilers with an output greater than 100 kW must be fitted on-
site with a low water indicator (SYR type 933.1).
Country All countries
Fuels EL heating oil
(viscosity max.
6,0 mm2/s bei 20 °C)
LPG Natural gas Biogas (special
conditions of use)
Comments The boiler can only be operated with the specified fuels.
Carry out maintenance and cleaning procedures annually. Check that the entire system is functioning
correctly. Rectify any defects immediately.
Tab. 3 Fuels

3Regulations
Logano GE615 - We reserve the right to make any changes due to technical modifications.
8
3 Regulations
3.1 Boiler room
3.2 Quality of heating water
VFor correct use and treatment of the fill and top-up
water, you MUST observe observe the operator's log,
which is included with the technical documentation.
zEnter the amount and quality of the fill water in the log.
3.3 Disposal and recycling
zIf any heating system components need to be replaced,
they should be disposed of in an environmentally
responsible manner, via an approved disposal site.
zDispose of packaging in an environmentally
responsible manner.
Observe all standards and guidelines
applicable to the installation and operation of
this heating system in your country.
The information on the rating plate has
precedence and MUST be observed.
Caution: System damage
caused by frost.
zSet up the heating system in a room safe
from the risk of frost.
Total boiler output Q Ca(HCO3)2concentration
of the fill and top-up water
Maximum fill and top-up water
volume Vmax Heating water
kW mol/ m³ m³ pH value
100 dQ d350 d2,0 Vmax = three times system volume
8,2 – 9,5
350 dQ d1000 d1,5
100 dQ d350 > 2,0 Vmax = 0.0313 x Q / Ca(HCO3)2
with: Q in kW and Ca(HCO3)2in
mol/ m³
350 dQ d1000 > 1,5
Q > 1000 –
Tab. 4 Requirements for fill, top-up and heating water

4
Installation
Logano GE615 - We reserve the right to make any changes due to technical modifications. 9
4 Installation
4.1 Checking delivery for completeness
The boiler can be delivered either as a pre-assembled
block or in loose sections.
zAfter delivery, check all packaging for perfect
condition.
zCheck that the delivery is complete.
4.1.1 Delivery as a pre-assembled block
4.1.2 Delivery in loose sections
Component Piece Packa
ging
Boiler block 1 Pallet
Fittings 1Case
Parts 1 Case
Casing Pack A 1Case
Casing Pack B 1 Case
Insulation 1Foil bag
Tab. 5 Scope of supply (pre-assembled block)
Component Piece Packa
ging
Front, rear, central sections with upper
flow connection and burner door
1Pallet
Central sections (depending on boiler
size)
2 – 5 Pallet
Base unit fittings, 9 – 16
sections
1 Case
Supplementary fittings (contents
depend on the size of the boiler)
1Case
Parts 1 Case
Casing Pack A 1Case
Casing Pack B 1 Case
Insulation 1Foil bag
Anchor rod set with spring packs
Tab. 6 Scope of supply (loose sections)

4Installation
Logano GE615 - We reserve the right to make any changes due to technical modifications.
10
4.2 Tools and auxiliary materials
The following tools and auxiliary materials are required for
the boiler assembly (the listed items are not contained in
the scope of supply).
– Boiler compression tool 2.3
– Installation kit (accessory)
– Steel hammer and wooden or rubber mallet
– Half-round smoothing file
– Screwdriver (Philips and slotted head)
– Flat chisel, support wedge, flat iron
– Spanner size 13, 19, 24, 36 and size 19 Allen key
– Cleaning rags and cloth
– Fine emery cloth
– Wire brush
–3-in-1oil
– Solvent (petrol or solution)
– Spirit level, ruler, chalk, straight edge
Fig 3 Boiler compression tool size 2.3 (dimensions in
mm)
1Mating flange
2Additional flange
3Compression unit
4Pull rod
5Extension
6Wedge (size 2.3)
4.3 Recommended wall clearances
Observe the recommended wall clearances for easier
boiler installation, cleaning and maintenance. Adhere to
the minimum clearances (in brackets) in all cases.
Take into account the space required for opening the
burner door.
The burner door can be hung on the right or left.
The wall clearance on the hinge side must be at least the
same as the amount by which the burner projects (AB).
Recommended wall clearance AB + 100 mm.
If you do not observe the recommended minimum wall
clearances, you will not be able to use the cleaning set
(accessory) to clean the boiler. You could, however, use
shorter (approx. 1 m) cleaning devices or perform wet
cleaning.
Fig 4 Boiler room with boiler (dimensions in mm)
Sections Compression
tool(s) per
boiler hub
Extension(s)
per boiler
hub
Length
(total)
mm
9 – 16 1 3 3080
Tab. 7 Boiler compression tool size 2.3 (complete in
the toolbox)
Boiler rating Clearance A (mm)
kW Sections re-
commended
at least
570 – 820 9 – 12 2300 1400
920 –
1200
13 – 16 3000 1500
Tab. 8 Recommended and minimum wall clearances

4
Installation
Logano GE615 - We reserve the right to make any changes due to technical modifications. 11
4.3.1 Base and boiler plinth
Place the boiler on a 50 – 100 mm high base (observe
wall clearances). The base must be flat and level. The
front edge of the boiler should be flush with the edge of
the base.
If you are not using a boiler plinth (accessory), angled
steel sections (100 x 50 x 8 mm) or flat steel sections
(100 x 5 mm) must be put in place when installing the
base.
Fig 5 Base dimensions
A sound-absorbing plinth is available as an
accessory. The boiler plinth prevents the
transmission of vibrations to the base.
Number of
sections
L1 (base) L2 (steel
section)
9 1670 1470
10 1840 1640
11 2010 1810
12 2180 1980
13 2350 2150
14 2520 2320
15 2690 2490
16 2860 2660
Tab. 9 Base dimensions for angled/flat steel sections

4Installation
Logano GE615 - We reserve the right to make any changes due to technical modifications.
12
4.4 Assembling the boiler block
A distinction is made between delivery as a pre-
assembled block and delivery in loose sections. When
delivered as a block, the boiler sections are already fully
assembled and checked for leaks prior to despatch. If,
because of physical limitations, a boiler block cannot be
installed or brought inside the building, delivery in loose
sections would facilitate assembly on site.
The following describes the assembly of the boiler block
when delivered in loose sections.
For the further installation of a pre-assembled boiler
block, Æsee section 4.5, page 19.
4.4.1 Arrangement of boiler sections
Fig 6 Assembled boiler block
1Base/sound-absorbing boiler plinth
2Flue gas header
3Rear section
4Central section with flow connection
5Centre section
6Anchor rod
7Installation direction arrow
8Front section
9Burner door with burner plate
The boiler block is always installed from the back for-
wards, i.e. the rear section (ÆFig. 6, 3) is always installed
first, and the front section (ÆFig. 6, 8) always installed
last.
When assembling, observe the installation direction
arrows (ÆFig. 6, 7) for each boiler section.
Make sure you position the middle section with the upper
flow connection (ÆFig. 6, 4) correctly!
Install the boiler block according to the following
instructions and illustrations.
Fig 7 Rear section with fitted installation set
Caution: Risk of injury
through inadequately secured boiler
sections.
zUse only suitable means of transportation
when handling the boiler sections, e.g. a
sack truck with strap or a stair or step
trolley.
zPrevent the boiler sections from sliding off
when transporting them.
VPrevent the boiler sections from falling
over using the installation aid (accessory)
First screw the rear section firmly onto the
installation aid (ÆFig. 7).
The installation aid is available on request.

4
Installation
Logano GE615 - We reserve the right to make any changes due to technical modifications. 13
4.4.2 Joining the boiler block assembly
Preparation of boiler sections
zRemove nuts and washers from the studs on the hubs
of the boiler sections before attaching the rear section
and front section.
VPut the rear section in place and prevent from falling
over using the installation aid (Æsee Fig. 7 and sepa-
rate installation aid instructions).
zFile down any burrs on the hubs.
Fig 8 Deburring the hub
zClean the packing grooves where required using a wire
brush and cloth.
zClean the hub sealing faces with a rag soaked in white
spirit.
zEvenly coat the hub sealing faces with red lead putty.
Fig 9 Coating the hub sealing faces
1Upper hub sealing face
2Lower hub sealing face
3Packing groove
Caution: Risk of burning
through flammable solvents.
zObserve the cleaning agent safety
instructions.
zWhen using cleaning agents, avoid naked
flames, incandescence and sparks.
The next step involves preparing the nipples
that will eventually seal the boiler sections.

4Installation
Logano GE615 - We reserve the right to make any changes due to technical modifications.
14
zClean nipple with a rag soaked in white spirit and coat
evenly with red lead putty.
zInsert nipple directly into the upper (size 4, 181/70)
and lower (size 2, 119/50) hub on the rear section.
zRubber hammer nipple home with alternate heavy
blows.
zUse a file to remove any burrs.
Fig 10 Driving nipples home
zCoat the packing grooves with adhesive (adhesive
base)
Fig 11 Coating the packing grooves with adhesive
1Packing grooves
The upper nipple must protrude
approx. 43 mm and the lower nipple
approx. 32 mm out of the corresponding
hubs.
The packing grooves must be clean and dry
to enable the packing cord to adhere
properly.
Caution: Risk to health
through noxious vapours and skin contact
during the processing of materials such as
adhesives, adhesive bases or red lead putty.
zObserve processing and safety
instructions on the material packaging.
zEnsure good ventilation in the installation
area.
zwear work gloves to avoid skin contact.
zThe product and its container must be
treated as hazardous waste for disposal
purposes.

4
Installation
Logano GE615 - We reserve the right to make any changes due to technical modifications. 15
zInsert the flexible packing cord on the front of the rear
section, starting around the upper hub, into the packing
grooves, and press in lightly.
zAt the butt joints, overlap the packing cord by approx.
2 cm and press firmly together.
VDo not allow the packing cord to overlap on the left- or
right-hand joints (ÆFig. 12, 3).
Fig 12 Inserting packing cord (KM cord)
1Packing grooves
2Packing cords
3Joints
Prepare the first central section (with upper flow
connection):
zFile down any burrs on the hub.
zThe packing springs must be clean and dry. Clean if
necessary.
zClean the hub sealing faces with a rag soaked in white
spirit.
Fig 13 Preparing the central section
1Hub sealing face
2Sealing springs
zCoat the hub sealing faces with red lead putty.
zCoat the packing springs with adhesive (adhesive
base)
Unroll the required length of packing cord
(KM cord) from the roll supplied. Peel the
backing paper from the packing cord when
inserting into the packing groove (do not
stretch).
Caution: Risk to health
through vapours released during the
processing of materials, such as adhesives,
adhesive bases or red lead putty.
zObserve processing and safety
instructions on the material packaging.
zEnsure good ventilation in the installation
area.
VWear work gloves to avoid skin contact.
zThe product and its container must be
treated as hazardous waste for disposal
purposes.

4Installation
Logano GE615 - We reserve the right to make any changes due to technical modifications.
16
zPosition the central section with the flow connection so
that the upper and lower hubs fit onto the nipples in the
rear section. The installation direction arrow must point
towards the back.
zDrive first central section onto the rear section using a
wooden or a rubber mallet.
Fig 14 Knocking the central section into place
1Flow connection
2Upper hub
3Installation direction arrow
4Lower hub
5Wooden or rubber mallet
zPush flange bearings with clamping nuts onto the pull
rods.
zPush a pull rod through the upper and lower hubs on
the boiler block.
zPush mating flanges onto the pull rods and secure
each with wedge.
zHold the pull rod in the middle of the hubs and slightly
draw together the compression tools using the
clamping nut.
Fig 15 Using the boiler compression tool
1Boiler compression tool (lower hub)
2Boiler compression tool (upper hub)
3Flange bearings (top)
4Flange bearings (bottom)
To make installation easier, place the boiler
section to be fitted onto the nipple on the
upper hub first. The boiler section can then
be adjusted accordingly on the lower hub.
Before the nipples are inserted in the next
central section, the part-assembled boiler
block must be pulled together using the
boiler compression tool.
Using a size 2.3 boiler compression tool
(
Æ
Fig. 3, page 10).
Caution: Boiler damage
by pulling the boiler sections together
incorrectly, or excessive compression.
zEnsure that the nipples are positioned
straight in the boiler sections after being
hammered in and that they have not been
damaged.
zNever compress more than one nipple
joint at a time.
zStop compressing when the hubs meet.

4
Installation
Logano GE615 - We reserve the right to make any changes due to technical modifications. 17
zPlace ratchet wrench onto clamping nut and compress
boiler sections by tightening evenly.
zRelease and remove the boiler compression tool.
zCheck nipples are seated correctly.
Fig 16 Boiler compression tool 2.3
1Threaded connection on the pull rods (loosened)
2Threaded connection on the pull rods (correct position)
Caution: Risk of accident
from material fatigue. Improperly used or
poorly maintained compression tools may
break.
zNever work directly in front of the
compression tool while it is being
tensioned.
zEnsure that no one is standing in front of
the compression tool.
Caution: Compression tool damage
The compression tool may be damaged or
destroyed if you compress pull rods with
loose threaded connections.
zAlways check the pull rods before each
use and tighten as necessary. The pull rod
is correctly positioned if it is fully inserted
and no thread is showing.
zAlways keep the thread clean. Dirty
threads may damage the compression
tool during compression.
zAlways grease threads thoroughly.

4Installation
Logano GE615 - We reserve the right to make any changes due to technical modifications.
18
Fig. 17 shows the central section with flow connection.
The nipples for fitting the next central section are inserted
into the corresponding hubs. The packing cord has
already been inserted into the packing groove. As with the
rear section (ÆFig. 12, page 15), there is also a break in
the elastic packing cord here. The boiler section has been
equipped with foot wedges for ease of installation. The
boiler section foot wedges are also used later for final lev-
elling of the boiler block.
Fig 17 Using the boiler section foot wedges
1Packing cord (with break)
2Boiler section foot wedge
Assemble all other boiler sections as described. The front
section is fitted last.
zInsert the anchor rods (with spring packs fitted) into the
cast lugs on the top left and right and bottom left and
right, next to the boiler block hubs.
zPut a nut onto each of the threaded anchor rods and
tighten by hand.
zNow tighten the nuts on the anchor rods 1 to 1½
turns.
VLevel the boiler block vertically and horizontally on the
base/silencing plinth (Æsee section 4.3.1, page 11).
Use the boiler section foot wedges provided for this
purpose. (Fig. 17, page 18).
zRemove boiler compression tool. Fig 18 Inserting the anchor rods
1Anchor rods (bottom)
2Anchor rods (top)
3Anchor rod with spring pack
The next step describes the installation of the feed pipe
(Æsee section 4.6, page 20).
After the front section is attached, loosen the
compression tool but do not remove it. Insert
the anchor rods first.
Caution: System damage
through excessively low contact pressure.
zDo not compress the spring pack. Only
use the spring pack in its original state.

4
Installation
Logano GE615 - We reserve the right to make any changes due to technical modifications. 19
4.5 Setting up the boiler block – (when
supplied as a pre-assembled block)
zCut through the straps.
zRemove pallet.
Fig 19 Boiler block on pallet
1Securing straps
2Pallet
Level the boiler block vertically and horizontally on the
base/silencing plinth. Use the boiler section foot wedges
provided for this purpose.
Once the boiler block is levelled, remove the transport
stay from the upper and lower hubs.
Fig 20 Removing transport stay
1Upper hub
2Lower hub
3Transport stay
Warning: Danger to life
from falling loads.
zObserve the transport information on the
data sheet (attached to boiler block) when
lifting the boiler block off the pallet.
The following pages describe the installation
of the feed pipe, sensor well and outer steam
tube. The installation steps are the same,
regardless of whether delivery is as a pre-
assembled block or in loose sections.

4Installation
Logano GE615 - We reserve the right to make any changes due to technical modifications.
20
4.6 Inserting the feed pipe (parts case)
On boilers with 9 – 11 sections the feed pipe is in 2
parts; on boilers with 12 – 16 sections, it comes in 3
parts.
zPush the flat gasket over the feed pipe.
zPush the feed pipe from the front into the upper boiler
hub.
zClose off with dummy flange.
zPlace the lug on the feed pipe connection endplate into
the recess on the upper boiler hub.
Fig 21 Sealing in the feed pipe
1Flat gasket
2Dummy flange
3Lug
4Feed pipe
5Recess in upper boiler hub
4.7 Sealing the sensor well (fittings
case)
Sensor well R ¾ "
zSeal sensor well R ¾ " from the front (length 110 mm)
into the upper R ¾ " tapped hole in the flow
connection.
Sensor well R ½ "
zSeal sensor well R ½ " ffrom the front (length 110 mm)
into the lower R ½ " tapped hole in the flow
connection.
Fig 22 Sealing the sensor wells
1Sensor well R ¾ "
2Sensor well R ½ "
Place the lug on the feed pipe connection
endplate into the recess on the upper boiler
hub so that the escape openings on the feed
pipe are positioned at the correct angle.
63044900-16.1K
