Buffalo DB175 User manual

Conveyor Toaster
Instruction manual
Model DB175

Table of Contents
Safety Tips…………………………………………………………………………………………1
Product Description …………………………………………………………………………….1
Introduction…………………………………………………………………………………………1
Pack Contents…………………………………………………………………………………….1
Operation……………………………………………………………………………………………2
Fit the Feeder…………………………………………..………………………………….2
Return Operation………………………………………………….………………………2
Pass-through Operation……………………………………………………….……….3
Toasting……………………………………………………………………………….……..3
Cleaning Care & Maintenance………………………………………………………………3
Troubleshooting…………………………………………………………………………………..4
Technical Specifications……………………………………………………………………….4
Electrical Wiring…………………………………………………………………………………..5
Compliance…………………………………………………………………………………………5

Safety Tips
• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not
remove any components on this product.
• Consult Local and National Standards to comply with the following:
• Health and Safety at Work Legislation
• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations
• Building Regulations
• DO NOT immerse the appliance in water.
• Some surfaces become hot during and after operation - take care when using or handling the
appliance.
• DO NOT use metal utensils to remove bread or crumbs from the appliance.
• Always switch off and disconnect the power supply to the appliance when not in use.
• Not suitable for outdoor use.
• Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of
local authorities.
• If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified
technician in order to avoid a hazard.
Product Description
• DB175 - Double Slice Feed Conveyor Toaster
Introduction
Please take a few moments to carefully read through this manual. Correct maintenance and operation of
this machine will provide the best possible performance from your BUFFALO product.
Pack Contents
The following is included:
• BUFFALO Conveyor Toaster
• Return chute
• Pass through chute
• Feeder
• Crumb tray
• Back door
• Feet x 4
• Instruction manual
BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are
supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.
1

WARNING: Take care to avoid touching the surfaces as surfaces remain hot during and
immediately after use.
Operation

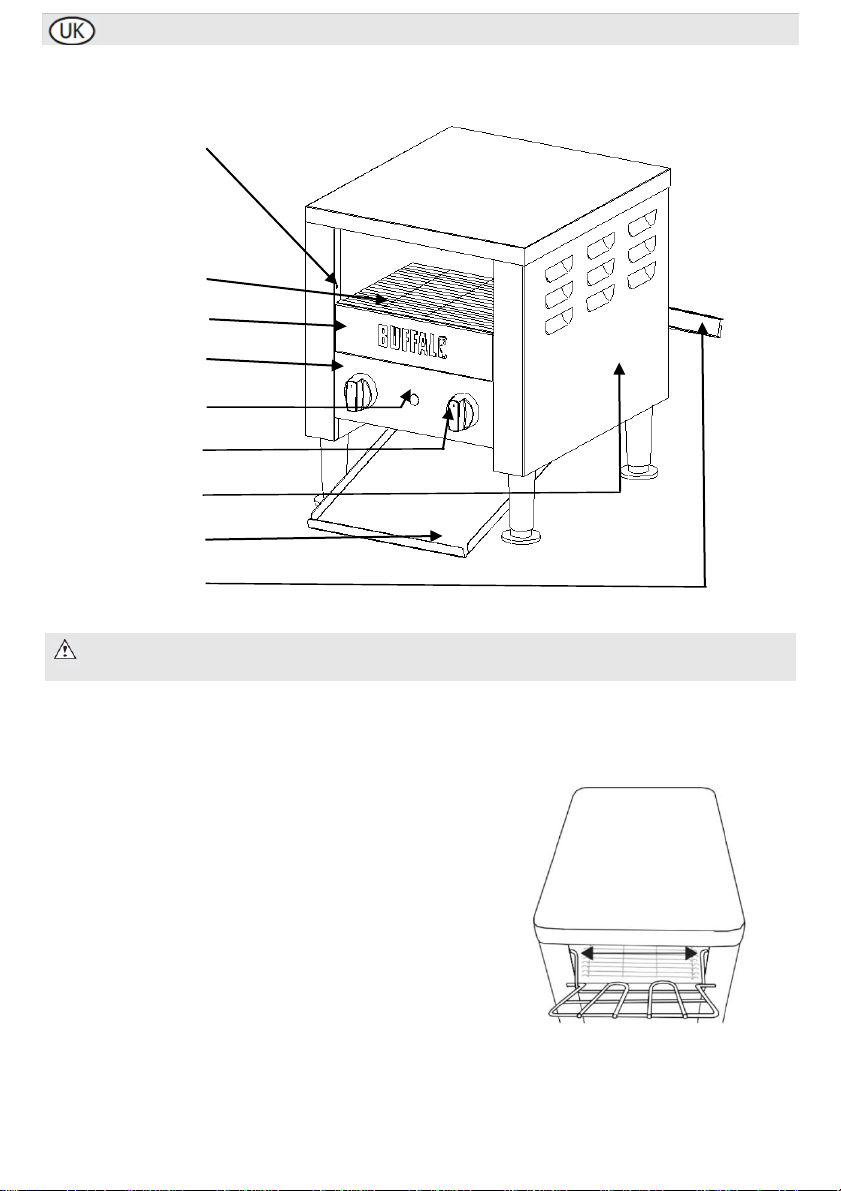

Feeder mounting
Belt
Crumb tray
Power level knob
Power indicator light
Belt speed knob
Return chute pins
Return chute
Pass-through chute
BUFFALO Conveyor Toasters can be set up to return the toast from the front or rear of the appliance. This
is known as ‘Return’ or ‘Pass-through’ operation and can be set up to best suit the kitchen environment.
Fit the Feeder
1. Squeeze the arms of the feeder and slot the arms in to the
feeder mounting holes.
2. Rest the legs on the outside of the appliance [Fig. 1].
Return Operation
To set-up the toaster for return operation:
1. Close the back door of the appliance and fix it in thevertical
position.
2. Slide the return chute in to the bottom of the appliance and
secure it to the two pins located inside the rear of the
appliance.
Fig. 1
2
holes

Pins
Back
Han
scre
Fig. 2
Note: BUFFALO recommend that the Conveyor Toaster is allowed to heat up for 30
minutes before use.
Pass-through Operation
To set-up the toaster for pass-through operation:
1. Remove the back door of the appliance.
2. Fix it inside the appliance by resting the curved lip of
the door on the two pins at the end of the belt
[Fig. 2].
3. Attach the Pass-through chute to the hanging screws
at the rear of the appliance.
Toasting
The BUFFALO Conveyor Toaster has 3 power levels:
‘Both Elements’
Full power to both upper and lower elements
‘Top Element’
Full power to upper element only
‘Warm ‘ECO’’
Energy Saver (reduces power to minimum, providing quick heat up times when required)
The speed of the conveyor belt can also be altered to adjust the cooking level.
door
ging
ws
• Turn the knob clockwise towards LIGHT (increases the speed of the belt) for a lighter toasting.
• Turn the knob anti-clockwise towards DARK (slows the speed of the belt) for a darker
toasting. To toast:
1. Connect the appliance to the power supply.
2. Set the power and belt speed.
3. Place the bread on the Feeder.
4. The bread is toasted as it travels through the appliance.
5. If necessary, adjust the power/belt speed to achieve the desired level of toasting.
Cleaning, Care & Maintenance
• Always turn Off the appliance and disconnect from the power supply before cleaning.
• Allow the appliance to cool before cleaning.
• Regularly remove and empty the crumb tray.
• Use warm, soapy water and a damp cloth to clean the exterior of the appliance.
• Dry thoroughly after cleaning.
• A BUFFALO dealer or qualified technician should carry out repairs if required.
3

Troubleshooting
If your BUFFALO appliance develops a fault, please check the following table before making a call to the
Helpline.
Fault Probable Cause Action
The unit is not working The unit is not switched on Check the unit is plugged in correctly
and switched on
Plug and lead are damaged Call BUFFALO agent or qualified
technician
Fuse in the plug has blown Replace the plug fuse
Power supply Check power supply
Internal wiring fault Call BUFFALO agent or qualified
technician
Appliance does not reach set
temperature
Faulty thermostat Call BUFFALO agent or qualified
technician
Faulty element Call BUFFALO agent or qualified
technician
Appliance heats up but indicator
light does not come on
Bulb has expired Call BUFFALO agent or qualified
technician
Power indicator light comes on
but appliance does not heat up
Faulty element Call BUFFALO agent or qualified
technician
Faulty thermostat Call BUFFALO agent or qualified
technician
Thermostat set incorrectly Check thermostat
Appliance slow to heat up Faulty element Call BUFFALO agent or qualified
technician
Belt does not move/is slower
than usual
Loose chain Call BUFFALO agent or qualified
technician
Uneven toasting Incorrect power setting Check power setting
Not yet up to temperature Allow appliance to heat up
Technical Specifications
Model Voltage Power Current Dimensions h
x w x d (mm)
Weight
(kg)
DB175 230V 50Hz 2400W 10.4A 380x420x370 17.0
4
No power Allow product to cool for 30 minutes
Auto re-set activated

Electrical Wiring
This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.
The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E
This appliance must be earthed,
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Compliance
The WEEE logo on this product or its documentation indicates that the product must
not be disposed of as household waste. To help prevent possible harm to human
health and/or the environment, the product must be disposed of in an approved and
environmentally safe recycling process. For further information on how to dispose of
this product correctly, contact the product supplier, or the local authority responsible
for waste disposal in your area.
BUFFALO parts have undergone strict product testing in order to comply with
regulatory standards and specifications set by international, independent, and federal
authorities.
BUFFALO products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of
BUFFALO.
Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve
the right to change specifications without notice.
5

UK 0845 146 2887
NL 0800-29129
040 - 2628080
FR 0800- 29 2 29
0160 34 28 80
DE
0800 - 1860806
IT N/A
ES
901-100133
PT [email protected]

DECLARATION OF CONFORMITY
• Conformiteitsverklaring • Déclaration de conformité• Konformitätserklärung • Dichiarazione di conformità•
• Declaración de conformidad • Declaração de conformidade
Equipment Type • Uitrustingstype • Type d'équipement •
Gerätetyp •Tipo di apparecchiatura • Tipo de equipo • Tipo de
equipamento
Double Slice Conveyor Toaster
Model • Modèle • Modell • Modello • Modelo • Malli
DB175
Application of Council Directives(s)
Toepassing van Europese Richtlijn(en) • Application de la/des
directive(s) du Conseil • Anwendbare EU-Richtlinie(n) •
Applicazione delle Direttive • Aplicación de la(s) directiva(s) del
consejo • Aplicação de directiva(s) do Conselho
Low Voltage Directive (LVD) 2014/35/EC
EN 60335-1:2012 +A11:2014 +A13:2017 +A1:2019
+A2:2019
EN 60335-2-48:2003 +A1:2008 +A11:2012
EN 62233:2008
Electro-Magnetic Compatibility (EMC) Directive
2014/30/EU
EN 55014-1:2006 +A1:2009 +A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
Restriction of Hazardous Substances Directive
(RoHS) 2015/863 amending Annex II to Directive
2011/65/EU
Producer Name • Naam fabrikant • Nom du producteur • Name
des Herstellers • Nome del produttore • Nombre del fabricante •
Nome do fabricante
Buffalo
Producer Address • Adres fabrikant • Adresse du producteur •
Anschrift des Herstellers • Indirizzo del produttore • Dirección
del fabricante • Morada do fabricante
Fourth Way,
Avonmouth,
Bristol,
BS11 8TB
United Kingdom
42 North Point Business
Park
New Mallow Road
Cork
Ireland
I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
Ik, de ondergetekende, verklaar hierbij dat de hierboven gespecificeerde uitrusting goedgekeurd is volgens de bovenstaande
Richtlijn(en) en Standaard(en).
Je soussigné, confirme la conformitéde l'équipement citédans la présente àla / aux Directive(s) et Norme(s) ci-dessus
Ich, der/die Unterzeichnende, erkläre hiermit, dass das oben angegebene Gerät der/den oben angeführten Richtlinie(n) und Norm(en)
entspricht.
Il sottoscritto dichiara che l'apparecchiatura di sopra specificata èconforme alle Direttive e agli Standard sopra riportati.
El abajo firmante declara por la presente que el equipo arriba especificado estáen conformidad con la(s) directiva(s) y estándar(es)
arriba mencionadas.
Eu, o abaixo-assinado, declaro que o equipamento anteriormente especificado estáem conformidade com a(s) anterior(es) Directiva(s)
e Norma(s)
Date • Data • Date • Datum • Data • Fecha • Data
25th October 2019
Signature • Handtekening • Signature • Unterschrift
Firma • Firma • Assinatura
Full Name • Volledige naam • Nom et prénom • Vollständiger Name •
Nome completo • Nombre completo • Nome por extenso
Ashley Hooper
Position • Functie • Fonction • Position • Qualifica • Posición • Função
Technical & Quality Manager

DB175_ML_A5_V1_20191106
