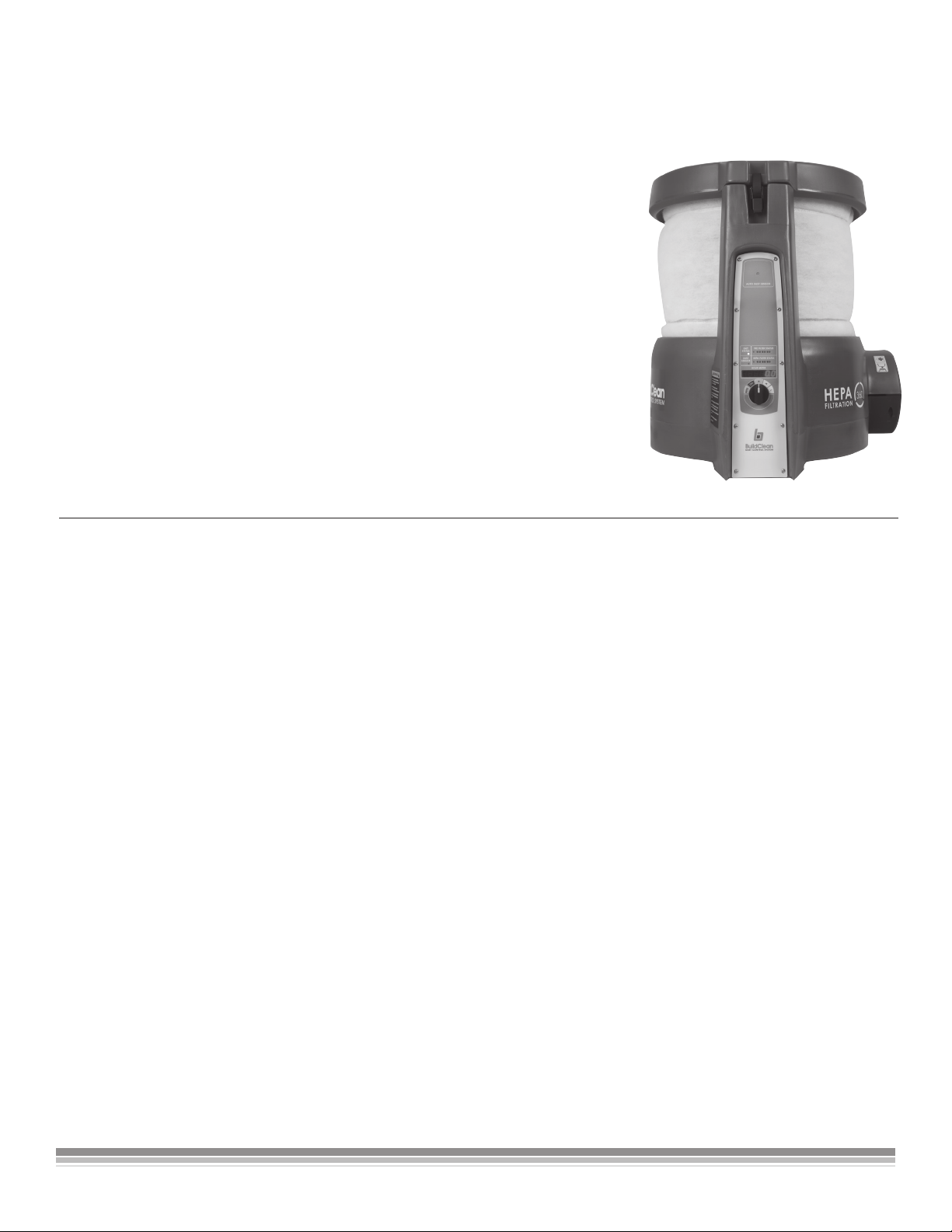

HEPA 360° AIR SCRUBBER
Operating Manual
SAFETY INSTRUCTIONS ...................................... 2
INTRODUCTION..................................................... 3
How the HEPA 360º Filtration System Works........... 3
OPERATING INSTRUCTIONS
Main Features and Controls ......................................4
Preparing the Air Scrubber for Use............................5
Positioning the Air Scrubber .................................... 6
Operating the Air Scrubber....................................... 7
Determining Mode of Operation .............................. 9
CARE AND CLEANING
Changing the Pre-Filter .......................................... 10
Changing the HEPA Filter....................................... 11
AFTER USING THE AIR SCRUBBER ..................12
TROUBLESHOOTING.......................................... 13
SPECIFICATIONS AND ITEM NUMBERS ........... 14
WARRANTY.......................................................... 15
MODEL #512000 Serial #_______________________________________________________
(Please Record the Serial Number Here)

© 2014 ITW Renovation & Remodeling, a Division of Illinois Tool Works Inc.2
Safety Instructions
DO NOT ATTEMPT TO OPERATE THE AIR
SCRUBBER UNTIL YOU READ AND
UNDERSTAND ALL SAFETY PRECAUTIONS AND
MANUAL INSTRUCTIONS.
READ AND SAVE THESE INSTRUCTIONS.
Electrical hazards
1. Damaged cords can be dangerous and should be
replaced immediately.
Risk of electrical shock.
2. Do not connect the air scrubber to an
ungrounded socket.
Risk of electrical shock.
3. Plug unit or rated extension cord into grounded
socket only
4. The Main Power Switch should be turned off
before unplugging the air scrubber.
5. Unplug the air scrubber when carrying out
maintenance work.
Make sure the area of use is rm and level, so that
the air scrubber does not tip over. Risk of personal
injury and damage to unit.
1. Do not stand on unit.
2. Do not sit on unit.
3. Do not drop unit. Falling equipment could cause
personal injury and damage to unit
1. The BuildClean HEPA 360º Air Scrubber can only
be used with dry, non-explosive materials.
2. The machine must not be used in
environments where explosive gases may be
present. Serious risk of explosion.
3. Do not operate in standing water.
4. Keep wiring and motor dry. If electrical
components become wet, allow them to dry
completely before using.
5. Dust that is hazardous to health can be spread
when the pre-lter and the HEPA lter are
replaced. Accordingly, the user should wear
protective glasses, protective gloves, and
breathing protection.
6. Do not puncture the HEPA lter. Risk of dust
dispersion.
The following safety instructions have been included in this manual to provide you with basic information
necessary for safe operation of the BuildClean HEPA 360° Air Scrubber.
WARNINGWARNING
WARNING
WARNING
WARNING

© 2014 ITW Renovation & Remodeling, a Division of Illinois Tool Works Inc. 3
This manual is intended to acquaint you with the BuildClean HEPA 360° Air Scrubber. The BuildClean HEPA
360° Air Scrubber is a self-contained, fully portable air ltration machine for professional residential remodeling
projects. It uses a fan to draw in dirty air from the space, pass it through a 360-degree, two-stage ltration
system to remove dust and particulates, and return clean air into the room.
Developed specically for use during residential remodeling and construction projects, the BuildClean HEPA
360° Air Scrubber captures and removes up to 90% of the particulates in the air, including cement, insulation,
silica, lead, wood and drywall dust.
Before operating the BuildClean HEPA 360° Air Scrubber:
1. Read this manual from cover to cover.
2. Follow all instructions in this manual.
3. Keep this manual in a safe place.
If you have questions about the BuildClean HEPA 360° Air Scrubber or wish to obtain additional copies
of this manual, call 1-855-595-2860.
For sales or customer service assistance, call 1-855-595-2860 or visit www.BuildClean.com.
Introduction
The BuildClean HEPA 360° Air Scrubber has an
advanced 360-degree HEPA (High Efciency
Particulate Air) air ltration system that effectively
cleans air in two stages:
1. The rst stage uses a coarse pre-lter to trap
larger particles and protect the main lter.
2. The second stage HEPA lter collects ne
particles and unhealthy dust that is invisible to
the eye.
Pre-lter characteristics
The coarse lter is designed to collect large
particles and protects the main HEPA lter.
Main lter characteristics
The main lter, classied as HEPA, is designed to
collect ne, dry dust and should be preceded by a
pre-lter.
How the BuildClean 360° HEPA Filtration System Works
CAUTION
1. Exposure to water can damage the (HEPA) lter and the pre-lter.
2. Pre-lters cannot be cleaned and must be replaced when full.
3. The HEPA lter cannot be cleaned and must be replaced when full.

© 2014 ITW Renovation & Remodeling, a Division of Illinois Tool Works Inc.4
Main Features and Controls
Durable Plastic Housing: The BuildClean HEPA
360° Air Scrubber has a durable plastic housing built
especially for the rigors of construction work. It is easy
to clean and resists scufng and denting.
360°Design: Maximizes particle collection, allows
multi-directional air collection and boosts efciency.
Power Status Display: Indicates the status of
the unit - ON, OFF.
Dynamic Fan Speed Control: Improves efciency
as the motor speed automatically adjusts to the lter
load to maintain desired CFM airow.
Hour Meter: Counts and displays the number of
hours the Air Scrubber has been operating, allowing
you to conrm the amount of time the unit has been
used on a job.
Auto Dust Sensor Status Light: When
illuminated, this light indicates that the dust sensor
needs cleaning. See page 8.
Auto Dust Sensor: Allows the Air Scrubber to run in
“AUTO” mode. While in AUTO mode, the Auto Dust
Sensor automatically samples the air and adjusts
the fan speed accordingly. For example, when a high
level of particulate is sensed, the Auto Dust Sensor
will automatically run the Air Scrubber on HIGH until
a lower level of particulate is sensed or the unit is
powered down.
Advanced Two-Stage Filtration System:
1. Pre-Filter - The coarse pre-lter traps larger
particulates.
2. HEPA Filter - High Efciency Particulate Air
(HEPA) lter traps 99.7% of particles down to 0.3
microns in size.
Filter Status Display: Stoplight-style red, yellow and
green LED display indicates the cleanliness of the
pre-lter and HEPA lter.
Filter Status Display
Auto Dust Sensor
Control Knob
Hour Meter
Cover Latch
Pre-Filter
Air Exhaust Vent
Top Cover
Main Power Switch
(located at rear of unit)
Power Status Display
Dust Sensor Status Light

© 2014 ITW Renovation & Remodeling, a Division of Illinois Tool Works Inc. 5
Preparing the Air Scrubber for Use
Unpacking the Air Scrubber
Find a level spot to unpack and assemble your
BuildClean HEPA 360° Air Scrubber.
When unpacking the machine, check that the air
scrubber and all its parts have not been damaged in
transport. Conrm that both the pre-lter and HEPA
lter are in place correctly.
Save the box and packing material. If you need to
ship the BuildClean HEPA 360° air scrubber to a job
site or return the product, using the original box and
packing material ensures that the air scrubber can
be transported without being damaged.

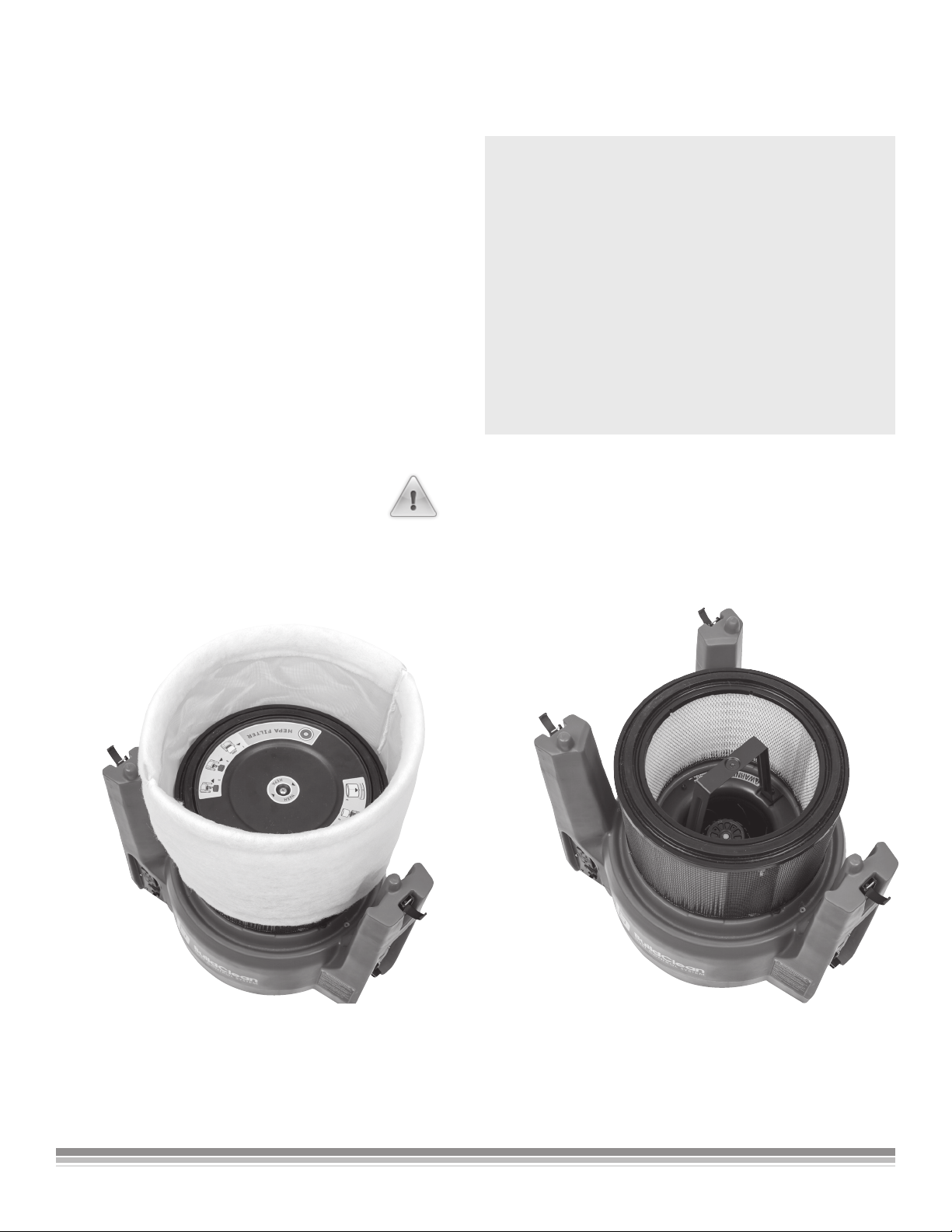

Views of unit showing locations of prelter (left) and HEPA lter (right)
BuildClean 360° Air Scrubber Checklist
of Parts
1. Air Scrubber Top Cover
2. Air Scrubber Base
3. Pre-Filter
4. HEPA Filter
5. Attached Short Power Cord
If the air scrubber or its parts have been
damaged or if there are any other concerns,
call BuildClean at [phone].
WARNING
Check the power cord on the air scrubber to ensure it has not been damaged in transit. A damaged power
cord can cause electrical shock and personal injury. Do NOT operate an air scrubber with a damaged cord or
plug.

© 2014 ITW Renovation & Remodeling, a Division of Illinois Tool Works Inc.6
Positioning the Air Scrubber
Preparation
Before using an air scrubber, start with a clean unit
and new pre-lter – best practice is to clean the unit,
replace the pre-lter and inspect the HEPA lter after
every job.
Positioning the Air Scrubber in the Room
Many factors, such as the size of the room or
available oor space, determine where to place the
HEPA 360° Air Scrubber on a job site.
The unique 360º design allows the unit to be placed
just about anywhere in the work area and be run in
either a vertical or horizontal orientation. How the unit
is positioned will affect the amount of airborne dust
that can be collected.
Ideally the unit should be operated in the center of
the work area and should be located strategically
within the space to maximize air circulation or, if being
run in Negative Air Pressure Mode, to provide the
best venting.
NOTICE
When locating the air scrubber, be sure to position the exhaust vent so that airow from the vent can
ow freely into the room. If greater air ltration is needed the unit can be moved closer to where dust
is being generated, but note that the air scrubber is NOT to be used as a vacuum at point-of-dust-
generation.To ensure that the clean part of the home stays free of particulates, you can locate a second
BuildClean HEPA 360° Air Scrubber just outside the work space. This way, the unit will capture any
particles that escape the barrier in the home.
The BuildClean HEPA 360° Air Scrubber can be positioned vertically (left) or horizontally (right).

© 2014 ITW Renovation & Remodeling, a Division of Illinois Tool Works Inc. 7
Operating the Air Scrubber
Plugging In the Air Scrubber
Fire and Electric Shock Hazard Unit must be
electrically grounded.
The BuildClean HEPA 360° Air Scrubber is equipped
with a short three-prong powercord that must be
used with a UL®approved 15 Amp, 125 Volt, 1875
Watt three-prong extension cord and a three-prong
grounded outlet.
Keep wiring and motor dry. Do not operate in standing
water. If electrical components become wet, allow
them to dry completely before using.
CAUTION
If using the exhaust vent hose, attach the hose using
an 8” screw clamp before plugging in the unit.
1. Avoid blocking the exhaust vent.
2. Do not put anything in the exhaust vent as it may
damage the fan blades.
Turning ON the Air Scrubber
Turn on the air scrubber by pressing the Main Power
Switch located on the back of the unit.
Starting the Air Scrubber

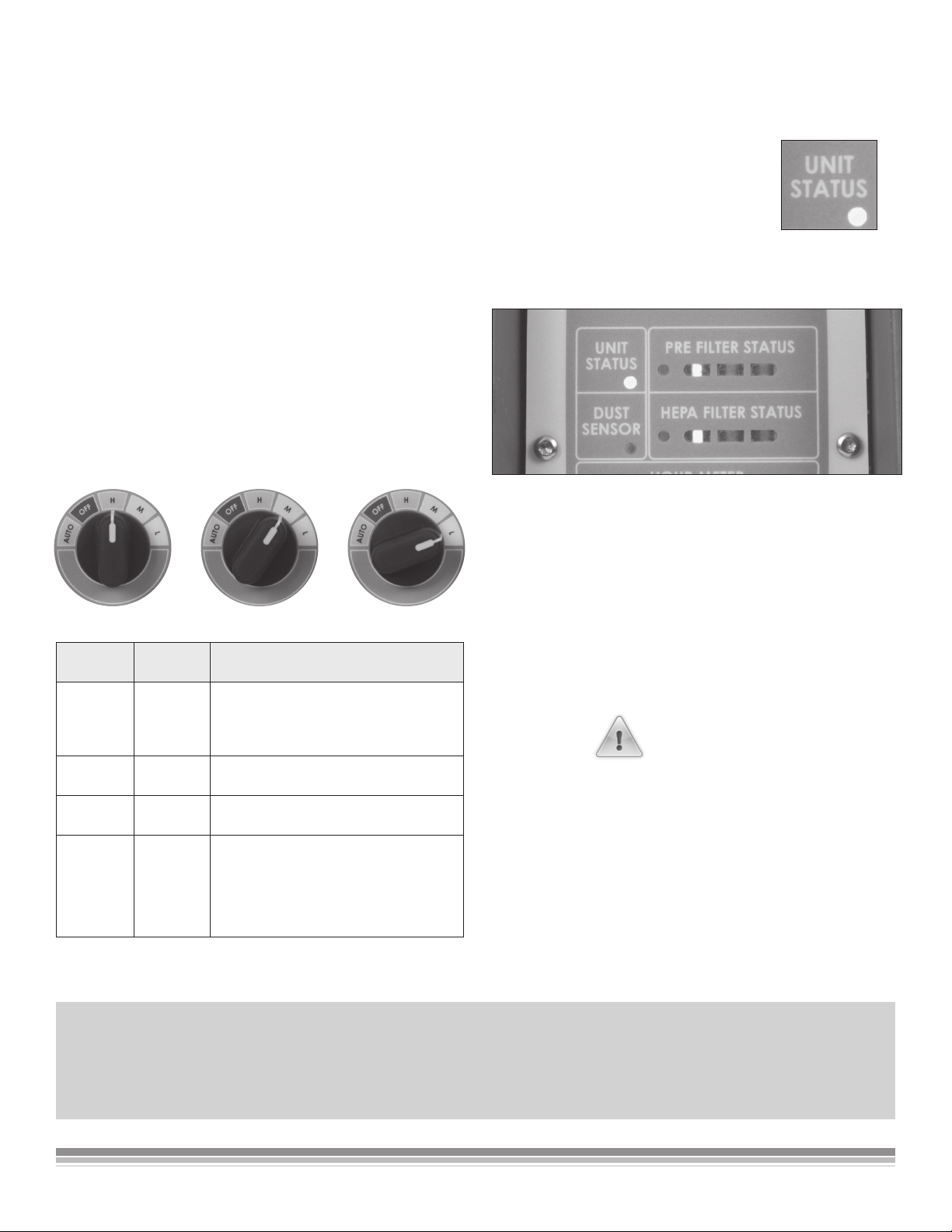

Start the air cleaning process by turning the
START knob to AUTO or the desired fan air speed:
H(High 600 CFM*),
M(Medium 400 CFM*),
L (Low 200 CFM*).
* Cubic Foot per Minute
When started the unit performs a systems calibration
test prior to starting the fan; during this process the
word CAL will appear in the Hour Meter, and the
green lights blink. This is the rst of two performance
tests that are run every time the air scrubber is
started.
Once completed, you will hear the fan start, ramp
up to maximum speed and run for several seconds
to completed the second performance test that
determines the cleanliness of both the pre-lter and
the HEPA lter. During this process the Power Status
Display will be green, the Hour Mete will display tESt
and the Filter Status Display will ash yellow.
WARNING
WARNING
WARNING

© 2014 ITW Renovation & Remodeling, a Division of Illinois Tool Works Inc.8
Operating the Air Scrubber
Determining Operating Speed
The BuildClean HEPA 360° Air Scrubber is equipped
to produce a maximum air ow of 600 cubic feet per
minute (CFM).
The HEPA 360º Air Scrubber has three speeds:
H(High 600 CFM),
M(Medium 400 CFM),
L(Low 200 CFM)
Plus an automatic setting in which the fan will
automatically adjust to the optimum speed based on
the results of the air sampling. Select the speed that
best suits your needed level of dust control. Rotate
the speed control knob to the desired speed setting,
Speed
Setting
Air
Speed
Recommended Use
HIGH 600 CFM Maximum performance; use during
the points of greatest dust genera-
tion, such as demolition and drywall
sanding.
MEDIUM 400 CFM Ideal speed for everyday dust collec-
tion on the job site.
LOW 200 CFM Lowest performance setting; use to
remove light dust.
AUTO 200 TO
600 CFM
For times and jobs where you desire
limited interaction with the air scrub-
ber - speed adjusts based upon the
amount of dust present in the air.
Power Status Display
Unit Status – Green light when unit
has been turned on at the Main
Power Switch at the rear of the
air scrubber.
Filter Status Display
Green Lights - “GO” -
lters are clean and unit is ready to operate.
Yellow Lights - “CAUTION” - lters are getting dirty.
The unit will continue to operate. Once the lters
reach full capacity the lights will turn red.
Red Lights - “STOP” –
Replace the noted lter.
DANGER
Failure to clean and replace the pre-lter will result in
a shortened life of the HEPA lter.
Auto Dust Sensor Status
Red light indicates that the Auto Dust Sensor needs
to be cleaned. To clean the dust sensor, unplug the
unit and use compressed air to blow dust out of the
opening to the Auto Dust Sensor.
NOTICE
While operating the lter performance test will occur every 60 minutes. During this test you will hear the
air scrubber fan ramp up to maximum speed and run for 15 seconds.

© 2014 ITW Renovation & Remodeling, a Division of Illinois Tool Works Inc. 9
Determining Mode Of Operation
The BuildClean HEPA 360° Air Scrubber has been
designed to run in either air recirculation mode or
in negative pressure mode. Before preparing your
unit for operation, rst determine the best mode of
operation for your purposes:
Recirculation Mode: In this mode, the air scrubber
is placed within the room without any ducting. Air is
ltered, cleaned and recirculated within the room.
In most cases, the BuildClean HEPA 360ºAir
Scrubber will be used in the recirculation mode.
Negative Air Pressure Mode: In this mode, the air
scrubber is used to collect dust and to create a slight
vacuum in the area surrounding the machine. To use
the air scrubber in Negative Air Pressure Mode, it is
necessary to use a vent hose (Accessory #512050)
to remove the exhaust air out of the work area. If the
area is sealed and vented correctly, negative pressure
and a slight vacuum is created and air will ow into
the work area minimizing the migration of nuisance
dust outside of the work zone.
Creating a negative pressure environment using
HEPA-Filtered Portable Air Scrubbers
Simplied, to create a negative pressure environment,
more air must leave the space than enters it. To cre-
ate this environment, the project area must be walled
off with permanent or temporary construction barriers.
The air scrubber then must be placed inside the con-
struction area and the air exiting the air scrubber has
to be ducted somewhere outside of the project area,
preferably to the outside of the building. Since the air
is HEPA-ltered, it is not mandatory to exhaust air to
the outdoors.
Air always ows from areas of higher pressure to
areas of lower pressure so air will ow into the work
area from the space under the door and other small
openings. Since dust will not ow against this air
stream the air scrubber is acting as a simple negative
air machine.
Recirculation Mode
Negative Air Pressure Mode
WARNING
DO NOT create an negative pressure environment
around household mechanicals like water heaters
and gas furnaces. Fumes from these items will be
drawn back into the work area and not out the intend-
ed exhaust pipes.

© 2014 ITW Renovation & Remodeling, a Division of Illinois Tool Works Inc.10
Changing the Pre-Filter
The air scrubber should be turned OFF at the Main
Power Switch before unplugging the unit.
Risk of dust dispersion – Use personal safety
equipment. Unhealthy dust can be spread when
removing the pre-lter. Wear protective glasses and
a breathing mask.
Removing the Pre-Filter
1. Turn the air scrubber OFF at the Main Power
Switch.
2. Remove the top cover of the air scrubber by
unlatching the three cover latches.
3. Carefully lift the pre-lter up and out of the air
cleaner.
Place the used lter in a plastic bag for disposal.
Replace pre-lter with Part # 512100.
Replacing the Pre-Filter
1. Remove the used pre-lter.
2. Slide the new pre-lter over and halfway down the
HEPA lter.
3. Find the locator pin on the bottom of the pre-lter.
4. Insert the locator pin into the Filter Orientation/
Activation Hole on the base of the unit. This will
orient the pre-lter properly during installation and
activate the lter monitoring electronics.
5. Push the remainder of the pre-lter sock down
so it covers the entire HEPA lter and touches
the base of the air scrubber.
6. Put the cover back on the unit and be sure to
properly latch all three tabs.
The air scrubber WILL NOT operate if the
pre-lter locator pin is not inserted into the
Orientation/Activation Hole.
WARNING
WARNING
WARNING
PIN MUST BE INSERTED TO RUN MACHINE

© 2014 ITW Renovation & Remodeling, a Division of Illinois Tool Works Inc. 11
Changing the HEPA Filter
Removing the HEPA Filter
1. Turn the air scrubber OFF at the Main Power
Switch.
2. Remove the top cover of the air scrubber
by unlatching the three cover latches.
3. Carefully lift the pre-lter up and out of the
air cleaner.

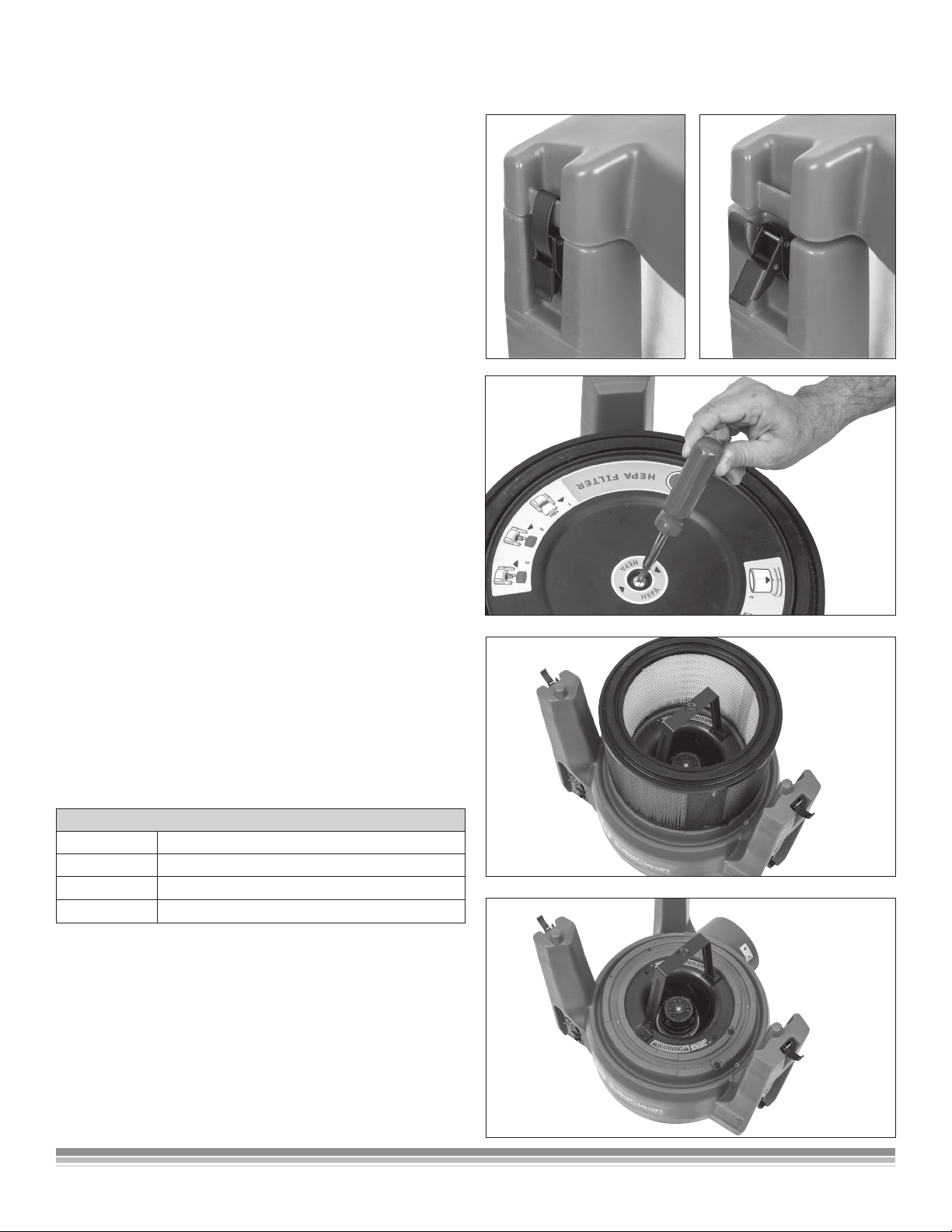

4. To remove the HEPA lter, use a Phillips head
screwdriver to unscrew the retaining screw.
5. Remove the protective cover and set aside.
Gently lift up the HEPA lter and replace it
with Part# 512200.
Replacing the HEPA Filter
1. Remove the HEPA lter.
2. Replace the used HEPA lter with a new
BuildClean HEPA lter, Part #512200.
3. Place it on the base. There is no “top” or “bottom”
so it doesn’t matter which side is positioned up.
4. Set the protective cover on top.
5. Using a Phillips head screwdriver, screw in the
retaining screw.
Filter Maintenance
The BuildClean HEPA 360° Air Scrubber is equipped
with stop-light style LED display lights that indicate
the status of the pre-lter and HEPA lter. When the
display lights ash red, lter maintenance is needed
and the lters should be changed following the
instruction provided earlier in this manual
NOTE: FILTERS SHOULD BE REPLACED
IMMEDIATELY IF DAMAGED OR TORN.
FILTER LED LIGHT NOTIFICATION
Light Color Indication
GREEN Filter is clean and ready for use
YELLOW Notice that the lter is lling with particulate
RED At capacity - time to change the lter

© 2014 ITW Renovation & Remodeling, a Division of Illinois Tool Works Inc.12
After Using the Air Scrubber
Turn the fan off by turning the knob to the OFF
position.
Turn the unit off by moving the Main Power Switch
to the OFF position.
To avoid the migration of dust, remove and bag
the pre-lter after each project. See the section on
Changing the Air Filters for detailed instructions.
Install a clean pre-lter on the unit for the next use.
Inspect the HEPA lter and replace if needed.
See the section on Changing the Air Filters for
detailed instructions.
Thoroughly clean the unit. Wipe down the exterior.
Blow dust out of the opening to the Auto Dust Sensor
using compressed air.

© 2014 ITW Renovation & Remodeling, a Division of Illinois Tool Works Inc. 13
Troubleshooting
Problem Possible Causes What To Do
Air scrubber does not
start when turned on.
The air scrubber is unplugged. Make sure the air scrubber’s plug is pushed completely
into the outlet.
Power switch (red switch at back of
unit) is set to “OFF” or circuit breaker
is tripped.
Flip switch to “RESET”.
GFCI has been tripped. Depress the “RESET” button on the GFCI on the back of the unit.
Power failure. Restore power to the outlet.
Damaged or defective power cord. Contact Customer Service
[phone].
Red lter indicator
lights are lit.
Blocked/dirty lter Change appropriate lter.
The fan stops
suddenly.
Power failure. Restore power.
Unit in “ERROR” state. See Error State Table (Below).
Fan runs but suction
is poor.
Blocked/dirty lter. Change lters.
Area too large. Add additional air scrubber.
Unit too far from point of dust
generation.
Move unit closer to work area.
Unit rattles during
operation.
Cover loose. Check that cover latches are fastened. Tighten retaining screw.
Dust or dirty air blows
from unit.
Defective or loose lter. Adjust or change.
Abnormal noise. Unknown. Disconnect vent hose, inspect lters and air pathways.
Contact Customer Service [phone].
Loose cover. Check that cover latches are fastened.
The BuildClean HEPA 360° Air Scrubber is designed and manufactured for severe environments and tasks, but
the user must note that the machine components must be protected from knocks and blows. Filters and sealing
connections are carefully chosen to serve the operator. Therefore, the machine must be handled with care if it
is to work correctly for many years.
Unit Error Codes
Error Code 1 Blocked/dirty lter See Filter Status Display, change appropriate lter.
Error Code 2 Pre-lter fault Install BuildClean pre-lter
Pre-lter fault Assure the pre-lter activation pin in fully inserted.
Pre-lter fault Make sure vent hose is not blocked.
Error Code 3 HEPA lter fault Install BuildClean HEPA lter.
HEPA lter fault If using a vent hose, make sure that the house is straight and free
from any material crushing or blocking the hose.
Error Code 4 Dust sensor malfunction Clean dust sensor by blowing compressed air through inlet.
Error Code 5 Fan pressure sensor
malfunction
Clean area (black rubber air intakes) where the lters are installed.
Contact Customer Service if problem persists.
Error Code 6 Pre-lter pressure sensor
malfunction
Clean area (black rubber air intakes) where the lters are installed.
Contact Customer Service if problem persists.
Error Code 7 HEPA-lter pressure sensor
malfunction
Clean area (black rubber air intakes) where the lters are installed.
If problem persists, contact Customer Service [phone].
Error Code 8 RPM sensor malfunction or
locked up fan
Contact Customer Service [phone].
NOTE: Air Scrubber has to be plugged into a wall outlet to reset the GFCI

© 2014 ITW Renovation & Remodeling, a Division of Illinois Tool Works Inc.14
BuildClean HEPA 360° Air Scrubber Specications
Voltage 112 VAC (1 phase)
Max Power Output 395 W (full speed)
Max Air Flow 600 CFM 3-speed
Pre-Filter Classication MERV 10
Pre-Filter Size 12" tall x 24.75" at
HEPA FilterClassication HEPA
HEPA Filter Size 9.5" tall x 14.75" dia.
Weight 38 lbs.
GFCI Protected Outlets 12 amps, 8 amps auxiliary outlet
Main Power Switch Located on the back of the unit
PART NO. DESCRIPTION
# 512000 HEPA 360º Air Scrubber
# 512100 Coarse Particle Pre-lter
# 512200 Fine Particle HEPA Filter
# 512050 System Vent Hose
For spare parts, call [phone].
Item Numbers

© 2014 ITW Renovation & Remodeling, a Division of Illinois Tool Works Inc. 15
Warranty
BuildClean HEPA 360ºAir Scrubber
Warranty and Limitations
BuildClean warrants that new BuildClean HEPA 360° Air Scrubbers will be free from
defects in material and workmanship for the period shown below, after the date of delivery
to the original user.
ONE-YEAR LIMITED WARRANTY
This warranty is limited to tools sold solely in the United States.
BuildClean’s sole liability and Buyer’s sole remedy hereunder shall be to replace any part
or accessory which proves to be defective with the warranty period as stated above.
Any replacement part or accessory provided in accordance with this warranty will carry a
warranty for the balance of the period of warranty applicable to the part it replaces.
The warranty does not cover defects which are the result of normal wear and tear,
negligence, defective use, unauthorized repair or the air scrubber being connected to the
incorrect voltage. This warranty is void on any machine which has been subjected to misuse,
abuse, accidental or intentional damage, use with filters not meeting BuildClean specification,
size or quality, improperly maintained, repaired by an unauthorized service provider, or altered.
Do not attempt to repair the HEPA 360° Air Scrubber without the consent of the manufacturer.
If you attempt to repair the BuildClean HEPA 360° Air Scrubber for any reason without the
consent of the manufacturer, the warranty will be null and void.
The BuildClean HEPA 360° Air Scrubber can only be used with dry, non-explosive materials.
The manufacturer will not be held responsible if the air cleaner is used for other applications
or has been used in ways other than those outlined in this instruction manual.If the BuildClean
HEPA 360º Air Scrubber is used for any other application other than as stated herein,
manufacturer’s warranty shall be null and void.
In the event of any complaint, please call [phone].
All spare parts used for the BuildClean HEPA 360º Air Scrubber must be those specified by
the manufacturer.

A Division of Illinois Tool Works, Inc.
955 National Parkway, Suite 95500
Schaumburg, IL 60173-5172
855 - 595 - 2860
www.BuildClean.com
Assembled in the U.S.A.
U.S. Patent Pending
BuildClean is a trademark of Illinois Tool Works, Inc.
LITERATURE PACKET # 512136
OPERATIONS MANUAL # 512137-2
