Bull ESCALA
Expandable Storage Plus 2104 Models DS4 and TS4
Operator’s Guide
86 A1 17EM 00
ORDER REFERENCE

Bull ESCALA
Expandable Storage Plus 2104 Models DS4 and TS4
Operator’s Guide
Hardware
November 2003
BULL CEDOC
357 AVENUE PATTON
B.P.20845
49008 ANGERS CEDEX 01
FRANCE
86 A1 17EM 00
ORDER REFERENCE

The following copyright notice protects this book under the Copyright laws of the United States of America
and other countries which prohibit such actions as, but not limited to, copying, distributing, modifying, and
making derivative works.
Copyright Bull S.A. 1992, 2003
Printed in France
Suggestions and criticisms concerning the form, content, and presentation of
this book are invited. A form is provided at the end of this book for this purpose.
To order additional copies of this book or other Bull Technical Publications, you
are invited to use the Ordering Form also provided at the end of this book.
Trademarks and Acknowledgements
We acknowledge the right of proprietors of trademarks mentioned in this book.
AIXRis a registered trademark of International Business Machines Corporation, and is being used under
licence.
UNIX is a registered trademark in the United States of America and other countries licensed exclusively through
the Open Group.
Linux is a registered trademark of Linus Torvalds.
The information in this document is subject to change without notice. Bull will not be liable for errors contained
herein, or for incidental or consequential damages in connection with the use of this material.

Contents
Figures ............................v
Safety and environmental notices ................. vii
Safety notices and their translations ................. vii
Electrostatic discharge (ESD) ................... viii
Safety inspection procedures.................... viii
Inspecting the rack ...................... viii
Inspecting the 2104 Model DS4 or Model TS4.............ix
External machine checks ....................ix
Internal machine checks .....................ix
Safety label checks .......................x
Checking the grounding of the 2104 Model TS4 ............xv
Removing power from the 2104 Model DS4 or Model TS4........ xvii
Danger notices .........................xx
Caution notices......................... xxi
Environmental notices and statements ............... xxvii
Fire suppression systems ................... xxvii
Product recycling ...................... xxvii
About this document ..................... xxix
Who should read this document .................. xxix
Additional information ...................... xxix
2104 Model DS4 and Model TS4 library .............. xxix
Related documents ...................... xxix
Web sites ......................... xxx
How to send your comments .................. xxx
Chapter 1. Using the 2104 Model DS4 or Model TS4 ..........1
2104 Model DS4.........................2
2104 Model TS4 .........................4
Controls and lights ........................6
Disk drive module lights .....................7
Fan-and-power-supply assembly and fan assembly lights and switch ....9
SCSI Interface card lights ....................12
SCSI Interface card switches...................14
Identifying 2104 Model DS4 or Model TS4 disk enclosures.........17
Identifying disk drive modules ...................18
Security ...........................19
Chapter 2. Adding disk drive modules ...............21
Before adding adisk drive module..................22
Adding adisk drive module ....................24
Chapter 3. Exchanging FRUs ...................29
Disk drive module ........................30
Before exchanging adisk drive module ...............31
Exchanging adisk drive module .................32
Fan-and-power-supply assembly ..................39
Before exchanging afan-and-power-supply assembly..........39
Exchanging afan-and-power-supply assembly ............40
Fan assembly .........................49
Before exchanging afan assembly ................49
Exchanging afan assembly ...................50
©Copyright IBM Corp. 2003 iii

SCSI Interface card assembly ...................56
Before exchanging the SCSI Interface card assembly..........57
Exchanging aSCSI Interface card assembly .............58
Appendix. Operating with RISC systems ..............69
SCSI adapters and cables.....................69
System service aids .......................69
Identifying a2104 Model DS4 or Model TS4 and its disk drive modules ....70
AIX ............................70
Linux ...........................70
Problem determination ......................70
Reporting problems .......................70
Checking the SCSI error log ....................71
Configuring a2104 Model DS4 or Model TS4 to an AIX host system .....71
Unconfiguring a2104 Model DS4 or Model TS4 from an AIX host system ...71
Configuring a2104 Model DS4 or Model TS4 in aSuSE Linux Enterprise Server
for pSeries Environment.....................71
Notices ...........................73
Trademarks ..........................74
Electronic emission statements ...................74
Federal Communications Commission (FCC) statement .........74
Industry Canada compliance statement ...............74
Chinese Class Awarning statement ................74
European Community compliance statement .............75
Germany compliance statement..................75
Japanese Voluntary Control Council for Interference (VCCI) class 1statement 76
Korean Government Ministry of Communication (MOC) statement .....76
Taiwan class Acompliance statement ...............76
Index ............................77
iv Expandable Storage Plus 2104 Model DS4 and Model TS4 Operator’sGuide

Figures

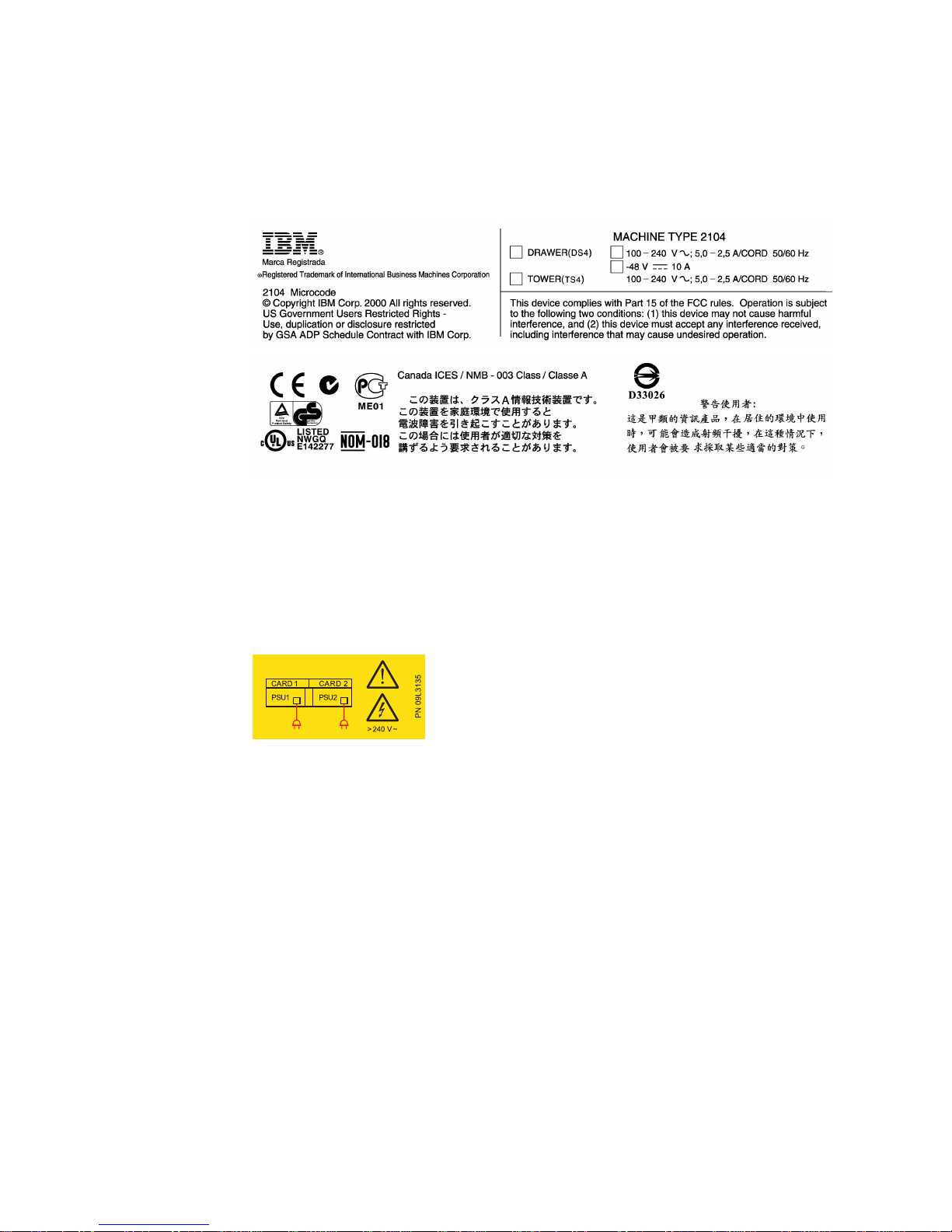

1. 2104 Model DS4 or Model TS4 label ........................x
2. Linecord caution label .............................x

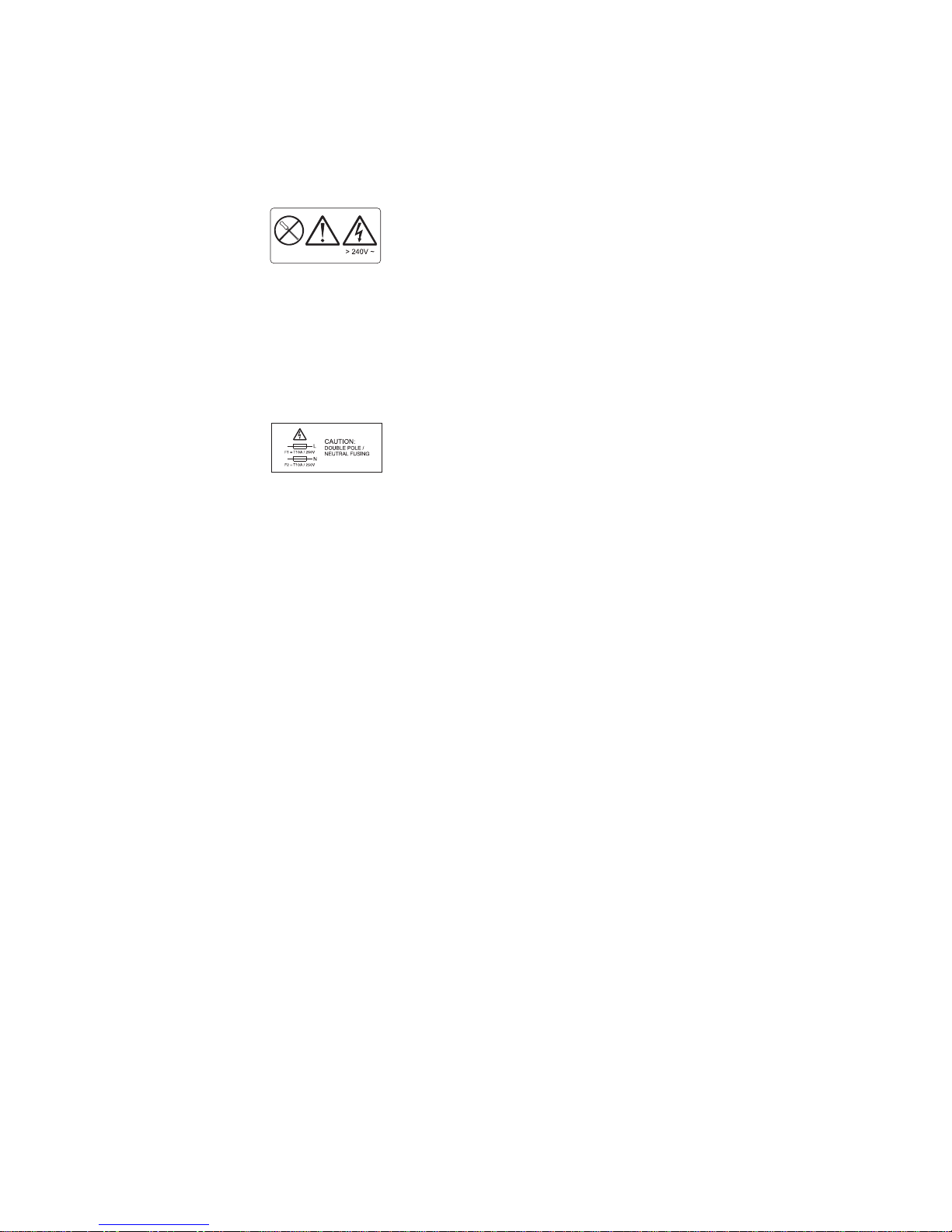

3. Power supply cover caution label .........................xi
4. Fusing caution label ..............................xi
5. 2104 Model DS4 weight label .......................... xii
6. 2104 Model TS4 weight label .......................... xiii
7. Standby condition label ............................ xiv

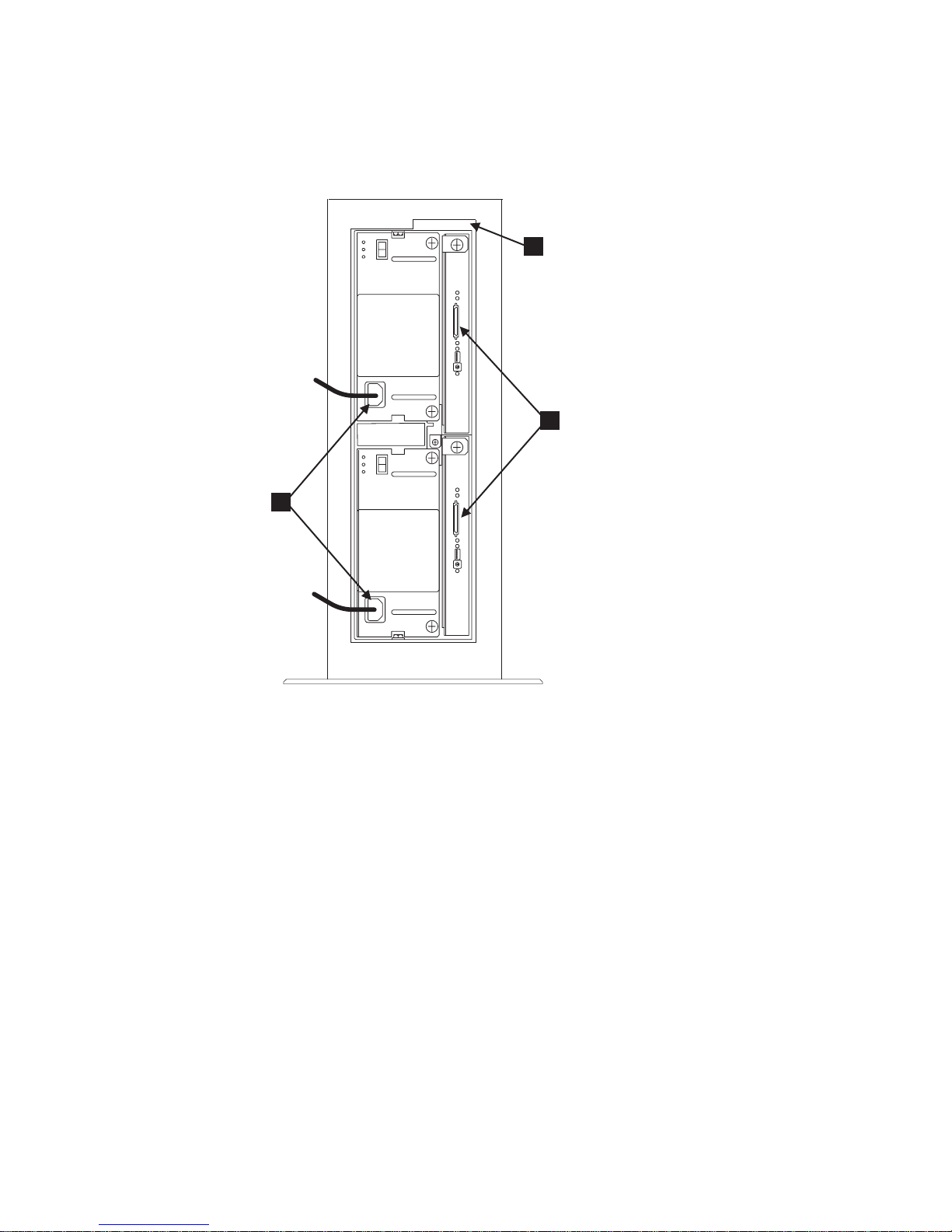

8. Power cables and SCSI connectors (2104 Model TS4) .................xv

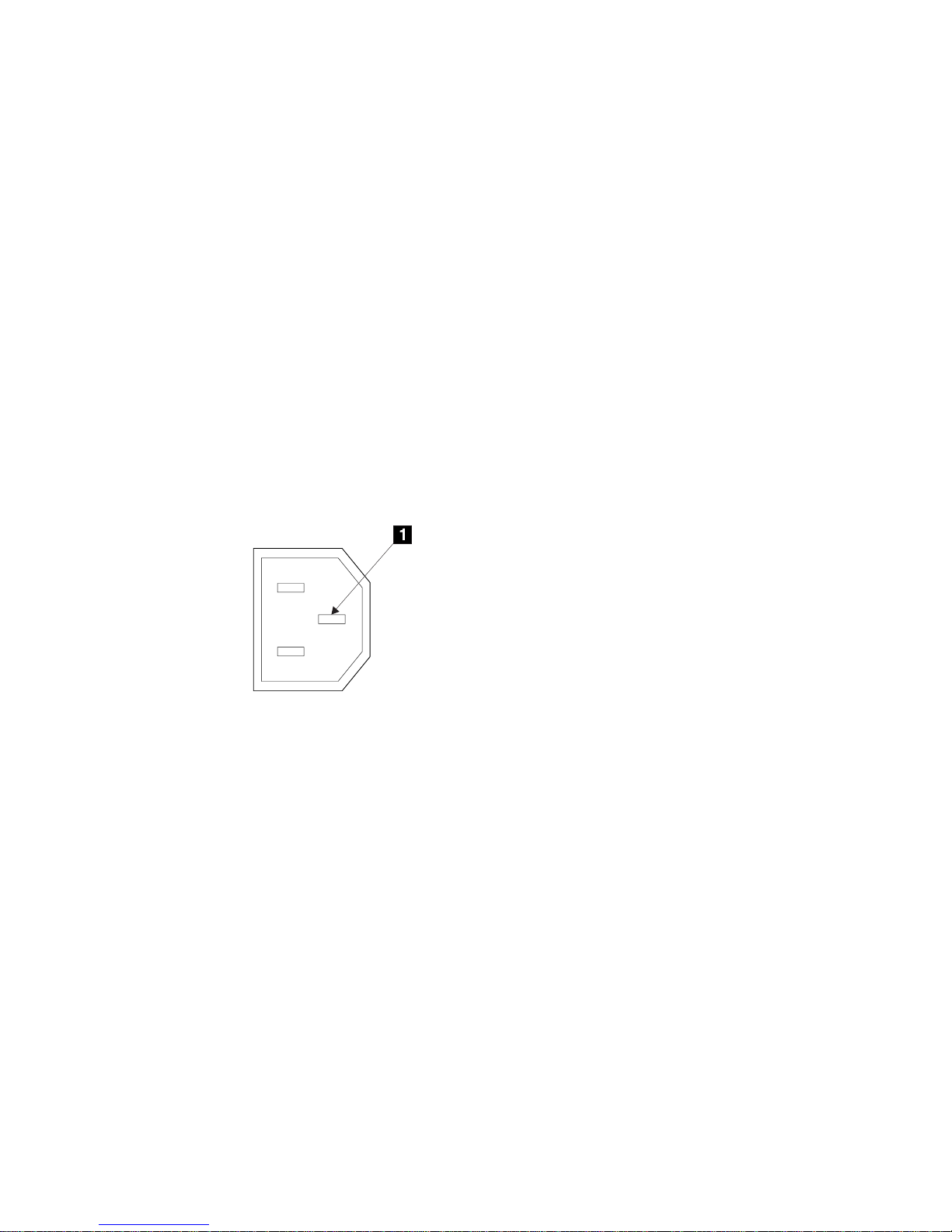

9. Ground pin (2104 Model TS4) .......................... xvi
10. Removing the power from a2104 Model DS4 .................... xvii
11. Removing power from a2104 Model TS4...................... xix
12. Linecord caution label ............................. xxi
13. Power supply cover caution label......................... xxi
14. Fusing caution label ............................. xxi
15. 2104 Model DS4 weight label .......................... xxii
16. 2104 Model TS4 weight label .......................... xxiii
17. Location of standby condition .......................... xxiv
18. 2104 Model TS4 (left) and 2104 Model DS4 (right) ...................1
19. 2104 Model DS4 shown from the front (top) and back (bottom) ..............2
20. 2104 Model TS4 shown from the front (left) and back (right) ...............4
21. Disk enclosure lights on a2104 Model TS4 (left) and a2104 Model DS4 (right) ........6
22. 2104 Model TS4 with the cover open ........................7
23. Disk drive module lights.............................8
24. Fan-and-power-supply assemblies in a2104 Model TS4 (left) and 2104 Model DS4 (right) ....9
25. Fan-and-power-supply assembly lights and switch ..................10
26. Fan assembly ................................11
27. SCSI Interface cards in a2104 Model TS4 (left) and 2104 Model DS4 (right).........12
28. SCSI Interface card assembly lights ........................13
29. SCSI Interface card switches ..........................14
30. Other switches on the SCSI Interface card .....................16
31. Switch cover plate on the panel of the SCSI Interface card-2 (second JBOD interface card) box 17
32. Disk drive module label (2104 Model DS4 or Model TS4) ................18
33. 2104 Model TS4 lock .............................19
34. Disk drive module handle and label (2104 Model DS4 or Model TS4) ...........21
35. Dummy disk drive module ...........................22
36. Disk drive modules in a2104 Model TS4 ......................23
37. Removing adummy disk drive module .......................24
38. Adding adisk drive module ...........................25
39. Closing the handle of adisk drive module .....................26
40. Disk drive module lights ............................27
41. Closing the cover of a2104 Model TS4 ......................28
42. Disk drive module handle and capacity (2104 Model DS4 or Model TS4) ..........30
43. Disk drive modules in a2104 Model TS4 ......................32
44. Opening the disk drive module handle .......................33
45. Removing adisk drive module ..........................34
46. Inserting adisk drive module ..........................35
47. Closing the handle ..............................36
48. Disk drive module lights ............................37
49. Closing the cover of a2104 Model TS4 ......................38
50. Afan-and-power-supply assembly ........................39
51. Fan-and-power-supply dc on/standby switch .....................40
52. Unplugging the mainline power cable .......................41
53. Unscrewing the thumbscrews on the fan-and-power-supply assembly ...........42
©Copyright IBM Corp. 2003 v

54. Removing the fan-and-power-supply assembly ....................43
55. Inserting areplacement fan-and-power-supply assembly ................44
56. Tightening the screws on afan-and-power-supply assembly ...............45
57. Plugging in the mainline power cable .......................46
58. Fan-and-power-supply dc on/standby switch .....................47
59. Fan-and-power-supply lights ..........................48
60. Fan assembly ................................49
61. Fan assembly CHK light ............................50
62. Unscrewing the thumbscrews on afan assembly ...................51
63. Pulling out afan assembly ...........................52
64. Inserting afan assembly ............................53
65. Tightening the thumbscrews...........................54
66. Fan assembly light ..............................55
67. SCSI Interface card assembly ..........................56
68. Fault light on an SCSI Interface card assembly....................57
69. Removing the SCSI cable ...........................58
70. Unscrewing the SCSI Interface card ........................59
71. Opening the lever ..............................60
72. Pulling the SCSI Interface card out ........................61
73. Inside of the switch cover plate showing the hook, latch, and two guide pins to mate with the
SCSI Interface card assembly ..........................62
74. Pushing the replacement SCSI Interface card in ...................63
75. Closing the lever ...............................64
76. Tightening the thumbscrews...........................65
77. Plugging in the SCSI cable ...........................66
78. SCSI Interface card assembly TERM POWER light ..................67
vi Expandable Storage Plus 2104 Model DS4 and Model TS4 Operator’sGuide

Safety and environmental notices
This section contains the following information:
vSafety notices and their translations
vSafety inspection procedures for this product
vEnvironmental notices and statements
Safety notices and their translations
Safety notices are printed in English throughout this document.
ADanger notice warns you of conditions or procedures that can result in death or
severe personal injury.
ACaution warns you of conditions or procedures that can cause personal injury that
is neither lethal nor extremely hazardous.
An Attention notice warns you of conditions or procedures that can cause damage
to machines, equipment, programs, or data.
For translations of the danger and caution notices, see Expandable Storage Plus
2104 Model DS4 and Model TS4 Translated Safety Notices,SC26-7558. The
notices are listed in numeric order based on their IDs, which are displayed in
parentheses, at the end of each notice. See the following examples of danger and
caution notices for the location of the ID number.
DANGER
An electrical outlet that is not correctly wired could place ahazardous
voltage on the metal parts of the system or the products that attach to the
system. It is the customer’s responsibility to ensure that the outlet is
correctly wired and grounded to prevent an electrical shock. (1)
CAUTION:
Do not insert hands or tools into the opening of the empty space that
contained the fan assembly. (1)
©Copyright IBM Corp. 2003 vii

Electrostatic discharge (ESD)
Attention: When you handle field-replaceable units (FRUs) and other computer
parts, take these precautions to avoid static damage:
vLimit your movement. Movement can cause static electricity to build up around
you.
vAlways touch the computer parts carefully. Hold the cards by their edges or metal
cover. Never touch any exposed circuits.
vPrevent people who are not correctly grounded from touching computer parts.
vBefore you install anew part, touch the static-protective package that contains
the part against an unpainted metal part of the 2104 Model DS4, 2104 Model
TS4, or host system for at least 2seconds. This reduces the static electricity in
the package and in your body.
vRemove the part from its package and, if possible, install it directly into the 2104
Model DS4 or Model TS4 without putting the part down. If you must put the part
down, follow these steps:
1. Place the static-protective package that contained the part onto asmooth,
level surface.
2. Place the part onto the static-protective package. Do not place the part
directly onto any metal surface.
Safety inspection procedures
The safety inspection procedures describe how to inspect the 2104 Model DS4 or
Model TS4.
CAUTION:
The 2104 Model DS4 and Model TS4 are designed to be installed by the
customer and are certified as customer setup. Make sure that the system or
rack into which the 2104 Model DS4 and Model TS4 will be installed is also
designed and certified for customer setup. If the 2104 Model DS4 and Model
TS4 are not, then they must be installed by aCE. (22)
Inspecting the rack
Refer to your rack installation manual for information about performing asafety
inspection on the rack.
viii Expandable Storage Plus 2104 Model DS4 and Model TS4 Operator’sGuide

Inspecting the 2104 Model DS4 or Model TS4
Perform the following safety checks to identify unsafe conditions.
External machine checks
Perform the following external machine checks:
1. Check the chassis for damage (loose, broken, or sharp edges).
2. Check the power cables and ensure that the insulation is not worn or
damaged.
3. Check for any obvious nonstandard changes. Use good judgment about the
safety of any such changes.
4. Verify that all external covers are present and are not damaged.
5. Ensure that all latches and hinges are in correct operating condition.
6. Check the power cable for damage.
7. Check for worn, damaged, or pinched cables.
8. Inspect the fan-and-power-supply assemblies. Check that the fasteners in the
cover of the power-supply unit (screws or rivets) have not been removed or
disturbed.
9. Check the external signal cable for damage.
10. Check the cover for sharp edges, damage, or alterations that expose the
internal parts of the device.
11. Correct any problems that you find.
Internal machine checks
Perform the following internal machine checks:
1. Check for any non-IBM changes that might have been made to the machine. If
any are present, obtain the “Non-IBM Alteration Attachment Survey”form,
number R009, from the IBM branch office. Complete the form, and return it to
the branch office.
2. Check the condition of the inside of the machine for:
vMetal or other contaminants
vIndications of water or other fluid
vFire
vSmoke damage
3. Check for any obvious mechanical problems, such as loose components.
4. Check any exposed cables and connectors for wear, cracks, or pinching.
Safety and environmental notices ix

Safety label checks
Perform the following safety label checks:
1. Verify that the label is installed on the 2104 Model DS4 or Model TS4. See
Figure 1.
2. Verify that the linecord caution label is installed on the 2104 Model DS4 or
Model TS4 power supply. See Figure 2.
CAUTION:
This unit might have two linecords. To remove all power, disconnect both
linecords. (1)
SC000274
Figure 1. 2104 Model DS4 or Model TS4 label
Figure 2. Linecord caution label
xExpandable Storage Plus 2104 Model DS4 and Model TS4 Operator’sGuide

3. Verify that the power supply cover caution label is installed on the 2104 Model
DS4 or Model TS4 power supply. See Figure 3.
CAUTION:
Do not remove cover, do not service, no serviceable parts. (2)
4. Verify that the fusing caution label is installed on the 2104 Model DS4 or Model
TS4 power supply. See Figure 4.
CAUTION:
Double Pole/Neutral Fusing. (3)
Figure 3. Power supply cover caution label
Figure 4. Fusing caution label
Safety and environmental notices xi

5. Verify that the weight label is installed on the 2104 Model DS4. See Figure 5.
CAUTION:
This unit weighs over 32 Kg (70.5 lbs). Refer to manuals. (4)
SC000220
Refer to manuals 32 Kg (70.5 lbs)
Figure 5. 2104 Model DS4 weight label
> 18 Kg (37 lbs) > 32 Kg (70.5 lbs) SC000334
Attention:
If you have data stored on the drives, label the drives before you remove
them. When you replace the drives, install each one in the same drive bay
from which you removed it. Failure to do so could result in a loss of data.
CAUTION:
If a 2104 Model DS4 is fully loaded with 14 drives and two power supplies, its
total weight exceeds 32 Kg (70.5 lbs). You must remove at least six drives from
the 2104 Model DS4 before you lift it or install it into a rack or 2104 Model TS4.
This reduces the total weight to less than 32 Kg (70.5 lbs) and the
can then be safely handled by two people. Failure to do so can result in
injury.
2104 Model
DS4
xii Expandable Storage Plus 2104 Model DS4 and Model TS4 Operator’sGuide

6. Verify that the weight label is installed on the 2104 Model TS4. See Figure 6.
CAUTION:
This unit weighs between 32 Kg -55 Kg (70.5 lbs -121.2 lbs) .(5)
32 - 55 Kg (70.5 - 121.2 lbs)
SC000219
Figure 6. 2104 Model TS4 weight label
> 18 Kg (37 lbs) > 32 Kg (70.5 lbs)
SC000325
CAUTION:
(6)
The provided cardboard lifting tool is required for moving, installing, and
relocating the product when fully populated. Three people are required to
safely move the product. Failure to do so might result in injury.
In case the lifting tool is not readily available, you must reduce the weight
to 32 Kg or less by removing all of the heavy components (disk drives
and power supplies) from the product. Then only two people are required to
move, install, and relocate the product.
Attention:
If you have data stored on the drives, label the drives before you remove them.
When you replace the drives, install each one in the same drive bay
from which you removed it. Failure to do so could result in a loss of data.
Safety and environmental notices xiii

7. Verify that the standby condition label is installed on the 2104 Model DS4 or
Model TS4. See Figure 7.
CAUTION:
Astandby condition is indicated by the symbol to the right of the DC
directly above the switch, SW1. When SW1 is toggled to the right position
directly under the standby symbol, the unit’sac-power is not shut off. (7)
Figure 7. Standby condition label
xiv Expandable Storage Plus 2104 Model DS4 and Model TS4 Operator’sGuide

Checking the grounding of the 2104 Model TS4
Perform the following steps to check the grounding of the 2104 Model TS4:
1. Ensure that apower cable is plugged into each power socket 1.See Figure 8.
2. Ensure that the other ends of the power cables are not plugged into electrical
power outlets. Unplug the cables if necessary.
SC000230
1
2
3
Figure 8. Power cables and SCSI connectors (2104 Model TS4)
Safety and environmental notices xv

3. Attention: Some electrical circuits could be damaged if the external SCSI
cables are connected to the 2104 Model TS4 while the grounding check is
being done.
Ensure that no external SCSI cables are connected at the SCSI connectors 2.
See Figure 8on page xv.
4. Check for continuity between the chassis of the 2104 Model TS4 3 and the
ground pin of each power cable.
a. Check the power cables and ensure that the third-wire ground connector is
in good condition.
b. Use ameter to check that the third-wire ground continuity is 0.1 ohm or less
between the external ground pin and the chassis ground.
5. If the continuity is good, the grounding check is complete.
6. If the grounding is not correct, unplug the power cables from the mainline power
connectors.
a. Check each power cable for continuity.
b. If either power cable is failing, exchange it for anew one.
c. Check for continuity between the chassis of the 2104 Model TS4 and the
ground pin 1 of the power connector on each fan-and-power-supply
assembly. See Figure 9.
d. If either fan-and-power-supply assembly does not have continuity, exchange
that assembly for anew one. (See the section about fan and power supply
assemblies in Expandable Storage Plus 2104 Model DS4 and Model TS4
Service Guide.)
Perform step 1on page xv through step 6d to complete the grounding check
again.
Figure 9. Ground pin (2104 Model TS4)
xvi Expandable Storage Plus 2104 Model DS4 and Model TS4 Operator’sGuide

Removing power from the 2104 Model DS4 or Model TS4
Removing power from a2104 Model DS4
Note: Unless you have aparticular reason to do so, do not remove power from the
host system or from the 2104 Model DS4 unless the instructions that you are
following tell you to.
Perform the following steps to remove the power from a2104 Model DS4:
1. Verify with the customer that all operations between the 2104 Model DS4 and
the host system have stopped.
2. Set the dc on/standby switch 1 of each fan-and-power-supply assembly to
standby. See Figure 10.
Notes:
a. Some 2104 Model DS4s have afan-and-power-supply assembly and afan
assembly. The fan assembly has no dc on/standby switch.
b. Afan-and-power-supply assembly might have its CHK light on although its
dc on/standby switch is set to standby.
SC000206
Figure 10. Removing the power from a2104 Model DS4
Safety and environmental notices xvii

3. DANGER
In the following step you are going to remove the power cables. These
cables are live if the rack power distribution unit or uninterruptible
power supply (UPS) unit is still switched on. (1)
Remove the power cables 2 from the back of the 2104 Model DS4. See
Figure 10 on page xvii.
4. Perform the following steps to return power to the 2104 Model DS4:
a. Reinstall the power cables 2.
b. Set the dc on/standby switch 1 of each fan-and-power-supply assembly to
on.
Note: You can configure the motor-start sequencing of the 2104 Model DS4.
For more information, see the sections about the drive autostart switch
and the delay motor start mode switch in the Expandable Storage Plus
2104 Model DS4 and Model TS4 Service Guide.
Removing power from a2104 Model TS4
Note: Unless you have aparticular reason to do so, do not remove power from the
host system or from the 2104 Model TS4 unless the instructions that you are
following tell you to.
Perform the following steps to remove the power from a2104 Model TS4:
1. Verify with the customer that all operations between the 2104 Model TS4 and
the host system have stopped.
2. At the back of the 2104 Model TS4, set the dc on/standby switch 1 of each
fan-and-power-supply assembly to standby. See Figure 11 on page xix.
Notes:
a. Some 2104 Model TS4s have afan-and-power-supply assembly and afan
assembly. The fan assembly has no dc on/standby switch.
b. Afan-and-power-supply assembly might have its CHK light on although its
dc on/standby switch is set to standby.
xviii Expandable Storage Plus 2104 Model DS4 and Model TS4 Operator’sGuide
