Bull Cedoc Bull Escala 2104 TS4 User manual

Bull ESCALA
Expandable Storage Plus 2104 Model TS4
Installation Guide
86 A1 15EM 00
ORDER REFERENCE

Bull ESCALA
Expandable Storage Plus 2104 Model TS4
Installation Guide
Hardware
November 2003
BULL CEDOC
357 AVENUE PATTON
B.P.20845
49008 ANGERS CEDEX 01
FRANCE
86 A1 15EM 00
ORDER REFERENCE

The following copyright notice protects this book under the Copyright laws of the United States of America
and other countries which prohibit such actions as, but not limited to, copying, distributing, modifying, and
making derivative works.
Copyright Bull S.A. 1992, 2003
Printed in France
Suggestions and criticisms concerning the form, content, and presentation of
this book are invited. A form is provided at the end of this book for this purpose.
To order additional copies of this book or other Bull Technical Publications, you
are invited to use the Ordering Form also provided at the end of this book.
Trademarks and Acknowledgements
We acknowledge the right of proprietors of trademarks mentioned in this book.
AIXRis a registered trademark of International Business Machines Corporation, and is being used under
licence.
UNIX is a registered trademark in the United States of America and other countries licensed exclusively through
the Open Group.
Linux is a registered trademark of Linus Torvalds.
The information in this document is subject to change without notice. Bull will not be liable for errors contained
herein, or for incidental or consequential damages in connection with the use of this material.

Contents
Figures ............................v
Tables ............................vii
Safety and environmental notices .................ix
Safety notices and their translations .................ix
Electrostatic discharge (ESD) ....................x
Safety inspection procedures ....................x
Inspecting the 2104 Model TS4 ..................xi
External machine checks ....................xi
Internal machine checks .....................xi
Safety label checks ......................xii
Checking the grounding of the 2104 Model TS4............xvi
Removing power from the 2104 Model TS4 .............xviii
Danger notices .........................xx
Caution notices.........................xxi
Environmental notices and statements ................xxiv
Fire suppression systems ...................xxiv
Product recycling ......................xxiv
About this document .....................xxv
Who should read this document ..................xxv
Additional information ......................xxv
2104 Model DS4 and Model TS4 library ..............xxv
Related documents ......................xxv
Web sites .........................xxvi
How to send your comments ..................xxvi
Installing and testing the 2104 Model TS4 ..............1
Before you begin ........................1
Locating mainline electrical power outlets ..............1
Installation safety notices ....................1
Checking mainline electrical power outlets ..............2
Installing the cover .......................4
Selecting a location.......................6
Installing the switch cover plate ...................7
Setting the options ........................9
Connecting the 2104 Model TS4 to the power source...........18
Connecting the 2104 Model TS4 to the host system ...........19
Testing the installation ......................20
Appendix A. Operating with RISC systems .............21
System service aids .......................21
Identifying a 2104 Model TS4 and the disk drive modules .........21
AIX............................21
Linux ...........................21
Configuring a 2104 Model TS4 to an AIX host system ..........21
Unconfiguring a 2104 Model TS4 from an AIX host system.........22
Configuring a 2104 Model TS4 in a Linux for pSeries environment ......22
Collecting Errors ........................22
Appendix B. Cable configurations .................25
Valid configurations .......................25
© Copyright IBM Corp. 2003 iii

Summary of valid configurations .................27
Single-bus mode configurations ..................28
Dual-bus mode configurations ..................35
Invalid configurations.......................41
Two adapters in one host system connected to one 2104 Model TS4 ....41
One adapter in one host system connected to two 2104 Model TS4s through
the SCSI interface cards ...................42
One adapter in one host system connected to two 2104 Model TS4s through
a Y-cable (1) ........................43
One adapter in one host system connected to two 2104 Model TS4s through
a Y-cable (2) ........................44
One dual-channel non-RAID adapter in one host system connected to two
2104 Model TS4s and internal disk drives .............45
One RAID adapter in each of two host systems connected to two 2104 Model
TS4s ...........................46
Notices ...........................47
Trademarks ..........................48
Electronic emission statements ...................48
Federal Communications Commission (FCC) statement .........48
Industry Canada compliance statement ...............48
Chinese Class A warning statement ................48
European Community compliance statement .............49
Germany compliance statement..................49
Japanese Voluntary Control Council for Interference (VCCI) class 1 statement 50
Korean Government Ministry of Communication (MOC) statement .....50
Taiwan class A compliance statement ...............50
Index ............................51
iv 2104 Model TS4 Installation Guide

Figures
1. 2104 Model TS4 label .............................xii
2. Linecord caution label .............................xii
3. Power supply cover caution label .........................xiii
4. Fusing caution label..............................xiii
5. 2104 Model TS4 weight label ..........................xiv
6. Standby condition label ............................xv
7. Power cables and SCSI connectors (2104 Model TS4) .................xvi

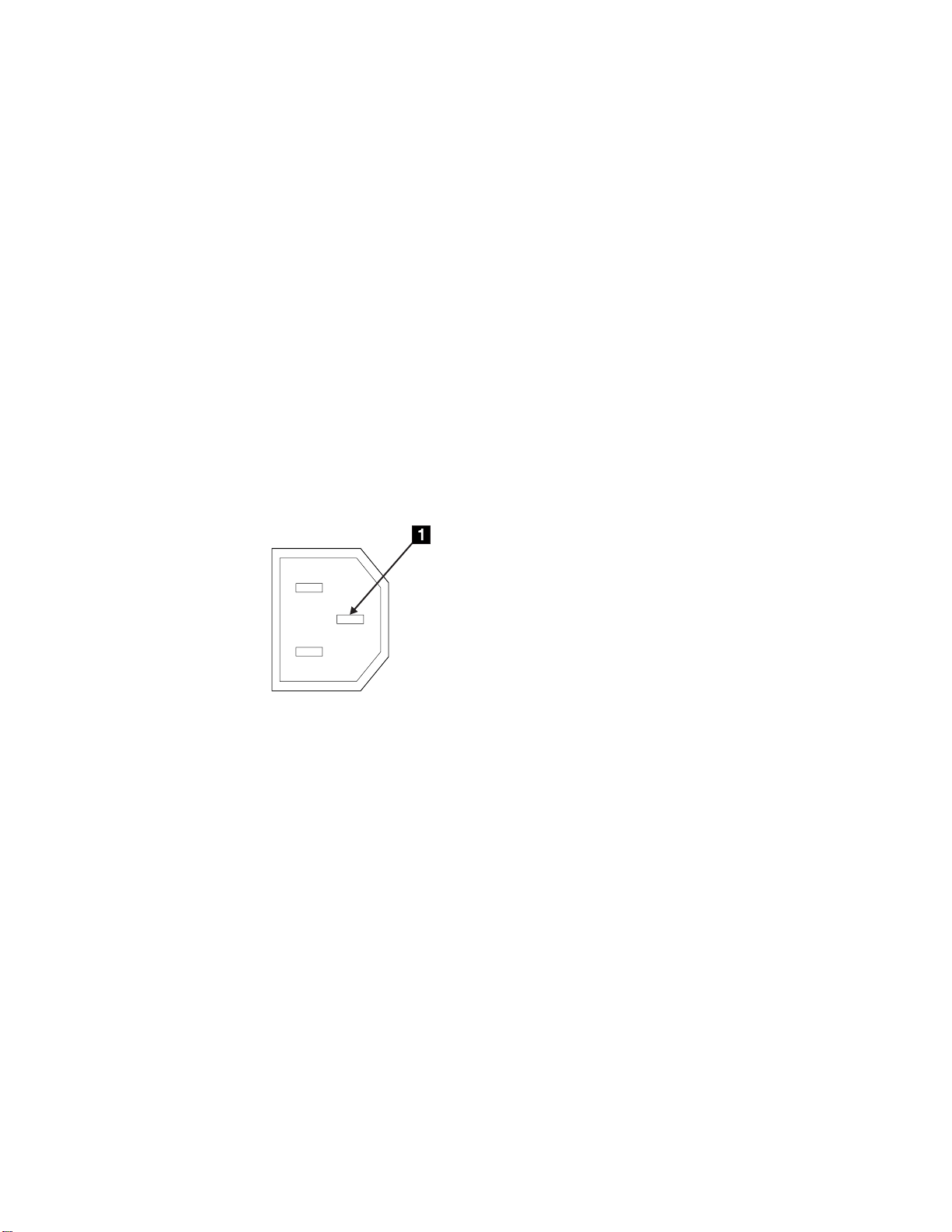

8. Ground pin (2104 Model TS4)..........................xvii
9. Removing power from a 2104 Model TS4 .....................xviii
10. Linecord caution label .............................xxi
11. Power supply cover caution label .........................xxi
12. Fusing caution label .............................xxi
13. 2104 Model TS4 weight label ..........................xxii
14. Location of standby condition ..........................xxii
15. Installing the cover, part 1 ............................4
16. Installing the cover, part 2 ............................5
17. Service clearances ..............................6
18. 2104 Model TS4 weight label ...........................6
19. Installing the switch cover plate onto the panel of the SCSI Interface card-2 (second JBOD
interface card) box...............................8
20. Switch cover plate ...............................9
21. Setting the box ID ..............................10
22. Setting the option switches ...........................11
23. Unscrewing the thumbscrew ..........................12
24. Opening the lever on the card assembly ......................13
25. Removing the card assembly ..........................14
26. Card assembly switches ............................15
27. Inserting the card assembly ...........................16
28. Closing the lever on the card assembly ......................17
29. Connecting power cables ............................18
30. Connecting SCSI cables ............................19
31. Checking the lights ..............................20
32. One adapter in one host system connected to one 2104 Model TS4 (single-bus mode) .....29
33. Two adapters in one host system connected to two 2104 Model TS4s (single-bus mode) ....30
34. One adapter in each of two host systems connected to two 2104 Model TS4s (single-bus mode) 31
35. One adapter in one host system connected to two 2104 Model TS4s (single-bus mode) ....32
36. One adapter, one host system with internal RAID array, and two 2104 Model TS4s (single-bus
mode) ...................................33
37. One adapter in each of two host systems connected to one 2104 Model TS4 (single-bus mode) 34
38. Two adapters in one non-HACMP host system connected to one 2104 Model TS4 (dual-bus
mode) ...................................36
39. Three adapters in two non-HACMP host systems connected to two 2104 Model TS4s (dual-bus
mode) ...................................37
40. One adapter in one non-HACMP host system connected to one 2104 Model TS4 and an internal
RAID array (dual-bus mode) ..........................38
41. One adapter in each of two non-HACMP host systems connected to one 2104 Model TS4s
(dual-bus mode) ...............................39
42. One RAID adapter in each of two non-HACMP host systems connected to two 2104 Model TS4s
(dual-bus mode) ...............................40
43. Two adapters in one host system connected to one 2104 Model TS4 (single-bus mode) ....41
44. One adapter in one host system connected to two 2104 Model TS4s through the SCSI Interface
cards ...................................42
45. One adapter in one host system connected to two 2104 Model TS4s through a Y-cable (1) 43
© Copyright IBM Corp. 2003 v

46. One adapter in one host system connected to two 2104 Model TS4s through a Y-cable (2) 44
47. One dual-channel non-RAID adapter in one host system connected to two 2104 Model TS4s and
internal disk drives ..............................45
48. One RAID adapter in each of two host systems connected to two 2104 Model TS4s ......46
vi 2104 Model TS4 Installation Guide

Tables
1. Valid configurations ..............................27
© Copyright IBM Corp. 2003 vii

viii 2104 Model TS4 Installation Guide

Safety and environmental notices
This section contains the following information:
vSafety notices and their translations
vSafety inspection procedures for this product
vEnvironmental notices and statements
Safety notices and their translations
Safety notices are printed in English throughout this document.
ADanger notice warns you of conditions or procedures that can result in death or
severe personal injury.
ACaution warns you of conditions or procedures that can cause personal injury that
is neither lethal nor extremely hazardous.
An Attention notice warns you of conditions or procedures that can cause damage
to machines, equipment, programs, or data.
For translations of the danger and caution notices, see Expandable Storage Plus
2104 Model DS4 and Model TS4 Translated Safety Notices, SC26-7558. The
notices are listed in numeric order based on their IDs, which are displayed in
parentheses, at the end of each notice. See the following examples of danger and
caution notices for the location of the ID number.
DANGER
An electrical outlet that is not correctly wired could place hazardous
voltage on metal parts of the system or the devices that attach to that
system. It is the customer’s responsibility to ensure that the outlet is
correctly wired and grounded to prevent an electrical shock. During an
electrical storm, do not disconnect cables for display stations, printers,
telephones, or station protectors for communication lines. (4)
CAUTION:
Do not insert hands or tools into the empty space that contained the
fan-and-power-supply assembly. (11)
© Copyright IBM Corp. 2003 ix

Electrostatic discharge (ESD)
Attention: When you handle field-replaceable units (FRUs) and other computer
parts, take these precautions to avoid static damage:
vLimit your movement. Movement can cause static electricity to build up around
you.
vAlways touch the computer parts carefully. Hold the cards by their edges or metal
cover. Never touch any exposed circuits.
vPrevent people who are not correctly grounded from touching computer parts.
vBefore you install a new part, touch the static-protective package that contains
the part against an unpainted metal part of the 2104 Model TS4 or host system
for at least 2 seconds. This reduces the static electricity in the package and in
your body.
vRemove the part from its package and, if possible, install it directly into the 2104
Model TS4 without putting the part down. If you must put the part down, follow
these steps:
1. Place the static-protective package that contained the part onto a smooth,
level surface.
2. Place the part onto the static-protective package. Do not place the part
directly onto any metal surface.
Safety inspection procedures
The safety inspection procedures describe how to inspect the 2104 Model TS4.
CAUTION:
The 2104 Model TS4 is designed to be installed by the customer and are
certified as customer setup. Make sure that the system or rack into which the
2104 Model TS4 will be installed is also designed and certified for customer
setup. If the 2104 Model TS4 are not, then they must be installed by a CE. (22)
x2104 Model TS4 Installation Guide

Inspecting the 2104 Model TS4
Perform the following safety checks to identify unsafe conditions.
External machine checks
Perform the following external machine checks:
1. Check the chassis for damage (loose, broken, or sharp edges).
2. Check the power cables and ensure that the insulation is not worn or
damaged.
3. Check for any obvious nonstandard changes. Use good judgment about the
safety of any such changes.
4. Verify that all external covers are present and are not damaged.
5. Ensure that all latches and hinges are in correct operating condition.
6. Check the power cable for damage.
7. Check for worn, damaged, or pinched cables.
8. Inspect the fan-and-power-supply assemblies. Check that the fasteners in the
cover of the power-supply unit (screws or rivets) have not been removed or
disturbed.
9. Check the external signal cable for damage.
10. Check the cover for sharp edges, damage, or alterations that expose the
internal parts of the device.
11. Correct any problems that you find.
Internal machine checks
Perform the following internal machine checks:
1. Check for any non-IBM changes that might have been made to the machine. If
any are present, obtain the “Non-IBM Alteration Attachment Survey” form,
number R009, from the IBM branch office. Complete the form, and return it to
the branch office.
2. Check the condition of the inside of the machine for:
vMetal or other contaminants
vIndications of water or other fluid
vFire
vSmoke damage
3. Check for any obvious mechanical problems, such as loose components.
4. Check any exposed cables and connectors for wear, cracks, or pinching.
Safety and environmental notices xi

Safety label checks
Perform the following safety label checks:
1. Verify that the label is installed on the 2104 Model TS4. See Figure 1.
2. Verify that the linecord caution label is installed on the 2104 Model TS4 power
supply. See Figure 2.
CAUTION:
This unit might have two linecords. To remove all power, disconnect both
linecords. (1)
Figure 1. 2104 Model TS4 label
Figure 2. Linecord caution label
xii 2104 Model TS4 Installation Guide

3. Verify that the power supply cover caution label is installed on the 2104 Model
TS4 power supply. See Figure 3.
CAUTION:
Do not remove cover, do not service, no serviceable parts. (2)
4. Verify that the fusing caution label is installed on the 2104 Model TS4 power
supply. See Figure 4.
CAUTION:
Double Pole/Neutral Fusing. (3)
Figure 3. Power supply cover caution label
Figure 4. Fusing caution label
Safety and environmental notices xiii

5. Verify that the weight label is installed on the 2104 Model TS4. See Figure 5.
CAUTION:
This unit weighs between 32 Kg - 55 Kg (70.5 lbs - 121.2 lbs). (5)
32 - 55 Kg (70.5 - 121.2 lbs)
SC000219
Figure 5. 2104 Model TS4 weight label
> 18 Kg (37 lbs) > 32 Kg (70.5 lbs)
SC000325
CAUTION:
(6)
The provided cardboard lifting tool is required for moving, installing, and
relocating the product when fully populated. Three people are required to
safely move the product. Failure to do so might result in injury.
In case the lifting tool is not readily available, you must reduce the weight
to 32 Kg or less by removing all of the heavy components (disk drives
and power supplies) from the product. Then only two people are required to
move, install, and relocate the product.
Attention:
If you have data stored on the drives, label the drives before you remove them.
When you replace the drives, install each one in the same drive bay
from which you removed it. Failure to do so could result in a loss of data.
xiv 2104 Model TS4 Installation Guide

6. Verify that the standby condition label is installed on the 2104 Model TS4. See
Figure 6.
CAUTION:
A standby condition is indicated by the symbol to the right of the DC
directly above the switch, SW1. When SW1 is toggled to the right position
directly under the standby symbol, the unit’s ac-power is not shut off. (7)
Figure 6. Standby condition label
Safety and environmental notices xv

Checking the grounding of the 2104 Model TS4
This section contains instructions for checking the grounding of the 2104 Model
TS4.
Checking the grounding of the 2104 Model TS4
Perform the following steps to check the grounding of the 2104 Model TS4:
1. Ensure that a power cable is plugged into each power socket 1. See Figure 7.
2. Ensure that the other ends of the power cables are not plugged into electrical
power outlets. Unplug the cables if necessary.
SC000013
Figure 7. Power cables and SCSI connectors (2104 Model TS4)
xvi 2104 Model TS4 Installation Guide

3. Attention: Some electrical circuits could be damaged if the external SCSI
cables are connected to the 2104 Model TS4 while the grounding check is
being done.
Ensure that no external SCSI cables are connected at the SCSI connectors 2.
See Figure 7 on page xvi.
4. Check for continuity between the chassis of the 2104 Model TS4 3 and the
ground pin of each power cable.
a. Check the power cables and ensure that the third-wire ground connector is
in good condition.
b. Use a meter to check that the third-wire ground continuity is 0.1 ohm or less
between the external ground pin and the chassis ground.
5. If the continuity is good, the grounding check is complete.
6. If the grounding is not correct, unplug the power cables from the mainline power
connectors.
a. Check each power cable for continuity.
b. If either power cable is failing, exchange it for a new one.
c. Check for continuity between the chassis of the 2104 Model TS4 and the
ground pin 1 of the power connector on each fan-and-power-supply
assembly. See Figure 8.
d. If either fan-and-power-supply assembly does not have continuity, exchange
that assembly for a new one. (See the section about fan and power supply
assemblies in Expandable Storage Plus 2104 Model DS4 and Model TS4
Service Guide.)
Perform step 1 on page xvi through step 6d to complete the grounding
check again.
Figure 8. Ground pin (2104 Model TS4)
Safety and environmental notices xvii

Removing power from the 2104 Model TS4
Removing power from a 2104 Model TS4
Note: Unless you have a particular reason to do so, do not remove power from the
host system or from the 2104 Model TS4 unless the instructions that you are
following tell you to.
Perform the following steps to remove the power from a 2104 Model TS4:
1. Verify with the customer that all operations between the 2104 Model TS4 and
the host system have stopped.
2. At the back of the 2104 Model TS4, set the dc on/standby switch 1 of each
fan-and-power-supply assembly to standby. See Figure 9.
Notes:
a. Some 2104 Model TS4s have a fan-and-power-supply assembly and a fan
assembly. The fan assembly has no dc on/standby switch.
b. A fan-and-power-supply assembly might have its CHK light on although its
dc on/standby switch is set to standby.
3. Remove the power cables 2 from the electrical power outlet and from the
back of the 2104 Model TS4. See Figure 9.
4. Perform the following steps to return power to the 2104 Model TS4:
a. Reinstall the power cables 2.
SC000207
Figure 9. Removing power from a 2104 Model TS4
xviii 2104 Model TS4 Installation Guide
