Bull 13200 User manual

0
OUTDOOR RATED ICE MAKER
ITEMS 13200
User’s Manual
BEFORE USE, PLEASE READ AND FOLLOW
ALL SAFETY RULES AND OPERATING INSTRUCTIONS
BULL OUTDOOR PRODUCTS, INC.
Global Headquarters
1011 East Pine Street
Lodi, CA 95240
Write Model and Serial Numbers here:
Model No.:
Ser. No.:

1
Table of Contents
Registering your Ice Maker and Replacement Part Ordering………………….2
Ice Maker Safety ................................................................................................ 3
Important Safeguards .................................................................................. 4 - 6
Electrical connection ................................................................................. 5 - 6
Extension cord ............................................................................................... 6
Unpacking, etc. ............................................................................................. 6 - 7
Outside air ..................................................................................................... 6
Water supply ................................................................................................. 6
Water quality ............................................................................................ 6 - 7
Location of Parts ............................................................................................... 8
Installation .................................................................................................. 8 - 14
Space requirements for installation ................................................................ 8
Requirements for power supply ..................................................................... 8
Requirements for plumbing ............................................................................ 9
Drain pump model ....................................................................................... 10
What to check prior to installation ................................................................ 12
Changing door-opening direction ................................................................. 13
Installation checklist..................................................................................... 14
Specific Features ............................................................................................ 15
Operation .................................................................................................. 16 - 17
Initial operation ............................................................................................ 16
Using the ice maker
..................................................................................... 16
Ice shape ..................................................................................................... 16
Ice container ................................................................................................ 16
Operation time ............................................................................................. 17
Ice production .............................................................................................. 17
Ice production cycle ..................................................................................... 17
Ice removal cycle ......................................................................................... 17
How the ice maker uses water ..................................................................... 17
Cleaning .................................................................................................... 18 - 21
Cleaning the nozzle / ice slide / water tank ........................................... 18 - 19
Cleaning the filters of the water tank and ice tank ................................. 19 - 20
Cleaning the exterior ................................................................................... 20
Cleaning the condenser ............................................................................... 21
Maintenance .................................................................................................... 22
Maintenance in winter .................................................................................. 22
Adjusting the ice maker ............................................................................... 22
Specifications .................................................................................................. 23
Troubleshooting .............................................................................................. 24
Limited Warranty ........................................................................................ 25-28

2
REGISTERING YOUR ICE MAKER
To validate your Bull Limited Warranty, you must
submit the completed the Warranty Registration Card
within 90 days from the date of purchase. Registration
can be completed on-line at www.bullbbq.com or by
sending the completed Warranty Registration Card
and copy of your Purchase Receipt or Invoice as proof
of purchase to:
BULL OUTDOOR PRODUCTS, INC.
1011 East Pine St.
Lodi, CA 95240
Attn: Warranty Service Center
For Warranty Claims or Replacement Parts
ordering, please fill out the area provided
below:
PRODUCT INFORMATION REFERENCE CARD
1) Model
Number___________________________________
2) Serial Number
___________________________________
(The Serial Number is encoded with essential
information for ordering replacement parts or
submitting Warranty claims. Location of Serial
Numbers is shown below)
3) Date of Purchase______________________
4) Copy of your Purchase Receipt or Invoice.

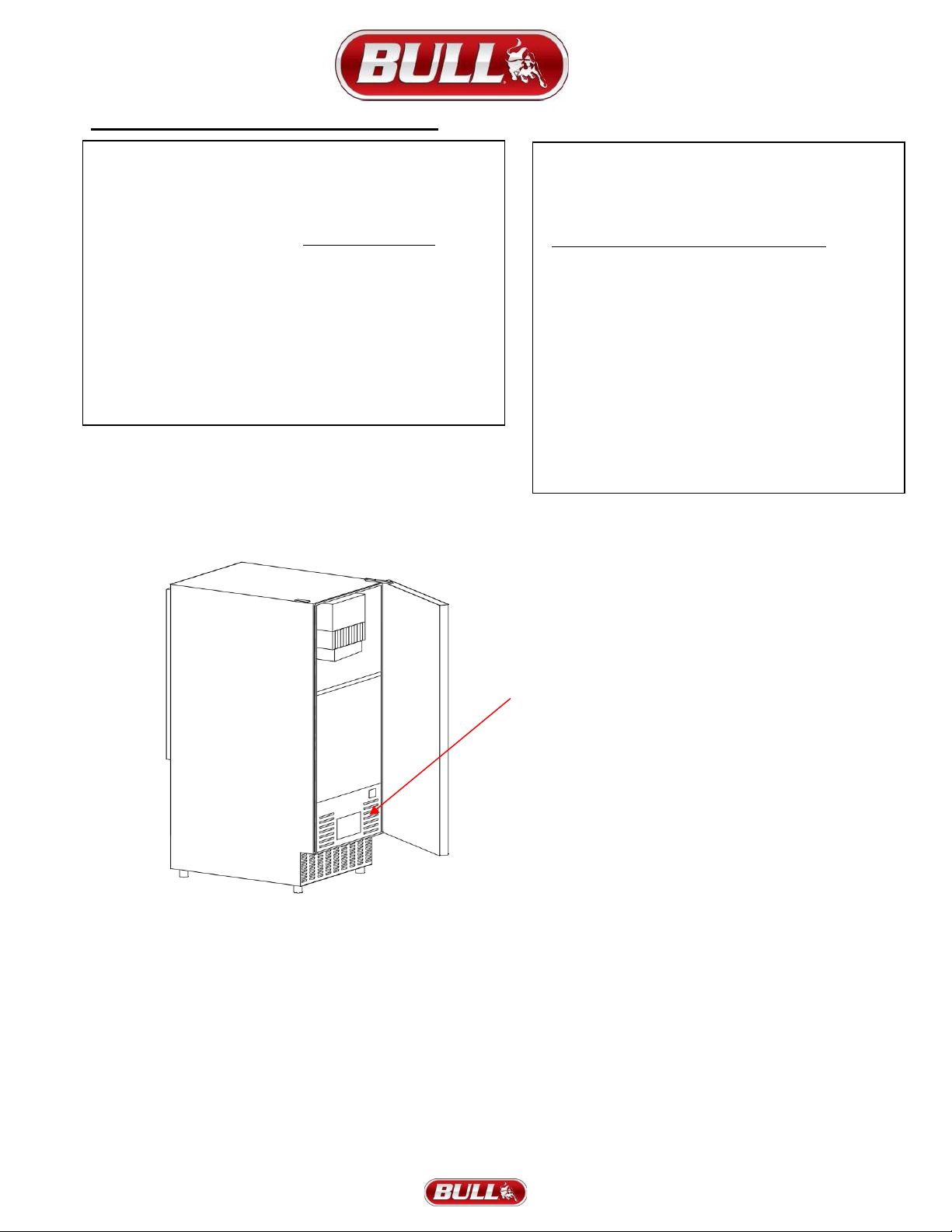

The Model Number and Serial
Number are shown on the
data label at the bottom panel
inside the Ice Maker.

3
ICE MAKER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to
potential hazards that can injure or kill you and others.
Safety messages will follow the Safety Alert Symbol and either
the words "DANGER", "WARNING" OR "CAUTION".
DANGER means that failure to heed this
safety statement may result in severe
personal injury or death.
WARNING means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury or
death.
CAUTION means that failure to heed this
safety statement may result in minor or
moderate personal injury, or property or
equipment damage.
All safety messages will alert you to what the potential hazard is, tell you how to reduce the
chance of injury, and let you know what can happen if the instructions are not followed.
SAVE THESE INSTRUCTIONS
Disconnect power before cleaning.
Disconnect power before servicing.
Replace all panels before operating.
Use two or more people to move & install
ice maker.
· Do not use an adapter. ·
· Do not use an extension cord. ·
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock or injury when using
your ice maker, follow these basic precautions:
·
Plug into grounded 3-prong outlet.
· Do not remove grounding prong. ·

4
IMPORTANT SAFEGUARDS
Before the ice maker is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. We strongly recommend that
you have a professional install your new machine. The warranty may be affected or
voided by an incorrect installation. To reduce the risk
of fire, electrical shock or injury when using the ice maker, follow basic precautions, including the
following:
 Plug into a grounded 3-prong outlet; do not remove grounding prong, do not use an adapter,
and do not use an extension cord.
 It is recommended that a separate circuit, serving only your ice maker, be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
 Do not connect or disconnect the electric plug when your hands are wet.
 Never unplug the ice maker by pulling on the power cord. Always grip the plug firmly and pull
straight out from the outlet.
 Never clean ice maker parts with flammable fluids. Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can
create a fire hazard or explosion.
 Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected and the water line is shut off.
 Before operating, put all panels back into place.
 Never allow children to operate, play with or crawl inside the ice maker.
 Do not touch the evaporator with your hand when the machine is operating.
 Unplug the ice maker or disconnect power before cleaning or servicing. Failure to do
so can result in electrical shock or death.
 Do not attempt to repair or replace any part of your ice maker unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
 Use two or more people to move and install the ice maker. Failure to do so can result in back
or other injury.
 Never install or operate the unit in an enclosed area, such as a closed cabinet. To ensure
proper ventilation for your ice maker, the front of the unit must be completely unobstructed.
Choose a well-ventilated area with temperatures above 50°F (10°C) and below 100°F (38°C).
The optimum supplied water temperature would be below 50°F. This unit MUST be installed in
an area protected from the elements, such as wind, rain, water spray or drips.
 The ice maker should not be located next to ovens, grills or other sources of high heat.
 The ice maker must be installed with all electrical and water connections in accordance with
state and local codes. A standard electrical supply (115 V AC, 60 Hz, 15 A), properly grounded
in accordance with the National Electrical Code and local codes and ordinances, is required.
 Do not kink or pinch the power supply cord between the ice maker and cabinet.



5
 The fuse (or circuit breaker) size should be 15 amperes. It is important for the ice maker to be
leveled in order to work properly. Otherwise water may not flow properly through the evaporator
(ice mold). The ice production will be less than normal. You may need to make several
adjustments to level it.
 All installations must be in accordance with local plumbing code requirements.
 Make certain that hoses are not pinched, kinked or damaged during installation.
 Check for leaks after water line is connected.
 Although the unit has been tested and cleaned at the factory, due to long-term transit and
storage, the first batch of cubes must be discarded.
 Remove the packing materials and clean the ice maker before using.
 Turn on the water supply tap before switching on the ice maker. Never turn the water supply
tap off when the ice maker is working.
 Except to take ice from the unit, keep the door closed in order to reduce ice melting and to
promote proper ice formation.
 If the ice maker will not be used for a long time, before the next use it must be thoroughly
cleaned. Follow carefully any instructions provided for cleaning or use of sanitizing solution. Do
not leave any solution inside the ice maker after cleaning.
 Do not touch the condenser fins. They are sharp and can be easily damaged.
 DO NOT use solvent-based cleaning agents or abrasives on the interior. These cleaners may
transmit taste to the ice cubes, or damage or discolor the interior.
 The ice machine cleaner contains acids. Do not use or mix with any other solvent-based
cleaning products. Use rubber gloves to protect hands. Carefully read the safety instructions on
the container of the ice machine cleaner.
 Do not use the apparatus other than for its intended purpose.
Risk of child entrapment
Child entrapment and suffocation are not problems of the past. Junked or abandoned
refrigerators and freezers are still dangerous, even if they will “just sit in the garage a
few days.”
 Before you throw away your old refrigerator, ice maker or freezer: Take off the
doors. Leave the shelves or drawers in place so that children may not easily climb
inside.
 Never allow children to operate, play with, or crawl inside the refrigerator/freezer.
SAVE THESE INSTRUCTIONS
Electrical Connection
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
For personal safety, this appliance must be properly grounded. The power cord of this appliance
is equipped with a 3-prong grounding plug that mates with a standard 3-prong grounding wall
outlet to minimize the possibility of electric shock hazard from the appliance. Have the wall
outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to
have it replaced with a properly grounded 3-prong wall outlet. The ice maker should always be
plugged into its own individual electrical outlet which has a voltage rating that matches the rating

6
label on the appliance. This provides the best performance and also prevents overloading
house wiring circuits which could cause a fire hazard from overheated wires. Never unplug your
ice maker by pulling on the power cord. Always grip the plug firmly and pull straight out from the
outlet. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either
end. When moving the ice maker, be careful not to damage the power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that
you do not use an extension cord with this ice maker.
Unpacking, etc.
After removing the packing materials, check the appearance of the ice maker for
possible defects or irregularity. If the product shows any irregularity in its
appearance, contact the distributor.
All the packing materials (straps, box, Styrofoam, wood, etc.) should never be left within
the reach of children and should be disposed of according to local regulations.
For safety, the product should be installed and used with caution in accordance with the
User’s manual.
Incorrect installation or careless use of the product may damage or injure the
environment, humans, animals, and/or materials and property. The manufacturer does
not bear any responsibility for the aforesaid damage or injury.
The automatic ice maker performs best at room temperature of 50~75°F and a supply of
water at 50°F.
The ice maker may be installed in either an indoor or outdoor environment, but it should
NOT be installed near heat generators such as heaters, stoves, or dish washers.
Outside air
The ice maker sucks air through the left section of the kickplate/grill using a fan and
expels hot air through the right section of the kickplate/grill. If anything is placed in front
of the kickplate/grill, the flow of air flow is disrupted, resulting in reduced performance
and, in the worst case, malfunction. The ice maker can be operated within a
temperature range of 50°F to 100°F.
Water supply
The ice maker requires a continuous supply of drinking water at 20psi or higher
pressure. The hydrostatic pressure should not exceed 80 psi.
Water quality
There is no such thing as “perfectly pure” water. All kinds of water including tap water
contain some impurities. Rainwater absorbs impurities from the atmosphere or when it
passes through soil. Some impurities consist of solid particles called suspended solids
and are filtered through micro filters. Any remaining impurities cannot be filtered
because they are chemically combined with water molecules. These impurities are
called dissolved solids.

7
The mineral content of the ice produced by the ice maker is reduced compared to the
content in the water before conversion into ice. Water containing a low level of
impurities is rapidly frozen. The reason for this is that the impurities elevate the
temperature of the water. Through such action, most of the impurities condensed in the
water-tank of the ice maker form a hard precipitation called scale.
This icemaker reduces the mineral level by circulating water during the harvest cycle
(the excessive quantity is removed through the outlet tube). Each cycle requires about
0.64 
tank and the remaining quantity is removed through the outlet pipe. In this process,
some impurities unavoidably remain and may accumulate on the internal parts of the ice
maker, forming abnormally shaped ice cubes. If a large quantity of mineral scale
accumulates, the lifespan of the ice maker may be reduced.
For best operation of the ice maker, impurities and minerals should be decomposed by
washing periodically. The method of cleaning the ice maker is described on pages 18 -
21.
In general, it is best to use filtered water. Filters may remove not only bad odor but also
particles. Neutral water is not recommended.
Water softener is not recommended because it exchanges minerals. If the hardness of
the water is very high, softening may lead to the formation of opaque pieces of ice.
If you have any questions about the purity of your water, address your inquiry about
water treatment to an expert in water quality.
This product was thoroughly washed at the factory. However, check the cleanness of
the inside before use and keep it clean during use.

8

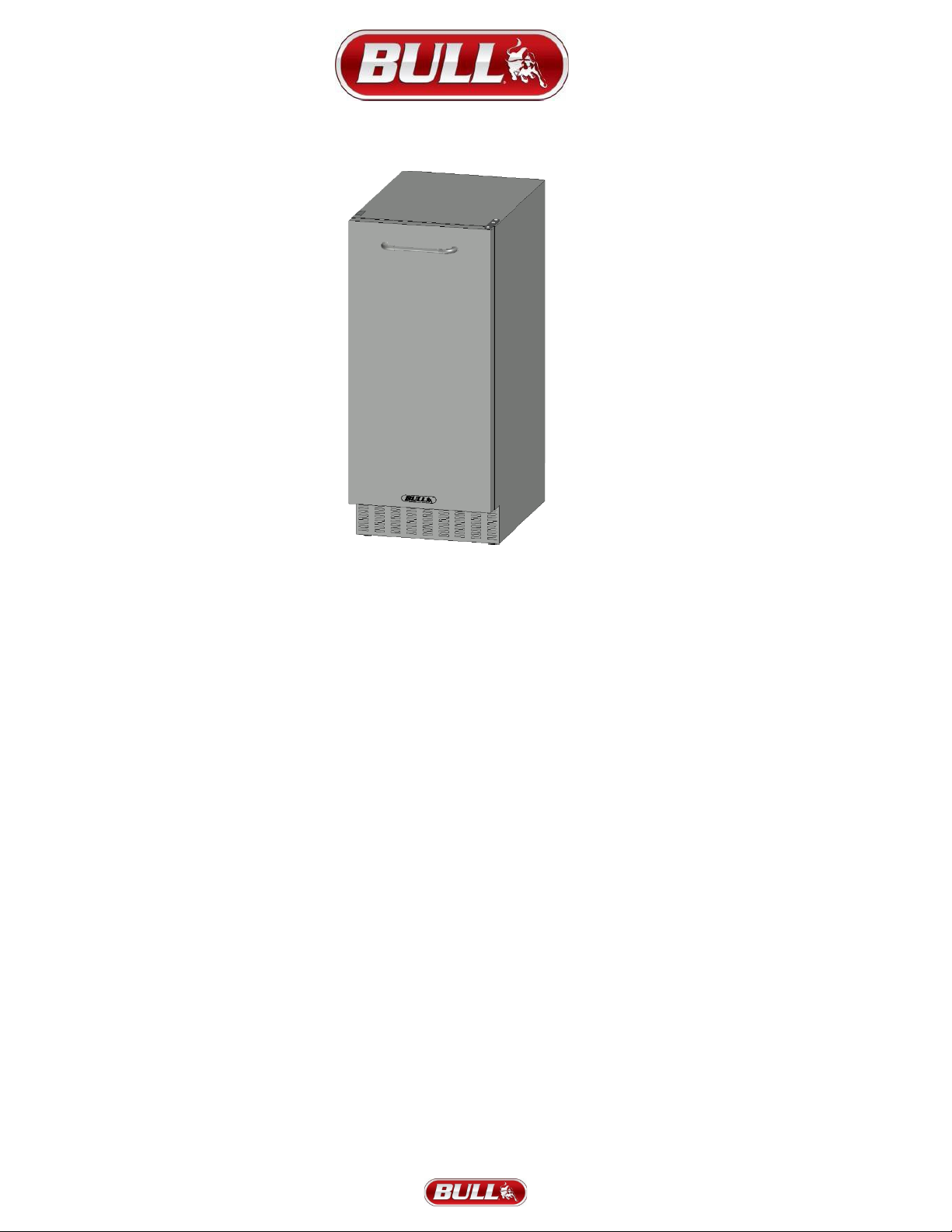

Location of Parts
Note: Model 13200 includes an internal pump.
Each has a heavy-duty power cord and stainless steel door and
cabinet, and is suitable for either indoor or outdoor use.

9
Installation
Space requirements for installation
When moving the ice maker, check whether the prepared
opening dimensions, electric power, and piping position are
correct.
Refer to the installation specifications and drawings shown on
pages 10
Figures 4, 5, 6 and 7 show the dimensions of the ice maker.
The ice maker has an internal pump that can raise excess
water to a drainage point such as a neighboring sink.
Refer to the specifications shown on pages 10
Important Information: Be aware that if the ice maker is
installed in a corner, you must leave enough space so that
the opening of the door is not obstructed. Adjust the legs at
the bottom of the ice maker to be sure it is level.
When moving the ice maker using a hand truck or dolly, place
the dolly at the side of the unit and shut or fix the door tightly
to avoid possible opening during transport. Cover the ice
maker with a blanket or other suitable material to avoid
possible damage when moving the product.
Requirements for power supply
120VAC, 60Hz, 15-amp circuit breaker and electric power are
required. A separate circuit is required for grounding.
The power cord of the product should be inserted into a
suitable 3-prong grounding-type socket.
Important Information: A Ground Fault Circuit Interrupter
(GFCI) is not recommended because it could cause the
operation of the product to stop.
Important Information: The provisions of the National Electric
Code as well as any local laws and instructions should be
observed when installing the product.
Warning!
Do not use extension cords or 2-prong adapters. The product must be grounded.
Never cut off the grounding terminal of the 3-prong grounding plug.
