Bullard 88VXRT User manual

88VXRT Ratchet Suspension
88VXRT can be ordered under the part number 88VXRTP
which includes an inner shell/plenum.
Installation Instructions
The 88VXRT Flex-Gear®ratchet suspension fits 88VX™ Series supplied-air
respirators manufactured by Bullard. Install the 88VXRT suspension according to
the following instructions. Refer to the 88VX Series Airline Respirator User Manual
for additional information.
Removing Cape and Inner Shell from Respirator Helmet
To install the headband suspension, remove cape from helmet using the following
steps.
1. Open hinged window frame by lifting up on window latch.
2. Remove cape from helmet by lifting up on clamp and disengaging cape from
helmet groove (see Figure 1).
3. Turn helmet upside down to remove inner shell from helmet. Hook index finger
into loop on back of inner shell. Press thumb against helmet rim and pull loop
toward front of helmet, then pull shell up and away from helmet (see Figure 2).
This releases the inner shell.
Sizing
Turn ratchet knob until headband is at its largest size. Place suspension on your
head and adjust ratchet knob to a comfortable fit (Figure 3). An optional chin strap
is available for additional comfort and stability.
Figure 1
Figure 2
Ratchet
Knob Figure 3

Adjust Crown Straps for Vertical Fit
To improve suspension comfort, adjust crown straps vertically by repositioning the
crown strap posts in the crown straps. Vertical adjustment makes the headband
ride higher or lower on the wearer’s head. To adjust, push crown strap post from
slot, move to new slot and snap in to secure. Repeat for other crown strap post
(Figure 3).
Installing Ratchet Suspension into Inner Shell
1. Turn inner shell and headband suspension upside down.
2. Place 88VXRT headband suspension inside shell with
brow pad facing front of shell.
3. Insert the suspension key into its respective slot. Push firmly until it holds firm.
Repeat for each key. (fig 5)
4. Insert inner shell into helmet with front of shell tilted
downward. Align round hole located at inside front of
shell with washer at front of helmet. Press back of shell
into helmet until it snaps in place.
5. Reattach cape to helmet. See below.
Attaching Cape to Helmet
1. Place cape on table or workbench.
2. With window frame open, place helmet on top of cape.
3. Line up the clamp on the cape with the front center of the helmet.
NOTE
Installation is easiest when started at the front of cape and helmet.
4. Ease cape rim completely into the groove along helmet edge, working your way
to the back. Be certain cape is completely in place at every point along helmet’s
bottom edge.
5. Snap the clamp to tighten cable and hold cape snugly on helmet, while ensuring
the cape stays in the groove.
6. Close and latch window frame.
6080885698(0609)
©2009 Bullard.
All rights reserved,
including the right of reproduction, in whole
or in part, in any form.
Bullard is a registered trademark of
Bullard.
ISO 9001
certified
C
e
r
t
i
f
i
e
d
I
S
O
9
0
0
1

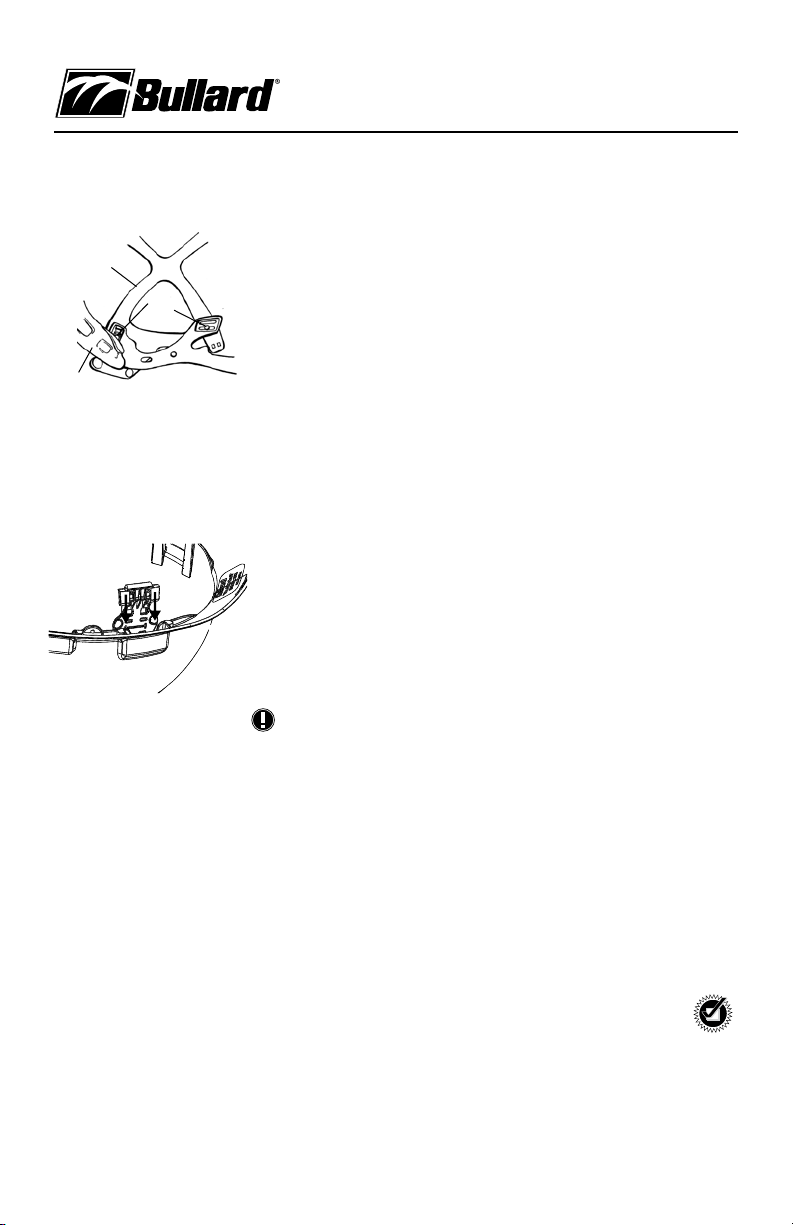

Figure 4
Figure 5
Crown strap
Crown
strap
post
Brow pad
