INSTALLATION & OPERATING MANUAL
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: [phone] FAX: [phone]
www.bunnomatic.com
37935.0001C 08/06 ©2005 Bunn-O-Matic Corporation
LCC-2 LP
To obtain the Illustrated Parts Catalog, visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE,
and the quickest way to obtain the catalog. Contact Buun-O-Matic Corporation at 1-800-286-6070 to obtain a paper
copy of the required Illustrated Parts Catalog mailed via U.S. Postal Service.

2
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specified below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis:
parts and labor for 3 years or 30,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by
it will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment, component or
part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect,
alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is
conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone
at [phone] or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by
BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifications to this warranty or to make additional warranties that are binding on
BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and
should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.
37935.1 082906
BUNN, LCC-2 LP and BUNNLink are either trademarks or registered trademarks of Bunn-O-Matic Corporation.

3
Warranty .................................................................................................................................................2
User Notices ...........................................................................................................................................4
Introduction ............................................................................................................................................5
Electrical Requirements ..........................................................................................................................5
Plumbing Requirements .........................................................................................................................5
Initial Set-up ...........................................................................................................................................6
Electrical Hook-up...................................................................................................................................6
Plumbing Hook-up..................................................................................................................................6
Operating Controls & Interface ...............................................................................................................7
Installing Pump Tubing ...........................................................................................................................9
Initial Fill & Heat....................................................................................................................................10
Rinse Alarm Feature..............................................................................................................................11
Programming the Dispenser .................................................................................................................12
Priming the Concentrate Lines..............................................................................................................16
Draining the Hot Water..........................................................................................................................16
Operating the Dispenser........................................................................................................................17
Cleaning & Preventive Maintenance......................................................................................................18
Replacing the Pump Tubing ..................................................................................................................19
Calibrating the Dispenser......................................................................................................................20
Troubleshooting Guide..........................................................................................................................22
Field Calibration of the Concentrate Pumps ..........................................................................................24
Dispenser Flow Rate Calibration ...........................................................................................................24
Field Calibrating the Empty Product Warning........................................................................................25
Schematic Wiring Diagrams..................................................................................................................26
CONTENTS
37935.1 052305

4
USER NOTICES
Carefully read and follow all notices on the equipment and in this manual. They were written for your protec-
tion. All notices are to be kept in good condition. Replace any unreadable or damaged labels.
37935.1 082906
00656.0000
00986.0002
11646.0002
37881.0000
USE COPPER WIRE ONLY FOR
POWER SUPPLY CONNECTIONS
27508.0000
208-240V Models only
00870.0000
208-240V Models only

5
ELECTRICAL REQUIREMENTS
Refer to Data Plate on the dispenser, and local/national electrical code to determine circuit requirements.
WARNING - If the power cord is ever damaged, it must be replaced by the manufacturer or its service agent with
a special cord available from the manufacturer or its service agent in order to avoid a hazard.
The 120V LCC-2 LP dispenser is supplied with a 120-volt / 15 Amp cord set and require a 2-wire, grounded,
individual branch circuit rated for 120 volts AC, 15 amp, single phase, 60Hz. The mating connector must be a
NEMA 5-15R.
The LCC-2A LP dispenser is supplied with a 230-volt / 16 Amp cord set.
The 208-240V LCC-2 LP dispenser is not supplied with a cord set. It requires a 2-wire, grounded, individual
branch circuit rated for 208-240 volts AC, 20 amp, single phase, 60Hz.
PLUMBING REQUIREMENTS
The dispenser may be connected to a cold or hot water system (140°F Max.) with operating pressure between
20 and 90 psi (138 and 620 kPa) from a 3/8” or larger supply line. A shut-off valve should be installed in the line
before the dispenser. Install a regulator in the line when pressure is greater than 90 psi (620 kPa) to reduce it to
50 psi (345 kPa). The water inlet fitting is 1/4” flare. Dispensers set up to deliver to 47.3 ml/sec (1.6 Oz./sec.)
and require a water supply source that can deliver a minimum of 1.7 gpm (6.4 lpm) at the inlet fitting.
NOTE: Bunn-O-Matic recommends 1/4” tubing from the 3/8” water supply line. At least 18 inches of FDA approved
flexible beverage tubing, such as reinforced braided polyethylene or silicone, before the dispenser will facilitate
movement to clean the counter top. It can be purchased direct from Bunn-O-Matic (part number 00326.0000).
Bunn-O-Matic does not recommend the use of a saddle valve to install the dispenser. The size and shape of the
hole made in the supply line by this type of device may restrict water flow.
INTRODUCTION
The Liquid Coffee Chilled Dispenser delivers two types of coffee plus hot water. The dispenser can be set up
for continuous draw (by the cup) for self-serve applications, or portion-control to fill carafes and decanters for
wait staff.
BUNN recommends the use of our Easy Clear®Water Quality Systems to assure perfect taste.
Filter Kit - Easy Clear EQ-11-TL Bunn-O-Matic part no. 30344.1001
37935.1 082906

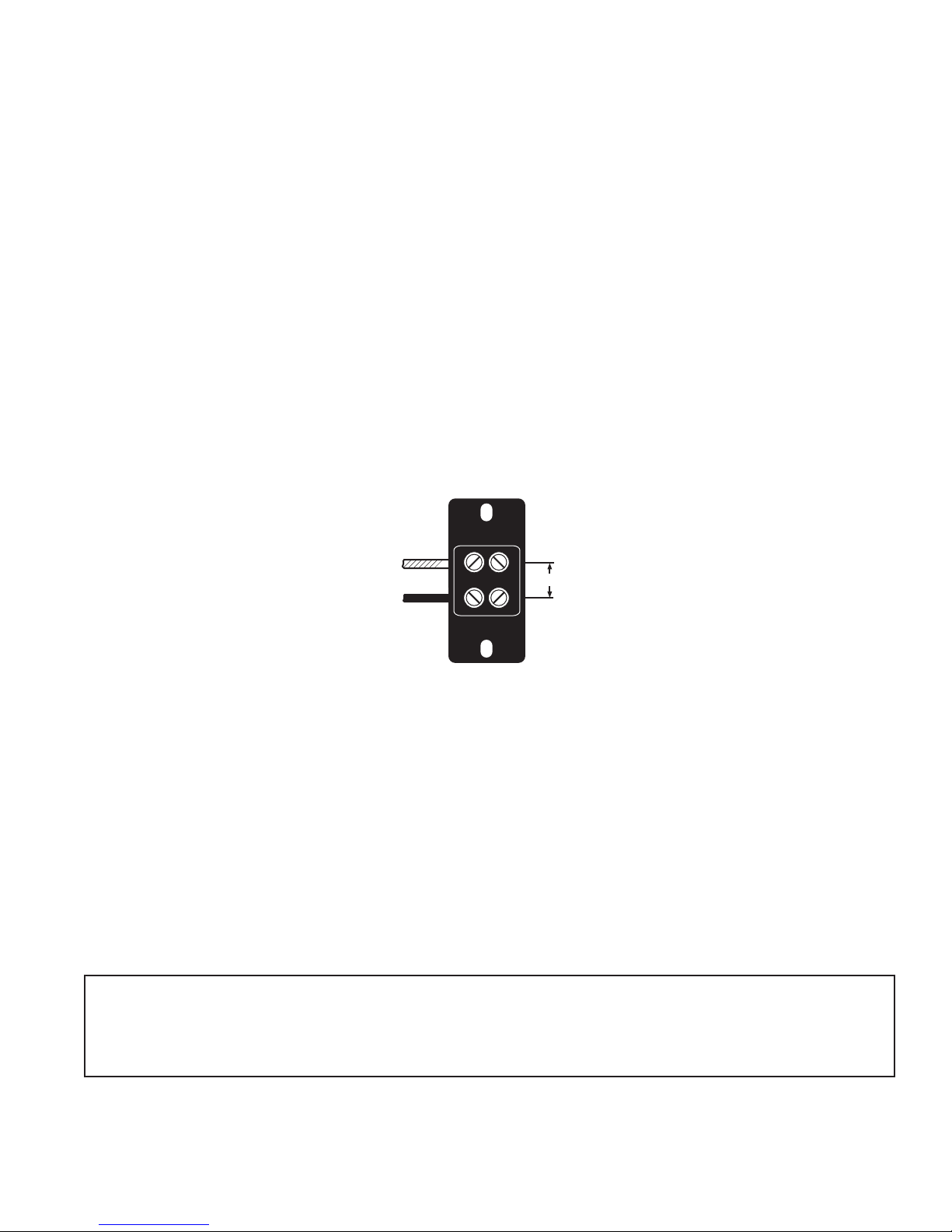

L2 RED
L1 BLACK
208 or 240V A.C.
208-240V Models
This equipment must be installed to comply with the Basic Plumbing Code of the Building
Officials and Code Administrators International, Inc. (BOCA) and the Food Service Sanita-
tion Manual of the Food and Drug Administration (FDA). For models installed outside the
U.S.A., you must comply with the applicable Plumbing/Sanitation Code for your area.

6
INITIAL SET-UP
NOTE: The LCC-2 LP weighs approximately 70 lbs. (32 kg). If necessary, use more than one person when lifting
or moving the dispenser.
1. Cut the plastic bands and remove the top box.
2. Locate and remove the parts box from top of packaging and set aside.
3. Remove foam packing.
4. Set dispenser on the counter where it is to be used. CAUTION: DO NOT LIFT ON THE DOOR.
5. Open the parts box remove the drip tray, brackets and splash guard.
6. Install the drip tray assembly.
a. Loosen the front two legs several turns.
b. Slide the drip tray brackets between the large washers and the base plate.
c. Retighten the two front legs securing the bracket.
d. Install the drip tray.
ELECTRICAL HOOK-UP
CAUTION: Improper electrical installation will damage electronic components.
1. An electrician must provide electrical service as specified in conformance with all local, state and federal
electrical codes.
2. Using a voltmeter, check the voltage and color-coding of each conductor at the electrical source.
3. Connect the dispenser to the power source.
4. If plumbing is to be hooked up later, be sure the dispenser is disconnected from the power source. If plumbing
has been hooked up, the dispenser is ready for Initial Fill & Heat.
PLUMBING HOOK-UP
7. Install the splash guard panel.
a. Insert the top tabs into the slots on the door panel.
b. Align the key hole slots over the two lower screws, then slide the
splash guard down.
c. Tighten the two lower screws.
8. Level the dispenser using the adjustable feet on the legs.
1. Securely attach the short piece of tubing and the water strainer assembly
to the inlet fitting on the bottom of the dispenser.
2. Flush the water line to remove any debris or foreign material, and
securely attach it to the flare fitting on the water strainer assembly.
3. Turn on the water supply and check for leaks.
37935.1 052305

7

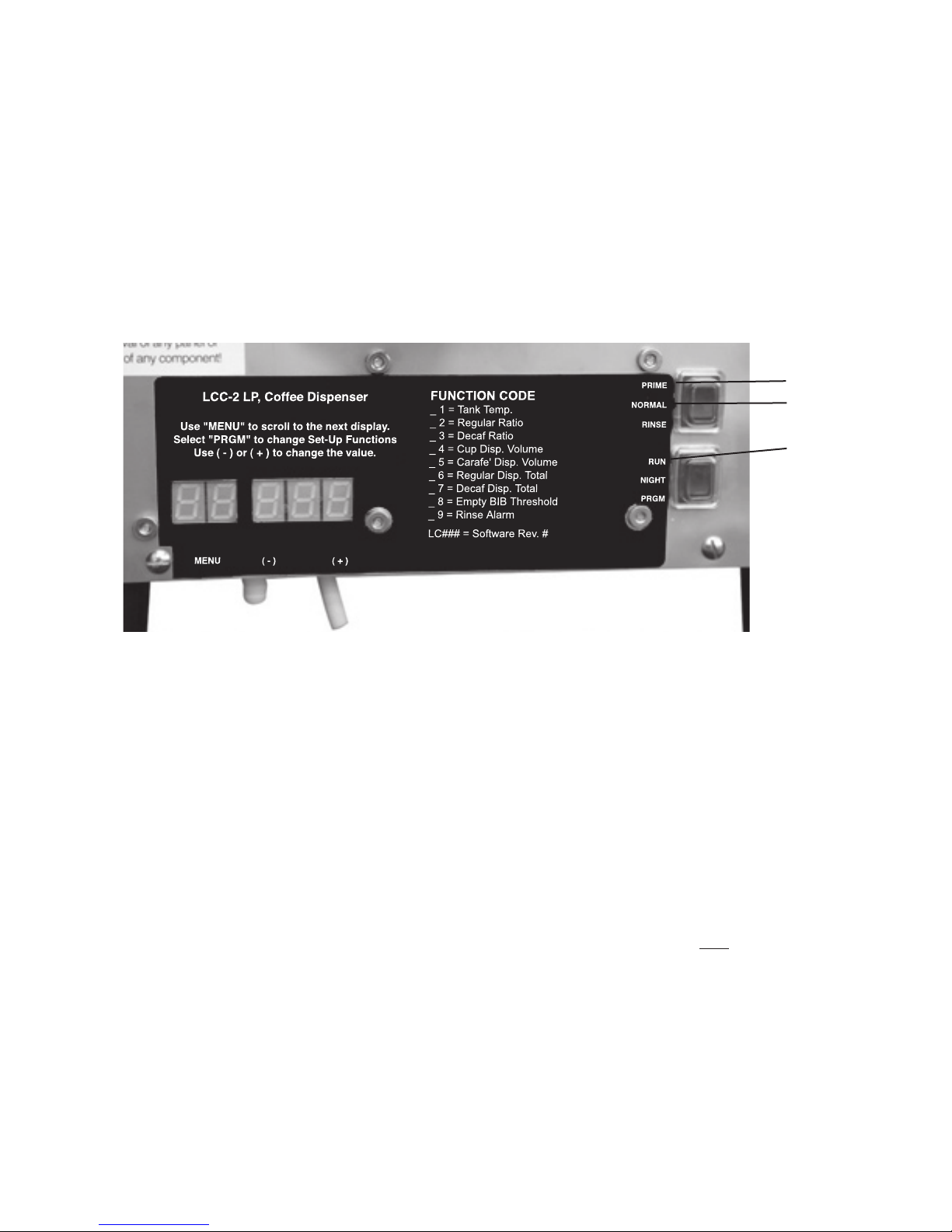

OPERATING CONTROLS AND INTERFACE
1. Dispense Switches: Push to dispense product.
2. Stop Switch: Momentary switch stops all dispense functions.
3. Hot Water Switch: Push and Hold switch to dispense hot water from the center dispense tip.
4. Carafe Switch: Momentarily pushed to select the Carafe dispense Volume.
5. Power LED: Red - illuminates when AC power is applied to dispenser.
6. Ready LED: Green - illuminates when the water is at the preset ready temperature.
7. Carafe LED: Yellow - illuminates when the portion dispense option has been selected, (5 second delay).
8. Rinse LED: Yellow - illuminates when the optional preset rinse alarm time has elapsed.
9. Left Refill LED: Yellow - illuminates when the Left Concentrate Can needs replaced.
10. Right Refill LED: Yellow - illuminates when the Right Concentrate Can needs replaced.
11. Function Selector Switch: Allows the user to select different dispensing functions. (Located behind the splash
guard panel)
a. Rinse: Dispenses hot water only- Flushes the mix chamber and dispense tip.
b. Prime: Dispenses concentrates only – Primes the concentrate pump.
c. Normal: Normal dispense mode - Dispenses mixed product (concentrate and water).
12. Mode Selector Switch: Allows the user to select different operating modes.
a. Run: Normal operating position.
b. Night: Anti-pilfering mode that disables dispensing, but keeps heater and chiller operational.
WARNING - The NIGHT Mode does not remove AC power from the dispenser. Disconnect power source before
servicing the dispenser.
c. Program: Enables programming and set up of the dispenser.
13. Programming Switches: Used in conjunction with the LED display to program and calibrate the dispenser to
customer specific requirements.
a. MENU: used to scroll to the next menu screen.
b. (+): used to increase the displayed value.
c. (-): used to decrease the displayed value.
14. LED Display: Displays programming menus and fault messages.
(For 208-240V Models only)
15. Master ON/OFF Switch: Enables and disables power to the control board and other circuitry.
WARNING - This switch does not remove AC power from the entire dispenser. Disconnect power source before
servicing the dispenser.
(Continued Next Page)
37935.1 082906

8
2 4 1 3
7 8 5 6 9 10
37935.1 082906
14
11
12
13
Master ON/OFF Switch
(208-240V Models only)
15

9
INSTALLING PUMP TUBING
INSTALLING THE PUMP TUBING
Refer to the Tube Replacement Instruction inside the Cabinet door.
1. Loosen the thumbscrew securing the tubing retainer plate to the pump body and set the retainer plate
aside.
2. Depress the tension screw and remove it from the notch in the pump body, releasing the spring tension on
the pump band.
3. Apply lubricant (BUNN-O-MATIC part no. M2531.0001) to the middle section of the new pump tubing.
4. Carefully wrap the new tubing around the rotor, making sure that the elbow and clamps end up on the front
side of the pump body.
5. Depress the tension screw and insert it in the notch in the pump body, reapplying spring tension on the pump
band.
6. Install the free end of the tube over the inlet port of the mix chamber on that side of the cabinet.
7. Replace the tubing retainer plate and tighten the thumbscrew.
8. Open the product container and insert the stainless steel drawtube into the container.
9. Repeat steps 1 through 8 for the other pump.
Note: Replacement Tube Kits can be purchased from BUNN-O-MATIC. Order part no. 37942.1000
10. Prime the pumps. Refer to Priming the Concentrate Lines section.
Remove Retaining Plate Release Spring Tension Remove Tubing Lubricate New Tube
Install New Tubing Completed Installation
Lubricate between arrows
2.0” 2.0”
Thumbscrew Tension
Screw
Elbow &
Clamps
Inlet Port
Retaining
Plate
37935.1 063005

10
INITIAL FILL & HEAT
1. Select Normal on the Function Selector Switch and Run on the Mode Selector Switch.
2. Confirm the water supply is on.
3. Connect the dispenser to the power source. The Red POWER LED will illuminate and water will begin flowing
into the tank. The dispenser will automatically stop filling when the tank is full. The dispenser will not begin
heating the water until after the tank is filled. Dispenser models with product chillers will begin to cool the
cabinet at this time.
4. The Green READY LED will illuminate when the tank temperature reaches the preset ready temperature.
37935.1 083005
3 4
1

11
Rinse Alarm Feature
Periodic rinsing of the mix chambers and dispense tips is essential for proper maintenance and optimum
performance of the dispenser. The automated Rinse Alarm feature has two levels of operation, Disabled and
Warning.
Alarm Level Selected Alarm Mode
Disabled None
Warning Rinse LED will come on 4 hrs prior to the selected time interval
and remain on until the Rinse procedure has been performed. The dispenser will
continue to serve product.
NOTE: The time interval between Rinses is adjustable from 0 to 24 hrs.
The dispenser is shipped with the automated Rinse Alarm disabled, (No Alarm). It is up to the user to determine the
Rinse time interval and the level of warning required, based on their application and maintenance procedures.
To enable the automated Rinse Alarm feature, refer to RINSE ALARM in Programming the Dispenser.
Rinse Procedure:
1. Open the cabinet door and select Rinse on the Function Selector switch – close the door.
2. Place a 2 Liter (1/2 Gal) container under the Left dispense tip.
3. Activate the Left dispenser until water flow stops automatically, approximately 20 sec.
4. Repeat Steps 2 & 3 for the Right dispense tip.
NOTE: The Rinse LED will turn OFF, when the Rinse procedure has been satisfied for both sides.
5. Open the cabinet door and select Normal on the Function Selector switch – close the door.
37935.1 083005
5
1

12
PROGRAMMING THE DISPENSER
Open the dispenser door to access the digital programming module with LED display.
Two basic modes are available to the operator: Display Mode and Program Mode.
To enter the Display Mode, Set the RUN/NIGHT/PROGRAM Switch to the RUN position.
To enter the Program Mode, Set the RUN/NIGHT/PROGRAM Switch to the PROGRAM position.
Display Mode: Used to view the current set-up values. Use the MENU switch to scroll to the next display.
NOTE: The display blanks out after two minutes of inactivity. Press any button to activate the display.
LCD DISPLAY DISPLAY MODE DESCRIPTION
Home View Alternates between Tank Temperature
and Cold Shoe Temperature.
MENU (-) (+)
1 8 0
Tank Temperature Displays target Tank Temperature (F°)
MENU (-) (+)
0 1 1 8 0
Regular Dispense Ratio Displays Left Dispense Ratio (XXX:1)
MENU (-) (+)
0 2 3 8
Decaf Dispense Ratio Displays Right Dispense Ratio (XXX:1)
MENU (-) (+)
0 3 3 8
Cup Dispense Volume Displays Cup Dispense Volume (XX.
X Oz.). Set to 0.0 for “Push and Hold”
Dispense Mode.
MENU (-) (+)
0 4 0 0
Carafe Dispense Volume Displays Carafe Dispense Volume
(XX.X Oz.)
MENU (-) (+)
0 5 0 0
37935.1 052305

13
Regular Dispense Total DisplaysTotalRegularCoffeeDispensed
(XX.X Gal)
MENU (-) (+)
0 6 0
Decaf Dispense Total Displays Total Decaf Coffee Dispensed
(XX.X Gal)
MENU (-) (+)
0 7 0
Displays Software Version # -
Exits To Home View After 3 Seconds.
MENU (-) (+)
L C 0 x x
LCD DISPLAY DISPLAY MODE DESCRIPTION
Empty Product Threshold Displays Empty Product Threshold
(Default = 600)
MENU (-) (+)
0 8 6 0 0
PROGRAMMING THE DISPENSER (Cont.)
Display Mode (Continued)
37935.1 082905
Rinse Alarm (Hrs) Displays The Hours Between Required
Rinses.
(Default = 0 > OFF, Alarm Disabled)
MENU (-) (+)
0 9 OFF

14
PROGRAMMING THE DISPENSER (Cont.)
Program Mode: Used to change or enter new set-up values.
To enter the Program Mode, Set the RUN/NIGHT/PROGRAM Switch to the PROGRAM position, the unit will
display “__PPP” to indicate it is in the Program Mode. Use the MENU switch to scroll to the next display. Use
the Increase (+) and Decrease (-) switch to adjust the values.
Tank Temperature Default = 180°F
Range = 120° - 190°F
Ready Temp = Tank Temp minus 10°F
MENU (-) (+)
P 1 1 8 0
LCD DISPLAY PROGRAM MODE DESCRIPTION
Left (Regular) Dispense Ratio Set Regular Coffee Ratio
Default = 38:1
Range = 25 Max / 50 Min
MENU (-) (+)
P 2 3 8
Right (Decaf) Dispense Ratio Set Decaf Coffee Ratio
Default = 38:1
Range = 25 Max / 50 Min
MENU (-) (+)
Cup Dispense Volume Set Cup Dispense Volume
Default = 0.0, Push & Hold
Range = 0.0 / 16.0 Oz.
MENU (-) (+)
P 4 0 0 0
Carafe Dispense Volume Set Carafe Dispense Volume
Default = 0.0, Disabled
Range = 0.0 / 64.0 Oz.
MENU (-) (+)
P 5 0 0 0
Left (Regular) Dispense Total Reset Total to Zero (00.0 Gal)
MENU (-) (+)
P 6 0 0 0
37935.1 052305
P 3 3 8

15
Right (Decaf) Dispense Total Reset Total to Zero (00.0 Gal)
MENU (-) (+)
P 7 0 0 0
LCD DISPLAY PROGRAM MODE DESCRIPTION
PROGRAMMING THE DISPENSER (Cont.)
Program Mode (Continued)
Empty Product Threshold Set Conductance Threshold
Default = 600
Range = 100 Min / 900 Max
To check Conductance of Hot Water,
viewthedisplaywhile rinsing.Set value
to 100 above reading.
MENU (-) (+)
P 8 6 0 0
Displays Software Version # -
Exits To Home View After 3 Seconds.
MENU (-) (+)
L C 0 x x
Rinse Alarm Timer Default = OFF > Rinse Alarm Disabled
Range = 1 - 24 hrs
Reminder Only. No Lock Out.
To clear alarm, set to RINSE Mode.
Press Left switch, then Right switch
for 15 seconds each.
MENU (-) (+)
P 9 OFF
37935.1 052305

16
PRIMING THE CONCENTRATE LINES
1. Open the dispenser door.
2. Select Prime on the Function Selector Switch and Run on the Mode Selector Switch.
3. Close the dispenser door.
4. Place a container under the dispense tip.
5. Activate the appropriate dispenser until concentrate flows from the dispense nozzle. Priming may take 5 to
10 seconds.
6. Open the dispenser door, select Normal on the Function Selector Switch.
Note: Concentrate may continue to drip out of dispense tip. The user may wish to Rinse (refer to Rinsing) the
dispenser to clean out the remaining concentrate.

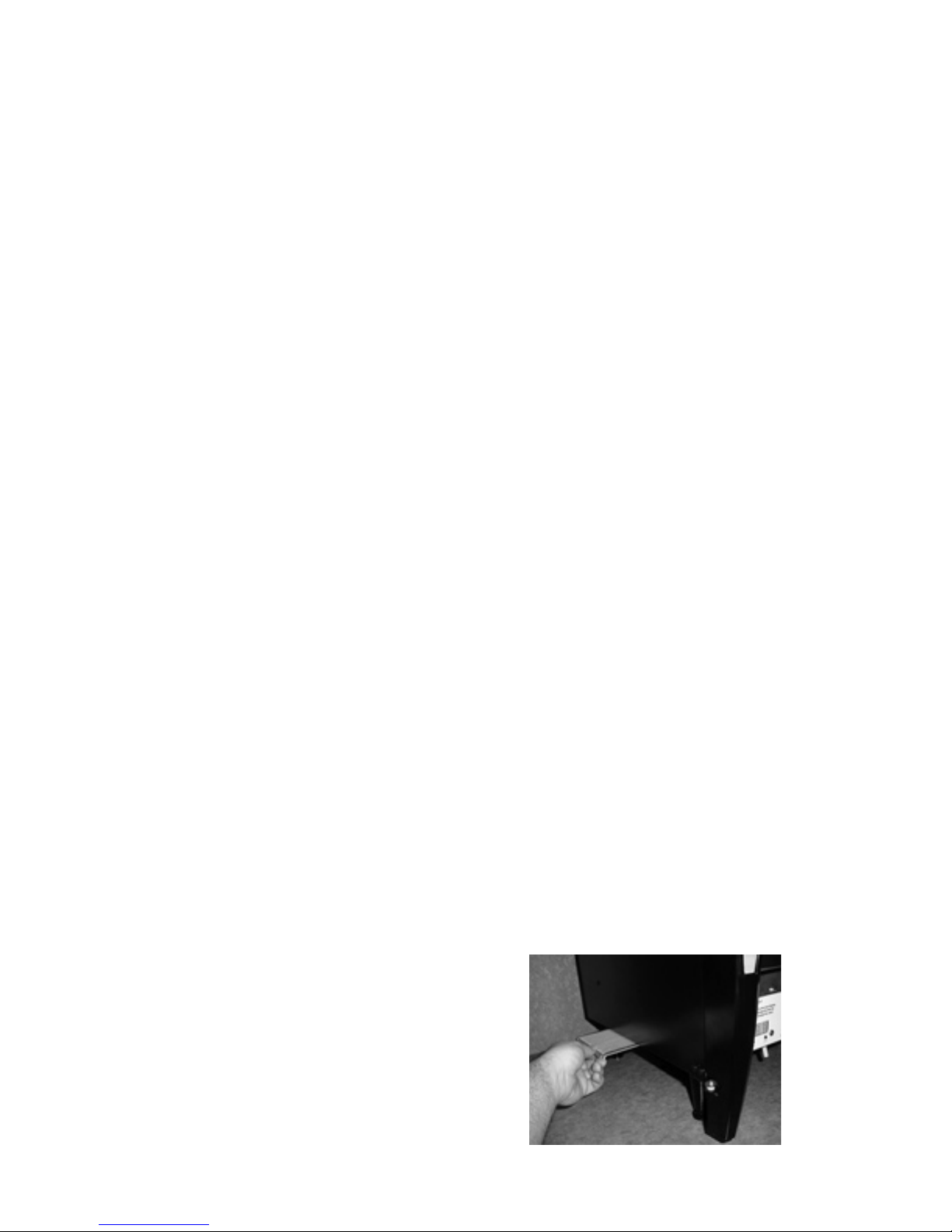

DRAINING THE HOT WATER TANK
CAUTION: The dispenser must be disconnected from the power source throughout these steps.
1. Disconnect the dispenser from the power source.
2. Shut off and disconnect the incoming water supply.
3. Remove the right side access panel.
4. Pull out drain tube to empty into a sink or a container with a minimum of 200 ounce capacity.
5. Make sure drain clamp is closed, then remove drain plug.
6. Direct tube into sink or container and open drain clamp. Continue draining tank until ALL of the water is out.
Be careful when draining the water as it may be very hot.
7. Close drain clamp, insert drain plug, place drain tube back into machine, and replace the right side access
panel.
Note: The dispenser must be refilled using the Initial Fill & Heat steps before reconnecting the power source.
37935.1 083005
2
6
2

17
OPERATING THE DISPENSER
Set the Function Selector Switch to “Normal” and the Mode Selector Switch to “Run.”
1A. Push and Hold Dispense Mode (Cup at a time). See Programming Functions to set this amount.
a. Place cup on the tray beneath the dispensing tip.
b. Push and hold the corresponding dispense switch until the container is full.
c. Remove cup or container.
1B. Portion Dispense Mode. (Cup dispense volume preset to a desired amount) Refer to Programming Functions
to set this amount.
a. Place cup on the tray beneath the dispensing tip.
b. Momentarily press the desired dispense switch. The dispenser will automatically dispense the beverage
at the preset amount. Allow the mix chamber to drain at the end of the cycle.
c. Remove cup.
2. Carafe Dispense Mode. Refer to Programming Functions to set this volume.
a. Place the appropriate size container beneath the dispensing tip.
b. Momentarily press the Portion Switch. The Portion LED will illuminate for 5 seconds after the Portion
Switch is pressed.
c. Momentarily press the desired dispense switch. If the user waits longer than 5 seconds to push the switch,
the dispenser will default back to the cup dispense mode. The carafe dispense mode can be disabled at
any time during the dispense by either momentarily pushing the Dispense Switch again or pressing the
Stop button.
d. Wait for the container to fill and the dispenser to quit dispensing, then remove the container.
3. Hot Water Dispense
a. Place a container under the dispense tip.
b. Push and hold the Hot Water switch until water reaches the desired level, then release.
c. Remove the container.
37935.1 052305

18
CLEANING & PREVENTATIVE MAINTENANCE
General Cleaning and Sanitizing Procedures
Note: The BUNN®LCC-2 LP dispenser incorporates a “user selectable” rinse reminder feature, which lights the
Rinse LED on the front panel when it is time to rinse. See Programming Functions to activate this feature.
Daily: RINSING
1. Open the dispenser door and set the Function Switch to Rinse and the Mode Selector Switch to RUN.
2. Close the dispenser door and place a 1/2 gal (2 liter) container under the dispense nozzle area.
3. Depress both dispense switches until the water is clear or has no concentrate coloring in it, (10 to 20
sec.).
4. Open the dispenser door, set the Function Switch back to Normal.
Note: Toclearthe“Rinse”warning, depress both dispenseswitches(oneatatime)untiltheflowstopsautomatically
(approximately 20 sec. for each tip). The “Rinse” LED will turn off when the Rinse time has been satisfied.
Daily: PARTS WASHING
1. Remove and wash the drip tray and drip tray cover in a mild detergent solution. Rinse thoroughly.
2. Wipe the splash panel, dispense nozzles, door, and cabinet with a clean damp cloth.
Weekly: SANITIZING
1. Open the dispenser door and set the Function Switch to Prime and the Mode Selector Switch to Run.
2. Remove stainless steel drawtube from the product container and set the product container aside.
3. Place the stainless steel drawtube into a one-quart (1 liter) container of warm soapy tap water 140°F
(60°C).
4. Place an empty container under dispense nozzle area and depress the corresponding dispense switch until
the clean soapy water is dispensed from the dispense nozzle.
5. Repeat steps 3 and 4 with warm tap water 140°F (60°C) to rinse the soapy water from the pump tubing.
Continue depressing the dispense switch until the water is clear, and no soapy water is being dispensed.
6. Prepare one-quart (1 liter) of sanitizing solution with at least 100 ppm of available chlorine in 120°F (48.9°C)
water.
7. Repeat steps 3 and 4 with the sanitizing solution. Once sanitizing solution is being dispensed, release the
dispense switch and allow the solution to sit for 5 minutes.
8. After the sanitizer has set in the lines for 5 minutes, repeat step 5 with warm tap water to flush out the sani-
tizing solution.
9. Insert the drawtube into the product container and return it to the cabinet.
10. Select Normal on the Function Switch and Run on the Mode Selector Switch.
11. Depress the dispense switch until the concentrate and water mixture appears at the dispense nozzle. Continue
to dispense at least 12 ounce (355 ml) of concentrate/water mixture and discard.
12. Repeat steps 1 through 11 for other dispense head.
Air Filter Cleaning
Monthly cleaning of the air filter is recommended. Severe
conditions may require more frequent cleaning.
37935.1 052305

19
REPLACING THE PUMP TUBING
The pumps and tubing used in the dispenser are designed to give maximum performance and long life. However,
the tubes are a wear item and must be replaced periodically. How long the tubes last is dependent on usage and
properties of the concentrate. Excessive wear will reduce the output of the pumps resulting in a weak mixed
beverage. Bunn-O-Matic recommends replacing the Pump Tubing a minimum of once every 6 months or sooner
if warranted.
Refer to the Tube Replacement Instruction inside the Cabinet door.
Note: To avoid concentrate spills, rinse the pump tubing with warm tap water prior to removing the tubes, (Refer
to steps 1 - 4 of the Weekly Sanitizing instructions).
1. Loosen the thumbscrew (Fig 1) securing the tubing retainer plate to the pump body and set the retainer plate
aside.
2. Depress the tension screw and remove it from the notch in the pump body, releasing the spring tension on
the pump band (Fig 2).
3. Gently pull the pump tube from around the pump rotor (Fig 3).
4. Inspect the pump bands, rollers and housing for contamination or signs of wear. Clean or replace worn parts
if necessary.
5. Apply lubricant (BUNN-O-MATIC part no. M2531.0001) to the middle section of the new pump tubing (Fig
4).
6. Carefully wrap the new tubing around the rotor, making sure that the elbow and clamps end up on the front
side of the pump body (Fig 5).
7. Depress the tension screw and insert it in the notch in the pump body, reapplying spring tension on the pump
band.
8. Install the free end of the tube over the inlet port of the mix chamber on that side of the cabinet (Fig. 5).
9. Replace the tubing retainer plate and tighten the thumbscrew.
9. Open the product container and insert the stainless steel drawtube into the container (Fig 6).
10. Repeat steps 1 through 9 for the other pump.
Note: Replacement Tube Kits can be purchased from BUNN-O-MATIC. Order part no. 37942.1000
Fig 1 Fig 2 Fig 3 Fig 4
Fig 5 Fig 6
37935.1 063005
Remove Retaining Plate Release Spring Tension Remove Tubing Lubricate New Tube
Install New Tubing Completed Installation
Lubricate between arrows
2.0” 2.0”
Thumbscrew Tension
Screw
Elbow &
Clamps
Inlet Port
Retaining
Plate

20
LCD DISPLAY CALIBRATION MODE DESCRIPTION
CALIBRATING THE DISPENSER
Left (Regular) Pump Cal. Set PRIME-NORMAL-RINSE switch
to PRIME position. Press and hold
Regular Dispense Switch until pump
stops(20sec.)RefertoFieldCalibration
of the Concentrate Pumps.
MENU (-) (+)
C 1 r u n
NOTE: The LCC-2 LP is calibrated at the factory and does not normally need to be re-calibrated. To enter the
Calibration Mode, Set the RUN/NIGHT/PROGRAM Switch to the PROGRAM position and then hold the “MENU”
switch down for 10 seconds.
Left (Regular) Pump Cal. Enter mL collected from the 20 sec.
test above.
Default = 22
Range = 18 - 26mL
MENU (-) (+)
C 1 2 2
Right (Decaf) Pump Cal. Set PRIME-NORMAL-RINSE switch to
PRIME position. Press and hold Decaf
Dispense Switch until pump stops (20
sec.) Refer to Field Calibration of the
Concentrate Pumps.
MENU (-) (+)
C 2 r u n
Right (Decaf) Pump Cal. Enter mL collected from the 20 sec.
test above.
Default = 22
Range = 18 - 26mL
MENU (-) (+)
C 2 2 2
Left (Regular) Water Rate Set PRIME-NORMAL-RINSE switch to
RINSEposition.PressandholdRegular
Dispense Switch until flow stops (20
sec.) Refer to Field Calibration of the
Concentrate Pumps.
MENU (-) (+)
C 3 r u n
Left (Regular) Water Rate Enter Liters collected from the 20 sec.
test above.
Default = 1.00
Range = 0.90 - 1.10 Liters
MENU (-) (+)
C 3 1.0 0
37935.1 052305
