BUSCH Mink MB 0018 A User manual

Instruction Manual
Mink
Claw Vacuum Pump
MB 0018 A
0870204873/A0002_en / Original instructions / Modifications reserved 28/02/2019
Busch Clean Air S.A.
Chemin des Grandes-Vies 54, 2900 Porrentruy
Switzerland

Table of Contents
2 / 20 0870204873_MB0018A_A0002_IM_en
Table of Contents
1 Safety........................................................................................................................... 3
2 Product Description ..................................................................................................... 4
2.1 Operating Principle............................................................................................... 4
2.2 Application ........................................................................................................... 5
3 Transport ..................................................................................................................... 5
4 Storage......................................................................................................................... 5
5 Installation................................................................................................................... 6
5.1 Installation Conditions ..........................................................................................6
5.2 Connecting Lines / Pipes ......................................................................................7
5.2.1 Suction Connection....................................................................................7
5.2.2 Discharge Connection................................................................................7
5.3 Electrical Connection ............................................................................................8
5.3.1 Version with Analogue Speed Control........................................................8
5.3.2 Version with CAN-Communication............................................................9
6 Commissioning............................................................................................................ 9
6.1 Relief Valve Adjustment........................................................................................ 10
6.2 Standard Version ..................................................................................................11
6.3 Version with Analogue Speed Control ..................................................................11
6.4 Version with CAN-Communication....................................................................... 11
7 Maintenance................................................................................................................ 13
7.1 Maintenance Schedule.......................................................................................... 13
8 Decommissioning ........................................................................................................ 13
8.1 Dismantling and Disposal...................................................................................... 13
9 Spare Parts................................................................................................................... 14
10 CAN Protocol............................................................................................................... 15
11 Technical Data ............................................................................................................. 16
12 EU Declaration of Conformity ...................................................................................... 17

Safety | 1
0870204873_MB0018A_A0002_IM_en 3 / 20
1 Safety
Prior to handling the machine, this instruction manual should be read and understood. If
anything needs to be clarified, please contact your Busch representative.
Read this manual carefully before use and keep for future reference.
This instruction manual remains valid as long as the customer does not change anything
on the product.
The machine is intended for industrial use. It must be handled only by technically trained
personnel.
Always wear appropriate personal protective equipment in accordance with the local
regulations.
The machine has been designed and manufactured according to state-of-the-art meth-
ods. Nevertheless, residual risks may remain. This instruction manual highlights potential
hazards where appropriate. Safety notes and warning messages are tagged with one of
the keywords DANGER, WARNING, CAUTION, NOTICE and NOTE as follows:
DANGER
... indicates an imminent dangerous situation that will result in death or serious injuries if
not prevented.
WARNING
... indicates a potentially dangerous situation that could result in death or serious injuries.
CAUTION
... indicates a potentially dangerous situation that could result in minor injuries.
NOTICE
... indicates a potentially dangerous situation that could result in damage to property.
NOTE
... indicates helpful tips and recommendations, as well as information for efficient and
trouble-free operation.

2 | Product Description
4 / 20 0870204873_MB0018A_A0002_IM_en

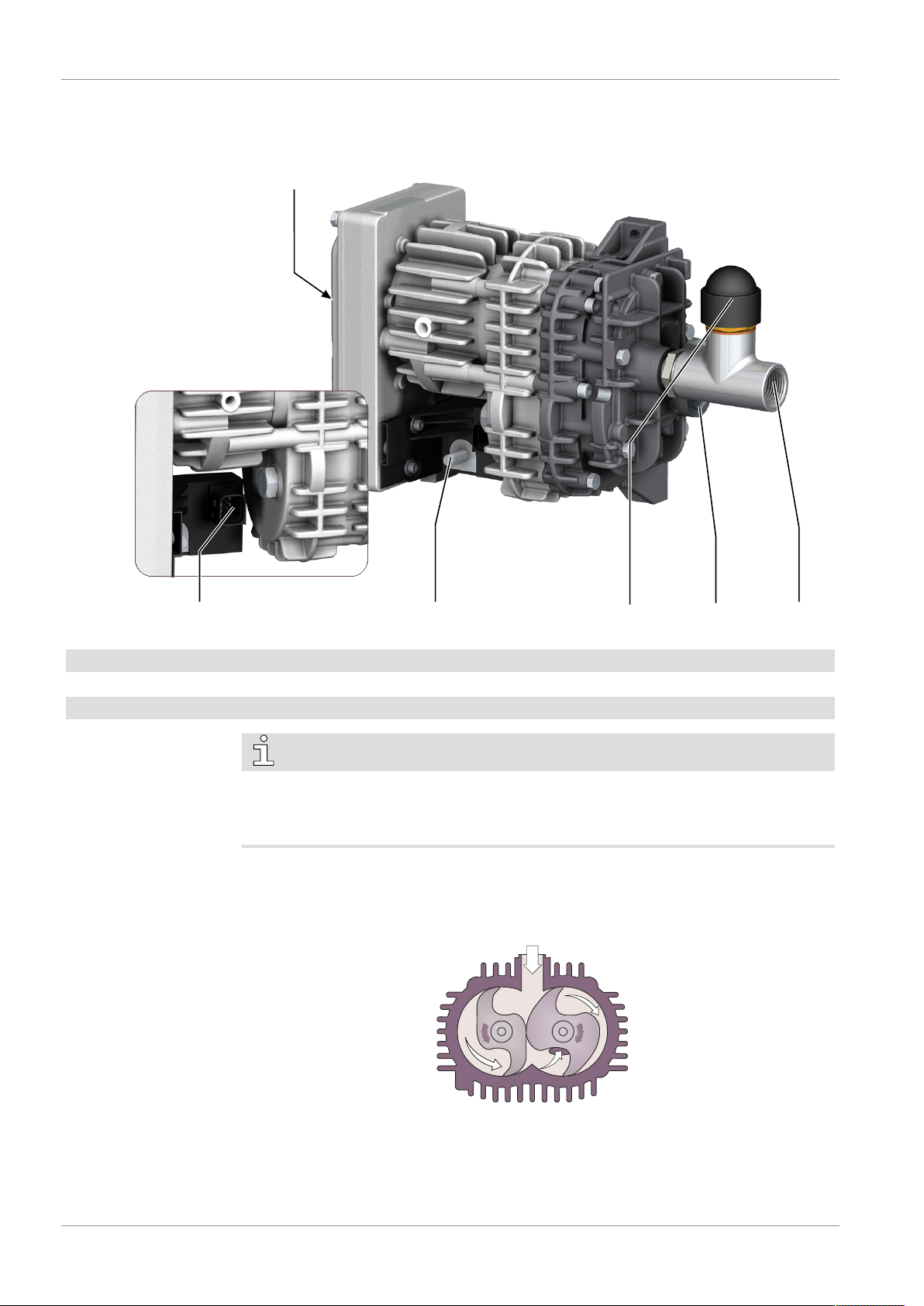

2 Product Description
COM
NP
ECO IN OUT
PRV
IN Suction connection ECO Electrical connection (+VBatt)
OUT Discharge connection COM 6-pole HDSCS connector (CAN)
NP Nameplate PRE Pressure relief valve
NOTE
Technical term.
In this instruction manual, we consider that the term ‘machine’ refers to the ‘vacuum
pump’.
2.1 Operating Principle
The machine works on the claw principle.

Transport | 3
0870204873_MB0018A_A0002_IM_en 5 / 20
2.2 Application
The machine is intended for the suction of air and other dry, non-aggressive, non-toxic
and non-explosive gases.
Conveying of other media leads to an increased thermal and/or mechanical load on the
machine and is permissible only after a consultation with Busch.
The machine is intended for the placement in a non-potentially explosive environment.
Permitted environmental conditions, see Technical Data [►16].
3 Transport
NOTICE
If the machine has a relief valve
Risk of damage to the machine!
• Do not handle the machine by the relief valve.
Machine weight:
see the technical data or the nameplate
• Check the machine for transport damage.
If the machine is secured to a base plate:
• Remove the machine from the base plate.
4 Storage
• Seal all apertures with adhesive tape or reuse provided caps.
If the machine is to be stored for more than 3 months:
• Wrap the machine in a corrosion inhibiting film.
• Store the machine indoors, dry, dust free and if possible in original packaging
preferably at temperatures between 0 ... 40 °C.

5 | Installation
6 / 20 0870204873_MB0018A_A0002_IM_en
5 Installation
5.1 Installation Conditions
NOTICE
Use of the machine outside of the permitted installation conditions.
Risk of premature failure!
Loss of efficiency!
• Take care that the installation conditions are fully complied with.
Fixing points
• Make sure that the environment of the machine is not potentially explosive.
• Make sure that the ambient conditions comply with the Technical Data [►16].
• Make sure that the installation space or location is vented such that sufficient cooling
of the machine is provided.
• Make sure that all provided covers, guards, hoods, etc. are mounted.
If the machine is installed at an altitude greater than 1000 meters above sea level:
• Contact your Busch representative, the motor should be derated or the ambient
temperature limited.

Installation | 5
0870204873_MB0018A_A0002_IM_en 7 / 20
5.2 Connecting Lines / Pipes
• Remove all protective caps before installation.
• Make sure that the connection lines cause no stress on the machine‘s connection; if
necessary use flexible joints.
• Make sure that the line size of the connection lines over the entire length is at least as
large as the connections of the machine.
In case of very long connection lines it is advisable to use larger line sizes in order to
avoid a loss of efficiency. Seek advice from your Busch representative.
5.2.1 Suction Connection
WARNING
Unprotected connection.
Risk of severe injury!
• Do not put hand or fingers in the connection.
NOTICE
Ingress of foreign objects or liquids.
Risk of damage to the machine!
If the inlet gas contains dust or other foreign solid particles:
• Install a suitable filter (≤5micron meter - ≤5 µm – 5 x 10-6 µm ) upstream from the
machine.
Connection size:
– G1/2
Depending on the specific order, other connection dimensions may apply.
5.2.2 Discharge Connection
WARNING
Unprotected connection.
Risk of severe injury!
• Do not put hand or fingers in the connection.
Connection size:
– G1/2
Depending on the specific order, other connection dimensions may apply.

5 | Installation
8 / 20 0870204873_MB0018A_A0002_IM_en
5.3 Electrical Connection
DANGER
Live wires.
Risk of electrical shock.
• Electrical installation work must only be executed by qualified personnel.
• Make sure that the motor of the machine will not be affected by electric or electro-
magnetic disturbance from the mains; if necessary seek advice from Busch.
• Electrically connect the machine
+V Batt (M8 thread)
-V Batt (M8 thread)
5.3.1 Version with Analogue Speed Control
4
5
6
1
2
3
1 = 0 … 5 V (= 0 … 6600 rpm)
2 = -
3 = CAN L (actual values)
4 = -
5 = -
6 = -

Commissioning | 6
0870204873_MB0018A_A0002_IM_en 9 / 20
5.3.2 Version with CAN-Communication
4
5
6
1
2
3
1 = KL15
2 = CAN H
3 = CAN L
4 = +5V supply for Mass Flow Sensor (op-
tional)
5 = SENT for Mass Flow Sensor (optional)
6 = GND for Mass Flow Sensor (optional)
6 Commissioning
NOTICE
Lubricating a dry running machine (compression chamber).
Risk of damage to the machine!
• Do not lubricate the compression chamber of the machine with oil or grease.
CAUTION
During operation the surface of the machine may reach temperatures of more than
70°C.
Risk of burns!
• Avoid contact with the machine during and directly after operation.
CAUTION
Noise of running machine.
Risk of damage to hearing!
If persons are present in the vicinity of a non noise insulated machine over extended
periods:
• Make sure that ear protection is being used.
• Make sure that the installation conditions (see Installation Conditions [►6]) are met.
• Switch on the machine.
• Make sure that the maximum permissible number of starts does not exceed 12 starts
per hour. Those starts should be spread within the hour.
• Make sure that the operating conditions comply with the Technical Data [►16].
As soon as the machine is operated under normal operating conditions:
• Measure the motor current and record it as reference for future maintenance and
troubleshooting work.

6 | Commissioning
10 / 20 0870204873_MB0018A_A0002_IM_en
6.1 Relief Valve Adjustment
The factory setting of the relief valve is set at 600 hPa (mbar) absolute for a permanent
usage. In case of cycling one, can be adjusted down to 450 hPa (mbar) absolute.
To proceed, install the vacuum pump on a pneumatic bench with an absolute pressure
sensor, an inlet valve and, if available, a volume flow sensor set at the outlet.
• Remove the black cap.
• Unlock the relief valve position by unscrewing the small hexagon socket bolt (with hex
key 2).
• Fully open the valve (decrease the spring resistance) by a clockwise rotation. Fully
close the bench inlet valve so that fresh air comes in by the relief valve only (volume
flow sensor mentions 0 lpm).
• Adjust the relief valve position by closing the valve (increase the spring resistance) by
a counter-clockwise rotation to achieve 450 hPa (mbar) absolute +/- 5 hPa.
• Lock the relief valve position by screwing the small hexagon socket bolt.
• Reposition the black cap.

Commissioning | 6
0870204873_MB0018A_A0002_IM_en 11 / 20
6.2 Standard Version
The machine starts automatically with maximum speed as soon as electrical power is
supplied.
6.3 Version with Analogue Speed Control
The electronic is automatically activated as soon as electrical power is supplied.
The speed can be controlled by a potentiometer connected to terminal 1 (KL15) on the
HDSC connector (CON).

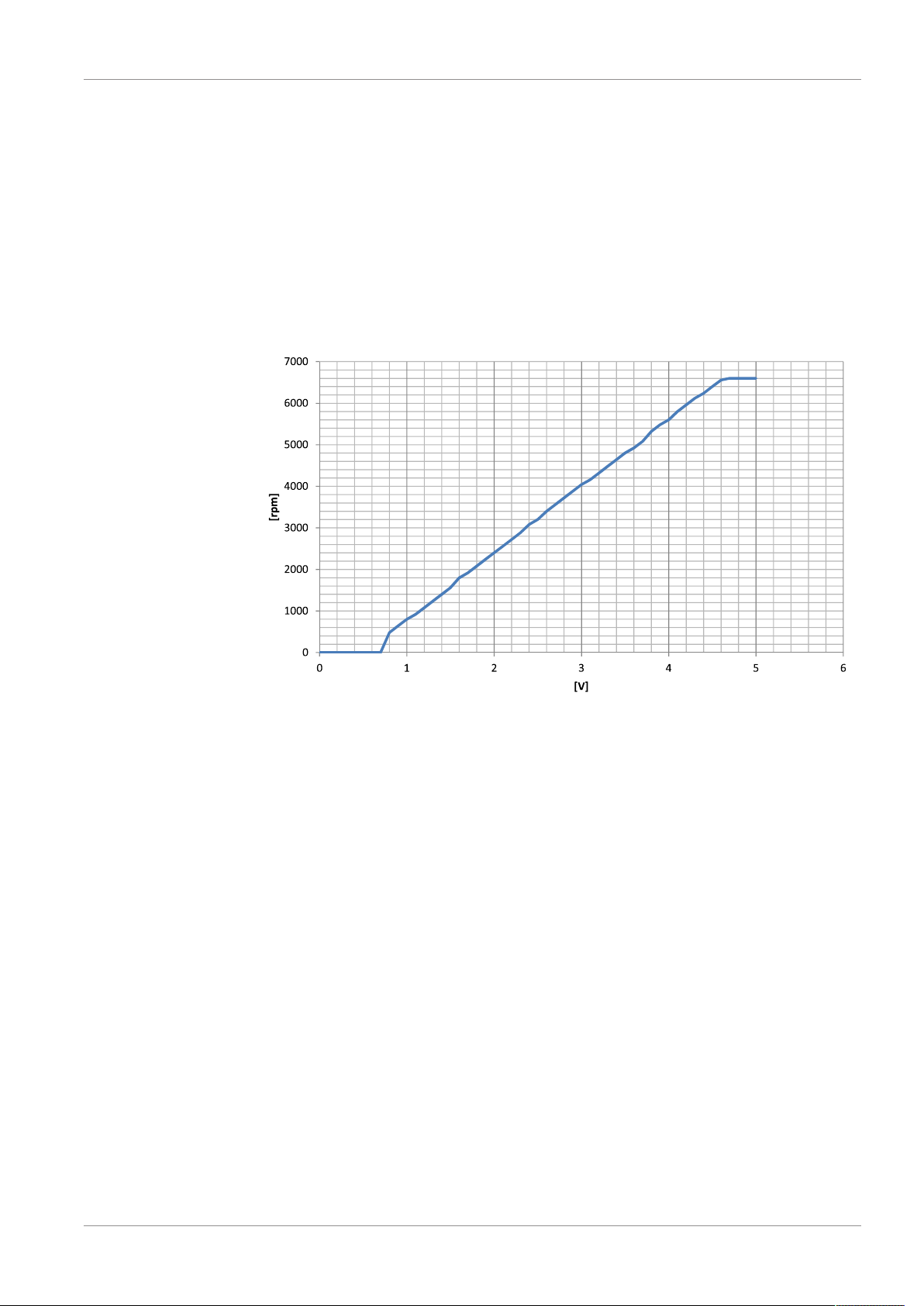

Observe the following diagram to adjust the speed.
6.4 Version with CAN-Communication
The machine is controlled via CAN communication (see CAN Protocol [►15]). The
CAN control message send all necessary signals and reference values to the machine.
There are two different operating modes.
The speed control mode controls the speed of the machine.
The mass flow control mode controls the speed of the machine depending on the mass
flow. For mass flow control mode the machine must be equipped with a mass flow
sensor. In case of a failure of the mass flow sensor the machine switches automatically to
speed control mode.
Terminal 1 (KL15)
High voltage level on terminal 1 (KL15) switches on the internal power supply of the ma-
chine. After switching on, the machine waits 10seconds for a valid CAN control message
before a CAN failure will be detected.
In case of a voltage level below 1.2V on terminal 1 (KL15) the machine decelerates to a
speed of 1800 min-1. After 10seconds the machine stops. After further 2.5seconds the
internal power supply of the machine switches off.
CAN Status Message (Actual Values)
One second after startup, the machine sends every 50ms a CAN status message with
actual values. If the machine receives a CAN control message before the first second
after startup the machine sends the CAN status message immediately.

6 | Commissioning
12 / 20 0870204873_MB0018A_A0002_IM_en
Power-On Bit
After startup a power-on bit is set in the CAN status frame for one second. The power-
on bit can be used to identify unexpected resets/restarts.
Loss of CAN Communication
If a loss of CAN communication occurs the reference value for mass flow will be set to
100g/min. A loss of CAN communication will be detected if no valid CAN control mes-
sage have been received for 500ms. As soon as the CAN communication is available
again the machine switches to normal operation immediately.
Speed reduction by temperature
The maximum speed of the machine depends on the electronic temperature to ensure
safe operation of the machine at any temperatures.
The machine will reduce the speed if the electronic temperature is too high even if the
reference speed value is higher than the actual speed. The speed reduction resulted from
the electronic temperature is indicated by the sixth bit in the CAN status frame. There
will be no indication on the sixth bit if the actual speed limited by the electronic tempera-
ture complies with the maximum speed.
Loss of mass flow sensor
At loss of the mass flow sensor the software switches automatically into the speed con-
trol mode with the predefined speed precontrol value.
The loss of mass flow sensor is visible in the CAN Status bit (see CAN Protocol). This fail-
ure is automatically reset as soon as new values are received from the mass flow sensor.
Over current protection
The electronics is protected against a blocked rotor or overload by an overcurrent protec-
tion. If an overcurrent is detected the motor stops immediately. The bit 7 “overcurrent”
in the CAN Status frame is set for about 2 seconds.
One second after the stop of te motor the electronic tries to restart the motor automatic-
ally. If the overcurrent error occurs one more time, the motor stops again and the error
bit in the can status frame stays on.
Plausibility check
A blocked rotor cannot be detectd under all conditions by an overcurrent detection.
Therefore, an additionally plausibility check is implemented.
The plausibility check checks different ratios inside the motor controller. If a plausibility
check error occur the motor stops immediately and the bit 5 “plausibility error” in the
CAN Status frame is set.
The timing for the error bit and the restart is identical to the overcurrent protection.
Electronics limits
Status and diagnostic Bit number Limit
Wrong voltage 4 24 V motor ► 35 V
Temperature limit 6 130 … 145 °C ► rotation speed de-
crease
>145 °C ► motor off
Overcurrent 7 55 A at 24 V

Maintenance | 7
0870204873_MB0018A_A0002_IM_en 13 / 20
7 Maintenance
WARNING
Machines contaminated with hazardous material.
Risk of poisoning!
Risk of infection!
If the machine is contaminated with hazardous material:
• Wear appropriate personal protective equipment.
CAUTION
Hot surface.
Risk of burns!
• Prior to any action requiring touching the machine, let the machine cool down first.
• Shut down the machine and lock against inadvertent start up.
• Vent the connected lines to atmospheric pressure.
If necessary:
• Disconnect all connections.
7.1 Maintenance Schedule
The maintenance intervals depend very much on the individual operating conditions. The
intervals given below are desired to be considered as starting values which should be
shortened or extended as appropriate. Particularly harsh applications or heavy duty oper-
ation, such as high dust loads in the environment or in the process gas, other contamina-
tion or ingress of process material, can make it necessary to shorten the maintenance in-
tervals significantly.
Interval Maintenance work
Every 12000 hours, at the
latest after 6 years
• Replace the machine.
8 Decommissioning
• Shut down the machine and lock against inadvertent start up.
• Vent the connected lines to atmospheric pressure.
• Disconnect all connections.
If the machine is going to be stored:
• See Storage [►5].
8.1 Dismantling and Disposal
• Drain the oil.
• Separate special waste from the machine.
• Dispose of special waste in compliance with applicable regulations.
• Dispose of the machine as scrap metal.

9 | Spare Parts
14 / 20 0870204873_MB0018A_A0002_IM_en
9 Spare Parts
NOTICE
Use of non-Busch genuine spare parts.
Risk of premature failure!
Loss of efficiency!
• The exclusive use of Busch genuine spare parts and consumables is recommended for
the correct functioning of the machine and to validate the warranty.
There is no standard spare parts kits available for this product, if you require Busch gen-
uine parts:
• Contact your Busch representative for the detailed spare parts list.

CAN Protocol | 10
0870204873_MB0018A_A0002_IM_en 15 / 20
10 CAN Protocol

11 | Technical Data
16 / 20 0870204873_MB0018A_A0002_IM_en
11 Technical Data
MB 0018 A
Nominal max. pumping speed m³/h 18
Ultimate pressure hPa (mbar) abs. 600* / 450**
Nominal motor rating kW 0.5
Nominal motor voltage V DC 24 (20-32)
Permitted motor speed range min-1 480 … 6000 (peak 6600)
Noise level (ENISO2151) at 3000 / 6000 min-1 dB(A) 68 / 73 (inlet and outlet connected to a sys-
tem)
Ambient temperature range °C -40 … +40
Ambient pressure Atmospheric pressure
Oil capacity l 0.10
Dimensions mm 329.5 x 120 x 199
Weight approx. kg 6.5
*permanent usage / **cycle of 6 minutes operation, 4 minutes stop

EU Declaration of Conformity | 12
0870204873_MB0018A_A0002_IM_en 17 / 20
12 EU Declaration of Conformity
This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the machine within the
Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer.
When this machine is integrated into a superordinate machinery the manufacturer of the superordinate machinery
(this can be the operating company, too) must conduct the conformity assessment process for the superordinate
machine or plant, issue the Declaration of Conformity for it and affix the CE-mark.
The manufacturer Busch Clean Air S.A.
Chemin des Grandes-Vies 54
CH-2900 Porrentruy
declares that the machine(s): Mink MB 0018 A
has (have) been manufactured in accordance with the European Directives:
– ‘Machinery’ 2006/42/EC
– ‘Electromagnetic Compatibility’ 2014/30/EU
– ‘RoHS 2’ 2011/65/EU, 2017/2102, restriction of the use of certain hazardous substances in electrical and elec-
tronic equipment
and following the standards.
Standard Title of the Standard
EN ISO 12100:2010 Safety of machinery - Basic concepts, general principles of design
EN ISO 13857:2008 Safety of machinery - Safety distances to prevent hazard zones being reached
by the upper and lower limbs
EN 1012-1:2010
EN 1012-2:1996 + A1:2009
Compressors and vacuum pumps - Safety requirements - Part 1 and Part 2
EN ISO 2151:2008 Acoustics - Noise test code for compressors and vacuum pumps - Engineering
method (grade 2)
EN 60204-1:2006 + A1:2009 Safety of machinery - Electrical equipment of machines - Part 1: General re-
quirements
EN 61000-6-2:2005 Electromagnetic compatibility (EMC) - Generic standards. Immunity for indus-
trial environments
EN 61000-6-4:2007 + A1:2011 Electromagnetic compatibility (EMC) - Generic standards. Emission standard
for industrial environments
EN ISO 13849-1:2015 (1) Safety of machinery - Safety-related parts of control systems - Part 1: General
principles for design
Person authorised to compile the technical file: Gerd Rohweder
Busch Dienste GmbH
Schauinslandstr. 1
DE-79689 Maulburg
Porrentruy, 10.10.2018
Dominique Biesen, General director
(1) In case control systems are integrated.

Note

Note

Argentina
www.buschvacuum.com/ar
[email protected]
Australia
www.buschvacuum.com/au
[email protected]
Austria
www.buschvacuum.com/at
[email protected]
Bangladeh
www.buschvacuum.com/bd
[email protected]
Belgium
www.buschvacuum.com/be
[email protected]
Brazil
www.buschvacuum.com/br
[email protected]
Canada
www.buschvacuum.com/ca
[email protected]
Chile
www.buschvacuum.com/cl
[email protected]
China
www.buschvacuum.com/cn/zh
[email protected]
Colombia
www.buschvacuum.com/co
[email protected]
Czech Republic
www.buschvacuum.com/cz
[email protected]
Denmark
www.buschvacuum.com/dk
[email protected]
Finland
www.buschvacuum.com/fi
[email protected]
France
www.buschvacuum.com/fr
[email protected]
Germany
www.buschvacuum.com/de
[email protected]
Hungary
www.buschvacuum.com/hu
[email protected]
India
www.buschvacuum.com/in
[email protected]
Ireland
www.buschvacuum.com/ie
[email protected]
Israel
www.buschvacuum.com/il
[email protected]
Italy
www.buschvacuum.com/it
[email protected]
Japan
www.buschvacuum.com/jp
[email protected]
Korea
www.buschvacuum.com/kr
[email protected]
Malaysia
www.busch.com.my
[email protected]
Mexico
www.buschvacuum.com/mx
[email protected]
Netherlands
www.buschvacuum.com/nl
[email protected]
New Zealand
www.buschvacuum.com/nz
[email protected]
Norway
www.buschvacuum.com/no
[email protected]
Peru
www.buschvacuum.com/pe
[email protected]
Poland
www.buschvacuum.com/pl
[email protected]
Portugal
www.buschvacuum.com/pt
[email protected]
Romania
www.buschvacuum.com/ro
[email protected]
Russia
www.buschvacuum.com/ru
[email protected]
Singapore
www.buschvacuum.com/sg
[email protected]
South Africa
www.buschvacuum.com/za
[email protected]
Spain
www.buschvacuum.com/es
[email protected]
Sweden
www.buschvacuum.com/se
[email protected]
Switzerland
www.buschvacuum.com/ch
[email protected]
Taiwan
www.buschvacuum.com/tw
[email protected]
Thailand
www.buschvacuum.com/th
[email protected]
Turkey
www.buschvacuum.com/tr
[email protected]
United Arab Emirates
www.buschvacuum.com/ae
[email protected]
United Kingdom
www.buschvacuum.com/uk
[email protected]
USA
www.buschvacuum.com/us
[email protected]
www.buschvacuum.com
Busch Vacuum Pumps
and Systems
All over the World in Industry
0870204873/A0002_en / © Busch Clean Air S.A.
