Bush Hog 3PBS1 User manual

© 2020 Alamo Group Inc. $0.00

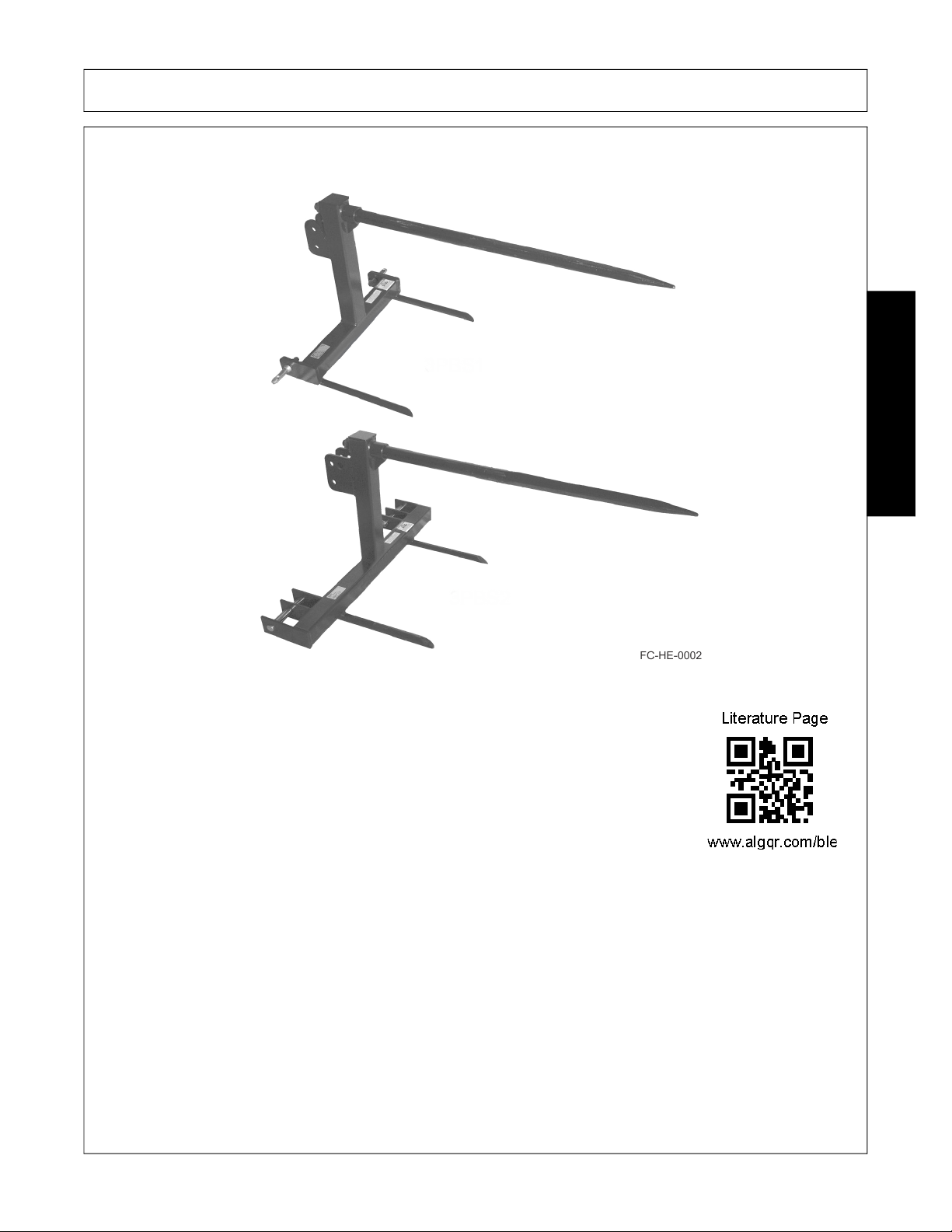

BALE SPEAR
Published 10/20 Part No. 50073292
OPERATOR’S MANUAL
BUSH HOG®
2501 Griffin Ave.
Selma, AL 36703
334-874-2700
www.bushhog.com
MODEL 3PBS1, 3PBS2
This Operator's Manual is an integral part of the safe operation of this machine and must
be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety
and Operation Instructions contained in this manual before operating the equipment. C01-
Cover

To the Owner/Operator/Dealer
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded
operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has
designed this implement to be used with all its safety equipment properly attached to minimize the chance of
accidents.
BEFORE YOU START!! Read the safety messages on the implement and shown in your manual. Observe the
rules of safety and common sense!
WARRANTY INFORMATION:
Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration
Form in full and return it to within 30 Days. Make certain the Serial Number of the Machine is recorded on the
Warranty Card and on the Warranty Form that you retain.

TABLE OF CONTENTS
SAFETY SECTION .............................................................................................................. 1-1
General Safety Instructions and Practices ......................................................................................................... 1-2
Operator Safety Instructions and Practices ....................................................................................................... 1-3
Equipment Operation Safety Instructions and Practices .................................................................................... 1-4
Connecting or Disconnecting Implement Safety Instructions and Practices ...................................................... 1-6
Maintenance and Service Safety Instructions and Practices ............................................................................. 1-6
Transporting Safety Instructions and Practices ................................................................................................. 1-8
Storage and Parking Safety Instructions and Practices ..................................................................................... 1-9
Concluding Safety Instructions and Practices .................................................................................................... 1-9

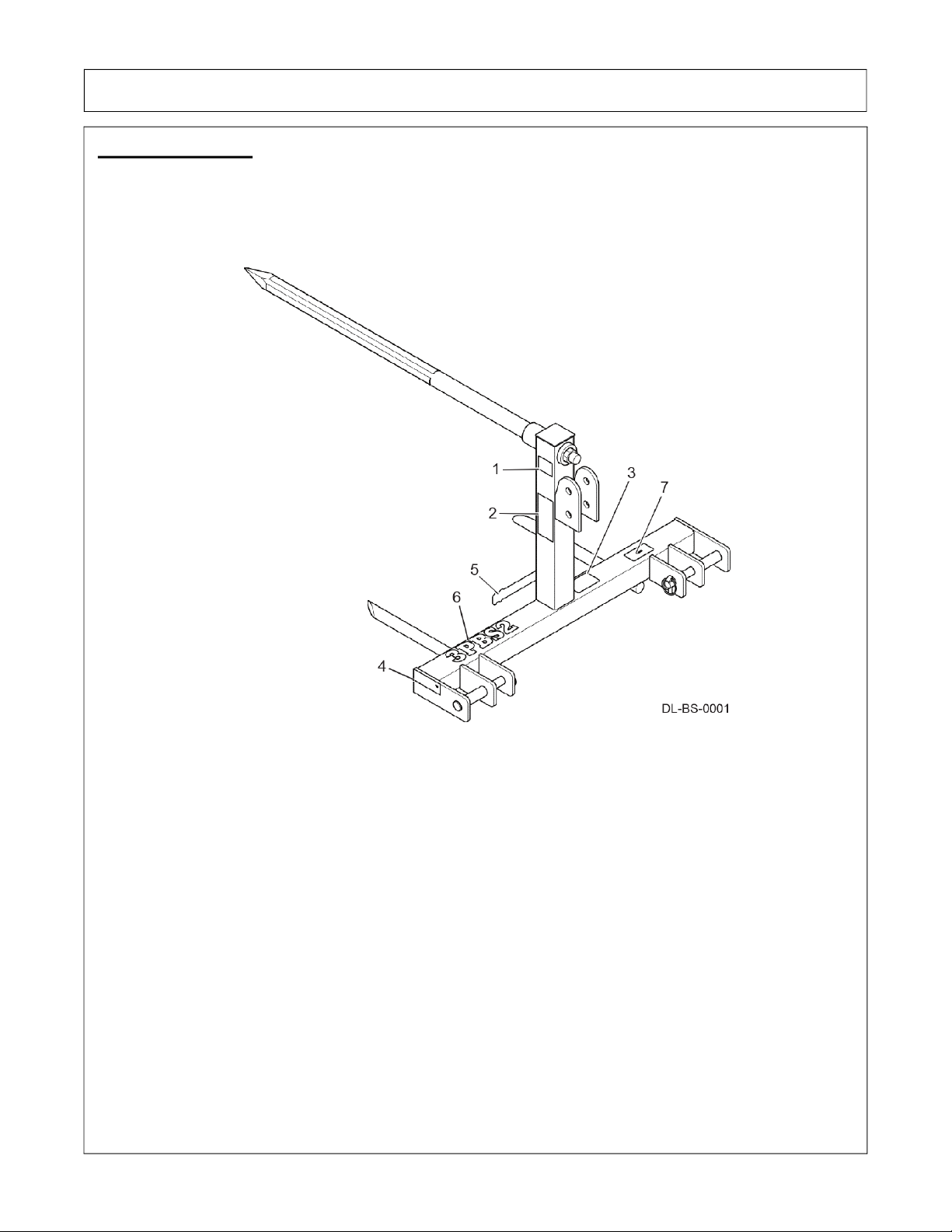

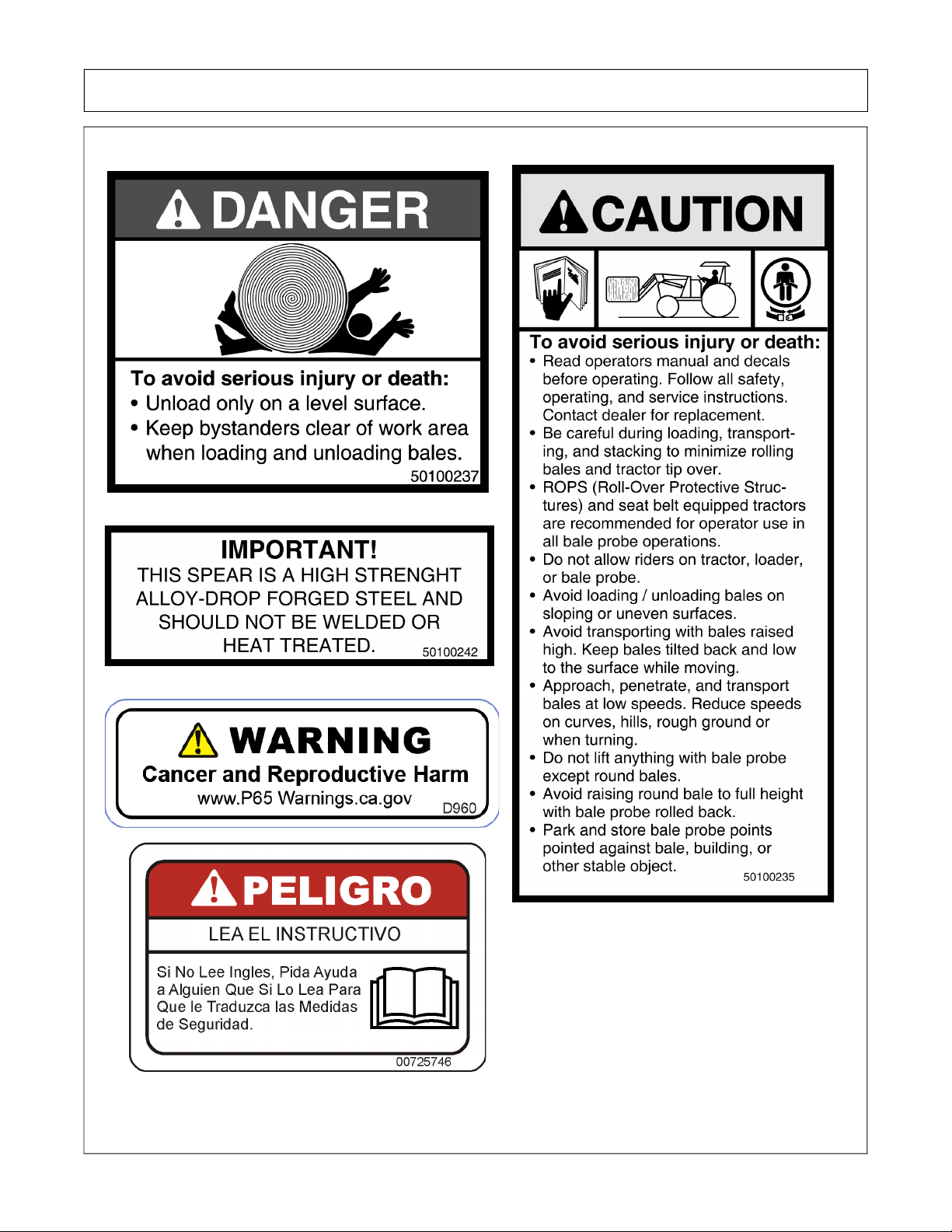

Decal Location ................................................................................................................................................. 1-10
INTRODUCTION SECTION ................................................................................................. 2-1
ASSEMBLY SECTION ........................................................................................................ 3-1
ASSEMBLY ........................................................................................................................................................ 3-2
OPERATION SECTION ....................................................................................................... 4-1
Standard Equipment and Specifications ............................................................................................................ 4-3
OPERATOR REQUIREMENTS ......................................................................................................................... 4-3
TRACTOR REQUIREMENTS ............................................................................................................................ 4-4
ROPS and Seat Belt .......................................................................................................................................... 4-4
Tractor Horsepower ........................................................................................................................................... 4-5
Front End Weight .............................................................................................................................................. 4-5
GETTING ON AND OFF THE TRACTOR ......................................................................................................... 4-5
Boarding the Tractor .......................................................................................................................................... 4-5
Dismounting the Tractor .................................................................................................................................... 4-6
STARTING THE TRACTOR .............................................................................................................................. 4-6
CONNECTING THE HAY TEDDER TO THE TRACTOR .................................................................................. 4-7
Connecting the Bale Spear. ............................................................................................................................... 4-7
PRE-OPERATION INSPECTION AND SERVICE ............................................................................................. 4-8
Tractor Pre-Operation Inspection/Service ..........................................................................................................4-8
Implement Pre-Operation Inspection/Service .................................................................................................... 4-9
DRIVING THE TRACTOR AND IMPLEMENT .................................................................................................4-12
Starting the Tractor .......................................................................................................................................... 4-13
Brake and Differential Lock Setting .................................................................................................................. 4-13
OPERATING THE TRACTOR AND IMPLEMENT ........................................................................................... 4-14
BALE SPEAR OPERATION ............................................................................................................................ 4-14
Picking up a Bale ............................................................................................................................................. 4-14
Traveling with a Load ....................................................................................................................................... 4-15
IMPLEMENT STORAGE ................................................................................................................................. 4-16
TRANSPORTING THE TRACTOR AND IMPLEMENT ................................................................................... 4-16
Transporting on Public Roadways ................................................................................................................... 4-17
Hauling the Tractor and Implement .................................................................................................................. 4-19
MAINTENANCE SECTION .................................................................................................. 5-1
Proper Torque For Fasteners ............................................................................................................................ 5-2

Safety Section 1-1
SAFETY SECTION

SAFETY
3PBS1-3PBS2 10/20 Safety Section 1-2
©2020Alamo Group Inc.
General Safety Instructions and Practices
A careful operator is the best operator. Safety is of primary importance to the manufacturer and should be to
the owner/operator. Most accidents can be avoided by being aware of your equipment, your surroundings, and
observing certain precautions. The first section of this manual includes a list of Safety Messages that, if
followed, will help protect the operator and bystanders from injury or death. Read and understand these Safety
Messages before assembling, operating or servicing this Implement. This equipment should only be operated
by those persons who have read the manual, who are responsible and trained, and who know how to do so
responsibly.
The Safety Alert Symbol combined with a Signal Word, as seen below, is used throughout this
manual and on decals which are attached to the equipment. The Safety Alert Symbol means:
“ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” The Symbol and Signal Word
are intended to warn the owner/operator of impending hazards and the degree of possible injury
faced when operating this equipment.
Indicates an imminently hazardous situation that, if not avoided, WILL result in DEATH OR
VERY SERIOUS INJURY.
Indicates an imminently hazardous situation that, if not avoided, COULD result in DEATH
OR SERIOUS INJURY.
Indicates an imminently hazardous situation that, if not avoided, MAY result in MINOR
INJURY.
Identifies special instructions or procedures that, if not strictly observed, could result in
damage to, or destruction of the machine, attachments or the environment.
NOTE: Identifies points of particular interest for more efficient and convenient operation or repair.(SG-1)
Practice all usual and customary safe working precautions and above all---remember safety is
up to YOU. Only YOU can prevent serious injury or death from unsafe practices.
Si no lee ingles, pida ayuda a alguien que si lo lea para que le traduzca las
medidas de seguridad. (SG-3)
Operate this Equipment only with a Tractor equipped with an approved roll-
over-protective system (ROPS). Always wear seat belts. Serious injury or even
death could result from falling off the tractor, particularly during a turnover when
the operator could be pinned under the ROPS. (SG-7)

SAFETY
3PBS1-3PBS2 10/20 Safety Section 1-3
©2020Alamo Group Inc.
Operator Safety Instructions and Practices
Never allow children to operate, ride on, or come close to the Tractor or
Implement. Usually, 16-17 year-old children who are mature and
responsible can operate the implement with adult supervision, if they
have read and understand the Operator’s Manuals, been trained in
proper operation of the tractor and Implement, and are physically large
enough to reach and operate the controls easily. (SG-11)
Never allow children or other persons to ride on the Tractor or Implement.
Falling off can result in serious injury or death. (SG-10)
Never allow children to play on or around Tractor or Implement. Children can slip or fall off
the Equipment and be injured or killed. Inadvertent contact with controls can cause the
Implement to shift or fall crushing themselves or others. (SG-25)
DO NOT use drugs or alcohol immediately before or while operating the
Tractor and Implement. Drugs and alcohol will affect an operator’s
alertness and coordination and therefore affect the operator’s ability to
operate the equipment safely. Before operating the Tractor or Implement,
an operator on prescription or over-the-counter medication must consult
a medical professional regarding any side effects of the medication that
would hinder their ability to operate the Equipment safely. NEVER
knowingly allow anyone to operate this equipment when their alertness or
coordination is impaired. Serious injury or death to the operator or others
could result if the operator is under the influence of drugs or alcohol. (SG-27)
Never operate the Tractor or Implement until you have read and
completely understand this Manual, the Tractor Operator’s Manual, and
each of the Safety Messages found in the Manual or on the Tractor and
Implement. Learn how to stop the tractor engine suddenly in an
emergency. Never allow inexperienced or untrained personnel to operate
the Tractor or Implement without supervision. Make sure the operator
has fully read and understood the manuals prior to operation. (SG-4)
The operator and all support personnel should wear hard hats, safety
shoes, safety glasses, and proper hearing protection at all times for
protection from injury including injury from items that may be thrown by
the equipment. (SG-16)

SAFETY
3PBS1-3PBS2 10/20 Safety Section 1-4
©2020Alamo Group Inc.
Equipment Operation Safety Instructions and Practices
PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE
PERMANENT HEARING LOSS! Tractors with or without an Implement
attached can often be noisy enough to cause permanent hearing loss.
We recommend that you always wear hearing protection if the noise in
the Operator’s position exceeds 80db. Noise over 85db over an
extended period of time will cause severe hearing loss. Noise over 90db
adjacent to the Operator over an extended period of time will cause
permanent or total hearing loss. NOTE: Hearing loss from loud noise
[from tractors, chain saws, radios, and other such sources close to the
ear] is cumulative over a lifetime without hope of natural recovery. (SG-I7)
Always read carefully and comply fully with the manufacturer’s
instructions when handling oil, solvents, cleansers, and any other
chemical agent. (SG-22)
Never run the Tractor engine in a closed building or without adequate ventilation. The
exhaust fumes can be hazardous to your health. (SG-23)
Prolonged operation may cause operator boredom and fatigue affecting safe operation.
Take scheduled work breaks to help prevent these potentially impaired operating
conditions. Never operate the Implement and Tractor in a fatigued or bored mental state
which impairs proper and safe operation. (SG-32)
Use extreme care when loading, carrying or handling any agricultural
fertilizers, chemicals or biological residue. Follow the manufacturer’s
handling instructions and wear appropriate Personal Protective
Equipment including gloves, safety glasses and respirator when required.
If you are using a tractor equipped with a cab, make sure the cab is rated
for appropriate environmental exposure. Be safe and always wear proper
protection. Short or long term exposure to certain chemicals and
materials can result in serious injury or death. (SL-19)
Never grasp control levers when mounting the machine. (SBH-4)

SAFETY
3PBS1-3PBS2 10/20 Safety Section 1-5
©2020Alamo Group Inc.
BEFORE leaving the tractor seat, lower the implement, set the parking
brake and/or set the tractor transmission in parking gear, disengage the
PTO, stop the engine, remove the key, and wait for all moving parts to
stop. Place the tractor shift lever into a low range or parking gear to
prevent the tractor from rolling. Never dismount a Tractor that is moving
or while the engine is running. Operate the Tractor controls from the
tractor seat only. (SG-9)
Do not mount or dismount the Tractor while the tractor is moving. Mount
the Tractor only when the Tractor and all moving parts are completely
stopped. (SG-12)
Start tractor only when properly seated in the Tractor seat. Starting a
tractor in gear can result in injury or death. Read the Tractor operators
manual for proper starting instructions. (SG-13)
Operate the Tractor and/or Implement controls only while properly seated in the Tractor seat
with the seat belt securely fastened around you. Inadvertent movement of the Tractor or
Implement may cause serious injury or death. (SG-29)
DO NOT operate this Implement on a Tractor that is not properly maintained. Should a
mechanical or Tractor control failure occur while operating, immediately shut down the
Tractor and perform repairs before resuming operation. Serious injury and possible death
could occur from not maintaining this Implement and Tractor in good operating condition.
(SG-36)
Do Not operate this equipment in areas where insects such as bees, may attack you and/or
cause you to lose control of the equipment. If you must enter in such areas, use a tractor
with an enclosed Cab and close the windows to prevent insects from entering. If a tractor
cab is not available, wear suitable clothing including head, face, and hand protection to
shield you from the insects. Attacking insects can cause you to lose control of the tractor,
which can result in serious injury or death to you or bystanders. Never dismount a moving
tractor. (SG-40)

SAFETY
3PBS1-3PBS2 10/20 Safety Section 1-6
©2020Alamo Group Inc.
Connecting or Disconnecting Implement Safety Instructions and
Practices
Maintenance and Service Safety Instructions and Practices
Operate the tractor and loader only in conditions where you have clear visibility in daylight
or with adequate artificial lighting. Never operate in darkness or foggy conditions where you
cannot clearly see at least 100 feet in front and to the sides of the tractor. Make sure you
can clearly see bystanders, ditches, steep slopes, drop-offs, overhead obstructions, power
lines, and debris or obstruction in the travel path. If you are unable to clearly see these
types of items discontinue operating. Contact with unseen vehicles, bystanders,
obstructions, or drop-offs can cause serious injury. (SL-35)
Be particularly careful in transport. The Implement has raised and moved the center of
gravity to the front of the Power Unit increasing the possibility of overturn and tipping
forward. Turn curves or go up slopes only at low speed and using a gradual turning angle.
Go up slopes with the Implement located uphill. Slow down on rough or uneven surfaces.
(SPU-2)
Never leave the Implement and Power Unit unattended while the Implement is in the raised
position. Accidental operation of a lifting lever or a hydraulic failure may cause the
implement to suddenly fall causing serious injury or possible death to anyone who might
inadvertently be under the Implement. Lower the implement carefully to the ground. Do not
put hands or feet under lifted components. (SPU-3)
Your driving vision may be reduced or impaired by the tractor, cab, or implement. Before
driving on public roadways identify any limited vision areas, and make adjustments to your
operating position, mirrors, and the implement transport position so that you can clearly
see the area where you will be traveling, and any traffic that may approach you. Failure to
maintain adequate vision of the public roadway and traffic can result in serious injury or
even death. (STI-10)
Never unhitch without using the Tongue Jack. The Tongue is very heavy. Attempting to lift
the Tongue without using the Tongue Jack could cause strains or other injury. Allowing the
tongue to fall suddenly and unexpectedly could result in crushing injury. Use the Tongue
Jack for lifting the Implement only. Overloading the Tongue Jack can cause failure with
possible serious bodily injury or even death. (STI-04)
READ, UNDERSTAND, and FOLLOW the following Safety Messages. Death or serious
injury may occur unless care is taken to follow the warnings and instructions stated in the
Safety Messages. Always use good common sense to avoid hazards. (SG-2)

SAFETY
3PBS1-3PBS2 10/20 Safety Section 1-7
©2020Alamo Group Inc.
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Always maintain the safety signs in good readable condition. If the safety signs are missing,
damaged, or unreadable, obtain and install replacement safety signs immediately. (SG-5)
Do not modify or alter this Implement. Do not permit anyone to modify or alter this
Implement, any of its components or any Implement function. (SG-8)
Never work under the Implement, the framework, or any lifted
component unless the Implement is securely supported or blocked up
to prevent sudden or inadvertent falling which could cause serious
injury or even death. (SG-14)
Never attempt to lubricate, adjust, or remove material from the Implement while it is in
motion or while tractor engine is running. (SG-20)
Periodically inspect all moving parts for wear and replace when
necessary with authorized service parts. Look for loose fasteners, worn
or broken parts, and leaky or loose fittings. Make sure all pins have
cotter pins and washers. Serious injury may occur from not maintaining
this machine in good working order. (SG-21)
Perform service, repairs and lubrication according to the maintenance section. Ensure the
unit is properly lubricated as specified in the lubrication schedule and all bolts and nuts are
properly torqued. Failure to properly service, repair and maintain this Implement in good
operating condition could cause component failure and possible serious injury or even
death. (SG-35)
Use caution and wear protective gloves when handling sharp objects such as blades,
knives, and other cutting edges. Be alert to worn component surfaces which have sharp
edges. Sharp surfaces can inflict severe laceration injuries if proper hand protection is not
worn. (SG-37)

SAFETY
3PBS1-3PBS2 10/20 Safety Section 1-8
©2020Alamo Group Inc.
Transporting Safety Instructions and Practices
Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in
such a way as to be clearly visible and legible. When transporting the
Equipment use the Tractor flashing warning lights and follow all local
traffic regulations. (SG-6)
Transport only at speeds where you can maintain control of the
equipment. Serious accidents and injuries can result from operating this
equipment at high speeds. Understand the Tractor and Implement and
how it handles before transporting on streets and highways. Make sure the Tractor steering
and brakes are in good condition and operate properly.
Before transporting the Tractor and Implement, determine the proper transport speeds for
you and the equipment. Make sure you abide by the following rules:
Test the tractor at a slow speed and increase the speed slowly. Apply the Brakes smoothly
to determine the stopping characteristics of the Tractor and Implement. As you increase
the speed of the Tractor the stopping distance increases. Determine the maximum
transport speed not to exceed 20 mph (30 kph) for transporting this equipment.
Test the equipment at a slow speed in turns. Increase the speed through the turn only after
you determine that the equipment can be operated at a higher speed. Use extreme care
and reduce your speed when turning sharply to prevent the tractor and implement from
turning over. Determine the maximum turning speed for you and this equipment before
operating on roads or uneven ground.
Only transport the Tractor and Implement at the speeds which allow you to properly control
the equipment.
Be aware of the operating conditions. Do not operate the Tractor with weak or faulty brakes
or worn tires. When operating down a hill or on wet or rain slick roads, the braking distance
increases: use extreme care and reduce your speed. When operating in traffic always use
the Tractor’s flashing warning lights and reduce your speed. Be aware of traffic around you
and watch out for the other guy. (SG-19)
Be particularly careful when transporting the Implement using the tractor. Turn curves or
go up or down hills only at a low speed and at a gradual steering angle. Make certain that
at least 20% of the tractor’s weight is on the front wheels to maintain safe steerage. Slow
down on rough or uneven surfaces. (STI-01)
Only tow the Implement behind a properly sized and equipped Tractor
which exceeds the weight of the Implement by at least 20%. DO NOT
tow the Implement behind a truck or other type of vehicle. Never tow the
Implement and another Implement connected in tandem. Never tow the
Implement at speeds over 20 MPH. (STI-06)

SAFETY
3PBS1-3PBS2 10/20 Safety Section 1-9
©2020Alamo Group Inc.
Storage and Parking Safety Instructions and Practices
Never crawl under or allow children to play around or on a bale spear that is disconnected
from the tractor.
Only disconnect and store the bale spear on firm flat ground.
Concluding Safety Instructions and Practices
PARTS INFORMATION
Bush Hog products are designed utilizing specifically matched system components to ensure optimum
equipment performance. These parts are made and tested to Bush Hog specifications. Non-genuine "will fit"
parts do not consistently meet these specifications. The use of “will fit” parts may reduce equipment
performance, void warranties, and present a safety hazard. Use genuine Bush Hog parts for economy and
safety. (SPBH-2)
SEE YOUR BUSH HOG DEALER
In addition to the design and configuration of this Implement, including Safety Signs and Safety Equipment,
hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper
training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer
also to Safety Messages and operation instruction in each of the appropriate sections of the Tractor and
Equipment Manuals. Pay close attention to the Safety Signs affixed to the Tractor and Equipment. (SG-18)

SAFETY
3PBS1-3PBS2 10/20 Safety Section 1-10
©2020Alamo Group Inc.
Decal Location
NOTE: Bush Hog supplies safety decals on this product to promote safe operation. Damage to the decals may
occur while in shipping, use, or reconditioning. Bush Hog cares about the safety of its customers, operators,
and bystanders, and will replace the safety decals on this product in the field, free of charge (Some shipping
and handling charges may apply). Contact your Bush Hog dealer to order replacement decals.
ITEM PART NO. QTY LEVEL DESCRIPTION
1. 50100237 1 DANGER Loading and Unloading Bales
2. 50100235 1 CAUTION Multi Hazard
3. 00725746 1 PELIGRO Translate Safety Material
4. 50100242 1 IMPORTANT Do Not Weld or Heat Treat
5. 50062087 1 LOGO Bush Hog Decal
6. 50073284 1 LOGO Model Name 3PBS1
50073286 1 LOGO Model Name 3PBS2
7. ------------- 1 SERIAL PLATE Serial No. Plate
8. D960 1 WARNING Proposition 65 (Not Shown)

SAFETY
3PBS1-3PBS2 10/20 Safety Section 1-11
©2020Alamo Group Inc.

Introduction Section 2-1
INTRODUCTION SECTION

INTRODUCTION
3PBS1-3PBS2 10/20 Introduction Section 2-2
© 2020 Alamo Group Inc.
INTRODUCTION
These bale spears are designed with care and built with quality materials by skilled workers. Proper assembly,
maintenance, and operating practices, as described in this manual, will help the owner/operator get years of
satisfactory service from the machine.
The purpose of this manual is to familiarize and instruct.
Careful use and timely service saves extensive repairs and costly downtime losses. The Operation and
Maintenance Sections of the manual train the owner/operator how to work the Bale Spear correctly and attend
to appropriate maintenance. The Troubleshooting Guide helps diagnose difficulties and offers solution to the
problems.
Safety is of primary importance to the owner/operator and to the manufacturer. The first section of this manual
includes a list of Safety Messages, that, if followed, will help protect the operator and bystanders from injury or
death. Many of the Safety Messages will be repeated throughout the manual. The owner/operator/dealer
should know these Safety Messages before assembly and be aware of the hazards of operating this bucket
during assembly, use, and maintenance. The Safety Alert Symbol combined with a Signal Word, as seen
below, is intended to warn the owner/operator of impending hazards and the degree of possible injury faced
when operating this machine.
Indicates an imminently hazardous situation that, if not avoided, WILL result in DEATH OR
VERY SERIOUS INJURY.
Indicates an imminently hazardous situation that, if not avoided, COULD result in DEATH
OR SERIOUS INJURY.
Indicates an imminently hazardous situation that, if not avoided, MAY result in MINOR
INJURY.
Identifies special instructions or procedures that, if not strictly observed, could result in
damage to, or destruction of the machine, attachments or the environment.

INTRODUCTION
3PBS1-3PBS2 10/20 Introduction Section 2-3
© 2020 Alamo Group Inc.
INTRODUCTION
The Bush Hog 3PBS1 and 3PBS2 have uses and applications in farming and
ranching. They have the capability of quickly and conveniently turning your Tractor
equipped with a Bale Spear for lifting, transporting, and placing bales.
The 3PBS1is designed to fit three point lift category one tractors while the 3PBS2
work with category one and two three point lift tractors. Each spear is rated at 2,000
lbs. Whichever model you select, you will find that these Bush Hog attachments will
save you time and money and make getting that bale handling job done a whole lot
easier. For additional information and performance enhancing options, visit us at
www.bushhog.com
Front and rear, and left and right are determined by the normal direction of travel (the same as on your
automobile).
Carefully read the Operator’s Manual completely, understand the Safety Messages and instructions, and know
how to operate correctly both the tractor and bale spear.

INTRODUCTION
3PBS1-3PBS2 10/20 Introduction Section 2-4
© 2020 Alamo Group Inc.
INTRODUCTION
Attention Owner/Operator
BEFORE OPERATING THIS MACHINE:
1. Carefully read the Operator’s Manual, completely understand the Safety Messages and instructions, and
know how to operate correctly both the tractor and plow.
2. Fill out the Warranty card in full. Be sure to answer all questions, including the Serial Number on the
implement. Mail within 30 days of delivery date of this implement.
NOTE: Warranties are honored only if completed “Owner Registration and Warranty” forms are received
by Bush Hog within thirty days of delivery of the implement.
3. Record the Model and Serial Numbers on Warranty Page at the front of the Operator’s Manual. Keep this
as part of the permanent maintenance file for the Implement.

Assembly Section 3-1
ASSEMBLY SECTION
