Glenmac Harley T6 User manual

SN: T65F201
by
Glenmac, Inc.
1805 2nd Avenue SW
Jamestown, ND 58401
701-252-9300 tel
701-252-1978 fax
701-952-9307 parts fax (06/2005)

1PN-P970612 (06/2005)
INTRODUCTION
GLENMAC, INC., based in Jamestown, North Dakota, along with your authorized harley dealer, are proud that
you chose to purchase a Harley Power Box Rake. Equipment under the Harley name has been built and sold
worldwide for over 35 years. Glenmac, Inc. specializes in the manufacturing of construction and landscape attachments
designed to make your job more efficient, cleaner, and easier regardless of the complexity of the job. The Harley
Power Box Rake® brings state-of-the-art design, ruggedness, and maneuverability to jobs such as: landscaping,
seedbed preparation, site development, rock raking and picking, golf course construction, ball field renovation and
maintenance, liner installation, horse track screening, sod farm ground work, beach cleaning - and the job for
which you purchased your Harley.
This manual will provide you, the operator, with instructions for proper safety, assembly, and operation procedures
so you can benefit from the equipment’s optimum level of performance. Successful operation and long-life of your
Harley Power Box Rake®depends on you. As owner and operator of your new Harley, it is your responsibility to
become familiar with the proper operation and care required to operate it safely and efficiently and to maintain the
equipment in top condition.
To keep your Harley equipment at peak performance, please read this manual carefully several times and follow
the directions as specified for each operation. Correct operation and maintenance will save you time and expense.
REMINDER: Fill in the warranty card and mail within 10 days of your purchase date. While filling in the card with
the correct information, put the date purchased and serial number on the front cover of this manual. Should you
need to call your dealer or GLENMAC, INC., this information will help them to more quickly provide accurate
service for you.
Thank you for purchasing a Harley Power Box Rake®.
For more information, contact your local Harley dealer or call:
GLENMAC, INC.
PO Box 2135
Jamestown, North Dakota 58402-2135 U.S.A.
800/437-9779
701/252-9300
FAX [phone]
Email: [email protected]
This Safety-Alert Symbol indicates a hazard and means
ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
DANGER Indicates an imminently hazardous situation that, if not avoided,
will result in death or serious injury.
WARNING Indicates a potentially hazardous situation that, if not avoided,
could result in death or serious injury, and includes hazards that
are exposed when guards are removed.
CAUTION Indicates a potentially hazardous situation that, if not avoided,
may result in minor or moderate injury.
Dealer Name:
___________________________
___________________________
___________________________
___________________________
___________________________

2PN-P970612 (06/2005)
Introduction ........................................................................... 1
Specifications ........................................................................ 3
Owner Assistance .................................................................. 3
General Information............................................................... 4
Bolt Size Chart ...................................................................... 4
Bolt Torque Chart ..............................................................5-6
After 10 Hours of Operation ............................................ 5
Safety Rules .......................................................................6-9
Safety Decals.................................................................. 10-11
Operation ........................................................................12-17
Pre-operation Check List ............................................... 13
Start-up .......................................................................... 14
Operating Tips........................................................... 14-15
Shut Down and Storage ............................................ 16-17
General Maintenance ...................................................... 18-24
Chain Maintenance ......................................................... 19
Gearbox ......................................................................... 19
Clutch Run In ................................................................. 22
Clutch Repair ................................................................. 23
Top Bearing Housing ..................................................... 23
Bearing and Roller Repair .............................................. 24
Trouble Shooting................................................................. 21
Assembly, Parts Identification, and Drawings ................ 25-37
Frame Assembly........................................................ 28-29
Roller Assembly ........................................................ 30-31
Clutch Assembly ....................................................... 32-33
Clutch and PTO Drive Line ......................................34-35
Gauge Wheel Assembly ............................................ 36-37
Warranty .............................................................................. 38
TABLE OF CONTENTS

3PN-P970612 (06/2005)
SPECIFICATIONS
Raking Width ............................................................................................................... 72 Inches
Roller Type .......................................................................... Tooth Roller Standard 9" Diameter
Roller Angle .................................................................................... 15 Degrees Both Directions
Gap (Tube to Barrier) ................................................................................. 5/16" - 3" Adjustable
Tires .......................................................................................................................... 16.5 x 6.5-8
Tire Pressure ......................................................................................................................60 psi
Weight ............................................................................................................................... 840 lbs
Oil Capacity of Chain Case .................................................................. Approximately 1.5 Pints
Tractor Three-Point Attachment ....................................................................................... Cat. 1
3-Point Lift Requirement at 24" 903 lbs
PTO Drive ................................................................................................................... 540 RPM
Tractor Hydraulic System ..................................................... 3-Pt Hitch and One Remote Valve
Tractor PTO HP ........................................................................................................ 22 - 35 HP
OWNER ASSISTANCE
1. We at Glenmac, Inc. and your authorized Harley dealer want you to be completely satisfied with your investment.
Sometimes, however, misunderstandings can occur. To resolve any problems that may occur please follow the
instructions below. If you did not purchase your Power Box Rake®from an authorized Harley dealer, go to
number (2) below.
A. Contact the Service Manager of the dealership, explain the problem, and request assistance. If
additional assistance is needed, your dealer had direct access to our home office.
B. If your problem has not been handled to your satisfaction contact:
Customer Service (8:00 am – 5:00 pm Central Time)
Glenmac, Inc.
P.O. Box 2135
Jamestown, ND 58402-2135
[phone]
C. Please be prepared to provide the following information:
•Your name, address, and telephone number,
•Machine model and SERIAL NUMBER,
•Dealership name and address,
•Machine purchase date,
•Nature of problem.
Your problem will likely be resolved in the dealership using the dealer’s facilities, equipment, and personnel.
Therefore, it is important that your initial contact be with the dealer.
2. If you did not purchase your equipment from an authorized dealer, call Glenmac, Inc. (see B above); there may
be a new dealer in your area since you purchased your Power Box Rake®. If there is no dealer in your area, our
Customer Service Department can and will help you obtain the parts and information you may need. Please be
prepared to provide the information requested under C above.

4PN-P970612 (06/2005)
The purpose of this manual is to assist you in operating
and maintaining your Power Box Rake®. Read it
carefully. It furnishes information and instructions that
will help you achieve years of dependable
performance. These instructions have been compiled
from extensive field experience and engineering data.
Some information may be general in nature due to
unknown and varying operating conditions. However,
through experience and these instructions, you should
be able to develop procedures suitable to your
particular situation.
The illustrations and data used in this manual were
current at the time of printing, but due to possible
inline production changes, your machine may vary
slightly in detail. We reserve the right to redesign
and change the machines as may be necessary without
notification.
Throughout this manual, references are made to front,
back, right and left directions. These are determined
by sitting in the operator’s seat of the tractor.

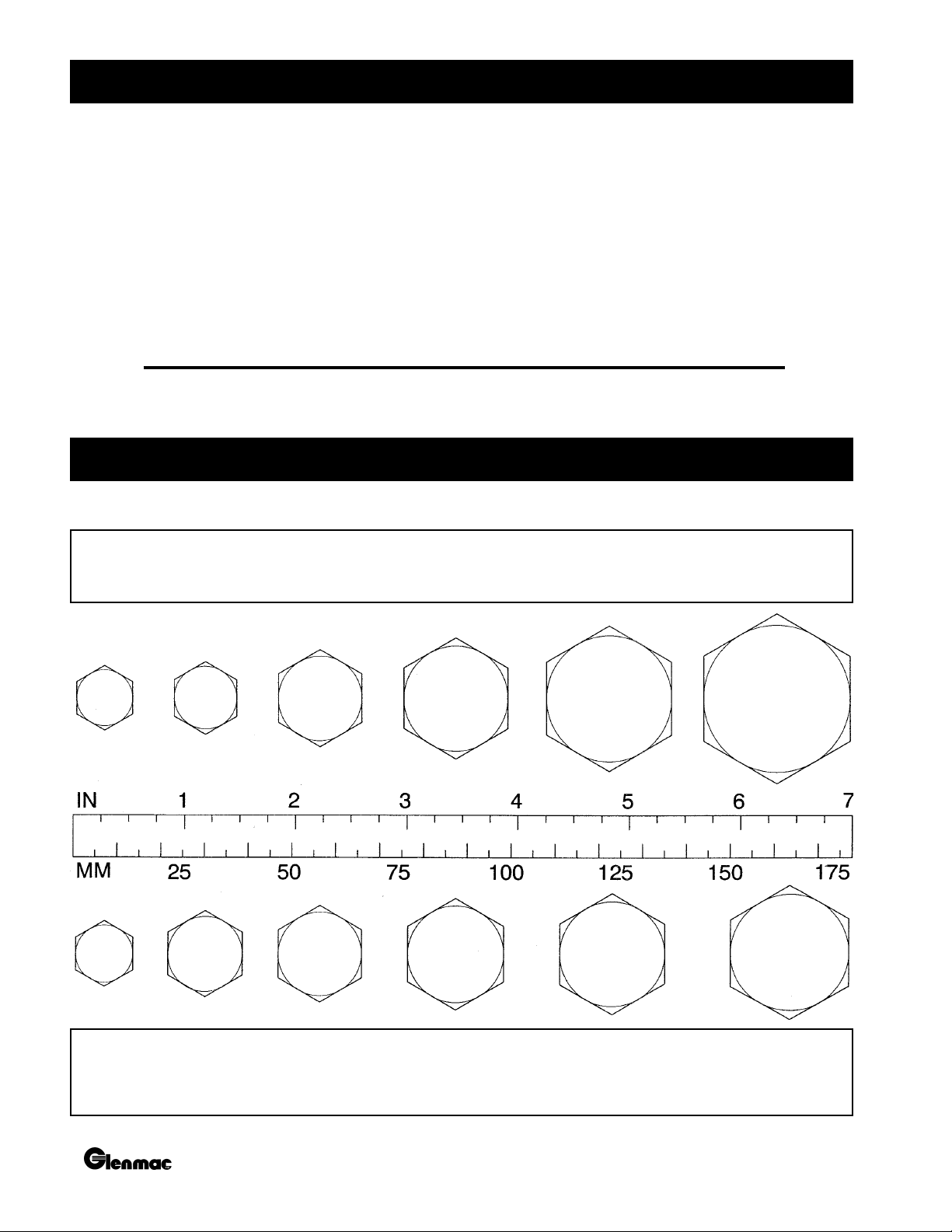

NOTE: Chart shows bolt thread sizes and corresponding head (wrench) sizes for standard SAE and Metric Bolts.
SAE Bolt Thread Sizes
5/16 3/8 1/2 5/8 3/4 7/8
Metric Bolt Thread Sizes
8MM 10MM 12MM 14MM 16MM 18MM
GENERAL INFORMATION
BOLT SIZE CHART

5PN-P970612 (06/2005)
After every ten (10) hours of operation, check all hardware and tighten where required.

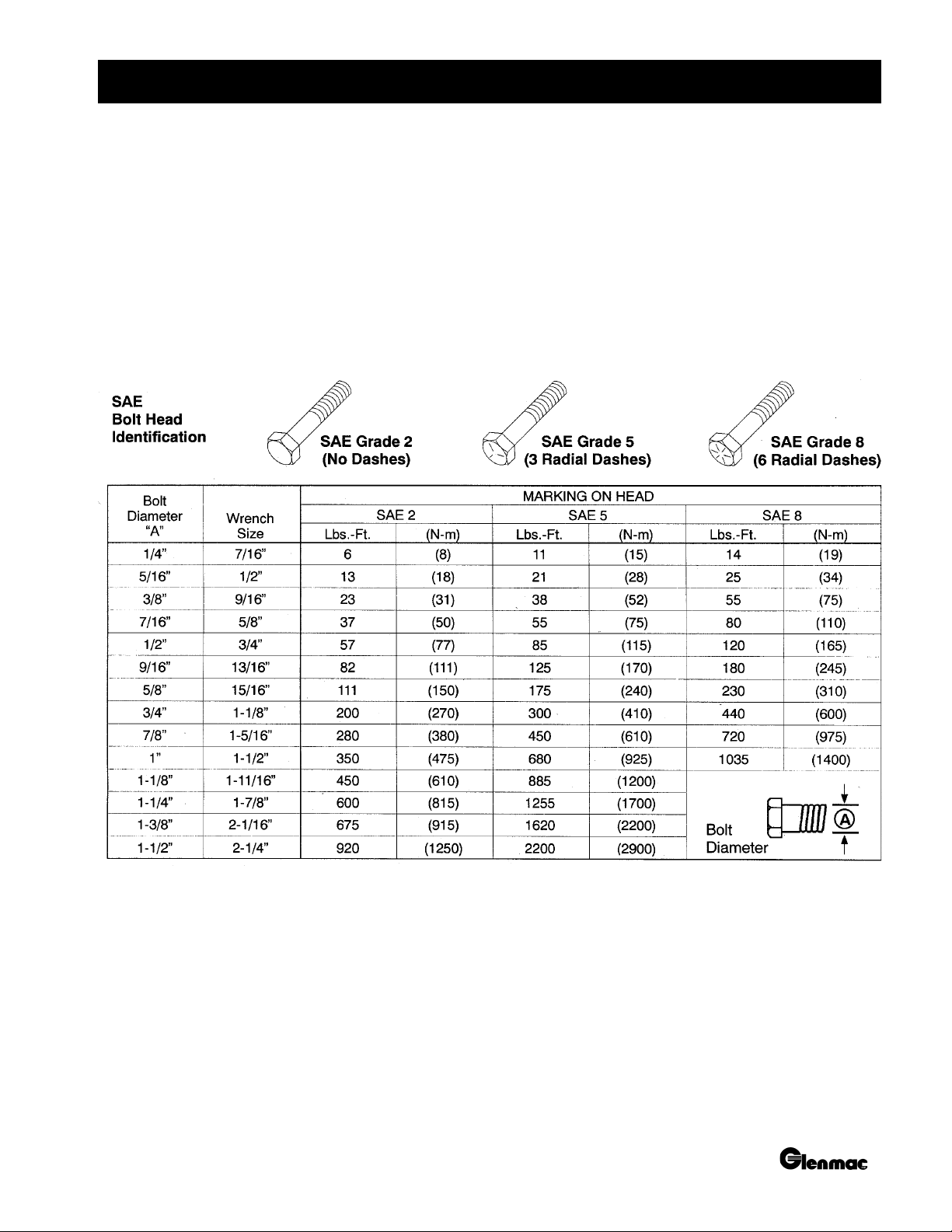

SAE Series Torque Chart
DO NOT use these values if a different torque value or tightening procedure is listed for a specific application.
Torque values listed are for general use only.
Fasteners should be replaced with the same grade.
Make sure fastener threads are clean and you properly start thread engagement. This will prevent them from failing
when tightening.
BOLT TORQUE CHART

6PN-P970612 (06/2005)

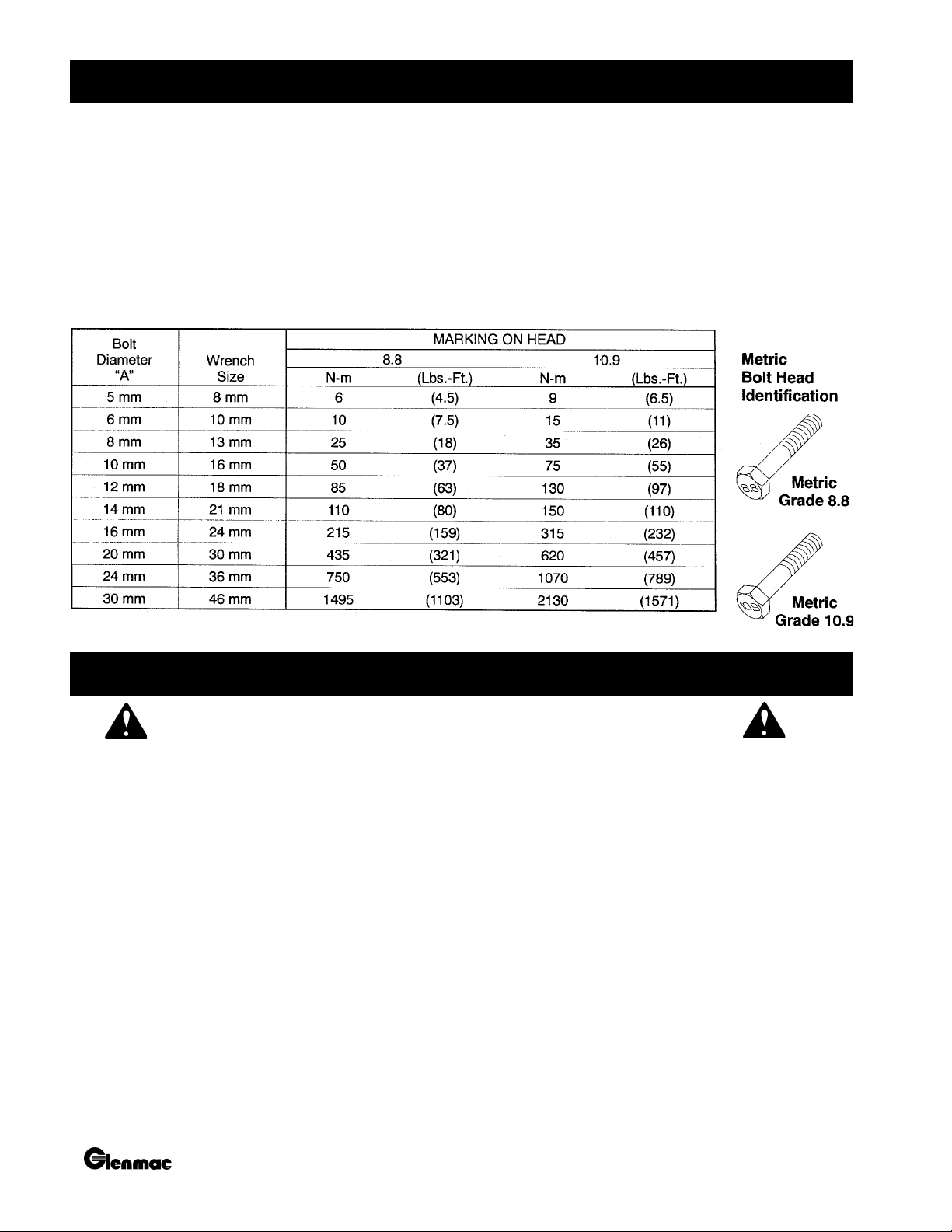

Metric Series Torque Chart
Use only metric tools on metric hardware. Other tools may not fit properly. They may slip and cause injury.
DO NOT use these values if a different torque value or tightening procedure is listed for a specific application.
Torque values listed are for general use only.
Fasteners should be replaced with the same grade.
Make sure fastener threads are clean and you properly start thread engagement. This will prevent them from failing
when tightening.
After every ten (10) hours of operation, check all hardware and tighten where required.
Safety is a primary concern in the design and
manufacture of our products. Unfortunately, our
efforts to provide safe equipment can be wiped out by
a single careless act of an operator.
In addition to the design and configuration of
equipment, hazard control and accident prevention are
dependent upon the awareness, concern, prudence, and
proper training of personnel involved in the operation,
transport, maintenance, and storage of equipment.
It has been said, “The best safety device is an informed,
careful operator.” We ask you to be that kind of an
operator.
The designed and tested safety of this equipment
depends on it being operated within the limitations as
explained in this manual.
TRAINING
•Safety instructions are important! Read all
attachment and power unit manuals; follow all
safety rules and safety decal information.
(Replacement manuals are available from dealer
or, in the United States and Canada, call 1-800-
437-9779.) Failure to follow instructions or safety
rules can result in serious injury or death.
•If you do not understand any part of this manual
and need assistance, see your dealer.
•Know your controls and how to stop engine and
attachment quickly in an emergency.
•Operators must be instructed in and be capable of
the safe operation of the equipment, its
attachments, and all controls. Do not allow anyone
to operate this equipment without proper
instructions.
BOLT TORQUE CHART
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
SAFETY RULES

7PN-P970612 (06/2005)
•Keep hands and body away from pressurized lines.
Use paper or cardboard, not body parts to check
for leaks. Wear safety goggles. Hydraulic fluid
under pressure can easily penetrate skin and will
cause serious injury or death.
•Make sure that all operating and service personnel
know that in the event hydraulic fluid penetrates
skin, it must be surgically removed as soon as
possible by a doctor familiar with this form of
injury or gangrene, serious injury, or death will
result. CONTACT A PHYSICIAN
IMMEDIATELY IF FLUID ENTERS SKIN
OR EYES. DO NOT DELAY.
•Do not allow children or untrained persons to
operate equipment.
PREPARATION
•Air in hydraulic systems can cause erratic operation
and allows loads or equipment components to drop
unexpectedly. Before operating or allowing
anyone to approach the equipment, purge any air
in the system by operating all hydraulic functions
several times after connecting equipment,
connecting hoses, or doing any hydraulic
maintenance.
•Check that all hardware is tight and properly
installed. Always tighten to torque chart
specifications.
•Before starting tractor, check all equipment
driveline guards for damage and make sure they
rotate freely on all drivelines. Replace any
damaged guards. If guards do not rotate freely on
drivelines, repair and replace bearings before
operating.
•Make sure driveline is correct length to prevent
bottoming out or pulling apart during the full lift
range of the hitch.
•Make sure spring-activated locking pin or collar
slides freely and is seated firmly in tractor PTO
splined groove.
•After connecting hoses, check that all control lever
positions function as instructed in the Operator’s
Manual. Do not operate until control lever and
equipment movements are correct.
•Make sure all hydraulic hoses, fittings, and valves
are in good condition and not leaking before starting
power unit or using equipment. Check and route
hoses carefully to prevent damage. Hoses must
not be twisted, bent sharply, kinked, frayed,
pinched, or come into contact with any moving
parts. Operate moveable components through full
operational range to check clearances. Replace any
damaged hoses immediately.
•Always wear relatively tight and belted clothing to
avoid entanglement in moving parts. Wear sturdy,
rough-soled work shoes and protective equipment
for eyes, hair, hands, hearing, and head.
•Ensure implement is properly attached, adjusted,
and in good operating condition.
•Power unit must be equipped with ROPS (Roll
Over Protection Structure) or ROPS CAB and seat
belt. Keep seat belt securely fastened. Falling off
power unit can result in death from being run over
or crushed. Keep foldable ROPS systems in
“locked up” position at all times.
•Remove accumulated debris from this equipment,
tractor, and engine to avoid fire hazard.
•A minimum 20% of tractor and equipment weight
must be on tractor front wheels with attachments
in “transport” position. Without this weight,
tractor could tip over causing personal injury or
death. The weight may be attained with a loader,
front wheel weights, ballast in tires, or front tractor
weights. When attaining the minimum 20%
weight on the front wheels, you must not exceed
the Roll Over Protection Structure (ROPS) weight
certification. Weigh the tractor and equipment.
Do not estimate.
•Ensure all safety decals are installed. Replace if
damaged. (See “Safety Decals” section for
location.)
•Ensure shields and guards are properly installed
and in good condition. Replace if damaged.
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
SAFETY RULES

8PN-P970612 (06/2005)
OPERATIONAL SAFETY
•Consult local utilities before digging. Know location
and depth of, and avoid contacting, all underground
cables, pipelines, and other hazards in working area.
•Do not allow other people in the area when
operating, attaching, removing, assembling, or
servicing equipment.
•Only engage power when equipment is at ground
operating level. Always disengage power when
equipment is raised off the ground.
•Do not disconnect hydraulic lines until all system
pressure is relieved. Lower unit to ground, stop
engine, and operate all hydraulic control levers.
•Ensure implement is properly attached, adjusted,
and in good operating condition.
•Keep bystanders away from equipment while it is
in operation.
•Never go underneath equipment lowered to the
ground or raised. Never place any part of the body
underneath equipment or between moveable parts
even when the engine has been turned off.
Hydraulic system leak-down, hydraulic system
failures, mechanical failures, or movement of
control levers can cause equipment to drop or rotate
unexpectedly and cause severe injury or death.
•Service work does not require going underneath
equipment.
•Read Operator’s Manual for service instructions
or have done by a qualified dealer.
•Never direct discharge toward people, animals, or
property.
•Do not operate equipment while under the
influence of alcohol or drugs.
•Operate only in daylight or good artificial light.
•Keep hands, feet, hair, and clothing away from
equipment while engine is running. Stay clear of
all moving parts.
•Always comply with all state and local lighting and
marking requirements.
•No riders are allowed on equipment.
•Always sit in tractor seat when operating controls
or starting engine. Securely fasten seat belt, place
transmission in neutral, engage brake, and ensure
all other controls are disengaged before starting
tractor engine.
•Operate tractor PTO at RPM speed stated in
“Specifications” section.
•Do not operate tractor PTO during transport.
•Stop tractor and implement immediately upon
striking an obstruction. Turn off engine, remove
key, inspect, and repair any damage before
resuming operation.
•Before dismounting tractor or performing any
service or maintenance, disengage power to
implement, lower the 3-point hitch and all raised
components to the ground, operate valve levers to
release any hydraulic pressure, stop engine, set
parking brake, remove key, and unfasten seat belt.
•Lower implement to ground or block securely, turn
tractor engine off, remove key, and disconnect
driveline from tractor PTO before performing any
service or maintenance.
•Power unit must be equipped with ROPS or ROPS
CAB and seat belt. Keep seat belt securely fastened.
Falling off power unit can result n death from being
run over or crushed. Keep foldable ROPS systems
in “locked up” position at all times.
•Look down and to the rear and make sure area is
clear before operating in reverse.
•Use extreme care when working close to fences,
ditches, other obstructions, or on hillsides.
•Do no operate on steep slopes.
•Do not stop, start, or change directions suddenly
on slopes.
•Use extreme care and reduce ground speed on
slopes and rough terrain.
•Watch for hidden hazards on the terrain during
operation.
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
SAFETY RULES

9PN-P970612 (06/2005)
MAINTENANCE SAFETY
•Your dealer can supply original equipment,
hydraulic accessories and repair parts. Substitute
parts may not meet original equipment
specifications and may be dangerous.
•Always wear relatively tight and belted clothing to
avoid entanglement in moving parts. Wear sturdy,
rough-soled work shoes, and protective equipment
for eyes, hair, hand, hearing, and head.
•Before dismounting tractor or performing any
service or maintenance, disengage power to
implement, lower the 3-point hitch and all raised
components to the ground, operate valve levers to
release any hydraulic pressure, stop engine, set
parking brake, remove key, and unfasten seat belt.
•Lower implement to ground or block securely, turn
tractor engine off, remove key, and disconnect
driveline from tractor PTO before performing any
service or maintenance.
•Do not allow other people in the area when
operating, attaching, removing, assembling, or
servicing equipment.
•Do not modify or alter, or permit anyone else to
modify or alter, the equipment or any of its
components in any way.
•Never go underneath equipment lowered to the
ground or raised. Never place any part of the body
underneath equipment or between moveable parts
even when the engine has been turned off.
Hydraulic system leak-down, hydraulic system
failures, mechanical failures, or movement of
control levers can cause equipment to drop or rotate
unexpectedly and cause severe injury or death.
•Service work does not require going underneath
equipment.
•Read Operator’s Manual for service instructions
or have done by a qualified dealer.
•Ensure implement is properly attached, adjusted,
and in good operating condition.
•Never perform service or maintenance with engine
running.
•Keep all persons away from operator control area
while performing adjustments, service, or
maintenance.
•Tighten all bolts, nuts, and screws to torque chart
specifications. Check that all cotter pins are
installed securely to ensure equipment is in a safe
condition before operating.
•Ensure all safety decals are installed. Replace if
damaged. (See “Safety Decals” section for
location.)
•Ensure shields and guards are properly installed
and in good condition. Replace if damaged.
•Do not disconnect hydraulic lines until all system
pressure is relieved. Lower unit to ground, stop
engine, and operate all hydraulic control levers.
STORAGE
•Follow manual instructions for storage.
•Keep children and bystanders away from storage
area.
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
SAFETY RULES
Review the video
included with
your Rake for
safety tips!

10 PN-P970612 (06/2005)
#4 - PN: P970100
#1 - PN: P970400
#2 - PN: P970300
#5 - PN: P970250
#3 - PN: P970301
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
SAFETY DECALS

11PN-P970612 (06/2005)
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
SAFETY DECALS

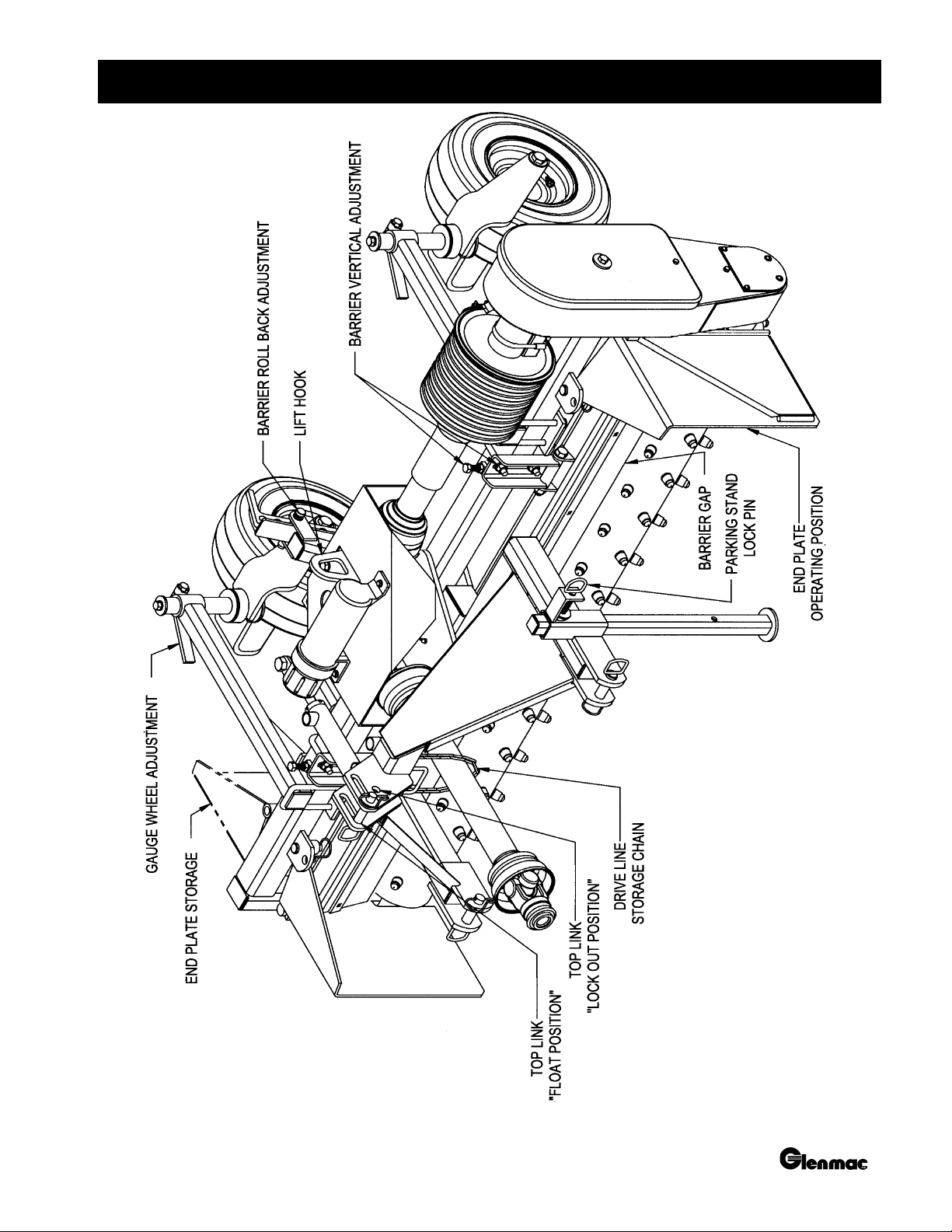

Figure 1

12 PN-P970612 (06/2005)
Safety is a primary concern in the design and
manufacture of our products. Unfortunately, our efforts
to provide safe equipment can be wiped out by a single
careless act of an operator.
In addition to the design and configuration of equipment,
hazard control and accident prevention are dependent
upon the awareness, concern, prudence, and proper
training of personnel involved in the operation, transport,
maintenance, and storage of equipment.
It has been said, “The best safety device is an informed,
careful operator.” We ask you to be that kind of an
operator.
The operator is responsible for the safe operation of
this equipment. Operators must be instructed in and
be capable of the safe operation of the equipment, its
attachments, and all controls. Do not allow anyone to
operate this equipment without proper instructions.
The power rake is designed for removing rock, and
small debris, and for thatching. This manual contains
information for the T6 model. Refer to the information
in this manual for specifications, parts, assembly, and
adjustment.
WARNING
•Safety instructions are important! Read all
attachment and power unit manuals; follow all
safety rules and safety decal information.
(Replacement manuals are available from
dealer or, in the United States and Canada, call
1-800-437-9779.) Failure to follow instructions
or safety rules can result in serious injury or
death.
•Do not allow children or untrained persons to
operate equipment.
•Power unit must be equipped with ROPS or
ROPS CAB and seat belt. Keep seat belt
securely fastened. Falling off power unit can
result in death from being run over or crushed.
Keep foldable ROPS systems in “locked up”
position at all times.
•Do not allow other people in the area when
operating, attaching, removing, assembling, or
servicing equipment.
•Never go underneath equipment lowered to the
ground or raised. Never place any part of the
body underneath equipment or between
moveable parts even when the engine has been
turned off. Hydraulic system leak-down,
hydraulic system failures, mechanical failures,
or movement of control levers can cause
equipment to drop or rotate unexpectedly and
cause severe injury or death.
•Service work does not require going
underneath equipment.
•Read Operator’s Manual for service
instructions or have done by a qualified
dealer.
•Before dismounting tractor or performing any
service or maintenance, disengage power to
implement, lower the 3-point hitch and all
raised components to the ground, operate valve
levers to release any hydraulic pressure, stop
engine, set parking brake, remove key, and
unfasten seat belt.
•Ensure implement is properly attached,
adjusted, and in good operating condition.
ATTACHING POWER RAKE TO TRACTOR
Move tractor into position in front of the power rake.
Move back slowly and carefully, not allowing anyone
to be between the tractor and the rake. Turn off tractor
engine. Attach the two lower arms of the 3-point hitch
with the two hitch-pin assemblies.
Attach the tractor center link to the upper hitch point
of the power rake. Use either the “lock-out” setting or
the “float” feature depending on your application.
Attach the front PTO from the power rake to the tractor.
Slide the front section of the PTO into the back section
and attach to the PTO shaft at the rear of the tractor.
Wrap driveline storage chain around hitch tube and
secure it so that it will not contact PTO driveline.
OPERATION

13PN-P970612 (06/2005)
IMPORTANT
•If the PTO is too long, severe PTO and gearbox
damage is possible when hooking up the PTO
from the power rake to the tractor. The front
PTO is long enough to fit a variety of tractors.
It is possible that the front PTO will need to
be cut. There will be NO benefit by cutting
only one telescoping section. Both sections of
the PTO must be cut. DO NOT FORCE THE
PTO TO FIT.
•WARRANTY IS VOID IF THE PTO IS
TOO LONG, resulting in gearbox, PTO, yoke,
or cross bearing damage.
The PTO, when attached to the tractor and gearbox,
must not extend so there is less than five inches of
overlap within the PTO.
Attach the two hydraulic lines on the rake to the two
female hydraulic couplers on the tractor. The hydraulic
hose ends on the power rake are ISO male couplers,
which are compatible with newer tractors.
Raise jackstand and secure in operating position.
IMPORTANT
•Always clean connector ends prior to attaching.
Dirt could contaminate hydraulic fluid and
damage the hydraulic system.
POWER RAKE FUNCTION
The tractor PTO drives the roller, which digs into the
ground, cultivating and pulling up rocks, roots, and
debris.
The clean soil goes between the roller and barrier,
while the rocks, roots, and debris work to the side in a
windrow.
With the endplates mounted in the working position
and the rake straight (endplates parallel with tractor
tires), material can be moved along, filling in the low
spots.
Maximum safe PTO operating speed is 540 RPM.
PRE-OPERATION CHECK LIST
___ Review and follow all safety rules and safety
decal instructions on pages 6 through 11.
___ Check that all safety decals are installed and in
good condition. Replace if damaged.
___ Check that all shields and guards are properly
installed and in good condition. Replace if
damaged.
___ Check that all hardware and cotter pins are
properly installed and secured.
___ Check that equipment is properly and securely
attached to tractor.
___ Make sure driveline spring-activated locking pin
or collar slides freely and is seated firmly in
tractor PTO spline groove.
___ Before starting tractor, check all equipment
driving guards for damage and make sure they
rotate freely on all drivelines. Replace any
damaged guards. If guards do not rotate freely
on drivelines, repair and replace bearings before
operating.
___ Do not allow riders.
___ Check for and keep all bystanders away from
equipment working area.
___ Make sure gearbox is filled to the correct level
with high quality 80W-90 gear oil.
___ Check all lubrication points and grease as
instructed in “Maintenance, Lubrication”
information.
___ Check that all hydraulic hoses and fittings are
in good condition and not leaking before starting
tractor. Check that hoses are not twisted, bent
sharply, kinked, frayed, or pulled tight. Replace
any damaged hoses immediately.
___ Make sure tractor ROPS or ROPS CAB and seat
belt are in good condition. Keep seat belt
securely fastened during operation.
___ Check tire pressure and service if necessary.
OPERATION

14 PN-P970612 (06/2005)
Power Rake Angle Adjustment
The power rake may be angled up to 15 degrees left or
right for placing material in a windrow.
With the power rake angle cylinder connected to a
tractor hydraulic control valve, move tractor control
valve to select the desired angle. Return the tractor
control to neutral to maintain the selected angle.
Power Roller
The roller should be level with the ground. To level the
rake from side to side, adjust one of the tractor 3-point
lower lift arms.
The power rake should be level front to back. Level
the rake using the tractor 3-point top link, the 3-point
lift arms, or the gauge wheels.
To allow the roller to penetrate deeper into the ground,
loosen the handle and raise the gauge wheels. To
achieve the opposite, lower the gauge wheels.
Be sure to check the air pressure in each tire regularly
so that an even, consistent grade will be maintained.
Barrier
The normal gap between the roller and barrier for
average conditions is about 1-1/4". This gap can be
adjusted by rotating the barrier and pinning in desired
position. A wider opening will allow more dirt and rock
to pass through, allowing wet soil to dry for final raking.
For finer raking, reduce the gap. (Be careful not to let
roller hit barrier.) The gap should be the same all the
way across. Barrier adjustment is shown in Figure 2
(page 17).
Operating Depth
When power raking, the depth will determine how much
dirt is carried ahead of the roller. The ideal depth will
vary with conditions and can be anywhere from
skimming the surface to about 3 inches deep. See
instructions in “Power Roller” above to set roller depth.
When making the first windrow, the level of dirt may
be halfway up on the barrier. When moving the
windrow two or three times, the level of the dirt may
be to the top of the barrier. However, try to prevent
material from flowing over the top.
The power rake allows fast raking of large areas of
ground by being able to move windrows several times.
Of course, the volume or density of the material being
raked will dictate how many times a windrow can be
moved.
OPERATING INSTRUCTIONS
Read and understand the power rake and tractor
Operator’s Manuals before operating the power rake.
Failure to do so may result in death, serious personal
injury, or property damage.
Never raise the power rake more than a few inches off
the ground when traveling from job site to job site.
Shut off the engine, set brake, remove key, and remove
seat belt before dismounting the tractor.
WARNING
•Look down and to the rear and make sure
area is clear before operating in reverse.
•Never direct discharge toward people, animals,
or property.
•Only engage power when equipment is at
ground operating level. Always disengage
power when equipment is raised off the ground.
Start-Up Sequence
WARNING
•Only engage power when equipment is at
ground operating level. Always disengage
power when equipment is raised off the
ground.
Before using your new Harley Power Box Rake, the
slip clutch assembly must be in RUN-IN. See
CLUTCH in the maintenance section, page 22, for the
RUN-IN procedure. After you have completed the
RUN-IN of the clutch, return to the operating
instructions and procede with start-up. Failure to run
the clutch in could result in pre-mature drive line failure
and warranty will be voided.
Start tractor engine.
Lower power rake slowly to the ground.
Engage tractor PTO.
Increase engine rpm to give desired rpm at the roller.
Normal operating speed must not exceed 540 rpm. If
operating in heavy rock, reduce the speed slightly.
Move the tractor forward. Select a slow tractor speed
and increase slightly until operation is satisfactory.
Ground Speed
Ground speed should be between 3 mph and 5 mph
under normal conditions. In heavy rock, reduce the
ground speed to 1 mph to 3 mph.
OPERATION

15PN-P970612 (06/2005)
Soil can be removed from the windrow of rocks by
moving it back and forth a few times onto the clean
area. If dirt clods are a problem, running the tractor
tire over the windrow and then moving it a final time
will help to break up and cut down on dirt clods.
Endplates
The function of the endplates is to contain the material
in front of the roller while the clean material passes
between the roller and barrier.
With the endplates mounted in the operating position
and the rake straight (endplates parallel with tractor
tires), material can be moved along, filling in the low
spots.
By decreasing the gap between the roller and barrier,
more material can be pulled along. Barrier adjustment
is shown in Figure 2 (page 17).
When not using the endplates for operation, they can
be placed in “storage” position, see Figure 2 (page 17).
Make sure the disconnected power rake is stored on a
hard, level surface. Use the endplates mounted on
attachment side of rake to ensure stability.
Operator Production
Successful operation of the power rake will come with
operator experience. The rake’s performance also
depends on the type and size of the tractor it’s mounted
on.
An operator that masters the technique of adjusting
the angle of attack of the roller against the soil will
also find ideal settings under various conditions to give
the desired results.
IMPORTANT
•Do not drop power rake to the ground with the
roller turning. Sudden high-speed jolts
multiply stress to the driveline and can cause
extreme damage.
Application Techniques
The power rake is capable of many applications. The
following are some of the common applications.
See Figure 2 (page 17) for adjustment locations.
Pulverizing Topsoil
For breaking up compacted soil or conditioning hardened
baseball diamonds, the 3-point top link is set in the “lock-
out” position so that down pressure can be exerted on
the tooth roller. The top link is shortened to take the
guide wheels off the ground so only the toothed roller
is in contact with the ground. The rake can be straight
or angled, with the barrier opened up to allow material
to flow over the roller and not slow the process.
Debris Removal
Once the surface has been loosened, the process of
removing debris can begin. The 3-point hitch top link
is mounted in the “float” position holes. This allows
the rake to begin the early stages of the final grading
process. The 3-point hitch is lowered until the guide
wheels control the depth of the toothed roller. The
rake can be angled at this time for windrowing debris
or the rake can be set straight with both endplates
installed to collect debris. Tractor travel speed should
be increased for this process.
Finish Grading
For this operation, set the tractor top link in the “float”
position and mount both endplates in the “forward”
position. The rake is tilted forward until the teeth of
the toothed roller are barely touching the soil. Tractor
speed can be increased for this operation, the idea being
to collect material from the high spots and leave it in
the low areas.
Spreading Fill and Topsoil
Start with tractor topink in “fixed” position and rake
tilted on gauge wheels, since depth of cut is not the
objective. Endplates can be installed and the windrow
angle set as needed to control the material movement.
Changing Grade
Grade modification can be accomplished during finish
grading by angling the rake to collect and windrow
the maximum amount of material toward targeted areas.
Thatching Existing Grass Areas
This procedure is done with the 3-point top link in the
“lock-out” position so accurate depth control can be
maintained. The top link should be lengthened to
support the rake on the gauge wheels and toothed roller
raised so teeth are just grazing the surface. Select and
maintain a slow travel speed.
OPERATION

16 PN-P970612 (06/2005)
Shutting Down
Stop equipment.
Lower the lift arms and power rake to the ground.
Purge any air in the system. Hydraulic system leak-
down, hydraulic system failures, mechanical failures,
or movement of control levers can cause equipment to
drop or rotate unexpectedly.
Shut off engine, set brake, remove key, and remove
seat belt before leaving the tractor operator’s seat.
WARNING
•Do not disconnect hydraulic lines until all
system pressure is relieved. Lower unit to
ground, stop engine, and operate all hydraulic
control levers.
REMOVING POWER RAKE FROM TRACTOR
WARNING
•Do not allow other people in the area when
operating, attaching, removing, assembling,
or servicing equipment.
Install endplates on attachment side of power rake as
shown in Figure 2 (page 17).
Lower jackstand to “storage” position.
On a hard level surface, lower attachment to the ground.
Shut off engine, set brake, remove key, and remove seat
belt before leaving the tractor operator’s seat.
WARNING
•Do not disconnect hydraulic lines until all system
pressure is relieved. Lower unit to ground, stop
engine, and operate all hydraulic control levers.
Disconnect driveline from tractor PTO shaft and support
with storage chain.
Disconnect 3-point upper and lower links from power
rake.
Disconnect hydraulic hoses from quick couplers.
Install dust plugs for storage.
Move to tractor seat and start engine. Release brake
and drive tractor forward until it is disengaged from
the attachment. The attachment should rest in a stable
position for storage.
STORAGE
Make sure the disconnected power rake is stored on a
hard, level surface. Endplates mounted on attachment
side of rake increase stability.
CAUTION
•Keep children and bystanders away from
storage area.
OPERATION
NOTES

17PN-P970612 (06/2005)
OPERATION
Figure 2

18 PN-P970612 (06/2005)
The information in this section is written for operators
who possess basic mechanical skills. Should you need
help, your dealer has trained service technicians
available. For your protection, read and follow all safety
information in this manual.
Regular preventive maintenance and immediate repair
of broken or worn parts will ensure maximum
efficiency and long life.
Because of the nature of the jobs the power rake does,
such as site preparation and rock raking, the power
rake is constantly vibrating and shaking. Parts may
loosen up as it is used. One of the most important
functions an operator can perform is observing and
inspecting the equipment for loose or worn parts to
prevent further damage or excessive downtime.
WARNING
•Never go underneath equipment lowered to the
ground or raised. Never place any part of the
body underneath equipment or between
moveable parts even when the engine has been
turned off. Hydraulic system leak-down,
hydraulic system failures, mechanical failures,
or movement of control levers can cause
equipment to drop or rotate unexpectedly and
cause severe injury or death.
•Service work does not require going
underneath equipment.
•Read Operator’s Manual for service
instructions or have done by a qualified
dealer.
•Before dismounting tractor or performing any
service or maintenance, disengage power to
implement, lower the 3-point hitch and all
raised components to the ground, operate valve
levers to release any hydraulic pressure, stop
engine, set parking brake, remove key, and
unfasten seat belt.
•Do not allow other people in the area when
operating, attaching, removing, assembling, or
servicing equipment.
•Never perform service or maintenance with
engine running.
•Ensure shields and guards are properly
installed and in good condition. Replace if
damaged.
•Keep hands and body away from pressurized
lines. Use paper or cardboard, not body parts
to check for leaks. Wear safety goggles.
Hydraulic fluid under pressure can easily
penetrate skin and will cause serious injury or
death.
WARNING
•Make sure that all operating and service
personnel know that in the event hydraulic fluid
penetrates skin, it must be surgically removed
as soon as possible by a doctor familiar with
this form of injury, or gangrene, serious injury,
or death will result. CONTACT A
PHYSICIAN IMMEDIATELY IF FLUID
ENTERS SKIN OR EYES. DO NOT DELAY.
•Make sure all hydraulic hoses, fittings, and
valves are in good condition and not leaking
before starting power unit or using equipment.
Check and route hoses carefully to prevent
damage. Hoses must not be twisted, bent
sharply, kinked, frayed, pinched, or come into
contact with any moving parts. Operate
moveable components through full operational
range to check clearances. Replace any
damaged hoses immediately.
CAUTION
•Your dealer can supply original equipment
hydraulic accessories and repair parts.
Substitute parts may not meet original
equipment specifications and may be
dangerous.
•Always wear relatively tight and belted clothing
to avoid entanglement in moving parts. Wear
sturdy, rough-soled work shoes, and protective
equipment for eyes, hair, hand, hearing, and
head.
WARNING
•Do not modify or alter, or permit anyone else
to modify or alter, the equipment or any of its
components in any way.
•Ensure all safety decals are installed. Replace
if damaged. (See “Safety Decals” section for
location.)
MAINTENANCE
