SUSPENSION RAKE
Published 03/14 / Revised03/17 Part No. 50074094
OPERATOR’S MANUAL
BUSH HOG®
2501 Griffin Ave.
Selma, AL 36703
334-874-2700
www.bushhog.com
This Operator's Manual is an integral part of the safe operation of this machine and must
be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety
and Operation Instructions contained in this manual before operating the equipment. C01-
Cover
$0.00
MODELS
BSR8 Hay Rake
BSR10 Hay Rake
BSR12 Hay Rake

To the Owner/Operator/Dealer
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded
operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has
designed this implement to be used with all its safety equipment properly attached to minimize the chance of
accidents.
BEFORE YOU START! Read the safety messages on the implement and shown in your manual. Observe the rules
of safety and common sense!
WARRANTY INFORMATION:
Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration
Form in full and return it to within 30 Days. Make certain the Serial Number of the Machine is recorded on the
Warranty Card and on the Warranty Form that you retain
For future reference, record your Bush Hog product model number and serial number.
Dealer Telephone Model Number
Owner Purchase Date: Serial Number

TABLE OF CONTENTS
SAFETY SECTION .............................................................................................................. 1-1
General Safety Instructions and Practices ......................................................................................................... 1-2
Operator Safety Instructions and Practices .......................................................................................................1-3
Equipment Operation Safety Instructions and Practices ....................................................................................1-5
Connection or Disconnecting Implement Safety Instructions and Practices ......................................................1-7
Transporting Safety Instructions and Practices .................................................................................................1-8
Maintenance and Service Safety Instructions and Practices ........................................................................... 1-10
Storage and Parking Safety Instructions and Practices ................................................................................... 1-11
PARTS INFORMATION ................................................................................................................................... 1-12

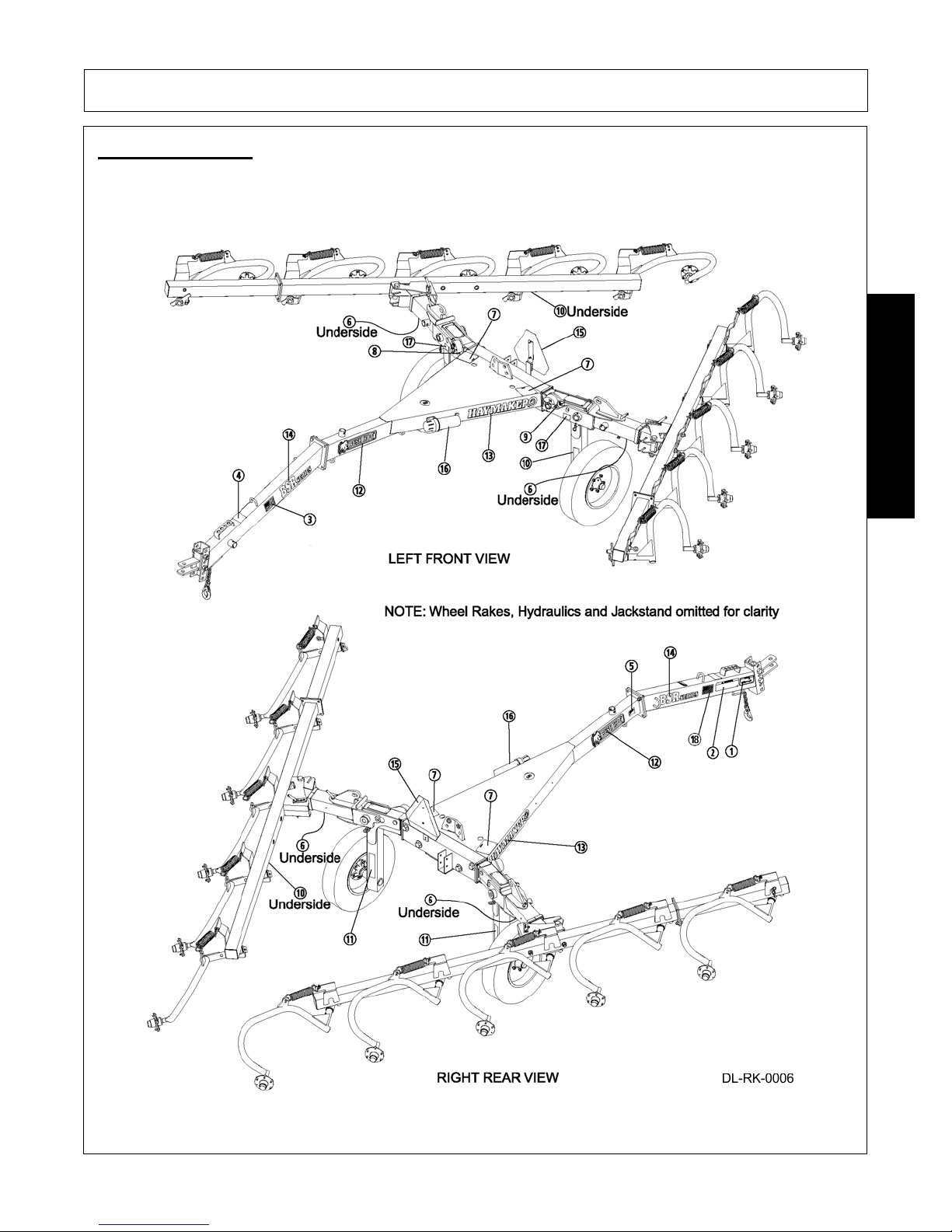

Decal Location .................................................................................................................................................1-13
Decal Description .............................................................................................................................................1-15
Federal Laws and Regulations ........................................................................................................................1-18
INTRODUCTION SECTION ................................................................................................. 2-1
ASSEMBLY SECTION ........................................................................................................ 3-1
GENERAL INSTRUCTIONS .............................................................................................................................. 3-2
DEALER SET-UP INSTRUCTIONS ................................................................................................................... 3-3
CHARGING THE HYDRAULIC SYSTEM ..........................................................................................................3-3
ATTACHING THE TONGUE ..............................................................................................................................3-4
BSR8 and BSR10 Models ..................................................................................................................................3-4
BSR12 Model ..................................................................................................................................................... 3-4
TAILLIGHT WIRING HARNESS CONNECTION ...............................................................................................3-5
RELOCATING THE WINGFRAMES ON BSR MODELS ...................................................................................3-6
CYLINDER LUG PLATE EXTENSION & WHEEL ARM ASSEMBLY ................................................................3-7
BSR12 MODELS ............................................................................................................................................... 3-7
ATTACHING THE WING FRAME EXTENSIONS BSR10 AND BSR12 ............................................................3-9
SETTING UP REAR RAKE ARMS FOR USE ................................................................................................. 3-10
ATTACHING THE RAKE WHEELS .................................................................................................................3-11
How to Identify Left Hand and Right Hand Wheels .......................................................................................... 3-11
INSTALLING OPTIONAL KICKER WHEEL KIT ..............................................................................................3-12
CONNECTING THE RAKE ARM TO THE SLIDING SUPPORT .....................................................................3-14
HYDRAULIC PLUMBING INSTALLATION FOR KICKER WHEEL ................................................................. 3-15
OPERATION SECTION ....................................................................................................... 4-1
Standard Equipment and Specifications ............................................................................................................ 4-3
OPERATOR REQUIREMENTS .........................................................................................................................4-4
TRACTOR REQUIREMENTS ............................................................................................................................4-5
ROPS and Seat Belt ..........................................................................................................................................4-5
Tractor Safety Devices .......................................................................................................................................4-5
Tractor Horsepower ...........................................................................................................................................4-5
GETTING ON AND OFF THE TRACTOR .........................................................................................................4-6
Boarding the Tractor ..........................................................................................................................................4-6
Dismounting the Tractor ..................................................................................................................................... 4-6
STARTING THE TRACTOR .............................................................................................................................. 4-7
CONNECTING THE IMPLEMENT TO THE TRACTOR ....................................................................................4-8
Positioning Tractor Drawbar .............................................................................................................................. 4-8
Attaching Rake to Tractor Drawbar ....................................................................................................................4-9
Attaching to Tractor Hydraulic System .............................................................................................................4-10

PRE-OPERATION INSPECTION AND SERVICE ...........................................................................................4-10
Tractor Pre-Operation Inspection/Service ........................................................................................................4-11
Checking Ballast, Wheel Spacing, and Tire Inflation ....................................................................................... 4-11
Rake Pre-Operation Inspection/Service ........................................................................................................... 4-11
DRIVING THE TRACTOR AND IMPLEMENT ................................................................................................. 4-16
Starting the Tractor .......................................................................................................................................... 4-17
Brake and Differential Lock Setting ..................................................................................................................4-17
Driving the Tractor and Rake ...........................................................................................................................4-18
Preparing Rake for Field Operation ................................................................................................................. 4-19
Setting Working Width .....................................................................................................................................4-20
Adjusting Raking and Windrow Width .............................................................................................................. 4-21
Adjusting Raking Wheel Ground Pressure ......................................................................................................4-23
Adjusting Ground Wheel Pressure ...................................................................................................................4-24
Adjusting the Tongue Clevis ............................................................................................................................ 4-24
Flip-Up Raking - (Only for BSR10 & BSR12) ..................................................................................................4-25
Raking a Single Windrow or Swath .................................................................................................................. 4-28
OPTIONAL ATTACHMENTS ........................................................................................................................... 4-29
Center Kicker Wheel ........................................................................................................................................ 4-29
Wind Shield Kit .................................................................................................................................................4-29
OPERATING THE TRACTOR AND IMPLEMENT ...........................................................................................4-30
Foreign Debris Hazards ................................................................................................................................... 4-30
Bystanders/Passersby Precautions .................................................................................................................4-30
Shutting Down the Implement ..........................................................................................................................4-31
DISCONNECTING THE IMPLEMENT FROM THE TRACTOR .......................................................................4-31
RAKE STORAGE .............................................................................................................................................4-33
TRANSPORTING THE TRACTOR AND IMPLEMENT ...................................................................................4-34
Preparing Rake for Transport ..........................................................................................................................4-35
Transporting on Public Roadways ................................................................................................................... 4-36
Safety Lights ....................................................................................................................................................4-38
Hauling the Tractor and Implement ..................................................................................................................4-39
TROUBLESHOOTING GUIDE ........................................................................................................................4-40
MAINTENANCE SECTION .................................................................................................. 5-1
LUBRICATION ...................................................................................................................................................5-3
Lubrication Symbols ...........................................................................................................................................5-3
Grease ...............................................................................................................................................................5-3
Synthetic Lubricants ...........................................................................................................................................5-4
Lubricant Storage ...............................................................................................................................................5-4
Rake Wheels ...................................................................................................................................................... 5-4
Left-Hand & Right-Hand Finger .........................................................................................................................5-4
Left-Hand and Right-Hand Pivots ......................................................................................................................5-5
Jackstand ...........................................................................................................................................................5-5
ANNUAL MAINTENANCE .................................................................................................................................5-6
PERIODIC MAINTENANCE ..............................................................................................................................5-6
SERVICE ...........................................................................................................................................................5-7
Servicing Tires Safely ........................................................................................................................................5-7
Servicing Rake Safely ........................................................................................................................................ 5-7
Identifying Left-Hand and Right-Hand Rake Wheels .........................................................................................5-8
STORAGE .........................................................................................................................................................5-8
End of Season ...................................................................................................................................................5-8
Beginning of Season ..........................................................................................................................................5-9
FINAL INSPECTION AND LUBRICATION ........................................................................................................ 5-9
BOLT TORQUE VALUES ..................................................................................................................................5-9

Safety Section 1-1
SAFETY SECTION

SAFETY
BSR Series Rakes 03/14 Safety Section 1-2
SAFETY
© 2014 Alamo Group Inc.
General Safety Instructions and Practices
A careful operator is the best operator. Safety is of primary importance to the manufacturer and should be to
the owner/operator. Most accidents can be avoided by being aware of your equipment, your surroundings, and
observing certain precautions. The first section of this manual includes a list of Safety Messages that, if
followed, will help protect the operator and bystanders from injury or death. Read and understand these Safety
Messages before assembling, operating or servicing this Implement. This equipment should only be operated
by those persons who have read the manual, who are responsible and trained, and who know how to do so
responsibly.

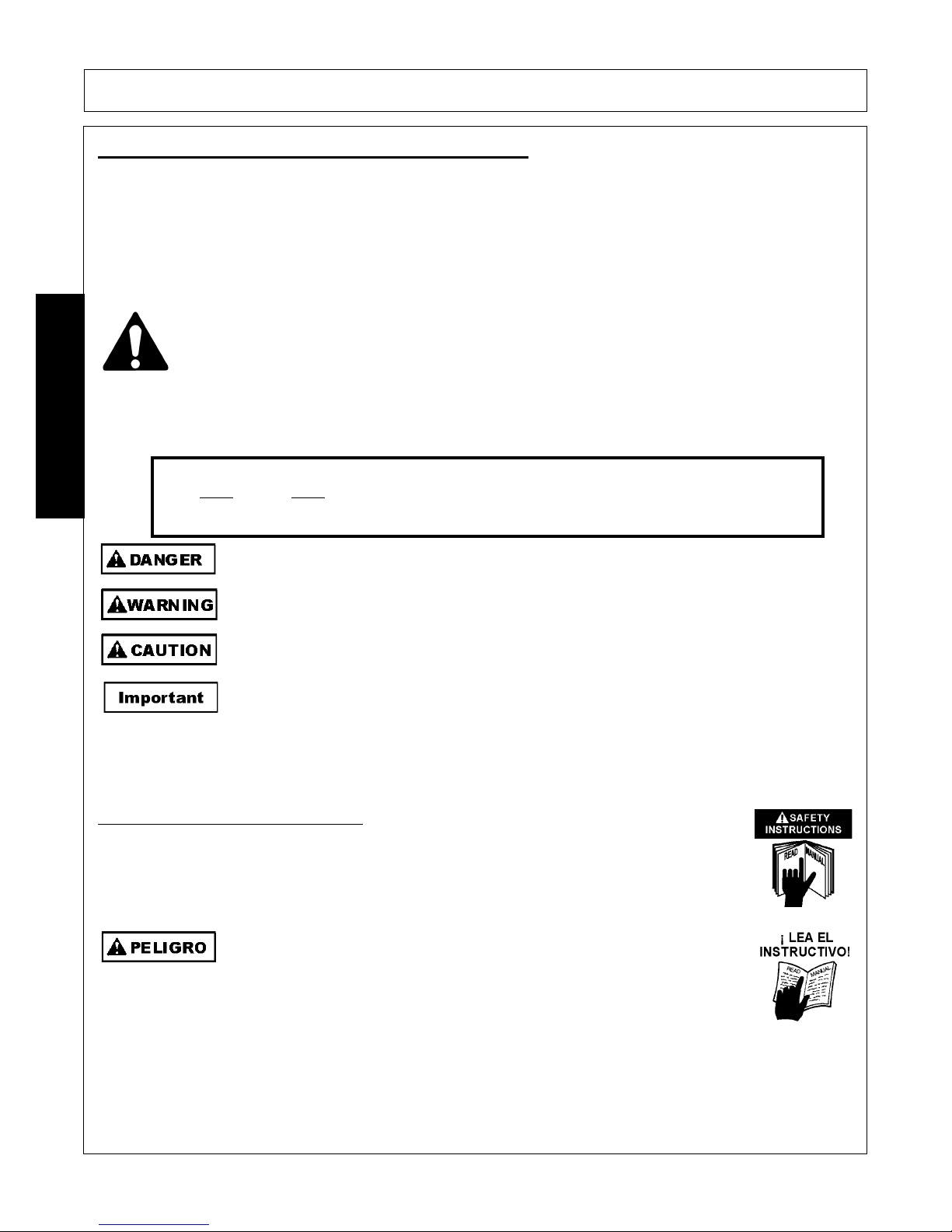

The Safety Alert Symbol combined with a Signal Word, as seen below, is used throughout this
manual and on decals which are attached to the equipment. The Safety Alert Symbol means:
“ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” The Symbol and Signal Word
are intended to warn the owner/operator of impending hazards and the degree of possible injury
faced when operating this equipment.
Indicates an imminently hazardous situation that, if not avoided, WILL result in DEATH OR
VERY SERIOUS INJURY.
Indicates an imminently hazardous situation that, if not avoided, COULD result in DEATH
OR SERIOUS INJURY.
Indicates an imminently hazardous situation that, if not avoided, MAY result in MINOR
INJURY.
Identifies special instructions or procedures that, if not strictly observed, could result in
damage to, or destruction of the machine, attachments or the environment.
NOTE: Identifies points of particular interest for more efficient and convenient operation or repair.(SG-1)
Practice all usual and customary safe working precautions and above all---remember safety is
up to YOU. Only YOU can prevent serious injury or death from unsafe practices.
READ, UNDERSTAND, and FOLLOW the following Safety Messages. Serious injury or
death may occur unless care is taken to follow the warnings and instructions stated in the
Safety Messages. Always use good common sense to avoid hazards. (SG-2)
Si no lee ingles, pida ayuda a alguien que si lo lea para que le traduzca las
medidas de seguridad. (SG-3)

SAFETY
BSR Series Rakes 03/14 Safety Section 1-3
SAFETY
© 2014 Alamo Group Inc.
Operator Safety Instructions and Practices
Engine Exhaust, some of its constituents, and certain vehicle components contain or emit
chemicals known to the state of California to cause cancer and birth defects or other
reproductive harm. (SG-30)
Battery posts, terminals and related accessories contain lead and lead compounds,
chemicals known to the state of California to cause cancer, birth defects or other
reproductive harm. (SG-31)
Never operate the Tractor or Implement until you have read and
completely understand this Manual, the Tractor Operator’s Manual, and
each of the Safety Messages found in the Manual or on the Tractor and
Implement. Learn how to stop the tractor engine suddenly in an
emergency. Never allow inexperienced or untrained personnel to
operate the Tractor or Implement without supervision. Make sure the
operator has fully read and understood the manuals prior to operation.
(SG-4)
The operator and all support personnel should wear hard hats, safety
shoes, safety glasses, and proper hearing protection at all times for
protection from injury including injury from items that may be thrown by
the equipment. (SG-16)
PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE
PERMANENT HEARING LOSS! Tractors with or without an Implement
attached can often be noisy enough to cause permanent hearing loss.
We recommend that you always wear hearing protection if the noise in
the Operator’s position exceeds 80db. Noise over 85db over an
extended period of time will cause severe hearing loss. Noise over 90db
adjacent to the Operator over an extended period of time will cause
permanent or total hearing loss. NOTE: Hearing loss from loud noise
[from tractors, chain saws, radios, and other such sources close to the
ear] is cumulative over a lifetime without hope of natural recovery. (SG-I7)
Always read carefully and comply fully with the manufacturer’s
instructions when handling oil, solvents, cleansers, and any other
chemical agent. (SG-22)

SAFETY
BSR Series Rakes 03/14 Safety Section 1-4
SAFETY
© 2014 Alamo Group Inc.
Never allow children to play on or around Tractor or Implement. Children can slip or fall off
the Equipment and be injured or killed. Inadvertent contact with controls can cause the
Implement to shift or fall crushing themselves or others. (SG-25)
DO NOT use drugs or alcohol immediately before or while operating the
Tractor and Implement. Drugs and alcohol will affect an operator’s
alertness and coordination and therefore affect the operator’s ability to
operate the equipment safely. Before operating the Tractor or Implement,
an operator on prescription or over-the-counter medication must consult
a medical professional regarding any side effects of the medication that
would hinder their ability to operate the Equipment safely. NEVER
knowingly allow anyone to operate this equipment when their alertness or
coordination is impaired. Serious injury or death to the operator or others
could result if the operator is under the influence of drugs or alcohol. (SG-27)
Prolonged operation may cause operator boredom and fatigue affecting safe operation.
Take scheduled work breaks to help prevent these potentially impaired operating
conditions. Never operate the Implement and Tractor in a fatigued or bored mental state
which impairs proper and safe operation. (SG-32)
Use extreme caution when getting onto the Implement to perform repairs, maintenance and
when removing accumulated material. Only stand on solid flat surfaces to ensure good
footing. Use a ladder or raised stand to access high spots which cannot be reached from
ground level. Slipping and falling can cause serious injury or death. (SG-33)
Avoid contact with hot surfaces including hydraulic oil tanks, pumps, motors, valves and
hose connections. Relieve hydraulic pressure before performing maintenance or repairs.
Use gloves and eye protection when servicing hot components. Contact with a hot surface
or fluid can cause serious injury from burns or scalding. (SG-34)
DO NOT operate this Implement on a Tractor that is not properly maintained. Should a
mechanical or Tractor control failure occur while operating, immediately shut down the
Tractor and perform repairs before resuming operation. Serious injury and possible death
could occur from not maintaining this Implement and Tractor in good operating condition.
(SG-36)
Extreme caution should be used by the Tractor operator when operating near passersby.
Stop raking if anyone comes within 25 feet of the Implement to prevent possible passerby
injury or death from being struck from a thrown object, entanglement with the rakes, or run
over. (SRK-01)

SAFETY
BSR Series Rakes 03/14 Safety Section 1-5
SAFETY
© 2014 Alamo Group Inc.
Equipment Operation Safety Instructions and Practices
Do not back up with this implement. Backing could damage the machine or its components.
(S3PT-4)
Use extreme care when lowering or unfolding the implement’s wings. Make sure no
bystanders are close by or underneath the wings. Allow ample clearance around the
implement when folding or unfolding the wings. Use extreme caution around buildings or
overhead power lines. (S3PT-05)
There are obvious and hidden potential hazards in the operation of this Implement as in all
power-driven or pulled equipment. REMEMBER! This machine is often operated in rough
terrain conditions that include tall grass, weeds, gullies, holes, slopes, hidden obstructions
and the like. Serious injury or even death may occur unless care is taken to assure the
safety of the operator and bystanders in the area. Do not operate this machine with anyone
in the immediate area. (S3PT-07)
This Implement may be wider than the Tractor. Be careful when operating or transporting
this equipment to prevent the Implement from running into or striking sign posts, guard rails,
concrete abutments or other solid objects. Such an impact could cause the Implement and
Tractor to pivot violently resulting in loss of steering control, serious injury, or even death.
Never allow the Implement to contact obstacles. (S3PT-12)
Operate this Implement only in conditions where you have clear visibility in daylight or with
adequate artificial lighting. Never operate in darkness or foggy conditions where you
cannot clearly see at least 100 yards in front and to the sides of the tractor and implement.
Make sure that you can clearly see and identify passersby, steep slopes, ditches, drop-offs,
overhead obstructions, power lines, debris and foreign objects. If you are unable to clearly
see this type of items discontinue operating this equipment.(S3PT-21)
Operate this Equipment only with a Tractor equipped with an approved roll-
over-protective system (ROPS). Always wear seat belts. Serious injury or
even death could result from falling off the tractor--particularly during a turnover
when the operator could be pinned under the ROPS. (SG-7)
BEFORE leaving the tractor seat lower the implement, set the parking
brake and/or set the tractor transmission in parking gear, disengage the
PTO, stop the engine, remove the key, and wait for all moving parts to
stop. Place the tractor shift lever into a low range or parking gear to
prevent the tractor from rolling. Never dismount a Tractor that is moving
or while the engine is running. Operate the Tractor controls from the
tractor seat only. (SG-9)

SAFETY
BSR Series Rakes 03/14 Safety Section 1-6
SAFETY
© 2014 Alamo Group Inc.
Never allow children or other persons to ride on the Tractor or Implement.
Falling off can result in serious injury or death. (SG-10)
Never allow children to operate, ride on, or come close to the Tractor or
Implement. Usually, 16-17 year-old children who are mature and
responsible can operate the implement with adult supervision, if they
have read and understand the Operator’s Manuals, been trained in
proper operation of the tractor and Implement, and are physically large
enough to reach and operate the controls easily. (SG-11)
Do not mount or dismount the Tractor while the tractor is moving. Mount
the Tractor only when the Tractor and all moving parts are completely
stopped. (SG-12)
Start tractor only when properly seated in the Tractor seat. Starting a
tractor in gear can result in injury or death. Read the Tractor operators
manual for proper starting instructions. (SG-13)
Do not operate this Equipment with hydraulic oil or fuel leaking. Oil
and fuel are explosive and their presence could present a hazard. Do
not check for leaks with your hand! High-pressure oil streams from
breaks in the line could penetrate the skin and cause tissue damage
including gangrene. To check for a hose leak, SHUT the unit ENGINE
OFF and remove all hydraulic pressure. Wear oil impenetrable gloves,
safety glasses and use Cardboard to check for evidence of oil leaks. If
you suspect a leak, REMOVE the HOSE and have it tested at a Dealer.
If oil does penetrate the skin, have the injury treated immediately by a
physician knowledgeable and skilled in this procedure. (SG-15)
Never run the Tractor engine in a closed building or without adequate ventilation. The
exhaust fumes can be hazardous to your health. (SG-23)
In case of mechanical difficulty during operation, place the transmission in the park
position, set the parking brake, shut down all power, including the PTO and the engine and
remove the key. Wait until all rotating motion has stopped before dismounting. (SG-39)

SAFETY
BSR Series Rakes 03/14 Safety Section 1-7
SAFETY
© 2014 Alamo Group Inc.
Connection or Disconnecting Implement Safety Instructions and
Practices
Do Not operate this equipment in areas where insects such as bees may attack you and/or
cause you to lose control of the equipment. If you must enter in such areas, use a tractor
with an enclosed Cab and close the windows to prevent insects from entering. If a tractor
cab is not available, wear suitable clothing including head, face, and hand protection to
shield you from the insects. Attacking insects can cause you to lose control of the tractor,
which can result in serious injury or death to you or bystanders. Never dismount a moving
tractor. (SG-40)
Objects such as wire, cable, rope, and chain can become entangled in the
rotating parts of the raking components causing mechanical damage.
Entangled items caught in the rakes can sling outward possibly injuring or
entangling the operator or passersby. Any objects that might become
entangled in a raking component should be removed from the area before
operating the rake. (SRK-02)
DO NOT allow any person under a folded wing unless wing is securely
locked up or supported. DO NOT approach the Implement unless the
Tractor is turned off and all motion has ceased. Never work under the
frame work, or any lifted component unless the implement is securely
supported or blocked up. A sudden or inadvertent fall by any of these
components could cause serious injury or even death. (STI-03)
Always shut the Tractor completely down, place the transmission in park, and set the
parking brake before you or anyone else attempts to connect or disconnect the Implement
and Tractor hitches. (S3PT-15)
Never unhitch without using the Tongue Jack. The Tongue is very heavy. Attempting to lift
the Tongue without using the Tongue Jack could cause strains or other injury. Allowing the
tongue to fall suddenly and unexpectedly could result in crushing injury. Use the Tongue
Jack for lifting the Implement only. Overloading the Tongue Jack can cause failure with
possible serious bodily injury or even death. (STI-04)
On a fully-assembled unit, do not remove the Wing Retaining Strap until hoses are attached
to the tractor and the Wing Cylinders are filled with oil. Lower the Wings slowly and
carefully. Keep bystanders away during operations. (STI-05)

SAFETY
BSR Series Rakes 03/14 Safety Section 1-8
SAFETY
© 2014 Alamo Group Inc.
Transporting Safety Instructions and Practices
Be particularly careful when transporting the Implement with the Tractor. Turn curves or go
up hills only at a low speed and using a gradual steering angle. Rear mounted implements
move the center of gravity to the rear and remove weight from the front wheels. Make
certain, by adding front ballast, that at least 20% of the tractor’s weight is on the front wheels
to prevent rearing up, loss of steering control or Tractor tip-over. Slow down on rough or
uneven surfaces to prevent loss of steering control which could result in property damage
or possible injury. Do not transport unless 3-Point lift lever is fully raised and in the latched
transport position. Dropping implement in transport can cause serious damage to the
tractor and/or Implement and possibly cause the operator or others to be injured or killed.
(S3PT-02)
Allow sufficient clearance for the Implement to swing outward while turning. Implements
carried behind the Tractor will swing outside the tire path when making turns. Contacting a
solid object while turning will cause equipment damage and possible injury. (S3PT-20)
Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in
such a way as to be clearly visible and legible. When transporting the
Equipment use the Tractor flashing warning lights and follow all local
traffic regulations. (SG-6)

SAFETY
BSR Series Rakes 03/14 Safety Section 1-9
SAFETY
© 2014 Alamo Group Inc.
Transport only at speeds where you can maintain control of the
equipment. Serious accidents and injuries can result from operating this
equipment at high speeds. Understand the Tractor and Implement and
how it handles before transporting on streets and highways. Make sure the Tractor steering
and brakes are in good condition and operate properly.
Before transporting the Tractor and Implement, determine the proper transport speeds for
you and the equipment. Make sure you abide by the following rules:
Test the tractor at a slow speed and increase the speed slowly. Apply the Brakes smoothly
to determine the stopping characteristics of the Tractor and Implement. As you increase
the speed of the Tractor the stopping distance increases. Determine the maximum
transport speed not to exceed 20 mph (30 kph) for transporting this equipment.
Test the equipment at a slow speed in turns. Increase the speed through the turn only after
you determine that the equipment can be operated at a higher speed. Use extreme care
and reduce your speed when turning sharply to prevent the tractor and implement from
turning over. Determine the maximum turning speed for you and this equipment before
operating on roads or uneven ground.
Only transport the Tractor and Implement at the speeds which allow you to properly control
the equipment.
Be aware of the operating conditions. Do not operate the Tractor with weak or faulty brakes
or worn tires. When operating down a hill or on wet or rain slick roads, the braking distance
increases: use extreme care and reduce your speed. When operating in traffic always use
the Tractor’s flashing warning lights and reduce your speed. Be aware of traffic around you
and watch out for the other guy. (SG-19)
Be particularly careful when transporting the Implement using the tractor. Turn curves or
go up or down hills only at a low speed and at a gradual steering angle. Make certain that
at least 20% of the tractor’s weight is on the front wheels to maintain safe steerage. Slow
down on rough or uneven surfaces. (STI-01)
When the Wings are folded for transport, the center of gravity is raised and the possibility of
overturn is increased. Drive slowly and use extreme caution when turning on hillsides.
Overturning the Implement could cause the Implement to overturn the Tractor and vice
versa resulting in serious injury or even death. Never fold wings on a hillside...the
Implement or unit may overturn. (STI-02)
Only tow the Implement behind a properly sized and equipped Tractor
which exceeds the weight of the Implement by at least 20%. DO NOT
tow the Implement behind a truck or other type of vehicle. Never tow the
Implement and another Implement connected in tandem. Never tow the
Implement at speeds over 20 MPH. (STI-06)

SAFETY
BSR Series Rakes 03/14 Safety Section 1-10
SAFETY
© 2014 Alamo Group Inc.
Maintenance and Service Safety Instructions and Practices
Secure the Implement for transport before traveling on public roads. For pull-type
Implements, secure the center axle using cylinder stops or transport pin and properly attach
a safety chain between the Implement and Tractor. Secure wings in upright position on
folding Implements using wing transport locks. (STI-7)
Always keep a careful lookout and use extreme care when working
around overhead obstructions and electrical power lines. The
Implement wing can be over 10 feet high. Never allow the Implement
wing to come within 10 feet of any power line. (STI-8)
Your driving vision may be reduced or impaired by the tractor, cab, or implement. Before
driving on public roadways identify any limited vision areas, and make adjustments to your
operating position, mirrors, and the implement transport position so that you can clearly
see the area where you will be traveling, and any traffic that may approach you. Failure to
maintain adequate vision of the public roadway and traffic can result in serious injury or
even death. (STI-10)
Relieve hydraulic pressure prior to doing any maintenance or repair work
on the Implement. Place the Implement on the ground or securely
blocked up, disengage the PTO, and turn off the tractor engine. Push
and pull the Remote Cylinder lever in and out several times prior to
starting any maintenance or repair work. (S3PT-09)
Keep fingers clear of adjusting holes. A sudden movement could cause injury or even
amputate fingers. KEEP CHILDREN AWAY WHEN MAKING ADJUSTMENTS. (SBL-3)
Always maintain the safety signs in good readable condition. If the safety signs are missing,
damaged, or unreadable, obtain and install replacement safety signs immediately. (SG-5)
Do not modify or alter this Implement. Do not permit anyone to modify or alter this
Implement, any of its components or any Implement function. (SG-8)
Never work under the Implement, the framework, or any lifted
component unless the Implement is securely supported or blocked up
to prevent sudden or inadvertent falling which could cause serious
injury or even death. (SG-14)

SAFETY
BSR Series Rakes 03/14 Safety Section 1-11
SAFETY
© 2014 Alamo Group Inc.
Storage and Parking Safety Instructions and Practices
Never attempt to lubricate, adjust, or remove material from the Implement while it is in
motion or while tractor engine is running. (SG-20)
Periodically inspect all moving parts for wear and replace when
necessary with authorized service parts. Look for loose fasteners, worn
or broken parts, and leaky or loose fittings. Make sure all pins have
cotter pins and washers. Serious injury may occur from not maintaining
this machine in good working order. (SG-21)
Perform service, repairs and lubrication according to the maintenance section. Ensure the
unit is properly lubricated as specified in the lubrication schedule and all bolts and nuts are
properly torqued. Failure to properly service, repair and maintain this Implement in good
operating condition could cause component failure and possible serious injury or even
death. (SG-35)
Use caution and wear protective gloves when handling sharp objects such as blades,
knives, and other cutting edges. Be alert to worn component surfaces which have sharp
edges. Sharp surfaces can inflict severe laceration injuries if proper hand protection is not
worn. (SG-37)
A rear Implement can fall if not properly supported. Always use the stand on the front hitch
(if equipped) or block up securely to prevent falling and possible crushing injury and/or
other injury from holding or lifting heavy components. Use the stand to stabilize the
implement during storage. (S3PT-3)

SAFETY
BSR Series Rakes 03/14 Safety Section 1-12
SAFETY
© 2014 Alamo Group Inc.
PARTS INFORMATION
PARTS INFORMATION
Bush Hog products are designed utilizing specifically matched system components to ensure optimum
equipment performance. These parts are made and tested to Bush Hog specifications. Non-genuine "will fit"
parts do not consistently meet these specifications. The use of “will fit” parts may reduce equipment
performance, void warranties, and present a safety hazard. Use genuine Bush Hog parts for economy and
safety. (SPBH-2)
SEE YOUR BUSH HOG DEALER
In addition to the design and configuration of this Implement, including Safety Signs and Safety Equipment,
hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper
training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer
also to Safety Messages and operation instruction in each of the appropriate sections of the Tractor and
Equipment Manuals. Pay close attention to the Safety Signs affixed to the Tractor and Equipment. (SG-18)

SAFETY
BSR Series Rakes 03/14 Safety Section 1-13
SAFETY
© 2014 Alamo Group Inc.

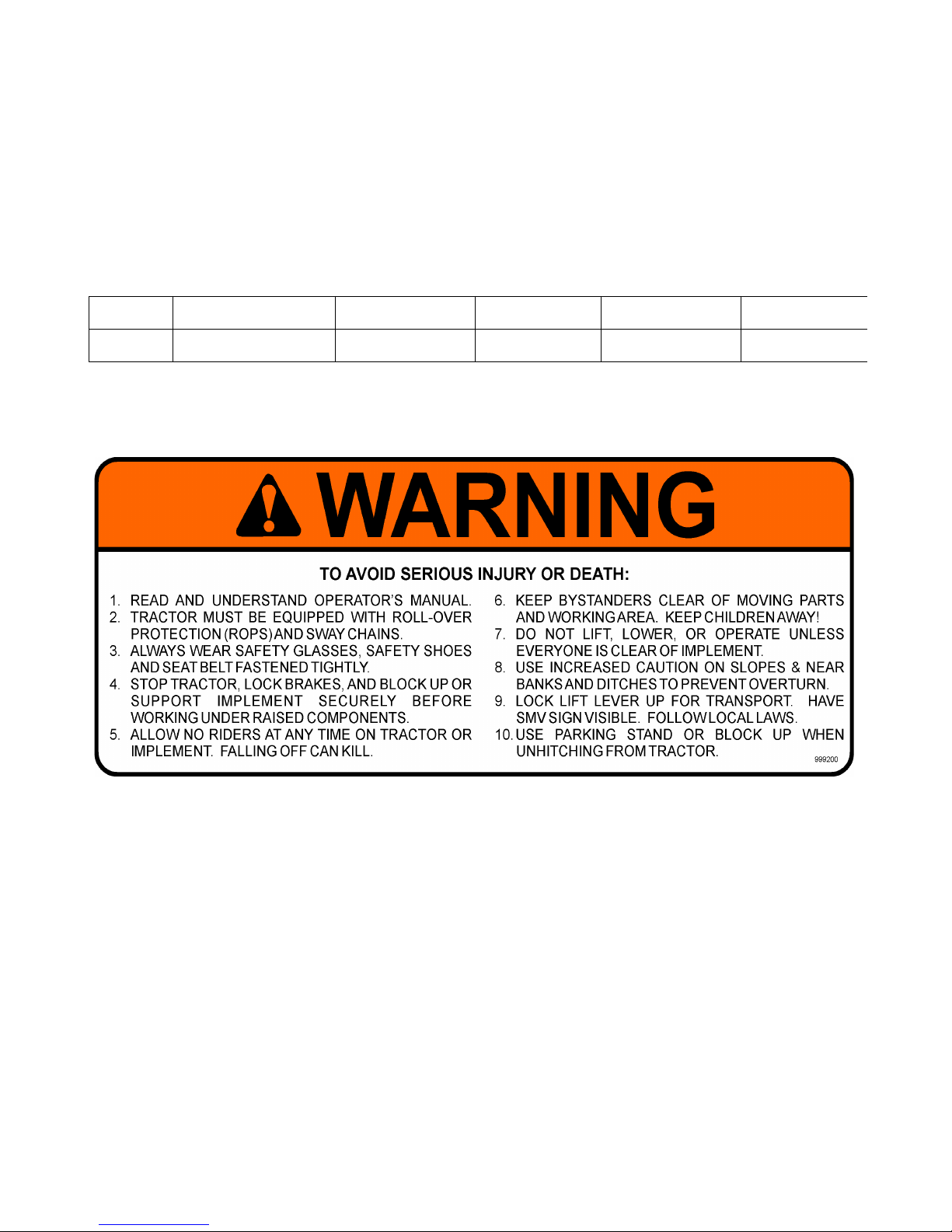

Decal Location
NOTE: Bush Hog supplies safety decals on this product to promote safe operation. Damage to the decals may
occur while in shipping, use, or reconditioning. Bush Hog cares about the safety of its customers, operators,
and bystanders, and will replace the safety decals on this product in the field, free of charge (Some shipping
and handling charges may apply). Contact your Bush Hog dealer to order replacement decals.

SAFETY
BSR Series Rakes 03/14 Safety Section 1-14
SAFETY
© 2014 Alamo Group Inc.
ITEM PART NO. QTY LEVEL DESCRIPTION
1. 50073512 1 IMPORTANT Secure Safety Chain
2. 50073507 1 WARNING Trailed Machine
3. 50074259 2 FLAG Made in the USA
4. D859 1 WARNING Genuine Bush Hog Parts
5. N/A 1 SER PLT Serial Number Plate
6. D628 2 WARNING Crushing Hazard
7. D617 2 WARNING High Pressure Oil Leak
8. 50073496 1 INSTRUCT RH Ground Pressure
9. 50073497 1 INSTRUCT LH Ground Pressure
10. 50031212 4 REFLECT Amber Reflector
11. 50031214 2 REFLECT Red Reflector
12. 50065309 2 LOGO Bush Hog Logo
13. 50073508 2 LOGO Haymaker Logo
14. 50074260 2 LOGO BSR Series Logo
15. 94359 1 REFLECT SMV Symbol
16. 50035829 1 -------------- Canister, Parts Manual
17. 50073511 2 IMPORTANT Transport Latch
18. 50074094 1 -------------- Operator’s Manual (Inside Canister)

SAFETY
BSR Series Rakes 03/14 Safety Section 1-15
SAFETY
© 2014 Alamo Group Inc.

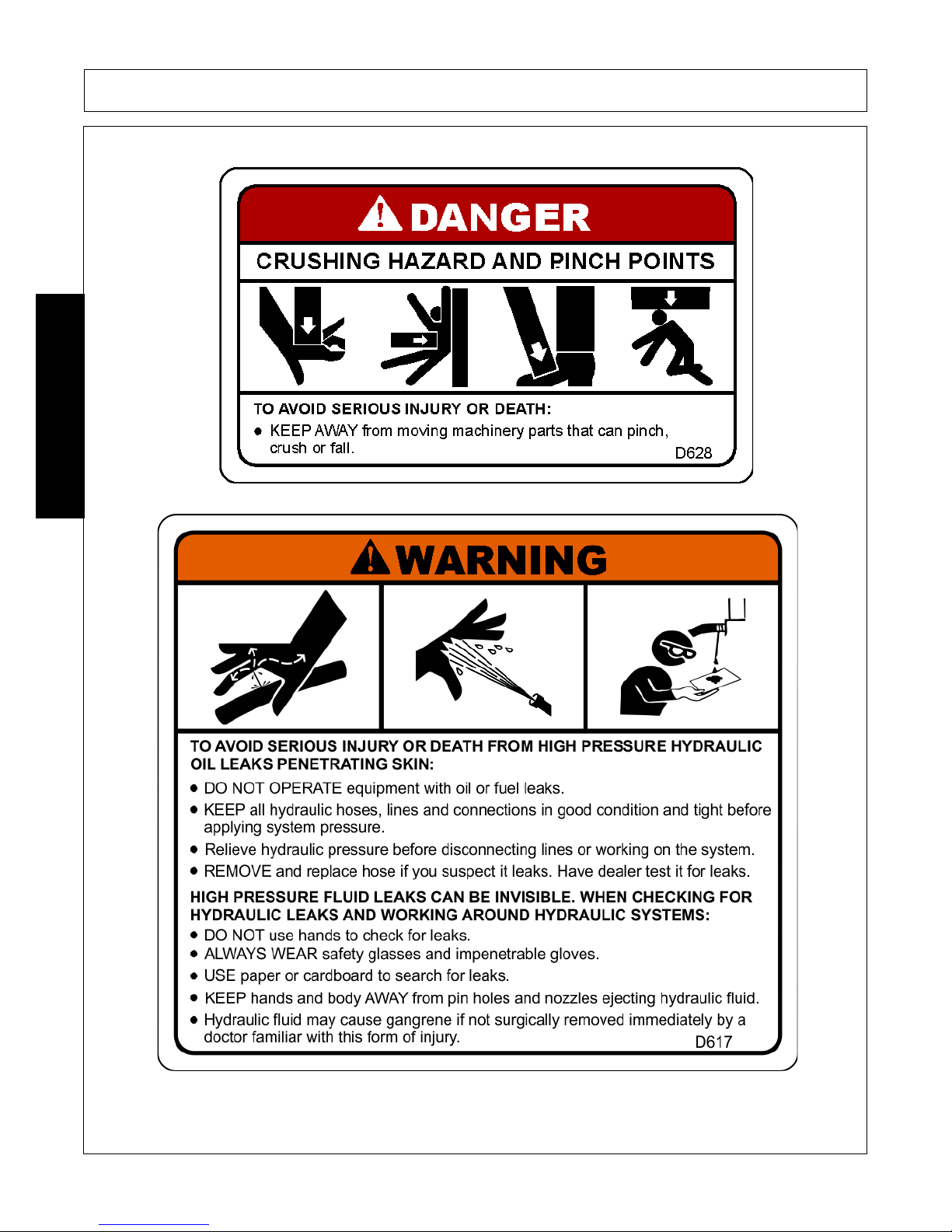

Decal Description

SAFETY
BSR Series Rakes 03/14 Safety Section 1-16
SAFETY
© 2014 Alamo Group Inc.
