Bush VL32HDLED-D User manual

Instruction manual
VL32HDLED-D

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
You’ll soon be enjoying your new TV.
It all begins here, with your instructions. Don’t worry,
there’s nothing too technical coming up. Just simple,
step-by-step guidance to get you up and running
quickly. Sound good? Then let’s get started.
Help and Guidance
We’re here to help you get the most from your television. Should you require any guidance, a simple
solution can often be found online at:
www.bush-support.com
If you still require further assistance, call one of our experts on 0345 604 0105.

or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 604 0105.
3
Contents
Safety information
Getting to know your TV
Ready? Let’s begin... 12
Accessories 12
Installing / Removing the Base Stand 13
Wall Mounting Installation Guidelines 13
Viewing remote control 14
Viewing control panel 15
Viewing back panel 16
Aerial connection 17
Remote control - Inserting batteries 17
Switching the TV On and Off 17
Operation using remote control 18
How to watch a DVD 18
Notes on DVD playback 19
DVD Controls 20
Initial setup 21
Connections
Left bottom connections explained 24
Left side connections explained 25
HDMI Connections 26
SCART Connections 26
Standard features
How to navigate menus - Selecting source 30
Electronic programme guide (EPG) (DTV mode)
30
Teletext (ATV mode) 31
Digital Teletext (DTV mode) 32
Recording DTV Programme onto a USB Storage
Device 32
Timer Programming 33
Play Recorded Programme 34
Quick Settings management (ATV / DTV Mode)
34
Using the DVD Features
Using the Built-in DVD Player 44
Basic DVD Playback Functions 45
Playing Multimedia Discs 46
DVD SYSTEM MENU 46
Go To General Setup Page 46
Go To Audio Setup Page 47
Go To Preference Setup Page 47
Other information
Specifications 52
Digital reception 52
Plug replacement - UK and Ireland only 53
Energy label 53
DTS TruSurround 53
HDMI 53
Product support
Trouble shooting 56
Definition of terms 57
Supported file formats 58
Disposal information 59
Help and assistance 60
Guarantee 61
25
6
7
3
4
1

1
Safety information

6
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Safety information
Important - Please read these instructions fully before
installing or operating
Power source
The TV should be operated only from a 100-240V~
50/60Hz outlet.
AC voltage: Rated voltage marked with this
symbol is AC voltage.
• Warning: Do not leave your TV in standby or
operating mode when you leave your house.
Positioning the TV
This product is intended for indoor use only.
For ventilation, please leave a clear space of at least
10cm all around the TV.(Fig 1)
Fig 1.
•Do not block the ventilation openings.
•Do not place the TV on sloping or unstable surfaces,
the TV may tip over.
• To prevent damage to the TV, do not place any objects
on top of the TV.
• Only use the TV in moderate climates.
Power cord and plug
• The power cord plug should be easily accessible. In
case of storms and lightning, when going on holiday,
or when the TV is not used for a long period of time
disconnect the power cord from the mains power
socket.
• Do not place the TV, furniture, etc. on the power cord
or pinch the cord.
10cm
10cm
10cm
Safety information
• Never touch the power cord/plug with wet hands as
this could cause a short circuit or electric shock.
• Never make a knot in the power cord or tie it with
other cords.
• Power cords should be placed in such a way that they
are not likely to be stepped on or driven over.
• A damaged power cord/plug can cause fire or give you
an electric shock. When damaged it must be replaced,
this should only be done by qualified personnel.
Moisture and water
• Do not use this TV in a humid or damp place (avoid
bathrooms, the sink in the kitchen, and near the
washing machine).
• Do not expose this TV to rain or water, as this may be
dangerous.
• Do not place objects filled with liquids, such as
flower vases, on top of the TV. Avoid from dripping or
splashing.
• If any solid object or liquid falls into the cabinet, unplug
the TV and have it checked by qualified personnel
before operating it any further.
Ventilation
• The slots and openings on the TV set are intended for
ventilation and to ensure reliable operation.
• To prevent overheating, these openings must not be
blocked or covered in anyway.
Heat sources and flames
• Do not expose the TV to direct sunlight or other heat
sources.
• The TV should not be placed near to open flames and
sources of intense heat such as an electric heater.
• Ensure that no open flame sources, such as lighted
candles, are placed on top of the TV.
• Warning: To prevent the spread of
fire, keep candles or other open
flames away from this product at
all times.

7
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 604 0105.
Safety information
Important - Please read these instructions fully before
installing or operating
Batteries
Warning: Incorrect installation of batteries may cause
battery leakage and corrosion, resulting in damage to
the remote control.
Do not mix old and new batteries, or batteries of
different types.
Do not dispose of batteries with normal household
waste, take to a local recycling centre.
The batteries shall not be exposed to
excessive heat such as sunshine, fire
or the like.
Children may not recognize dangers. The swallowing
of batteries can be fatal. Keep batteries always out of
reach of small children. If a battery is swallowed, seek
immediate medical attention.
Replacement parts
When replacement parts are required, make sure
that the service technician has used replacement
parts,which are specified by the manufacture or have
the same specifications as the original one. Unathorised
substitutions may result in fire, electrical shock or other
hazards.
Handling discs
• To keep the disc clean, only handle the disc by its
edge.
Do not touch the surface.
• Do not stick paper or tape on the disc.
• If the disc is contaminated with any substance like glue,
remove before using it.
• Do not expose the disc to direct sunlight or heat
sources such as hot air ducts, or leave it in a car parked
in direct sunlight as the temperature can rise quickly
and damage the disc.
• After playing, store the disc in its case.
Safety information
• To reduce the risk of electric shock, do not
remove cover (or back). No user-serviceable
parts inside. Refer servicing to qualified
service personnel.
• The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
• The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock of persons.
Headphone volume
Excessive sound pressure from earphones and
headphones can cause hearing loss, please take care.
Wall mounting (optional)
• To prevent injury, this TV must be securely attached to
the wall in accordance with the installation instructions
(if the option is available).
• Do not install the TV on a ceiling or on an inclined wall.
LCD Screen
• The LCD screen is a very high technology product
with about a million thin film transistors, giving you
fine picture details. Occasionally, a few non-active
pixels may appear on the screen as a fixed blue, green
or red point. Please note that this does not affect the
performance of your product.
• Take care not to scratch the screen with fingernails or
other hard objects.
Cleaning
• Before cleaning, unplug the TV from the wall socket.
• Do not use liquid or aerosol cleaners. Only use a soft,
dry cloth.

8
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Safety information
Important - Please read these instructions fully before
installing or operating
Safety information
Cleaning discs
• Before playing, clean the disc with a cleaning cloth. Wipe the disc from the centre out.
• Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for
vinyl LPs.
Laser Safety Information
Servicing
• Warning: Risk of electric shock, do not attempt to repair, service or modify this TV yourself.
Contact the manufacturer, their approved service agent or the Customer Helpline: 0345 604 0105.
Markings on the Product
This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that
it does not require a safety connection to electrical earth.
Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably
foreseeable conditions of operation.
CAUTION
Never touch or look into the optical lens within the DVD compartment.
This is a CLASS-1 laser product.
Use of controls or adjustments other than those specified herein, may result in hazardous laser light beam
exposure. Do NOT open the cover and do NOT attempt to repair it yourself. Refer servicing to qualified
personnel. This product does not contain any user serviceable parts. Unauthorised handling of the device
may damage it and will void your warranty.
CLASS 1
LASER PRODUCT

9
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 604 0105.
Safety information

2
Getting to know your TV

12
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Stand Base MINI YPBPR Cable
MINI AV Cable Remote Control
Batteries: 2 x AAA Instruction Book
Screws
Getting to know your TV
You’ll be up and running in no time
Ready? Let’s begin...
Please read these instructions carefully. They contain
important information which will help you get the best
from your TV and ensure safe and correct installation
and operation.
If you require any further assistance, our technical
experts are happy to help. For full details, refer to
the product support section at the end of these
instructions.

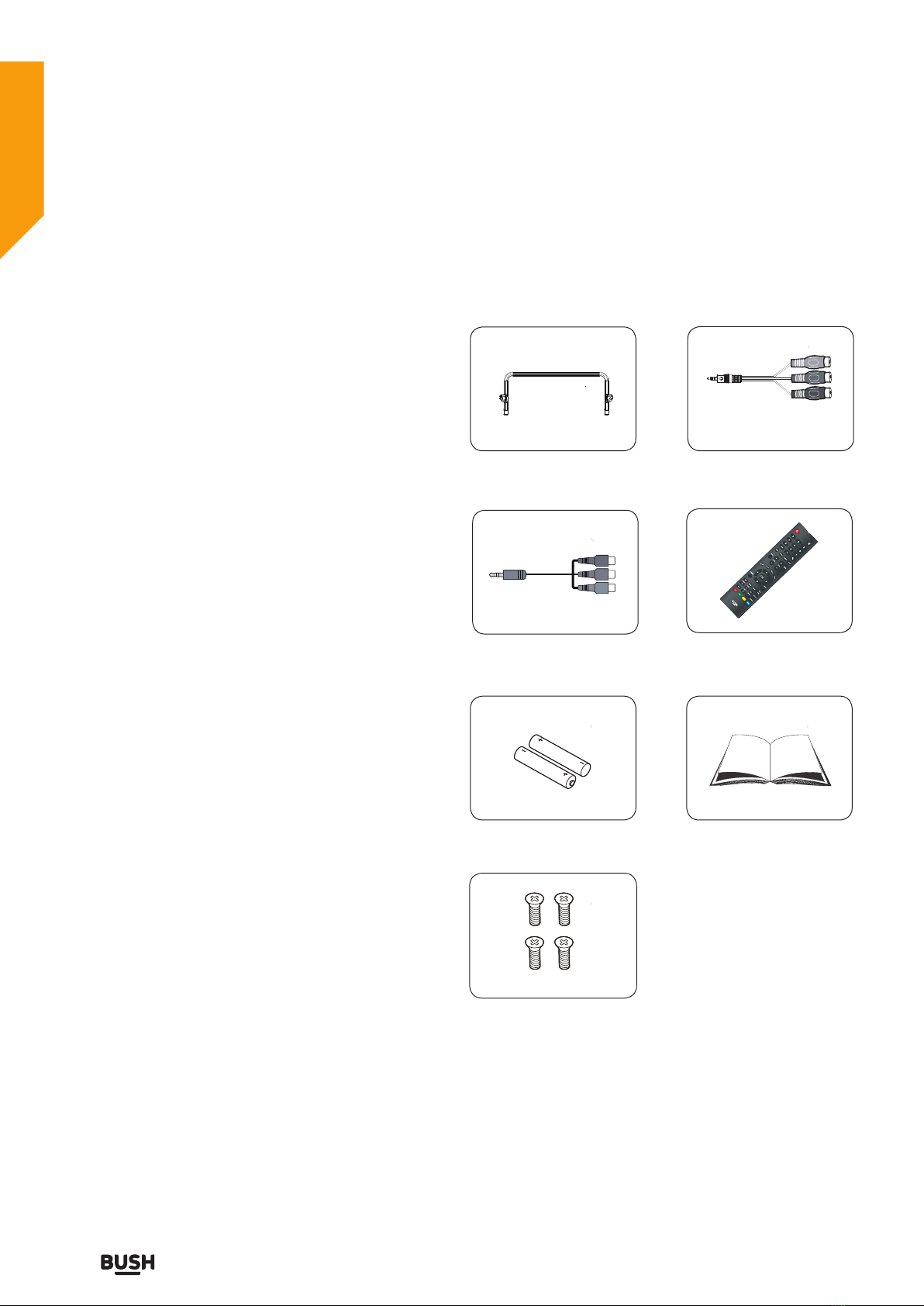

Accessories
D-REV.0 2
Getting to know your TV

13
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 604 0105.
Wall Mounting Installation Guidelines
1. Lay the TV flat on a table with the LED screen face
down. To prevent the TV from being scratched, put a
piece of soft cloth on the table on which the screen
will be set.
2. Remove the 4 screws .
3. Remove the stand.
4. Use the four screws (4*10mm,not included) to fix the
TV onto a wall mounting bracket (not included) via the
four VESA standard holes on the back of the television.
Getting to know your TV
You’ll be up and running in no time
Installing / Removing the Base Stand

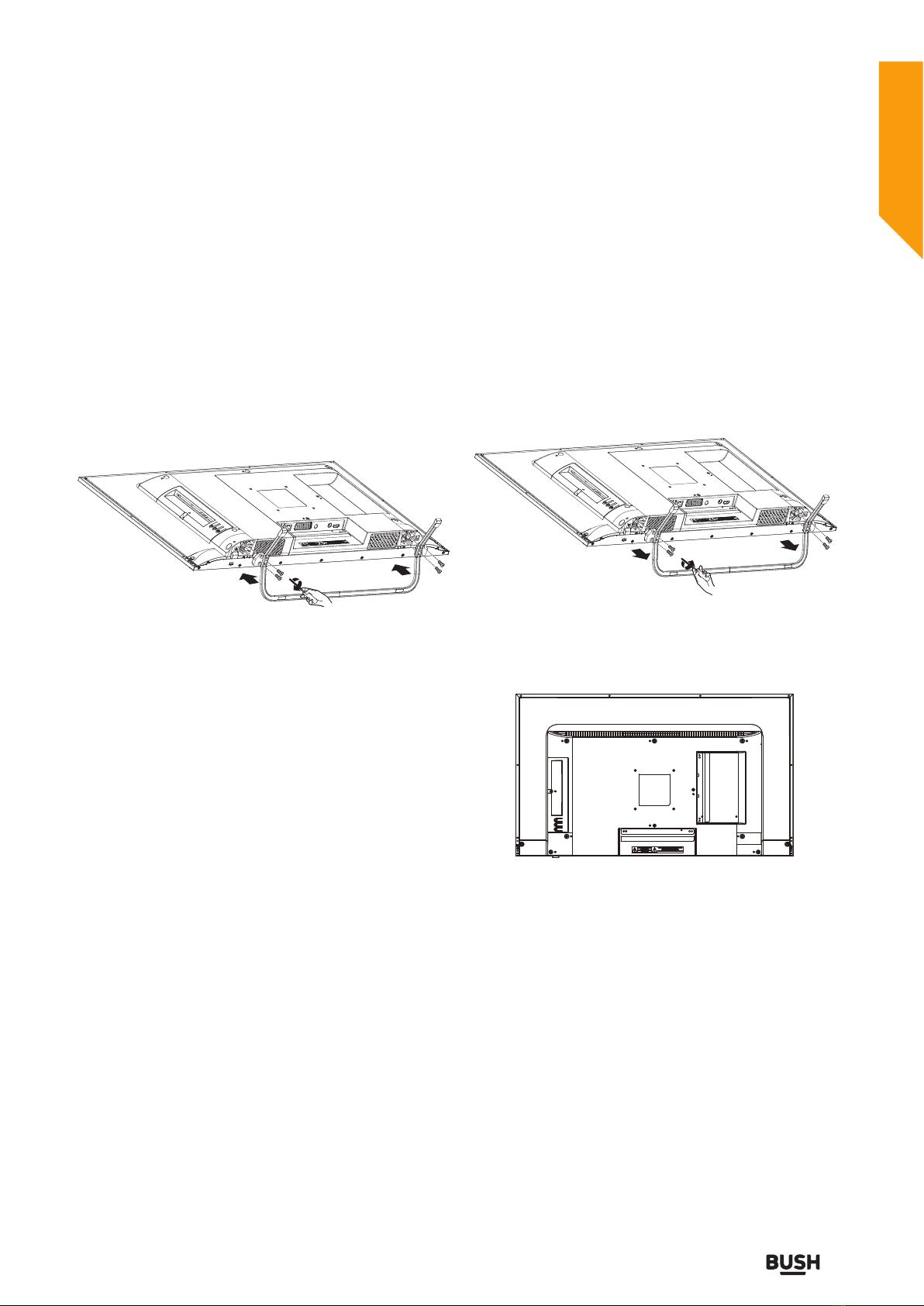

Base Stand Assembly Instruction
1. Lay the TV flat on a table with the LED screen face
down. To prevent the TV from being scratched, put a
piece of soft cloth on the table on which the screen
will be set.
2. Place the base in position as shown. Insert and tighten
4 screws (provided) into pedestal holes as shown.
INSTALLATION NOTES
This TV can be connected to an AC 100-240 Volts,
50/60 Hz power supply. Never connect straight to a DC
power supply.
Locate the TV in a room where light does not strike the
screen directly. Total darkness or a reflection on the
screen can cause eyestrain. Soft and indirect lighting is
recommended for comfortable viewing.
Allow enough space between the TV and the wall to
permit ventilation.
Avoid excessively warm locations to prevent possible
damage to the cabinet or premature component failure.
Getting to know your TV
100x 100 mm VESA mount

14
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Getting to know your TV
Getting to know your TV
You’ll be up and running in no time
Viewing remote control
D-REV. 02
FAV INFO
TV.MENU
D.MENU
A-B
SET-UP DVD TITLE
Power: Switches the TV between on and
standbymode.
FAV : Display the Favourite Channel list.
( ATV / DTV mode)
VOL+/- : Adjust the volume.
CH.LIST : Display channel list. (ATV / DTV mode)
INPUT :
TV.MENU : Display the OSD (On Screen Display) menu.
DVD : Press to DVD Source.
Ejects a disc.
D.MENU: Return to main menu of DVD.
HOLD : Freezes a multi-page passage on screen in
teletext.
A-B : Repeats a segment between A and B.
INDEX : To select the page number of the index
from teletext.
:
:
•To start the timeshift playback. (DTV mode)
•To start playback or pause. (USB/DVD mode)
: Press once to stop. (USB/DVD mode)
SIZE : To enlarge the picture on the TV in teletext.
CH+/- : Select a channel.
FREEZE :
ASPECT :
:
EXIT : Exit the OSD (On Screen Display) menu.
EPG : Display the EPG (Electronic Program Guide).(DTV mode)
SUBTITLE : Display the subtitle which is broadcast with
the program.
SUBPAGE :
:
Displays the subpage on the teletext
screen.
REVEAL : Reveals hidden information such as the
answer to a quiz in teletext.
Record the current programme. (DTV mode)
: To reverse playback rapidly. (USB/DVD mode)
: To advance playback rapidly. (USB/DVD mode)
: To skip to the beginning of the previous
chapter / track / photo. (USB/DVD mode)
: To skip to the beginning of the next chapter /
track / photo. (USB/DVD mode)
TEXT : Turn on and o the Teletext function.
SET-UP : Enter or exit DVD OSD setting menu.
TITLE : Display disc menu
OK : • Confirm the selection in the OSD menus.
• Display a list of channels saved in the TV tuner
memory.
Allows you to navigate the OSD menus and
adjust the system settings to your preference.
0-9 Number Button: Press to select a
programme. (ATV /
DTV/DVD mode)
Mute: Mutes and restores
your TV sound.
INFO : Displays the status information.
SLEEP :
:
Set the TV sleep timer.
Return to the previous viewing channel.
(ATV/ DTV mode)
USB : Press this button in to USB source. USB
AUDIO : Press to switch the audio mode.
Select among the dierent input signal sources:
Digital / Analogue / SCART / YPbPr / DVD /
HDMI 1 / HDMI 2 / HDMI3 / AV.
P.MODE : Select picture mode: Dynamic / Standard /
Personal / Movie / Economy.
S.MODE : Select sound mode: Standard / Music / Movie
/ Sports / Personal.
Press this key to freeze the picture, press again to
restore the picture.
Select from the following mode settings: Auto/
Zoom1 / Zoom2 / 4:3 / 16:9.

15
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 604 0105.
1. Press to eject disc. (DVD mode)
2. Press to start playback or pause.(DVD mode)
3. POWER Turns the TV on and into standby
4. Standby LED/Remote Control Sensor
Getting to know your TV
Getting to know your TV
You’ll be up and running in no time

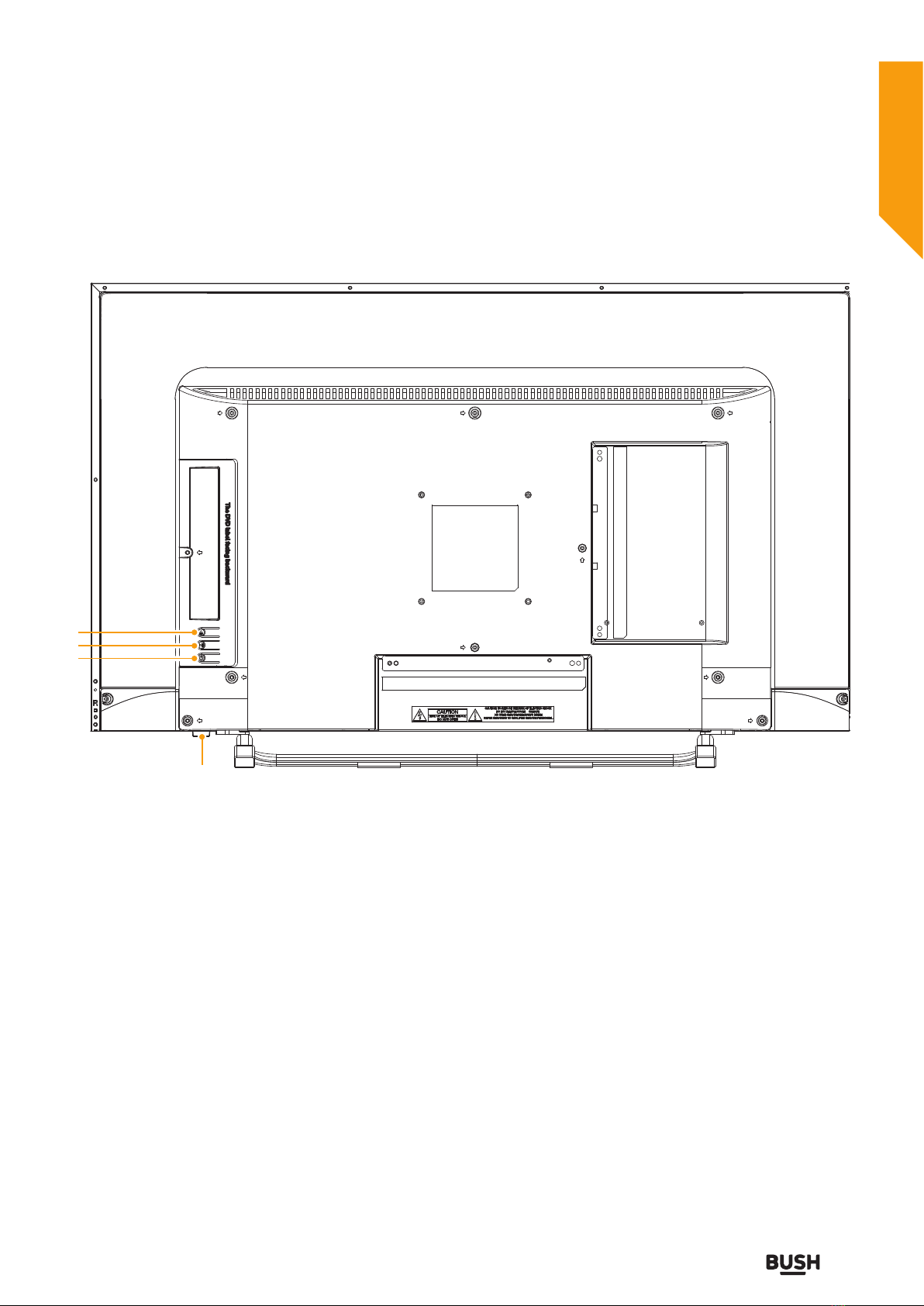

Viewing control panel
1
2
3
4

16
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Getting to know your TV
Getting to know your TV
You’ll be up and running in no time
Viewing back panel
5 9
13
14
11
10
16
7
15
86
12
5. LAN
6. SCART Socket SCART lead
connection
7. COAXIAL Out
8. RF Input (ANT.)
9. HDMI1 Socket High Definition
lead connection
10. HDMI2 Socket High Definition
lead connection
11. HDMI3 Socket High Definition
lead connection
12. USB Socket USB connection
(optional)
13. MINI AV/YPbPr-R/L
14. MINI YPbPr
15. CI Slot
16. Headphone jack

17
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 604 0105.
Remote control - Inserting batteries
Remove the battery cover on the back of the remote
control, gently push down and pull backwards at the
same time as shown .
Insert two AAA/R3 or equivalent type batteries. Ensure
the batteries are inserted the correct way and replace
the battery cover.
Note: When the remote control is not going to be
used for long periods of time, the batteries should
be removed. Otherwise the remote control may be
damaged, caused by battery leakage and corrosion.
AAA/R3 X 2
Batteries
Switching the TV On and Off
Switching the TV On
With power cord plug connected to the mains power
socket and TV in ‘Standby’ mode.
To switch the TV on from standby mode, either:
a: The Remote control; Press the “ ” button.
b: The TV; Press the “ ” button on the back of the TV.
Switching the TV Off
Either press the “ ” button on the remote control or
press the “ ” button on the back of the TV, the TV will
then switch to standby mode.

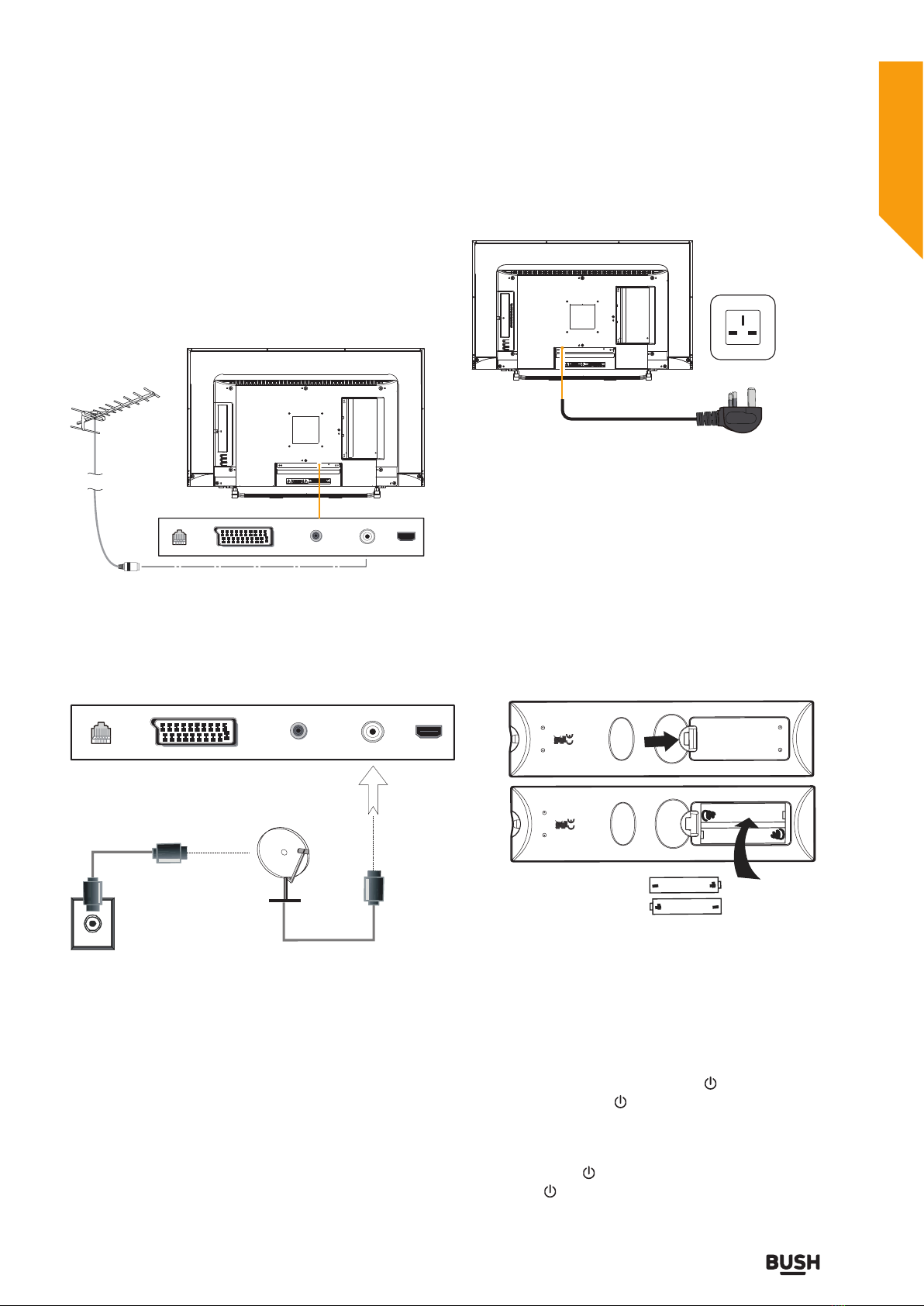

Aerial connection
Connect a coaxial cable (not provided) to the ANT/
CABLE IN jack on the back of your TV and to the
antenna or cable TV wall jack.
LAN SCART COAX OUT RF IN HDMI1
Connect the incoming cable from the cable wall jack to
the cable-in jack on the cable or satellite box. Connect
a coaxial cable (not provided) to the ANT/CABLE IN jack
on the side of your TV and to the coaxial out jack. on the
cable or satellite box.
LAN SCART COAX OUT RF IN HDMI1
Cable or
satellite box
Cable
wall jack
Power connection
Connect the power cord plug to the mains power
socket.
Please note: After unpacking, allow the TV
to reach ambient room temperature before
connecting the TV to the mains power socket.
Getting to know your TV
Getting to know your TV
You’ll be up and running in no time

18
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Getting to know your TV
Getting to know your TV
You’ll be up and running in no time
Operation using remote control
The remote control is designed to control all the
functions of the model you selected.
Volume Setting
Press VOL+ button to increase the volume.
Press VOL- button to decrease the volume. A volume
level scale (slider) will be displayed on the screen.
Programme Selection (Previous or Next Programme)
Press CH- button to select the previous programme.
Press CH+ button to select the next programme.
Programme Selection (Direct Access)
Press number buttons on the remote control to select
programmes between 0 and 9. The TV will switch to the
selected programme.
D-REV.02
How to watch a DVD
1.Press the “ ” button on the TV or remote control.
2.Switch to DVD source using the “INPUT” button on the
remote control.
3.Insert a disc into the loader.
The no label side of the disc MUST be facing you when
looking at the TV screen.
Label side
If play does not start automatically, press the "II "button
on the remote control, or the "II " button at the back of
the TV.
A menu may appear on the TV screen after a few
moments or the film may start immediately after the
Film/TV Company introduction. This will depend on the
disc content and may differ on each disc.
4. Press the navigation buttons "" or the number
buttons to select the required title.
5. Press the OK button. The selected item starts to play.
Steps 4 and 5 are only available when a menu is
recorded on the disc.
Label sid
e

19
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 604 0105.
Getting to know your TV
Getting to know your TV
You’ll be up and running in no time
Notes on DVD playback
• No sound will be heard during Rapid advance or
Rapid reverse.
• No sound will be heard during Slow motion play.
• Reverse Slow motion play is not available.
• In some cases, the subtitle language will not be
changed immediately to the selected one.
• When the preferred language will not select, even after
pressing the button several times, it means the language
is not available on the disc.
• When the DVD player is restarted or the disc is
changed, the subtitle selection is automatically changed
back to the initial settings.
• If a language is selected that is not supported by the
disc, the subtitle language will automatically be set to
the disc’s priority (default) language.
• Usually a ‘circulation’ will happen while switching
to another language, this means you can cancel the
subtitle by pressing the same button a number of times
until “Subtitle Off” appears on the screen.
• When the power is turned on or the disc is removed,
the language heard will be the one selected at the initial
settings.
• Some DVDs may not contain root and/or title menus.
• Reverse stepping is not available.
• For reference: If you attempt to enter a number greater
than the total time of the current title, the time search
box disappears and "Input Invalid " message appears
on top-left corner of screen.
• The slide show is disabled when the ZOOM mode is
on.

20
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Getting to know your TV
You’ll be up and running in no time
DVD Controls
You can operate DVD, movie CD, music or picture CD’s content by using the correct buttons on your remote
control.
Below are main functions of commonly used remote control buttons.
Getting to know your TV
Buttons on
Remote Control DVD Playback Movie Playback Picture Playback Music Playback
Play/Pause Play/Pause Play/Pause Play/Pause
/SIZE
/INDEX
Stop Stop Return to the picture list Stop
Open or close the dics
tray
Open or close the dics
tray Open or close the dics tray Open or close the dics tray
SET-UP Displays the DVD OSD
menu
Displays the DVD OSD
menu
Displays the DVD OSD
menu Displays the DVD OSD menu
Skip backward Skip backward Skip backward Skip backward
Rapid reverse Rapid reverse Rapid reverse
TITLE/TEXT Display disc menu (if
available)
Display disc menu (if
available)
SUBTITLE repeatedly to switch
between subtitle option
repeatedly to switch
between subtitle option
Skip forward Skip forward Skip forward Skip forward
Rapid advance Rapid advance X
X
X
X
X
X
X
Rapid advance
D.MENU
Return to the main
menu
of a loaded DVD (if
available)
Return to the main menu
of a loaded DVD (if
available)
Return to the main menu
of a loaded DVD (if
available)
Return to the main menu
of a loaded DVD (if
available)
A-B/ HOLD Repeat a selected sec-
tion
Repeat a selected section Repeat a selected section
