Bush KBS-626 User manual

Instruction manual
PARTY SPEAKER
KBS-626

You’ll soon be enjoying your new PARTY SPEAKER
It all begins here, with your instructions. Don’t worry, there’s
nothing too technical coming up. Just simple, step-by-step
guidance to get you up and running quickly. Sound good? Then
let’s get started.
Help and Guidance
We’re here to help you get the most from your PARTY SPEAKER. Should you require
any guidance, a simple solution can often be found online at:
www.bush-support.com
If you still require further assistance, call one of our experts on 0345 604 0105
Party Speaker

1 Safety information
Power source 4
Moisture and water 4
Heat sources and flames 4
Ventilation 5
Positioning the Party Speaker 5
General safety information 5
2 Using your Party speaker
Panel Controls 7
Features 8
Basic Operations 8
FM Operations 9
Bluetooth Connection 9
3 Other Information
10
11
3
Contents
Party Speaker
Technical Specification
3 Other Information
Technical Specification
3
Technical Specification
3 Other Information
Technical Specification
Product Support
4

1Safety information

Party Speaker 4
Safety information
Important - Please read these instructions fully before
installing or operating
Power source
• Only use the power supply that came with the product. Using an unauthorised power
supply will invalidate your guarantee and may irrecoverably damage the product.
• Disconnect your party speaker from the mains power supply during thunderstorms.
• Always check that you have completely switched off your Party Speaker, before you
change or disconnect the power supply.
• Where the mains power plug or an appliance coupler is used as the disconnect
device, the disconnect device shall remain readily operable.
• Only use recommended batteries or those of the same or equivalent type.
• Batteries are to be inserted with the correct polarity.
• The supply terminals are not to be short-circuited.
• Never throw batteries in a fire or attempt to open the outer casing.
• Batteries are harmful if swallowed, so keep away from young children.
• CAUTION: Danger of explosion if batteries are incorrectly replaced. Replace only with
the same or equivalent type.
Moisture and water
• Do not leave it in low temperatures as moisture can form inside the product, which
may damage the circuit board.
Heat sources and flames
• Do not leave it in high temperatures as electronic devices and plastic parts may warp
in heat.

Safety information
Important - Please read these instructions fully before
installing or operating
Party Speaker
5
.
Ventilation
• Do not block or cover slots, holes or openings on the product by placing on soft
furnishings such as carpets, rugs or beds as these are provided for functionality and/or
ventilation to ensure safe operation of the product.
• The underneath and sides of this product may become warm after a long period of
use. This is normal.
Positioning the Party Speaker
It is important that you consider carefully in advance where your Party Speaker will be
situated and make sure that it is:
• on a flat and stable surface.
• within 1.4 metres of a power socket. Please ensure that the mains power lead is not a
trip hazard.
• at least 1 metre away from other electrical appliances to avoid interference.
• where there is enough height for the telescopic radio aerial.
• Never place your Party Speaker directly onto antique or polished surfaces.
Caution
To avoid possible hearing damage, do not listen to this Party Speaker at high volume levels for
long periods of time. Always keep the volume within reasonable limits.
General safety information
• Keep the product and all its parts out of reach of small children.
• This product is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the use of the appliance
by a person responsible for their safety.

Safety information
Important - Please read these instructions fully before
installing or operating
Party Speaker 6
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
ANY COVER. NO USER-SERVICEABLE PARTS INSIDE, REFER ANY
SERVICING TO QUALIFIED SERVICE PERSONNEL.

Using your Party Speaker 2

Party Speaker
7

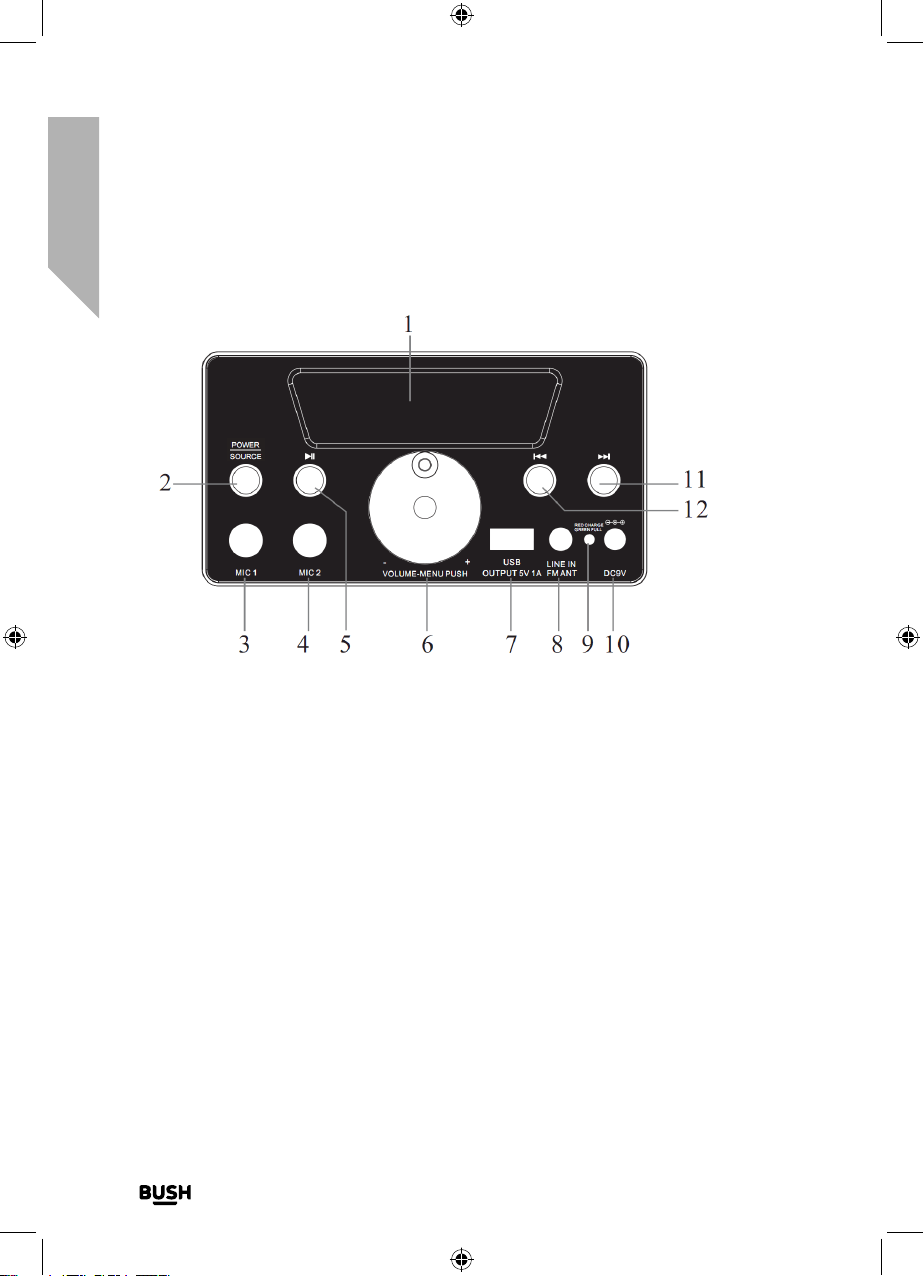

1.LED display.
2.POWER/SOURCE button.
3.MIC1: Microphone signal input.
4.MIC2: Microphone signal input.
5.Play/Pause (In FM mode, hold
for 3 seconds the device will enter
into automatic scan)
6.VOLUME-/+&MENU PUSH:
Master volume adjustment and Menu
selection button and PUSH knob enter
menu.
7.USB: USB Player/Power Bank
8.LINE input/FM ANT.
9.LED CHARGE STATUS:
GREEN = Fully charged
10.DC 9V external input.
11.Next song.
12.Previous song.
RED = Charging
5V 1A output
Using your Party speaker
Let’s get started
Panel Control

Party Speaker 8
9. with carry strap
1. POWER/SOURCE: long press (for about 2 seconds) to turn on the machine; during
working status, short press to select mode: BT/LINE/FM (circulating); during
working status, long press (for about 2 seconds) to turn off the machine.
2. PLAY/PAUSE: during playing status, short press to pause/mute; during FM mode,
long press to automatically scan radio station.
3. VOLUME-MENU PUSH: adjust volume; PUSH knob enter menu: bass volume
adjustment -9 ~ +9Vo -> treble volume adjustment-9 ~ +9 -> IU MIC input volume
adjustment -> EC MIC reverb depth adjustment ->dL MIC reverb delay adjustment
->LED light mode switch ->br light brightness adjustment -> volume adjustment
(circulating).
4. PREVIOUS/NEXT: during playing status, press to get back to a previous or
next song.
5. USB: USB Player/Power Bank 5V 1A output.
Using your Party speaker
Let’s get started
Basic Operations
Features
1. Wireless Compatible
2. FM radio
3. LED Disco Lighting
4. USB Port
5. 2 Microphone input Jack
6. Digital Echo Control
7. Preset Equalizer
8. Built-in Rechargeable Battery 2000mAh
Party speaker contents and features
Party speaker contents
1 x Party speaker
1 x Power adaptor
1 x 3.5 to 3.5mm Line In cable
1 x 3.5mm FM antenna (Line In) cable
1 x Instruction manual
1 x Carry strap

9
Using your Party speaker
Let’s get started
Source/Mode operation
Party Speaker
Press Source button (cycle)
Shown on LED Code Current Function
Bluetooth mode
USB Media play mode.
FM Radio mode
Line In mode
Press Menu button (cycle)
Shown on LED Code Current Function Adjust Range
Bass volume adjustment -9 ~ 9
Treble volume adjustment -9 ~ 9
Mic input volume adjustment 0 ~ 16
Mic reverb depth adjustment 0 ~ 16
Mic reverb delay adjustment 0 ~ 40
Mic bass volume adjustment -9 ~ 9
Mic treble volume adjustment -9 ~ 9
Light mode switch Off on(01 ~ 12)
Light brightness adjustment 0 ~ 16
Menu operation
(The " " would only show
when the USB memory stick is insert.)

Party Speaker 10
Using your Party speaker
Let’s get started
Press the SOURCE button on the panel control to select Bluetooth mode.
Simultaneously open the Bluetooth setting on your phone, tablet or any other
Bluetooth enabled audio device and select "KBS-626". The unit and device will
then connect via Bluetooth.
Bluetooth Connection
A. Lightly press Power/Source button to switch to FM mode, long press
button to automatically scan radio station, by pressing
B. When scanning radio programs, adjust the antenna to obtain the best reception.
PLAY/PAUSE
PREVIOUS or NEXT you can select a previous or next channel.
FM Operations

Other information 3

Other information
Helpful technical information
Party Speaker
11
Technical specification
Power Consumption: 30W
Li-ion Batteries 7.4V, 2000mAh
Audio output: 2 x 7.5W + 1 x 15W RMS
FM Frequency Range:
87.5 MHz to 108 MHz
AC-DC Adaptor : Input: 100-240V ~ 50/60 Hz 1A
Output: 9V 1A
Frequency Response

Product support 4

Product support
Help is always at hand
Party Speaker
12
Troubleshooting
If you are experiencing problems with your Party Speaker, there are some quick and easy
checks that you can do, which may help to solve the problem.
No sound / power:
Adjust the volume using the volume control button.
Check that the mains power wall socket is switched on and that the Party Speaker is not in
Standby mode. Press and release the Power button.
Connect to Power adaptor to power socket for battery power recharging.
Check that you are trying to use the function buttons for the mode that you are in.
Radio reception is poor:
Fully extend the telescopic aerial to get the best reception and sound quality.
Retune the radio station/s, see pages 9.
Try moving your Party Speaker to another location to see if reception improves.
Check that you do not have other electrical equipment too close to your Party Speaker
causing interference.

Product support
Help is always at hand
Party Speaker 13
Help and assistance
If you require any technical guidance or find that your Party Speaker is not
operating as intended, a simple solution can often be found in the Troubleshooting
section of these instructions or online at www.bush-support.com
If you still require further assistance, call one of our experts on 0345 604 0105*. To help
give us give you a fast and efficient service please have the following information ready:
Model Ref.
Serial number
Date of purchase
Local call rates applies*
Lines open 8am-7pm Monday to Saturday and
10am-4pm Sunday.
*Calls to Argos enquiry lines may attract a charge and set up fee from residential lines depending on
your call plan/tari. Mobile and other providers costs may vary, see www.bt.com/pricing for details.
For security and training purposes, telephone calls to and from customer service centres may be
recorded and monitored. Calls from Republic of Ireland will attract international call charges.
You can find these
on the rating plate - a
small information
panel (usually a sticker
or metal plate) on the
rear or base of your
product.
This will be shown on
your receipt

Product support
Help is always at hand
Party Speaker
14
Disposal
• This product should not be treated as normal household waste and it should
be recycled. Please take it to your nearest collection facility or for further
details contact your local council or visit www.recycle-more.co.uk
• Batteries contain substances that may be harmful to the environment and
human health. Keep out of the reach of children and seek immediate medical
help if swallowed.
• Batteries should not be disposed of in the normal household waste but taken
to appropriate local recycling facilities, where and when these are available.
• Never throw batteries in a fire or attempt to open the outer casing
This product is intended for use within the UK. This equipment complies with the essential
requirements of the Radio Equipment Directive 2014/53/EU.
Declaration of Conformance
Hereby, Argos Ltd, declares that this Party Speaker is in compliance with the
essential requirements and other relevant provisions of the Radio Equipment Directive
2014/53/EU. The complete declaration of conformity can be obtained by contacting
www.bush-support.com

Your Bush Guarantee
This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to
faulty materials or workmanship will be repaired free of charge (or if applicable the product will be replaced or the
purchase price refunded) where possible during this period by the dealer from who your purchased the unit.
Call us now and activate your 12 month guarantee
Thank you for choosing Bush. Your new product is guaranteed against faults and breakdowns for 12 months.
Don’t forget to register it with us today so we can provide you with our best possible after-sales service and
useful updates.
www.bushregistration.co.uk
FREEPHONE*
0800 597 8548
Lines are open 8am - 8pm, 365 days a year. *Calls may be recorded and monitored.
The guarantee is subject to the following provisions:
• The guarantee does not cover accidental damage,
misuse, cabinet parts, knobs or consumable items.
• The product must be correctly installed and
operated in accordance with the instructions
contained in the manual.
• It must be used solely for domestic purposes. The
guarantee will be rendered invalid if the product is
re-sold or has been damaged by inexpert repair.
• Specifications are subject to change without
notice.
• Bush disclaim any liability for loss or damage arising
from the breakdown of the product.
• This guarantee is in addition to and does not
diminish your statutory or legal rights.
Important Data Protection Information
If you provide us with information about another person,
you confirm that they have appointed you to act for
them, to consent to the processing of their personal
data including sensitive personal data and that you have
informed them of our identity and the purposes (as
set out in the Important Data Privacy notice displayed
overleaf) for which their personal data will be processed.
You are entitled to ask for a copy of the information
we hold about you (for which we may charge a small
fee) and to have any inaccuracies in your information
corrected.
For quality control and training purposes, we may
monitor or record your communications with us.
If your personal details change, if you change your mind
about any of your marketing preferences or if you have
any queries about how we use your information, please
let us know by contacting our Data Protection
Officer, Domestic & General, Leicester House
17 Leicester Street, Bedworth, Warwickshire
CV12 8JP.
Guarantor: Argos Limited - 489 - 499 Avebury Blvd. - Milton Keynes - MK9 2NW
Product support
Help is always at hand
Party Speaker 15

Contact:
www.bush-support.com
Helpline: 0345 604 0105.
Table of contents
Other Bush Speakers manuals
