INSTRUCTION MANUAL
CELLUCORE LIVE DUAL SIM TRAIL CAMERA
CELLUCORE LIVE DUAL SIM MODEL # 119908D

WELCOME
Welcome to your Bushnell Trail Camera! This manual has all
the instructions you need to set up your camera and your
account, plus quick answers to your questions.
If your camera does not seem to be functioning properly
or if you are having image quality issues, please check the
Troubleshooting Tips section.
If your problem continues after trying the solutions in
Troubleshooting Tips, please call Bushnell Customer Service
at [phone]. In Canada, call [phone].
Note: This Bushnell trail camera model is not designed
or intended for operation or sale outside of the United
States.

TABLE OF CONTENTS
Camera Overview 4
Camera Status Indicator Guide 6
Quick Start Guide 6
Settings Menu 10
Live Streaming 12
Mounting & Positioning 13
Frequently Asked Questions 15
Technical Specifications 17
Two-Year Limited Warranty 18

4
CAMERA OVERVIEW
Lens
Control Panel
Cover
DC In
Temperature
Sensor
Motion
Indicator
Antenna
LED IR Flash
Latch
Lock Hole
PIR Sensor

5
Motion
Indicator
Battery Tray
SD Card Slot
Camera Status
Indicator Lights
Power On/Off
Camera Status
Indicator Guide
Battery
Panel Door
Wake Up
Battery Life

6

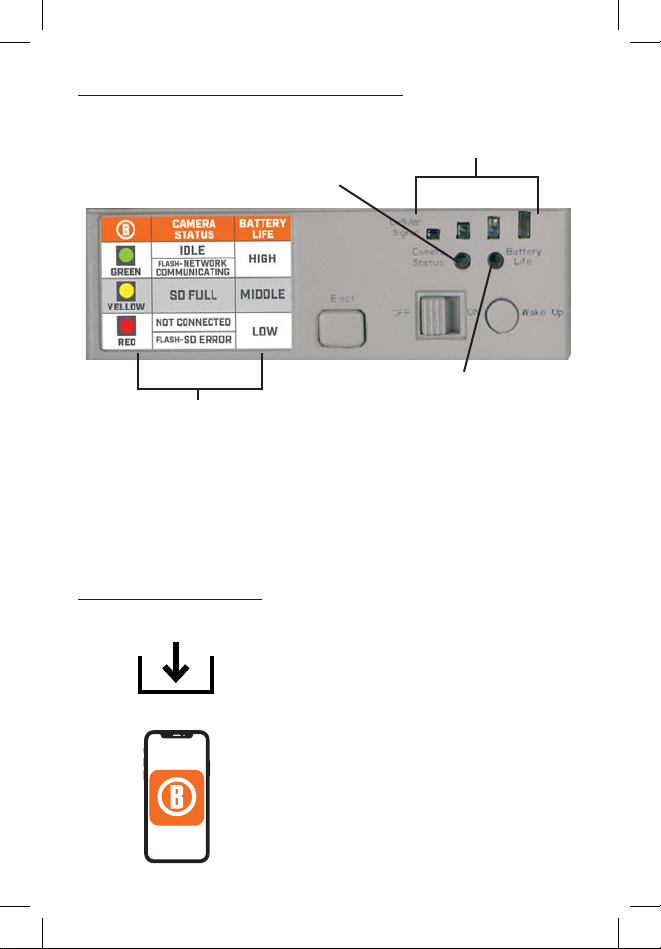

CAMERA STATUS INDICATOR GUIDE
1. Download the free Bushnell Trail
Camera app on your smartphone from
the App Store (iPhone®) or Google
Play® (Android®).
2. Open the app, then sign in or create
a new account.
QUICK START GUIDE
Look here to identify what a green, yellow,
or red light means for your camera status
and battery life.
Cellular Signal Indicator Lights
Camera Status Indicator Light
Battery Life

7
3. Log in and click the Camera icon
at the bottom of the screen, then
click “+” to add a new camera. Scan
the QR code on the label inside your
camera again or manually enter its
serial # to associate this camera
with your account.
4. Install 12 AA batteries (Energizer®
lithium batteries are recommended.
Alkaline batteries may be used
but battery life will be shorter.
Rechargeable batteries are not
recommended). Be sure to position
the batteries for correct polarity
(+/-) when installing.
5. Install a new SD card, up to
256GB. High speed cards (class 10
or higher) are recommended if you
plan to record video clips.
6. Your CelluCORE LIVE Dual Sim is
equipped with a dual SIM modem.
The camera will automatically
connect to the carrier with the
strongest service (ATT or Verizon)
each time the camera is powered
on. If you want to ensure you have
the strongest signal in a given
area, simply power the camera
off and power it back on. This will
ensure you have maximum signal
x12

8
strength. (We recommend using
your camera in a location that gives
you minimally two bars of signal
strength. Lower signal strength can
cause interruptions in service and
shorten battery life.)

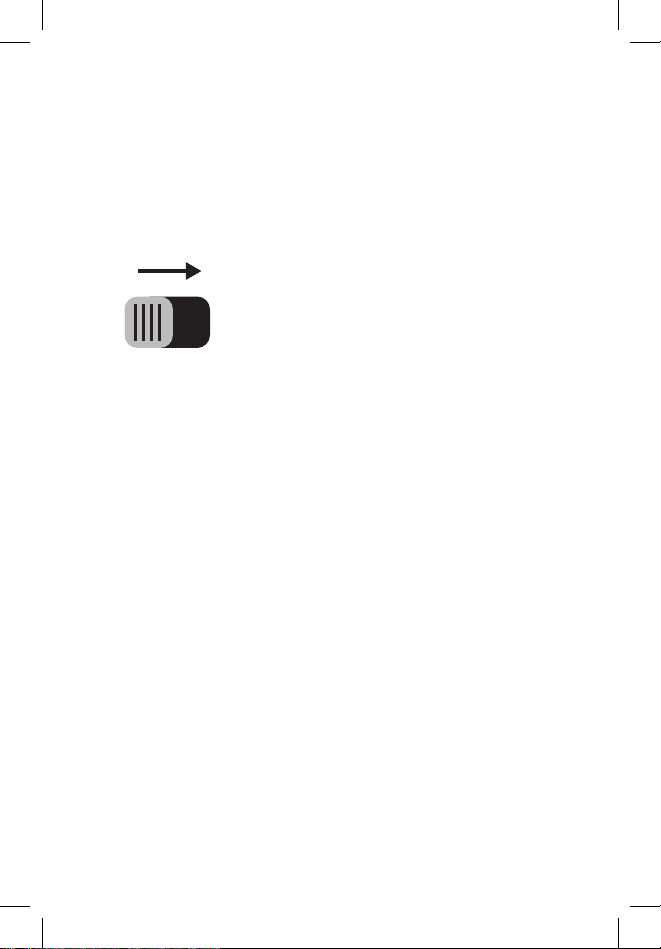

7. At the location where you will
place the camera, move the power
switch to the On position. The
camera’s default settings were
chosen for typical usage as a
scouting camera for hunters: photo
mode at 4MP resolution, with a 10
second interval between photos,
and “Medium” LED flash power
output. These settings may be easily
changed to suit your individual
preferences or application (for
example, if you would rather capture
videos, or photos at a different
resolution, spaced further apart),
using the app on your smartphone
or home computer.
8. Prior to closing the camera,
ensure the camera has acquired
cellular signal and is operating
properly by checking the camera
status indicator lights and guide.
Lower signal strength can cause
interruptions in service and shorten
battery life.
Mount the camera to a tree or post
using the provided tree strap or 1/4”-
20 mounting socket.
OFF ON

9
Your wireless camera is now ready to use. You can now utilize
the mobile application or management website to review
images, change camera settings, monitor battery life and
manage your account.
Android® and Google Play® are registered trademarks of Google Inc. iPhone® is a
registered trademark of Apple, Inc.

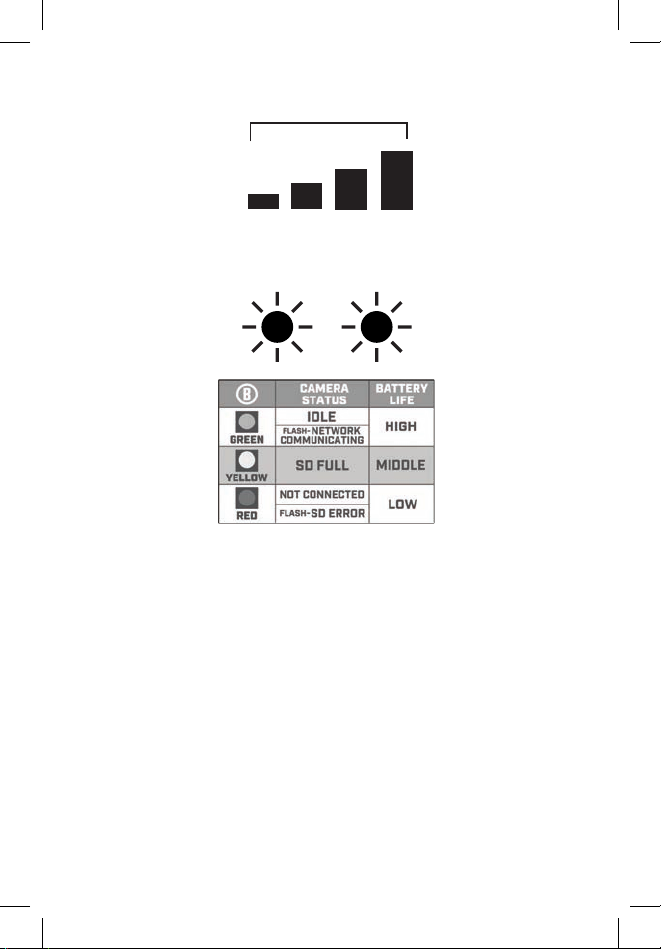

(see pg. 6 for camera status indicator guide)
Camera
Status
Battery
Life
Cellular Signal

10
(Check your app for these settings)
SETTINGS MENU
CAMERA MODE - Selects type of image files that are stored/
transmitted (note: see “Hybrid” under Video submenu).
IMAGE - Still images will be captured by the camera at
settings made in the PHOTO menu.
MOVIE - Video clips will be captured at settings made in the
VIDEO menu. NOTE: your full HD video files will be stored on
the SD card, but they cannot be transmitted wirelessly due to
the file size/cell carrier bandwidth.
HYBRID- Captures a single image followed by a video clip.
IMAGE RESOLUTION - Selects resolution (in megapixels)
for still photos. Higher resolution provides more pixels for
increased detail, but creates larger files that take up more
of the SD card capacity (fills up faster). Available settings
are: Low, medium and high. Low is the default setting, which
will deliver excellent detail while still keeping the file size per
image reasonable for most users.
CAPTURES PER TRIGGER- Selects the number of photos
captured per trigger event, with settings from 1 to 5 (default
is 1 photo per trigger).
VIDEO RESOLUTION - Selects resolution for video clips.
Choice of 1920x1080 (1080P) or 1280x720 (720P) or
640x360 (360P).
VIDEO LENGTH - Selects duration of each video clip captured
per trigger. The default setting is 5S (five seconds per video).
From the 10 SEC setting up, length settings are in 5 second
increments. Maximum video length is 20 Seconds.

11
CAMERA NAME - Allows you to enter up to 12 characters of
your choice to identify this camera. Especially useful for
multi-camera setups. This will be imprinted on each photo.
Default name is “CORE CAM”.
PIR DELAY - Selects the length of time that the camera will
ignore additional triggers from the PIR after an animal is
first detected and remains within the sensor’s range. During
this user set interval, the camera will not capture photos
or videos. For example, if a second trigger event occurs
7 seconds after the first, but the delay time is set to 10
seconds, the second trigger will be ignored and a new image
will not be captured until the 10 seconds has elapsed. Only
the next trigger that occurs after 10 seconds will take a new
photo/video, and so on. This prevents the card from filling up
with too many redundant images. The default setting is 10
SEC (a ten second delay). From the 10 SEC setting up, delay
settings are in 5 second increments. After scrolling past “59
SEC”, settings go from “1 MIN” to “10 MIN” and then progress
to 60 MIN at five-minute increments (15 MIN, 20MIN, etc.).
WORK MODE - Determines when the PIR (passive infrared)
sensor will activate the camera and capture images.
DAY - 6:00 A.M. - 6:00 P.M.
NIGHT - 6:00 P.M. - 6:00 A.M.
24HRS – PIR Sensor triggers 24 hours a day.
Flash Mode:
SHORT RANGE – This is Medium LED output and fast shutter
speed that is designed to capture good images of animals up
close. This setting will provide the longest battery life but the
shortest flash range.

12
FAST MOTION – This setting has maximum flash output and
fast shutter speed. It will provide the sharpest images and
medium flash range and battery life.
LONG RANGE – This setting has High LED output and Slow
shutter speed and provides maximum flash range but the
least battery life. You will also see more “motion blur” if the
objects are moving quickly at night.
TIMESTAMP - The date and time will be set once the camera
has connected to the server and will be imprinted on all
images.
WIRELESS - Sets cellular signal transmission to ON (default)
or OFF.
Communication Frequency:
IMMEDIATELY - Images will be transmitted immediately after
they are captured and saved to the SD card.
DAILY - All new images will be transmitted only once daily.
WEEKLY – All new images will be transmitted once per week.
(This setting will give you the best battery life).
LIVE STREAMING
Your CELLUCORE Live camera features Live Stream capability.
To connect to the Stream simply select the “LIVE STREAM”
button on the cameras section of application. The connection
may take a few seconds depending upon cellular signal of the
camera and connectivity of your mobile device. You can now
view the live stream from the camera for up to 10 minutes. To
disconnect, simply close out of the live streaming window.

13
To Record/Save the live stream, select the “Download” button
at any point during the stream. This will download the entire
streaming session video and save it to the files on your moble
device. Please note that this download may take some time,
especially for extended streaming sessions.
It is important to realize that streaming dramatically increases
battery and data consumption. You will need to manage your
data and power more carefully to maintain full functionality
from your device.
MOUNTING & POSITIONING
After you’ve set up the camera’s settings to your preferences,
you’re ready start capturing images.
We recommend mounting the camera on a sturdy tree or
post with a diameter of about 6 in. To get the optimal picture
quality, the camera should be about 16-17 ft. away from the
place to be monitored, with the camera placed at a height of
3.5-5 ft. Also, keep in mind that you will get the best results
at night when the subject is within the ideal flash range, no
farther than 60’ and no closer than 10’ from the camera.
The height away from the ground for placing the device
should vary with the animal size appropriately. In general, 3
to 6 feet is preferred. You can avoid potential false triggers
due to temperature and motion disturbances in front of
the camera by not aiming it at a heat source or nearby tree
branches or brush (especially on windy days).
There are two ways to mount the camera:
• Using the provided adjustable belt: Push one end of the belt
through the two slots on the back of the trail camera.

14
• Using the tripod socket: The camera is equipped with
a socket at the back (below the strap brackets) to enable
mounting on a tripod or other camera mounting accessories
that have a standard 1/4”-20 thread.
Strap Buckle
Strap Channel
Thread the end of the strap through the buckle. Fasten the belt
securely around the tree trunk by pulling the end of the strap
firmly so there is no slack left.
There are two ways to mount the camera:
• Using the provided adjustable belt: Push one end of the
belt through the two slots on the back of the trail camera.
Thread the end of the strap through the buckle. Fasten the belt
securely around the tree trunk by pulling the end of the strap
firmly so there is no slack left.

15
For quick help with more questions, call Customer Service at (800)
423-3537. In Canada, call [phone].
1. CELLULAR SIGNAL STRENGTH
Q: How do I make sure my camera is connected to the best
network in my area?
Your Cellucore Live Dual Sim checks in with both ATT and
Verizon networks each time it is booted up and selects the
strongest signal for connection. (We recommend using
your camera in a location that gives you minimally two
bars of signal strength. Lower signal strength can cause
interruptions in service and shorten battery life.)
FREQUENTLY ASKED QUESTIONS

16
DATA & DATA PLANS
Q: If I have multiple cameras do I need a data plan for each
camera?
Yes, each camera must have an active data plan to
transmit images.
Q: How do I cancel or suspend my data plan?
You can Cancel or Suspend your data plan through the
wireless application in the “Camera” tab or through the
management website.
PHOTOS
Q: Can I transmit photos to more than one cell phone
number or email address?
Accounts are tied to a customer’s e-mail address. You can
have multiple devices logged into the same account but
only one e-mail address per account. If you wish to share
your photos with others you will need to share the account
log in information with them.
Q: How do I delete photos on my account?
There are several ways to delete images. From the tile view
screen you can hold down on the image and it will select the
image (place a check next to it). Once it is selected you can
click the Trash Can icon to delete it. You can also delete the
image from the individual image view by clicking the Trash
Can icon.
VIDEOS
Q: How do I access the videos from the camera?
If there is a video captured by the camera it will be saved to
the SD card. To access the video you must retrieve it from
the SD card and insert into a computer or SD reader where
the video can be reviewed.

17
TECHNICAL SPECIFICATIONS
Lens: F=2.3; FOV=45°; Auto IR-Cut-Remove (at night)
Picture Size (pixel count in 16:9 format): 4MP=2688x1512,
8MP=3840x2160, 32MP=7552x4248
Video Size: 1920x1080 or 1280x720 or 640x360 @ 15-30 fps
Video Length: Fixed length video time settings range from 5 to
20 seconds
PIR Sensitivity: 4 settings: Low/Medium/High/Auto
Response Time: 0.5 second (Photo), 1.5 second (Video). 2.5
second interval
Triggering Interval: 5 sec. - 60 min. programmable
Images per Trigger: 1—5 programmable
Power Supply: 12x AA batteries, lithium or alkaline
(recommended).
Stand-by Current: <1.5mA
Average Battery Life: Approx. 3 mos. at 20 images per day
average (10 day, 10 night w/LEDs)
Operating Temperature: -10 - 50°C (Storage temperature: -20
- 60°C)
Operating Humidity: 5% - 90%
DC In (Camera DC port): 9V/2A
SD CARDS
Q: What size and brand SD card?
We recommend SanDisk Class 10 up to 256GB

18
TWO-YEAR LIMITED WARRANTY
Your Bushnell® product is warranted to be free of defects in
materials and workmanship for two years after the date of
purchase. In the event of a defect under this warranty, we
will, at our option, repair or replace the product, provided that
you return the product postage prepaid. This warranty does
not cover damages caused by misuse, improper handling,
installation, or maintenance provided by someone other than
a Bushnell Authorized Service Department.
Any return made under this warranty must be accompanied
by the items listed below:
• A check/money order in the amount of $10.00 to cover
the cost of postage and handling.
• Name, address and daytime phone # for product return.
• An explanation of the defect.
• Copy of your dated proof of purchase.
• Do not send in accessories (batteries, SD cards, strap),
only the product for repair.
Product should be well packed in a sturdy outside shipping
carton to prevent damage in transit, and shipped to the
address listed below:
IN U.S.A. Send To:
Bushnell Outdoor Products
Attn: Repairs
9200 Cody
Overland Park, Kansas 66214
WARNING: This product can use Lithium based batteries. Lithium
batteries can overheat and cause damage if physically abused. Do not use
any batteries that are damaged or show signs of physical wear. Never use
a mix of old and new batteries, or batteries with different brand names.

19
IN CANADA Send To:
Bushnell Outdoor Products
Attn.: Repairs
140 Great Gulf Drive, Unit # B
Vaughan, Ontario L4K 5W1
For products purchased outside the United States or Canada
please contact your local dealer for applicable warranty
information.
This warranty gives you specific legal rights.
You may have other rights which vary from country to country.
©2023 Bushnell Outdoor Products
Specifications and designs are subject to change without
any notice or obligation on the part of the manufacturer.
FCC COMPLIANCE STATEMENT
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular

20
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Shielded interface cable must be used with the equipment in
order to comply with the limits for a digital device pursuant to
Subpart B of Part 15 of FCC Rules. Specifications and designs
are subject to change without any notice or obligation on the
part of the manufacturer.
Contains FCC ID: XMR202008EG95NAXD
Note: This Bushnell Wireless Camera is not designed
or intended for operation or sale outside of North America.
This product features technology licensed from Zipit Wireless,
Inc. (“Zipit”), that is copyrighted work of, and may be patented
by, Zipit Wireless, Inc. Copyright 2003-2020 Zipit Wireless,
Inc. All rights reserved. Access to the Zipit services may be
bound by EULA and Privacy policies located at www.bushnell.
com or www.zipitwireless.com/legal.
CAUTION :
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS:
Do not disposal of a battery into fire or a hot oven, or
