Business Source 39038 User manual

USER MANUAL
MANUEL DE L’UTILISATEUR
MANUAL DEL USUARIO
Please read and retain these instructions.
Lisez et conservez ces instructions pour utilisation ultérieure.
Por favor lea y conserve estas instrucciones.
39038 Mini Projector
Miniprojecteur
Mini Proyector

Contents
FCC COMPLIANCE STATEMENT
PRECAUTIONS
GETTING READY
Package Contents
Knowing the device
BASIC OPERATIONS OF THE PROJECTOR
Turning On/Off the Projector
Adjusting Focus
Resizing the Projection Screen
Charging Battery
PROJECTING FROM THE PROJECTOR
HDMI connection
Micro SD Card
Wi-Fi Display
PRODUCT MAINTENANCE
SPECIFICATIONS
TROUBLE SHOOTING
Thank you for purchasing our mini projector. Please read this manual
carefully and keep it in a safe place for future reference.
Product names and trademarks involved in the Manual are for
illustrative and identi�ication purposes only. All of them are the
registered trademarks or copyrights of their original companies.

FCC COMPLIANCE STATEMENT:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
You are cautioned that any change or modi�ications to the equipment could
void your limited 1 year warranty.

If the time arises to throw away your product, please recycle all the
components possible. Batteries and rechargeable batteries are not to be
disposed. Please recycle them at your local recycling point.
PRECAUTIONS
1. To prevent electric shock, do not open the case.
2. When operating the projector, please do not look into the lens, as this
may cause eyes injury.
3. To prevent �ire or electric shock, do not operate this product in wet or
moist environment.
4. For best results, use the product in a dark environment.
5. Dropping or striking the product will damage product appearance and
internal parts.
6. Always use the standard power adapter for the projector.
7. Please unplug the AC adapter from the projector when it is not being
used, unless it is charging.

GETTING READY
Package Contents
Mini projector, Power adapter, Mini HDMI cable,
Mini HDMI adapter, Tripod and User manual.
Knowing the device
● The Projector
Focus
Wheel
Lens
Volume –
Volume +
Power
Enter
Mini
HMDI
DC
In
Audio
Out
Indicator

● Key Operation
up / down
left / right
system menu
enter / media menu
Volume – Volume +
exit
fast rewind fast foward
previous next
play / pause mute
stop
: “Power” key; “Return” key under sub-menu.
: “Volume-” and “Previous” key.
: “Volume+” and “Next” key.
: “Enter” key: “Play/Pause” function in playback menu;
“System menu” function in HDMI mode.

Note :
❑ Handle your remote controller carefully. Dropping or jarring can damage
internal components.
❑ Exposure to direct sunlight, smoke or liquid can harm internal
components.

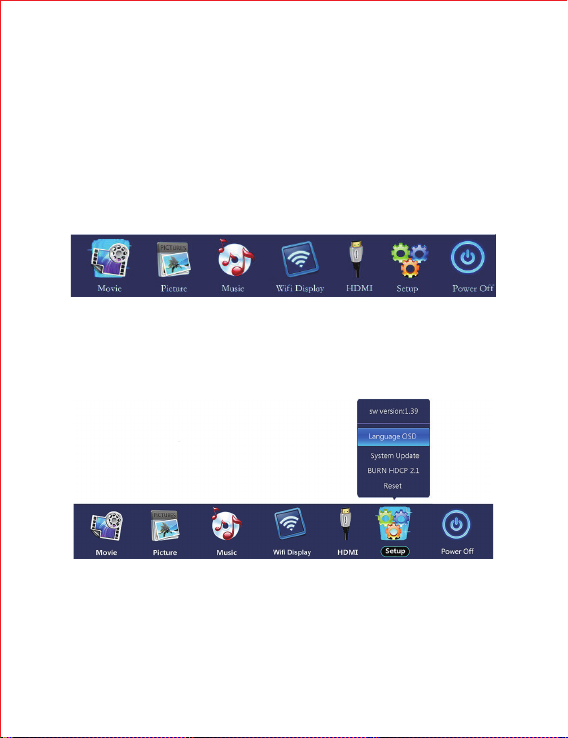

● User interface
You will see the following options on the home screen:
● Setup

The Setup menu includes options to select Language and reset to factory
default. Do NOT use the option “Software update”. They are for manufacturer
maintenance only.
BASIC OPERATIONS OF THE PROJECTOR
Turning On/Off the Operation
● Press and hold the power button for 3 seconds to turn on the
projector, the indicator becomes blue.
● Projector can be turned off in 2 ways:
a: Press the power button for 3 seconds.
b: In the home screen select the Power option and then select
“YES” by pressing “OK” in remote control.
Adjusting Focus
1. Roll the focus wheel to adjust the clarity of the projected image.
2. Stop rolling the wheel once the projected image becomes clear.
Resizing the Projection Screen
The projection screen size is highly related to the distance from the
projector to the projected wall. Please refer to the following table for the
relationship between projection distance and screen size.
The larger projection screen will require darker environment to ensure
better projected image.
Screen Size （ Unit : Inch ）
Project Distance （ Unit : M ）
7
0.18M
38
1M
56
1.5M
100
2.5M
Note: The measured values are estimated for reference only.

Charging Battery
The projector can be powered by AC adapter or internal rechargeable
battery. To have maximum battery life, it is highly suggested to charge
the battery for at least 4 hours the �irst time.
1. Ensure the projector is turned off and connect it to the power
charger.
2. Insert the plug of the power charger into the wall outlet to charge
the battery.
❑Indicator Lights Status
Note : The battery charging status will be shown on the upper
corner of projector main screen.
Icon will appear on the screen when the power adapter is connected
or when the battery is full.
Icon will appear on the screen when the projector is running low on
battery. Please power the projector by AC adapter when battery is
low.
PROJECTING FROM THE PROJECTOR
HDMI
Projecting the display screen from computers, DVs, DSC or other
HDMI source devices like PS4, Xbox 360 game consoles via HDMI
cable connection.
Micro SD Card
Insert the Micro SD card in right way to playback contents, you can
use the keys on the projector or remote controller to select Movie,
Picture or Music.
Turn off
Turn on
Red Light
Charging
Charging
Blue Light
×
Working

Movie
Use this option to play movies and videos stored on the Micro SD card.
Use this option to view pictures stored on the Micro SD card.
Music
Use this option to play music stored on Micro SD card.
Note: Please refer to below for choosing different media.

Wi-Fi Display

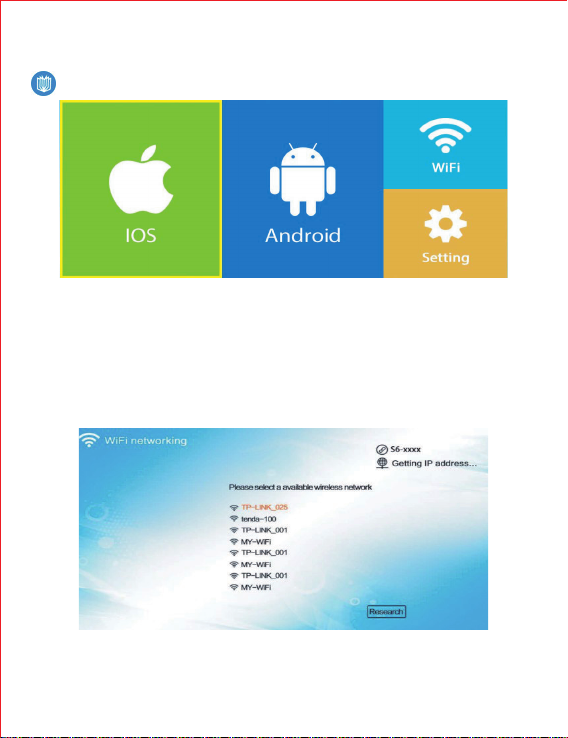

Interface Display
You will see the following options: IOS, Android, WiFi and Setting.
1. WiFi Connecting
Move the cursor to the “WiFi” icon by pressing “OK” key in the remote,
then press “OK” again to scan hotspots.
Enter the corresponding password to the WIFI hotspot to enable the
projector connected to the hotspot.

2. Android Connecting
Select“ WiFi display” on projector home screen. Move the cursor to the
“Android” icon and press “OK” key to enter.

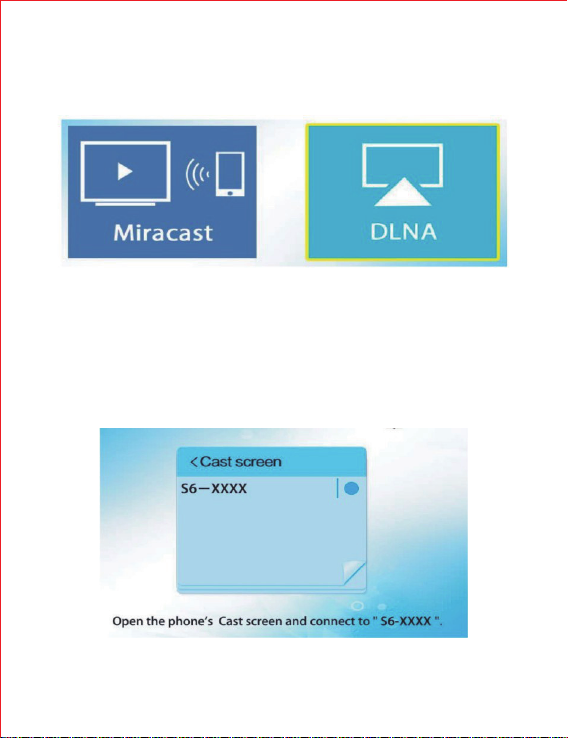

Miracast:
①Move the cursor to the “Miracast” icon and press “OK” key in the
remote controller to enter.
(Open the phone’s Cast screen and connecet to “S6-XXXX”.)

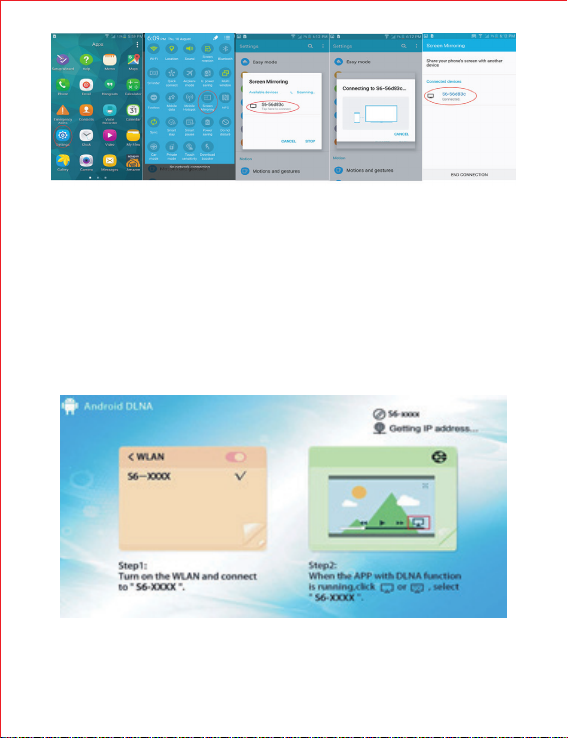

②Turn on the Android phone. Settings - More Networks - Screen
Mirroring - Choose the ID on the list. After successfully connected,
projector will start projecting content on the phone screen.

DLNA:
①DLNA:Online video play, music play and picture push. This function
can allow mobile phone to project chosen content and perform other tasks
at the same time. First, connect the projector to a WiFi hotspot (Please
refer to WiFi connecting). Then, move the cursor to the “DLNA” icon and
press the “OK” key to enter.
②Turn on your Android mobile phone. Go to Settings - WLAN - Connect ID -
Open an online video player - Click “TV” icon in the upper right conner -
Choose the projector ID to play.

③When playing the video, you can go back to the desktop and continue with
other operations.
④For music or picture application software with push function, you can also
follow this operation.
3. IOS Connectiong
Select “WiFi display” on the home screen. Move the cursor to the “IOS” icon
and press the “OK” key to enter.
There are two functions here: local screen sharing and online play.
Local screen sharing
Turn on your ipad. Go to Settings - WLAN - Connecting ID number - Slide
upward of IOS equipment to display the hidden mune and click “Airplay”
Mirroring-Complete. Just wait for a few seconds before the connection is
successful.

Online play
①First connect the projector to a WiFi hotspot. Then, move the cursor to the
“IOS” icon and press “OK” key to enter.
②Turn on your ipad or iPhone. Go to the Settings>Click to open WLAN in the
following �igure>Connecting the ID number>Open a video player
software to play online video>Click the “TV” icon in the upper right
corner>Choose the projector device to play.
③When playing the video, the tablet can go back to the desktop and continue
with other operations.
④For music or picture application software with push function, you can also
follow this operation.

Setting
Enter “WiFi display” on the home screen. Move the cursor to the “Setting”
icon and press “OK” key to enter.
Interface display: Online upgrade, IOS Cellular Data, Factory data reset, About
the device
Online upgrade: Online upgrade WiFi controls.
IOS Cellular Data: In order to access LTE when projecting from an iOS device,
cellular data must be turned on. In order to access public Wi-Fi hotspot and
play streaming videos, please turn off the cellular data before projecting.
About the device: Displays Software Version, MAC address and SN.

PRODUCT MAINTENANCE
Projector
Charge the battery for at least 4 hours the �irst time. If the projector is
dirty, wipe with a dry cloth. Do not wipe with a damp cloth.
Remote controller
The remote controller comes with battery in the original package.
Please use the same type battery when the provided one is out of
power.
Note : The speci�ications are subject to change without notice.
SPECIFICATIONS
Name Mini Projector
Native resolution 854*480 (FWVGA)
Compatible resolution 640*480~1920*1080
Wireless Connectivity
Miracast (Android), AirPlay (iOS)
Light source RGB LED
Focus Manual adjust
Power supply DC 5V/2A (Micro USB Type )
Power consumption 8.5W
Built-in Speaker 8Ω/.7 W(x1)
Input Mini HDMI/MicroSD slot (up to 64 GB)
Output Audio output (ψ3.5mm)
Battery 3.7V, 2500MAH
Dimension (LxWxH) 55*55*55mm
LED working life
Relative working humidity
Above 30000 hrs
10%~90%

TROUBLE SHOOTING
Q1. Why is projector blue indicator on, the projection screen is not powered?
A : Make sure not to press and hold the power key too long. Release the power key
as soon as the blue indicator is on. Please be patient and not to push the power
key repeatedly during the projector system is booting. Otherwise that may cause
the projector stuck.
Q2. When the projector is in use, it abruptly stops playing.
A : Normally the projector will be back to system home page or stop working easily
if the blue touch buttons are touched during playback.
Q3. Why can I not play the �iles from my SD card?
A : Please check :
1. If the capacity of this SD card is higher than 64GB? The capacity supported by
the projector is only up to 64GB.
2. If the SD card does not comply with standard.
Q4. Why can't some movies be played?
A : In this case there are several possibilities.
1. The �ile size is too large.
2. The video resolution is higher than 1080p. The supported resolution is only
up to 1080p.
3. The �ile format is not supported. Please refer to the the video format support
list in Speci�ications chapter.
Q5. Why don't some movies have sound?
A : Due to the copyright issue of Dolby, this projector does not support Dolby audio
decoding. You might not get sound from videos if they use Dolby audio decoding.
Q6. What should I do if the projector system is crashed or stuck?
A : In this case there are several possibilities that will cause the system crash
sometimes.
1. The computing power of the projector cannot catch up the one of the
connected devices
2. The mismatched display resolutions between the projector and the connected
device.
The possible solution is to restart the projector. Then the projector will work
normally.

Table des matières
ÉNONCÉ DE CONFORMITÉ
AVERTISSEMENTS
PRÉPARATION
Contenu
Aperçu détaillé
FONCTIONS DE BASE
Allumer et éteindre le projecteur
Mise au point du foyer
Taille de l’image
Recharge de la pile
DIRECTIVES D’UTILISATION
Hdmi
Carte microsd
Projection sans �il
ENTRETIEN
CARACTÉRISTIQUES TECHNIQUES
DÉPANNAGE
Nous vous remercions d’avoir acheté notre miniprojecteur. Veuillez lire
attentivement le présent mode d’emploi et le conserver dans un endroit sûr
pour référence ultérieure.
Les noms de produits et les marques de commerce mentionnés sont
seulement fournis à titre d’illustration et d’identi�ication. Ces mentions
appartiennent à leurs sociétés d’origine et sont toutes protégées par les lois
sur les marques et le droit d’auteur.
