Butler 91003 User manual

ALUMINUM SOLAR GARDEN
LIGHTHOUSE
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit ourWeb site at http://www.harborfreight.com
Copyright©2003 byHarborFreightTools®. Allrightsreserved. Noportion
of this manual or any artwork contained herein may be reproduced in any shape
or form without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
91003
91004

SKU 91003/91004 For technical questions, please call 1-800-444-3353. Page 2
SaveThis Manual
Youwillneed the manualforthesafetywarningsandprecautions,assemblyinstructions,
operating and maintenance procedures, parts list and diagram. Keep your invoice with this
manual. Write the invoice number on the inside of the front cover. Keep the manual and
invoice in a safe and dry place for future reference.
Safety Warnings and Precautions
WARNING:When using product,basic safety precautions should always be followed to
reduce the risk of personal injury and damage to equipment.
Read all instructions before using this product!
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Keep work area well lit during setup.
3. Keep children away. Children must never be allowed in the work area during setup.
Do not let them handle or play with the Lighthouse.
4. Store idle equipment. When not in use, products should be stored in a dry location to
inhibit rust.
5. Use the right product for the job. Do not attempt to force a small product to do the
work of a larger product. There are certain applications for which this product was
designed. Do not modify this product and do not use this product for a purpose for
which it was not intended.
6. Dress properly. Protective, electrically nonconductive clothes and nonskid footwear
are recommended during setup. Wear restrictive hair covering to contain long hair.
7. Use eye protection. Always wear ANSI approved impact safety goggles during setup.
8. Maintain products with care. Keep products clean for better and safer performance.
9. Stay alert. Watch what you are doing, use common sense. Do not assemble any
product when you are tired.
10. Check for damaged parts. Before using any product, any part that appears damaged
should be carefully checked to determine that it will operate properly and perform its
intended function. Check for any broken parts or mounting fixtures; and any other
snoitacificepS
UKS 30019 40019
noitcurtsnoC roiretxEetihWeuqitnAhtiwmunimulA
snoisnemiD "2/1-4xH"8/5-81 .aiDrewoT "2/1-5xH"4/3-33 .aiDrewoT
yrettaB dCiN”AA“2
)dedulcni(
eziSekatS L"2/1-8
lleCraloS erauqs"2 erauqs"4/1-2
eyE/lleCotohP ffO/nOotuA
emiTgninnuRthgiN .srh8yletamixorppA

SKU 91003/91004 For technical questions, please call 1-800-444-3353. Page 3
Specific Solar Lighthouse Warnings
1. The Solar light must be installed in a sunny location where it will receive at least 8
hours of sunlight daily. Do not allow anything to shade or cover the Solar Lighthouse,
or it will keep the solar panel from absorbing enough sunlight to operate at full capacity.
2. For best lighting results if more than one Solar Lighthouse is to be used, it is
recommended that you do not space Solar Lighthouses more than 12 feet apart. Do
not place Solar Lighthouses less than five feet from each other or they may cause the
lights to flicker from such a close adjacent light source.
3. Position the Solar Lighthouse away from any other night lighting sources as they may
interfere with the lights ability to turn on and off automatically.
Unpacking
When unpacking, check to make sure the parts listed on page 5 are
included. If any parts are missing or broken, please call Harbor FreightTools at
the number on the cover of this manual as soon as possible.
conditionthat mayaffectproperoperation.Anypartthat is damagedshould beproperly
repaired or replaced by a qualified technician.
11. Replacement parts and accessories. Whenservicing, useonly identical replacement
parts. Use of any other parts will void the warranty. Only use accessories intended for
use with this product. Approved accessories are available from Harbor Freight Tools.
12. Do not setup the product if under the influence of alcohol or drugs. Readwarning
labels if taking prescription medicine to determine if your judgment or reflexes are
impaired while taking drugs. If there is any doubt, do not setup the product.
13. Maintenance. Foryoursafety,serviceand maintenanceshould beperformed regularly
by a qualified technician.
WARNING:The warnings,cautions,and instructions discussed in this instruction
manual cannot cover all possible conditions and situations that may occur.
It must be understood by the operator that common sense and caution are
factors which cannot be built into this product, but must be supplied by
the operator.
Assembly
1. AssembletheTower(I) tothe House(J),
using one Nut (M) and Bolt (K) through
the top holes only.
2. Assemble the Ground Stake (L) to the
House/Tower Assembly (I and J) using
the other Nut (M) and Bolt (K) through

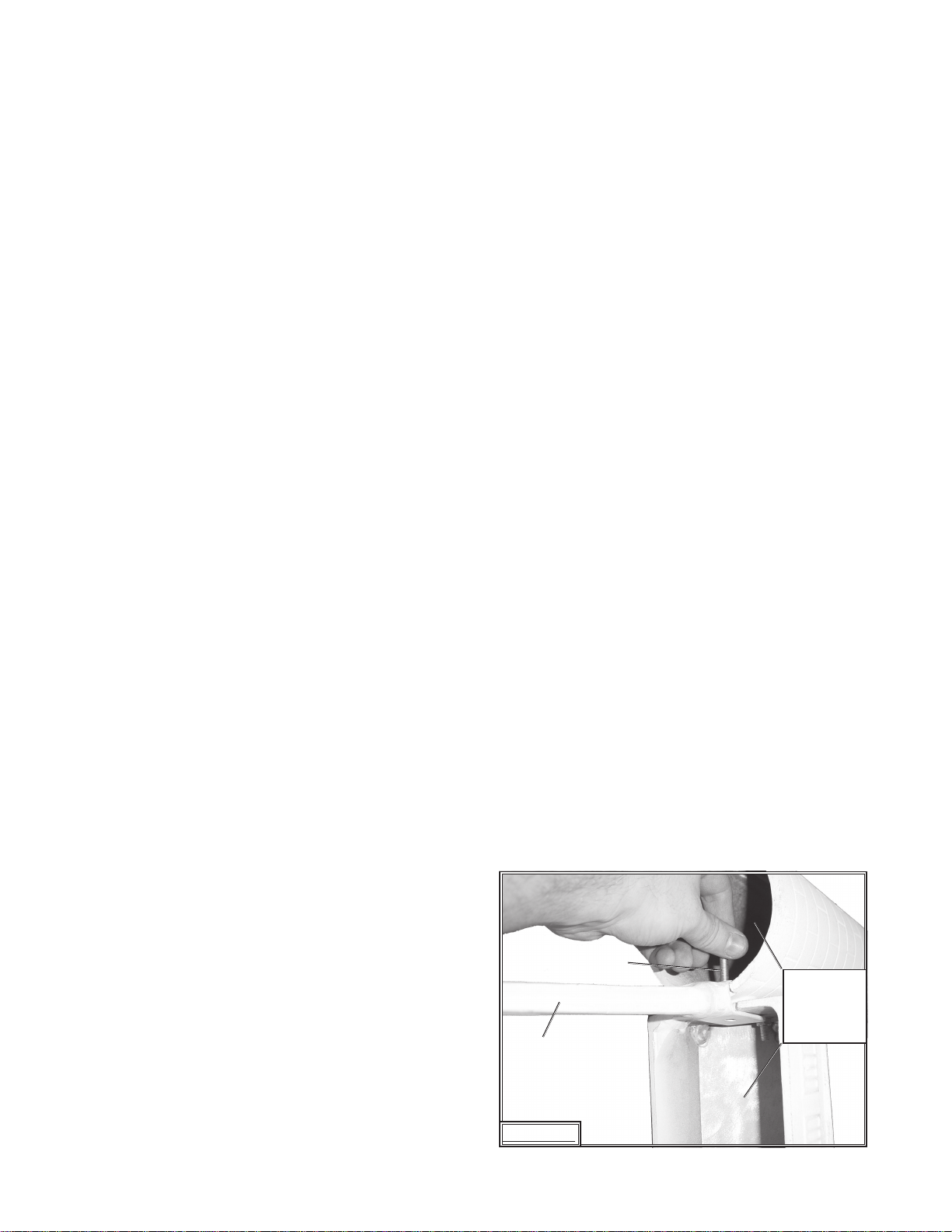

Figure 1
Ground
Stake (L)
Bolt (K) Tower (I)
and
House (J)

SKU 91003/91004 For technical questions, please call 1-800-444-3353. Page 4
Maintenance
1. If you do not use the Solar
Lighthouse for extended periods of
time, turn it off.
2. Make sure the solar panel and auto
on/off sensor, both on top of the
Cover (A), are clean.
See Figure 2, left.
3. Periodically, wipe the Transparent
Outer Hood (G) with a damp cloth
to clean off any dirt, dust, or mud
that may accumulate.
NI-CD BATTERY MUST BE RECYCLED
OR DISPOSED OF PROPERLY.

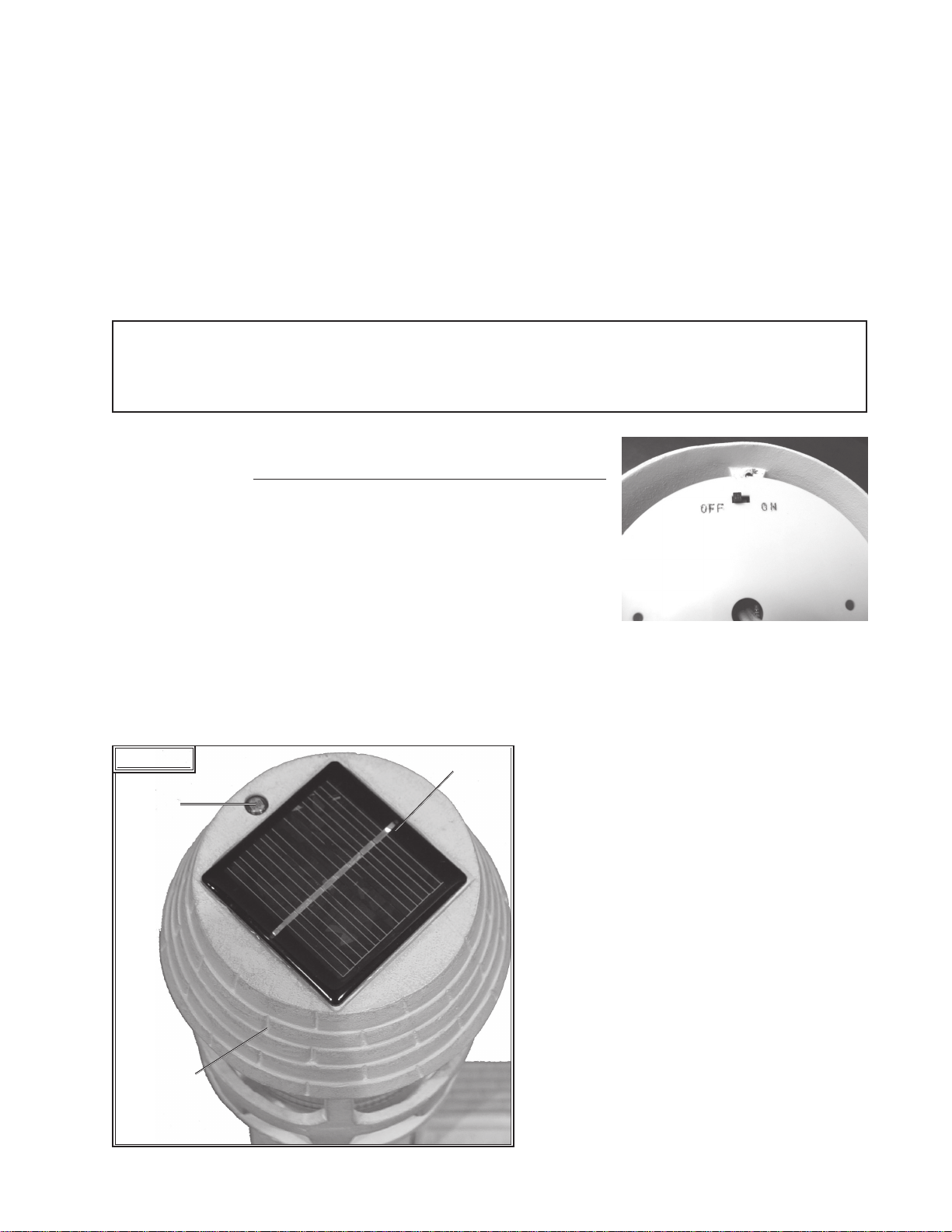

Figure 2
Cover (A)
solar
panel
auto
on/off
sensor
WARNING: When digging the hole and inserting the Ground Stake (L), make
sure that in the area there are no underground electrical cables or wires,
water pipes, gas lines, etc.
both the holes in the top of the Ground Stake and the lower holes in the House/Tower
Assembly.
See Parts Diagram on page 5 and Figure 1, right.
3. Choose a location away from other nighttime light sources and dig a hole about 8-1/2
inches into the ground. If the ground is hard, soak it with water prior to digging. After
digging, refill the hole with the loosened soil.
4. Work the Ground Stake (L) into the ground without forcing it. Forcing will break the
Ground Stake (L) and permanently damage the Solar Lighthouse.Make sure the Solar
Lighthouse is stable.
Note: This unit is shipped with the switch in the OFF
position. The unit must be turned on prior to use.
5. Observe carefully within the Aluminum Hood (E) to see
if the switch is in the ON or OFF position. If the switch
is in the OFF position, the light will not illuminate and
the unit will concentrate on charging the batteries. The
switch can usually be accessed without disassembly
through the Aluminum Hood (E).
REV 11/04

SKU 91003/91004 For technical questions, please call 1-800-444-3353. Page 5
traPnoitpircseD.ytQ
ArevoC1
ByrettaB"AA"dCiN2
CesaCyrettaB1
D21x3MwercS4
EdooHmunimulA1
FdooHrennItnerapsnarT1
GdooHretuOtnerapsnarT1
H01x5MwercS4
IrewoT1
JesuoH1
K54x6MtloB2
LekatSdnuorG1
M6MtuN2
,strapgniredronehWsyawlayficeps .roferayehtrebmunledomhcihw
PLEASE READTHE FOLLOWING CAREFULLY
THEMANUFACTURERAND/ORDISTRIBUTORHAS PROVIDEDTHEPARTSDIAGRAMINTHIS
MANUALASAREFERENCETOOLONLY. NEITHERTHEMANUFACTURER NOR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KINDTOTHE BUYERTHAT HE OR
SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER
AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS
REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSEDTECHNICIANS
ANDNOTBYTHEBUYER.THEBUYER ASSUMESALL RISK ANDLIABILITY ARISING OUTOF
HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO,
OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTSTHERETO.
NOTE:Some parts are listed and shown for illustration purposes only
and are not available individually as replacement parts.
Parts List and Diagram
