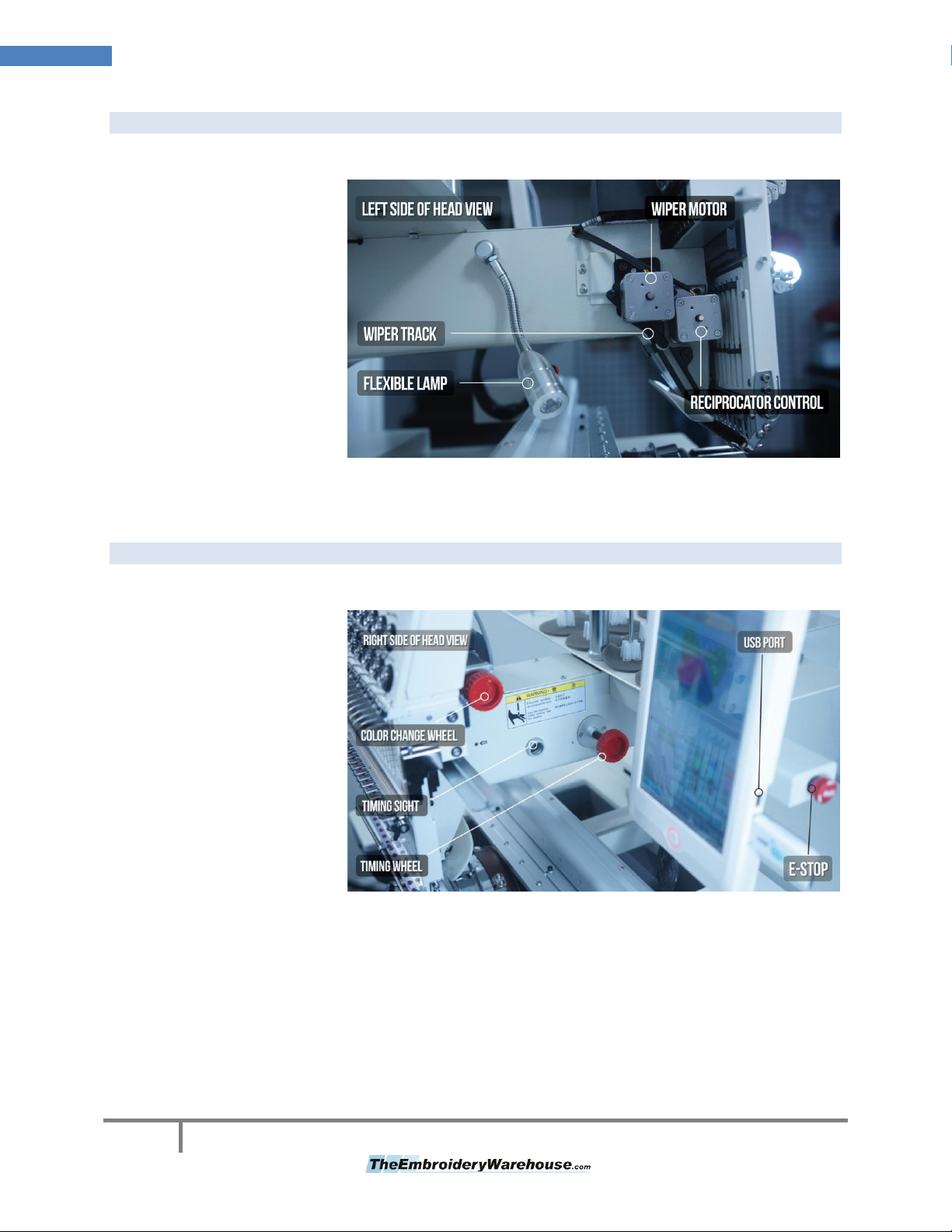

2.2.3 Left View .............................................................................................................................13
2.2.4 Right View ...........................................................................................................................13
2.3 Out of the crate setup.................................................................................................................14
2.3.1 Unboxing.............................................................................................................................14
2.3.2 Setting up stand (Complete) ...............................................................................................14
2.3.3 Setting up stand (Using Table Top).....................................................................................14
2.3.4 Placing machine on stand (Without Table Top)..................................................................14
2.4 Setting up thread rack tree.........................................................................................................15
2.5 Setting up threading tubes .........................................................................................................16
2.6 Setting the spools........................................................................................................................17

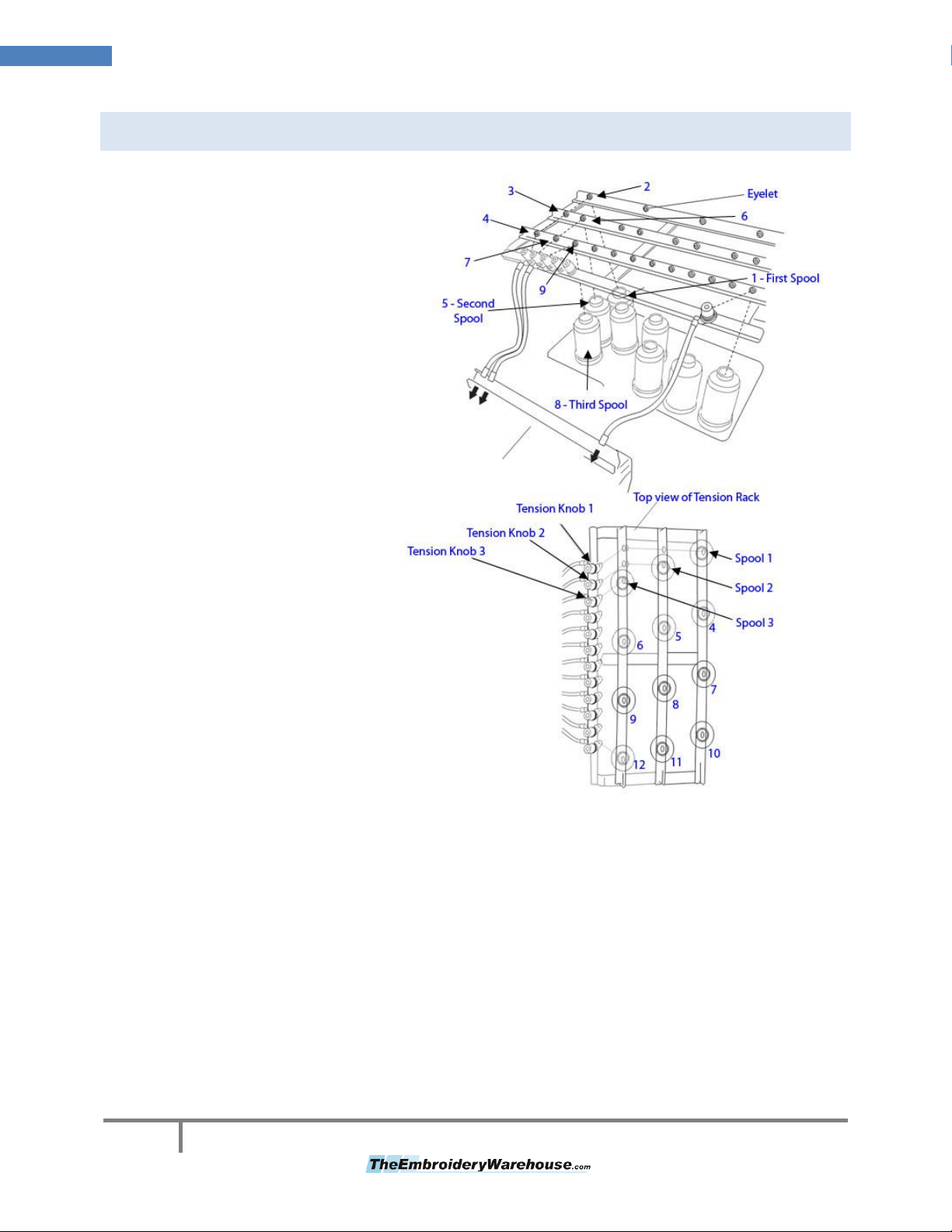

2.7 Threading and tensions of your machine ...................................................................................18
2.8 Setting Upper Thread..................................................................................................................19
2.8.1 Upper Thread Threading.....................................................................................................19
2.8.2 Upper Thread Tension ........................................................................................................21
2.9 Setting Bobbin.............................................................................................................................23
2.9.1 Bobbin Thread Threading....................................................................................................23

P a g e | 4
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
2.9.2 Bobbin Thread Tensions......................................................................................................24
2.10 Needles .......................................................................................................................................26
2.10.1 Recommended Needles......................................................................................................26
2.10.2 Changing or Replacing Needles...........................................................................................26
3 Hooping...............................................................................................................................................29
3.1 Setting up the tubular arms........................................................................................................29
3.2 Hooping a tubular hoop..............................................................................................................30
4 Using the Control Panel ......................................................................................................................32
4.1 About the control panel..............................................................................................................32
4.2 Basic Control Panel Operations...................................................................................................33
4.2.1 Load design from USB / Memory stick................................................................................33
4.2.2 Load design from memory (internal memory) ...................................................................33
4.2.3 Color Changes .....................................................................................................................33
4.2.4 Changing Orientation of Design..........................................................................................33
4.2.5 Centering and Tracing.........................................................................................................34
5 Maintenance.......................................................................................................................................36
5.1 Oiling ...........................................................................................................................................36
5.1.1 Oil Point Breakdown ...........................................................................................................37
5.1.2 Oil and Lubrication Videos ..................................................................................................38
5.2 Timing and Synchronization Points.............................................................................................38
5.3 Electronics Specs.........................................................................................................................38
6 Glossary...............................................................................................................................................39
6.1 Glossary.......................................................................................................................................39
7 Frequently Asked Questions ...............................................................................................................41
7.1 FAQS............................................................................................................................................41
8 Specifications ......................................................................................................................................42
8.1 Machine specifications................................................................................................................42
9 Troubleshooting and Technical Support.............................................................................................43
9.1 Technical Support .......................................................................................................................43
9.2 Troubleshooting..........................................................................................................................43
9.3 Error Codes .................................................................................................................................44
10 Pictures ...........................................................................................................................................46
10.1 Pictures & Videos........................................................................................................................46

P a g e | 5
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
11 Part Book.........................................................................................................................................47
11.1 Parts Book ...................................................................................................................................47
11.1.1 Frame and Table Components............................................................................................49
11.1.2 Rotary Hook Box..................................................................................................................52
11.1.3 Thread Cut Components.....................................................................................................55
11.1.4 Machine Head.....................................................................................................................58
11.1.5 Needle Bar Drive Components............................................................................................61
11.1.6 Upper Thread Holder ..........................................................................................................63
11.1.7 Color Change System ..........................................................................................................66
11.1.8 Needle Bar Bracket (1)........................................................................................................68
11.1.9 Needle Bar Bracket (2)........................................................................................................70
11.1.10 X-Axis Drive Components................................................................................................72
11.1.11 Y-Axis Drive System.........................................................................................................75
11.1.12 Tension Base ...................................................................................................................78
11.1.13 Automatic Winding Components....................................................................................80
11.1.14 Electrical Control Components .......................................................................................82
11.1.15 Operating Plate ...............................................................................................................84
11.1.16 Cap Drive Components ...................................................................................................86
11.1.17 Cap Base Components ....................................................................................................88
11.1.18 Cap Frame .......................................................................................................................90
11.1.19 Thread Support ...............................................................................................................92
11.1.20 Embroidery Frame ..........................................................................................................94

P a g e | 6
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
ABOUT THIS DOCUMENT
This document is to be used as a reference user’s manual for the Butterfly B1501B/T –Single
Head 15 Needle Embroidery Machine.
We highly encourage you to completely review the entire contents of this manual before setting
up or using your embroidery machine.
To download a copy of this manual at any time, please go to:
http://www.ButterFlyEmb.com/Butterfly_Embroidery_Machine_Manual.pdf

P a g e | 7
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
1GENERAL INFORMATION
1.1 ABOUT THE MACHINE
The Butterfly B1501B/T is a single head (single station) embroidery machine with 15 needles
(colors). This allows the user to embroider up to one garment at one time with one needle at a time.
The machine automatically color changes (as indicated or preprogrammed by the embroidery machine
design). A color change is in essence selecting a different needle with a different color thread in the
needle. The machine has a USB port (memory stick) that reads several different embroidery formats.
The user manually loads the pre-digitized designs into the machine off of the USB port and/or the
network when applicable.
1.2 COMPATIBLE DESIGN FORMATS
The Butterfly machine work with the following design formats all saved on a standard USB flash
(thumb or memory) drive. Instruction on how to save to these formats can be found in your software
user manual. If you do not have software that will write to one of the compatible formats, please go to
http://www.Threadses.com to download Threads - Free Digitizing / Editing Embroidery Software.
DST (Tajima Format)
EXP (Melco DOS Format)
1.3 TYPE OF EMBROIDERY APPLICATIONS
The Butterfly machine is comparable with most all of the major industrial (commercial)
embroidery machines. Some embroidery equipment may or may not have special equipment attached
to offer additional types of embroidery. The following general list includes several applications where
the Butterfly Embroidery Machine might be used. Typically to change from one type of embroidery
setting to the next requires the operator to manually change out adapters.
This general list includes but is not limited to:
Flat Embroidery Work
oFlat embroidery work typically includes works done when the embroidery
machine tabletop (removable on the Butterfly) is left on the machine. This
refers to anything typically flat in nature or design such as

P a g e | 8
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
Drapery
Table Cloths
Aprons
Yard goods (yard referring to a measurement of fabric/material)
Etc.
Tubular Embroidery Work
oTubular Embroidery Work typically refers work that is done with the removable
tabletop removed from the machine. This allows for the embroidery work to be
draped down from the machine hanging from the embroidery hoop. Tubular is
currently the most popular form because it makes hooping and embroidering
shirts much easier. Hooping a Tubular Frame is general much less time
consuming and easier than hooping with other types of hoops or frames.
T-Shirt
Polos
Pillow Cases
Bags
Back of Hats
Etc.
Cap (270 degree) Embroidery
oCap embroidery refers to embroidery done directly on a baseball style cap/hat
Baseball Caps
Etc.
1.4 WARRANTY AND RETURN POLICY
Below is a summary of our warranty and return policy. We highly recommend you to read the
full warranty and return policy document.
Our warranty covers up to 5 years on all non-consumable parts and electronics one the Butterfly
Embroidery Machine. Our warranty does not cover misuse or user damages. To redeem warranty
repairs or service, the device must be sent back to our corporate office. Labor is covered for one year
via phone support, web support (email, webcam, chat, etc.) and in-house (OUR HEADQUARTERS). Labor
warranty is automatically voided if the machine is worked on by non-authorized or non-approved
parties.
Returns may be accepted for up to 5 days after receiving the equipment. The equipment must
be returned in its original packing, undamaged. Refund will be issued upon returning the device minus
ALL shipping costs. A restocking fee typically always applies.

P a g e | 9
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
1.5 CONTACT AND TECHNICAL INFORMATION
Corporate office:
2954 SE Loop 820
Fort Worth, Texas
76140 / USA
[phone]
http://www.ButterFlyEmb.com
Mailing:
PO BOX 11977
Fort Worth, Texas
76110 / USA
Parts and Accessories:
http://www.EmbAccess.com
Electronics Repairs and servicing:
http://www.PLRElectronics.com

P a g e | 10
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
This page intentionally left blank

P a g e | 11
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
2SETTING UP YOUR EQUIPMENT
2.1 INCLUDED WITH YOUR EQUIPMENT
Included in a standard purchase of the B1501B/T embroidery machine typically includes***:
Power Cable
Standard Tool kit with the following
oScissors
oTweezers
oThreading Rod
oOil Can
oPhilips Screw Driver
oFlat Screw Driver
oUSB Memory Stick
oBasic Parts
oEtc.
Single Head Stand
Removable Table Top
Light (typically attached to the machine)
Border Sash
Stand (cart)
Table top
Cap System
Tubular System
*** The above list may contain items not included with your particular machine. It is highly
recommend getting a complete list from your sales representative. The above list is only a
generalization.

P a g e | 12
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
2.2 GETTING TO KNOW YOUR MACHINE
2.2.1 Front View
Butterfly B1501B/T
Embroidery Machine –Front
view of our Single head 15
needle embroidery machine,
shown in Figure 2-1. The
machine assembled on the
cart/stand. This example is
with the tubular hoop
attachment installed and the
removable table removed.
2.2.2 Control Panel
Control panel –The control
panel is where the entire
machine is controlled, shown in
Figure 2-2. This includes your
Stop, Start, Emergency Stop
and Power button at the
bottom of the machine. On the
right side of the machine is the
USB port for inserting a USB
memory stick for inputting
designs into the machine. The
Speed Up and Speed Down
button are used to control the
embroidery speeds of the
machine during operation. The recommended speed to run the machine is between 600 –800 stitches
per minute. The same buttons also double as back and forward buttons for the menu, etc.
Figure 2-1: Front view of Butterfly B1501 B/T
Figure 2-2: Control Panel

P a g e | 13
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
2.2.3 Left View
Head Left Side –View looking
to the left side of the
embroidery machine, shown in
Figure 2-3. Various motors are
shown on the left side of the
machine. The wiper motor
control the wipers which grab
the embroidery thread after
the thread is cut. The
reciprocator motor is what
controls the arm which grabs
the needle bar and moves it up
and down.
2.2.4 Right View
Head Right side –View looking
to the right side of the
embroidery machine, shown in
Figure 2-4. The color change
where is used to move the
head to the left or to the right
(to different needles). The
timing sight is a glass window
you can view the timing
numbers through (for setting
machine parameters during
maintenance). The timing
wheel moves the needle bar
through its cycles from 0 to 360
degrees. The laser light is used to highlight the needle plate hole or, the point at which the embroidery
machine needle makes penetration.
Figure 2-3: Left Side of Head
Figure 2-4: Right side of head

P a g e | 14
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
2.3 OUT OF THE CRATE SETUP
If your equipment has been shipped to you in a crate then there are certain steps you will need
to take to uncrate and setup. The steps may vary from machine to machine and crate to crate.
2.3.1 Unboxing
https://www.youtube.com/watch?v=CBxDQSOzCcs&t=17s
2.3.2 Setting up stand (Complete)
https://www.youtube.com/watch?v=kt5vlsOifEE&t=212s
2.3.3 Setting up stand (Using Table Top)
https://www.youtube.com/watch?v=Kwj06xFSeKU
2.3.4 Placing machine on stand (Without Table Top)
https://www.youtube.com/watch?v=QPa10_AF5Cs

P a g e | 15
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
2.4 SETTING UP THREAD RACK TREE
Assembly of the Thread Rack (also
known as the Threading Tree) –See Figure
2-5. The thread rack is the part of the
machine which includes the first set of
tension knobs. The primary function of
the thread rack is to smoothly unwind
thread off of the spool of thread.
Step 1 –Screw Thread Stand
Shafts (2 pcs) in by hand into threaded
holes A and B on the Thread Stand.
Step 2 –Tighten thread shafts
using the flat adjustor C on each shaft with
a wrench.
Step 3- Place the Thread Rack/Tree
onto thread stand shafts with the knobs of
the thread rack facing towards the head
(front most part of the machine)
Step 4 –Tighten Allen screws on
top of the thread rack.
Figure 2-5: Thread Rack

P a g e | 16
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
2.5 SETTING UP THREADING TUBES
Assembly of the threading tubes.
–See Figure 2-6. The primary functions of
the thread tubes are to keep the threads
from raveling together under wind, etc.
Step 1 –Insert a Thread Tube Joint (end of
a Thread Tube) into the top U-SLOT. Start
by inserting one end of one tube in U-Slot
A1. A1 is located on the Thread Rack.
Step 2 –Insert the other end of the
Thread Tube into A2. A2 is located on the
machine head, on the Tension Knob Base.
Step 3- Proceed by installing each thread
tube in the same manner.
Figure 2-6: Threading Tubes

P a g e | 17
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
2.6 SETTING THE SPOOLS
The Butterfly B1501B/T is a
15-color machine meaning it can hold
up to 15 different spools of thread.
Generally, most users will use 15
different colors of thread designating
at least 6 of the colors for basics such
as white, black, red, blue, green,
yellow, etc. There are various brands
and types of threads. The most
common types are Rayon and
Polyester. Rayon is a softer but
weaker thread. Typically, polyester
(or “poly”) is recommended due to its
strength which also reduces thread
breaks.
Step A –Begin by placing 15 spools of
thread on the thread stand. Refer to
Figure 2-7.
Step B –Take the first spool (1)
thread and pass it through eyelet ‘2’
in the image followed by ‘3’ then ‘4’.
Step C –Take the second spool (5)
thread and pass it through eyelet ‘6’
in the image followed by ‘7’.
Step D - Take the third spool thread
(8) and pass it through eyelet ‘9’ in
the image
Step E –Continue with the next spool
in sequence (to the right of spool 1). Continue till the entire thread rack is threaded.
You can choose to thread the tension knob while threading the thread rack or, wait till the entire thread
rack is threaded and then thread the rest of the machine (proceeding pages).
Image 1 - Threading
Figure 2-7: Thread Stand and Spools

P a g e | 18
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
2.7 THREADING AND TENSIONS OF YOUR MACHINE
Be sure you have already completed the previous sections before proceeding. Proper threading
and tensions of your embroidery machine are essential to production, thread breaks, and final
embroidery quality. Without properly threading your machine and setting the correct tensions per
spool, needle and bobbin, your machine may not run. It is very important that the threading tracks and
tensions are constantly checked.

P a g e | 19
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
2.8 SETTING UPPER THREAD
2.8.1 Upper Thread Threading
The upper thread refers
to the thread that is seen on the
top of the embroidered item.
The upper threading track is
shown in Figure 2-8. An upper
thread break typically refers to
when the current spool of thread
that is embroidering has broken.
Upper thread is also physically
located at the top of the machine
whereas the lower thread
(bobbin) is located towards the
bottom. Upper thread is the
common spool of thread used to
embroidery designs.
Video -
https://www.youtube.com/watc
h?v=DvGlU2_-yLo
Refer to Figure 2-9 to thread.
Step A –First complete
the section “Setting the threads”.
Step 1 –Insert the first
thread into the eyelet of the pretension knob. The pretension knob is the one at the very top of the
machine and is the first tension knob the thread passes through
Step 2 –Place the thread in between the 2 disks of the pretension knob going to the right.
Step 3 –Detach the top of the thread tube and place thread through U-Slot
Step 4/5/6 –For this step you will need the threading rod. The Threading Rod is a narrow piece
of plastic approximately 2 feet long about the width of a pencil tip that comes with the standard tool kit.
If you do not have a threading rod, you can also use a guitar string or anything similar. On the end of the
threading rod, there is a cut out notch. Insert the threading rod from the bottom of the threading tube,
notch end first. Pass the threading rod through the entire threading tube until the notched end comes
out. Attach the thread to the notch and (5) pull the other end of the threading rod back out of the
threading tube so that the thread is completely through the tube. (6) Attach both ends of the threading
tube back onto the machine.
Figure 2-8: Upper Threading Track

P a g e | 20
Butterfly B1501B/T - Single Head 15 Needle Embroidery Machine Manual
Step 7 –Pass the thread
under the thread guide. The
thread guide is a piece of metal
loosely attached to the machine
by a screw and spring. The
function of the thread guide is to
unravel threads that might still
be raveled and to keep threads
going straight in their designated
paths.
Step 8 –Pass the thread
through the main tension knob in
the same manner as it goes
through the pretension knob
Step 9 –Place thread to
the left of the guide rod
Step 10 –Pass the thread
thru the next guide hook directly
under the tension side. Below
this guide hook is a rotary wheel.
The rotary, or Thread Break wheel, is used to detect thread breaks. If your machine is giving false thread
breaks, first check that this wheel is properly threaded. If this wheel is properly threaded, check the
entire thread track for any mis-threading.
Step 11 –Place the thread to the left and then under the guide pin located directly to the left of
the rotary wheel. Then bring the thread back over the top of the wheel and then to the right, and the
back down and to the left of the next thread guide pin.
Step 12 –Bring the thread down and place thread under the next thread guide.
Step 13 –Open the head case cover. To the right of the machine behind the cover, on the head,
there is a lever that goes up and down. Push the lever down as far as it goes. When you do, you will see
several (12) small wires/springs. These are known as the Check Springs.
Step 14 –Place the thread to the right of the right most cylinder rod where check springs come
out of when the check spring lever is pressed down. Place the thread through the check spring eyelet
from the right to the left. Bring the thread back up to the left of the leftmost rod corresponding to the
current thread you are threading. Move the lever so that the checks springs go back up all the way and
then bring it back down about 1mm to give the springs a little bit more spring than if they were all the
way up. Not placing the check springs in the correct position will cause trimming problems and
problems when changing colors.
Step 15 –Bring the thread back up about 3 inches into the take up lever eyelet.
Figure 2-9: Thread direction
