BVA Hydraulics CEP05 User manual

Printed in Taiwan
MODELS: CEP05, CEP15, CEP25
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] - Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
CEP05-M0_102017
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
!
Clevis Plunger
Instruction Manual
CEP05 & CEP15 CEP25
Model No. D1201
Approved By:
Checked By:
Drawn By: 陳神佑
Date: 2013.11.13
File name: D1201_1511OUT
Model No. D1203
Approved By:
Checked By:
Drawn By: 陳神佑
Date: 2013.11.13
File name: D1203_1511OUT

2
!

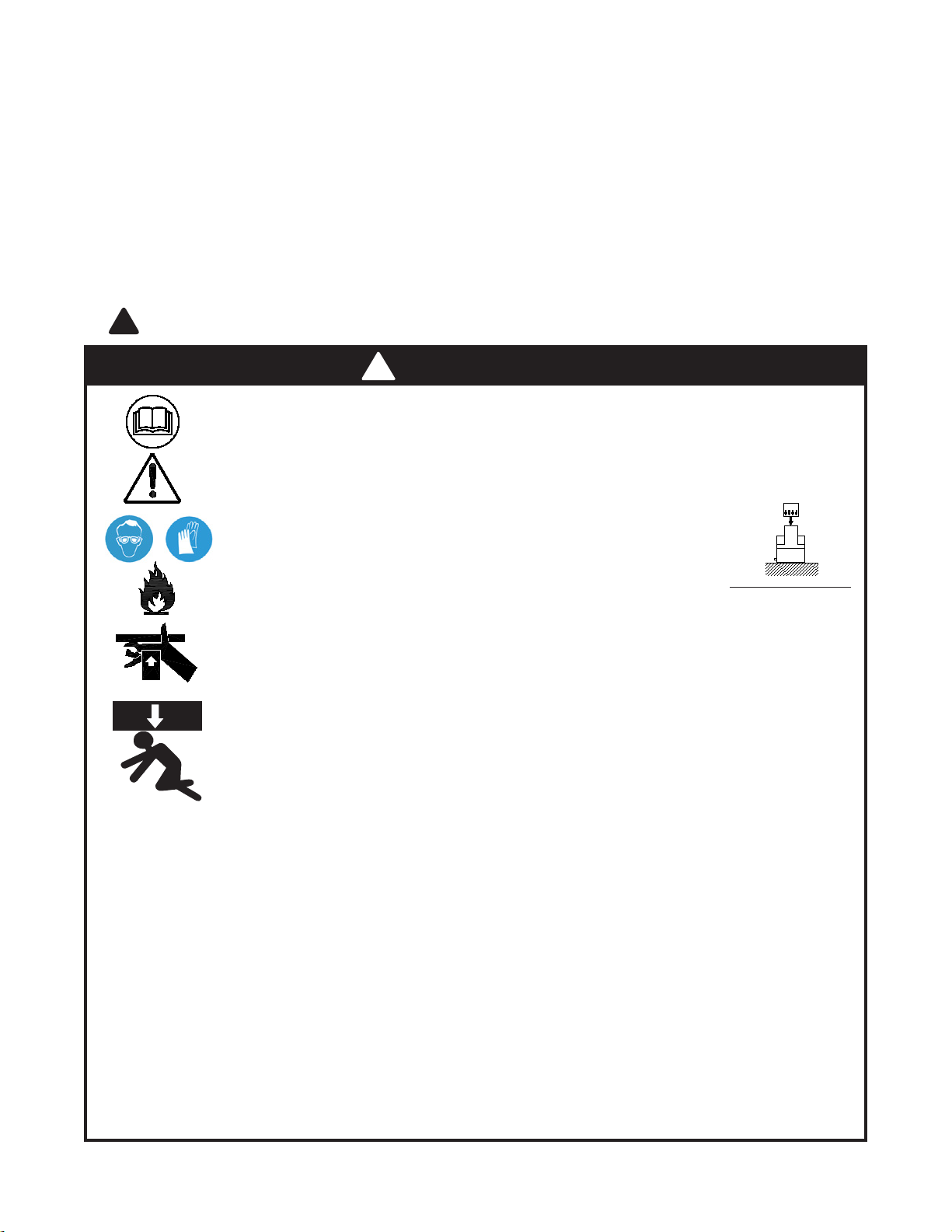

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
• Study, understand, and follow all
instructions provided with and on this
device before use.
• All WARNING statements must be
carefully observed to help prevent
personal injury.
•
No alteration shall be made to this
device.
• Always wear protective gear when
operating hydraulic equipment.
• Keep hydraulic equipment away from
ames and heat. Hydraulic uid can
ignite and burn. Do not operate if
leaks are detected.
• Crush Hazard. Keep hands and
feet away from loading area. Avoid
pinch points or crush points that can
be created by the load or parts of
cylinder.
• To avoid crushing and related injuries:
NEVER work on, under or around
a lifted load before it is properly
supported by appropriate mechanical
means. Never rely on hydraulic
pressure alone to support load.
HYDRAULIC CYLINDERS
•
The user must be a qualied operator familiar with the
correct operation, maintenance, and use of cylinders. Lack of
knowledge in any of these areas can lead to personal injury.
• Do not exceed rated capacity of the cylinder or any equipment
in the system.
• Burst hazard exists if hose or connection pressure exceeds
rated pressure.
•
Inspect cylinder, hoses and connections before each use to
prevent unsafe conditions from developing. Do not use if
they are damaged, altered or in poor condition. Do not use a
cylinder with bent or damaged coupler or damaged threads.
• Use gauge or other load measuring instrument to verify load.
• Do not subject the cylinder to shock loads.
• Never attempt to disconnect hydraulic connections under
pressure.
•
Use only approved accessories and approved hydraulic uid.
• Never attach ANY component not authorized by manufacturer.
• Never use other than factory provided and/or authorized
fasteners.
• Under certain conditions, the use of an extension with a
hydraulic cylinder may not be advisable and could present
a dangerous condition.
• Cylinder must be on a stable base which is able to support
the load while pushing or lifting. Ensure cylinder is fully
engaged into/onto adapters, extension accessories.
• Use shims, friction material or constraints to prevent slippage
of the base or load.
• Distribute the load evenly across
the entire saddle surface. Do not
off-center loads on a cylinder.
The load can tip or the cylinder
can “kick out”.
• This device is not suitable for use as support device! As the
load is lifted, use blocking and cribbing to guard against a
falling load.
• All personnel must be clear before lowering.
• Never try to disassemble a hydraulic cylinder, refer repairs
to qualied, authorized personnel.
HYDRAULIC HOSES & FLUID TRANSMISSION LINES
• Avoid short runs of straight line tubing. Straight line runs
do not provide for expansion and contraction due to
pressure and/or temperature changes.
• Reduce stress in tube lines. Long tubing runs should be
supported by brackets or clips. Before operating the pump,
tighten all hose connections with proper tools. Do not
overtighten. Connections should only be tightened securely
and leak-free. Overtightening can cause premature thread
failure or high pressure ttings to burst.
• Should a hydraulic hose ever rupture, burst or need to be
disconnected, immediately shut off the pump and release
all pressure. Never attempt to grasp a leaking pressurized
hose with your hands. The force of escaping hydraulic uid
can inict injury.
• Do not subject the hose to potential hazard such as re,
sharp objects, extreme heat or cold, or heavy impact.
• Do not allow the hose to kink, twist, curl, crush, cut or bend
so tightly that the uid ow within the hose is blocked or
reduced. Periodically inspect the hose for wear.
• Do not pull, position or move setup by the hose.
• Hose material and coupler seals must be compatible with
hydraulic uid used. Hoses also must not come in contact
with corrosive materials such as battery acid, creosote-
impregnated objects and wet paint. Never paint a coupler
or hose.
•
FAILURE TO HEED THESE WARNINGS MAY RESULT IN
PERSONAL INJURY AS WELL AS PROPERTY DAMAGE.
Center load on cylinder
Save these instructions. For your safety, read and understand the information contained within. The owner and operator shall
have an understanding of this device and safe operating procedures before attempting to use this device. Instructions and safety
information shall be conveyed in operator's native language before use of this device is authorized. Make certain that the operator
thoroughly understands the inherent dangers associated with the use and misuse of the product. If any doubt exists as to the safe
and proper use of this product as outlined in this factory authorized manual, remove from service immediately.
Inspect before each use. It is recommended that, prior to each use, an inspection be done by qualied personnel and that any
missing or damaged parts be replaced with factory authorized replacement parts only. Any valve that appears to be damaged in
any way, is worn, leaking or operates abnormally shall be removed from service immediately until such time as repairs can be
made. Any valve that has been or suspected to have been subject to a shock load (a load dropped suddenly, causing the system
pressure to exceed 10,000 PSI), shall be removed from service immediately until checked by qualied personnel. Owners and
operators of this equipment shall be aware that the use and subsequent repair of this equipment may require special training
and knowledge.
WARNING
!

3
BEFORE USE
1. Before using this product, read the owner's manual completely and familiarize yourself thoroughly with the product, its components
and recognize the hazards associated with its use.
2. Verify that the product and the application are compatible. If in doubt, call BVA Hydraulics Technical Service [phone].
3. Inspect before each use. Do not use if broken, leaking or damaged components are noted.
4. Replace worn or damaged parts with BVA Hydraulics authorized replacement parts only.
5. Use adequate eye protection when operating or near this device.
6. Ensure method of conrming load is accurate and working properly. Have gauge or load cell accuracy veried by qualied
personnel on a yearly basis.
SET UP
1. Connect and secure hoses, cylinders, ttings, gauges and pump etc. noting that the proper ports are connected. Always
secure threaded port connections with non-hardening pipe thread compound. Take care not to introduce compound into
port orices.
2. Verify that the cylinder and base are compatible.
If you are not trained and familiar with installing a valve, please have an authorized BVA service center
to perform this procedure.
Use an approved, high-grade pipe sealant to seal all hydraulic connections. When using teon tape,
never apply the tape over ends of ttings where it can be torn loose and get into the hydraulic system.
MAINTENANCE
Periodically inspect base, ensure all parts are not damaged. Do not apply oil or grease to any portion of the base. If rust appears,
sand affected area and cover with suitable utility paint.
Storage
Depressurize pump, disconnect all hydraulic lines to prevent accidental operation. Wipe the unit clean. Store in a clean, dry
environment.
!
!
BVA Clevis Plunger Specications
Model
No.
Rated
Capacity
(Ton)
For Cylinder (S)
Dimension
A B C D E F G H
CEP05 5 H05, 5 Ton Cylinders 3/4"-16N-2A 0.62" 1.63" 0.75" 0.63" 0.63" 1.13" 0.56"
CEP15 15 H10 & HD10, 10 Ton Cylinders 1"-8UN-2A 0.75" 2.56" 1.13" 1.00" 0.91" 1.69" 1.00"
CEP25 25 H25 & HD25, 25 Ton Cylinders 1-1/2"-16UNC-2A 0.87" 2.94" 1.37" 1.25" 1.25" 2.25" 1.50"
CB
ED
F
A
H
G
Model No. D1202
Approved By:
Checked By:
Drawn By: 陳神佑
Date: 2015.11.13
File name: D1202_1511SPC

4
LIFETIME LIMITED WARRANTY
BVA Hydraulics®, represented in the United States by Shinn Fu Company of America, Inc. [“SFA”] warrants this
product to be free from defects in material and workmanship for the life of the product as long as the original
purchaser owns the product. The warranty is non-transferable and is subject to the terms, exclusions, and limitations
described below:
• Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or
couplers as well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and
BVA Hydraulics will not provide any warranty credit for such damaged components.
• This warranty does not cover ordinary wear and tear, overloading, alterations (including repairs or attempted
repairs not performed by BVA Hydraulics or one of its authorized personnel), improper uid use, or use of the
product in any manner for which the product was not intended or the use of which is not in accordance with the
instructions or warnings provided with the product.
• In the unlikely event that a BVA Hydraulics product fails due to material defect in workmanship, you may contact
SFA for disposition. In such cases, the customer’s sole and exclusive remedy for any breach or alleged breach
of warranty is limited to the repair or replacement of the defective product.
• Under no circumstances is BVA Hydraulics liable for any consequential or incidental damage or loss
whatsoever.
• THIS WARRANTY IS LIMITED TO NEW PRODUCTS SOLD THROUGH AUTHORIZED DISTRIBUTORS
AND OTHER CHANNELS DESIGNATED BY BVA HYDRAULICS. NO AGENT, EMPLOYEE OR OTHER
REPRESENTATIVE OF BVA HYDRAULICS IS AUTHORIZED TO MODIFY THIS WARRANTY.
• THE FOREGOING IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FOR A
FITNESS FOR A PARTICULAR PURPOSE.
• Components not manufactured by BVA Hydraulics including certain motor systems, gasoline engines, and others
are not covered by this warranty and instead are covered by the manufacturer’s separate manufacturer’s warranty
provided in the package.
• BVA Hydraulics’ liability in all cases is limited to, and will not exceed the purchase price paid for the product.
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]
