Lock Nut Cylinders
Instruction Manual
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
!
Maximum Operating Pressure 10,000 PSI
HULN10002-M0_082017
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
MODELS: HULN10002, HULN10004, HULN10006, HULN10008, - 100 Ton Capacity
& HULN10010
HULN15002, HULN15004, HULN15006, HULN15008, - 150 Ton Capacity
& HULN15010

2
SAFETY AND GENERAL INFORMATION
Save these instructions. For your safety, read and understand the
information contained within. The owner and operator shall have an
understanding of this product and safe operating procedures before
attempting to use this product. Instructions and safety information
shall be conveyed in the operator’s native language before use of
this product is authorized. Make certain that the operator thoroughly
understands the inherent dangers associated with the use and
misuse of the product. If any doubt exists as to the safe and proper
use of this product as outlined in this factory authorized manual,
remove from service immediately.
Inspect before each use. Do not use if leaking, broken, bent,
cracked or otherwise damaged parts are noted. If the cylinder has
been or suspected to have been subjected to a shock load (a load
dropped suddenly, unexpectedly upon it), discontinue use until
checked out by a BVA Hydraulics authorized service center. Owners
and operators of this equipment shall be aware that the use and
subsequent repair of this equipment may require special training
and knowledge. It is recommended that an annual inspection be
done by qualied personnel and that any missing or damaged
parts, decals, warning/safety labels or signs be replaced with BVA
Hydraulics authorized replacement parts only. Any cylinder that
appears to be damaged in any way, is worn or operates abnormally
shall be removed from service immediately until such time as repairs
can be made.
PRODUCT DESCRIPTION
The BVA Lock-Nut Cylinder Series is designed for rated capacity
load lifting and positioning. A wide variety of applications exist for
this category of product. Special skill, knowledge and training may
be required for a specic task and the product may not be suitable
for all the jobs described above. Unsuitable applications would
include applications that call for a device to move, level or support
persons, animals, hazardous materials, mobile homes/dwellings
in general, mirrors and/or plate glass, and/or to connect/secure
hatches, components, etc. between bulkheads. The user ultimately
must make the decision regarding suitability of the product for any
given task and therefore accept responsibility for that decision.
Immediately after lifting, loads must be supported by appropriate
mechanical means.
WARNING: NEVER use hydraulic cylinder as a
support device.
WARNING: Always check connections before using.
Alteration of these products is strictly prohibited. Use only
those adapters and attachments provided and approved by
the manufacturer.
WARNING: To reduce the risk of personal injury and/or
property damage, ensure that the rated working pressure of
each pressurized attachment be equal to or greater than the
rated working pressure developed by the hydraulic pump.
BEFORE USE
1. Before using this product, read the owner's manual completely
and familiarize yourself thoroughly with the product, its
components and recognize the hazards associated with its use.
2. Verify that the product and the application are compatible. If in
doubt, call BVA Hydraulics Technical Service [phone].
3. Inspect before each use. Do not use if bent, broken, leaking or
damaged components are noted.
4.
Replace worn or damaged parts and assemblies with BVA
Hydraulics authorized replacement parts only. Lubricate as
instructed in Maintenance Section.
5. Ensure method of conrming load is accurate and working
properly. Have gauge or load cell accuracy veried by qualied
personnel on a yearly basis.
!
!
!
Figure 1 - Typical HULN Cylinder Component Nomenclature

3

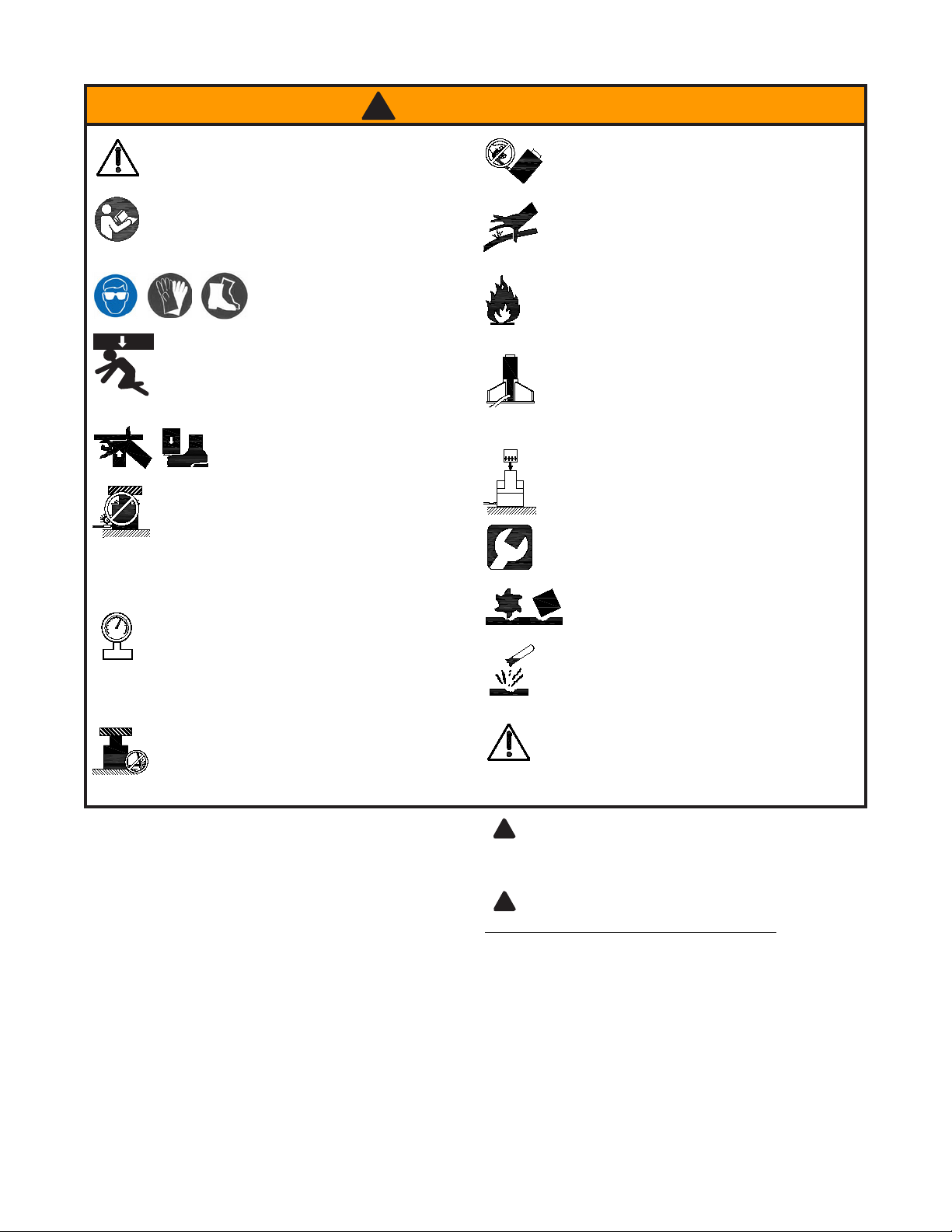

Failure to comply with the following warnings may
result in personal injury as well as property
damage.
• Study, understand, and follow all instructions
provided with and on this device before use.
• Theusermustbeaqualiedoperatorfamiliarwith
the correct operation, maintenance, and use of cylinders.
Wear protective gear when operating
 hydraulicequipment.
 This device is NOT suitable for use as support
device! As the load is lifted, use blocking and cribbing
to guard against a falling load. Stay clear of a lifted
load before it is properly supported. Never rely on
hydraulic pressure to support a load.
Crush Hazard. Keep hands and feet away
from cylinder and workpiece during
operation.
• Do not exceed rated capacity of the cylinder or
  any equipment in the system. The cylinder is
designed for a max. pressure of 10,000 psi.
•Do not connect a cylinder to a pump with higher pressure rating.
•Do not subject cylinder to a shock loads, a load dropped
suddenly, causing the system pressure to exceed rated
pressure.
 Thesystemoperatingpressuremustnotexceedthe
pressure rating of the lowest rated component
the system. Install a pressure gauge or other load
measuring instrument to monitor the operating pressure. Burst
hazard exists if hose, connection or any other component in the
system exceed its rated pressure.
Avoid damaging hydraulic hose. Do not allow hose
to kink, twist, curl, crush, cut or bend so tightly that
 uid ow within the hose is blocked or reduced.
Periodically inspect the hose for wear.
Do not pull, position or move cylinder setup by the
hose. Use carrying handle or other means of safe
transport.
Do not handle pressurized hoses. Never attempt to
grasp a leaking pressurized hose. Ensure to release
the system pressure before disconnecting hydraulic
hose or connections.
 Hydraulic uid can ignite and burn. Keep
hydraulic
 equipment away from ames and heat. Excessive
 heat will soften seals, resulting in uid leaks. Heat
also weakens hose materials.
Cylinder must be on a stable base which is able
to support the load while pushing or lifting. Use shims,
friction material or constrains to prevent slippage
of the base or load. Ensure cylinder is fully engaged
into/onto adapters, extension accessories.
Center load on cylinder. Distribute load evenly across
the entire saddle surface. Do not off-center loads on
 a cylinder. The load can tip or the cylinder can
“kick out”.
Never try to disassemble a hydraulic cylinder, refer
 repairstoqualied,authorizedpersonal.ContactBVA
Hydraulics tech service for authorized service center.
 Do not subject hose to sharp objects or heavy
impact.
Hose material or seals must not come in contact with
corrosive materials such as battery acid, creosote-
 impregnated objects and wet paint. Never paint a
coupler or hose.
• No alteration shall be made to the cylinder.
• Use only factory authorized fasteners, accessories
  andhydraulicuid.
Heavy
INSTALLATION
NOTICE: Use an approved, high-grade pipe sealant to seal all
hydraulic connections.
1.
Remove the dust cover and rubber plug from coupler .
2. Inspectallthreadsandttingsforsignsofwearordamage,and
replaceasneeded.Cleanallthreadsandttings.
3. Connect hydraulic hose from hydraulic pump to the cylinder
coupler.Ensurethattherearenouidleaks.
4. Install in-line pressure gauge.
5. Check for leaks in system and have repaired by qualified
personnel.
NOTICE: The use of cylinder attachments or extensions reduces
the cylinder capacity by at least 50% per attachment/extension.
WARNING: Before operating the pump, tighten all hose
connections with proper tools. Do not overtighten. Connections
should only be tightened securely and leak-free. Overtightening can
cause premature thread failure or high pressure ttings to burst.
WARNING: Before repairs are made, depressurize cylinder.
Tipsforhydraulichoses&uidtransmissionlines:
•Avoidshortrunsofstraightlinetubing.Straightlinerunsdonot
provide for expansion and contraction due to pressure and/or
temperature changes.
•Reduce stress in tube lines. Long tubing runs should be
supported by brackets or clips.
!
!
WARNING
!

4
OPERATION
Operate the hydraulic pump to advance and retract the cylinder.
Do not continue pumping when cylinder is fully extended. Internal
pressure will build up and may damage the seal of the cylinder.
WARNING: NEVER rely on hydraulic pressure alone to
secure a load! NEVER allow personnel to work or pass under
a load until the load is secured by cribbing, blocking, or other
mechanical means.
WARNING: To help prevent material fatigue if the cylinder
is to be used in a continuous application, the load should not
exceed 85% of the rated capacity.
WARNING:
Your cylinder, hose(s), couplings and pump all must
be rated for the same maximum operating pressure, correctly
connected and compatible with the hydraulic uid used. An
improperly matched system can cause the system to fail.
WARNING: All personnel must be clear before lowering load.
MAINTENANCE
1. Inspect hoses and connections daily. Replace damaged
components immediately with BVA Hydraulics Replacement
Parts only.
2. Tighten connections as needed. Use pipe thread sealing
compound when servicing connections.
3. Always use clean, approved hydraulic uid and change as
recommended or sooner if the uid becomes contaminated
(never exceed 400 hours). Follow pump manufacturers
instructionsforchangingandaddinghydraulicuid.Useonly
good quality hydraulic uid. We recommend BVA FJZ01 or
equivalent when using with hand pump, air pump, or electric
pump. Never use brake uid, transmission uid, turbine oil,
motor oil, alcohol, glycerin etc. Use of other than good quality
hydraulic oil will void warranty and damage the cylinder, pump,
hose etc.
4. Use an approved, high-grade pipe thread sealant to seal all
hydraulicconnections.Teontapecanbeusedifonlyonelayer
of tape is used and it is applied carefully (two threads back) to
prevent the tape from being introduced into hydraulic system. A
piece of tape could travel through the system and obstruct the
owofuidandadverselyaffectfunction.
Lubrication & Cleaning
Keep cylinder clean at all times.
1. Any exposed threads (male or female) must be cleaned and
lubricated regularly, and protected from damage. Lubricate with
light machine oil.
2. If a cylinder or ram has been exposed to rain, snow, sand,
airborne abrasive, or any corrosive environment, it must be
cleaned, lubricated, and protected immediately after exposure.
Daily clean exposed ram with clean cloth dampened with light
machine oil. Protect exposed ram from the elements at all times.
3. Keep the hydraulic system as free of dirt as possible. When
not in use, couplers must be sealed with dust covers. All hose
connections must be free of dirt and grime. Any equipment
attached to the cylinder must be kept clean.
Storage
Cylinders should be stored vertically with ram plunger fully retracted
in a dry, protected area, not exposed to corrosive vapor, dust or
otherharmful elements.When acylinder hasnot beenused for
a period of 4 months, it should be connected to a pump and fully
extended and then retracted a minimum of 5 times. This cycle will
lubricate the cylinder wall, reducing the possibility of corrosion and
damage thereof.
How to remove faulty coupler:
If cylinder does not retract,
1. Secure load by other means.
2. Depressurize pump and hose.
3. Remove the cylinder from application.
4. Disconnect and replace with new coupler.
!
!
!
!
SPECIFICATIONS
Model
Number
Cylinder
Capacity Stroke
Cylinder
Effective
Area
Oil
Capacity
Collapsed
Height
Extended
Height
Cylinder
Bore Dia.
Outside
Dia.
Plunger
Dia.
Saddle
Dia.
Base to
Inlet Port Weight
A B C D E F G
(tons) (in) (in2) (in3) (in) (in) (in) (in) (in) (in) (in) (lbs)
HULN10002
100
2.00
20.68
40.51 8.38 10.38
5.13 8.00 4.25 3.50 1.50
43.0
HULN10004 4.00 81.00 10.38 14.38 51.0
HULN10006 6.00 121.50 12.38 18.38 60.0
HULN10008 8.00 162.00 14.38 22.38 69.0
HULN10010 10.00 202.50 16.38 26.38 77.0
HULN15002
150
2.00
30.68
60.60 8.38 10.38
6.25 10.00 5.00 4.50 1.50
66.0
HULN15004 4.00 121.20 10.38 14.38 79.0
HULN15006 6.00 181.80 12.38 18.38 92.0
HULN15008 8.00 242.40 14.38 22.38 106.0
HULN15010 10.00 303.00 16.38 26.38 123.0

5
TROUBLESHOOTING GUIDE
The following information is intended as an aid in determining if problem exists. Cylinders should be repaired only by authorized BVA
Service Center. For repair service, contact service center in your area.
Symptom Possible Causes Corrective Action
Erratic action
• Air in system or pump cavitation.
•Externalleakageincylinder.
•Cylinderstickingorbinding.
•Ventthesystem(refertogure2).
•Contactservicecenter.
•Contactservicecenter.
Cylinder will not extend, or
respondtopressurizeduid
•
Overload condition.
•Loosecouplers.
•Faultycouplers.
•Impropervalveposition.
•Oillevelinpumpislow.
•Pumpnotoperating.
•Air-lockedpump.
•Remedyoverloadcondition.
•Tightencouplers.
•Replacebothfemaleandmalecouplers.
•Closereleasevalveorchangevalveposition.
•Fillandbleedthesystem.
•Checkpump’soperatinginstructions.
•Primepumpperpumpoperatinginstructions.
Cylinder extend only partially
•Oillevelinpumpislow.
•
Overload condition.
•Cylinderisstickingorbinding.
•Fillandbleedthesystem.
•Remedyoverloadcondition.
•Contactservicecenter.
Cylinder move slower than normal
•Looseconnectionorcoupler.
•
Restrictedhydrauliclineortting.
•Pumpnotworkingcorrectly.
•Cylindersealsleaking.
•Tightenconnectionorcoupler.
•Cleanandreplaceifdamaged.
•Checkpump’soperatinginstructions.
•Contactservicecenter.
Cylinder responds to pressurized
uid,butsystemdoesnotmaintain
pressure
•Overloadcondition.
•Pumporvalvemalfunctioning.
•Cylindersealsleaking.
•Remedyoverloadcondition.
•Checkpump’soperatinginstructions.
•Contact service center.
Oilleakingfromcylinder •Wornordamagedseals. •Contactservicecenter.
Cylinder will not retract or retracts
slower than normal
•Impropervalveposition.
•Malfunctioningcoupler,damaged
application.
•Pumpreservoiroverlled.
•Cylinderdamageinternally.
•Openreleasevalveorchangevalveposition.
•Secure load by other means. Depressurize
pump and hoses, remove application and
replace coupler.
•Secure load by other means. Depressurize
pump and hoses, remove application, then drain
uidtoproperlevel.
•Contactservicecenter.
Cylinder performs poorly •Oillevelinpumpislow.
•Airtrappedinsystem.
•Ensureproperoillevel.
•Ventthesystem(refertogure2).
Figure 2 - Illustration to bleed air from system
MAINTENANCE (cont.)
NOTICE: Do not attempt to grasp with pliers or wrench without
rst wrapping the jaws of such tool with rags or similar padding.
How to bleed air from system:
1. Place pump at a higher elevation than the hose and cylinder
as shown in Figure 2.
2. Operate pump to fully extend and retract the cylinder 2 or 3 times.
The objective is to force the air bubbles up hill and back to the
pump reservoir.
3. Follow pump instruction manual to bleed the air from pump
reservoir. On most pumps, air can escape by opening the oil
ller plug/screw.

6
(*) - indicates items included in, and available only as part of Seal Kit
N/A - part is not available as replacement
Note: To ensure safe and reliable performance, replace worn or damaged
parts with BVA Hydraulics Authorized Replacement Parts only.
Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and
position in the assembly sequence.
SPECIFICATIONS
No. Service Part No. for Model: Description Qty
HULN10002-HULN10010 HULN15002-HULN15010
1 HULN100-1 HULN150-1 Saddle 1
2 N/A Plunger 1
3 HULN100-3 HULN150-3 Lock Nut 1
4 HULN100-4 HULN150-4 Stop Ring 1
5 N/A Cylinder 1
6 CH38F Coupler 1
7 HULN100-7 HULN150-7 Carry Handle 1
8 HULN100-99 HULN150-99 Repair Kits 1
1
4
5
2
3
6
7
Lock Nut Cylinders
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
MODELS: HULN10002, HULN10004, HULN10006, HULN10008, - 100 Ton Capacity
& HULN10010
HULN15002, HULN15004, HULN15006, HULN15008, - 150 Ton Capacity
& HULN15010

LIMITED LIFETIME WARRANTY
BVA Hydraulics®, represented in the United States by SFA Companies [“SFA”] warrants this product to be free from defects in material
and workmanship for the life of the product as long as the original purchaser owns the product. The warranty is non-transferable and is
subject to the terms, exclusions, and limitations described below:
• Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or couplers as well as
worn out seals, o-rings and springs are the result of misuse and not covered by warranty and BVA Hydraulics will not provide any
warranty credit for such damaged components.
• This warranty does not cover ordinary wear and tear, overloading, alterations (including repairs or attempted repairs not performed
by BVA Hydraulics or one of its authorized personnel), improper uid use, or use of the product in any manner for which the product
was not intended or the use of which is not in accordance with the instructions or warnings provided with the product.
• In the unlikely event that a BVA Hydraulics product fails due to material defect in workmanship, you may contact SFA for disposition.
In such cases, the customer’s sole and exclusive remedy for any breach or alleged breach of warranty is limited to the repair or
replacement of the defective product.
• Under no circumstances is BVA Hydraulics liable for any consequential or incidental damage or loss whatsoever.
• THIS WARRANTY IS LIMITED TO NEW PRODUCTS SOLD THROUGH AUTHORIZED DISTRIBUTORS AND OTHER CHANNELS
DESIGNATED BY BVA HYDRAULICS. NO AGENT, EMPLOYEE OR OTHER REPRESENTATIVE OF BVA HYDRAULICS IS
AUTHORIZED TO MODIFY THIS WARRANTY.
• THE FOREGOING IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING BUT
NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FOR A FITNESS FOR A PARTICULAR PURPOSE.
• Components not manufactured by BVA Hydraulics including certain motor systems, gasoline engines, and other are not covered by
this warranty and instead are covered by the manufacturer’s separate manufacturer’s warranty provided in the package.
• BVA Hydraulics’ liability in all cases is limited to, and will not exceed the purchase price paid for the product.
7
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]

8
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]
