BWI Eagle AIR-EAGLE SR PLUS Manual

PRODUCT INFORMATION
BULLETIN
105 Bonnie Drive
Butler, PA 16002
724-283-4681
724-283-5939 (fax)
www.bwieagle.com
AIR-EAGLE®SR PLUS
2.4 GHz RF Repeater
MODEL 36-4500-DC
DESCRIPTION
The AIR-EAGLE SR PLUS RF REPEATER IS designed to retransmit an
RF signal from any Air-Eagle SR or SR PLUS Transmitter. When
placed in an area where the signal is weak, this unit will then re-
transmit at full strength facilitating greater distances and allowing the
RF signal to reach around corners, through tunnels, over hills and
through valleys.
APPROVALS
United States (FCC)
MCQ-XBEE3
Canada (IC)
1846A-XBEE3
Europe (CE)
ETSI
INSTALLATION
DISCONNECT Power from all equipment before installation.
1. Mount the AIR-EAGLE XLT REPEATER in a convenient location.
2. Attach rubber duck antenna or coax from external antenna to
connector on side of enclosure.
3. Connect supplied power input cable to your external power source.
TERMINAL STRIP WIRING
TERMINAL STRIP WIRING (TER1)
Terminal 1
(-) 9-36VDC INPUT
Terminal 2
(+) 9-36VDC INPUT
Terminal 3
Not Used
Terminal 4
Not Used
Terminal 5
Not Used
Terminal 6
Not Used
Terminal 7
Not Used
Terminal 8
Not Used
Terminal 9
Not Used
Terminal 10
Not Used
Terminal 11
Not Used
Terminal 12
Not Used
Terminal 13
Not Used
Terminal 14
Not Used
CONTROLS & INDICATORS
RX LED
Yellow LED illuminates as remote signals are
being received by the repeater
POWER LED
Green LED is illuminated while power is
applied to the repeater
TX LED
Red LED illuminates as remotesignals are
being re-transmitted by the repeater
RF1
RF module that receives data from the remote
transmitter
SEL1
Used to set frequency
.

AIR-EAGLE®SR PLUS
2.4 GHz RF Repeater
MODEL 36-4500-DC
FREQUENCY SET-UP
This unit is shipped from the factory with SEL1 switches in the open
positions and is operating on frequency #1. If you wish to change the
default frequency setting, follow the instructions below:
1) Remove power from unit and remove top cover.
2) Select desired network frequency using table below.
3) Reattach cover and apply power. Programming is now complete..
FREQUENCY SELECTION
SEL 1
(SW5, 6 & 7):
Network
Frequency
SW5
SW6
SW7
#1 (default)
OPEN
OPEN
OPEN
#2
CLOSED
OPEN
OPEN
#3
OPEN
CLOSED
OPEN
#4
CLOSED
CLOSED
OPEN
#5
OPEN
OPEN
CLOSED
#6
CLOSED
OPEN
CLOSED
#7
OPEN
CLOSED
CLOSED
#8
CLOSED
CLOSED
CLOSED
Note –Switches 1, 2, 3, 4, 8 & 9are not used on this model. Leave in
OPEN position

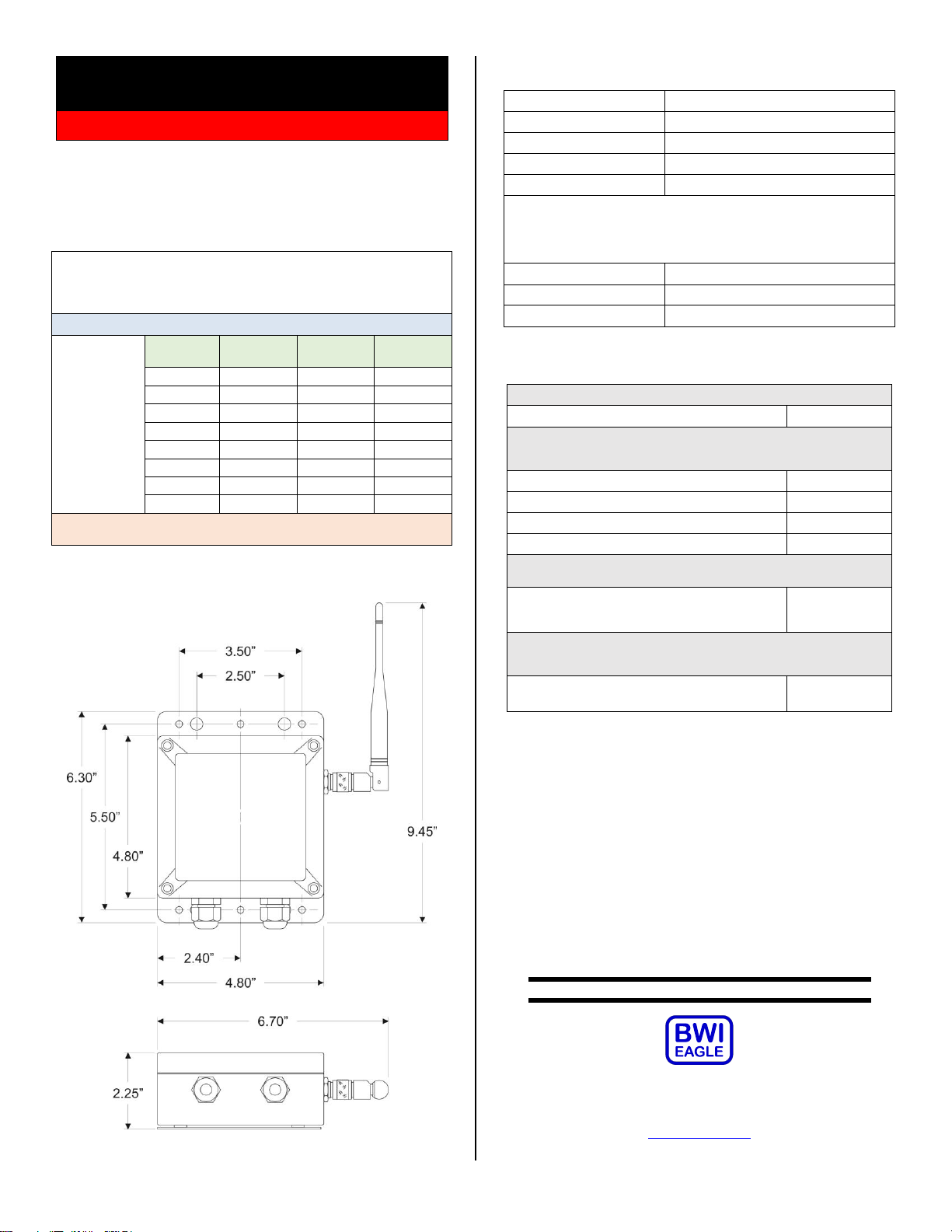

DIMENSIONS
SPECIFICATIONS
Power Input
9-36VDC, 16W, 50/60 Hz
Fuse Protected
2 amp
Repeater Frequency
2.4 GHz Spread Spectrum
RF Output Power
60 mW
Repeater Range
Up to 600 Feet
Note: Max range figures are estimates, based on free-air terrain with limited sources of
interference. Actual range will vary based on transmitting power, orientation of transmitter
and receiver, height of transmitting antenna, height of receiving antenna, weather
conditions, interference sources in the area, and terrain between receiver and transmitter,
including, but not limited to, indoor and outdoor structures such as walls, metal objects,
trees, buildings, hills, and mountains.
RF Networks
Eight Independent Frequencies
Operating Temperature
-40oF to +185oF
Enclosure
Polycarbonate NEMA 4, IP66
ACCESSORIES
Standard Antenna (Included):
2.4GHz TNC “Rubber Duck” Antenna
49-1201
Mobile/Base Antennas –
Used to help achieve max range in both nonline of sight andline of
sight applications. - ContactBWI Eagle for recommendations
2.4GHz Thru-Hole Mount Mobile Antenna
49-2201
2.4GHz Magnet Mount Mobile Antenna
49-2202
2.4GHz Omni Directional Base Antenna
49-3201
2.4GHz Yagi Directional Base Antenna
49-3202
High Quality Coax Cables –
Used to connect external high gain antennas to control unit
Flex Coax Cable w/Connectors –Available in
5’,15’,25’,30’,40’,60’,80’,100’ Lengths
49-4000-XX
(XX = # of
Feet)
Bulkhead Extensions –
Used to provide an external antenna connection whenmounting
control unit inside another enclosure
TNC Male to TNCBulkhead CableAssembly -
Available in 2’, 4’, 7’ Lengths
49-5004-X-ISO
(X = # of Feet)
LIMITED WARRANTY STATEMENT
BWI Eagle Inc. warrants the Air-Eagle Remote Control System, if properly used and
installed, will be free from defects in material and workmanshipfor a periodof 1 year after
date of purchase. Saidwarranty to include the repairor replacement ofdefective equipment.
This warranty does not cover damage due to external causes, including accident, problems
with electrical power, usage notin accordance with product instructions, misuse, neglect,
alteration, repair, improper installation, or improper testing. This limited warranty, and any
implied warranties that may existunder statelaw, apply only to the original purchaser ofthe
equipment, and last only for as long assuch purchaser continues to own the equipment.
This warranty replaces all other warranties, express or implied including, but not limited to,
the implied warranties or merchantability and fitness for a particularpurpose. BWI Eagle
makes no express warranties beyond those stated here. BWI disclaims without limitation,
implied warranties of merchantability and fitness for a particular purpose. Some jurisdictions
do not allow the exclusion of implied warranties so this limitation may not apply to you. To
obtain warranty service, contact BWI Eagle for a return material authorization. When
returning equipment to BWI Eagle, the customer assumes the risk of damage orloss during
shipping and is responsible for the shipping costs incurred.
DOCUMENT DATE: 07/21/2021 / PRODUCT REV. 9
