BWT BC40 User manual

RECHARGEABLE POOL & SPA VACUUM
WIEDERAUFLADBARER POOL & SPA VAKUUM
ASPIRATEUR RECHARGEABLE POUR PISCINE ET SPA
ASPIRACIÓN RECARGABLE PARA PISCINA Y SPA
ASPIRATORE PER PISCINA E SPA RICARICABILE
OPLAADBARE BODEMZUIGER EN SPA
UPPLADDNINGSBAR POOL & SPA VAKUUM
LADATTAVA POOL & SPA PÖLYNIMURI
OPPLADBART BASSENG OG SPA-VAKUUM
PISCINA RECARREGÁVEL E ASPIRAÇÃO DE SPA
ПЕРЕЗАРЯЖАЕМЫЙ БАССЕЙН И СПА-ВАКУУМ
USER MANUAL
BEDIENUNGSANLEITUNG
MANUEL D'UTILISATION
MANUAL DE USUARIO
MANUALE DELL'UTENTE
HANDLEIDING
ANVÄNDARHANDBOK
KÄYTTÖOHJE
BRUKSANVISNING
MANUAL DE UTILIZADOR
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
LINEBC
BC40

SAFETY WARNINGS & INSTRUCTIONS
Information contained in this Instruction Manual will help you operate the item safely,
protect yourself and others from hazards, and prevent damage to the device and other
property.
SAVE THESE INSTRUCTIONS
WARNING!
- This is not a TOY. Children should be kept out of reach from this pool
vacuum and its accessories.
- Never allow children to operate this product.
- This appliance is not intended for use by persons with reduced physical,
sensory, mental capabilities, or a lack of experience and knowledge,
unless they are given supervision or instructions concerning the safe use
of the appliance and understand the hazards involved by a person
responsible for their safety.
- Children must not play with this product.
- Cleaning and user maintenance must not be carried out by children.
- Make sure the pool vacuum is fully immersed in water before initiating
operation. The minimum water level required to operate the pool vacuum
must cover the entire pool vacuum. Operating the pool vacuum when it
is not immersed in the water correctly could damage the unit and void
the warranty as a result.
- Maximum operating depth in water is 3 meters (9.8 ft.).
- Operating water temperature: 5˚C (41˚F) –35˚C (95˚F).
- Detachable supply unit (external adaptor).
- The pool vacuum is only to be recharged with external adaptor and
charging cable delivered with this product.
- For the purposes of recharging the battery, only use the detachable
supply unit (external adaptor model number: DSS12D-0841000-B /
DSS12D-0841000-C / DSS12D-0841000-D/ LX084100U) that provided
with this pool vacuum to charge the battery.
- Connect the external adaptor to a power source through a residential
current device (RCD) / a ground fault circuit interrupter (GFCI). If in doubt,
consult a qualified professional electrician.
- Do not use this pool vacuum if any damage is detected.
- Replace damaged parts with ones that are certified by the distributor or
manufacturer.
- Turn off the power, disconnect the external adaptor from the power
source, and unplug the external adaptor from the charging cable before
detaching the pool vacuum from the charging cable.
- Disconnect the pool vacuum from the supply mains and make sure the
pool vacuum is powered OFF prior to servicing it such as cleaning the
filter bag.
- Do not attempt to replace the installed rechargeable Li-ion battery pack.
- DO NOT handle the pool vacuum, external adaptor and charging cable
1/155

while it is charging with wet limbs and without shoes.
- You should not operate this pool vacuum when people/pets are present
in the water.
- DO NOT use this pool vacuum without an intact filter bag in place,
otherwise your warranty will be voided as a result.
- Suction entrapment hazard: This pool vacuum generates suction. Do not
allow hair, body, and any loose parts of your clothing to make contact
with the suction point of the pool vacuum during its operation.
- Never insert body parts, clothing, and other objects into the openings and
moving parts of the pool vacuum.
- DO NOT use this pool vacuum to pick up any toxic substance, flammable,
and combustible liquids (i.e.gasoline) in the presence of explosive or
flammable fumes.
- Under no circumstances should you attempt to disassemble the pool
vacuum and replace the impeller, motor, and battery by yourself.
- Never insert fingers and any object to touch the impeller.
- The built-in battery must be removed by a skilled technician before it is
scrapped.
- This pool vacuum contains a battery that are only to be removed by
skilled persons.
- The pool vacuum must be disconnected from the supply mains as the
battery is removed.
- For details regarding battery recycling/disposal, refer to the section
“BATTERY DISPOSAL” in this manual and contact your local authorities
for more information.
- The battery must be disposed safely in accordance with local ordinances
or regulations.
- External adaptor and charging cable:
Never use the external adaptor and charging cable for anything
other than charging the battery of the pool vacuum that is supplied
in the same pack.
The external adaptor and charging cable should not be used
outdoors, nor should it be exposed to rain, humidity, any liquid or
heat.
The transformer (or external adaptor) is to be located outside zone
1.
Keep the external adaptor and charging cable out of reach of
children.
Never use the external adaptor and charging cable if any damage is
detected.
DO NOT handle the external adaptor and charging cable with wet
hands.
Keep the external adaptor disconnected from power when it is not in
use.
Never attempt to open the external adaptor and charging cable.
2/155

If the supply cord of the external adaptor is damaged, the external
adaptor must be replaced by the manufacturer or its service agent
to prevent hazards of any kind.
Make sure the pool vacuum and the charging cable are completely
dry before charging.
CAUTION!
- This pool vacuum is designed for underwater use only; it is not an all-purpose
vacuum cleaner. DO NOT attempt to use it to clean anything other than your
pool.
- Use only original accessories delivered with this product.
- DO NOT use this pool vacuum right after pool-shocking. It is recommended to
first leave the pool circulating for at least 24-48 hours.
- If you are planning on using the pool vacuum in a saltwater pool, make sure
all salt are dissolved before placing it in the water.
- DO NOT use this pool vacuum with another automatic cleaner/cleaner
simultaneously in the pool.
- Avoid picking up hard, sharp objects with this product as they may damage the
pool vacuum and filter.
- To avoid damaging the external adaptor and charging cable, do not attempt
to carry the pool vacuum by the cable of external adaptor/charging cable or
pull the cable in hopes of disconnecting the external adaptor from the power
source.
- Charge the pool vacuum indoors in a clean, dry area with good ventilation and
away from sunlight.
- DO NOT leave the pool vacuum charged for over 10 hours.
- If the pool vacuum will not be used for an extended period, detach it from the
charging cable and use a damp cloth to clean and dry the pool vacuum and
its accessories. Make sure to charge the pool vacuum to about 30% to 50% of
the battery capacity before it is stored. Store in a well-ventilated area away
from sunlight, heat, ignition sources, pool chemicals, and children. Recharge
the pool vacuum every three months.
- All actions concerning the disassembly of the main unit (i.e. battery disposal)
can only be carried by an authorized technician.
Above warnings and cautions are not intended to incorporate all possible
instances for risks and / or severe injuries. Pool / spa owners should always
exercise extra caution and common sense when utilizing the product.
Remark: Product/parts photos/drawings in this manual are for demonstration only.
Product/parts in photos/drawings may vary with the model purchased.
Accessories / parts shown in this manual & parts diagram are not necessarily
included with every model.
3/155

GETTING STARTED
Charging The Battery
IMPORTANT NOTE: Fully charge the pool vacuum (about 6 hrs) before
using it for the first time.
WARNING!
KEEP YOUR FINGERS AWAY FROM THE OPENING TO AVOID BEING
HIT BY THE IMPELLER WHEN IT’S ON.
Use only the original external adaptor and charging cable provided.
Make sure the pool vacuum and the charging port are clean and dry before
set-up and charging. (TIPS: use a cotton bud to dry the charging port and
charging pins)
The charging pins are waterproof. However, remnants of water in the port
and around the pins could result in natural occurrence of stains (a
byproduct of chemical reaction between water and electric currents).
Otherwise, the stains can be removed by light scrubbing with a cotton bud
soaked with juice of lemon or vinegar.

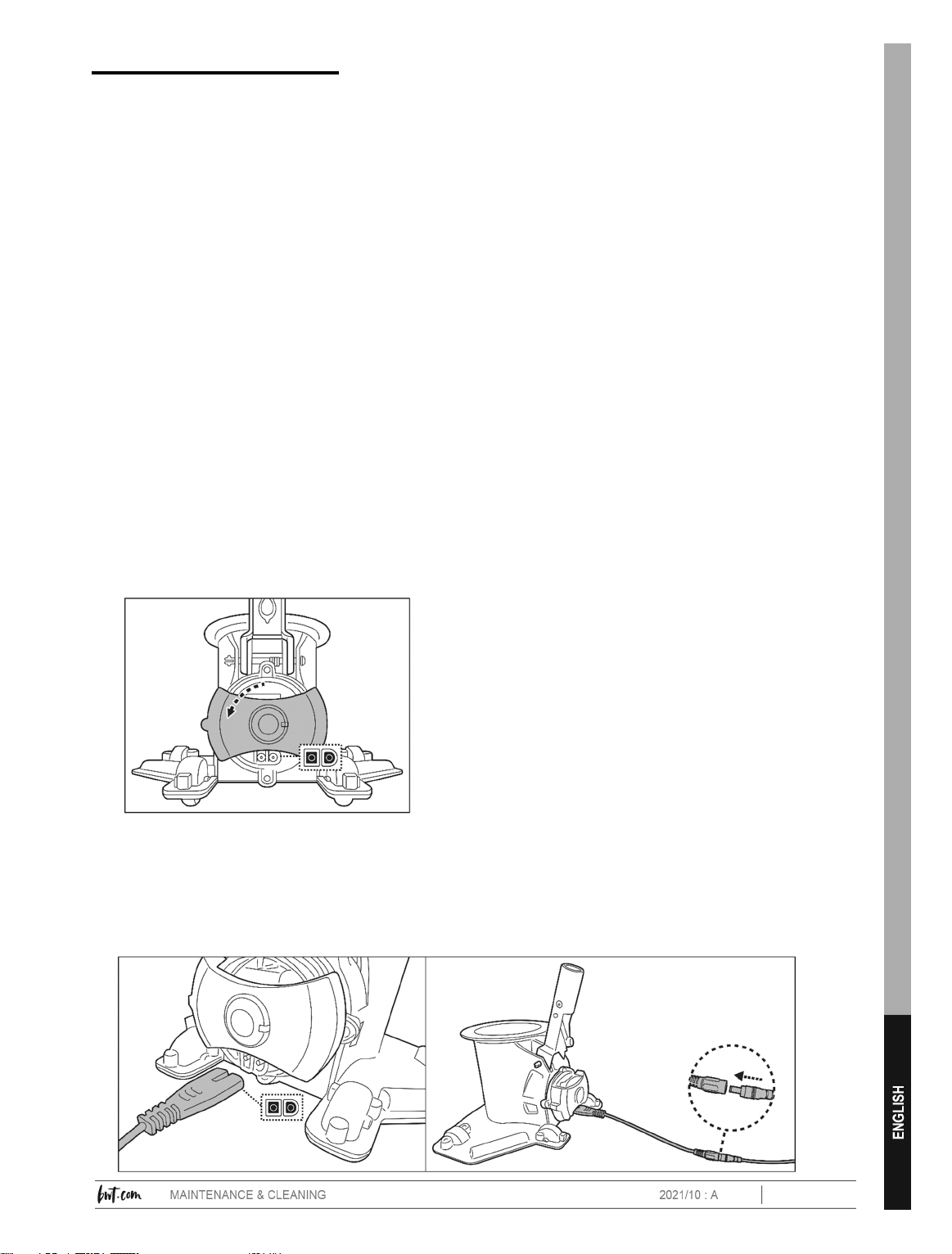

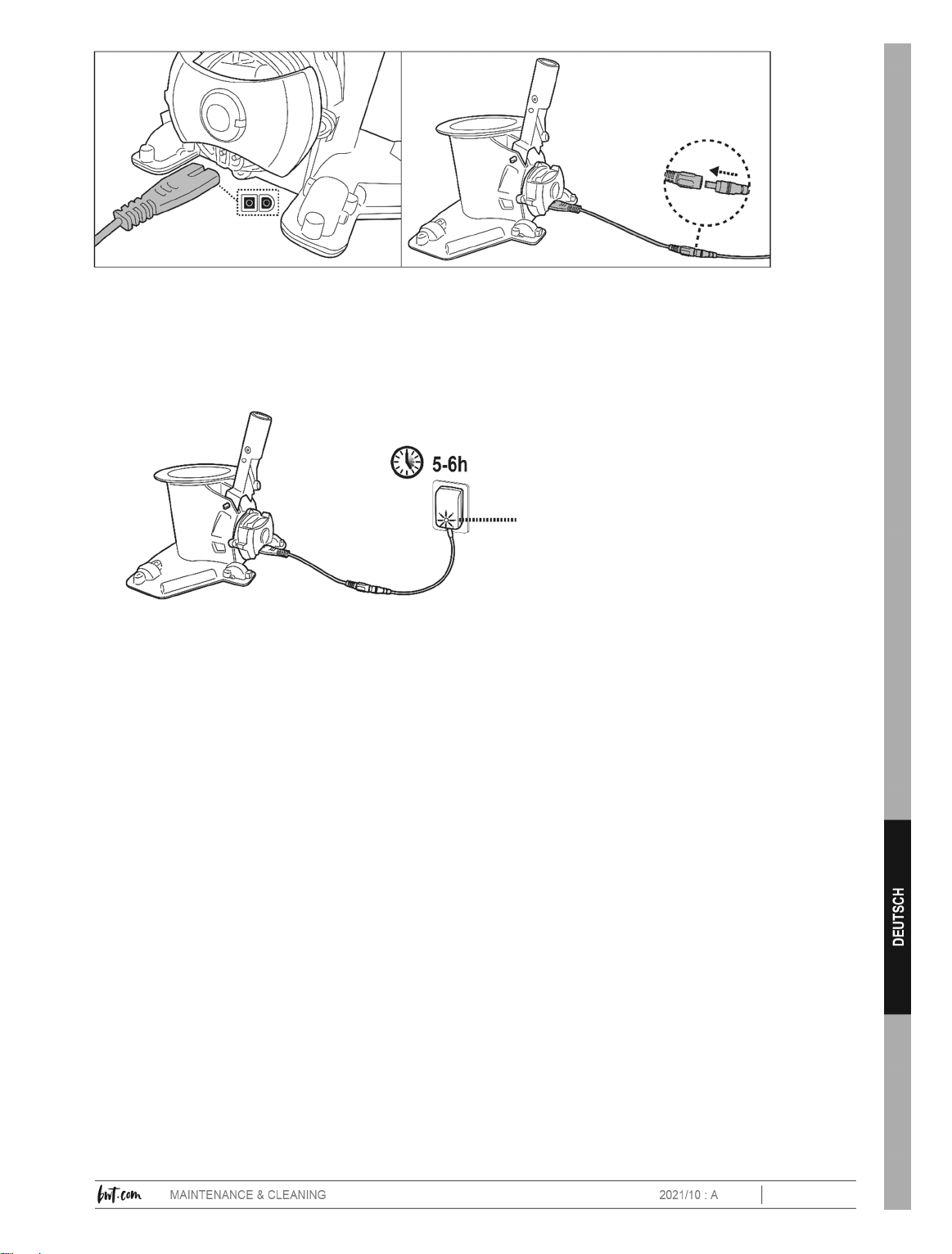

1. Place the unit on a flat surface. Set the pool vacuum to Power Off/
Charging Mode by turning the switching knob anticlockwise until it clicks
and completely exposes the charging port.
2.
Align and attach the charging cable to the charging port. WARNING! Be
sure not to invert the charging cable and ensure both the charging cable
and charging port are clean and dry before charging them. TIPS: Use
cotton bud to dry the charging port and pins. Connect the external
adaptor’s cable plug to the charging cable’s port.
4/155

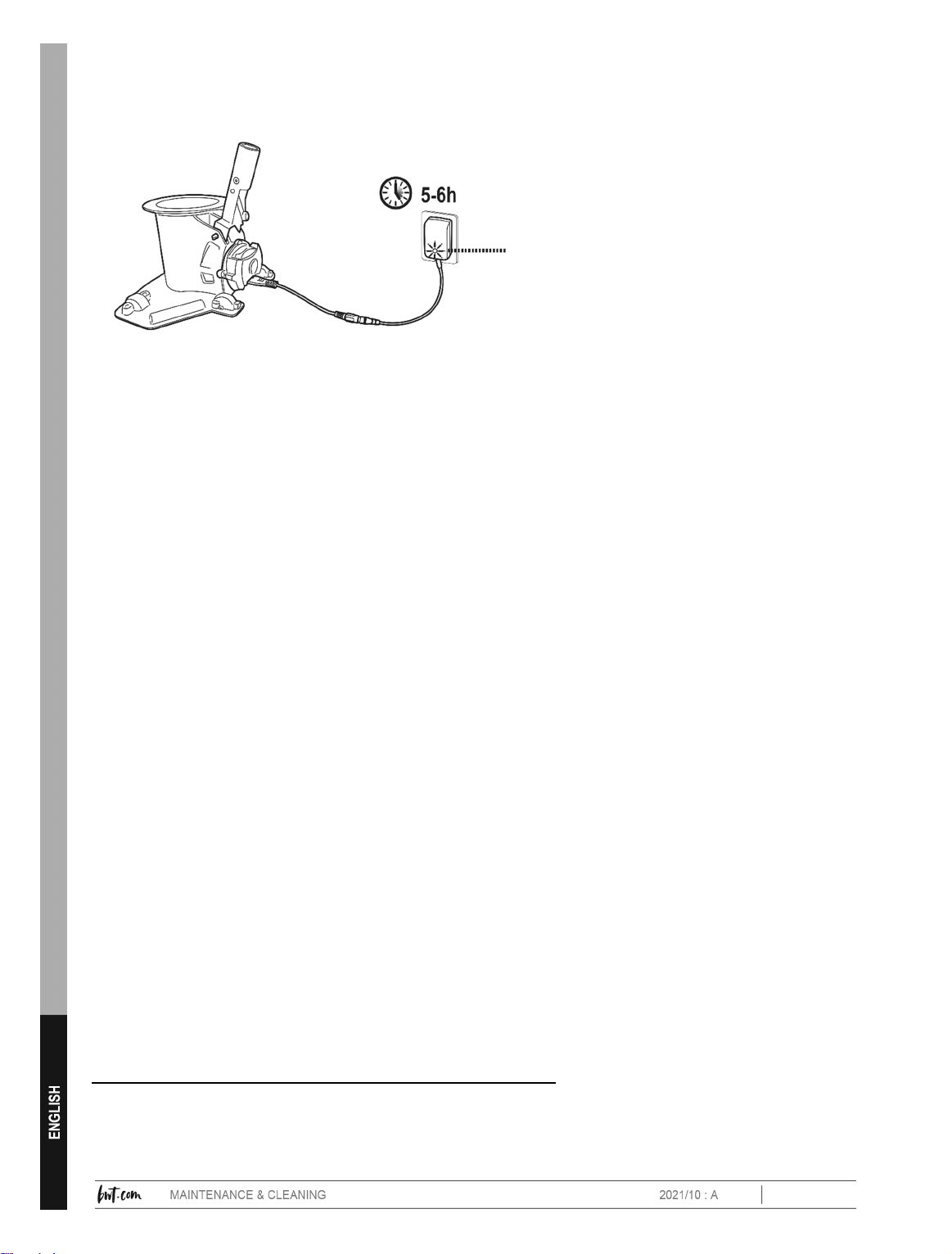

3. Connect the external adaptor to the power source. The indicator light on
the external adaptor will turn red when the vacuum is charging and green
when it is fully charged. Charge it for 5-6 hours for best performance.
• Immediately disconnect the external adaptor from the power source if you
detect any of the following:
-Offensive or unusual odor
-Excessive heat
-Deformation, cracks, leaks
-Smoke
4. When charging is complete, disconnect the external adaptor from the
power source and unplug the charging cable from the main unit.
WARNING! Never leave the charging cable while the pool vacuum is in
the water.
Normally the pool vacuum is designed to operate for up to 75 minutes on a full charge.
Note: Empty the filter bag regularly. Excessive debris increases the burden to the motor
and may shorten the operating time.
NOTE: Rechargeable lithium-ion battery is classified as a consumable item. It has a
limited life and will gradually lose its capacity to hold a charge. Therefore, the running time
of the pool vacuum will gradually reduce after repeated charging and discharging
throughout its product life.
Once the lifespan of the battery reaches its end, refer to section “BATTERY DISPOSAL”
for instructions regarding battery disposal.
NOTE: Let the pool vacuum rest for around 30 to 40 minutes before charging it again.
Set-Up Before Use
Telescopic pole (not provided) assembly (for EU & US only)

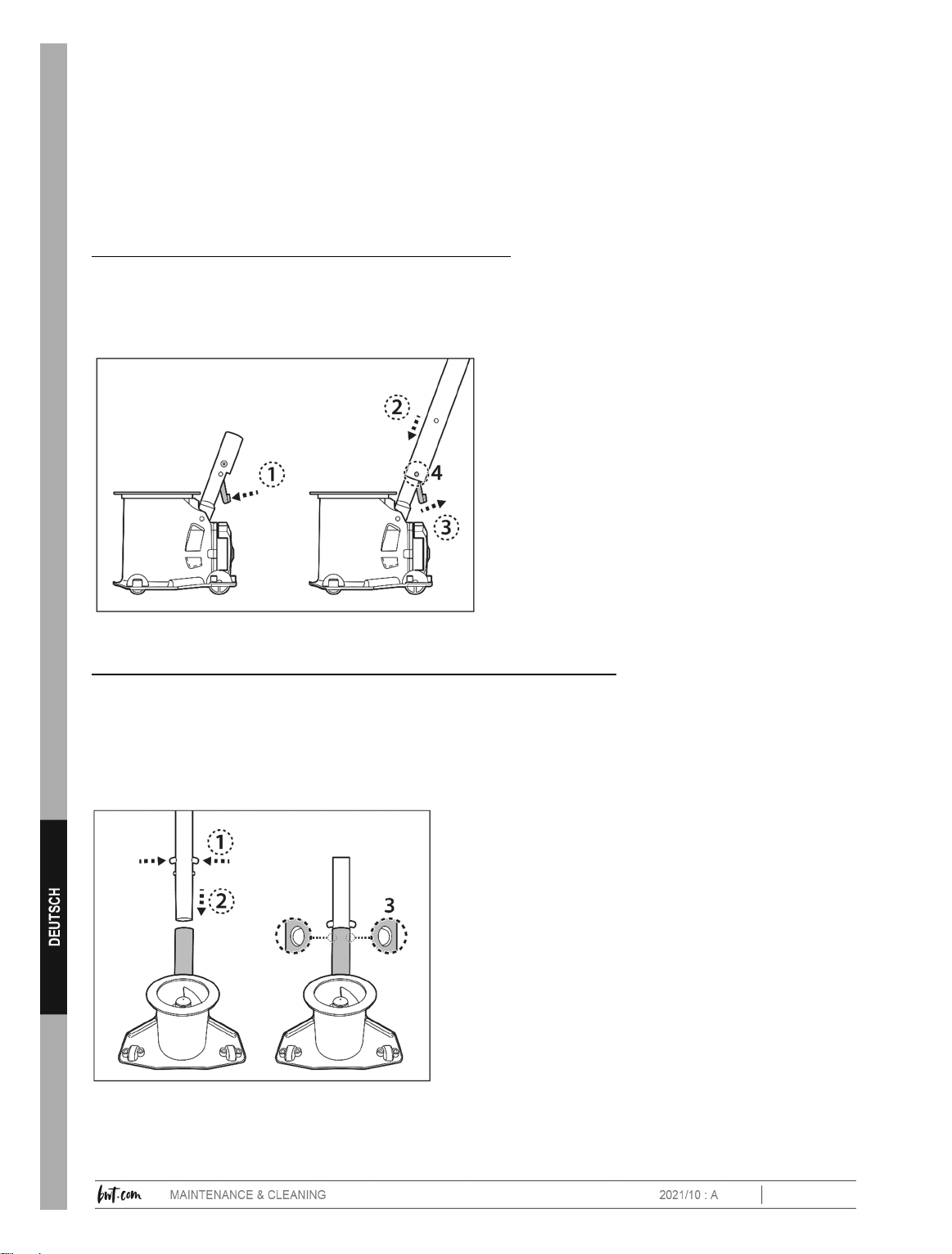

Press on the V-clip on the pole connector to retract its side pins. Slide the telescopic pole
into the connector until it’s locked in place by the side pins and holes and then release the
V-clip.
RED light - Charging
GREEN light - Charged
5/155

Specific telescopic pole (not provided) assembly (for Australia/New Zealand only)
Press on the internal wishbone clip (preinstalled inside the specific telescopic pole) to
retract its side pins. Slide the specific telescopic pole into the specific pole connector until
it’s locked in place by the side pins and holes .
Filter Bag Assembly
Spread the filter bag over the top opening of the main
body of the pool vacuum. Make sure the cord of the bag
is placed under the flange of the top opening.
6/155

While holding the cord, press on the cord fastener and
push it under the flange.
TIPS: To secure the filter bag, when pushing the cord
fastener under the flange, pull one cord instead of two
cords as shown in diagram.
Lift up the bag to ensure it is totally secured before
deploying the pool vacuum into water.
Brush assembly
Align and insert all brushes into the notches at the underside of the pool vacuum
NOTE: the 2 brushes provided are not interchangeable. Select the brush according to the
curvature and shape of the notch. Ensure the brushes are fitted properly.
7/155

To detach the brush, insert the tip of a small screwdriver into the corner notch and pry up
the brush.
Pool Preparation
- If the liner is brittle, damaged, or wrinkled, contact a qualified professional to perform the
necessary repairs or perform a liner replacement prior to using the pool vacuum.
- If you are using a saltwater pool, make sure all salt are dissolved before placing the pool
vacuum into the water.
OPERATION
WARNING! KEEP YOUR FINGERS AWAY FROM THE OPENING TO
AVOID BEING HIT BY THE IMPELLER WHEN IT’S ON.
1) Bring your pool vacuum to the side of your pool. Turn the switching knob clockwise
until it stops and clicks, and the power indicator at the top corner will light up.
Immerse the pool vacuum into water. The indicator will begin flashing when about
10-15 minutes of working time remains.
Light Color
Green Power On
Red Impeller stops
(impeller clogged)
To effectively vacuum up debris, ensure the pool vacuum is laid flat on the pool floor as
you steer it back and forth in regular motion over debris patches for collection. Debris is
collected from the front, side and back to fill up the filter bag.
Excess dirt and debris in the pool could clog the impeller, which would automatically stop
to protect the motor, and the indicator light would turn red. Remove the vacuum from the
8/155

pool and turn it off prior to unclogging and emptying the filter bag if it is full. To resume
operation, turn the switching knob anticlockwise until Power Off is selected, then turn it
clockwise to select Power On.
2) To retrieve the pool vacuum, bring it poolside and flip it upside down before lifting. This
is done to prevent debris from scattering back into the pool and avoid bending the pole
in the process.
3) Rinse the pool vacuum with fresh water after every use. DO NOT use any aggressive
detergent.
4) Dry the charging port and pins thoroughly (TIPS: Use cotton bud to dry them).
Vacuuming the Sunken Compartment of an Automatic Slatted Cover
WARNING! Pay attention to all safety warnings in the manual of your
automatic slatted cover concerning this cleaning operation beforehand.
The minimum distance required for the immersion of the vacuum into the sunken
compartment is 24cm (9.5in).

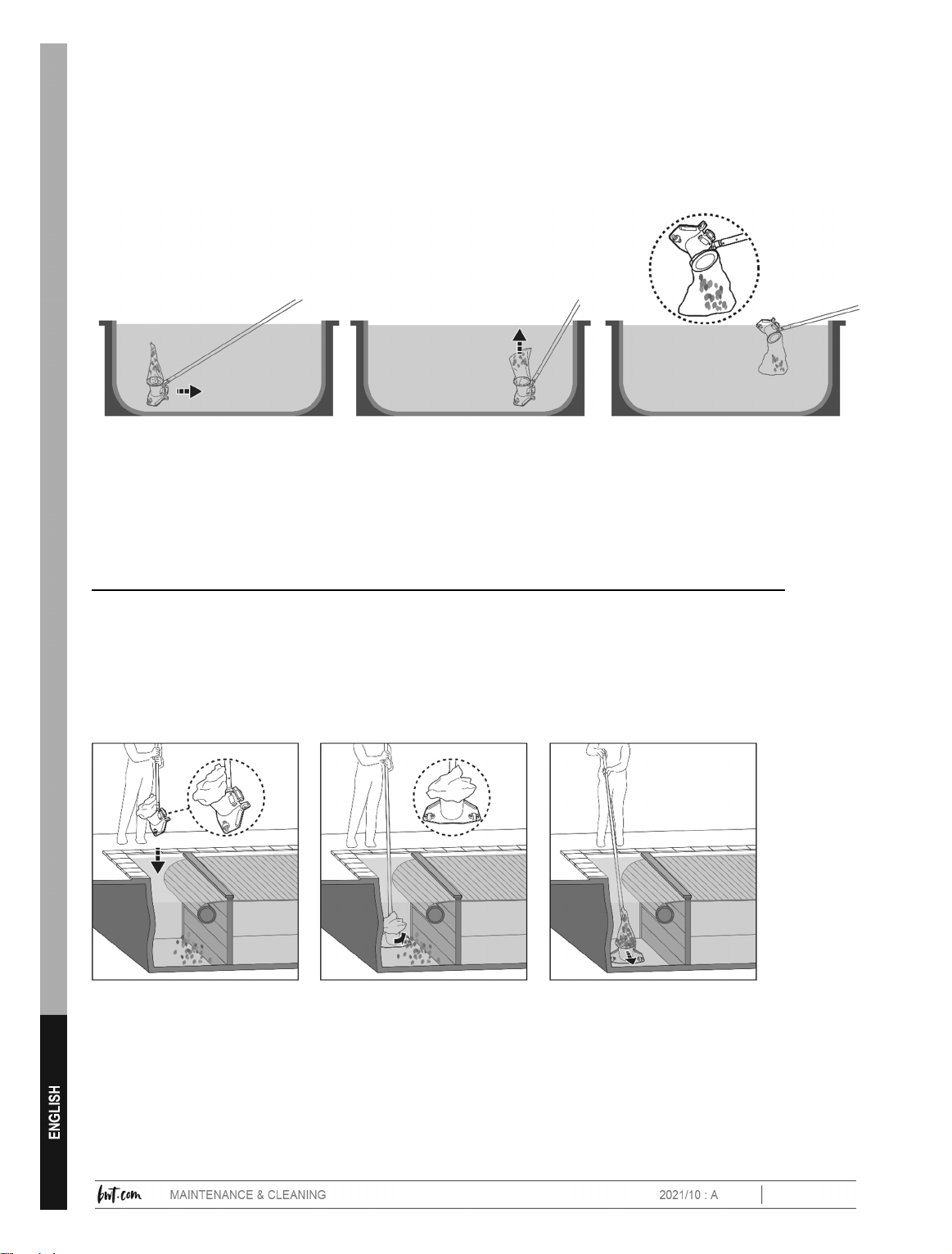

- Remove the duckboard and unroll the pool slat according to instructions from your
pool cover manual.
- Attach a telescopic pole / specific telescopic pole (not provided) to the pool vacuum
as instructed in the manual.
- Power on the vacuum then align it as shown in the image above before immersion.
- Once the cleaner reaches the pool floor, parallel it to the pool length as shown above
and start vacuuming the sunken compartment.
9/155
