BXB Electroics WMP-1206 User manual
BXB ELECTRONICS CO., LTD.
1
W
WM
MP
P-
-1
12
20
06
6
S
Sp
pe
ea
ak
ke
er
r
C
Ci
ir
rc
cu
ui
it
t
Z
Zo
on
ne
e
S
Se
el
le
ec
ct
to
or
r
U
Us
se
er
r
M
Ma
an
nu
ua
al
l
V
V
Ve
e
er
r
rs
s
si
iio
o
on
n
n:
::1
1
1.
..1
1
1
D
D
Da
a
at
tte
e
e:
::O
O
Oc
c
ct
tto
o
ob
b
be
e
er
r
r1
1
18
8
8,
,,2
2
20
0
01
1
11
1
1
BXB ELECTRONICS CO., LTD.
2
Contents ..................................................................................................................................................2
Overview..................................................................................................................................................3
System Features.....................................................................................................................................4
Safety Instructions .................................................................................................................................5
Operation and Features .........................................................................................................................6
Front Panel Description .........................................................................................................................6
Rear Panel Description ..........................................................................................................................7
Connection..............................................................................................................................................8
Contents
BXB ELECTRONICS CO., LTD.
3
Thank you for purchasing WMP-1206 Speaker Circuit Zone Selector from BXB Electronics Co.
WMP-1206 is the latest speaker circuit zone selector with superb performance and elegant design
which can be used in various occasions.
The advanced digital control module provides 12 single-area broadcast button, 1 programmable
group button and 1 all-call button to make your PA system even more powerful.
Built-in RS-485, RS-232 and USB ports facilitate integrating with other control systems.
High reliability is our utmost purpose when developing BXB system. Each main control unit and its
fittings have all gone through careful assembly and strict test in our ISO 9001 approved factory. The
excellent performance, high reliability and reasonable price make it the indispensable system for you.
Overview
BXB ELECTRONICS CO., LTD.
4
1. 12 single-zone buttons, loads more than 300W
2. 1 programmable group button
3. 1 all-call button
4. LED display on each button
5. Group button setting can be changed anytime
6. Zone activate by relay connection
7. Crosstalk prevents design
8. RS-485, RS-232 and USB ports facilitate integrating with other control systems
9. Input control flip-flops for remote activate timer-clock
10. Output control flip-flops for remote activate amplifier
11. WMP-1206 can be used individually or used with digital/ analog connect. With RS-485 port, it can
expand another WMP-1206; expand apparatuses are unlimited when using analog contacts.
【Specification】
◎Power Supply: DC15V/1A (MAX)
◎Output: 12 areas, 300W each zone, maximum 3600W in total
◎12 single-zone switches, 1 group switch and 1all-zone switch
◎1 remote all-call input terminal
◎All the switches are equipped with indicators.
◎W 483 x H 89 x D 270 (mm)
System Features
BXB ELECTRONICS CO., LTD.
5
SafetyInstructions
1. Please read and observe these instructions before installing and using the apparatus.
2. Use only accessories specified by the manufacturer. The manufacturer is not liable for damage
caused by the use of non-specified accessories.
3. Install the apparatus and its accessories carefully. Strike and fierce shaking may damage the
apparatus.
4. Make sure the power cord is fixed properly.
5. Do not overload wall outlets and extension cords as this can result in a risk of fire or short circuit.
6. To reduce the risk of damage from lightning strikes, it is important that all electric cables should
be bonded to the same grounding point.
7. Do not block any ventilation openings to prevent overheating and malfunction.
8. Do not expose the apparatus to rain or moisture.
Humidity may lead inside components to damage. Appropriate shelter is necessary when placing
it outside (Best working environment: Temperature 0°C ~ 40°C <32°F ~ 104°F>, humidity below
90%).
9. Please do not switch on and off the apparatus rapidly.
Rapid switch on and off the apparatus should be avoided all the time to prevent inside sensitive
electronic circuits from being damaged by surges.
10.Do not clean the apparatus and its accessories with chemical solvents. Use only a clean,
dry/dampish cloth.
11.Refer to maintenance technician when the apparatus has been damaged in any way, such as:
A• power-supply cord or plug is damaged
B• liquid has been spilled in
C• has been exposed to rain or moisture
D• has been dropped
E• objects have fallen into the apparatus
F• does not operate normally
12.Note: When the printed circuit board is going through electric static treatment, correct ESD
safety precaution and grounding should be assured.
13.Note: Before connecting the apparatus to main AC, please select the supply voltage in
accordance with the wall voltage in your country to prevent damage. Refer to Installation and
Setting (Page 8) for selecting.
14.Warning: Do not disassemble or remodel the product, as these actions may lead to electrical
shock or damage. The guarantee on the product will become null if the product is ever
disassembled.
BXB ELECTRONICS CO., LTD.
6

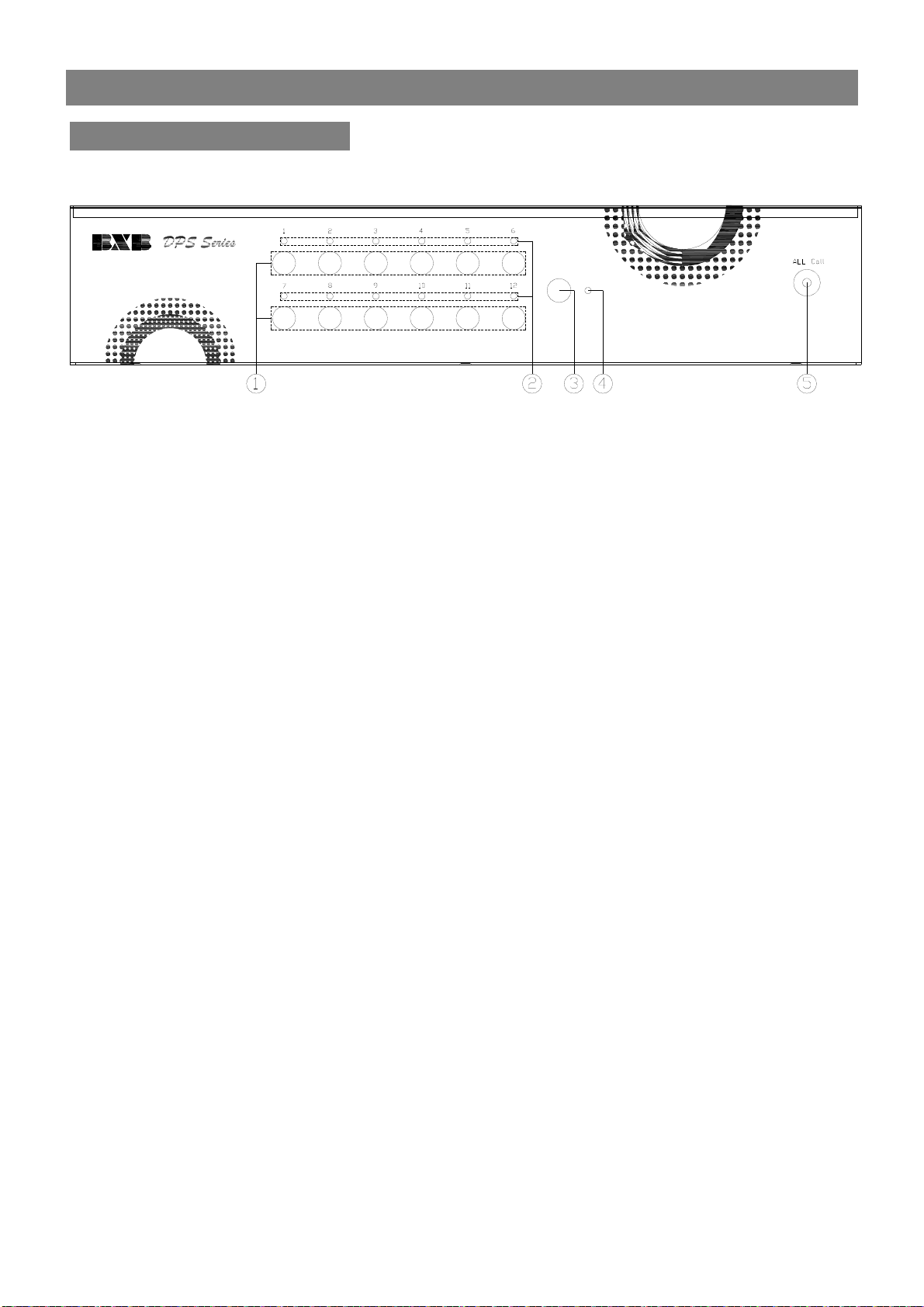

Front Panel Description
○
11-12 single-zones broadcast buttons
○
21-12 single-zones LED indicators
○
3Programmable group button
Simply press the group button and you can broadcast to preset groups.
Preset groups:
Press the single zones that you want to added in the group button (LED is on), and then press
the group button for three seconds, flashing LED means setting is saved.
Repeat instructions above to change setting. Reprogram the memory is not essential.
○
4Group broadcast LED indicator
○
5All-zone broadcast LED indicator
Operation and Features
BXB ELECTRONICS CO., LTD.
7

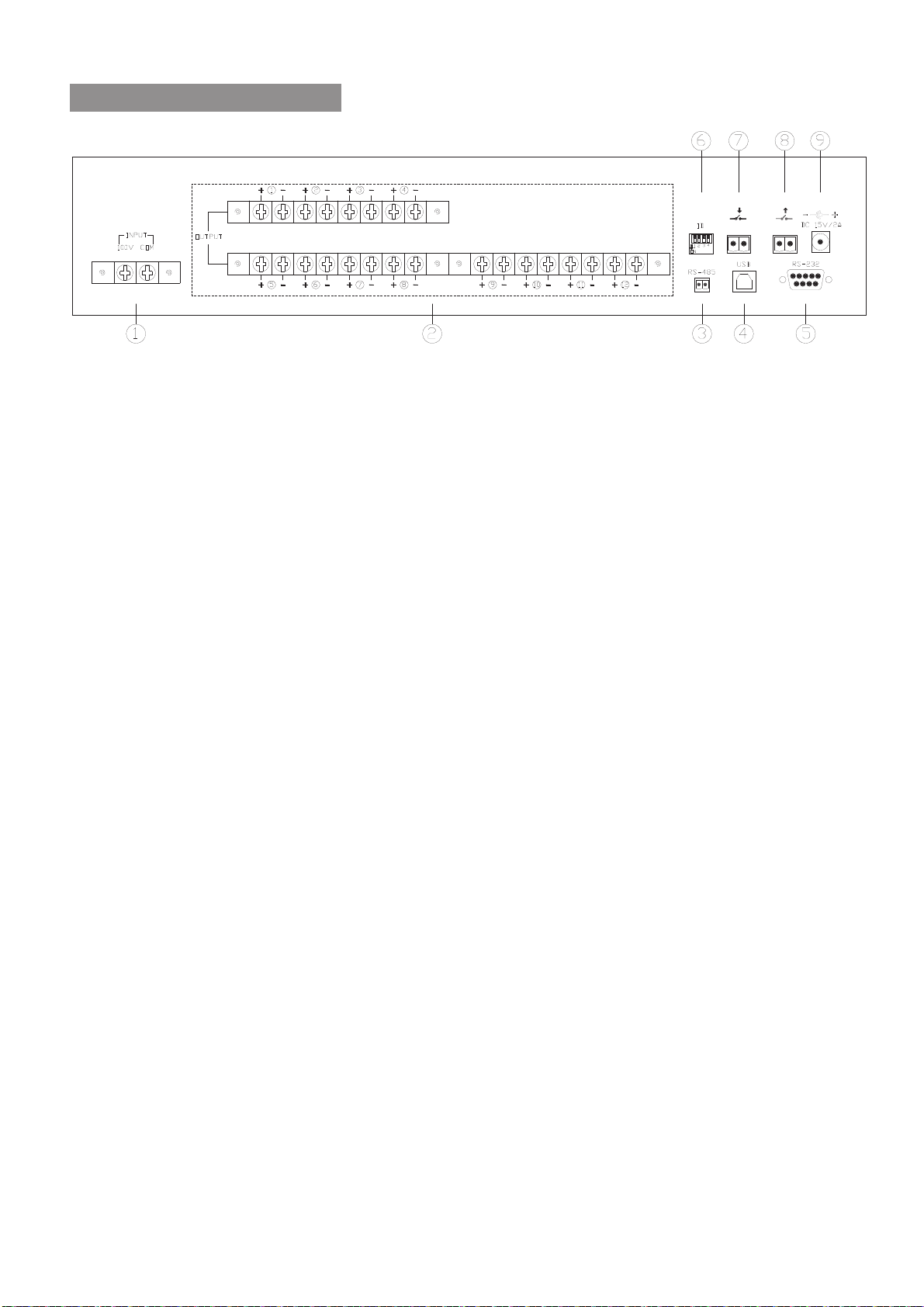

Rear Panel Description
○
1Amplifier (COM/100V) signal input terminal
○
21-12 zone speaker output terminals
○
3RS-485 communication port for other control systems
○
4USB 2.0: USB port (connects to PC for BXB graphical control software)
○
5RS-232 communication port for other control systems
○
6ID: DIP switch identity code (for expanders)
○
7External dry contact: all zone broadcast activates when contacted.
○
8Dry contact: contacted when WMP-1206 is activated (to activate amplifier).
○
9WMP-1206 working voltage: DC12V ~ DC15V (MAX)
BXB ELECTRONICS CO., LTD.
8

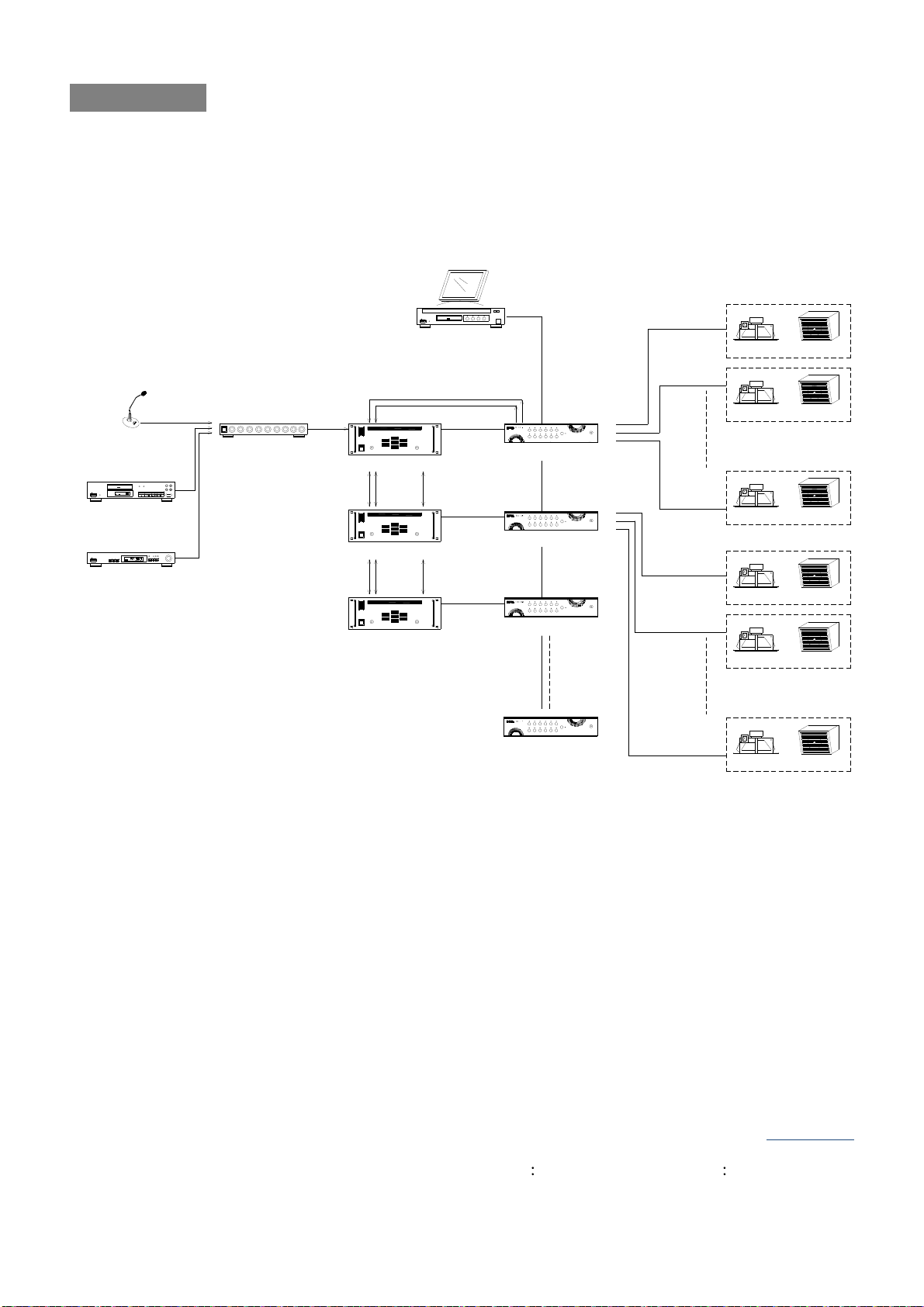

Connection
Sound amplifies to 100V high voltage through power amplifiers, and transmits to WMP1206. Last, it is
outputted to speakers that broadcaster prefer. Dry contacts are triggered when the zone is activated,
they would turn on power amplifiers.
FM/AM Radio
STANDBY/ON
AUTO
BAND
MODE
DISPLAY
MPX
SCAN
RFATT
MEMORY
MODE
CHARACTER
4 5
910
321
876
DIRECT TUNING
MODE
MEMORY CLASS
TUNING
CD Player
Disc
STANDBY
STANDBY/ON
BXB
WPC-2000
LEVEL
POWER
PL
AC
0FF
ON AUTOFUSE AUTOFUSE
DC
400W Amplifier
Graphical Management Console
USB or RS-232 port
Microphone
STANDBY/ON
STANDBY OPEN/CLOSE
01
INDEX
EDIT
01
TRACK MIN
00:00
SEC
DISPLAY OFF
TIME
disc ..AUTO
EDIT HI-LITE
CD-DECKSYNCHIRO
PROGRAM
.COMPU
RANDOM REPEAT
1 2 3 4 5 6
8 21110197
ALLCall
Dry Contact Output
POWER
12 Zone Speaker Circuit Selector
Mixer
Dry Contact Input
Ceiling-mounted or Wall Speaker
High VoltageSignal
High Voltage Signal
Zone 2
Zone 12
(Max 300V for each zone)
LEVEL
POWER
PL
AC
0FF
ON AUTOFUSE AUTOFUSE
DC
400W Amplifier
1 2 3 4 5 6
8
79 1 0 11 1 2
ALLCall
12 Zone Speaker Circuit Selector
1234 5 6
8
79 10 11 12
ALLCall
12 Zone Speaker Circuit Selector
Paralleled Dry Contacts
LEVEL
POWER
PL
AC
0FF
ON AUTOFUSE AUTOFUSE
DC
400W Amplifier
Paralleled Dry Contacts
Audio Signal
Audio Signal
COM/100V
High VoltageSignal
COM/100V
High VoltageSignal
COM/100V
1 2 3 4 5 6
8 21110197
ALLCall
12 Zone Speaker Circuit Selector
Up to 8 Apparatuses
RS-485 Port
RS-485 Port
RS-485Port
Ceiling-mounted or Wall Speaker
Ceiling-mounted or Wall Speaker
Zone 1
Ceiling-mounted or Wall Speaker
Zone 2
Zone 12
Ceiling-mounted or Wall Speaker
Ceiling-mounted or Wall Speaker
Zone 1
High VoltageSignal
(Max 300V for each zone)
Audio Signal
BXB Electronics Co., LTD. TAIWAN | Website: www.bxb.tw
PA System / Conference System / Language Laboratory System
TEL+886(7)970-3838 FAX +886(7)970-3883
