Preface
Thank you for choosing BYD Suri. For better use and maintenance of your BYD Suri, please do read this manual
carefully.
Special warning: BYD AUTO CO., LTD assumes NO liability for any car damage or failure and collateral damage
caused by re-molding, retrofitting or parts change of BYDSuri.
Thank you for choosing BYD Suri, and your comments and suggestions are welcome. To allow us to provide better
service to you, our esteemed customer, please make sure to provide us with your accurate contact information. In the case
of any change to your contact details, please contact your BYD sales service center to update it in our system. Meanwhile,
we would suggest you check your national laws and regulations as well as local policies, and obtain a license plate as soon
as possible in order to avoid legal penalties.
Please strictly follow ―Friendly Tips‖ and ―Notice‖ in this Manual to avoid possible injury or damage. The expression and
use of the TIPs and NOTICEs are as follows:

BYD Suri Owner‘s Manual
FRIENDLY TIPS
Precautions to avoid damage to the
car or personal injury
NOTICE
Precautions to be followed to make
maintenance easier.
This manual is provided ONLY to help you use this auto properly, and shall not be construed as any specification of the
product configuration. For the product configuration, please refer to the contract (if any) related to this product or contact your
distributor.For detailed user instruction, please check http://www.byd-auto.net/ower/service.php
Safety Sign
The safety sign shown in the
figure above indicates ―Do NOT
do so‖ or ―Do NOT let it happen‖.

BYD Suri Owner‘s Manual
i
TABLE OF CONTENTS
Car Parameters for BYD Suri ................................................................................................................................................iii
Identification Number of BYD Suri .......................................................................................................................................iv
CHAPTER 1 Operation of Instruments and Controls........................................................................................................1-1
SECTION 1-1 Appearance of the Instrument Panel.............................................................................................1-1
SECTION 1-2 Keys and Doors.............................................................................................................................1-7
SECTION 1-3 Seats, Seat Belts, Steering Wheels, Rearview Mirrors and Sunroof...........................................1-27
SECTION 1-4 Switch Group, Lightening, Wiper, Defroster, Skylight and Reversing Assistance System...........1-53
SECTION 1-5 Instrument and Maintenance Indicator ........................................................................................1-69
SECTION 1-6 Parking Brake..............................................................................................................................1-93
SECTION 1-7 Audio Equipment.........................................................................................................................1-97
SECTION 1-8 Air Conditioning System............................................................................................................1-103
SECTION 1-9 Other Devices............................................................................................................................1-105
CHAPTER 2 Driving Tips of BYD Suri ................................................................................................................................2-1
CHAPTER 3 Starting and Driving........................................................................................................................................3-1
CHAPTER 4 Emergency Handling ......................................................................................................................................4-1
CHAPTER 5 Anti-Corrosion and Body Exterior Maintenance ..........................................................................................5-1
CHAPTER 6 Maintenance Instructions...............................................................................................................................6-1
CHAPTER 7 Maintenance....................................................................................................................................................7-1
CHAPTER 8 Specification of Parts .....................................................................................................................................8-1

BYD Suri Owner‘s Manual
ii
Car Parameters for BYD Suri
Product Model and Name F5 F5-2 F5-3
MT MT DCT
Dimensions
(mm) Length * Width *Height 4680*1765*1490
Wheel span
(mm) Front * Rear 1525*1520
Wheelbase (mm) 2660
Mass
Parameters
(kg)
Curb weight 1345 1410 1420
Gross weight 1720 1785 1795
Axle load
distributio
n
No
load Front axle 60.20% 62.20% 62.30%
Rear axle 39.80% 37.80% 37.70%
Full
load Front axle 53.50% 55.30% 55.50%
Rear axle 46.50% 44.70% 44.50%
Tire Specification 205/55R16; 195/65R15
Approach Angle (°Full Load) 15
Departure Angle (°Full Load) 18
Front Overhang(mm) 985
Rear Overhang (mm) 1035
Maximum Gradeability (%) 35
Seating Capacity 5
Maximum Design Speed (km/h) 170 170 170
Engine Model BYD473QE BYD476ZQA
Type Electronically controlled
multi-point sequential fuel
injection, vertical four-stroke,
water-cooled, wedge-shaped
Direct injection, inline four-cylinder,
four-stroke, water-cooled, pentroof
combustion chamber, double overhead
camshaft, 16-valve and electronic

BYD Suri Owner‘s Manual
iii
combustion chamber and
single overhead camshaft ignition
Displacement (ml) 1497
/5800
Maximum Net Power of the Engine 79 105
Rated Torque (N•m/rpm) 144/4650 228/(2000-3000)
Fuel Consumption in Urban Conditions
(L/100km) 10.1 12.1 10.4
Fuel Consumption in Suburban Conditions
(L/100km) 6.5 7.5 6.5
Fuel Consumption in Comprehensive Conditions
(L/100km) 7.8 9.2 8.0
Brake Friction Pair Front brake shoe: 9.3 to 18.3mm, rear brake shoe: 8.3 to 15.3mm
Front brake disc: 24 to 26mm, rear brake disc: 8 to 10mm
Emissions Level Euro IV
Wheel Dynamic Balance Requirements (after
Dynamic Balance and Counterweight) ≤5
Free Stroke of Brake Pedal (mm) ≤5
Wheel
Alignment
Parameters
Front wheel camber angle (°) -0.82 to 0.68
Toe-in of front wheel (mm) 0 to 2mm
Kingpin inclination angle (°) 10.57 to 12.47
Kingpin caster angle (°) 4.78 to 6.28
Rear wheel camber angle (°) -1.88 to -0.88
Toe-in of rear wheel (mm) -0.95 to 2.05mm
(* The actual fuel consumption is subject to the car conditions, road conditions, driving habits, etc.)
/(5100-5300)

BYD Suri Owner‘s Manual
iv

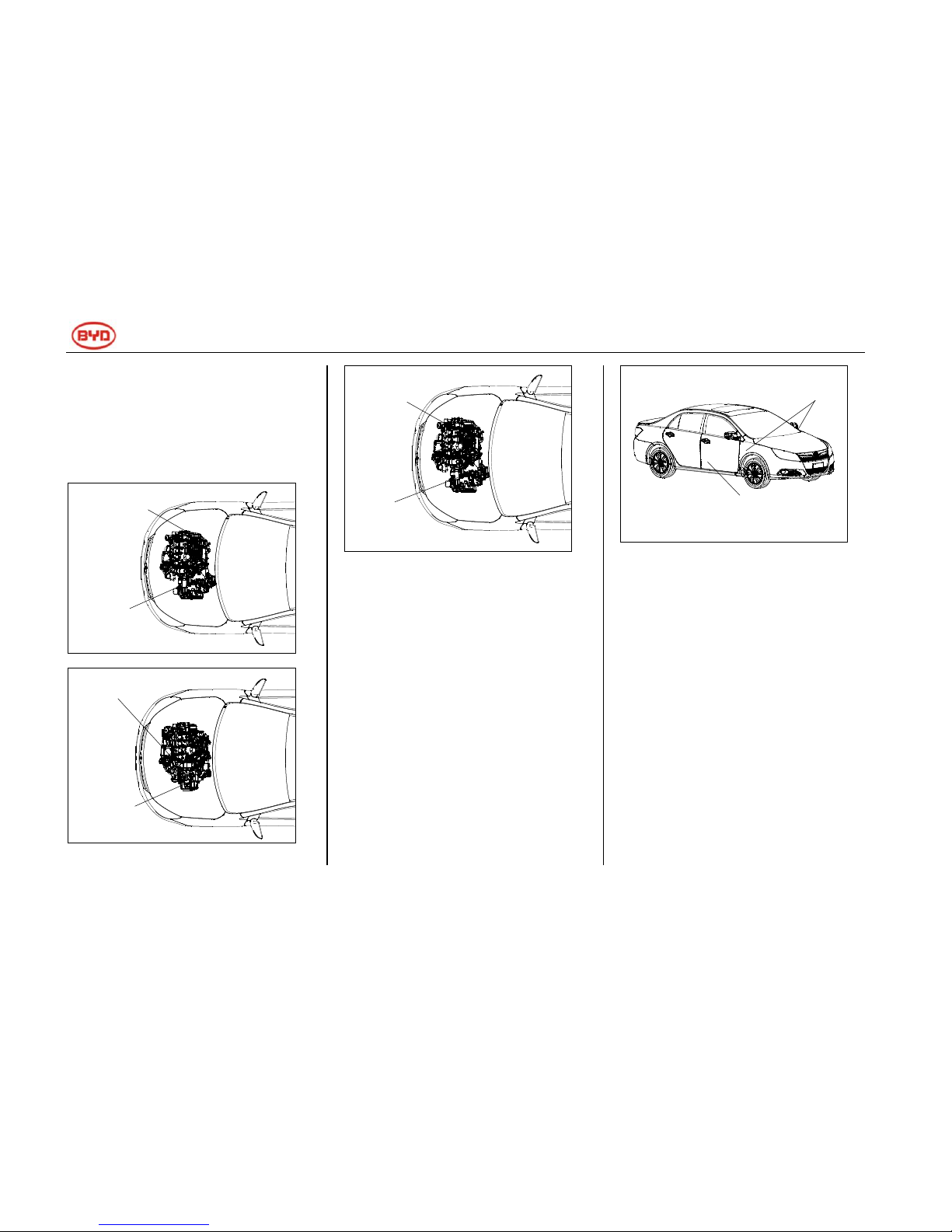

Identification Number of BYD
Suri
There are several identification
numbers on your car, located at
different locations.
The engine model / engine number is
printed on the engine block.
The transmission number is located at
the nameplate on the top of the
transmission.
Do not mix the transmission number
and engine number
The Vehicle Identification Number (VIN)
is marked on the floor crossmember
underthe passenger seat and the
nameplate above the instrument panel
at the lower left corner of the engine
compartmentbulkhead and the front
windshield.
The vehicle nameplate is fixed in the B
piller, indicating the Vehicle
Identification Number (VIN), engine
model, car model, engine displacement,
maximum design gross weight, date of
manufacture and the like.
Vehicle Identification
Number
Vehicle nameplate
Engine
model
6DT25Transm
ission Model
Engine model
6T25
Transmission
Model
Engine Model
5T14
Transmission
Model

BYD Suri Owner‘s Manual
v
The fuel grade sign is pasted at the
inside of the oil filler cap.
The warning sign for cooling fan and
replacement sign for engine coolant
are pasted inside the front
compartment.
The airbag warning sign is pasted on
the right sun visor.
The front passenger airbag sign is
located on the right side of the
instrument panel.
The tire pressure sign is located
below the left B pillar.
The sign of the child restraint system
is pasted below the rear door lock ring.
儿童保护装置
Child restraint
system
胎压指示牌
Tire pressure
sign
前排乘员空气囊标志
Front passenger airbag sign
空气囊指示牌
Airbag sign
冷却液指示牌
冷却风扇指示牌
Coolant
sign
Cooling fan sign
燃油标号
Fuel grade

BYD Suri Owner‘s Manual
Appearance of the Instrument Panel 1-1
Chapter 1
Section 1
Operation of Instruments and Controls
Appearance of the Instrument Panel
Instrument Panel Exterior.................................................................1-2
Appearance of the Combination Instrument .....................................1-4
Indication Sign on the Combination Instrument ................................1-5

BYD Suri Owner‘s Manual
Appearance of the Instrument Panel 1-2

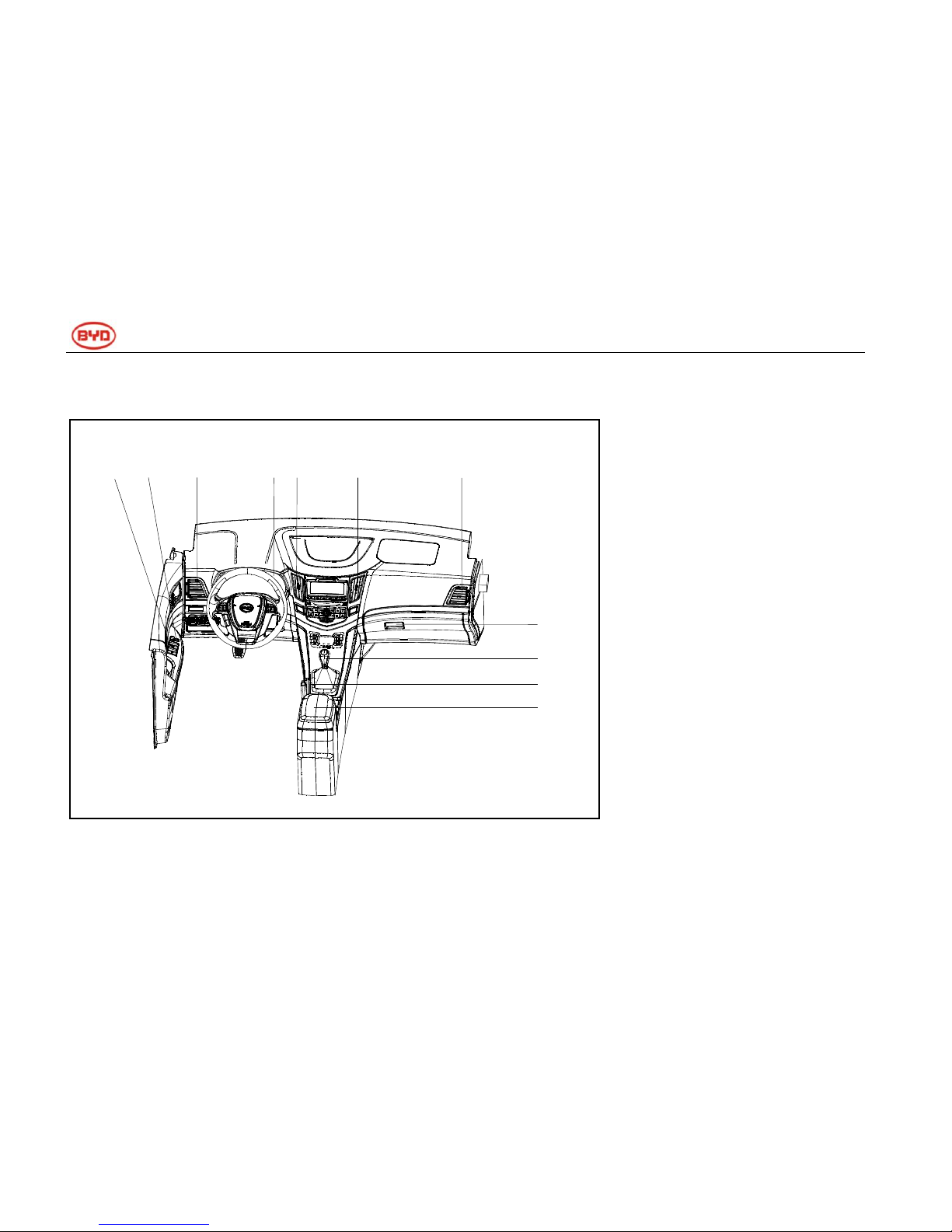

Instrument Panel Exterior
12 3 45 5 6
7
8
9
10
1. Power window switch
2. Master switch of door locks
3. Left air outlet
4. Instrument panel assembly
5. Central air outlet
6. Right air outlet
7. Glove box
8. Shift knob
9. Parking handle
10. Central glove box

BYD Suri Owner‘s Manual
Appearance of the Instrument Panel 1-3
11 12 14 15
13
16
17
11. Left switch block of the
steering wheel
12. Right switch block of the
steering wheel
13. Combination switch
14. Emergency warning light
switch
15. ESP switch
16. 2# switch block
17. 3# switch block

BYD Suri Owner‘s Manual
Appearance of the Instrument Panel 1-4
Appearance of the Combination instrument
1. Tachometer 2. Speedometer 3. Information display
12
3

BYD Suri Owner‘s Manual
Appearance of the Instrument Panel 1-5
Indication Sign on the Combination instrument
Parking brake warning light * Door-open warning light *
Indicator light of the driver seat belt * SRS warning light *
Battery discharge indicator * EPS malfunction warning light*
(if equipped)
Low engine oil pressure indicator * Clearance indicator light
Engine fault indicator* High beam indicator
Smart key system warning light * Turn signal light indicator
ABS system warning light * Electronic parking status
indicator (if equipped)

BYD Suri Owner‘s Manual
Appearance of the Instrument Panel 1-6
High coolant temperature warning
light Rear fog light indicator
SVS warning light * Low fuel warning light
ESP malfunction warning light (if
equipped) *
CRUISE MAIN malfunction
warning light (if equipped)
ESP OFF warning light* (if equipped) Cruise control indicator (if
equipped)
Anti-theft indicator
Tire pressure warning light (if
equipped) *
Major warning indicator*
Maintenance reminder is marked with ―*‖. Refer to Chapter 1-5 ―Maintenance Reminder and Warning Buzzer‖.

BYD Suri Owner‘s Manual
Keys and Doors 1-7
Chapter 1
Section 2
Operation of Instruments and Controls
Keys and Doors

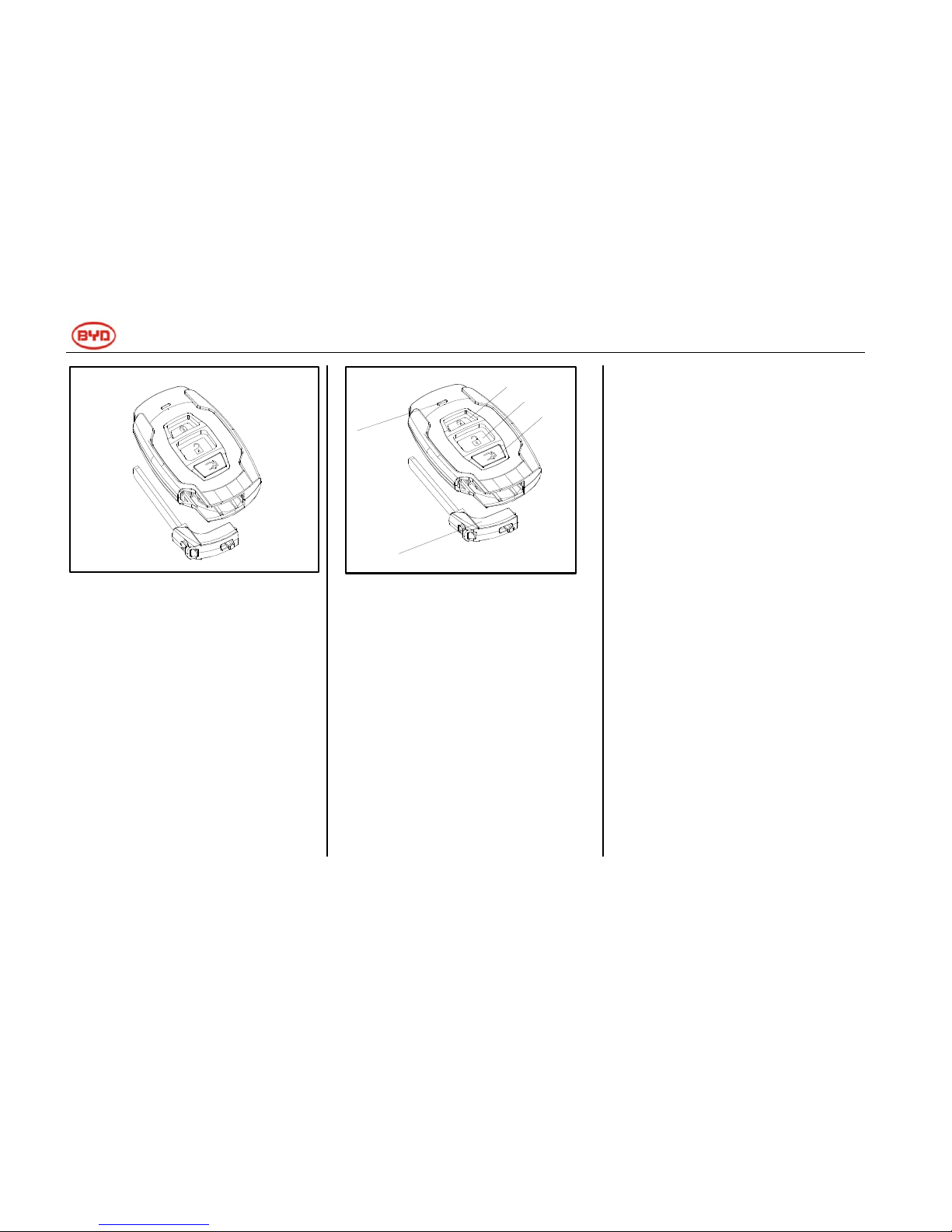

Keys..................................................................................................1-8
Keys Includes the Smart Key and the Mechanical Key.....................1-9
Front Car Door................................................................................1-18
Anti-theft System ............................................................................1-20
Starting the Engine.........................................................................1-21
Remote Driving Function ................................................................1-23

BYD Suri Owner‘s Manual
Keys and Doors 1-8

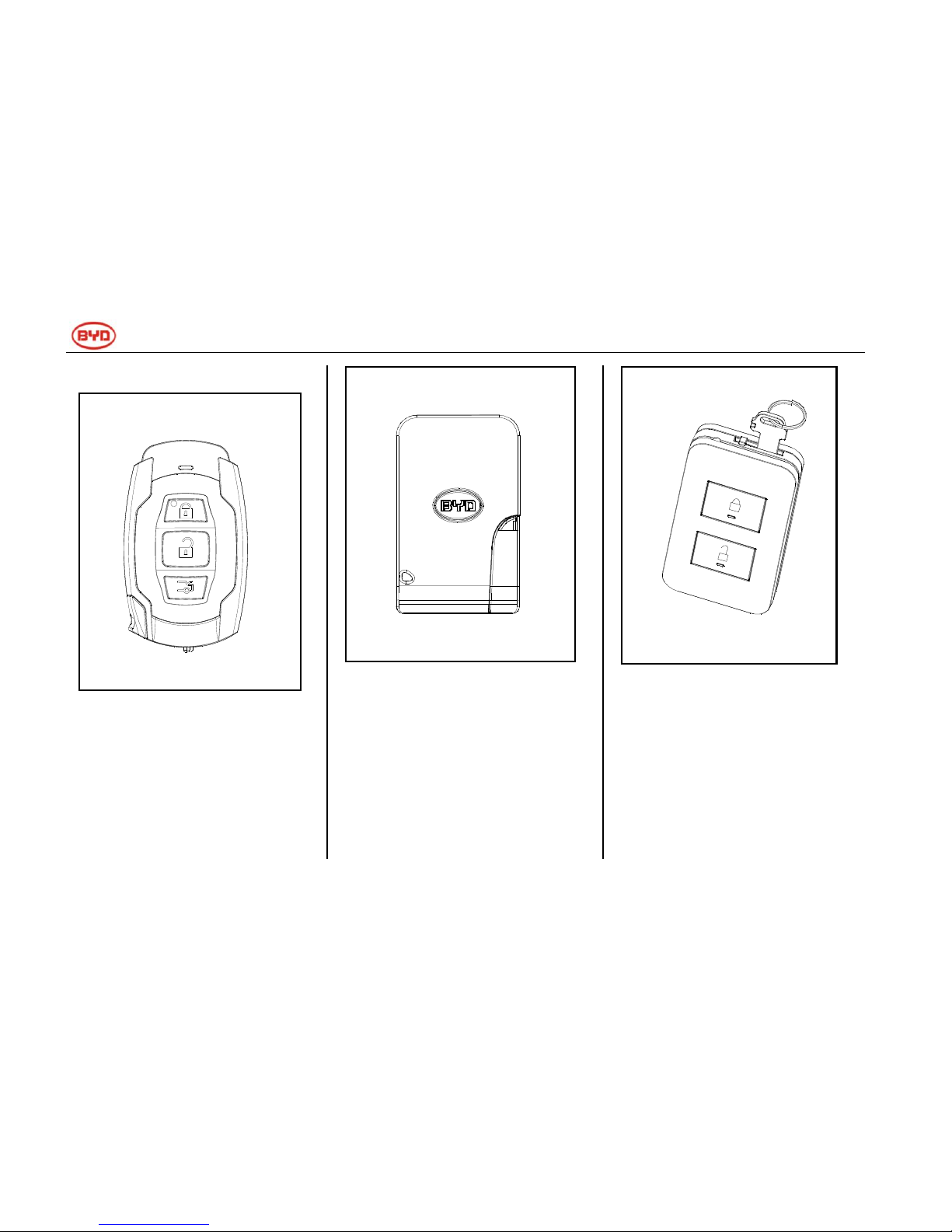

Keys
Electronic keys
Card keys
Slide smart key (if equipped)

BYD Suri Owner‘s Manual
Keys and Doors 1-9
Keys includes the smart key
and the mechanical key
1. Electronic smart key is used for
unlocking and locking of all car
doors, and the remote control
button on the electronic smart
key can be used to lock and
unlock door, and locate the car
remotely.
2. Card smart key is used for
unlocking and locking of all car
doors and activating push-to-start
function by pressing the left and
right front door micro switch or
rear micro switch.
3. Slide smart key is used for
unlocking and locking of all car
doors and activating push-to-start
function by pressing the left and
right front door micro switch or
rear micro switch, also for remote
driving.
4. Mechanical key (inside the
electronic smart key, card smart
key and slide smart key) is used
to lock or unlock the driver‘s door.
NOTICE
People who have a cardiac
pacemaker or defibrillator
should keep away from the
detection antenna of the smart
entry and starting system, as
electromagnetic waves could
affect functioning of these
appliances. Refer to the
―Detection antenna position‖
section.
Besides those who use a
cardiac pacemaker or
defibrillator, users of other
electronic medical appliances
should also consult with the
manufacturers about related
issues before using these
appliances. Electromagnetic
waves may have unpredicted
consequences for these
medical appliances.
NOTICE
Please observe the following
notes when using smart key:
Do not attach any object which
might cut off electromagnetic
waves of the smart key(for
example a metal sealing
element).
Do not knock other objects with
the smart key.
Do not left the smart key in
high temperature for a long
time, for example, on the
instrument panel or the engine
hood under direct sunshine.
Do not dip the smart key into
water or wash it in an
ultra-sonic wave washer.
Do not put the smart key
together with an appliance
which emits electromagnetic
waves, for example, mobile
phones.

BYD Suri Owner‘s Manual
Keys and Doors 1-10
Use the mechanical key in the
electronic smart key
To use the mechanical key in the
electronic smart key, please press the
lock button, and take out the
mechanical key. After using it, please
put it back.
Electronic smart key
(1) Locking switch
(2) Unlocking switch
(3) Trunk unlock switch
(4) Mechanical key
(5) Indicator light
Wireless remote control
The wireless remote control
system is designed to lock and
unlock all car doors at a distance
of about 1m from the car and
perform various other functions. It
applies only to the electronic smart
key.
When operating any switch, press the
switch in a slow and steady way.
Electronic smart key is an electronic
component. Please observe the
following instructions in order not to
damage it.
Do not leave it in high
temperature, for example, on the
instrument panel.
Do not disassemble it at your
sole discretion.
Do not knock other objects with
it or drop it.
Do not dip the key into water.
It is allowed to register the spare key
for a car. For detailed description,
contact the BYD authorized service
station.
Check whether there is a radio
station or radio transmitter of the
airport in the vicinity which has
interfered with the normal
operation of the electronic smart
1
2
3
4
5

BYD Suri Owner‘s Manual
Keys and Doors 1-11
key.
Check whether the battery of the
electronic smart key runs out of
power or not. For the
replacement of battery, please
refer to ―Replace the electronic
smart key battery‖section.
If the electronic smart key is lost,
please contact the BYD authorized
service station as soon as possible to
avoid car theft or accident.
Lock and unlock the car
When locking or unlocking all the
doors, please press the key switch in
a slow and steady way.
Lock: Press the locking switch to lock
all the doors at the same time. At this
time, the external rearview mirror will
fold up, and the turn signal lights will
blink once.
Check whether all car doors are
locked
If one car door is not locked, the
external rearview mirror will not fold,
the turn signal light will not blink, and
simultaneously, the alarm sounds
briefly.
Unlock: press the unlocking switch to
unlock all car doors. At the same time,
the turn signal light blinks twice.
If power position is at ACC or ON,
unlocking switch or locking switch
cannot unlock or lock car doors.
When unlocking all car doors with the
electronic smart keys at the same
time, even if the car doors are not
unlocked, the lamp inside will remain
on for 15 seconds, and then will be
turned off.
After unlocking with the electronic
smart key, please open a car door
within 30 seconds. Otherwise, all car
doors will be locked again.
If you press and hold the locking or
unlocking switch, locking or unlocking
function will not occur. You have to
release the switch and press it again.
Press and hold the switch for quite a
while to raise or lower the door
windows.
Unlock
Lock

BYD Suri Owner‘s Manual
Keys and Doors 1-12
Locate car
If you press locking switch when car is
in anti-theft mode, the car will give a
long tone, and the turn signal light will
blink for 15 times. When you cannot
find your car, please use this function
to locate your car.
If you press the locking switch again
when a car is in location mode, a new
round of car location will start.
Trunk unlock switch
Press the trunk unlock switch and
hold for about 1.5s, and the trunk will
open, then the turn signal light will
blink twice.
Replace the electronic smart key
battery
The electronic smart key is subject to
damage during battery replacement. It
is recommended to replace the
battery throughBYD authorized
service station. If you replace the
battery yourself, ensure you use a
CR1632 lithium battery or equivalent
and a flat head screwdriver.
Remotely control the window
raising and lowering
When the car is at the OFF position,
press and hold the remote control lock
key for more than 3s within the
effective remote control distance to
realize push-to-start window raising,
and release the key to stop the
operation; press the remote control
unlock key and hold it for more than
3s to realize push-to-start window
lowering; and release the key to stop
the operation.
WARNING
Please make sure the removed
card smart key battery or
component is not swallowed by a
child.
NOTICE
Do not touch the electrical
circuit; otherwise, static
electricity might cause
damage to the electronic
smart key.
Do not leave out any
component when replacing
the electronic smart key
battery.
Only the same or a similar
type of battery recommended
by a BYD authorized service
station can be used.
Please observe local laws
when disposing of used
battery.
Ensure that the car is within
visual range while remotely
controlling the window raising
and lowering.
Locate
