Pangean Glider
Inner Frame Assy.
Wide side of groove
should be up
Outer Frame Assy.
Wide side of groove
should be up

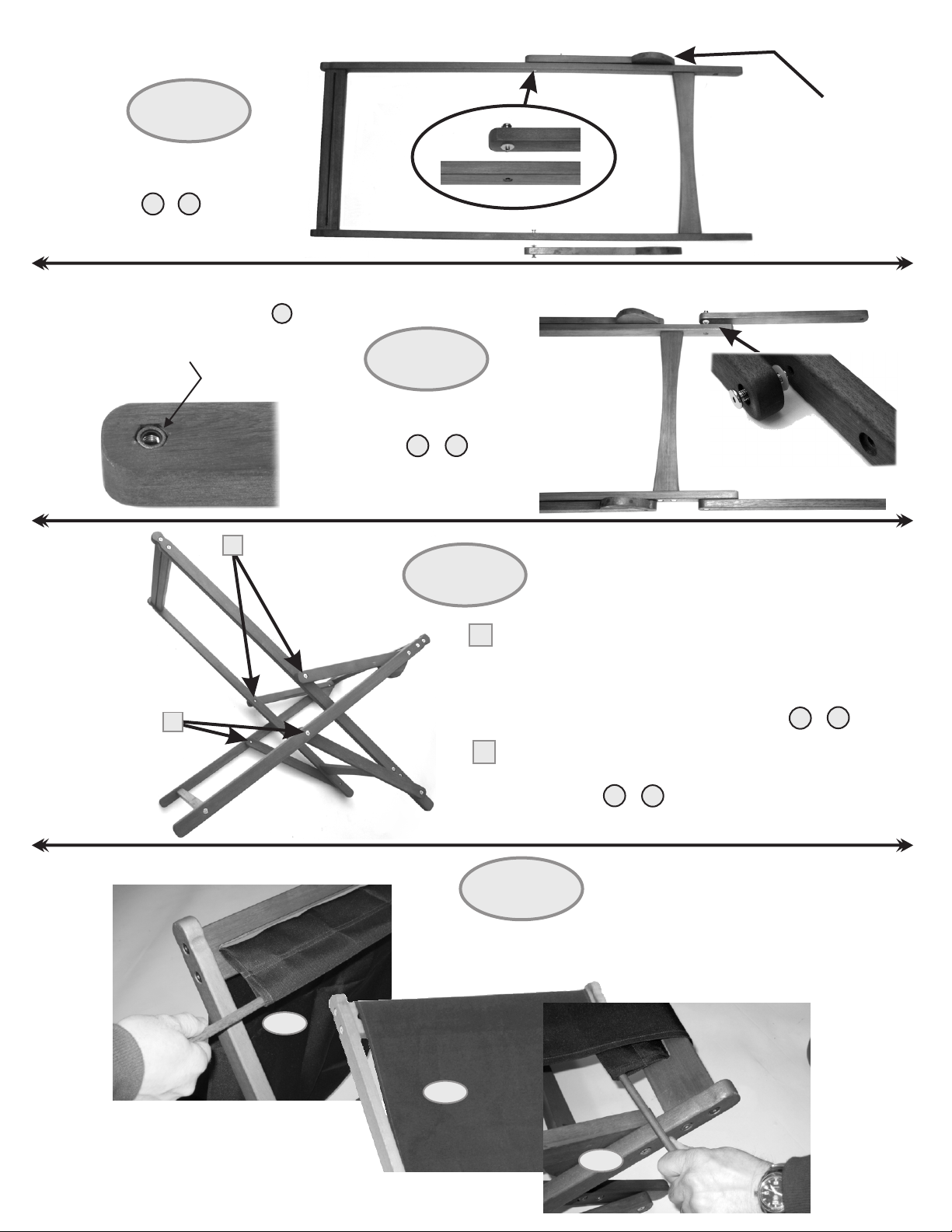

Assembly Instructions
Outer
Frame
Parts
Inner
Frame
Parts
Lower
Link Bars
Upper
Link Bars
Assemble Outer Frame
with 6 - Screws
Assembly
Fasteners
Chair Cover
Cover Dowels
Fastener List
with Key Numbers
Key #
1
3
2
Assemble Inner Frame
with 8 - Screws
STEP
ONE
STEP
TWO
Hint! Steps one to four should be done
on the floor or other large flat surface
If you have a problem, we want to help you
DO NOT return to the retailer until you have sought our help
Contact us – You will find us very responsive!
comfor[email protected]
Screw M7 x 60mm (14 pcs)
Bolt M8 x 40mm (8 pcs)
Plastic Washer (8 pcs)
Allen Key (1 ea.)
1
1
Allen Driver (1 ea.)
(for use in drill/screwgun)
Inner Frame w/upper Link Bars
Assemble two (2) upper
link bars to Long Frame \
w/2 ea - &
STEP
THREE
Hint! Flip Long Frame over with
nameplate down for this step
Assemble two (2) lower
link bars to Long Frame
w/2 ea - &
STEP
FOUR
Slide the Outer Frame over the
Inner Frame and link bars, aligning the
remaining holes in the upper link bars with
the holes in the Outer Frame closest to the
slotted cross rail. Fasten with w/2 ea - &
STEP
FIVE
B
A
A
Align the two remaining holes in the lower link
bars with the last holes in the Outer Frame and
fasten
w/2 ea - &
STEP
SIX
Slide fabric cover up through upper
slotted crossrail, insert dowel and seat
the dowel in the slot securely. Draw
the lower end of the fabric cover over
the lower slotted rail and up through
the slot, insert second dowel and
seat securely in the slot
Inner Frame w/lower Link Bars
Hint!
Fabric cover wraps over the
slotted cross rails as shown in the
photos below.
Please stop for a moment and compare your
assembled chair to the photo on the previous
page to be sure you’ve got it right!
Remember, call us if you have any question.
We are here to help you
Hint!
Note that the wider end of
the upper link bars should be
oriented as shown in this photo
23
23
23
23
Hint! Lay the two frame halves on their side
on the floor as shown at left for easier assembly.
B
Important Note!
In steps three and four, the #
bolts are screwed into nuts that
are embedded in the wood rails.
See photo below:
2
The enlarged image
above shows the lower link
bar connection to the long
frame assembly.
A
B
C
