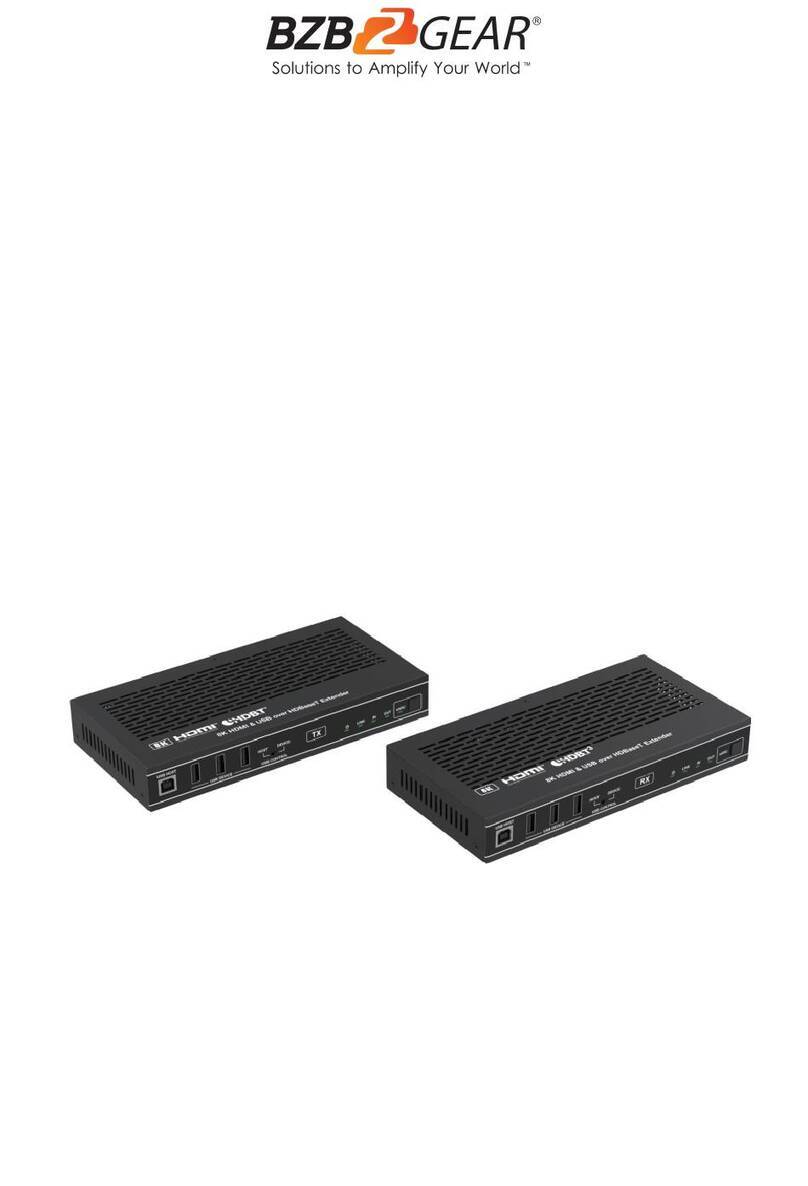

BZB Gear BG-UHDKVM-100 User manual

BG-UHDKVM-100
18Gbps HDMI over HDBaseT Extender
with Bi-directional IR (100M)

Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction. ................................................................................
1
2. Features. .............................................................................
1
3. PackageContents................................................................
2
4. Specifications.......................................................................
2
5. Operation Controls and Functions. ..........................................
4
5.1 Transmitter Panel..............................................................
4
5.2 Receiver Panel............................................................
5
5.3 Audio Signal Output Switching. .....................................
6
5.4 IR Pin Definition. ...............................................................
7
6. Application Example. ............................................................
8
7. Second Year Assurance………………………………………………………9
8. Mission Statement……………………………………………………………10

1 / 10
1. Introduction
The BG-UHDKVM-100 18Gbps HDMI Extender can extend high definition
video / audio signal, RS-232, bi-directional IR and internet signal, at the
distance of up to 328ft / 100 meters between transmitter and receiver via a
single CAT6a/7 cable and support resolution up to 4K2K@60Hz 4:4:4. The
transmitter supports ARC function and local audio extract. In addition, the
extender is equipped with bi-directional IR pass-through which allows for
sourceanddisplay control. It also supports USB KVM and PoC function.
The extender offers the most convenient solution for HDMI extension via a
single CAT cable with long distance capability and is the perfect solution for
any application.
2. Features
☆ HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
☆ Support 18Gbps video bandwidth
☆ Video resolution is up to 4k2k@60Hz YUV 4:4:4
☆ The maximum transmission distance is 328ft / 100 meters via a single
CAT6a/7 cable
☆ Support ARC (Audio Return Channel) function
☆ With bi-directional IR, RS-232 and CEC pass-through
☆ Support USB KVM function
☆ HDR, HDR10+, Dolby Vision and HLG function supported
☆ Support PoC (Power over Cable) function
☆ Compact design for easy and flexible installation.

2 / 10
3. Package Contents
Qty
Item
1
18Gbps HDMI over HDBaseT Extender (Transmitter)
1
18Gbps HDMI over HDBaseT Extender (Receiver)
1
IR Blaster cable (1.5 meters)
1
20~60KHz IR Receiver cable (1.5 meters)
4
Mounting Ear
2
3-pin Phoenix connector
1
24V/1A Locking Power adapter
1
User Manual
4. Specifications
Technical
HDCP Compliance
HDCP 2.2 / HDCP 1.4
Video Bandwidth
18Gbps
Video Resolution
4K2K 50/60Hz 4:4:4
4K2K 50/60Hz 4:2:2
4K2K 50/60Hz 4:2:0
4K2K 30Hz 4:4:4
1080p, 1080i, 720p, 720i, 480p, 480i
All PC resolutions including 1920 x 1200
Color Space
RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth
8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr
4:2:2/4:2:0)
8-bit (4K60Hz 4:4:4)
HDMI Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby
TrueHD, Dolby Digital Plus (DD+), DTS-ES,
DTS HD Master, DTS HD-HRA, DTS-X
L/R Audio Formats
PCM 2.0
SPDIF Audio Formats
LPCM2.0, Dolby Digital, Dolby Digital Plus, DTS
ESD Protection
Human body model —±8kV (Air-gap discharge) &
±4kV (Contact discharge)

3 / 10
Connection
Transmitter
Inputs: 1x HDMI Type A [19-pin female]
Outputs: 1x HDBT OUT [RJ45, 8-pin female]
1x SPDIF OUT [S/PDIF]
1×L/R OUT [3.5mm Stereo Mini-jack]
1×LAN [RG45]
Control: 1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm StereoMini-jack]
1x RS-232 [Phoenix jack]
1x SERVICE [Mini-USB, Update port]
1×USB HOST [USB Type B]
Receiver
Inputs: 1x HDBT IN [RJ45, 8-pin female]
1x SPDIF IN [S/PDIF]
Outputs: 1x HDMI Type A [19-pin female]
1x LAN [RG45]
Control: 1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm StereoMini-jack]
1x RS-232 [Phoenix jack]
1x SERVICE [Mini-USB, Updateport]
2×USB 2.0 [USB TypeA]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
Transmitter / Receiver:
165mm [W] x 88mm [D] x 18mm [H]
Weight
Transmitter: 170g, Receiver: 165g
Power Supply
Input: AC 100 - 240V 50/60Hz
Output: DC 24V/1A (Locking connector)
Power Consumption
13W
Operating
Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)
Resolution
Distance
4K2K
296ft /90M
1080P
328ft /100M

4 / 10
TX RX
SWITCH
USB HOST
ARC SPDIF
SERVICE
Resolution /
Cable Length
4K60 -
Feet / Meters
4K30 -
Feet / Meters
1080P60 -
Feet / Meters
HDMI IN / OUT
16ft / 5M
30ft / 10M
50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.
5. Operation Controls and Functions
5.1 Transmitter Panel
DC 24V HDBT OUT HDMI IN IR IN IR OUT L/R OUTSPDIF OUT RS-232 LAN
Name
Function Description
Power LED
Red LED is on when the transmitter is working.
LED is off when the transmitter is on standby.
ARC LED
Green LED is on when ARC function is turned on.
SPIDIF LED
Green LED is on when SPDIF OUT port outputs the the
audio signal returned from SPDIF IN on receiver.
USB HOST
Connect to PC for transmitting receiver’s USB data to transmitter.
SWITCH
Press the button to switch the output audio signal source for
SPDIF OUT and L/R OUT port.
SERVICE port
Firmware update port.
DC 24V
DC 24V input for 24V 1A power adapter.
Note that the extender supports PoC function, it means that either
transmitter or receiver is connectedto 24V/1A power supply, the other
doesn’t need power supply.
HDBT OUT
RJ45 connector for connecting the HDBT IN port of receiver
with CAT 5e/6 cable.

5 / 10
TX RX
USB 2.0 SWITCH
USB 2.0
ARC SPDIF
SERVICE
Connection Signal
Indicator lamp
(on the left side of the
HDBT OUT port)
▪Illuminate: Transmitter and Receiverare in good connection
status.
▪Flash: Transmitter and Receiver are in poorconnection
status.
▪Dark: Transmitter and Receiver are notconnected.
Data Signal
Indicator lamp
(on the right side of
the HDBT OUT port)
▪Illuminate: HDMI signal with HDCP.
▪Flash: HDMI signal without HDCP.
▪Dark: No HDMI signal.
HDMI IN
HDMI source input.
IR IN
IR input port for receiving the signal of IR remote.
IR OUT
IR output port for control of source device. This IR output signal
is from IR IN port of receiver.
L/R OUT
3.5mm stereo connector for analog audio output.
SPDIF OUT
SPDIF connector for optical audio output.
RS-232
3-pin Phoenix connector for RS-232 command transmission.
The RS-232 command will pass-through from transmitter to
receiver or receiver to transmitter.
LAN
RJ45 connector for connecting Hub or router.

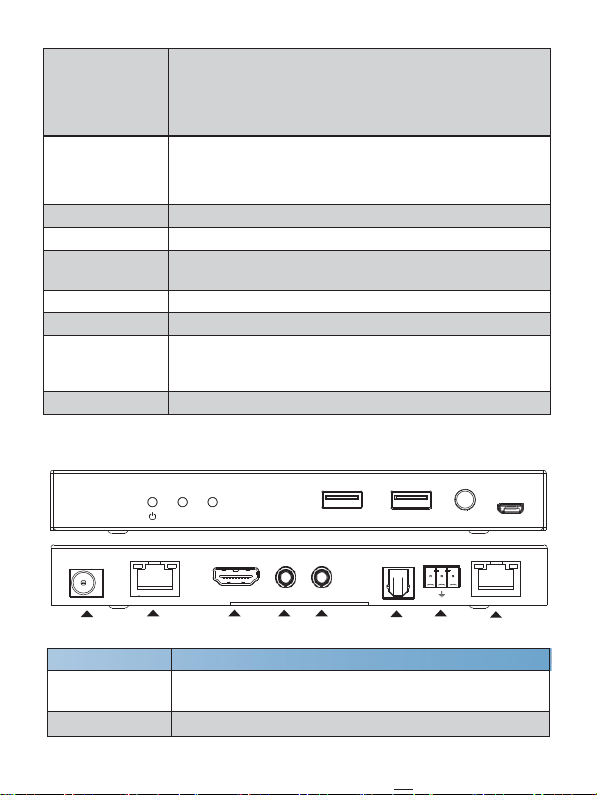

5.2 Receiver Panel
DC 24V HDBT IN HDMI OUT IR IN IR OUT SPDIF IN RS-232 LAN
Name
Function Description
Power LED
Red LED is on when the receiver is working.
LED is off when the receiver is on standby.
ARC LED
Green LED is on when ARC function is turned on.

6 / 10
SPIDIF LED
Green LED is on when SPDIF OUT port outputs the the
audio signal returned from SPDIF IN on receiver.
Two USB 2.0 ports
Connect to USB device.
SWITCH
Press the button to switch the output audio signal source for
SPDIF OUT and L/R OUT port.
SERVICE port
Firmware update port.
DC 24V
DC 24V input for 24V 1A power adapter.
Note that the extender supports PoC function, it means that either
transmitter or receiver is connected to 24V/1A power supply,
the other doesn’t need power supply.
HDBT IN
RJ45 connector for connecting the HDBT OUT port of
transmitter with CAT 5e/6 cable.
HDMI OUT
HDMI output for display.
IR IN
IR input port for receiving the signal of IR remote.
IR OUT
IR output port for control of displaydevice.This IR output signal
is from IR IN port of transmitter.
SPDIF IN
SPDIF connector for optical audio input.
RS-232
3-pin Phoenix connector for RS-232 command transmission.
The RS-232 command will pass-through from transmitter to
receiver or receiver to transmitter.
LAN
Connect to Internet device such as PC or laptop.
5.3 Audio Signal Output Switching
Switch the output audio signal source for SPDIF OUT and L/R OUT port
via the “Switch” button on the panel (the corresponding LED will illuminate).
The states of ARC LED and SPDIF LED indicate the specific output audio
signal source, as shown in the table below:
ARC LED
State
SPDIF LED
State
Output Audio Signal Source for SPDIF OUT port
and L/R OUT port
On
Off
The audio signal returned from HDMI (display device)
on receiver
Off
On
The audio signal returned from SPDIF IN on receiver
Off
Off
The audio signal extracted from the transmitter

7 / 10

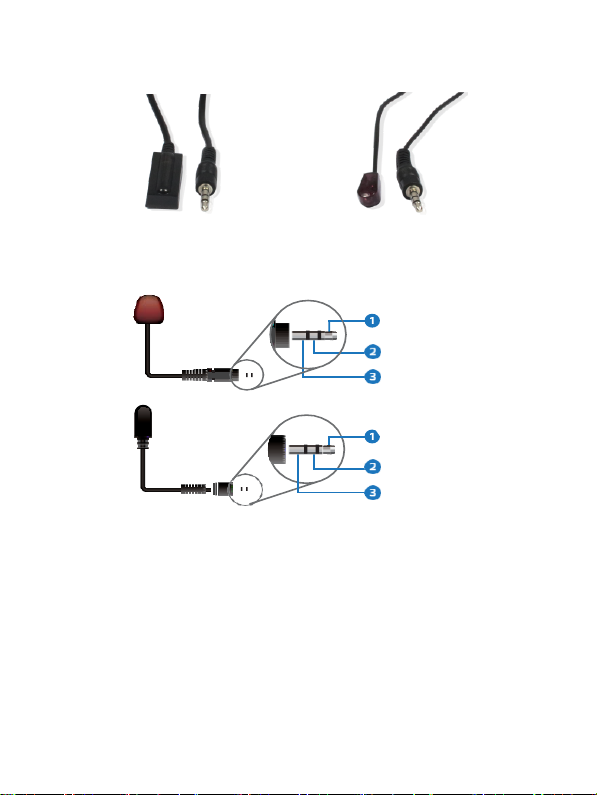

5.4 IR Pin Definition
IR Receiver and Blaster pin’s definition as below:
IR RECEIVER IR BLASTER
IR Blaster Signal
Power
NC
IR Signal
Power
Grounding
Note: IR remote sends signal at the distance of 0~5 meters / 0~8 meters with
the angle of ± 45° in vertical direction.
IR Blaster
IR Receiver

8 / 10
TX RX
ARC SPDIF
USB 2.0
USB 2.0 SWITCH
6. Application Example
PC1
SERVICE
Transmitter
ARC SP DIF
USB HOST SWITCH
DC 24V HDBT OUT HDMI IN IR IN IR OUT L/R OUT SPDIF OUT RS -232 LAN
LAN
LAN
Audio Amplifier
TP -LINK
Power Supply
DVD or Blu-ray Player
IR Blaster
IR Receiver
HDMI Matrix with
RS-232 function
Router
CAT5e/6 cable 2.0 Speakers
IR Receiver
IR Blaster
PC3
PC2
UHDTV
Receiver
DC 24V
HDBT IN HDMI OUT IR I N IR OUT
SPDIF I N
TX RX
RS-232
LAN
Mouse Keyboard
SERVICE

9 / 10
7. Second Year Assurance
BZB Gear wants to assure you peace of mind. We're so confident in the
quality of our products that along with the manufacturer's one-year limited
warranty, we are offering free second-year warranty coverage upon
registration*.
Taking advantage of this program is simple, just follow the steps below:
1. Register your product within 90 days of purchase by visiting
BZBGear.com/warranty.
2. Complete the registration form. Provide all necessary proof of purchase
details, including serial number and a copy of your sales receipt.
For questions, please call 1.888.660.2962 or email [email protected]m.
For complete warranty information, please visit BZBGear.com/warranty or
scan the QR code below.
*Terms and conditions apply. Registration is required.

10 / 10
8. Mission Statement
BZB Gear manifests from the competitive nature of the audiovisual industry
to innovate while keeping the customer in mind. AV solutions can cost a
pretty penny, and new technology only adds to it. We believe everyone
deserves to see, hear, and feel the advancements made in today’s AV world
without having to break the bank. BZB Gear is the solution for small to
medium-sized applications requiring the latest professional products in AV.
We live in a DIY era where resources are abundant on the internet. With that
in mind, our team offers system design consultation and expert tech support
seven days a week for the products in our BZB Gear catalog. You’ll notice
comparably lower prices with BZB Gear solutions, but the quality of the
products is on par with the top brands in the industry. The unparalleled
support from our team is our way of showing we care for every one of our
customers. Whether you’re an integrator, home theater enthusiast, or a do-it-
yourselfer, BZB Gear offers the solutions to allow you to focus on your
project and not your budget.
