BZB Gear BG-AEE User manual

BG-AEE
4K UHD 18Gbps HDMI Signal Fixer and Audio Embedder/Extractor
User Manual

BZBGEAR BG-AEE PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 2

BZBGEAR BG-AEE PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 7
Panel Description 7
Application Diagram 8
Tech Support 9
Warranty 10
Mission Statement 11
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 3

BZBGEAR BG-AEE PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
●The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
●Do not expose the product to rain or moisture.
●To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
●Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
●This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
●Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 4

BZBGEAR BG-AEE PRODUCT MANUAL
Introduction
The BG-AEE is an HDMI 2.0 Audio Extractor and Embedder. It has two modes: audio
extraction via L/R output from HDMI input source, and the other mode is for removing the
original audio of HDMI source and embedding auxiliary audio via L/R input to the HDMI
output. It also features EDID dip switches with the ability to lock the video signal to various
formats to ensure signal quality.
Features
●4K@50Hz/60Hz 4:4:4 , HDR and full 3D format
●HDCP 2.2/HDCP 1.x and DVI compliant
●Audio embed to HDMI output
●Audio de-embedded from HDMI input
●EDID management
●HDCP management
●CEC and ARC pass through
●Relock and enhance output signal quality
●All PCM, Dolby and DTS audio formats pass through
●ESD protection
Packing List
●1x BG-AEE
●1x 5V/1A Power Supply
●1x Pair of Rack-mount Ears
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 5

BZBGEAR BG-AEE PRODUCT MANUAL
Specifications
Bandwidth
18Gbps
Video Input Connectors
1x HDMI Type A, 19-pin, female
Audio Input Connectors
1x 3.5mm stereo earphone jack (L/R)
Video Output Connectors
1x HDMI Type A, 19-pin, female
Audio Output Connectors
1x 3.5mm stereo earphone jack (L/R)
EDID
4-pin DIP Switcher
Mode
4-pin DIP Switcher
Dimensions(W x D x H)
83mm x 83mm x 17mm, without feet
Shipping Weight
0.3KG
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
- 4°F to 140°F (- 20°C to 60°C)
Power Supply
5V/1A DC
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 6

BZBGEAR BG-AEE PRODUCT MANUAL
Operation Controls and Functions

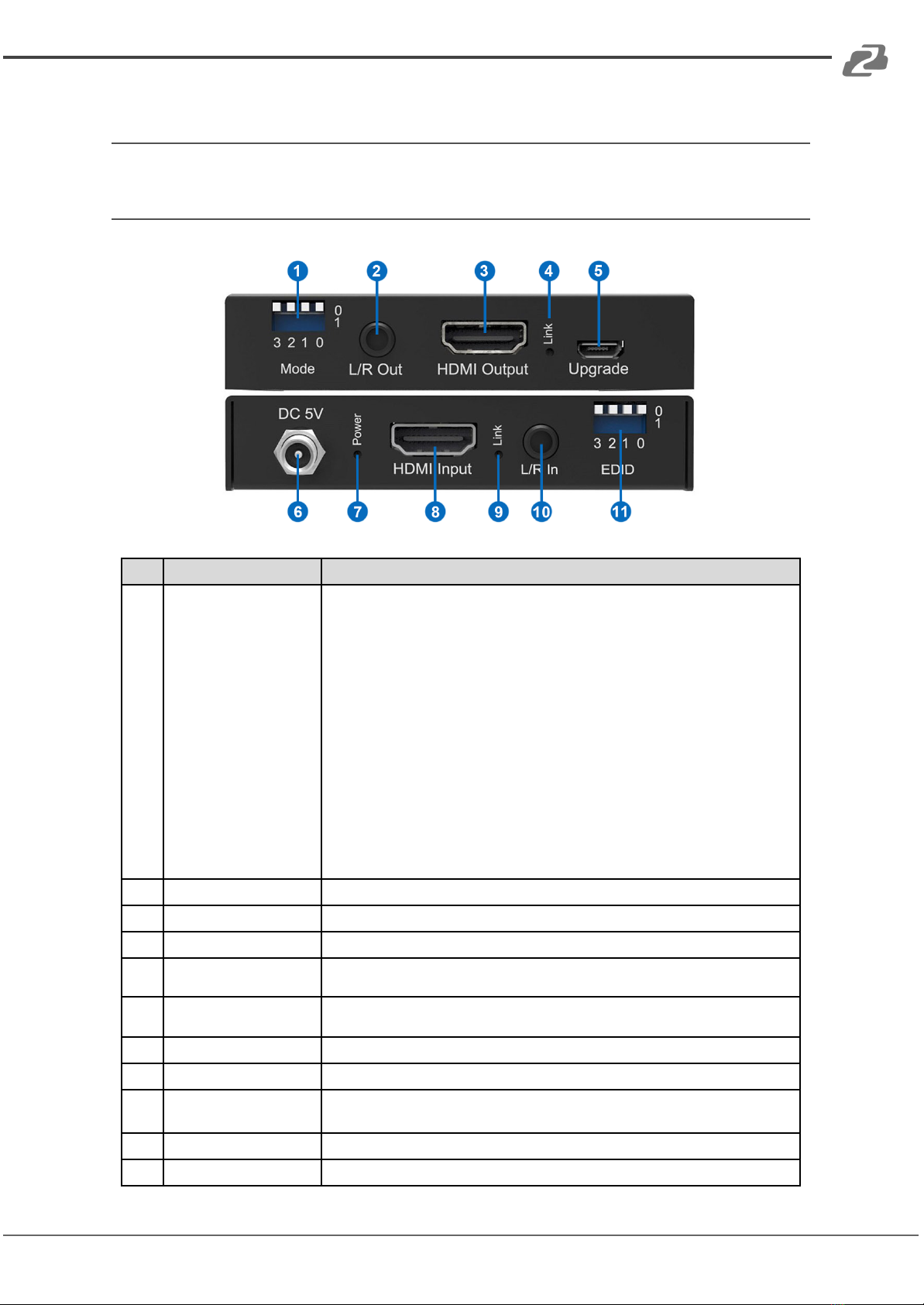

Panel Description
No.
Name
Function Description
1
Mode DIP Switch
4 pin (UP=0, DOWN=1). The BG-AEE can be configured to perform various tasks
using the mode DIP switches. Detailed settings please see below:
A. Under control by DIP switch, the position of DIP Switch-0 should be UP (0).
DIP Switch-3 - Selectable to convert HDMI signal to output.
●Position=0 (UP) - Auto convert 6G (4:4:4) format to 3G (4:2:0) when
detected sink does not support 6G (4:4:4).
●Position=1 (DOWN) - Always convert 6G (4:4:4) format to 3G (4:2:0).
DIPSwitch-2 - HDCP management.
●Position=0 (UP) - HDCP follows sink.
●Position=1 (DOWN) - HDCP follow source.
DIP Switch-1 - Audio embedding and bypass.
●Position=0 (UP) - Audio bypass.
●Position=1 (DOWN) - Audio embedding (L/R input added to the HDMI
Output).
B. Under control by serial USB mode, the position of DIP Switch-0 should be DOWN
(1). DIP Switch-1/2/3 - reserved or not in use.
2
L/R Out
Extract the audio from the HDMI input
3
HDMI Output
Connect to HDMI sink device
4
LED Link for HDMI output
Lit when detecting HDMI signal
5
Upgrade
Micro USB port for F/M upgrade and terminal API control
6
DC Power Input
Screw locking connector, use the included 5V/1A DC adapter to power the unit
7
LED Indicator for Power
Lit blue light when getting power
8
HDMI Input
Connect to HDMI source device
9
LED Indicator for HDMI
Input
Lit when detecting HDMI signal
10
L/R In
Embed the audio to HDMI output
11
DIP Switcher
EDID management
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 7

BZBGEAR BG-AEE PRODUCT MANUAL
3
2
1
0
EDID type
Combination of DIP positions
0
0
0
0
Copy EDID from output
0
0
0
1
1080P 2.0CH
0
0
1
0
1080P 5.1CH
0
0
1
1
1080P 7.1CH
0
1
0
0
1080i 2.0CH
0
1
0
1
1080i 5.1CH
0
1
1
0
1080i 7.1CH
0
1
1
1
4K60Hz 4:2:0 2.0CH
1
0
0
0
4K60Hz 4:4:4 2.0CH,
1
0
0
1
4K60Hz 4:4:4 7.1CH
1
0
1
0
4K30Hz 4:4:4 2.0CH
1
0
1
1
4K30Hz 4:4:4 5.1CH
1
1
0
0
4K30Hz 4:4:4 7.1CH
1
1
0
1
DVI 1280x1024
1
1
1
0
DVI 1920x1080
1
1
1
1
DVI 1920x1200

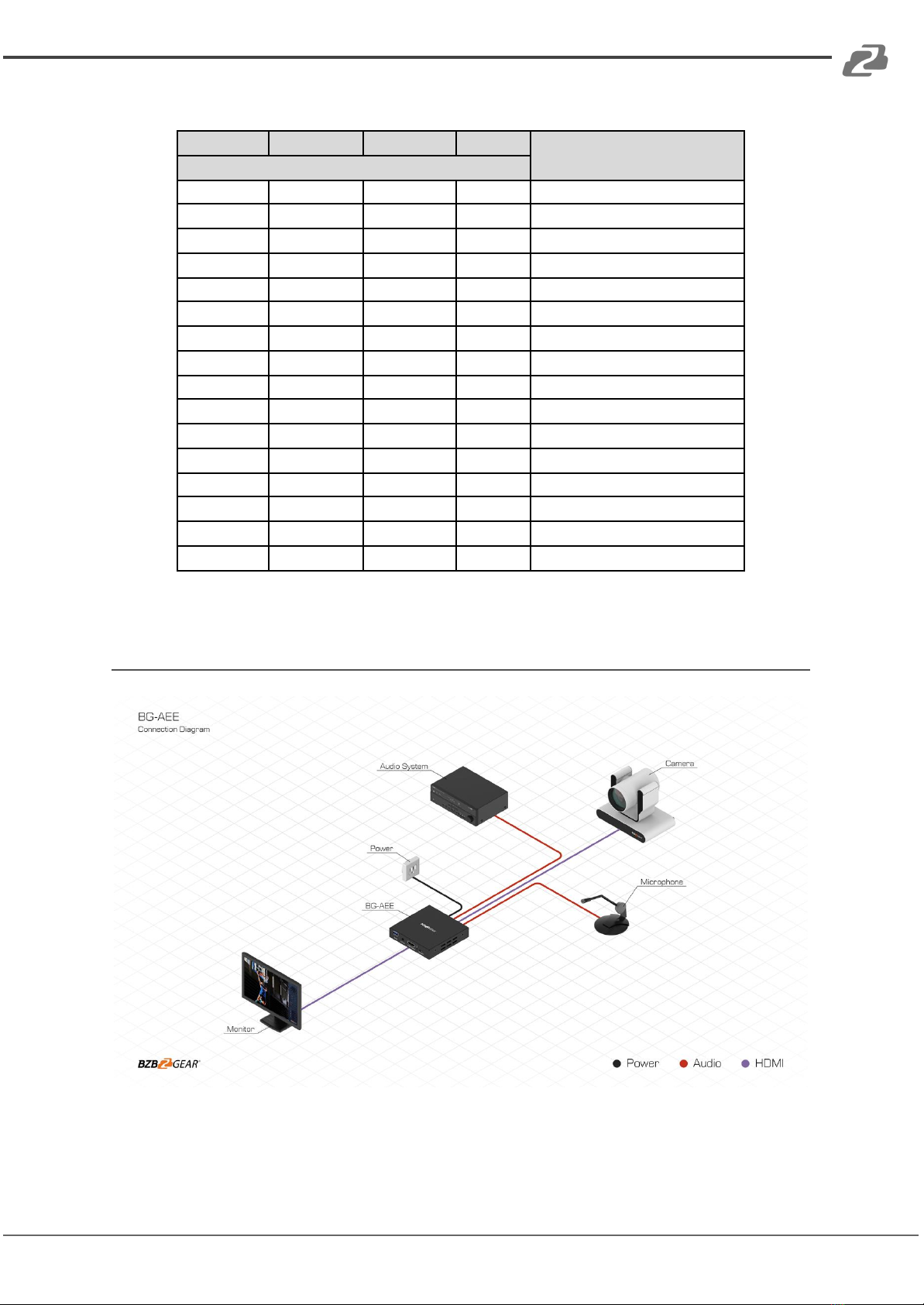

Application Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 8

BZBGEAR BG-AEE PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
[e-mail]
Live Chat
bzbgear.com
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 9

BZBGEAR BG-AEE PRODUCT MANUAL
Warranty
BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended
two-year warranty is available for our cameras upon registration for a total of five years.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email [e-mail].
