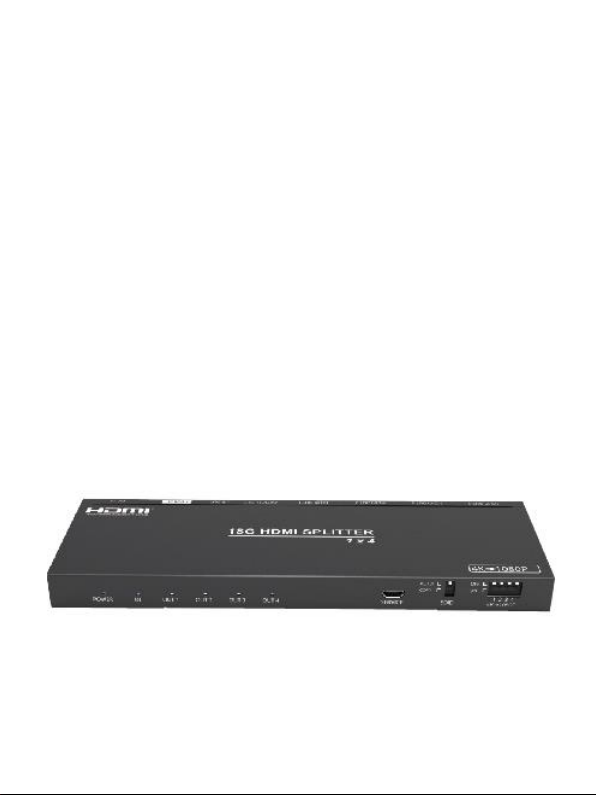

C4i HDV-B14SA User manual
1x4 HDMI 2.0 Splitter with
Scaler/Audio Extract
VER 1.0
1
Thank you for purchasing this product
For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may
be damaged by electrical spikes, surges, electric shock, lighting
strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your
equipment.
2
Table of Contents
1. Introduction .................................................................... 4
2. Features .......................................................................... 4
3. Package Contents ............................................................ 6
4. Specifications .................................................................. 6
5.Operation Controls and Functions ..................................... 9
5.1 Front Panel............................................................. 9
4
1. Introduction
The 1x4 HDMI 2.0 Splitter simultaneously one route HDMI
source to four routes HDMI display. It supports resolution up to
4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio
extract from HDMI source to optical and analog output. It can
be selected COPY, AUTO modes EDID setting. Output supports
bypass and downscaler(4K->1080P) function.
2. Features
☆HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
☆Supports HDMI resolution the maximum up to
4K2K@50/60Hz (4:4:4)
5
☆Supports digital and analog audio extract output from
HDMI source.
☆Supports output bypass and 4K->1080P downscaler
function via dial switch on panel.
☆EDID can be selected COPY and AUTO modes via dial
switch on panel.
(COPY: It copys OUT 1 port EDID setting to all outputs
port, If no HDMI OUT 1 capable EDID is detected then the
unit will copy HDMI OUT 2. If no HDMI OUT 1~2 capable
EDID is detected then the unit will copy HDMI OUT 3...etc.
The priority order is OUT 1 to OUT 4.
AUTO: Compare OUT 1~OUT 4 EDID setting and output
the best resolution to all outputs).
☆Supports analog audio PCM 2.0.
☆Supports optical audio pass-through format about LPCM
6
2.0/2.1/5.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS
5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1.
3. Package Contents
①1×1×4 HDMI 2.0 Splitter
②1×5V/1A Power Adapter
③1×User Manual
4. Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Video Bandwidth
18Gbps
Video Resolutions
720P50/60Hz, 1080P50/60Hz, 4K2K24Hz,
4K2K30Hz, 4K2K@50/60Hz (4:4:4)
7
Color Depth
4K60Hz 8-bit, 1080P 12-bit
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True
HD, DTS, DTS-EX, DTS-96/24, DTS High
Res, DTS-HD Master Audio, DSD
L/R Audio Formats
PCM 2.0
Optical Audio Formats
LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True
HD,Dolby DD+, DTS 5.1, DTS-ES 6,
DTS-HDMA 5.1, DTS HD-HRA 5.1
ESD Protection
Human-body Model：
±8kV (Air-gap discharge) , ±4kV
(Contact discharge)
Connections
Input ports
1×HDMI Type A [19-pin female]
Output ports
4×HDMI Type A [19-pin female]
1×L/R Audio out [3.5mm Stereo
Mini-jack]
1×Optical out [S/PDIF]
Mechanical
8
Housing
Metal Enclosure
Color
Black
Dimensions
180mm(W)×62mm(D)×14mm(H)
Weight
227g
Power Supply
Input: AC100~240V 50/60Hz, Output:
DC5V/1A
(US/EU standards, CE/FCC/UL certified)
Power Consumption
3.5W (max)
Operating
Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)
9
5.Operation Controls and Functions
5.1 Front Panel
Number
Name
Function description
1
POWER LED
This blue LED will illuminate when the unit has
connected power supply.
2
HDMI
INPUT LED
This blue LED will illuminate when the HDMI
IN has connected an active HDMI source
device with a HDMI cable.
3
HDMI
OUTPUT
LED
These blue LEDs will illuminate when the
HDMI OUT port has connected an avtice
display device with a HDMI cable.
4
SERVICE
Fireware update used. (Manufacturer use
10
port
only.)
5
EDID
•AUTO: Compare the EDID setting of the
HDMI OUT 1~ 4 port display device, then
transmit the best EDID signal to source device,
the source device will transmit again the
EDID signal to all outputs.
•COPY: Copy the HDMI OUT 1 port EDID
setting to source device(If no HDMI OUT 1
capable EDID is detected then the unit will
copy HDMI OUT 2. If no HDMI OUT 1~2
capable EDID is detected then the unit will
copy HDMI OUT 3...etc. The priority order is
OUT 1 to OUT 4 ), the source device will
transmit again the signal to all outputs.
6
Dial switch
(4K→
1080P)
OFF: When the dial switch is dialled in ‘OFF’
position, signal input and output is bypass
status.
ON: When the dial switch is dialled in ‘ON’
position,signal input will
downscale(4k->1080P ) output.
11

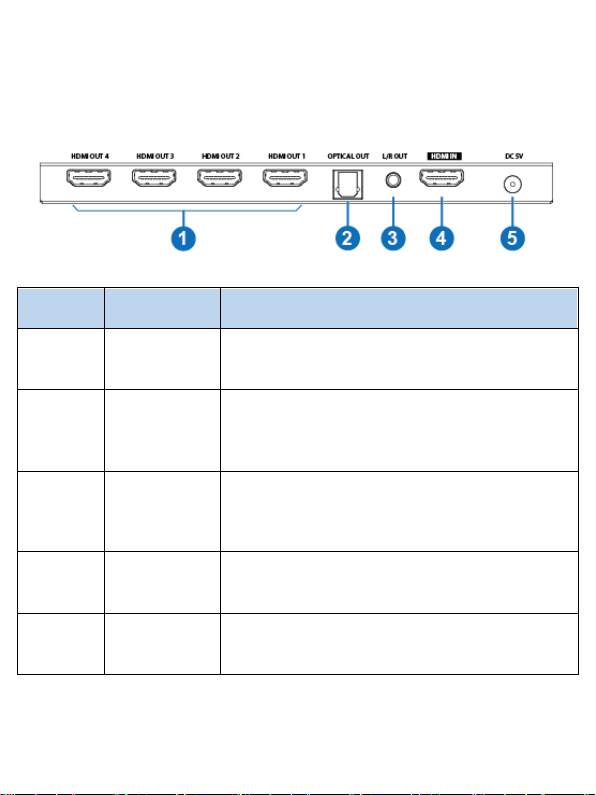

5.2 Rear Panel
Number
Name
Function description
1
HDMI
OUTPUT
Connect to HDMI display device such as TV or
monitor.
2
OPTICAL
OUT
Optical audio output.
(This port outputs audio from HDMI IN port.)
3
L/R OUT
Analog audio output.
(This port outputs audio from HDMI IN port.)
4
HDMI IN
Connect to HDMI source device such as DVD
player or PS4.
5
DC 5V
Plug the 5V/1A DC power supply into the unit
and connected the adapter to an AC outlet.
12
6. Application Example
