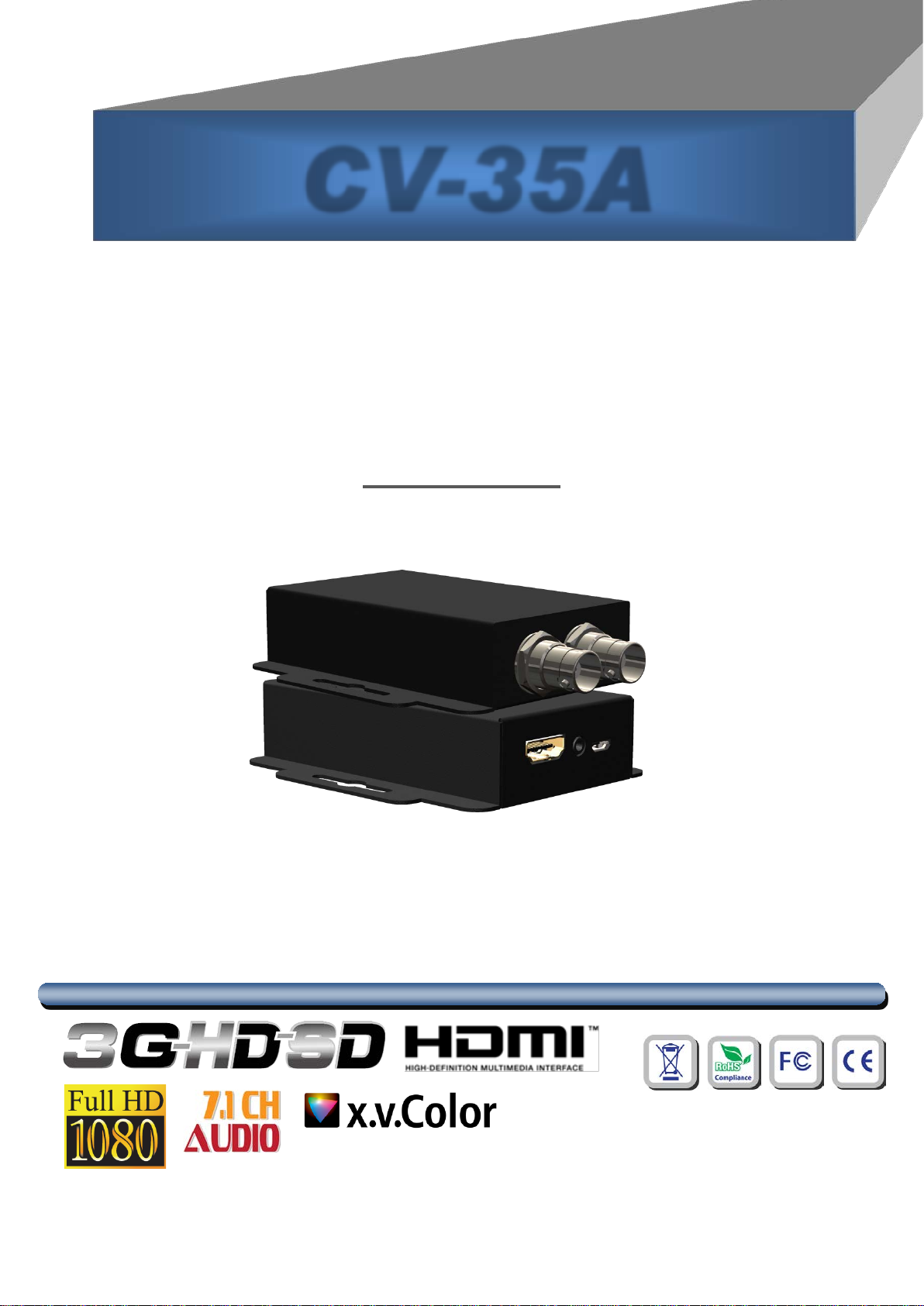

C4i CV-35A User manual
3G/HD/SD-SDI to HDMI Converter with
Audio Extractor
User Manual
rev: 180712
Made in Taiwan
CV-35A
Safety and Notice
The CV-35A 3G/HD/SD-SDI to HDMI Converter with Audio Extractor has been tested for
conformance to safety regulations and requirements, and has been certified for international use.
However, like all electronic equipment, the CV-35A should be used with care. Please read and follow
the safety instructions to protect yourself from possible injury and to minimize the risk of damage to
the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION ...............................................................................................................1
FEATURES........................................................................................................................1
PACKAGE CONTENTS...................................................................................................1
SPECIFICATIONS..............................................................................................................2
PANEL DESCRIPTION ......................................................................................................3
CONNECTION DIAGRAM..................................................................................................4
SUPPORTED RESOLUTIONS...........................................................................................5
WARRANTY.......................................................................................................................6
SIGNAL MEASUREMENT.................................................................................................. 7
1
INTRODUCTION
The CV-35A 3G/HD/SD-SDI to HDMI Converter with Audio Extractor provides a cost effective way to
convert 3G/HD/SD-SDI signal to HDMI compliant format. The conversion between SDI and HDMI is pure
digital and guarantees no loss transformation for both audio and video. Plus, with up to 8 channels audio
support, 7.1 channel or 5.1 channel audio becomes available. The CV-35A also provides one low jitter
SDI local loop-out and high quality analog stereo output to provide the flexibility to users. With the use of
CV-35A, the most popular uncompressed video interface in the consumer world is readily available for
professional SDI equipment!
FEATURES
●Supported high-definition (HD) formats:
NTSC 525@59.94, PAL 625@50, 720p@50,[email protected], 720p@60, 1080i@50, [email protected],
Bit Rate: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835 Gbps, 270 Mbps
●Auto 3G/HD/SD-SDI detection
●Supports HDMI Deep Color
●Supports stereo audio output
●One SDI compliant output and one HDMI compliant output
PACKAGE CONTENTS
●1x CV-35A
●1x 5V/2A power adapter
●1x User Manual
2
SPECIFICATIONS
Model Name CV-35A
Technical
SDI standards 3G-SDI & HD-SDI & SD-SDI
HDMI standards HDMI 1.3
Auto 3G/HD/SD-SDI
detection
Yes
Video bandwidth [SDI][2.97Gpbs & 2.975/1.001Gbps]
[HDMI] [6.75Gbps]
Video support
[3G] 1080p50/59.94/60 (4:2:2)
[HD] – 720p @50/59.94/60Hz,1080i @50/59.94/60Hz,
1080p @23.98/24/25/29.97/30Hz
[SD] – NTSC @59.94Hz, PAL @50Hz
[HDMI ] up to 1080p60
Input signal 1x SDI
Output signal 1x HDMI + 1x SDI +1x 3.5mm(Audio)
Output impedance(SDI) 75Ω
Synchronization mode Internal synchronization or external synchronization
Eye pattern characteristics Extra low alignment jitter 0.05UI at HD
Cable equalization
[3G-SDI] up to 90m (300ft)
[HD-SDI] up to 150m (500ft)
[SD-SDI] up to 300m (1000ft)
Audio extractor support Support 2ch
PCB stack-up
4-layer board [impedance control — differential 100
Ω
; single 50
Ω
]
Input 1x BNC [SDI]
Output 1x HDMI + 1x BNC [SDI] + 1 x 3.5mm
BNC connector
75
Ω
inter-locked socket
HDMI connector Type A [19-pin female]
Mechanical
Housing
Dimensions
[L x W x H]
Model 92 x 84 x 23mm[3.7" x 3.3" x 0.9" ]
Package 198 x 137 x 74mm [7.8" x 5.4" x 2.9"]
Carton 420 x 400 x 300mm [1'4"x 1'3" x 11.8"]
Weight Model 175g[6.2 oz]
Package 390g[13.8 oz]
Power supply 5V 2A DC
Power consumption 2.5 Watts [max]
Operation temperature
0~40
°
C [32~104
°
F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
3
PANEL DESCRIPTION
Front Panel
1. SDI IN: 3G/HD/SD-SDI Input
2. LED: Power LED indicator
3. SDI OUT: 3G/HD/SD-SDI loopout
4. LED: Signal LED indicator
Rear Panel
5. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable here.
6. Stereo Audio Output
7. +5V DC: Connect to a 5V DC power supply.
4
CONNECTION DIAGRAM
5
SUPPORTED RESOLUTIONS
3G-SDI Output
1080p @ 50/ 59.94 / 60Hz SMPTE 424M, SMPTE 425M
HD-SDI Output
720p @ 50Hz SMPTE 296M -3
720p @ 60 / 59.94Hz SMPTE 296M -1, -2
1080i @ 50Hz SMPTE 274M -6
1080i @ 60 / 59.94Hz SMPTE 274M -4, -5
1080p @ 24 / 23.98Hz SMPTE 274M -10, -11
1080p @ 25Hz SMPTE 274M -9
1080p @ 30 / 29.97Hz SMPTE 274M -7, -8
SD-SDI Output
NTSC
PAL B,D,G,H,I
6
WARRANTY
The SELLER warrants the CV-35A 3G/HD/SD-SDI to HDMI Converter with Audio
Extractor to be free from defects in the material and workmanship for 1 year from the date of
purchase from the SELLER or an authorized dealer. Should this product fail to be in good
working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit,
provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized
modifications including static discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current price
of parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the
day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the
unit or assume the risk of loss or damage in transit. Under no circumstances will a unit be
accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without
limitations, any other implied warranty or fitness or merchantability for any particular purpose, all
of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables are limited to a 30 day
warranty and cable must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate.
However, The SELLER assumes no responsibility for any inaccuracies that may be contained in
this manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or
consequential damages resulting from any defect or omission in this manual, even if advised of
the possibility of such damages. Also, the technical information contained herein regarding
the CV-35A features and specifications is subject to change without further notice.
7

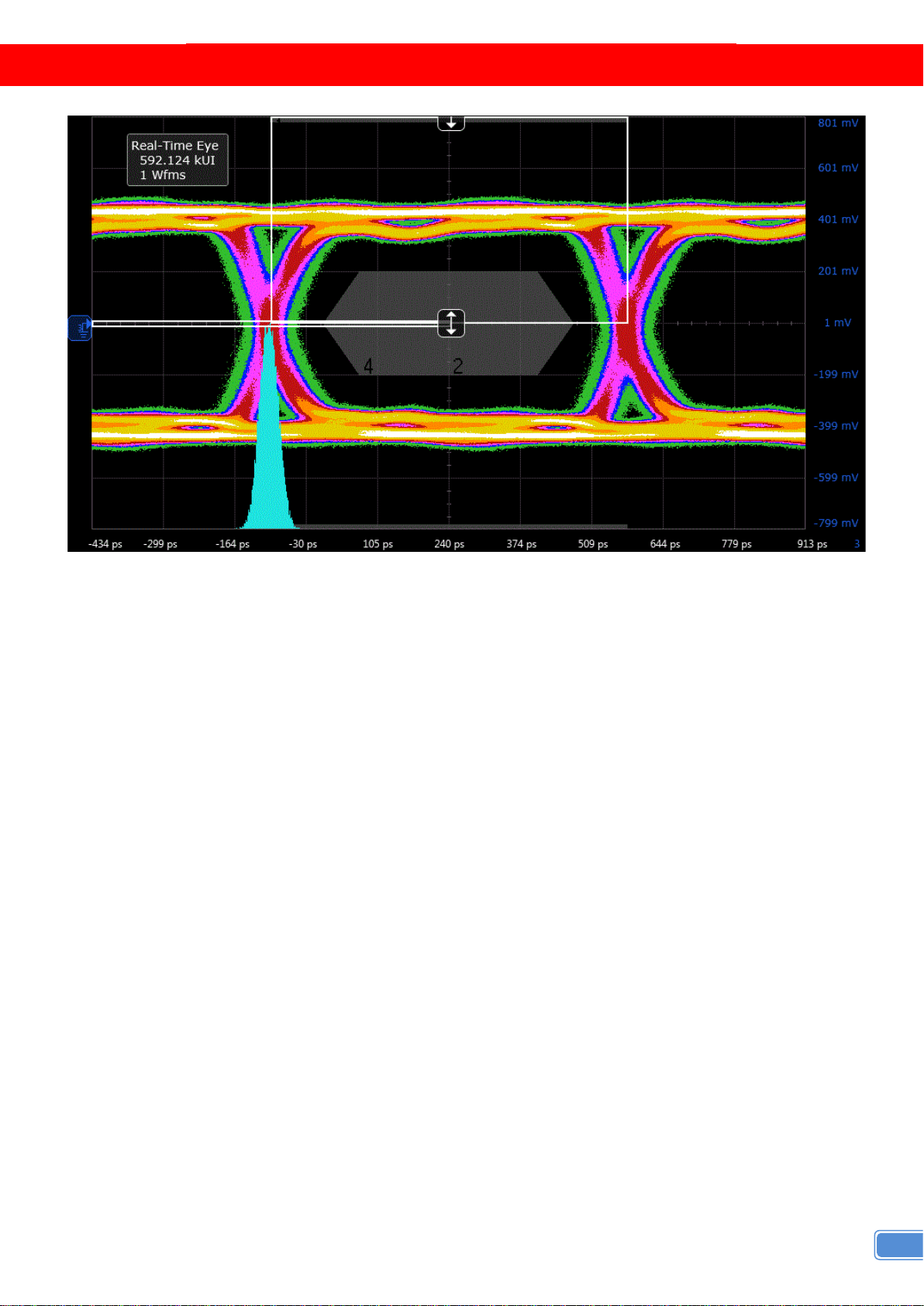

SIGNAL MEASUREMENT
